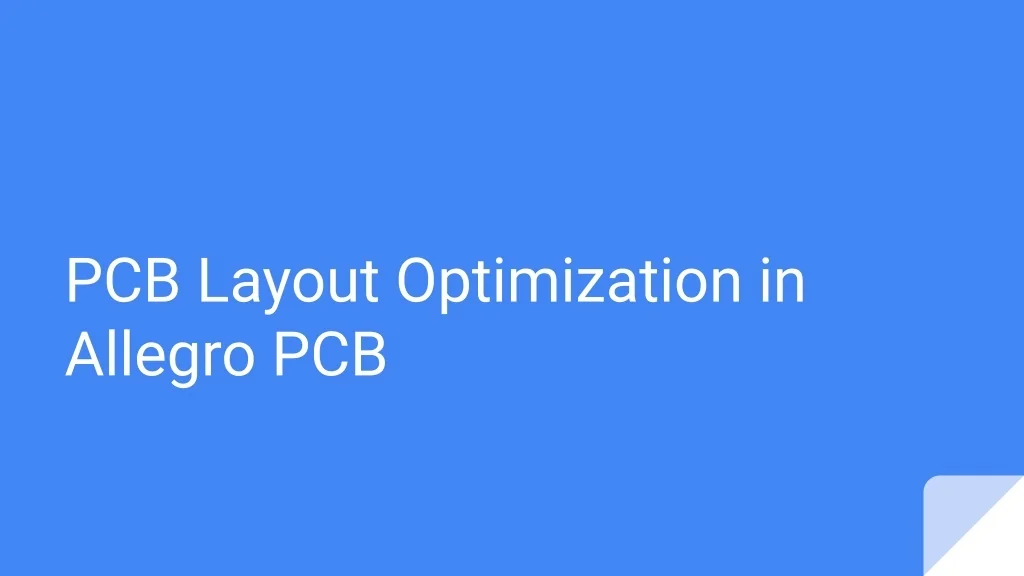

  1. PCB Layout Optimization in Allegro PCB

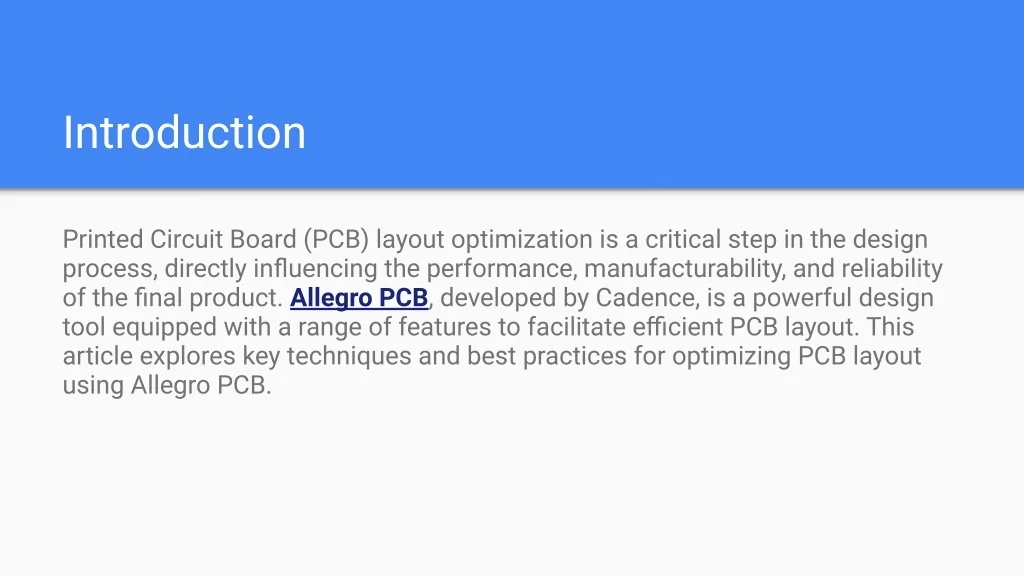

  2. Introduction Printed Circuit Board (PCB) layout optimization is a critical step in the design process, directly influencing the performance, manufacturability, and reliability of the final product. Allegro PCB, developed by Cadence, is a powerful design tool equipped with a range of features to facilitate efficient PCB layout. This article explores key techniques and best practices for optimizing PCB layout using Allegro PCB.

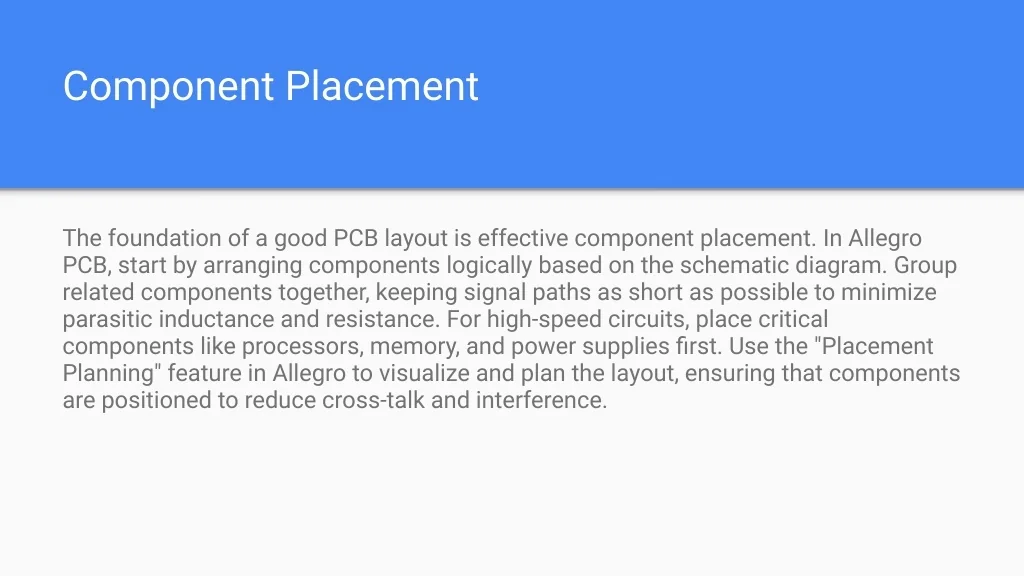

  3. Component Placement The foundation of a good PCB layout is effective component placement. In Allegro PCB, start by arranging components logically based on the schematic diagram. Group related components together, keeping signal paths as short as possible to minimize parasitic inductance and resistance. For high-speed circuits, place critical components like processors, memory, and power supplies first. Use the "Placement Planning" feature in Allegro to visualize and plan the layout, ensuring that components are positioned to reduce cross-talk and interference.

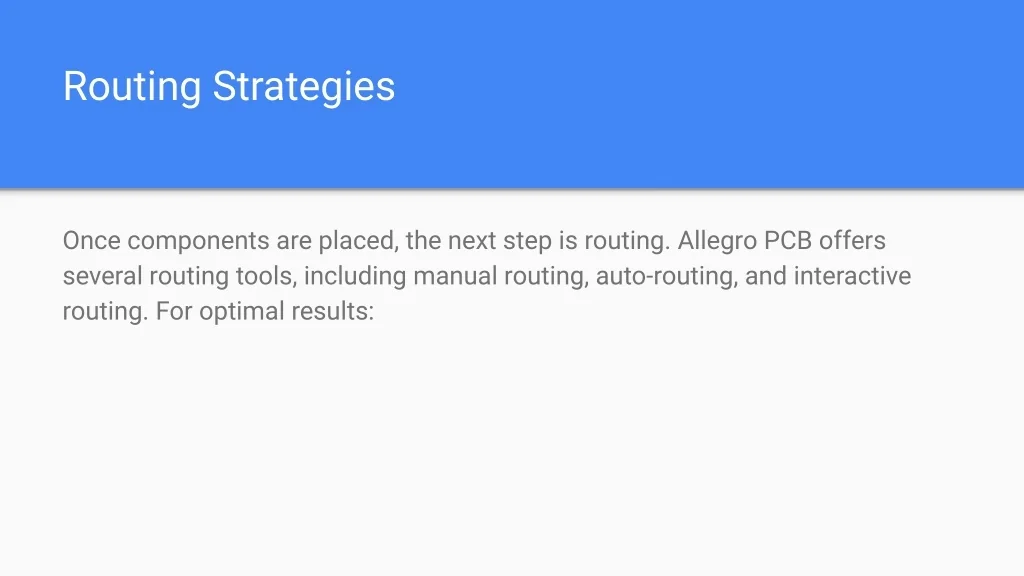

  4. Routing Strategies Once components are placed, the next step is routing. Allegro PCB offers several routing tools, including manual routing, auto-routing, and interactive routing. For optimal results:

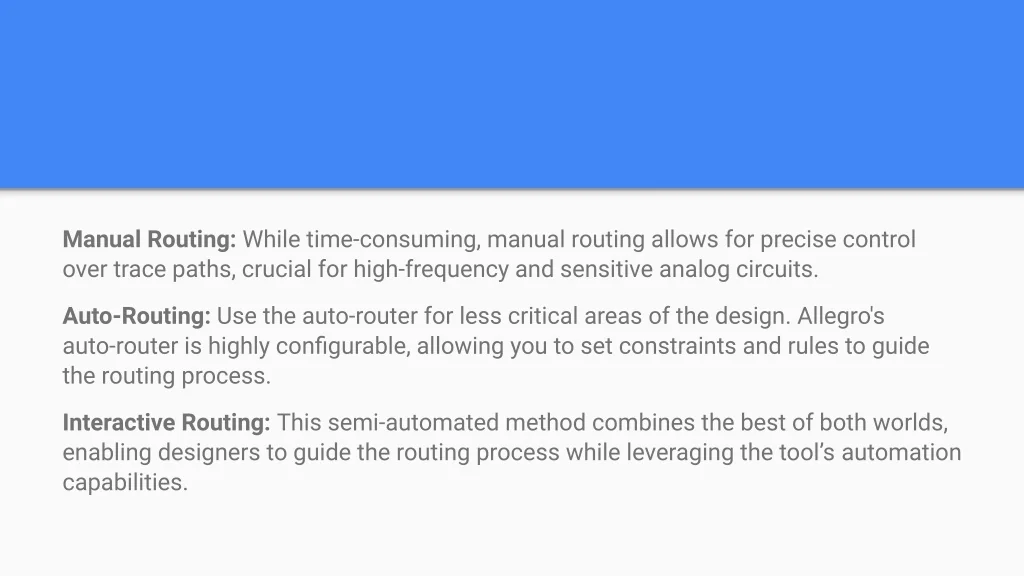

  5. Manual Routing: While time-consuming, manual routing allows for precise control over trace paths, crucial for high-frequency and sensitive analog circuits. Auto-Routing: Use the auto-router for less critical areas of the design. Allegro's auto-router is highly configurable, allowing you to set constraints and rules to guide the routing process. Interactive Routing: This semi-automated method combines the best of both worlds, enabling designers to guide the routing process while leveraging the tool’s automation capabilities.

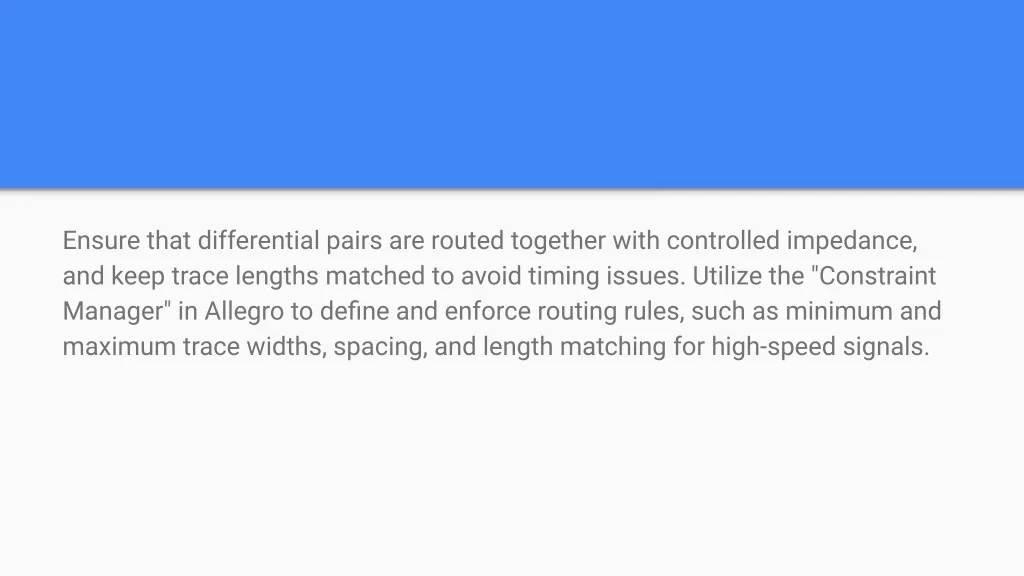

  6. Ensure that differential pairs are routed together with controlled impedance, and keep trace lengths matched to avoid timing issues. Utilize the "Constraint Manager" in Allegro to define and enforce routing rules, such as minimum and maximum trace widths, spacing, and length matching for high-speed signals.

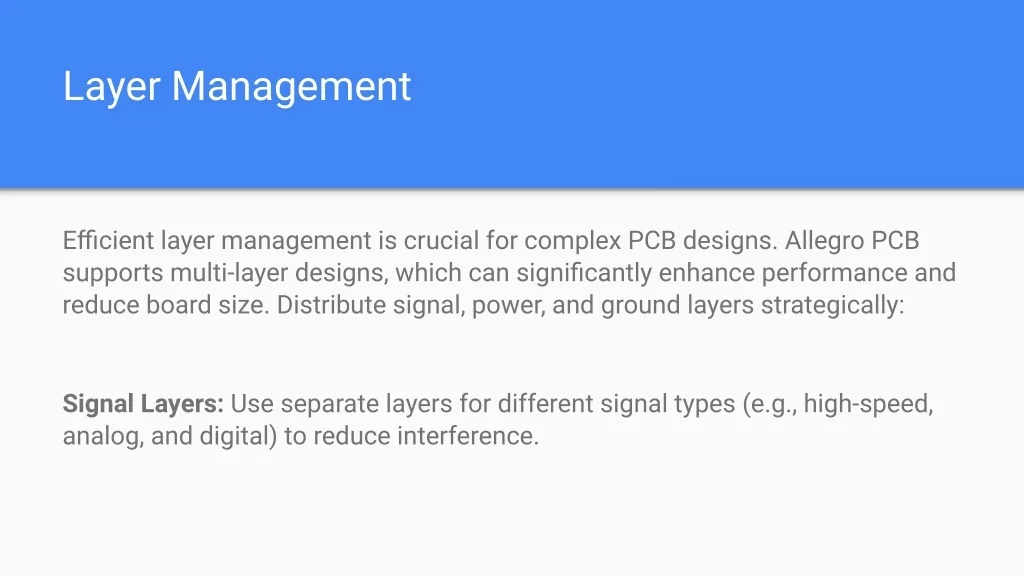

  7. Layer Management Efficient layer management is crucial for complex PCB designs. Allegro PCB supports multi-layer designs, which can significantly enhance performance and reduce board size. Distribute signal, power, and ground layers strategically: Signal Layers: Use separate layers for different signal types (e.g., high-speed, analog, and digital) to reduce interference.

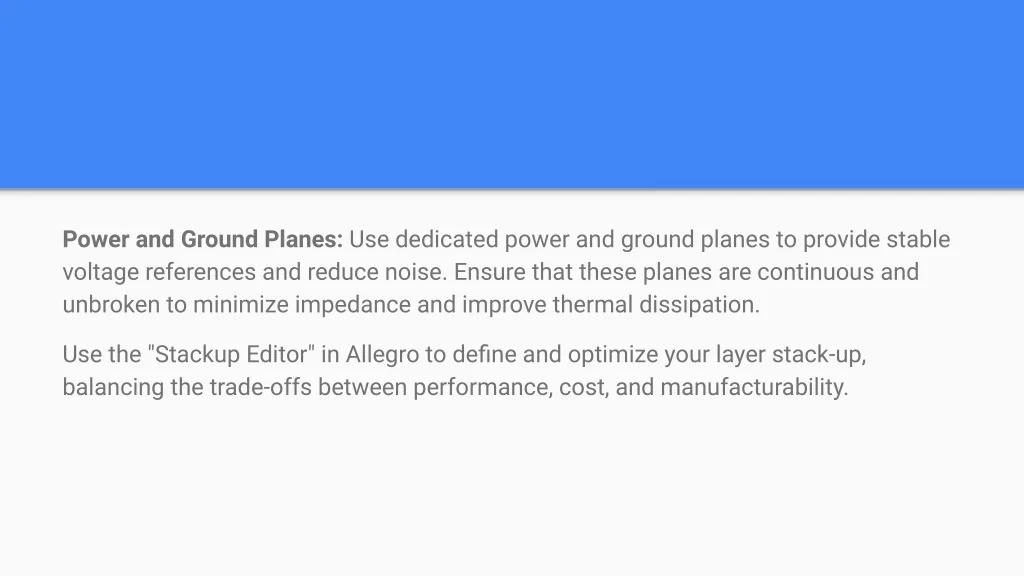

  8. Power and Ground Planes: Use dedicated power and ground planes to provide stable voltage references and reduce noise. Ensure that these planes are continuous and unbroken to minimize impedance and improve thermal dissipation. Use the "Stackup Editor" in Allegro to define and optimize your layer stack-up, balancing the trade-offs between performance, cost, and manufacturability.

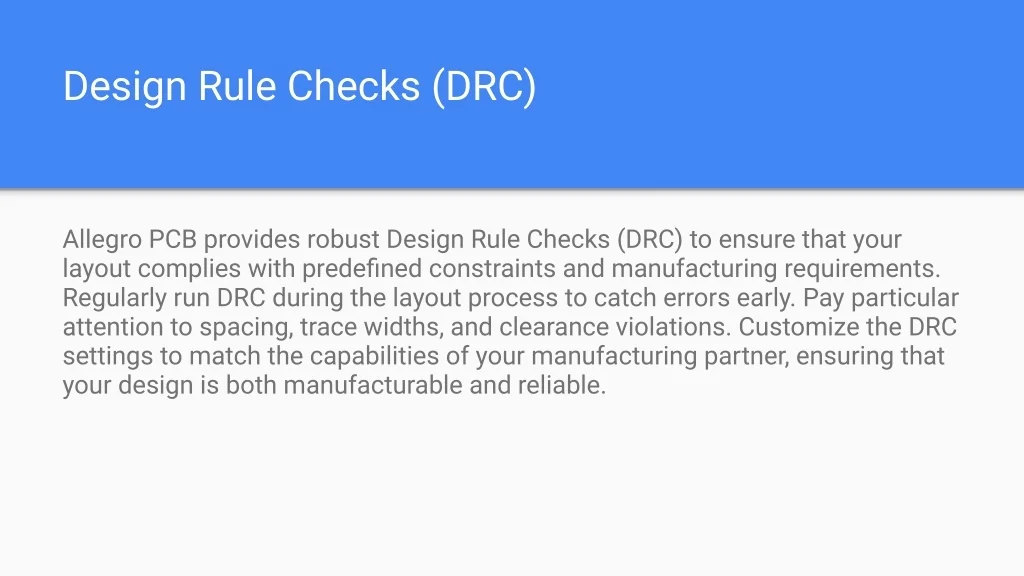

  9. Design Rule Checks (DRC) Allegro PCB provides robust Design Rule Checks (DRC) to ensure that your layout complies with predefined constraints and manufacturing requirements. Regularly run DRC during the layout process to catch errors early. Pay particular attention to spacing, trace widths, and clearance violations. Customize the DRC settings to match the capabilities of your manufacturing partner, ensuring that your design is both manufacturable and reliable.

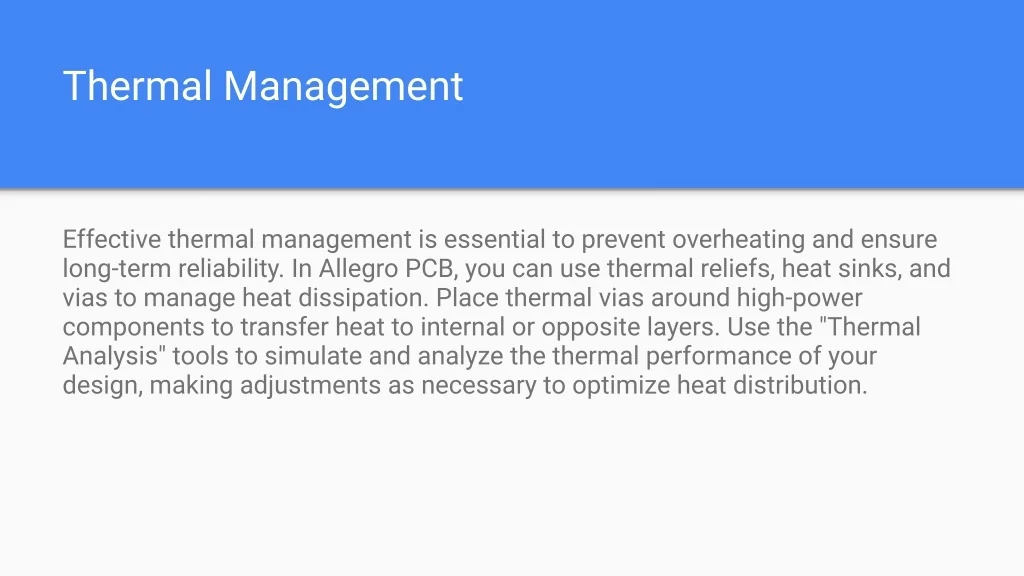

  10. Thermal Management Effective thermal management is essential to prevent overheating and ensure long-term reliability. In Allegro PCB, you can use thermal reliefs, heat sinks, and vias to manage heat dissipation. Place thermal vias around high-power components to transfer heat to internal or opposite layers. Use the "Thermal Analysis" tools to simulate and analyze the thermal performance of your design, making adjustments as necessary to optimize heat distribution.

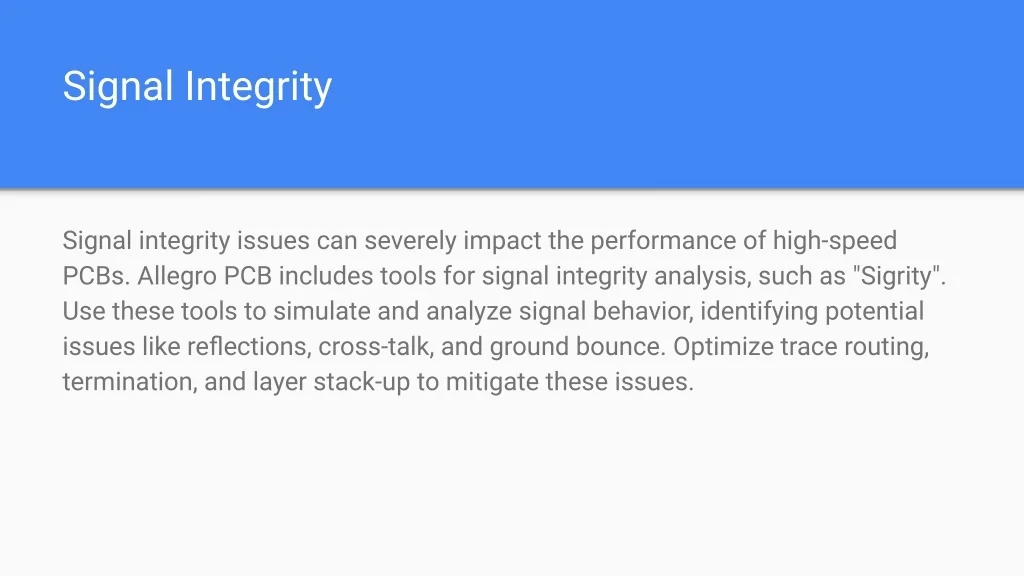

  11. Signal Integrity Signal integrity issues can severely impact the performance of high-speed PCBs. Allegro PCB includes tools for signal integrity analysis, such as "Sigrity". Use these tools to simulate and analyze signal behavior, identifying potential issues like reflections, cross-talk, and ground bounce. Optimize trace routing, termination, and layer stack-up to mitigate these issues.

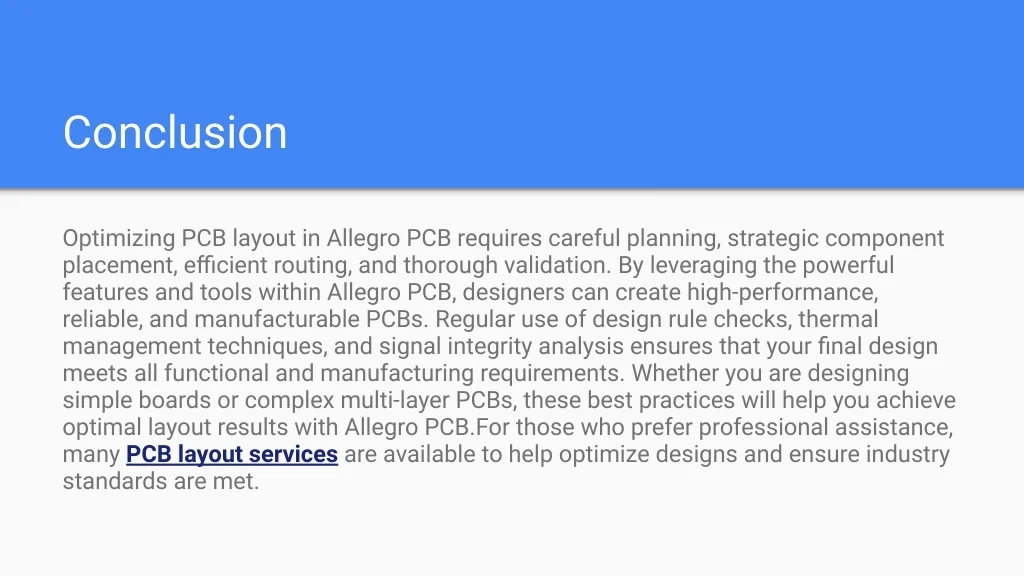

  12. Conclusion Optimizing PCB layout in Allegro PCB requires careful planning, strategic component placement, efficient routing, and thorough validation. By leveraging the powerful features and tools within Allegro PCB, designers can create high-performance, reliable, and manufacturable PCBs. Regular use of design rule checks, thermal management techniques, and signal integrity analysis ensures that your final design meets all functional and manufacturing requirements. Whether you are designing simple boards or complex multi-layer PCBs, these best practices will help you achieve optimal layout results with Allegro PCB.For those who prefer professional assistance, many PCB layout services are available to help optimize designs and ensure industry standards are met.
