Exceptional Sound Quality for Ambitious Concert Applications: The C8 COBRA System

Experience unmatched audio performance with the C8 COBRA System, designed for ambitious concert sound applications. Its outstanding sound quality boasts large, comb-filter-free horizontal coverage and impressive long-throw capabilities. The innovative design minimizes distortion, ensuring extremely natural sound imaging and excellent intelligibility. With features like sophisticated active electronic circuitry, 1200 Watts of maximum amplifier power, and enhanced feedback resistance, this system is built for superior acoustic delivery. Elevate your sound experience today with an expertly engineered solution that prioritizes performance and reliability.

abiba
Télécharger la présentation

Exceptional Sound Quality for Ambitious Concert Applications: The C8 COBRA System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Friendly Weapon

  2. Be prepared ....

  3. Pat.pend.

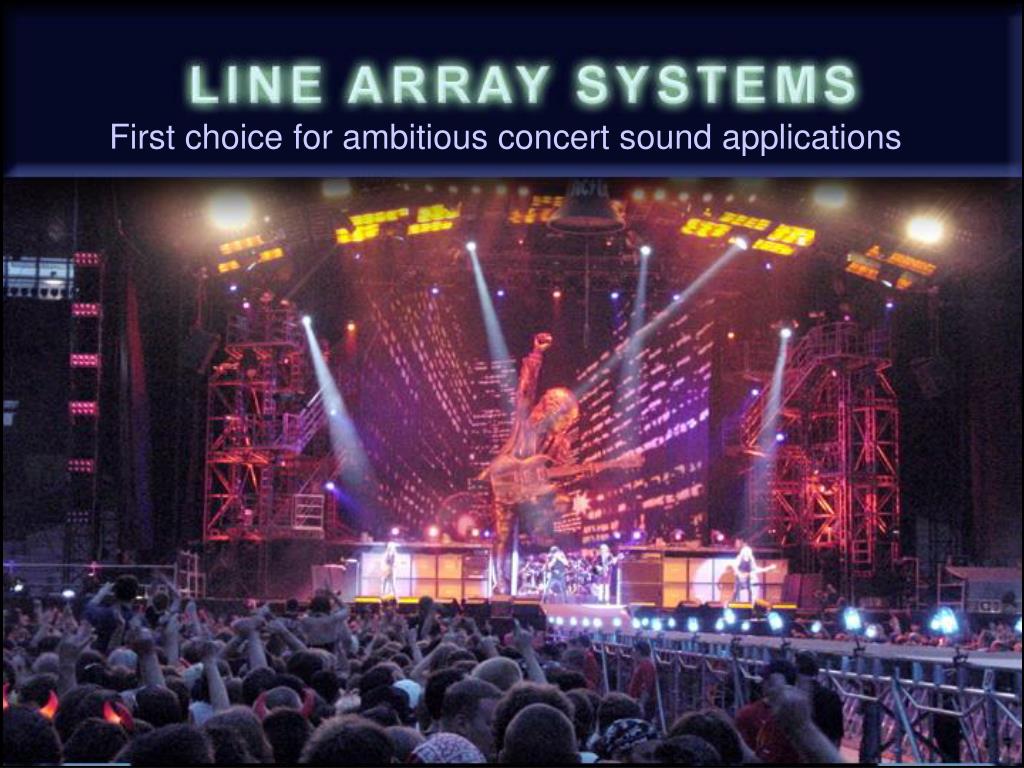

  4. First choice for ambitious concert sound applications

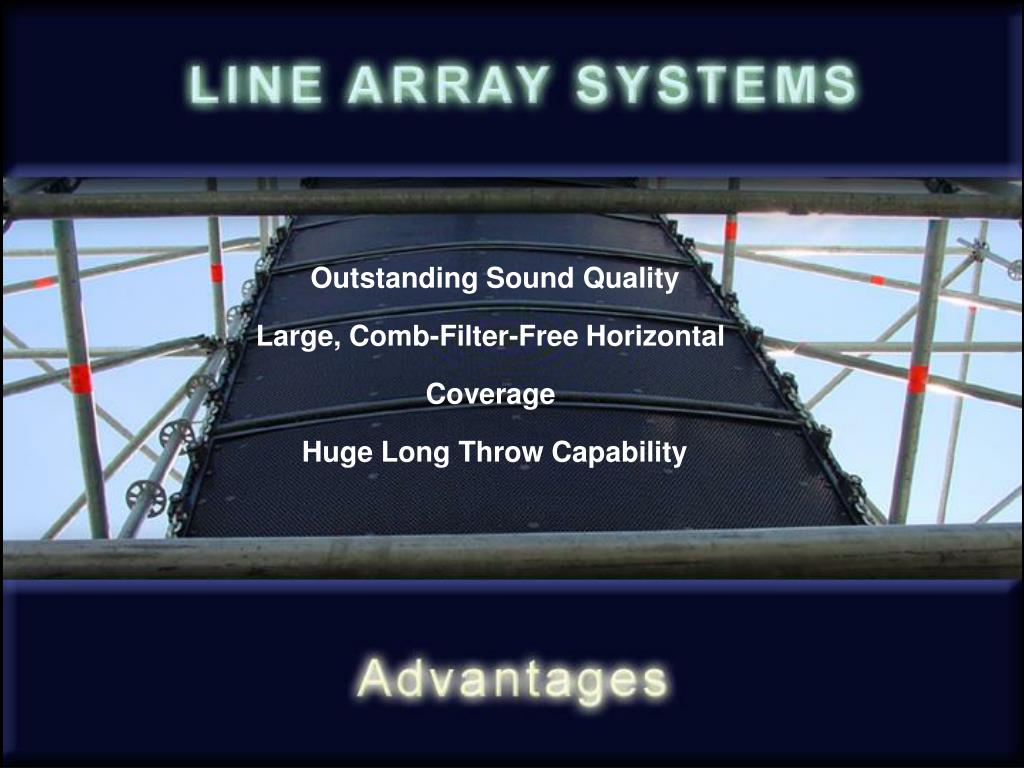

  5. Outstanding Sound Quality Large, Comb-Filter-Free Horizontal Coverage Huge Long Throw Capability

  6. Size Weight Price Handling

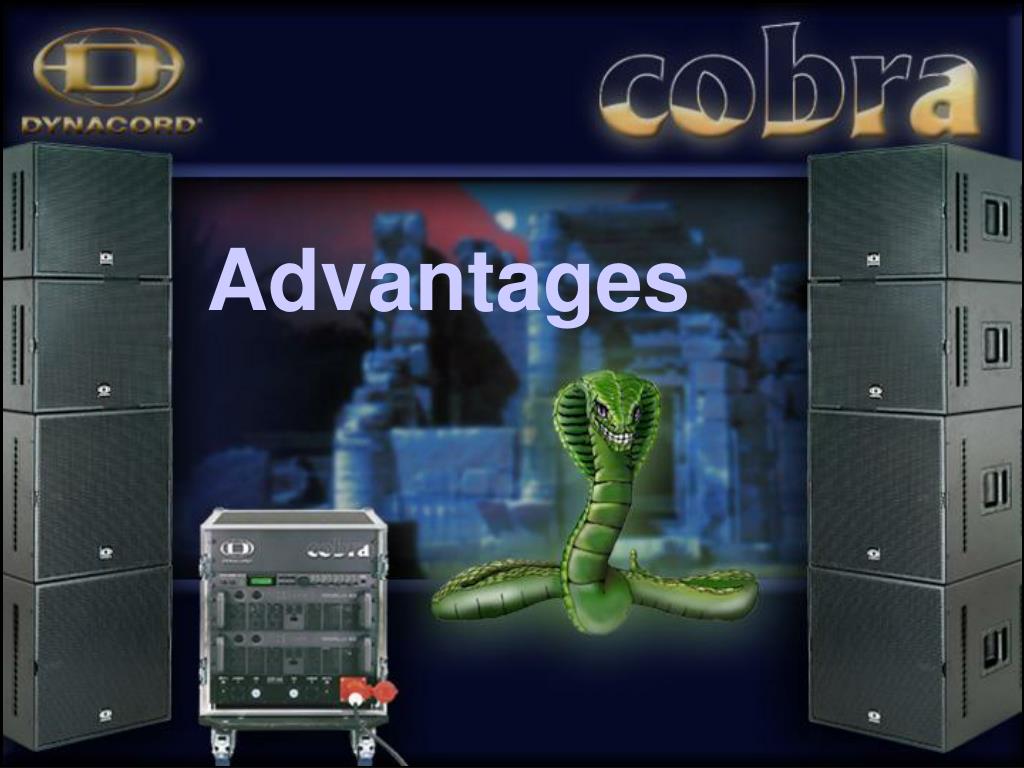

  7. Advantages

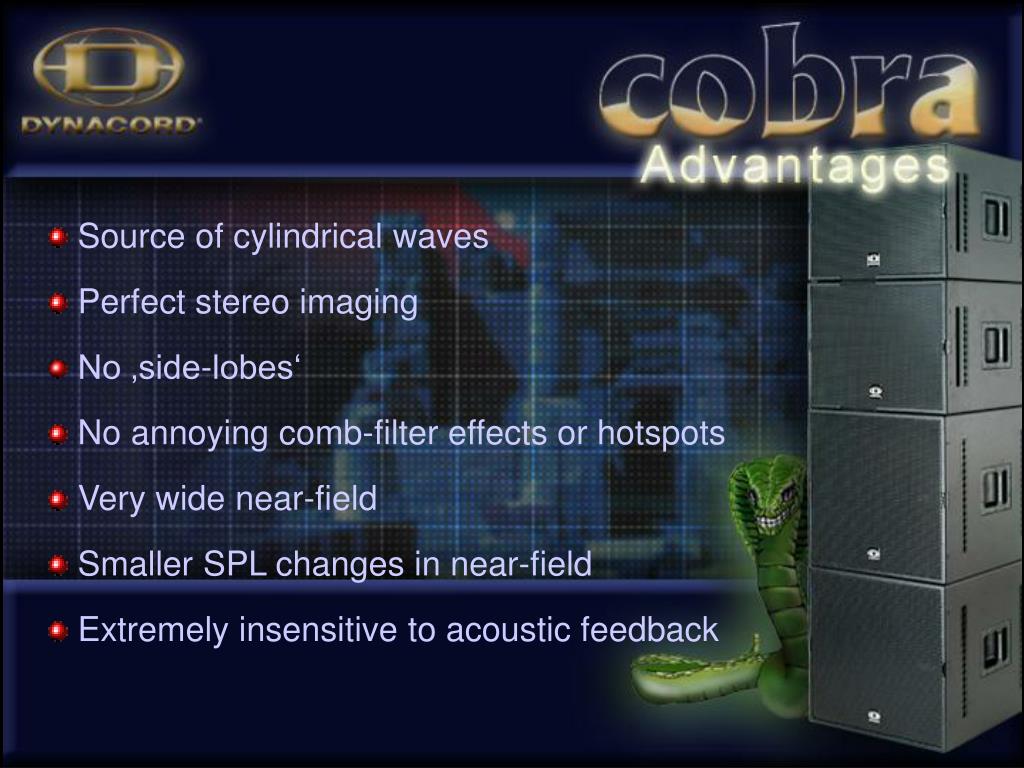

  8. Source of cylindrical waves • Perfect stereo imaging • No ‚side-lobes‘ • No annoying comb-filter effects or hotspots • Very wide near-field • Smaller SPL changes in near-field • Extremely insensitive to acoustic feedback

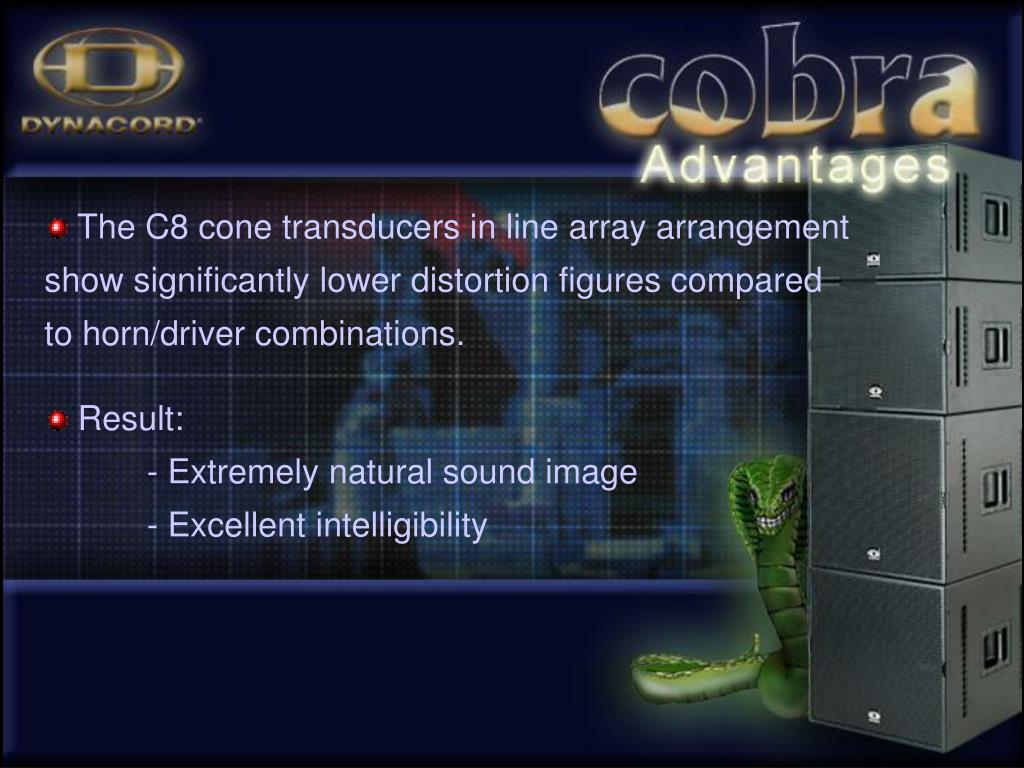

  9. The C8 cone transducers in line array arrangement show significantly lower distortion figures compared to horn/driver combinations. • Result: • - Extremely natural sound image • - Excellent intelligibility

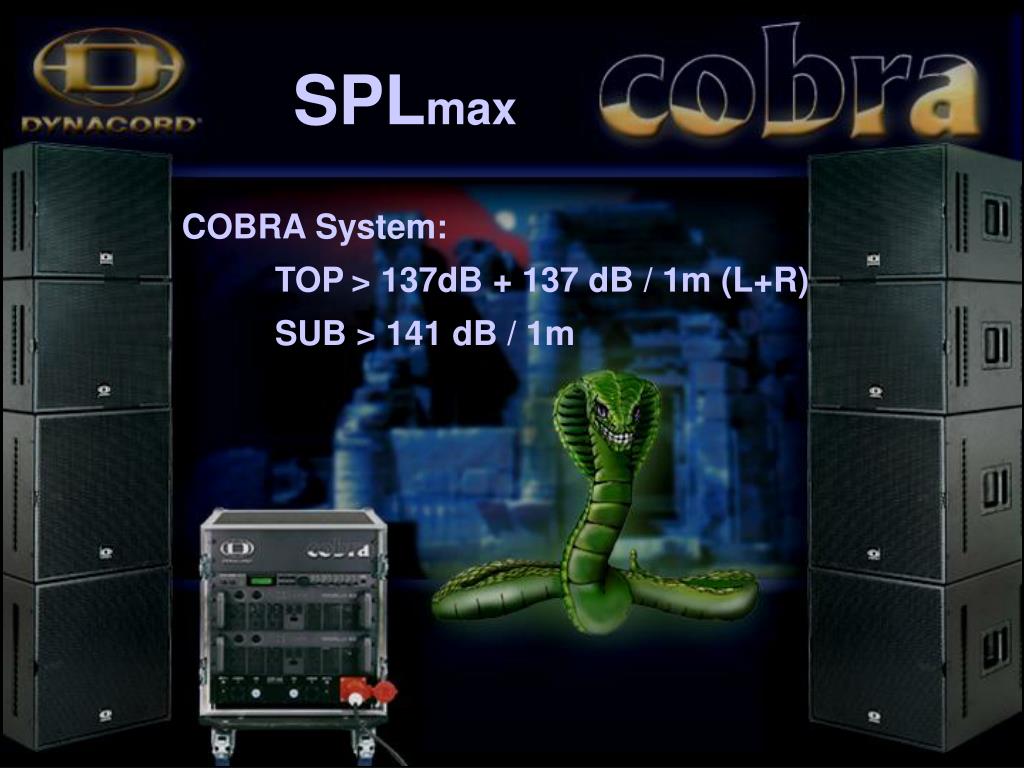

  10. SPLmax COBRA System: TOP> 137dB + 137 dB / 1m (L+R) SUB > 141 dB / 1m

  11. Coverage COBRA STACK: horizontal: > 120° vertical: < 15°

  12. Extended dynamics / max safety • Every speaker fully protected • Sophisticated active electronic circuitry • Soft switching protection • Max Amplifier power 1200 Watts / 8 Ohms

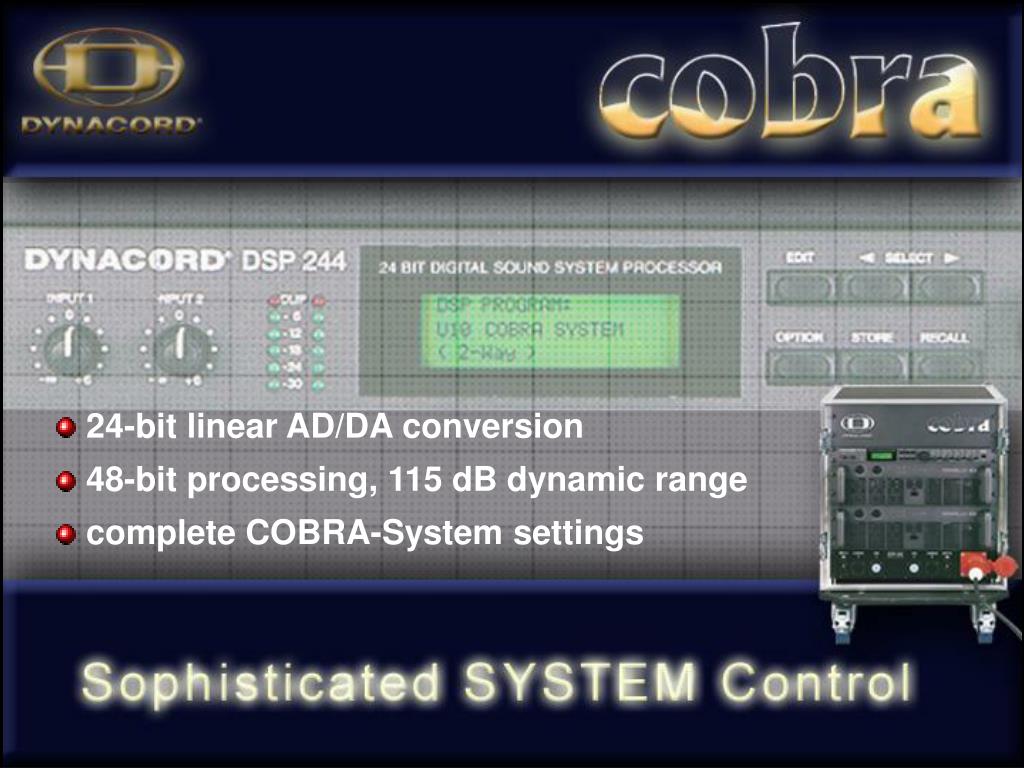

  13. 24-bit linear AD/DA conversion • 48-bit processing, 115 dB dynamic range • complete COBRA-System settings

  14. Frequency response 2x COBRA SUB (red) 2x COBRA TOP (blue)

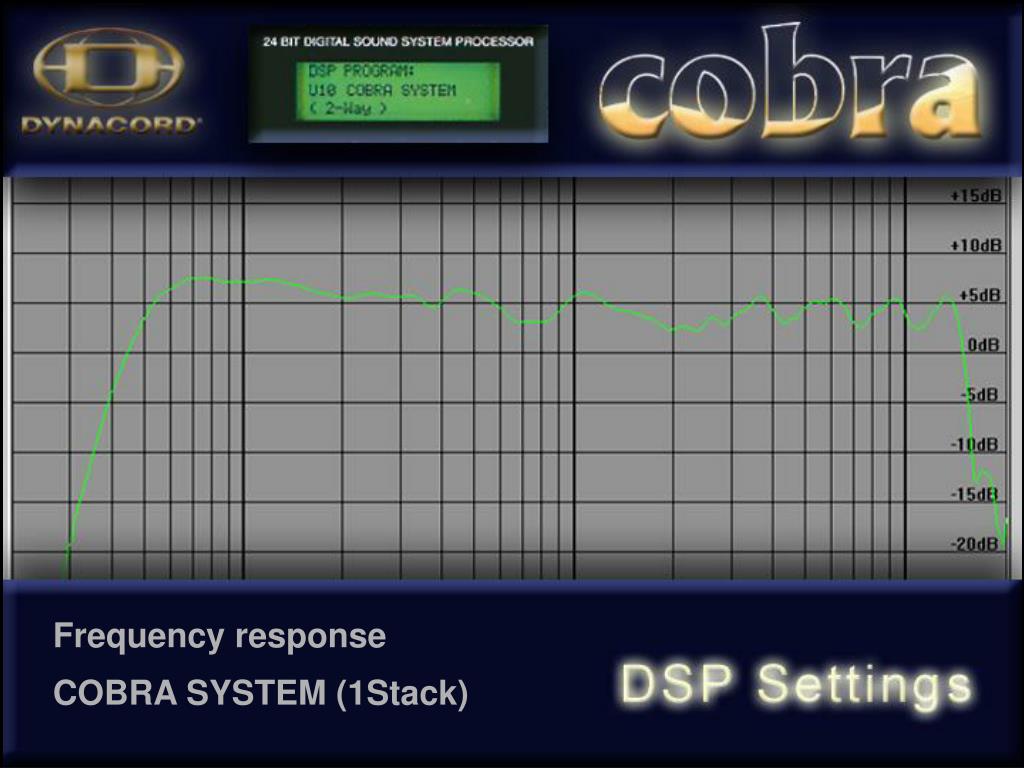

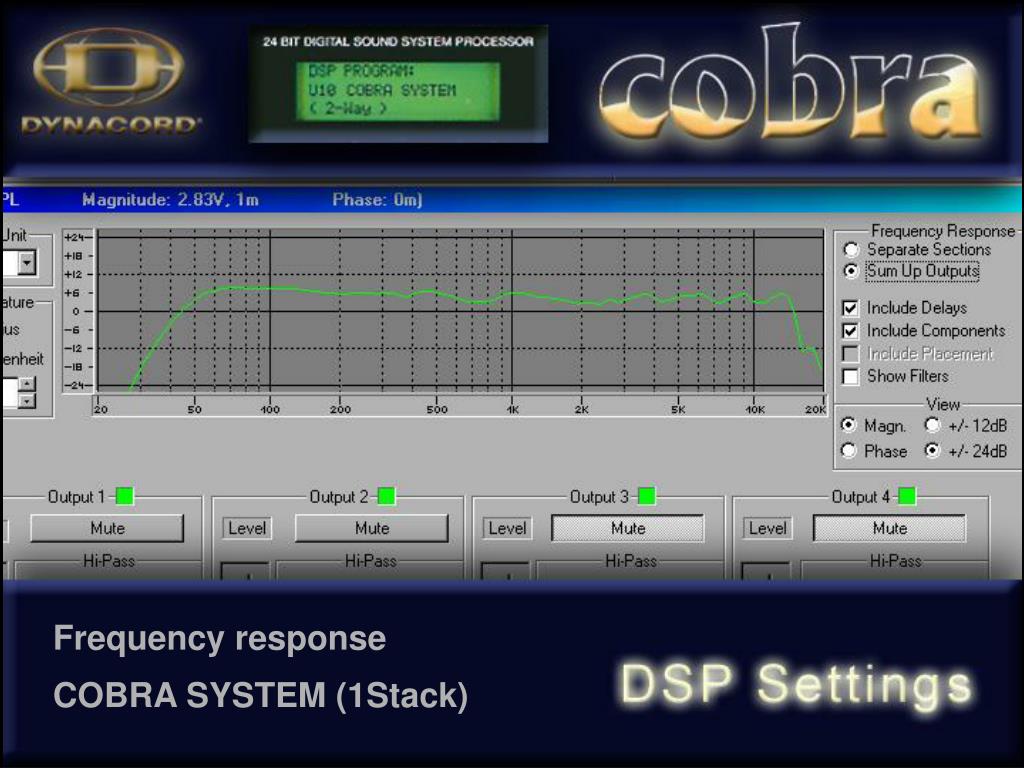

  15. Frequency response COBRA SYSTEM (1Stack)

  16. Frequency response COBRA SYSTEM (1Stack)

  17. DSP 244 Limiter settings - L 2400 Power Amps

  18. 2 x 1200 Watts continuous output power per channel • extremely low distortion < 0,01% • Dynamic range > 105 dB • Dual power supply

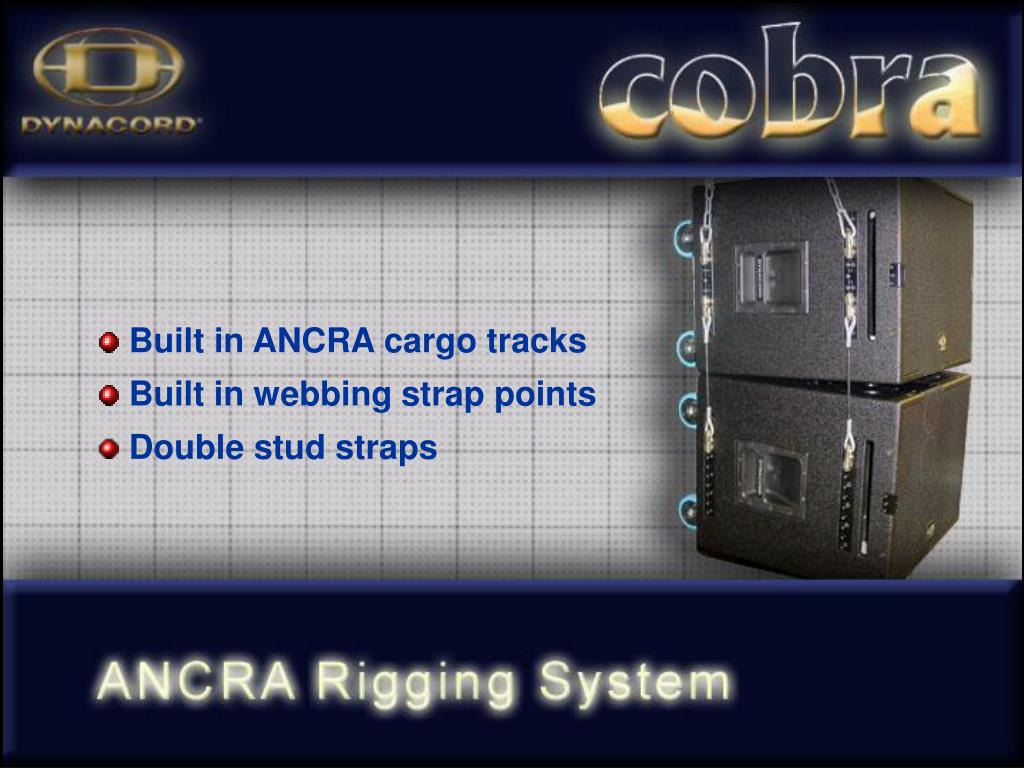

  19. Built in ANCRA cargo tracks • Built in webbing strap points • Double stud straps
