  1. Real-Time Motion Planning B659: Principles of Intelligent Robot Motion Spring 2013 Kris Hauser

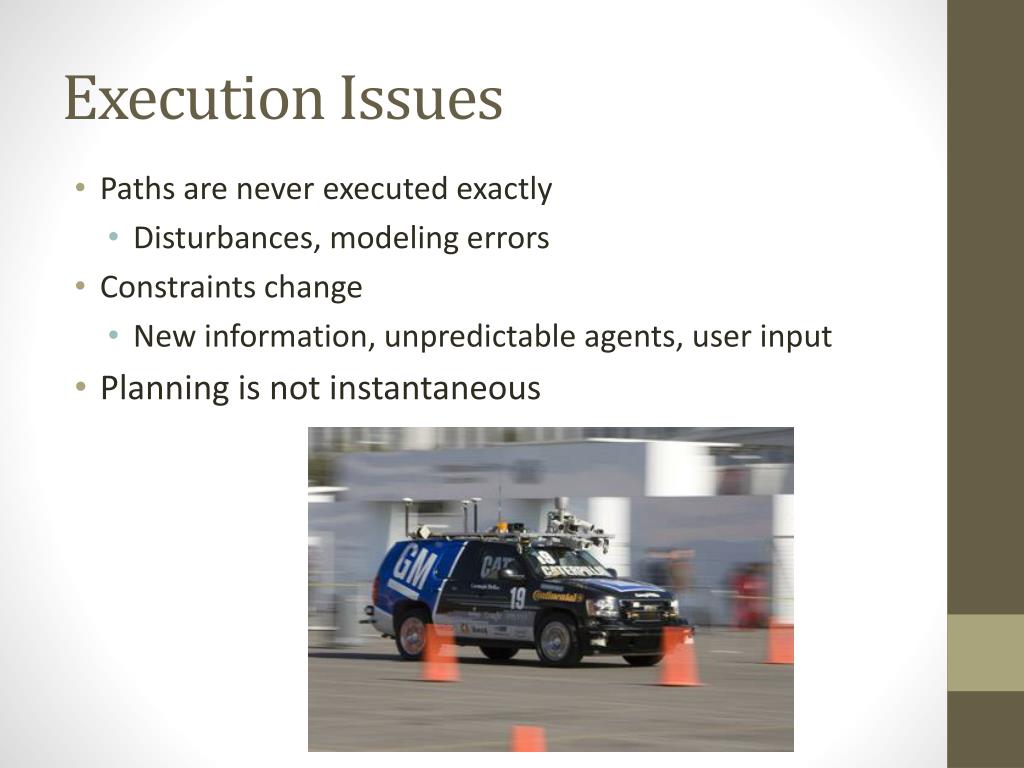

  2. Execution Issues • Paths are never executed exactly • Disturbances, modeling errors • Constraints change • New information, unpredictable agents, user input • Planning is not instantaneous

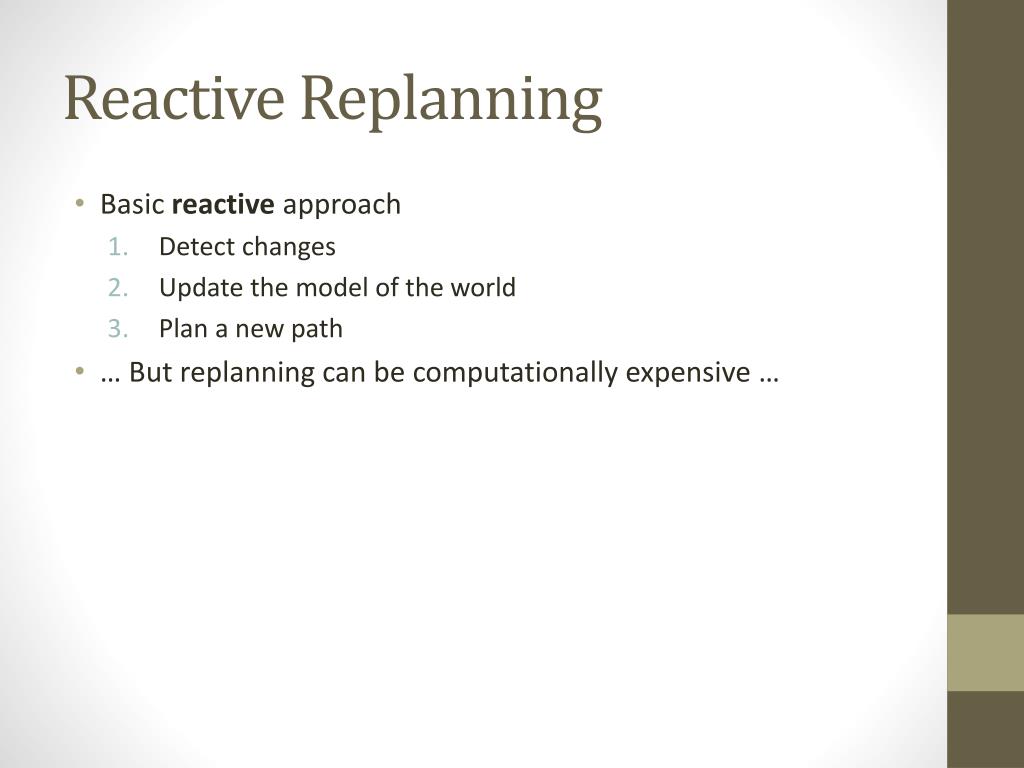

  3. Reactive Replanning • Basic reactive approach • Detect changes • Update the model of the world • Plan a new path • … But replanning can be computationally expensive …

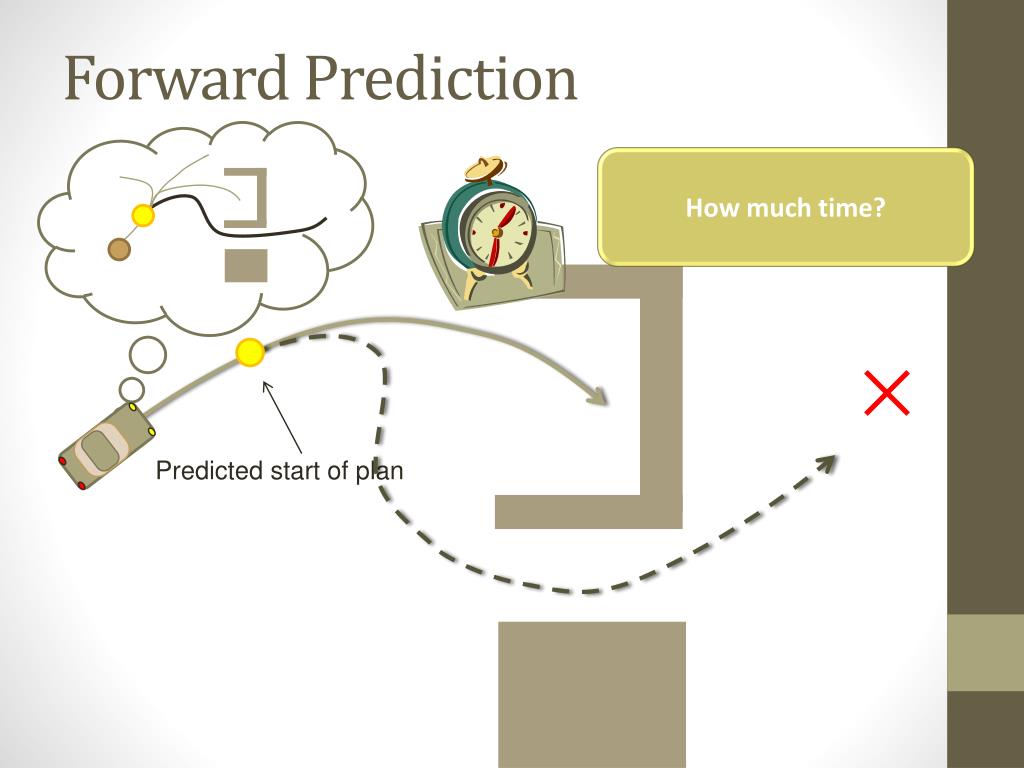

  4. Forward Prediction How much time? Predicted start of plan

  5. Responsiveness Disturbance detection & response takes up to 2 cycles

  6. Desired qualities • Responsiveness • Completeness • Safety • In “hard” domains, cannot meet all three criteria simultaneously

  7. Conservative Approaches to Safety • Offset obstacles by a safety margin • Workspace X time obstacles that grow over time • Requires planning with time as a state variable • Cannot plan too far in the future! t t O(t) O(t) CO(t) y y O(tc) O(tc) tc tc x x Bounded velocity Known velocity

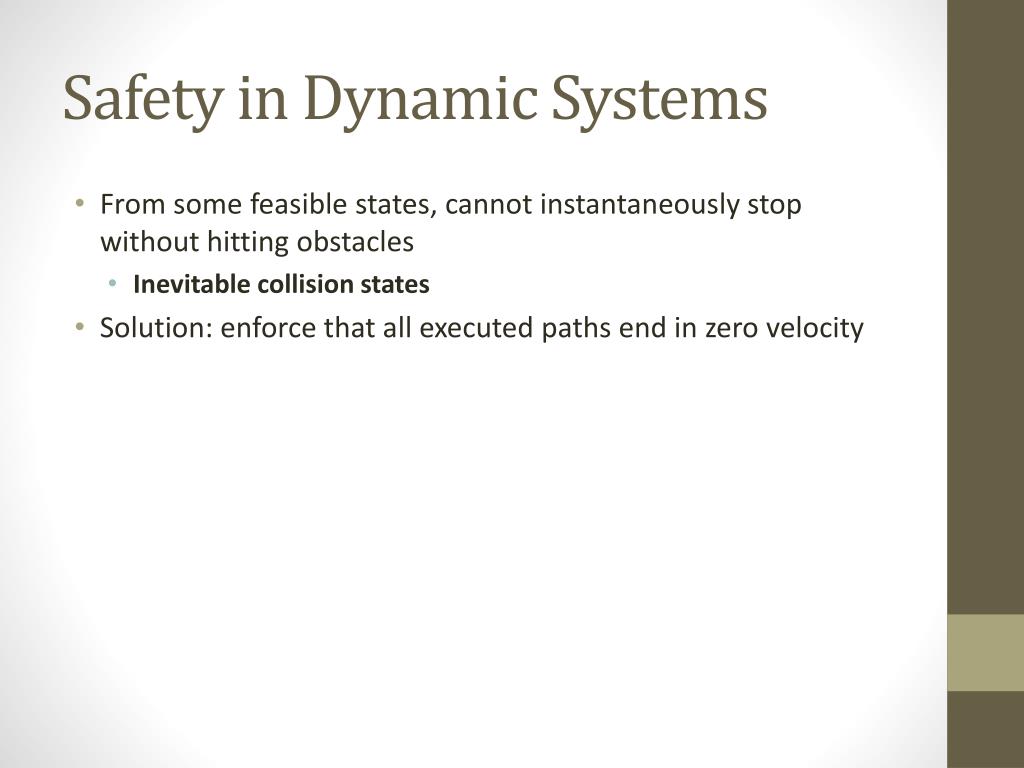

  8. Safety in Dynamic Systems • From some feasible states, cannot instantaneously stop without hitting obstacles • Inevitable collision states • Solution: enforce that all executed paths end in zero velocity

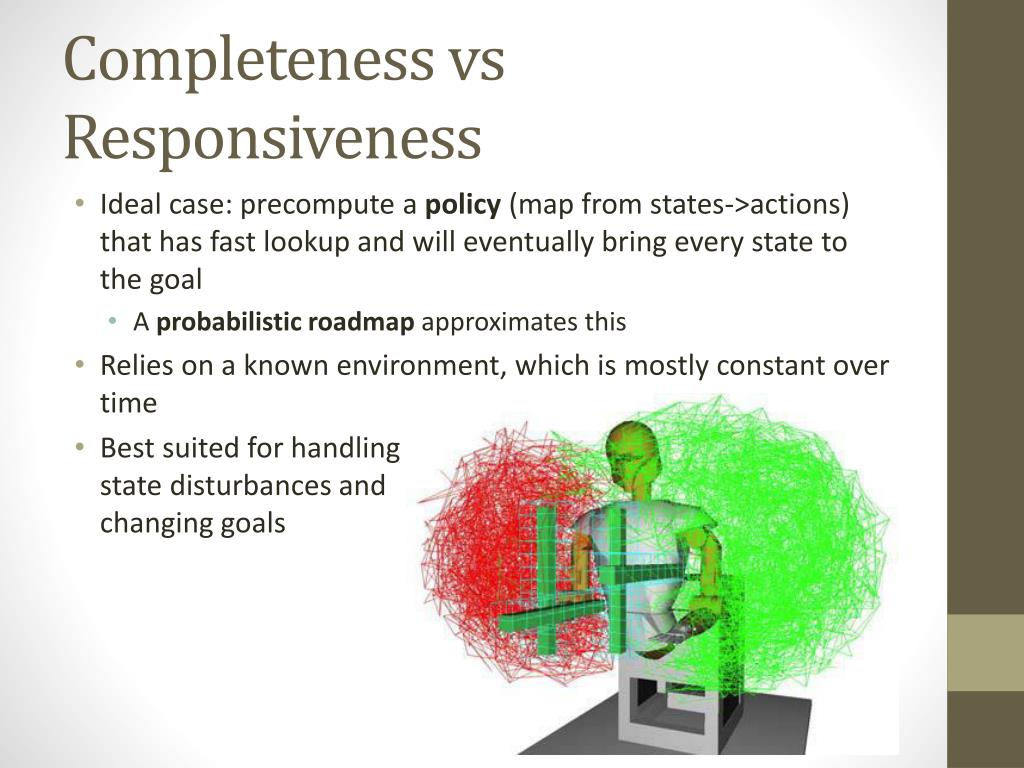

  9. Completeness vs Responsiveness • Ideal case: precompute a policy (map from states->actions) that has fast lookup and will eventually bring every state to the goal • A probabilistic roadmap approximates this • Relies on a known environment, which is mostly constant over time • Best suited for handlingstate disturbances andchanging goals

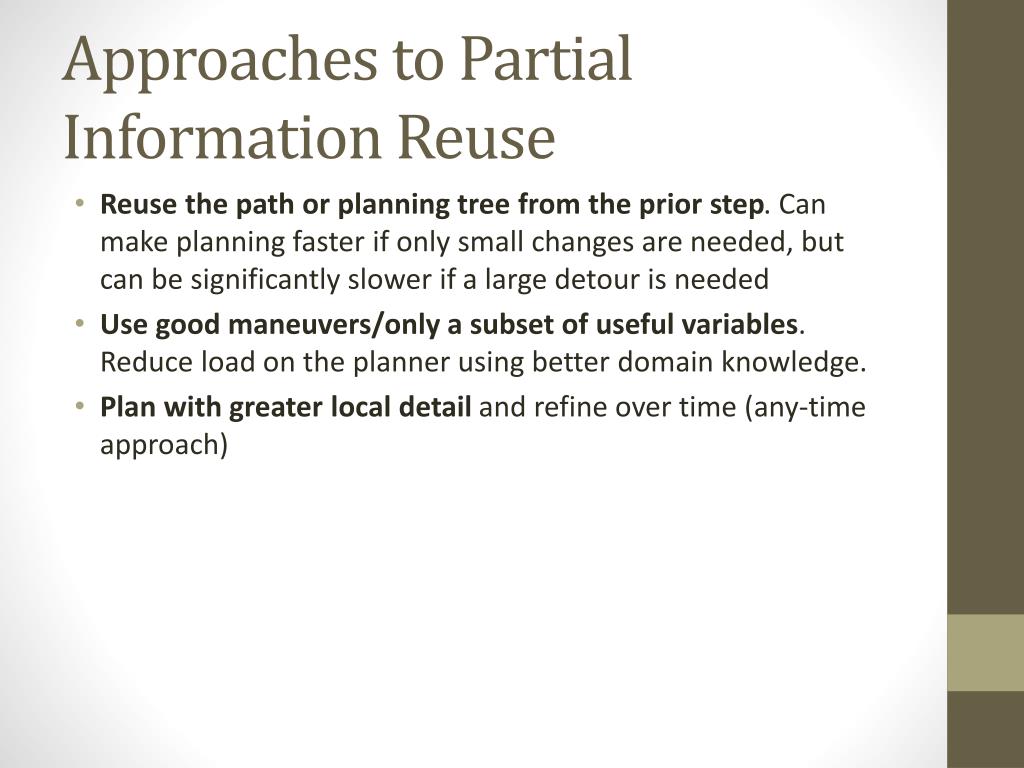

  10. Approaches to Partial Information Reuse • Reuse the path or planning tree from the prior step. Can make planning faster if only small changes are needed, but can be significantly slower if a large detour is needed • Use good maneuvers/only a subset of useful variables. Reduce load on the planner using better domain knowledge. • Plan with greater local detail and refine over time (any-time approach)

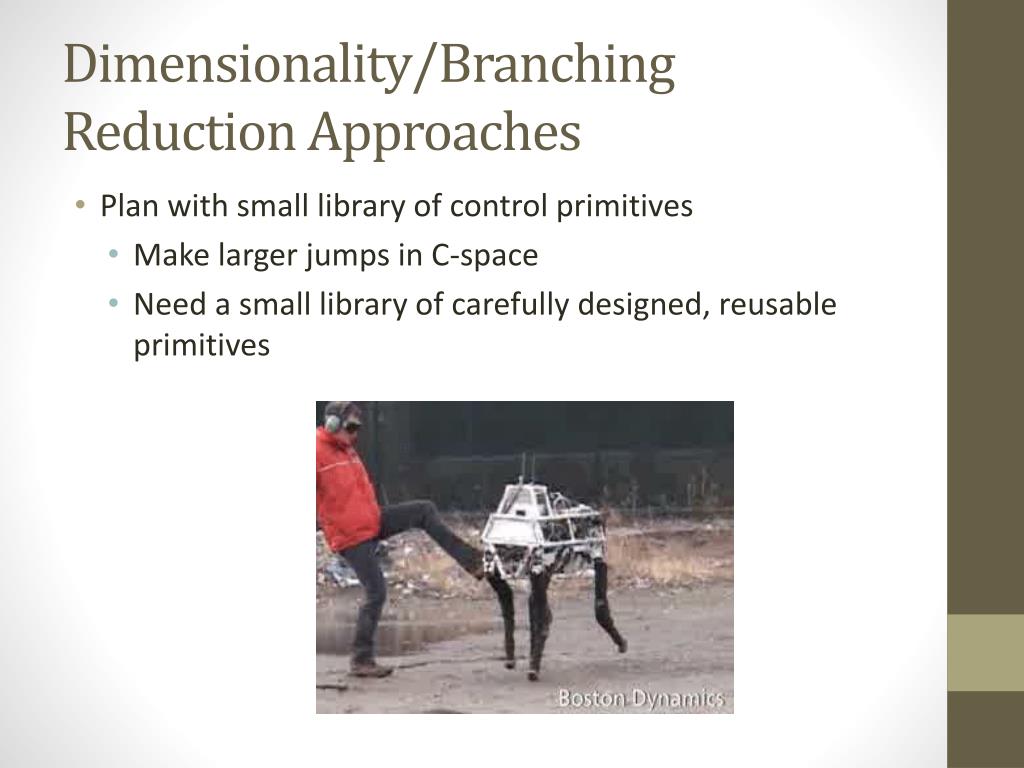

  11. Dimensionality/Branching Reduction Approaches • Plan with small library of control primitives • Make larger jumps in C-space • Need a small library of carefully designed, reusable primitives

  12. Local ReplanningApproaches • Sacrifice completeness on a single planning step • Make detailed local plans, coarser global plans • Make corrections on the next time step • Multiple ways of doing this • Limit computation time • Limit time horizon (receding horizon planning, aka model predictive control) • Limit # of decision points • Both (maneuver sets)

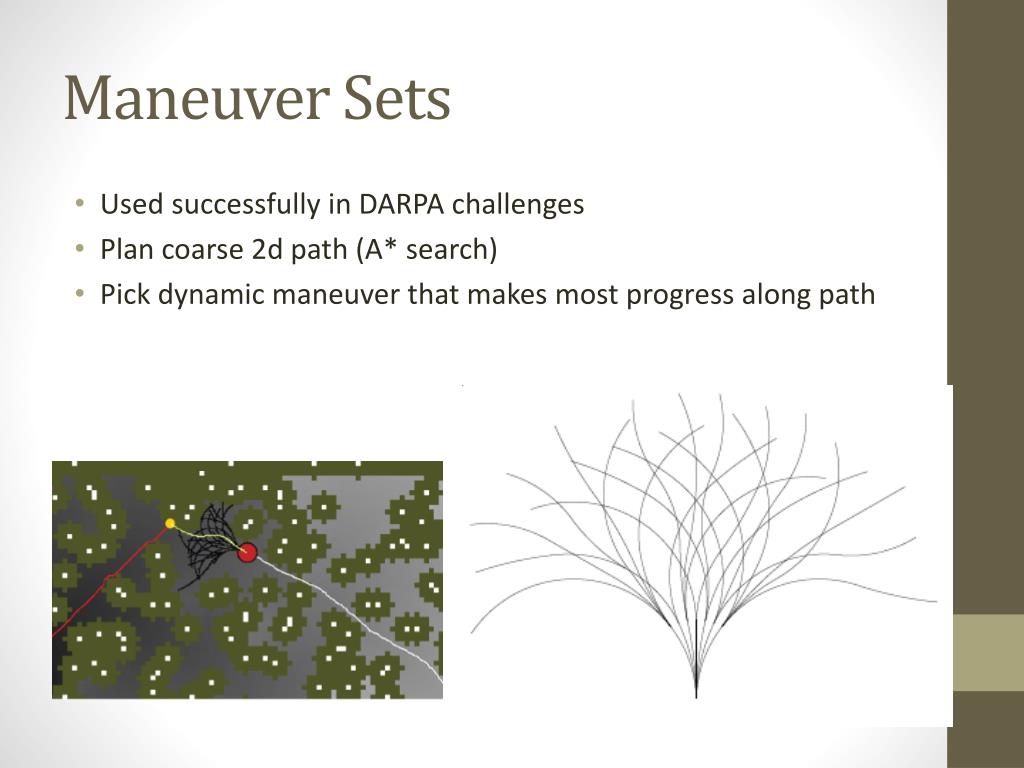

  13. Maneuver Sets • Used successfully in DARPA challenges • Plan coarse 2d path (A* search) • Pick dynamic maneuver that makes most progress along path

  14. Replanning Success Criteria • Convergence: is the robot driven to the goal over time? • Optimality of resulting paths • Short time horizon: prone to local minima

  15. Handling minima • Replanning has been demonstrated to work in practical examples, but can we guarantee global progress? • Two approaches: • Forbidding past failure states • Increase planning time/horizon

  16. Questions to think about • How do limitations in computational resources affect completeness, responsiveness, and safety of the system? • How would you tune the time step/horizon? • Can you construct pathological cases?
