1. Assessing the Impact of Maneuver Training on NPS Pollution and Water Quality PROJECT NUMBER: CP-1339 Principal Investigator: James Steichen PI’s Organization: Kansas State University In-Progress Review Meeting April 7, 2005

2. TECHNICAL OBJECTIVES Identify sources of NPS pollution resulting from military activities and assess the impact of this pollution on surface water quality: • Identify military activities at Fort Riley that may contribute to NPS pollution. • Evaluate the effectiveness of riparian buffers. • Assess the effectiveness of low water stream crossings (LWSC). • Evaluate and modify a comprehensive riparian ecosystem model. • Evaluate the most effective means of crossing streams during maneuvers. • Model the contribution of NPS pollution on a representative watershed. • Develop improved field-portable sediment characterization sensor.

3. TECHNICAL APPROACH Assess/Identify NPS Pollution Buffer Field Study Characterize Stream Sediment DATA COLLECTION Quantify Vegetation Impacts Buffer Model Development Real-Time Sediment Load Sensor MODELING/DESIGN NPS PollutionModeling Stream Crossing Evaluations ASSESSMENT EnvironmentalDecision SupportTool DELIVERABLE

4. Very Low Assess/Identify NPS Pollution TRAINING INTENSITY + • Input training records in GIS database. • Collect data: • Soils (NRCS SSURGO) • Land cover (KS GAP, KSU) • Weather (KSU; NCDC) • Topography (USGS DEM) • Run watershed water quality model. • Goal is to answer: • “Given non-frozen soils, mean soil moisture of 23%, and projected vegetation damage (from historical data), what is the potential to generate NPS pollution given a 5 day mechanized infantry battalion force-on-force exercise to be held in training areas A-H?” WEATHER + LAND COVER + SOILS + TOPOGRAPHY Low Moderate High Very High

5. Develop remote sensing metric to assess impact of military training on vegetation. Compare spectral reflectance curves between training areas and reference site. Examine relationships and differences between military training intensity and spectral response. Quantify Vegetation Impacts Adapted from Jensen (1996) False-Color CompositeLandsat TM 5; June 7, 1997

6. Runoff Flow Splitter/Sampler/ Redistributer Upland Maneuver Area Runoff Collection Sump Grass Buffer Slope Piezometer Wells: Tree/Shrub Buffer Streambank Riparian Buffer Study • Select three representative buffer sites on Fort Riley. • Characterize sites, including site survey with buffer dimensions and slope, soil analysis, and vegetation analysis. • Instrument each site with a weather station. • Collect runoff samples for each rainfall event. • Develop and parameterize REMM for each site based on field data collection.

7. Buffer Model Development REMM Climate Regions: • Develop REMM using regional constants based on EPA Eco-regions and field surveys. • Calibrate and validate REMM using on-site weather data (due to model sensitivity analysis). • Calibrate model to site hydrology, then sediment transport. • Calibrate using year 1-2 field data and verify with year 3-4 data. • After development, use model to determine potential NPS pollution loading given upland activities and buffer dimensions and/or new buffer designs.

8. Stream Stability Study • Purpose: To determine whether channel changes are primarily natural or caused by human management. • Collect channel cross-section and longitudinal profile • Stream mapping • Measure stream bed sediment size distribution • Compare Ft. Riley data with Konza Prairie LTER data. • Similar soils and vegetation • Located less than 20 km away

9. Real-Time Sediment Load Sensor Upstream • In-stream sediment concentration measurement: • Turbidity – optical sensor • Water/sediment density – piezoresistive sensor • Calibration and cross-validation • Monitoring LWSC: • Optical sensor • Low cost imaging system • Time response of sediment loading to crossing • Monitoring precipitation • Data storage and transmission • Stationary dataloggers • Wireless transmission Turbidity Sensors Transmitters Pressure Sensors Downstream

10. RESULTS Task 2: Quantify Vegetative Impacts Subtask 2.1: Acquire Satellite Imagery (Complete) Failure of Landsat 7 ETM+ sensor delayed image acquisition. Daily, 8-day, and 16-day composite Moderate Resolution Imaging Spectrometer (MODIS) data currently being acquired. One meter digital orthophotography is on-hand and 4 m multispectral IKONOS imagery is ordered. Fused TM+Orthophoto Image (1m) 16-Day NDVI 250 m CompositeMODIS; August 2003

11. W114 W111 W14 W11 W113 W112 W1 W13 W12 RESULTS Task 1: Assess/Identify NPS Pollution Subtask 1.4 Soil Moisture Field Data Collection (In-progress) Designed and implemented nested sampling grid for satellite image validation. Supports weekly collection of volumetric soil moisture, surface temperature, and visible/near- infrared reflectance data at variable grid sizes ranging from 1 kilometer to 30 meters. Geography graduate students Scott Leis (bottom) and Ben White (top) mark sample sites in grassland and forest landscapes at Fort Riley.

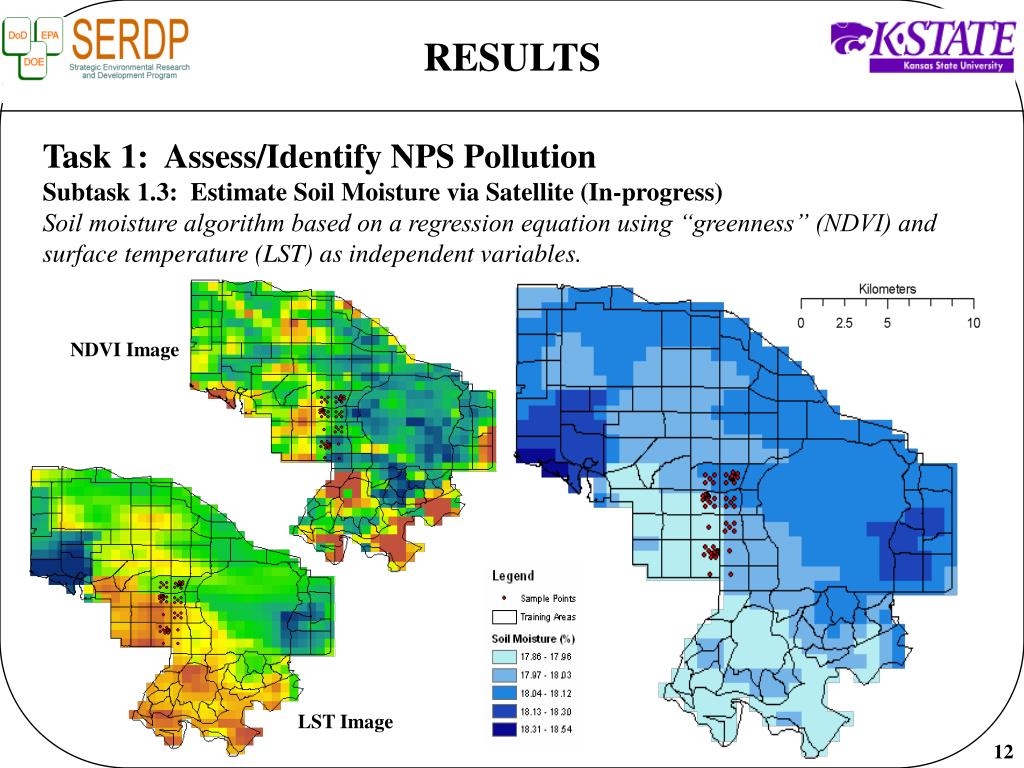

12. RESULTS Task 1: Assess/Identify NPS Pollution Subtask 1.3: Estimate Soil Moisture via Satellite (In-progress) Soil moisture algorithm based on a regression equation using “greenness” (NDVI) and surface temperature (LST) as independent variables. NDVI Image LST Image

13. RESULTS • Task 4: Buffer Model Development • Subtask 4.1: Characterize/Survey Buffer (Completed) • Analyzed flow paths and catchment basins using high-resolution (3 meter) digital elevation • model (DEM) generated from GPS field survey in the ArcGIS ArcHydro package.

14. RESULTS Task 3: Buffer Field Study Subtask 3.1: Identify and Install Buffer Sites (Completed) Based on high resolution GPS survey data, buffer sites were relocated to hillside locations to determine the effect of native prairie grasses on non-point source pollution reduction. Three hillside sites with different slopes and lengths were established.

15. RESULTS Task 3: Buffer Field Study Subtask 3.2: Monitor and Collect Buffer Runoff (In-progress) Collected water samples to determine the effect of vegetation on sediment trapping using runoff surface samplers (ROSS). Runoff surface sampler located on buffer field study site at Fort Riley.

16. RESULTS Task 4: Buffer Model Development Subtask 4.2: Develop Model (In-progress) Examined sensitivity of time of flow (i.e. time to convert sheet flow to concentrated/channelized flow) to Manning’s roughness coefficient to show the impact of slope length and vegetation cover on flow channelization and sediment transport.

17. RESULTS Task 5: Characterize Stream Sediment Subtask 5.1: Install Benchmarks along Stream (Completed) Subtask 5.2: Stream Mapping of Selected Reaches (Completed) Subtask 5.3: Collect in-stream water and sediment (In-progress) Dr. Jack Oviatt (left) and Geology graduate student Melissa Ingrissano (right) examining a Fort Riley stream segment for future surveying.

18. RESULTS Stream Type: Rosgen Classification - G6c An entrenched gully system in silt-clay bed material with high suspended sediment and unstable morphology.

19. RESULTS Modification of streams due to stream crossings

20. G6 stream characteristics Sensitivity to disturbance—Very High Recovery potential—Poor Sediment supply—High Streambank erosion potential—High Vegetation controlling influence—High RESULTS Effects of stream crossing

21. RESULTS • Task 6: Sediment-Concentration Sensor • Subtask 6.1: Identifying Appropriate Sensing Principle • Sediment concentration - weight of suspended soil particles per unit volume of water. • Turbidity - optical properties of suspended materials in water. • Turbidity sensor ≠ Sediment concentration sensor. • Assumption 1: Sediment measurement errors caused by difference in water color may be reduced by using multiple light sources at different “feature wavelengths”. • Assumption 2: Sediment measurement errors caused by difference in soil texture may be reduced by using light detectors at multiple angles from the light source. Blue-green: 508 nm Orange: 612 nm Infrared: 768 nm 180o: transmission 90o: scattering 45o: backscattering 3-D view of the sediment sensor illustrating locations of light emitters and detectors.

22. Measured concentration (mg/L) Actual concentration (mg/L) Accuracy of sediment concentration measurement across three water types for individual soil types (Prototype 1) RESULTS Task 6: Sediment-Concentration Sensor Subtask 6.2: Sensor Design and Test Sensor prototype 1: tested at combinations of three water types and five soil types R2 values for predicting sediment concentration from the sensor data for individual soil types across three water types Effect of water color on sediment measurement was successfully removed.

23. Measured concentration (mg/L) Actual concentration (mg/L) Accuracy of sediment concentration measurement across three water types and five soil types (Prototype 1) RESULTS Task 6: Sediment-Concentration Sensor Subtask 6.2: Sensor Design and Test, continued R2 reduced from 0.99 to 0.90 when measuring across five soil texture types. A circulation system designed for testing the second prototype sensor

24. RESULTS Task 6: Sediment-Concentration Sensor Subtask 6.2: Sensor Design and Test, continued Sensor prototype 2: tested at combinations of 4 water types and 5 soil types • Preliminary data analysis gives R2 =0.94 across all soil and water types • Further data analysis is in progress Prototype 2: water-proof packaging Strong effect of soil texture on sediment measurement

25. No action items. ACTION ITEMS

26. TRANSITION PLAN • Research Community: • Journals (e.g., JAWRA, IJRS) • Professional Conferences: ASAE, SWCS, AGU, AWRA, AAG, ASPRS. • Military User Community: • Presentations at DoD sponsored workshops: ITAM Workshop (field trips, specialty workshops). • Project to be featured at 2006 ITAM Workshop at Fort Riley. • Results of SERDP project incorporated into Fort Riley ITAM strategy. • General Use Community: • Magazine articles for trade journals (Erosion Control, Stormwater, Land & Water, Resources). • Create and maintain a public website: http://www.k-state.edu/serdp

27. BACKUP CHARTS Maneuver Area B, Training Area Bravo Fort Riley, Kansas April 2004

28. FY 06 PROGRAM PLAN Task 1: Assess/Identify NPS Pollution $20,000 Continue satellite image acquisition and field data campaigns Task 2: Quantify Vegetative Impacts $15,000 Defense of MA thesis scheduled for Summer 2004 Task 3: Buffer Field Study $83,000 Complete installation of equipment and begin field data collection Task 4: Buffer Model Development $30,000 Continue model development then calibrate/validate Task 5: Characterize Stream Sediment $30,000 Monitor channel changes after large runoff events Continue in-stream water and sediment data collection Task 6: Sediment Load Sensor $50,000 Complete design and test second generation sensor Install wireless transmitter Task 7: NPS Pollution Modeling $45,000 Begin student training on model and conduct draft model runs Task 8: Stream Crossing Evaluation $40,000 Assess channel stability using Task 5 data TOTAL: $313,000

29. PROGRAM PLAN

30. PROGRAM FUNDING

31. OBLIGATIONS/EXPENDITURES FY04 and FY05 FUNDS

32. Decision Support Tool Potential NPS Pollution Generation Environmental Decision Support Tool

33. PUBLICATIONS AND PRESENTATIONS
