  1. PLUMBING OF A VILLA VALUE ENGINEERING Prepared By Mohammed Abdul Hafeez Us Shan In Relevance to CEM 512 This Project is Prepared for Honorable Dr. SAADI ASSAF

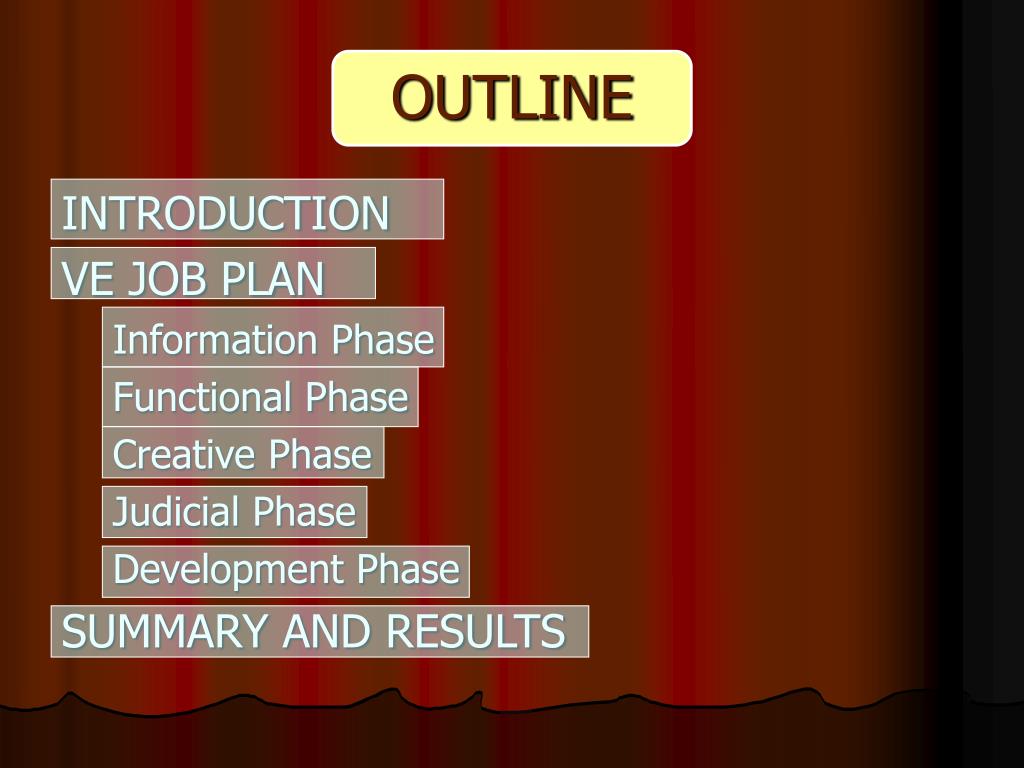

  2. OUTLINE INTRODUCTION VE JOB PLAN Information Phase Functional Phase Creative Phase Judicial Phase Development Phase SUMMARY AND RESULTS

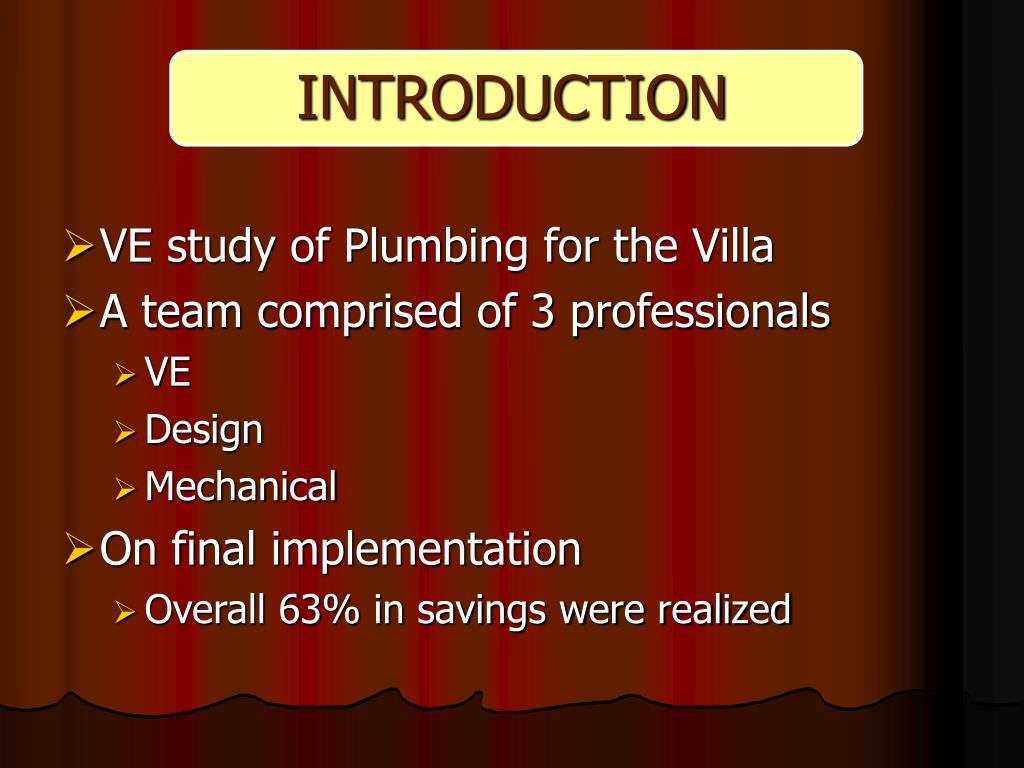

  3. INTRODUCTION • VE study of Plumbing for the Villa • A team comprised of 3 professionals • VE • Design • Mechanical • On final implementation • Overall 63% in savings were realized

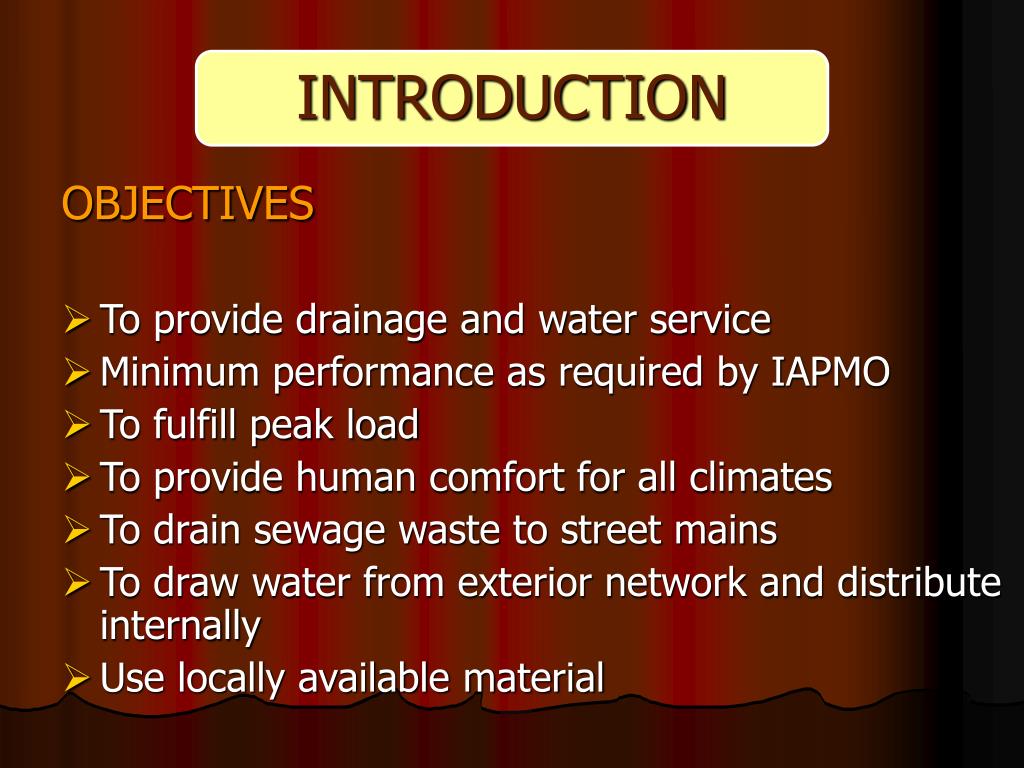

  4. INTRODUCTION OBJECTIVES • To provide drainage and water service • Minimum performance as required by IAPMO • To fulfill peak load • To provide human comfort for all climates • To drain sewage waste to street mains • To draw water from exterior network and distribute internally • Use locally available material

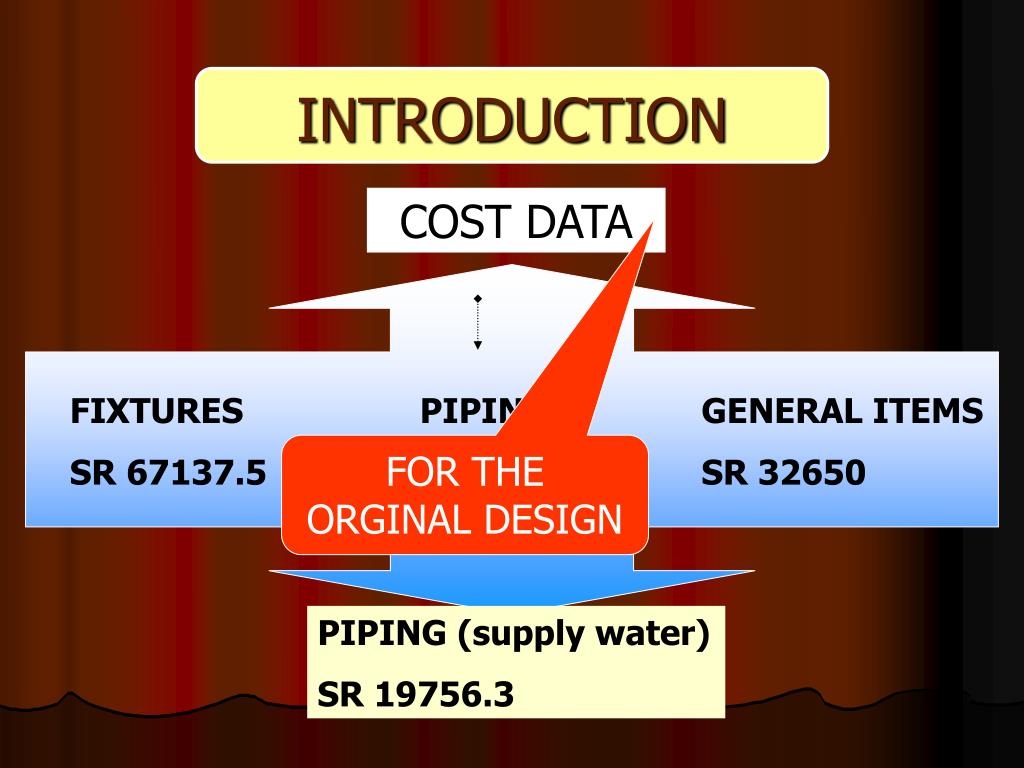

  5. INTRODUCTION COST DATA FIXTURES SR 67137.5 PIPING SR 24387.5 GENERAL ITEMS SR 32650 FOR THE ORGINAL DESIGN PIPING (supply water) SR 19756.3 TOTAL SR 124175

  6. FUNCTIONAL PHASE IDENTIFY PRESENT FUNCTION SERVICE BUILDING ---SUPPLY WATER ---DRAIN WASTE ---PROVIDE AESTHETIC ---PREVENT POLLUTION ---PROTECT HEAT ---PROVIDE DURABILITY WHAT MUST IT DO? WHAT DOES IT NOW DO? SERVICE BUILDING ---SUPPLY WATER ---DRAIN WASTE ---PROVIDE LOOK ---PREVENT POLLUTION

  7. FUNCTIONAL PHASE FUNCTION WORKSHEET FUNCTION WHY HOW To provide healthy environment to live and work To provide service and aesthetics Through piping network Through piping network To fulfill basic human requirements SUPPLY WATER DRAIN WATER Through installation PROVIDE FIXTURES

  8. FUNCTIONAL PHASE FUNCTION – COST – WORTH

  9. CREATIVE PHASE GENERATE IDEAS FOR PIPING TO SUPPLY WATER • Pipes of Copper with insulation • Pipes of Copper without insulation • Pipes of HDPE • Pipes of PPR • Pipes of UPVC and CPVC • Pipes of GI • Pipes of BI • Pipes of GPR

  10. JUDICIAL PHASE Probability of Implementation Time to Implement Total Ranking Potential cost benefit Cost to develop State of the art CWI CWI 5 5 5 4 5 24 CW/oI 6 5 25 4 6 4 HDPE 3 7 26 4 8 4 PPR 4 8 9 27 3 3 UPVC & CPVC 37 5 7 8 8 9 GI 7 2 2 2 21 8 BI 22 8 3 1 3 7 GPR 1 3 8 8 23 3 5 4 3 2 1 8 7 6

  11. JUDICIAL PHASE IDEA COMPARISON 4 6 2 3 1 5

  12. JUDICIAL PHASE C D E B A B C D E 3 . MAJOR PREFERENCE 2 . MEDIUM PREFERENCE 1 . MINOR PREFERENCE ORIGINAL LAYOUT DETERMINING WEIGHTS FOR EVALUATION A – Performance B – Maintenance C – Initial cost D – Durability E – Pollution free A-3 A/C A/D A-2 C-2 B/D E-2 D-3 C-2 D-3

  13. JUDICIAL PHASE 9 2 7 3 10 HDPE/ CWI/ PPR 4 2 3 2 76 2 CWI 2 73 2 1 3 3 HDPE 3 5 1 3 3 83 2 PPR 3 3 3 3 86 3 UPVC & CPVC 3 4 4 3 102 GPR 4 3 1 4 3 98 Pollution Free Total Ranking Durability Maintenance Performance Initial Cost 1 Alt. 1

  14. DEVELOPMENT PHASE PROPOSAL 1 UPVC and CPVC types of pipes are capable of fulfilling all the requirements and achieve desired objectives. COST DATA PIPING (Supply Water) SR 9362.5 FOR THE PROPOSED DESIGN Savings in Initial Cost SR 15025.05 – 76 %

  15. DEVELOPMENT PHASE PROPOSAL 2 – 2 OVERHEAD TANKS Original Design: 2 Overhead tanks made of concrete with steel structure are to be constructed on the roof of the villa. Proposed Design: 2 Overhead tanks made of PVC can be installed which will give better performance and costs very less. Discussion: Concrete tanks do not restrict heat and it takes more time to construct, whereas PVC tanks are readymade, weather proof and takes very less time to install.

  16. DEVELOPMENT PHASE PROPOSAL 2 – 2 OVERHEAD TANKS ORIGINAL DESIGN COST SR 27500 PROPOSED DESIGN COST SR 16250 SAVING SR 11250 41 %

  17. DEVELOPMENT PHASE LIFE CYCLE COST ANALYSIS FOR THE COMPLETE PROJECT

  18. DEVELOPMENT PHASE • IMPLEMENTATION PLAN • Approval from management • Change the purchase order and select the best supplier • Mechanical engineering services • It takes 3 months • Deadline as per the site handover schedule

  19. SUMMARY • The proposed design will • Supply water • Drain waste • Protect pollution • Provide durability • Prevent heat • Do large saving • Prevent maintenance costs • Save time • Improve appearance

  20. THANK YOU
