Parallel-lazy performance Java 8 vs Scala vs GS Collections

1. Parallel-lazy performanceJava 8 vs Scala vs GS Collections Craig Motlin June 2014

2. Goals • Compare Java Streams, Scala parallel Collections, and GS Collections • Convince you to use GS Collections • Convince you to do your own performance testing • Identify when to avoid parallel APIs • Identify performance pitfalls to avoid

3. Goals • Compare Java Streams, Scala parallel Collections, and GS Collections • Convince you to use GS Collections • Convince you to do your own performance testing • Identify when to avoid parallel APIs • Identify performance pitfalls to avoid Lots of claims and opinions

4. Goals • Compare Java Streams, Scala parallel Collections, and GS Collections • Convince you to use GS Collections • Convince you to do your own performance testing • Identify when to avoid parallel APIs • Identify performance pitfalls to avoid Lots of evidence

5. Goals • Compare Java Streams, Scala parallel Collections, and GS Collections • Convince you to use GS Collections • Convince you to do your own performance testing • Identify when to avoid parallel APIs • Identify performance pitfalls to avoid

6. Intro • Solve the same problem in all three libraries • Java (1.8.0_05) • GS Collections (5.1.0) • Scala (2.11.0) • Count how many even numbers are in a list of numbers • Then accomplish the same thing in parallel • Data-level parallelism • Batch the data • Use all the cores

7. Performance Factors Tests that isolate individual performance factors • Count • Filter, Transform, Transform, Filter, convert to List • Aggregation • Market value stats aggregated by product or category

8. Count: Serial long evens = arrayList.stream() .filter(each -> each % 2 == 0).count(); intevens = fastList.count(each -> each % 2 == 0); valevens = arrayBuffer.count(_ % 2 == 0)

9. Count: Serial Lazy long evens = arrayList.stream() .filter(each -> each % 2 == 0).count(); intevens = fastList.asLazy() .count(each -> each % 2 == 0); valevens = arrayBuffer.view .count(_ % 2 == 0)

10. Count: Parallel Lazy long evens = arrayList.parallelStream() .filter(each -> each % 2 == 0).count(); intevens = fastList .asParallel(executorService, BATCH_SIZE) .count(each -> each % 2 == 0); valevens = arrayBuffer.par.count(_ % 2 == 0)

11. Parallel Lazy Batch Filter and Count Reduce

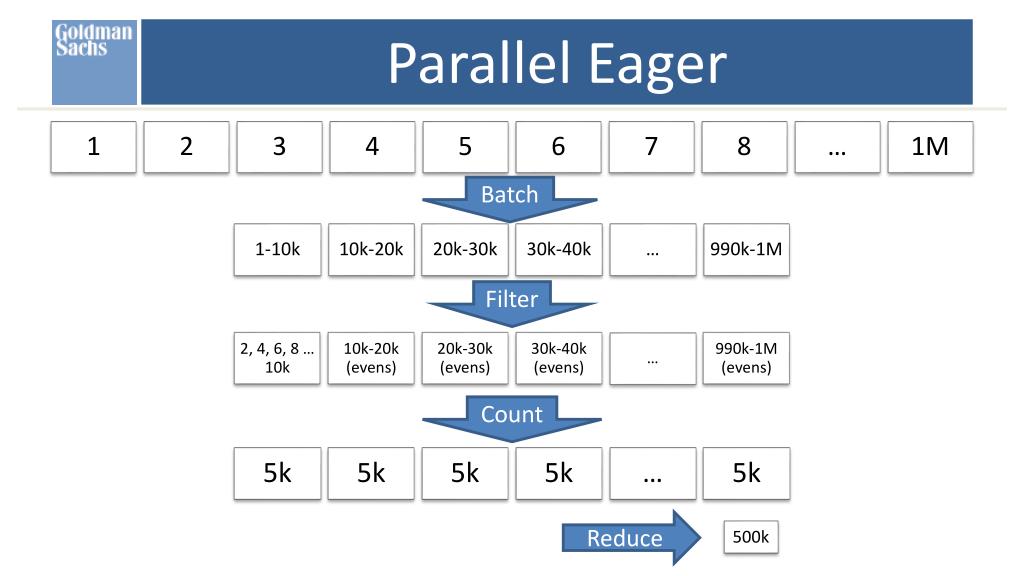

12. Parallel Eager Batch Filter Count Reduce

13. Goals • Compare Java Streams, Scala parallel Collections, and GS Collections • Convince you to use GS Collections • Convince you to do your own performance testing • Identify when to avoid parallel APIs • Identify performance pitfalls to avoid Time for some numbers!

14. Serial Count ops/s (higher is better)

15. Parallel Count ops/s (higher is better) Measured on an 8 core Linux VM Intel Xeon E5-2697 v2 8x

16. Java Microbenchmark Harness “JMH is a Java harness for building, running, and analysingnano/micro/milli/macro benchmarks written in Java and other languages targetting the JVM.” • 5 forked JVMs per test • 100 warmup iterations per JVM • 50 measurement iterations per JVM • 1 second of looping per iteration http://openjdk.java.net/projects/code-tools/jmh/

17. Java Microbenchmark Harness @GenerateMicroBenchmark public void parallel_lazy_jdk() { long evens = this.integersJDK .parallelStream() .filter(each -> each % 2 == 0) .count(); Assert.assertEquals(SIZE / 2, evens); }

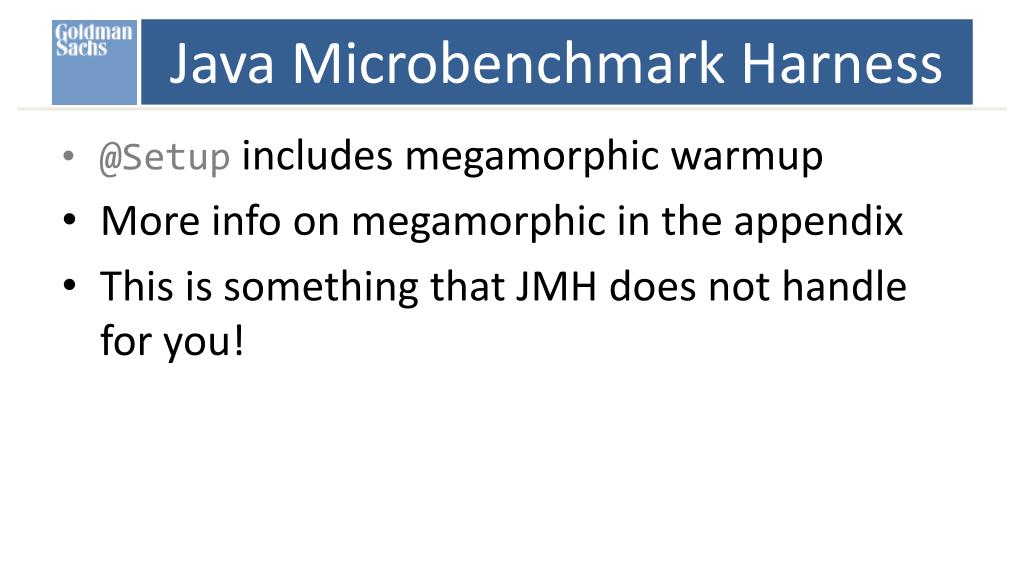

18. Java Microbenchmark Harness • @Setup includes megamorphicwarmup • More info on megamorphic in the appendix • This is something that JMH does not handle for you!

19. Java Microbenchmark Harness • Throughput: higher is better • Enough warmup iterations so that standard deviation is low Benchmark Mode Samples Mean Mean error Units CountTest.parallel_eager_gscthrpt 250 629.961 8.305 ops/s CountTest.parallel_lazy_gscthrpt 250 595.023 7.153 ops/s CountTest.parallel_lazy_jdkthrpt 250 415.382 7.766 ops/s CountTest.parallel_lazy_scalathrpt 250 331.938 2.141 ops/s CountTest.serial_eager_gscthrpt 250 115.197 0.328 ops/s CountTest.serial_eager_scalathrpt 250 91.167 0.864 ops/s CountTest.serial_lazy_gscthrpt 250 73.625 3.619 ops/s CountTest.serial_lazy_jdkthrpt 250 58.182 0.477 ops/s CountTest.serial_lazy_scalathrpt 250 84.200 1.033 ops/s...

20. Performance Factors Tests that isolate individual performance factors • Count • Filter, Transform, Transform, Filter, convert to List • Aggregation • Market value stats aggregated by product or category

21. Java Microbenchmark Harness • Performance tests are open sourced • Read them and run them on your hardware https://github.com/goldmansachs/gs-collections/

22. Performance Factors Factors that may affect performance • Underlying container implementation • Combine strategy • Fork-join vs batching (and batch size) • Push vs pull lazy evaluation • Collapse factor • Unknown unknowns

23. Performance Factors Factors that may affect performance • Underlying container implementation • Combine strategy • Fork-join vs batching (and batch size) • Push vs pull lazy evaluation • Collapse factor • Unknown unknowns Let’s look at reasons for the differences in count() Isolated by using array-backed lists. ArrayList, FastList, and ArrayBuffer Isolated because combination of intermediate results is simple addition.

24. Count: Java 8

25. Count: Java 8 implementation @GenerateMicroBenchmark public void serial_lazy_jdk() { long evens = this.integersJDK .stream() .filter(each -> each % 2 == 0) .count(); Assert.assertEquals(SIZE / 2, evens); }

26. Count: Java 8 implementation filter(Predicate) .count() Instead of count(Predicate) @GenerateMicroBenchmark public void serial_lazy_jdk() { long evens = this.integersJDK .stream() .filter(each -> each % 2 == 0) .count(); Assert.assertEquals(SIZE / 2, evens); }

27. Count: Java 8 implementation filter(Predicate) .count() Instead of count(Predicate) @GenerateMicroBenchmark public void serial_lazy_jdk() { long evens = this.integersJDK .stream() .filter(each -> each % 2 == 0) .count(); Assert.assertEquals(SIZE / 2, evens); } Is count()just incrementing a counter?

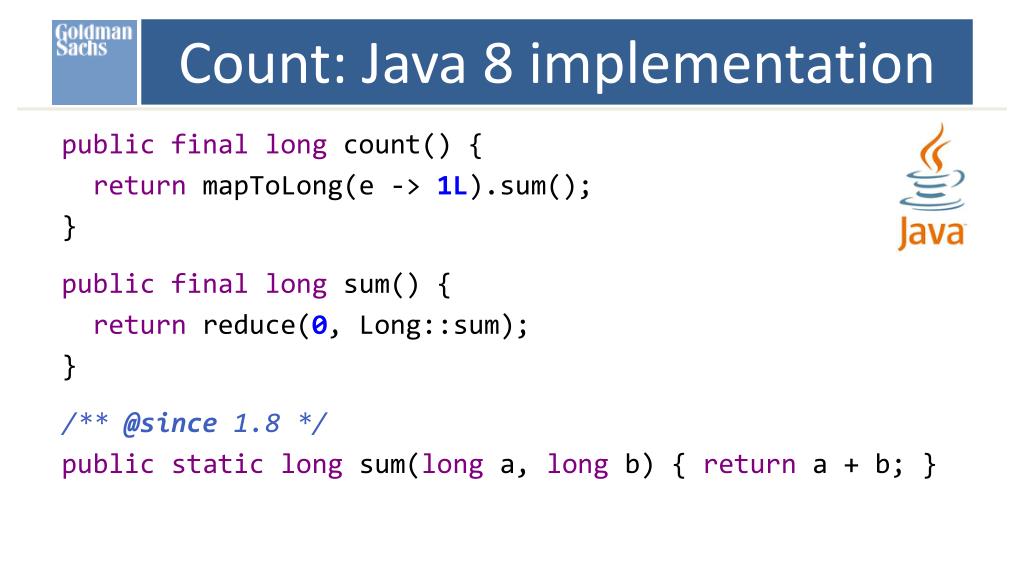

28. Count: Java 8 implementation public final long count() { return mapToLong(e -> 1L).sum(); } public final long sum() { return reduce(0, Long::sum); } /** @since 1.8 */ public static long sum(long a, long b) { return a + b; }

29. Count: Java 8 implementation this.integersJDK .stream() .filter(each -> each % 2 == 0) .mapToLong(e -> 1L) .reduce(0, Long::sum); this.integersGSC .asLazy() .count(each -> each % 2 == 0);

30. Count: Java 8 implementation this.integersJDK .stream() .filter(each -> each % 2 == 0) .mapToLong(e -> 1L) .reduce(0, Long::sum); this.integersGSC .asLazy() .count(each -> each % 2 == 0); Seems like extra work

31. Count: GS Collections

32. Count: GS Collections @GenerateMicroBenchmark public void serial_lazy_gsc() { intevens = this.integersGSC .asLazy() .count(each -> each % 2 == 0); Assert.assertEquals(SIZE / 2, evens); }

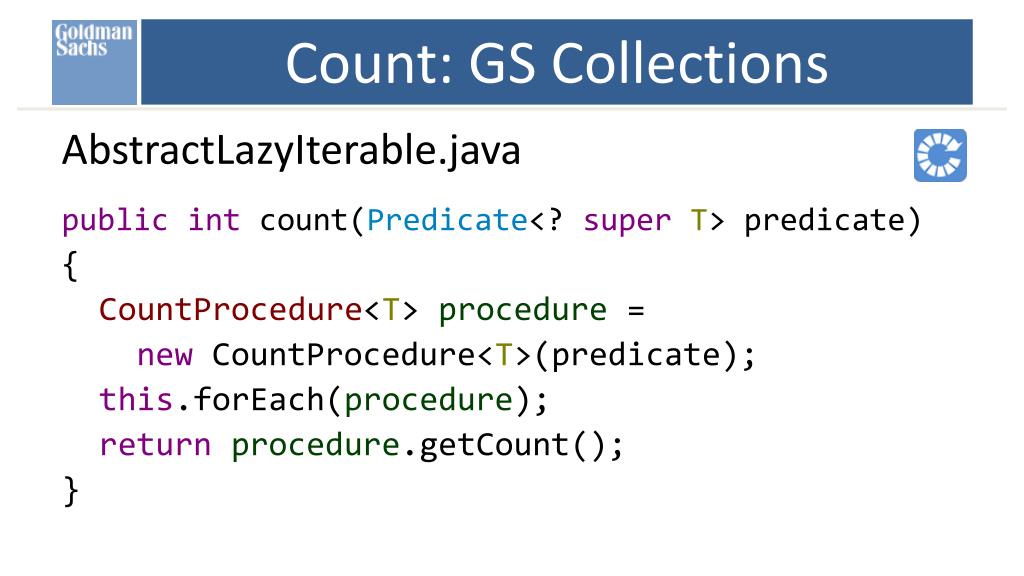

33. Count: GS Collections AbstractLazyIterable.java public intcount(Predicate<? super T> predicate) { CountProcedure<T> procedure = new CountProcedure<T>(predicate); this.forEach(procedure); return procedure.getCount(); }

34. Count: GS Collections FastList.java public void forEach(Procedure<? super T> procedure) { for (inti= 0; i< this.size; i++) { procedure.value(this.items[i]); } }

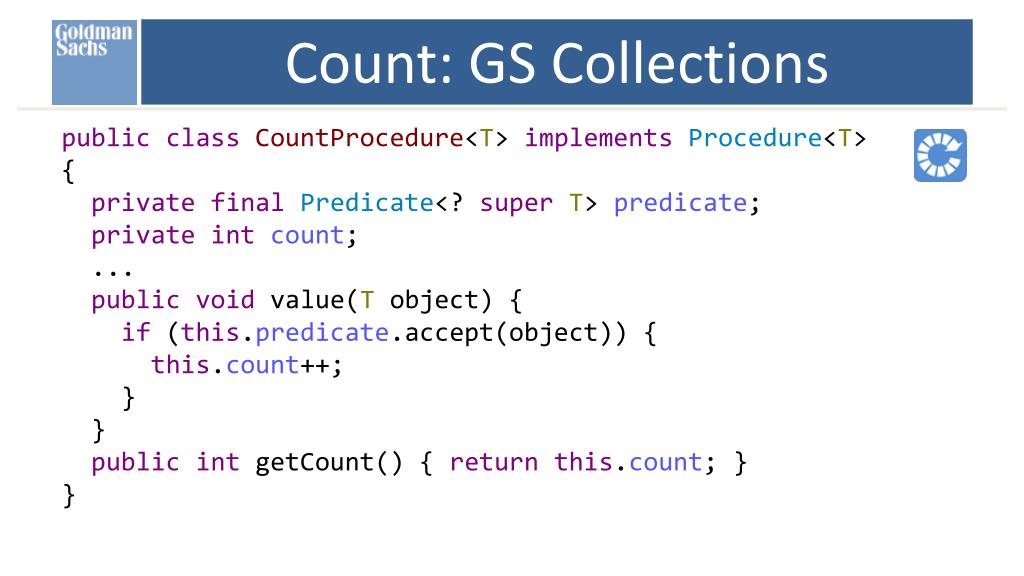

35. Count: GS Collections public class CountProcedure<T> implements Procedure<T> { private final Predicate<? super T> predicate; private intcount; ... public void value(T object) { if (this.predicate.accept(object)) { this.count++; } } public intgetCount() { return this.count; } }

36. Count: GS Collections public class CountProcedure<T> implements Procedure<T> { private final Predicate<? super T> predicate; private intcount; ... public void value(T object) { if (this.predicate.accept(object)) { this.count++; } } public intgetCount() { return this.count; } } Predicate from the test: each -> each % 2 == 0

37. Count: Scala

38. Count: Scala implementation TraversibleOnce.scala defcount(p: A => Boolean): Int= { varcnt= 0 for (x <- this) if (p(x)) cnt+= 1 cnt }

39. Count: Scala implementation TraversibleOnce.scala defcount(p: A => Boolean): Int= { varcnt= 0 for (x <- this) if (p(x)) cnt+= 1 cnt } for-comprehension becomes call to foreach() lambda closes over cnt. Executes predicate and increments cnt, just like CountProcedure

40. Count: Scala implementation public final java.lang.Object apply(java.lang.Object); 0: aload_0 1: aload_1 // Method scala/runtime/BoxesRunTime.unboxToInt:(Ljava/lang/Object;)I 2: invokestatic #32 // Method apply:(I)Z 5: invokevirtual #34 // Method scala/runtime/BoxesRunTime.boxToBoolean:(Z)Ljava/lang/Boolean; 8: invokestatic #38 11: areturn public final boolean apply(int); 0: aload_0 1: iload_1 // Method apply$mcZI$sp:(I)Z 2: invokevirtual #21 5: ireturn public booleanapply$mcZI$sp(int); 0: iload_1 1: iconst_2 2: irem 3: iconst_0 4: if_icmpne 11 7: iconst_1 8: goto 12 11: iconst_0 12: ireturn

41. Count: Scala implementation Integer int Integer.intValue() Lambda: _ % 2 == 0 Bytecode: irem boolean Boolean Boolean.valueOf(boolean)

42. Performance Factors Factors that may affect performance • Underlying container implementation • Combine strategy • Fork-join vs batching (and batch size) • Push vs pull lazy evaluation • Collapse factor • Unknown unknowns Java’s pull lazy evaluation Scala’s auto-boxing

43. Performance Factors Tests that isolate individual performance factors • Count • Filter, Transform, Transform, Filter, convert to List • Aggregation • Market value stats aggregated by product or category

44. Parallel / Lazy / JDK List<Integer> list = this.integersJDK .parallelStream() .filter(each -> each % 10_000 != 0) .map(String::valueOf) .map(Integer::valueOf) .filter(each -> (each + 1) % 10_000 != 0) .collect(Collectors.toList()); Verify.assertSize(999_800, list);

45. Parallel / Lazy / GSC MutableList<Integer> list = this.integersGSC .asParallel(this.executorService, BATCH_SIZE) .select(each -> each % 10_000 != 0) .collect(String::valueOf) .collect(Integer::valueOf) .select(each -> (each + 1) % 10_000 != 0) .toList(); Verify.assertSize(999_800, list);

46. Parallel / Lazy / Scala vallist = this.integers .par .filter(each => each % 10000 != 0) .map(String.valueOf) .map(Integer.valueOf) .filter(each => (each + 1) % 10000 != 0) .toBuffer Assert.assertEquals(999800, list.size)

47. Stacked computation ops/s(higher is better) 8x

48. Parallel / Lazy / JDK List<Integer> list = this.integersJDK .parallelStream() .filter(each -> each % 10_000 != 0) .map(String::valueOf) .map(Integer::valueOf) .filter(each -> (each + 1) % 10_000 != 0) .collect(Collectors.toList()); Verify.assertSize(999_800, list);

49. Parallel / Lazy / JDK List<Integer> list = this.integersJDK .parallelStream() .filter(each -> each % 10_000 != 0) .map(String::valueOf) .map(Integer::valueOf) .filter(each -> (each + 1) % 10_000 != 0) .collect(Collectors.toList()); Verify.assertSize(999_800, list); ArrayList::new List::add (left, right) -> { left.addAll(right); return left; }

50. Fork-Join Merge • Intermediate results are merged in a tree • Merging is O(n log n) work and garbage
