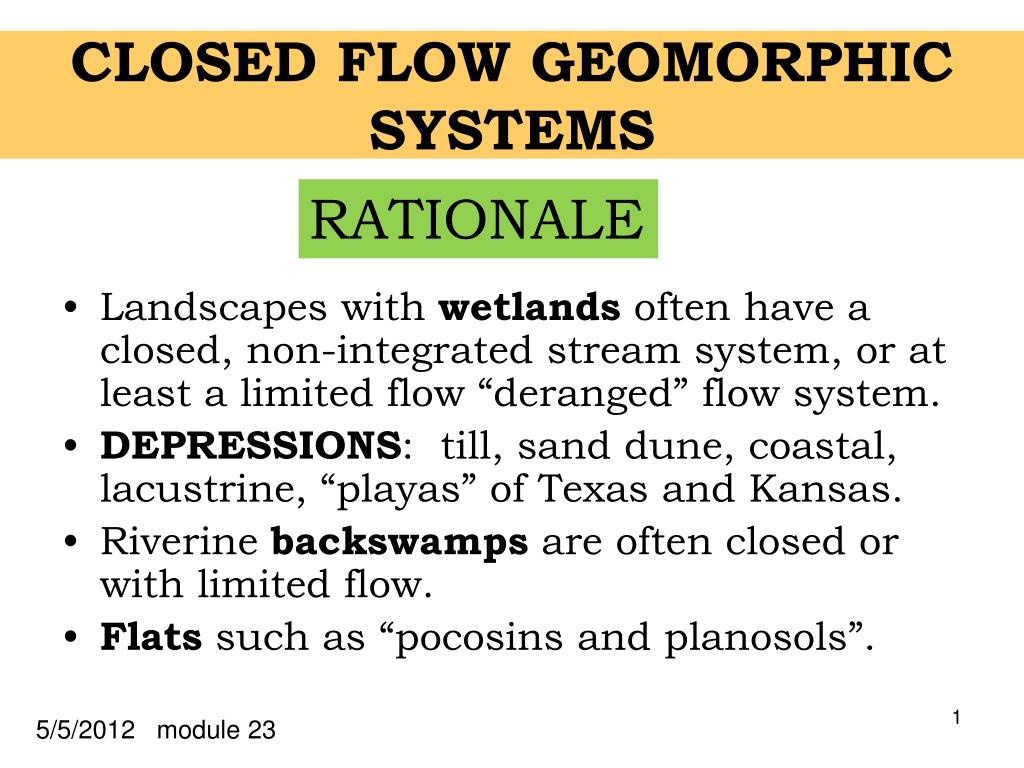

  1. CLOSED FLOW GEOMORPHICSYSTEMS • Landscapes with wetlands often have a closed, non-integrated stream system, or at least a limited flow “deranged” flow system. • DEPRESSIONS: till, sand dune, coastal, lacustrine, “playas” of Texas and Kansas. • Riverinebackswamps are often closed or with limited flow. • Flats such as “pocosins and planosols”. RATIONALE 5/5/2012 module 23

  2. OBJECTIVES • Participants will draw cross-sections of closed or nearly closed landscapes, based on either topographic or soil map representations and some idea of the climatic regime. The participants will interpret the soils in terms of the hydrology.

  3. BRINE PIT STUDY SITE 54 Ablation over Dense Lodgment Till - Salts NaCl SALINE BRINE PIT SLOPE SALT DESERT 600m Salts have moved to 30m depth Foss et al, 1985

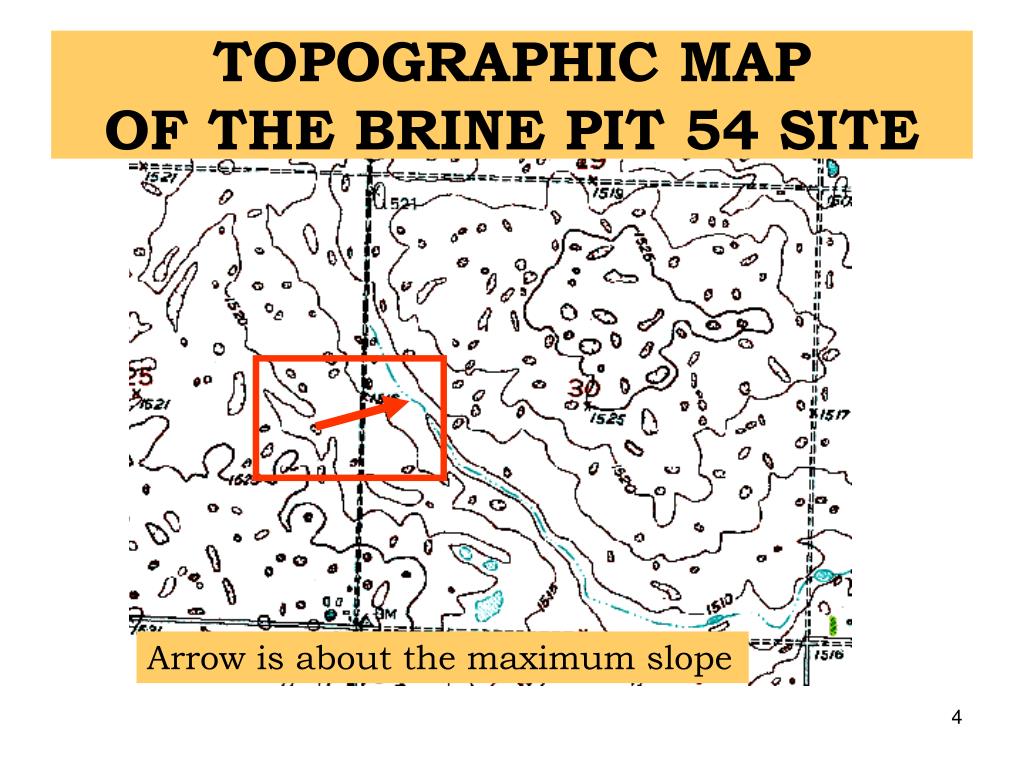

  4. TOPOGRAPHIC MAPOF THE BRINE PIT 54 SITE Arrow is about the maximum slope

  5. Soil Boundaries Salt Boundary Oil Well Over 40 ac

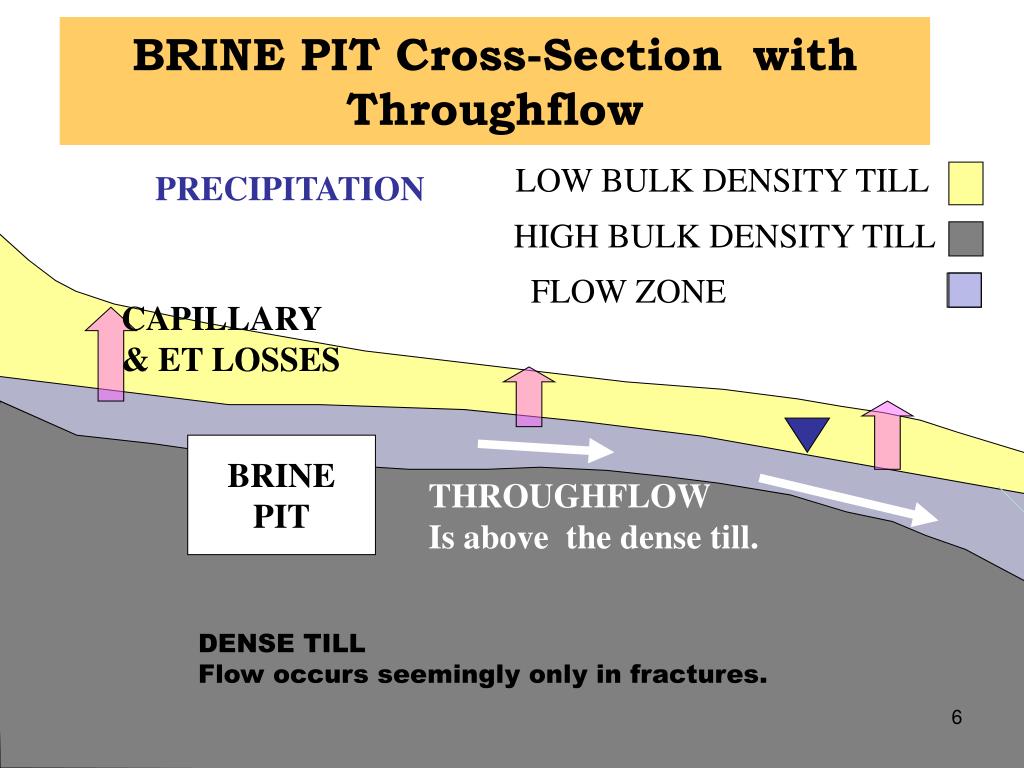

  6. LOW BULK DENSITY TILL HIGH BULK DENSITY TILL BRINE PIT Cross-Section withThroughflow PRECIPITATION FLOW ZONE CAPILLARY & ET LOSSES BRINE PIT THROUGHFLOW Is above the dense till. DENSE TILL Flow occurs seemingly only in fractures.

  7. TWO TYPES OF EROSIONAL AND ONE UPLAND DEPRESSIONAL LANDSCAPES IN MOORE CO., TX SHERM, PULLMAN upland, with NESS depressions DALHART & FLOODPLAIN VERNON BADLANDS

  8. SOIL SURVEY: MOORE CO., TXSECs. 229,230,250,249Yes these are the section #’s. NOTE: NO other drain- ages. SHERM 4Mi NESS SUNRAY

  9. PLAYA PONDSMOORE CO., TXCLOSED DEPRESSIONS DALHART SHERM SUNRAY NESS

  10. WATER TABLE CONTOUR MAP FENS CONTOUR INTERVAL 50 ft Bisson Lake study, MN.

  11. SLOPE ARTESIAN CALCIAQUOLLS WINTER FLOW DEPRESSIONS ROAD PROBLEMS SEEPAGE NORTH TRANSECT BISSON LAKE STUDY N GLACIAL LAKE MAHONOMEN

  12. LAKE BISSON Topographic Map Well

  13. Cross-Section FLOODPLAIN OF THE WAKARUSA RIVER, Kansas SOILS Upland WABASH READING PD & VPD WD “Bedrock” Mixed Alluvium Recent natural levee and colluvial sediments Lindbo, D. L., and J. L. Richardson. 2001

  14. FLOODPLAIN OF THE WAKARUSA RIVER- Landforms Upland Back swamp Natural Levee yazoo Stream “Bedrock” Mixed Alluvium Recent natural levee and colluvial sediments Lindbo, D. L., and J. L. Richardson. 2001

  15. Wakarusa River Floodplain, Kansas with Baker University Restoration LimestoneBedrock Upland Back swamp Drainage in old yazoo NaturalLevee Lindbo, D. L., and J. L. Richardson. 2001

  16. SOILS of FLATS & SLOPES WAYNE CO., IA Edina Alboll Clarinda Aquoll Bt Bt Bt Bt

  17. POCOSSIN TYPE OF WETLAND Click to add title Precipitation > 125 cm/year Mediasaprist Humaquept Soil Great Groups Umbraquult Typic Aeric Ochraquult MUCK Ochraquult Hapludult MUCK Coastal Plain Sediments NC, SC, VA, GA Soils after Tant et al. 1988 Hydrology after Richardson et al. 1992

  18. RED LAKE MINNESOTA BLANKET PEAT Omnotrophic Bog Rich Fen Local Recharge Local Discharge MOSS PEAT SEDGE PEAT MARL LAKE SEDIMENTS GW flow from Till Upland Regional Discharge after Siegel & Glazer

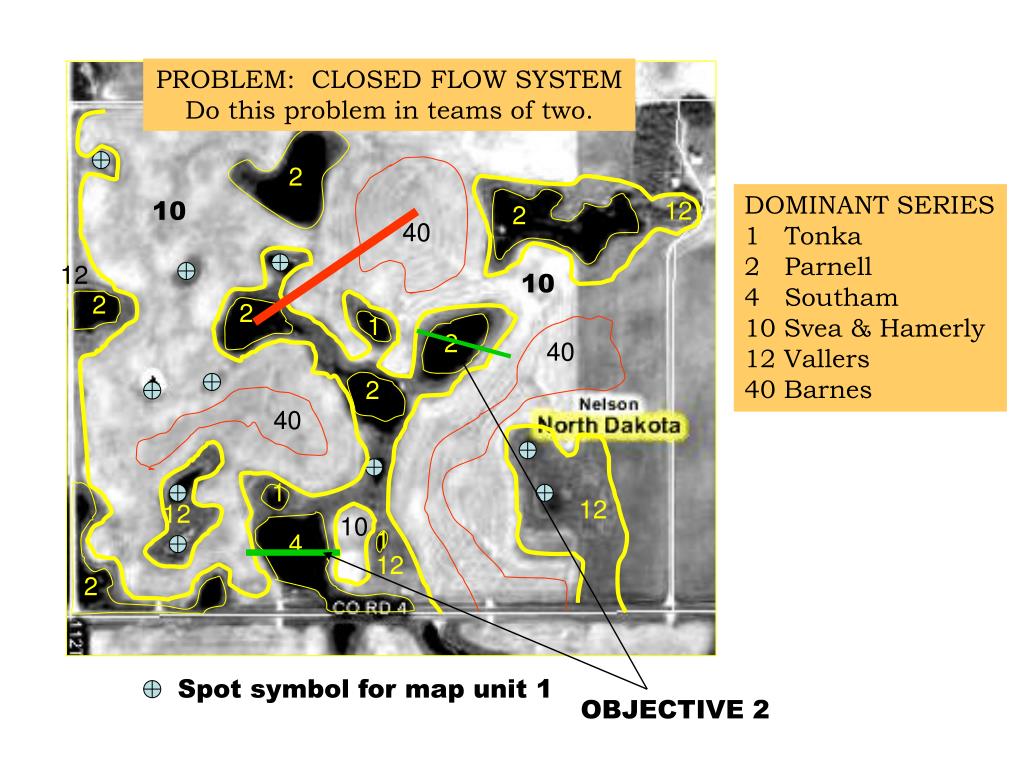

  19. PROBLEM: CLOSED FLOW SYSTEM Do this problem in teams of two. 2 DOMINANT SERIES 1 Tonka 2 Parnell 4 Southam 10 Svea& Hamerly 12 Vallers 40 Barnes 12 10 2 40 12 10 2 2 1 2 40 2 40 1 12 12 10 1 4 12 2 Spot symbol for map unit 1 OBJECTIVE 2

  20. PROBLEM: CLOSED FLOW SYSTEM

  21. PROBLEM OBJECTIVES OBJECTIVE 1: - Create a cross-section along the red line, including slope profile, and soil distribution along the slope profile. - Draw the hydrology for pluvial (humid) and normal (sub-humid) times on the cross-section. - Describe and explain the development of these till soils since the prairie invasion in the last 8,000 years. OBJECTIVE 2: - Sketch a cross-section and contrast the 2 and 4 wetlands and map units 12 and 10. - Explain the profile differences and how the map units 12, 4 and 2 formed in terms of evaporative discharge, recharge and flowthrough. (Using your notes is perfectly acceptable.)
