Creating Forms

1. Creating Forms

2. Data Entry Options • Before designing forms, it is a good idea to determine the overall operating parameters in which the program will run • Some questions to answer: • Do you want to know which keyer entered data into each file? (operator id) • Do you want to allow keyers to stop data entry in the middle of a case, resuming keying later? (partial save) • Do you want keyers to see a tree that gives details about the layout of the questionnaire and allows the keyer to jump more easily to previously keyed parts of the questionnaire? (case tree) • Should the keyer be required to press Enter on each field before the program advances to the next field? (require enter)

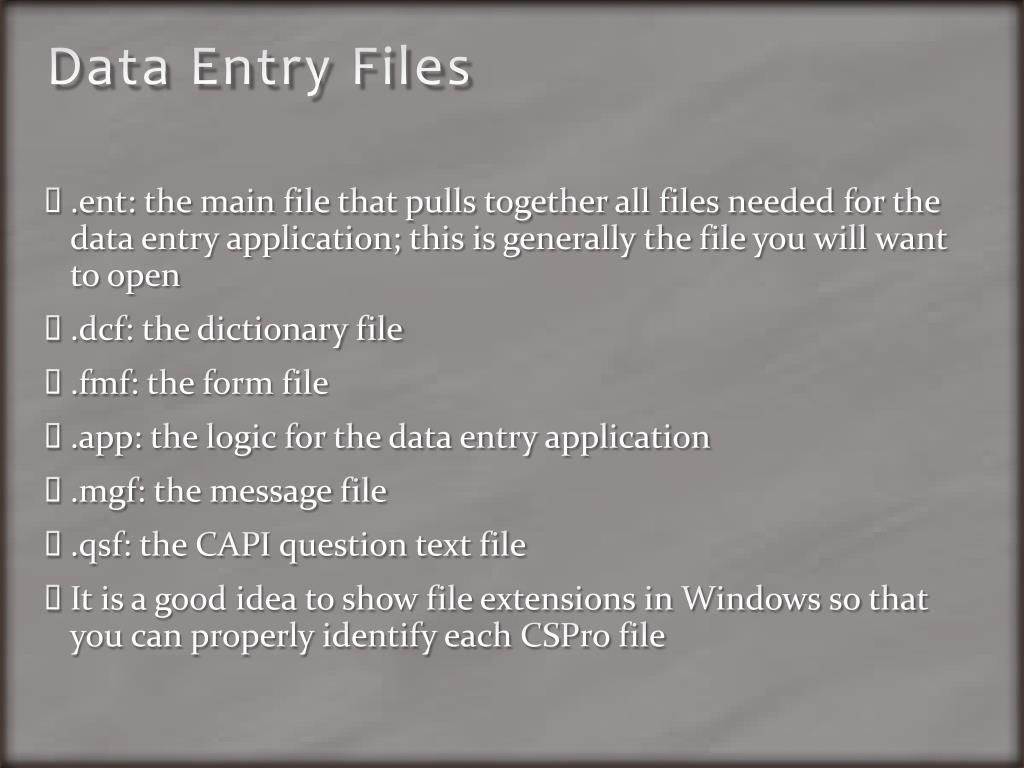

3. Data Entry Files • .ent: the main file that pulls together all files needed for the data entry application; this is generally the file you will want to open • .dcf: the dictionary file • .fmf: the form file • .app: the logic for the data entry application • .mgf: the message file • .qsf: the CAPI question text file • It is a good idea to show file extensions in Windows so that you can properly identify each CSPro file

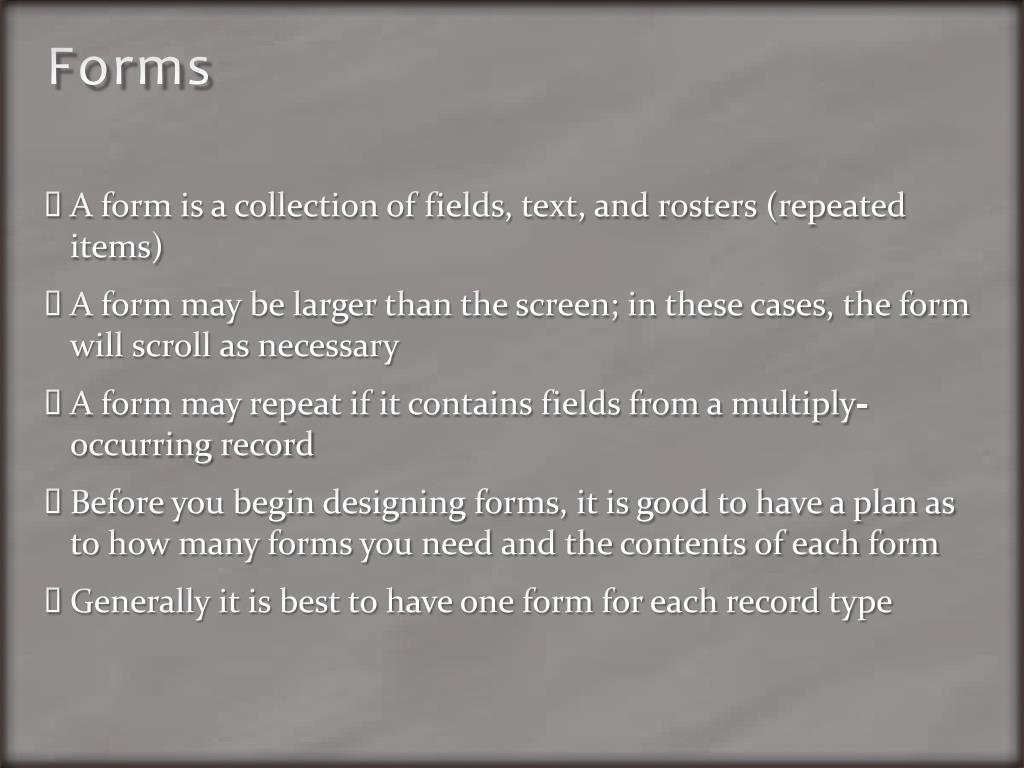

4. Forms • A form is a collection of fields, text, and rosters (repeated items) • A form may be larger than the screen; in these cases, the form will scroll as necessary • A form may repeat if it contains fields from a multiply-occurring record • Before you begin designing forms, it is good to have a plan as to how many forms you need and the contents of each form • Generally it is best to have one form for each record type

5. Form Elements • Forms consist of: • Freeform text • Field-related text • Fields • Rosters • Boxes • Background color • No form designed in CSPro will ever win a design contest, and as such it is better to spend time testing the application rather than making the forms pretty • However, it is important that the forms are easy to understand and navigate; usually a programmer tries to make the forms look as close to the paper questionnaire as possible

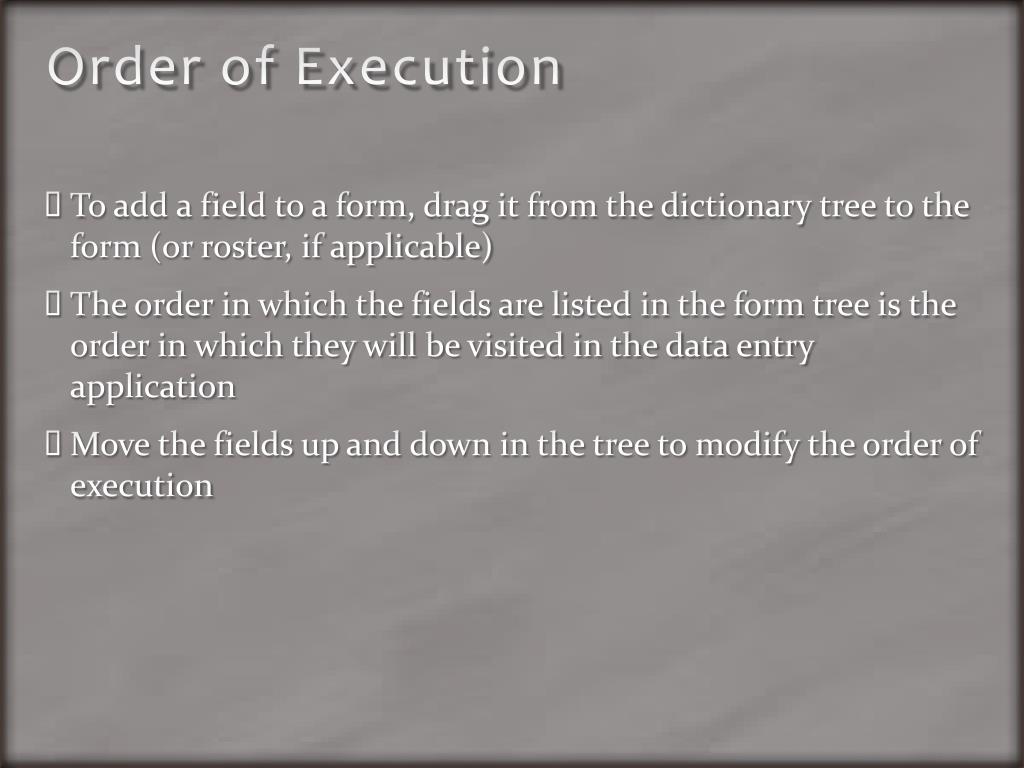

6. Order of Execution • To add a field to a form, drag it from the dictionary tree to the form (or roster, if applicable) • The order in which the fields are listed in the form tree is the order in which they will be visited in the data entry application • Move the fields up and down in the tree to modify the order of execution

7. Rosters • There are two options for adding multiply-occurring records to a data entry application: • Add the items to a repeating form; in this case, each occurrence of the record will be displayed on a separate form • Adding the items to a single form as a roster; in this case, values for all occurrences will be visible on one form • Rosters have the advantage that they generally look like their paper questionnaires counterparts • Forms with rosters can also contain fields from singly-occurring records, which is not the case for repeating forms

8. Roster Properties • An occurrence control field can be set to size the roster based on the value of a dictionary item • The direction of movement within the roster can be overridden; e.g., instead of entering: Sex Person 1, Age Person 1, Sex Person 2, Age Person 2it is possible to enter: Sex Person 1, Sex Person 2, Age Person 1, Age Person 2 • Column headings can be altered and aligned

9. Field Properties • Skip field: In operator-controlled mode, pressing + will skip from this field to the specified skip field • Persistent: An ID item will automatically take the value found in the previously entered case (at least one ID item must not be persistent) • Sequential: The item will take the value of the previous occurrence, incremented by 1 • Protected: The field cannot be keyed and must be assigned a value with logic • Note: Improperly-coded applications in which protected fields are not assigned values will crash

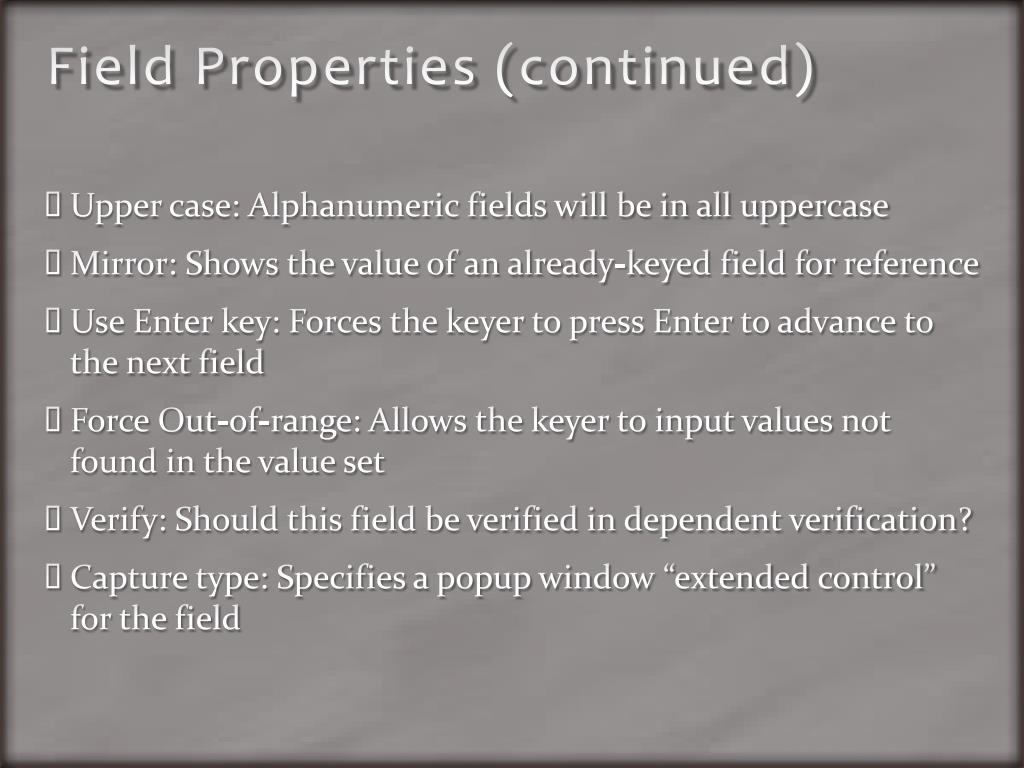

10. Field Properties (continued) • Upper case: Alphanumeric fields will be in all uppercase • Mirror: Shows the value of an already-keyed field for reference • Use Enter key: Forces the keyer to press Enter to advance to the next field • Force Out-of-range: Allows the keyer to input values not found in the value set • Verify: Should this field be verified in dependent verification? • Capture type: Specifies a popup window “extended control” for the field

11. Form Design Options • Fields on forms can be aligned using the Align menu options • Forms can be centered on the keyer’s screen (see Data Entry Options) • Modifying the Drag Options can simplify form creation • Changing the default text and field fonts is one way to support languages with non-Latin alphabets • The background color of forms can be changed • For simple dictionary testing, the Generate Forms command can quickly create a working data entry application

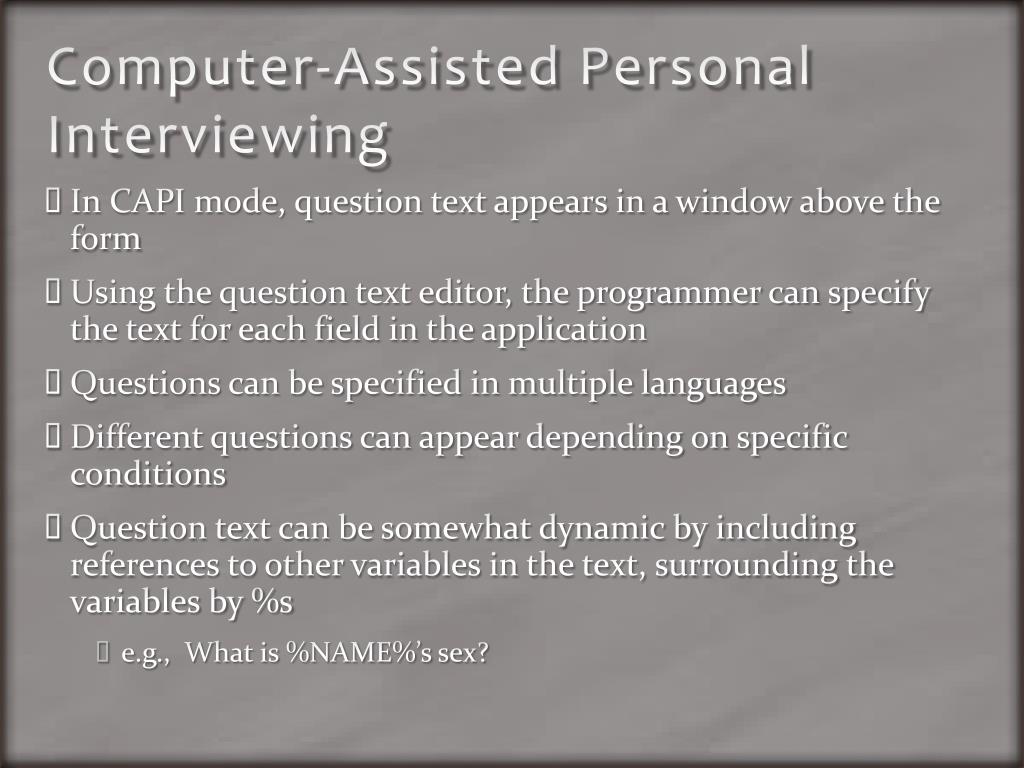

12. Computer-Assisted Personal Interviewing • In CAPI mode, question text appears in a window above the form • Using the question text editor, the programmer can specify the text for each field in the application • Questions can be specified in multiple languages • Different questions can appear depending on specific conditions • Question text can be somewhat dynamic by including references to other variables in the text, surrounding the variables by %s • e.g., What is %NAME%’s sex?

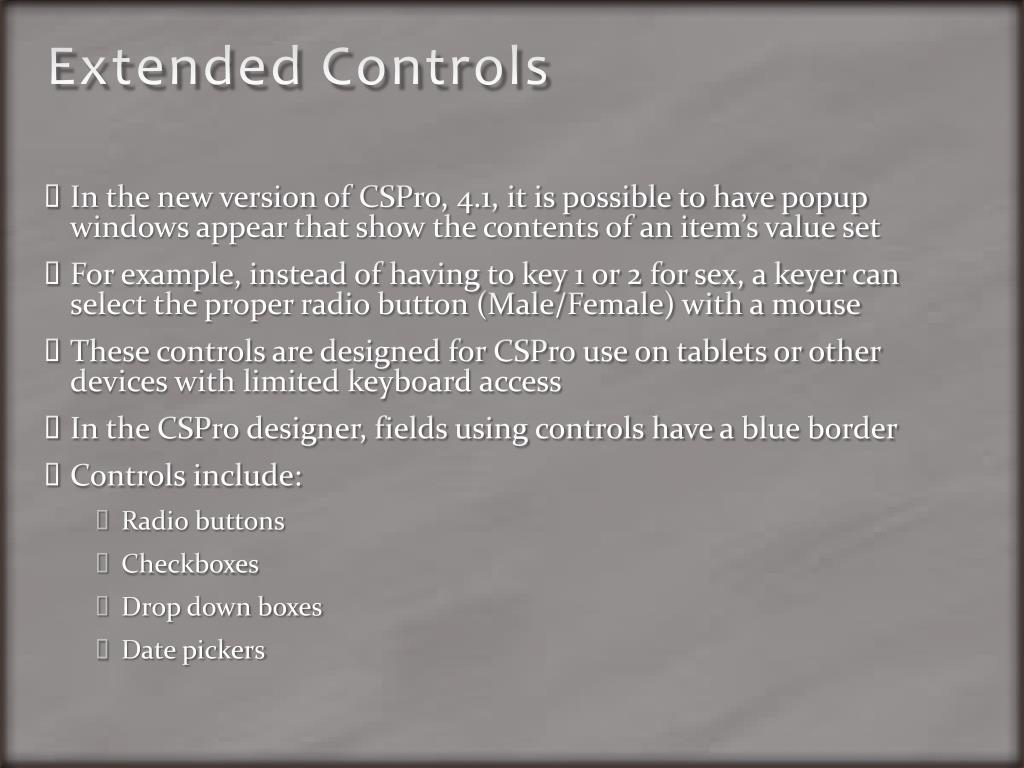

13. Extended Controls • In the new version of CSPro, 4.1, it is possible to have popup windows appear that show the contents of an item’s value set • For example, instead of having to key 1 or 2 for sex, a keyer can select the proper radio button (Male/Female) with a mouse • These controls are designed for CSPro use on tablets or other devices with limited keyboard access • In the CSPro designer, fields using controls have a blue border • Controls include: • Radio buttons • Checkboxes • Drop down boxes • Date pickers
