An Extended Design of the “Grid Enabled SEE++ System” Based on Globus Toolkit 4 and gLite

Research Institute For Symbolic Computation (RISC), Johannes Kepler University, Linz, Austria. http://www.risc.uni-linz.ac.at. An Extended Design of the “Grid Enabled SEE++ System” Based on Globus Toolkit 4 and gLite. Authors: K. Bosa, W. Schreiner, T. Kaltofen, M. Buchberger.

addison-bright
Télécharger la présentation

An Extended Design of the “Grid Enabled SEE++ System” Based on Globus Toolkit 4 and gLite

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Research Institute For Symbolic Computation (RISC), Johannes Kepler University, Linz, Austria http://www.risc.uni-linz.ac.at An Extended Design of the “Grid Enabled SEE++ System” Based on Globus Toolkit 4 and gLite Authors: K. Bosa, W. Schreiner, T. Kaltofen, M. Buchberger http://www.uar.at http://www.strabismus.at

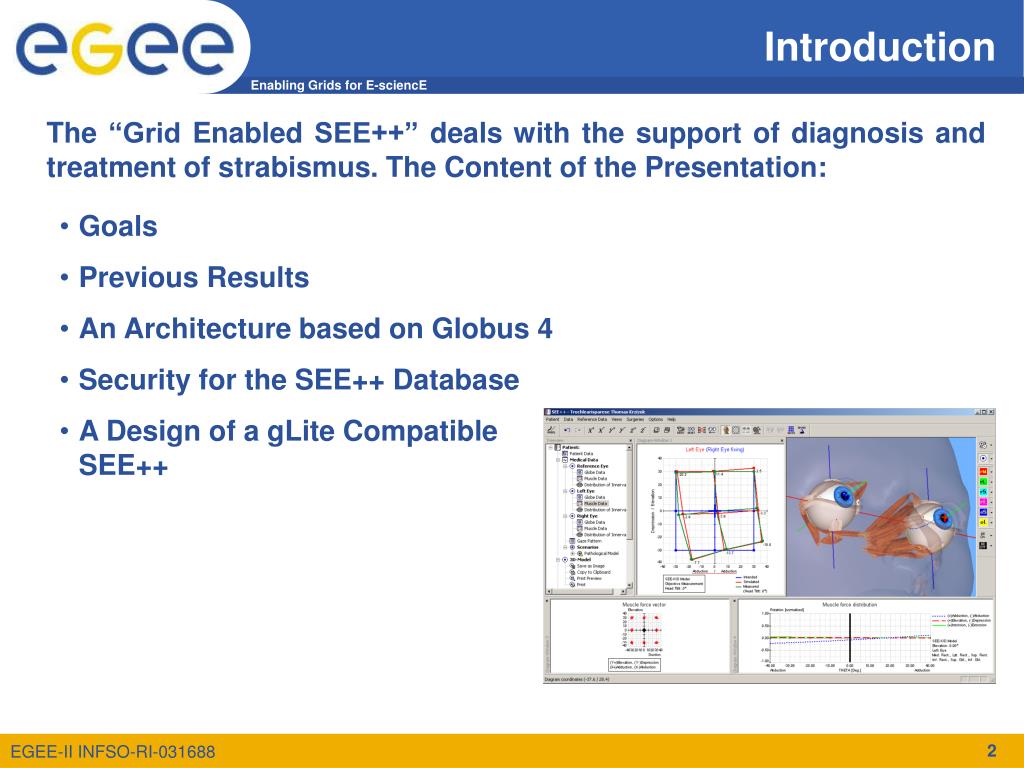

  2. Introduction The “Grid Enabled SEE++” deals with the support of diagnosis and treatment of strabismus. The Content of the Presentation: Goals Previous Results An Architecture based on Globus 4 Security for the SEE++ Database A Design of a gLite Compatible SEE++

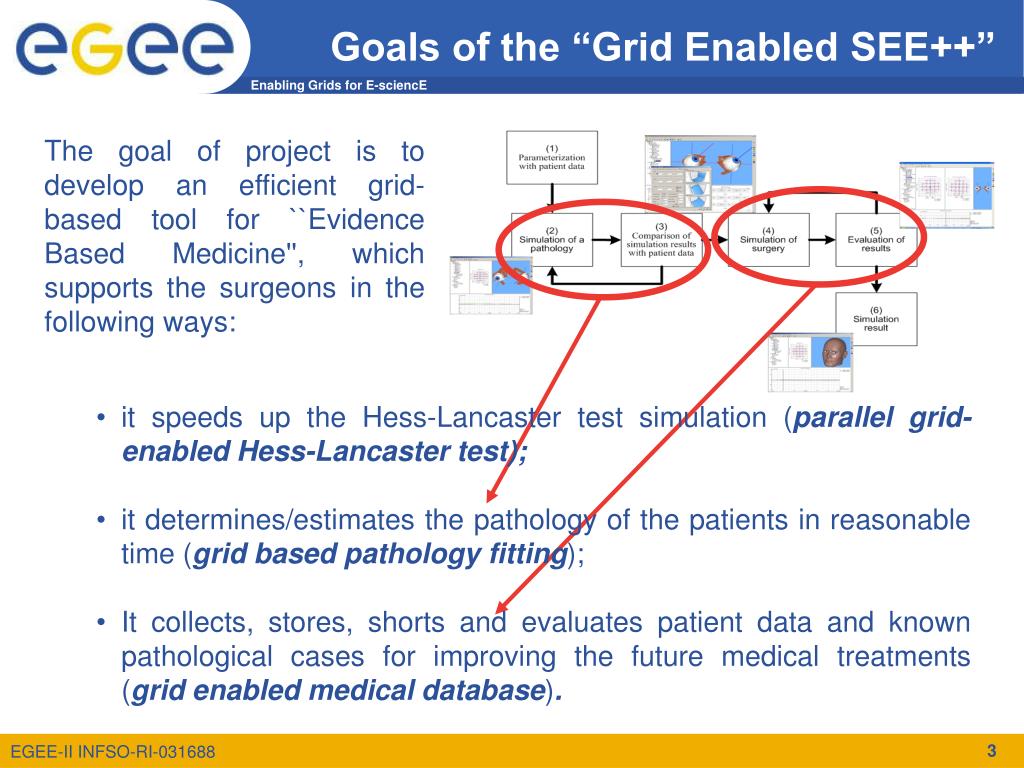

  3. Goals of the “Grid Enabled SEE++” The goal of project is to develop an efficient grid-based tool for ``Evidence Based Medicine'', which supports the surgeons in the following ways: • it speeds up the Hess-Lancaster test simulation (parallel grid-enabled Hess-Lancaster test); • it determines/estimates the pathology of the patients in reasonable time (grid based pathology fitting); • It collects, stores, shorts and evaluates patient data and known pathological cases for improving the future medical treatments (grid enabled medical database).

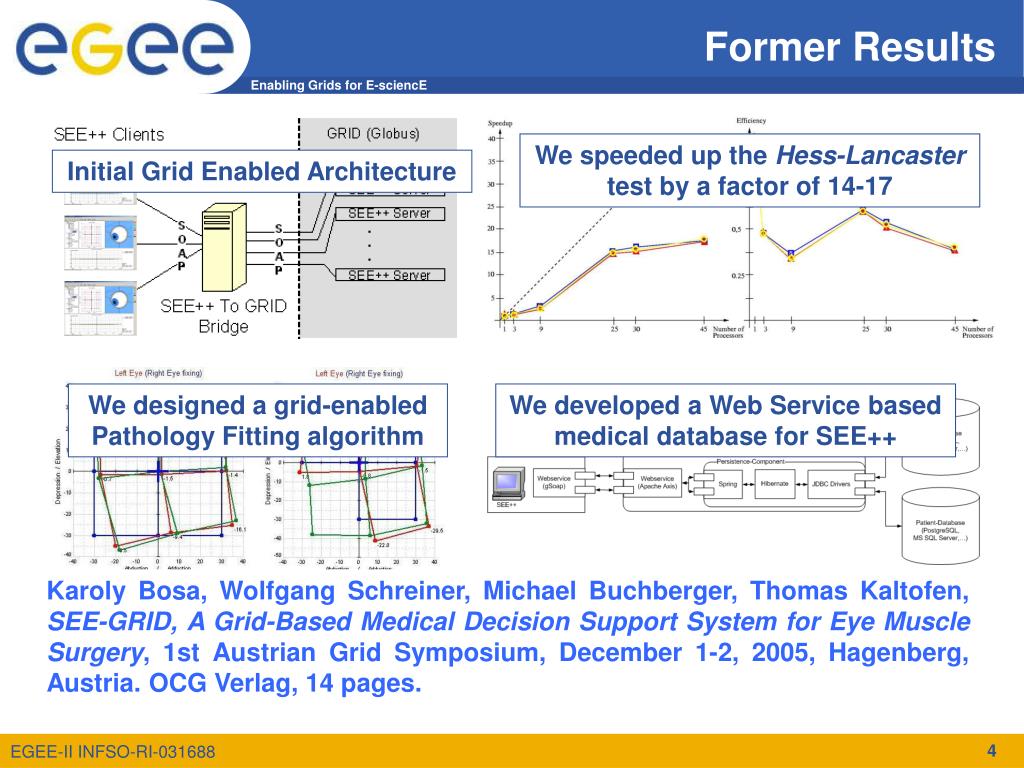

  4. Former Results We speeded up the Hess-Lancastertest by a factor of 14-17 Initial Grid Enabled Architecture We designed a grid-enabled Pathology Fitting algorithm We developed a Web Service based medical database for SEE++ Karoly Bosa, Wolfgang Schreiner, Michael Buchberger, Thomas Kaltofen, SEE-GRID, A Grid-Based Medical Decision Support System for Eye Muscle Surgery, 1st Austrian Grid Symposium, December 1-2, 2005, Hagenberg, Austria. OCG Verlag, 14 pages.

  5. An Architecture based on Globus 4 The Dashed Line Denotes the Existing Components

  6. Security for the SEE++ Databases I.) Security between the SEE++ clients and the bridge (outside of the grid) : • Encrypting any network transfer via HTTPS or SSL by Stunnel. II.) Security between bridge and the WSRF Databases (inside of the grid) : a.) Solutions developed for system b.) Solutions provided by the Grid • For each Web Service call, the caller's identity is checked separately (User ID + Password). • Stored user passwords is encrypted with an SHA-512 salted hash and stored in an independent database. • Encrypting any network transfer (planned). • Checking the authorization of the bridge by certificates (planned). • Managing VOs (planned)

  7. A Design of a gLite Compatible SEE++
