  1. WELCOMEDay 3 OPERATOR And MAINTENANCE COURSE

  2. AN/WSC-6, 6A(V)9 OPERATIONS & MAINTENANCELESSON OBJECTIVES UNIT 1: OVERVIEW AND SYSTEM DESCRIPTION TOPIC 1.5: OPERATIONAL BLOCK DIAGRAM ENABLING OBJECTIVES: 1.17 DESCRIBE the AN/WSC-6, 6A(V)9 circuits and signal flow at the operational block diagram level in accordance with AN/WSC-6, 6A(V)9 Organizational Level Operation and Maintenance System Technical Manual, TM-EE-132-AV-OMI-010.

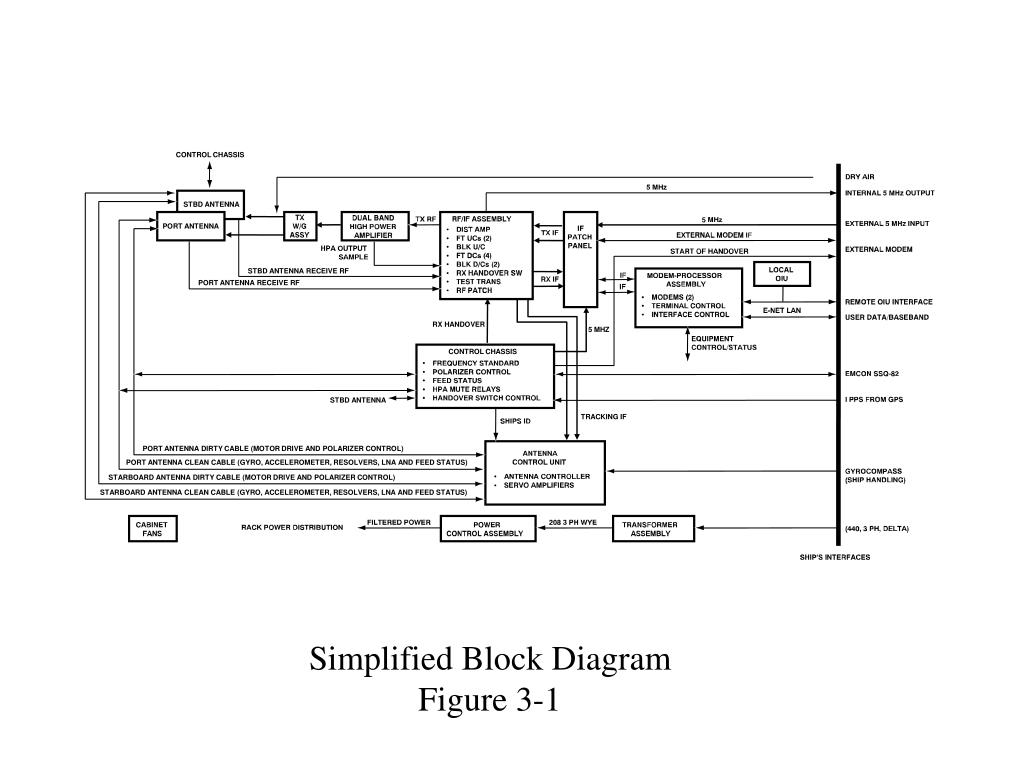

  3. CONTROL CHASSIS STBD ANTENNA PORT ANTENNA STBD ANTENNA RECEIVE RF PORT ANTENNA RECEIVE RF RX HANDOVER 5 MHZ CONTROL CHASSIS STBD ANTENNA TRACKING IF PORT ANTENNA DIRTY CABLE (MOTOR DRIVE AND POLARIZER CONTROL) PORT ANTENNA CLEAN CABLE (GYRO, ACCELEROMETER, RESOLVERS, LNA AND FEED STATUS) STARBOARD ANTENNA DIRTY CABLE (MOTOR DRIVE AND POLARIZER CONTROL) STARBOARD ANTENNA CLEAN CABLE (GYRO, ACCELEROMETER, RESOLVERS, LNA AND FEED STATUS) Simplified Block Diagram Figure 3-1

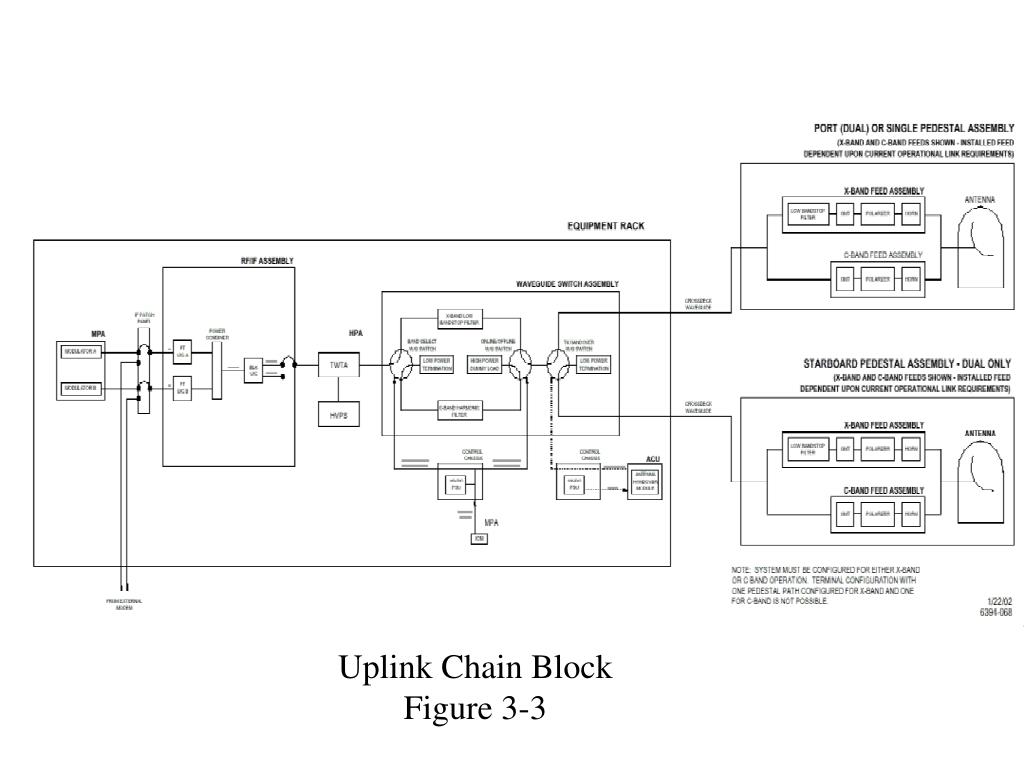

  4. Uplink Chain Block Figure 3-3

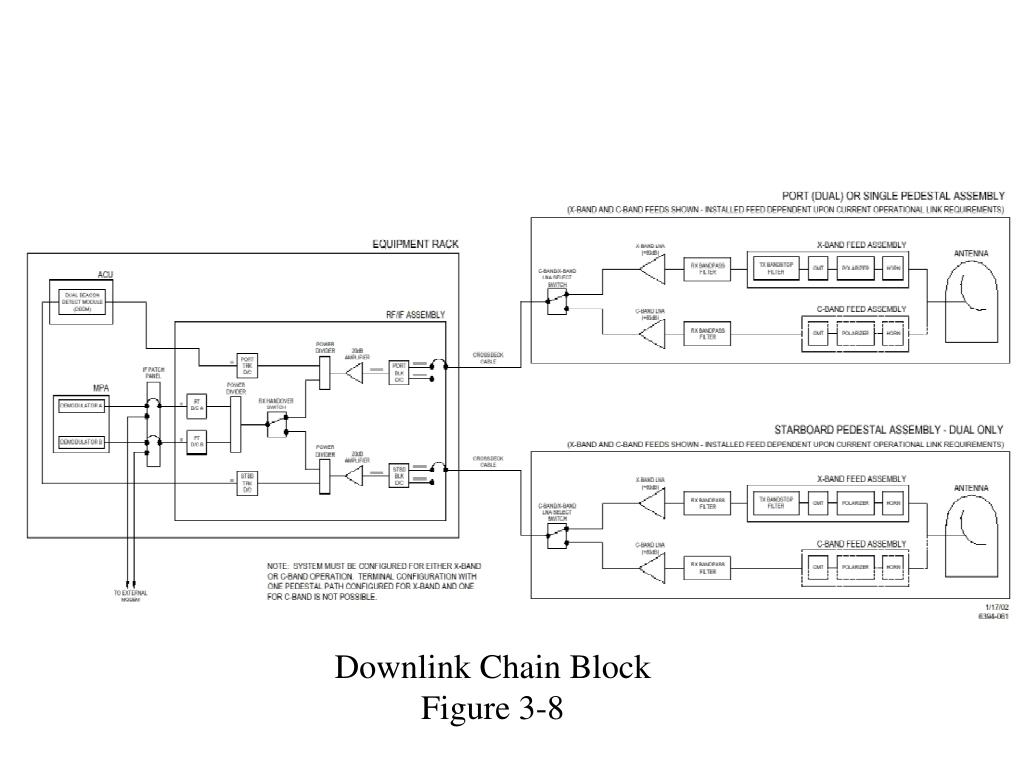

  5. Downlink Chain Block Figure 3-8
