  1. Day 3

  2. An Introduction to Cloud Dr David Wallom, Associate Director - Innovation (Oxford e-Research Centre) Technical Director (UK NGS) Thanks to NIST Clouds Introduction

  3. Outline • What is Cloud…? • Using Cloud (technically) • Using cloud (non-technical) • Nationally available resources

  4. What is cloud?

  5. A Working Definition of Cloud Computing • Cloud computing is a model for enabling convenient, on-demand network access to a shared pool of configurable computing resources (e.g., networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction. • This cloud model promotes availability and is composed of five essential characteristics, three service models, and four deployment models. WallomsDef: If a user speaks to a person to get access to resources, its virtualisation, if the user gets access through a computational interface, expanding and contracting their available resources at will it’s a Cloud! Courtesy of NIST

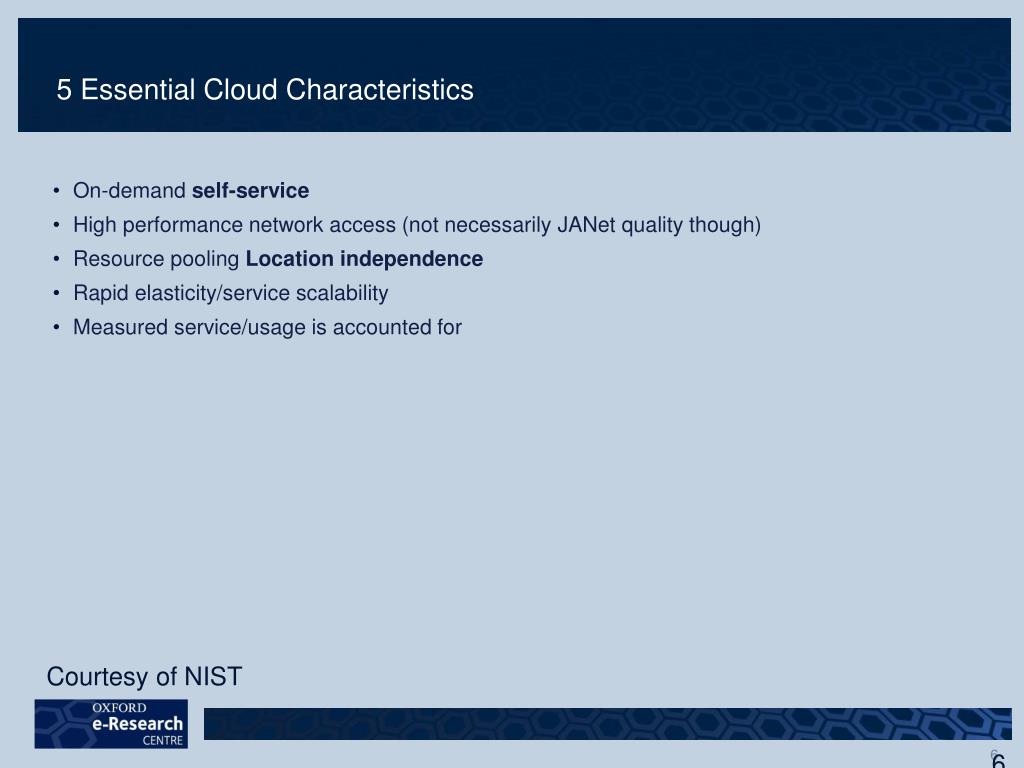

  6. 5 Essential Cloud Characteristics • On-demand self-service • High performance network access (not necessarily JANet quality though) • Resource pooling Location independence • Rapid elasticity/service scalability • Measured service/usage is accounted for Courtesy of NIST

  7. Service Models of Cloud Computing: SaaS, PaaS, IaaS • SaaS: Software as a Service –> Google Apps, Force.com, Facebook, Microsoft Office Live; use deployed SaaS provider

  8. Microsoft Azure Services Azure™ Services Platform Source: Microsoft Presentation, A Lap Around Windows Azure, Manuvir Das

  9. Service Models of Cloud Computing: SaaS, PaaS, IaaS • SaaS: Software as a Service –> Google Apps, Force.com, Facebook, Microsoft Office Live; • PaaS: Platform as a Service–>Google App Engine, Azure Platform, Oracle Fusion; use deployed Application package PaaS provider

  10. Microsoft Azure Azure™ Services Platform .NET PHP Python Ruby … Web Standards + Industry Standards Visual Studio and Eclipse

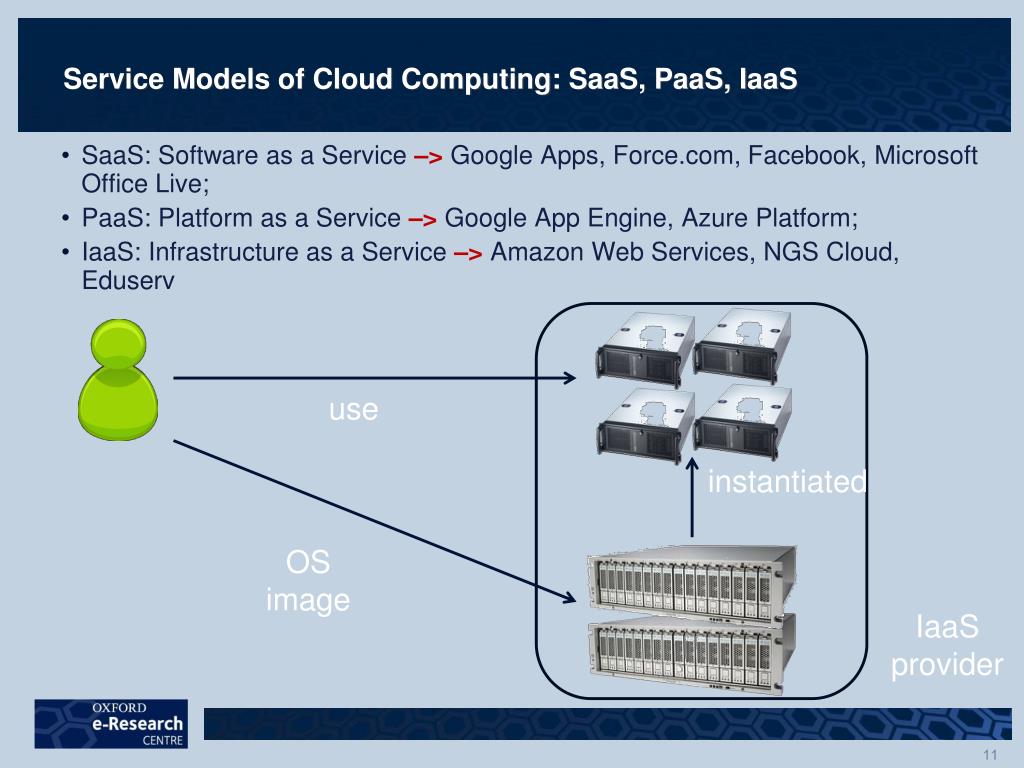

  11. Service Models of Cloud Computing: SaaS, PaaS, IaaS • SaaS: Software as a Service –> Google Apps, Force.com, Facebook, Microsoft Office Live; • PaaS: Platform as a Service–>Google App Engine, Azure Platform; • IaaS: Infrastructure as a Service–>Amazon Web Services, NGS Cloud, Eduserv use instantiated OS image IaaS provider

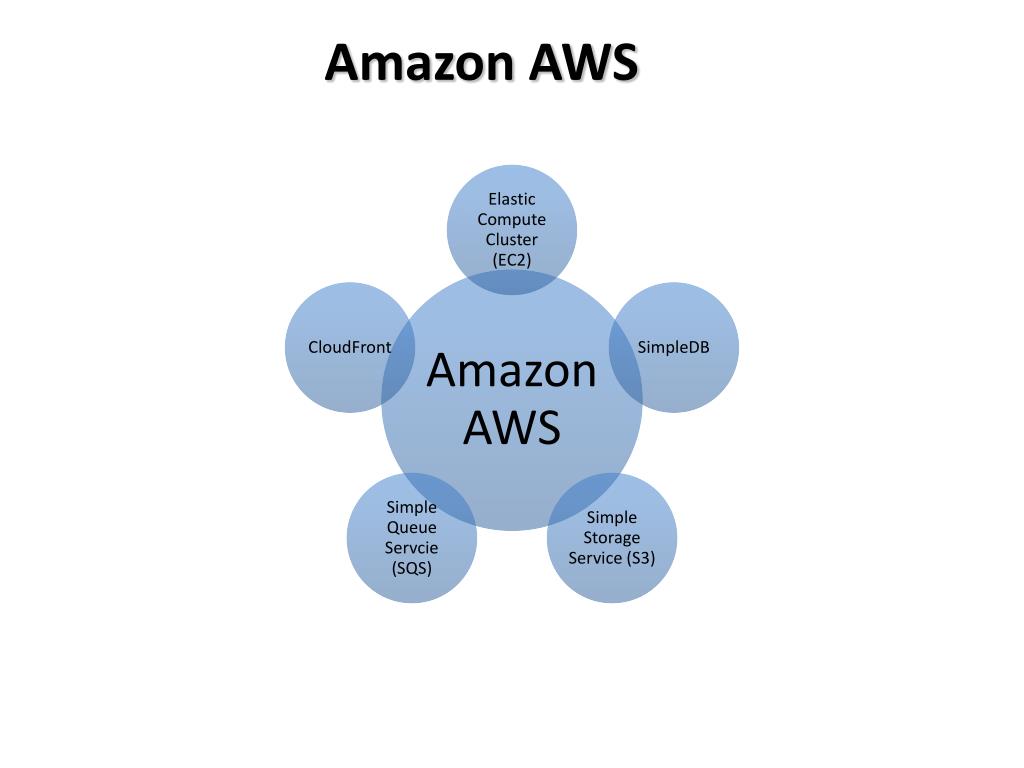

  12. Amazon AWS

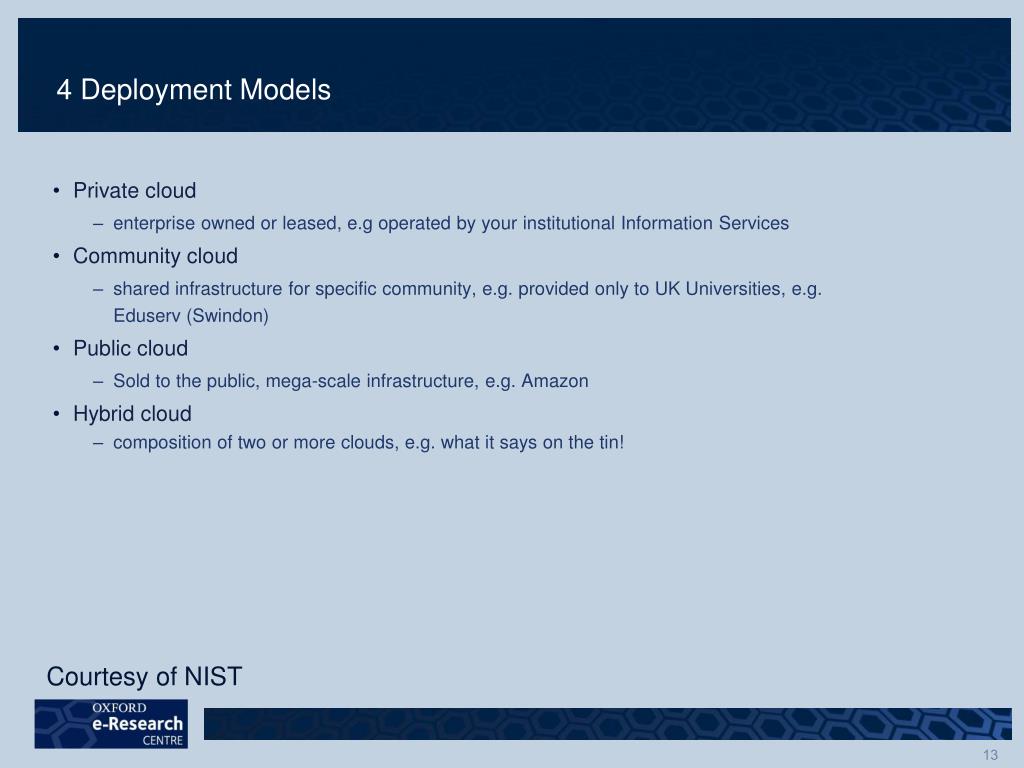

  13. 4 Deployment Models • Private cloud • enterprise owned or leased, e.g operated by your institutional Information Services • Community cloud • shared infrastructure for specific community, e.g. provided only to UK Universities, e.g. Eduserv (Swindon) • Public cloud • Sold to the public, mega-scale infrastructure, e.g. Amazon • Hybrid cloud • composition of two or more clouds, e.g. what it says on the tin! Courtesy of NIST

  14. Common Cloud Characteristics • Cloud computing often leverages: • Massive scale (one research projects scaling) • Homogeneity • Virtualization • Resilient computing • Low cost software • Geographic distribution • Service orientation • Advanced security technologies Courtesy of NIST

  15. The NIST Cloud Definition Framework Deployment Models Hybrid Clouds Service Models Community Cloud Public Cloud Private Cloud Essential Characteristics Software as a Service (SaaS) Platform as a Service (PaaS) Infrastructure as a Service (IaaS) Massive Scale Resilient Computing On Demand Self-Service Homogeneity Geographic Distribution Common Characteristics High PerfNetwork Access Rapid Elasticity Virtualization Service Orientation Resource Pooling Measured Service Low Cost Software Advanced Security Based upon original chart created by Alex Dowbor - http://ornot.wordpress.com

  16. Usage Models of Cloud

  17. Private/Public Multiple Clouds • Amazon cloud • NGS cloud • Azure cloud • Eduserv cloud • Users • Globally distributed; • different resources/cost; • different applications; • non standardised: different AAA and UI. • EGI cloud

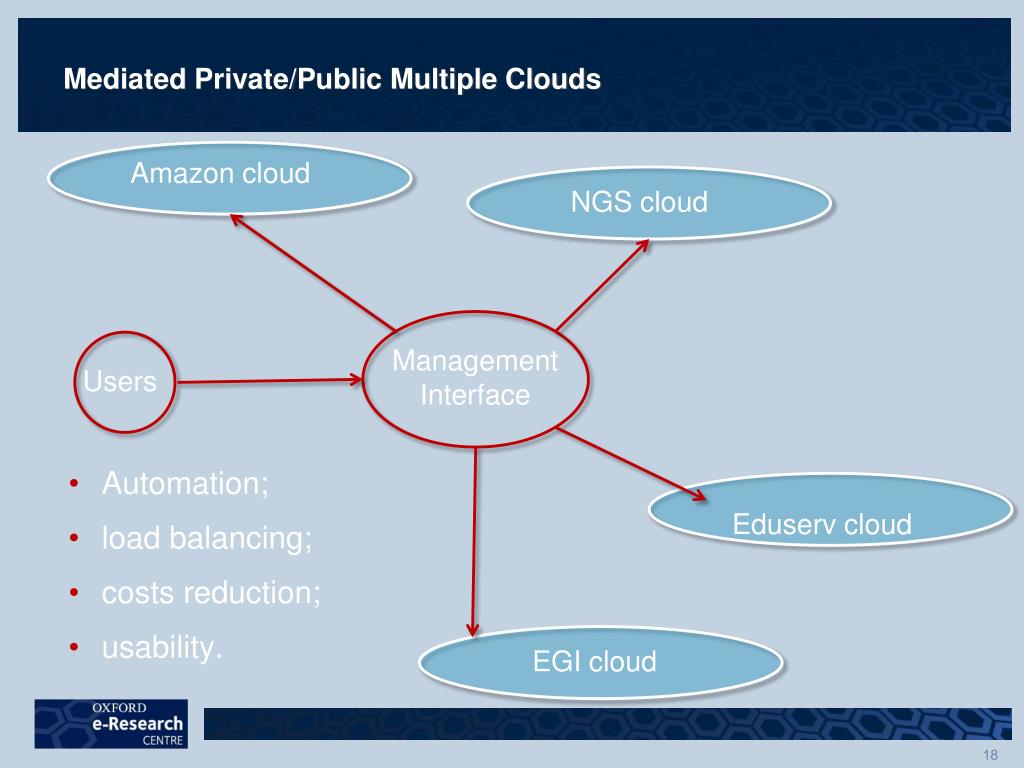

  18. Mediated Private/Public Multiple Clouds • Amazon cloud • NGS cloud • Management • Interface • Users • Automation; • load balancing; • costs reduction; • usability. • Eduserv cloud • EGI cloud

  19. Hybrid Multiple Clouds • NGS cloud • Institutional cloud • Amazon cloud • Users • Eduserv cloud • Federation of Local and Global resources • Elasticity managed by local cloud not user • different resources/cost; • different applications; • non standardised: different AAA but single UI through private provider • EGI cloud

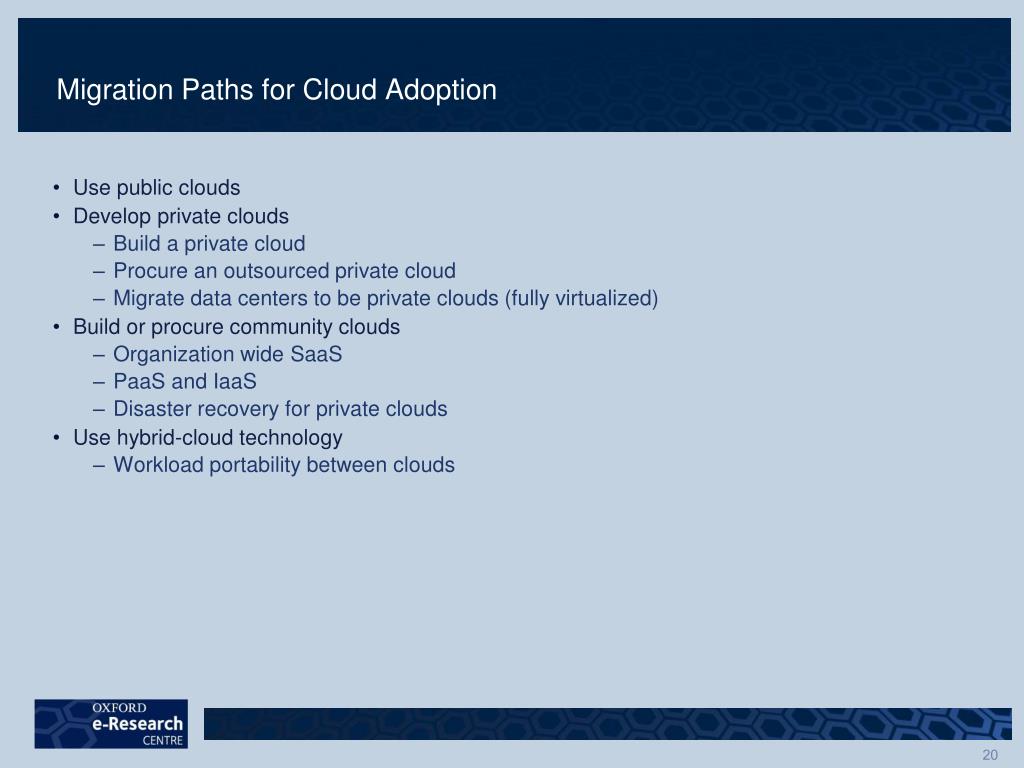

  20. Migration Paths for Cloud Adoption • Use public clouds • Develop private clouds • Build a private cloud • Procure an outsourced private cloud • Migrate data centers to be private clouds (fully virtualized) • Build or procure community clouds • Organization wide SaaS • PaaS and IaaS • Disaster recovery for private clouds • Use hybrid-cloud technology • Workload portability between clouds

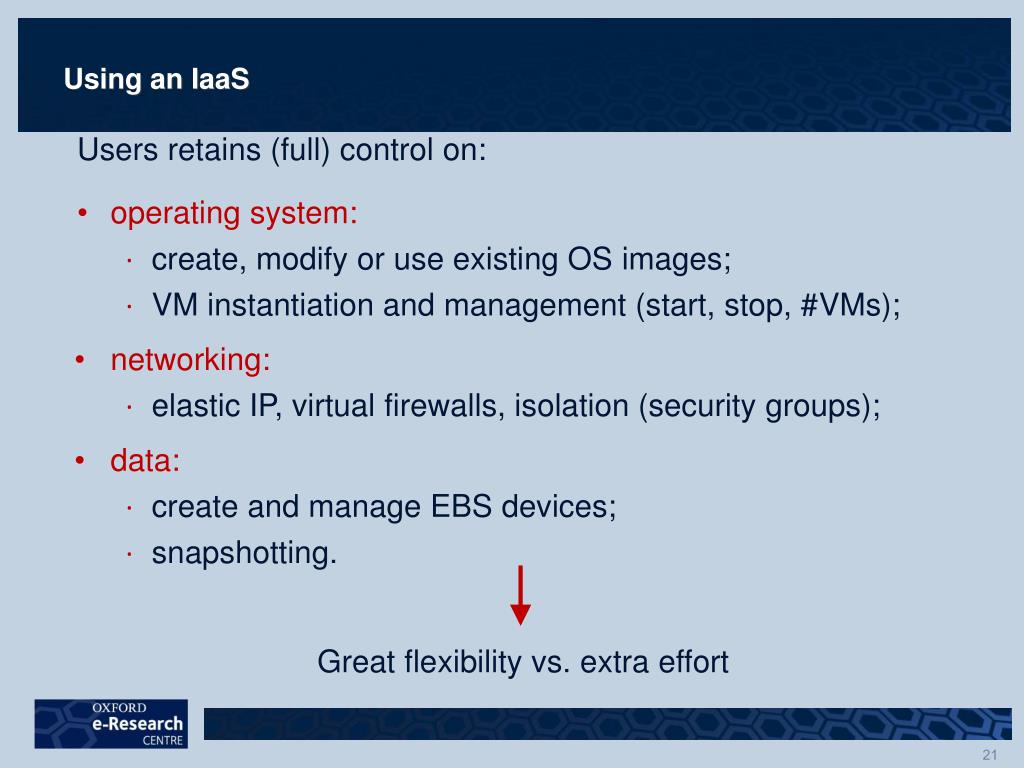

  21. Using an IaaS • Users retains (full) control on: • operating system: • create, modify or use existing OS images; • VM instantiation and management (start, stop, #VMs); • networking: • elastic IP, virtual firewalls, isolation (security groups); • data: • create and manage EBS devices; • snapshotting. Great flexibility vs. extra effort

  22. Cloud Infrastructure for Research Centralisation VsFederation Centralisation: one large, dedicated datacentre that serves the national HEI demand Federation: heterogeneous set of local infrastructures are coordinated nationally in order to satisfy the HEI demand Criteria for evaluation Funding Scalability Flexibility Maintenance Support Accountability Obsolescence Competitiveness Security

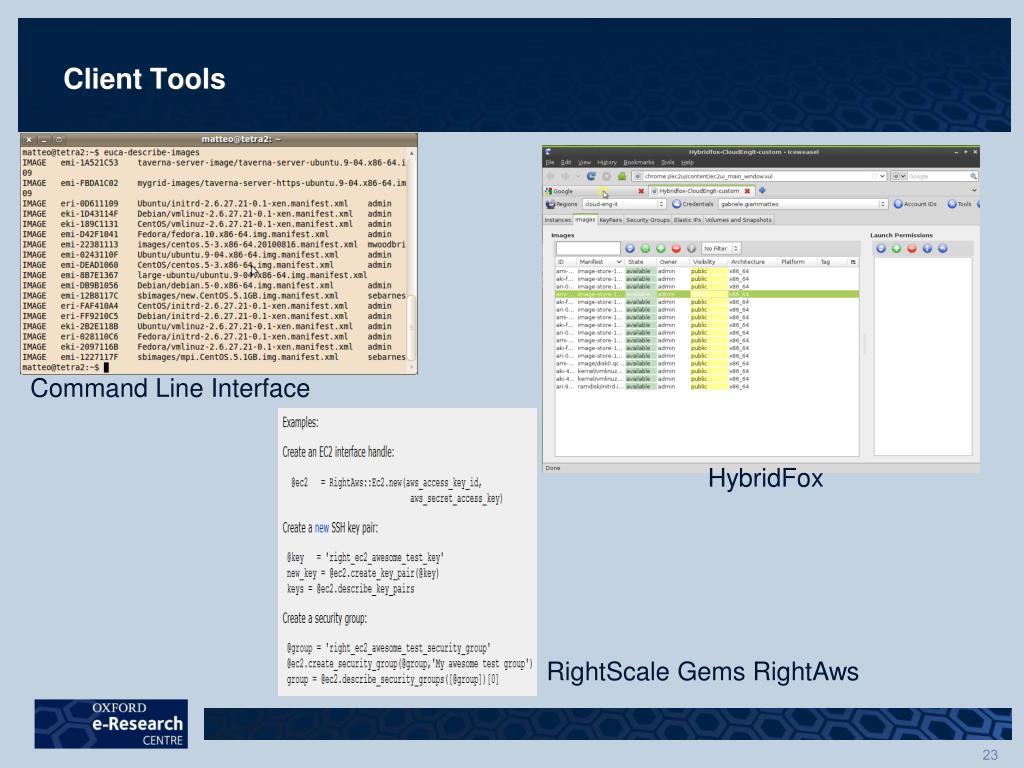

  23. Client Tools Command Line Interface HybridFox RightScale Gems RightAws

  24. Cloud Computing Security

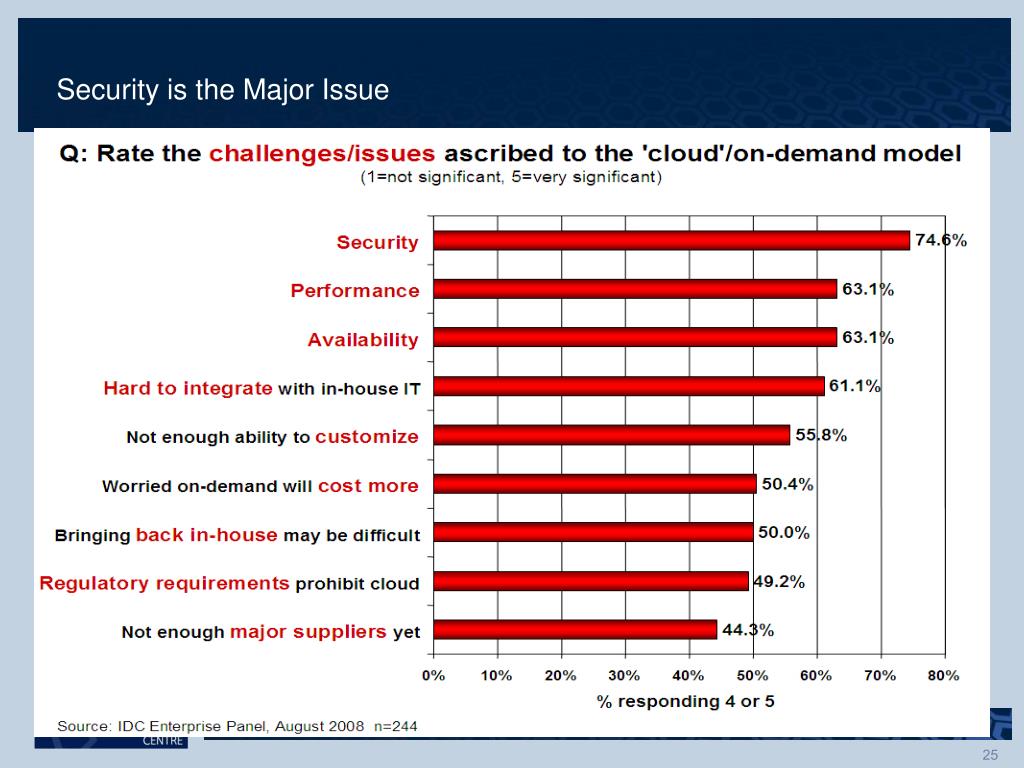

  25. Security is the Major Issue

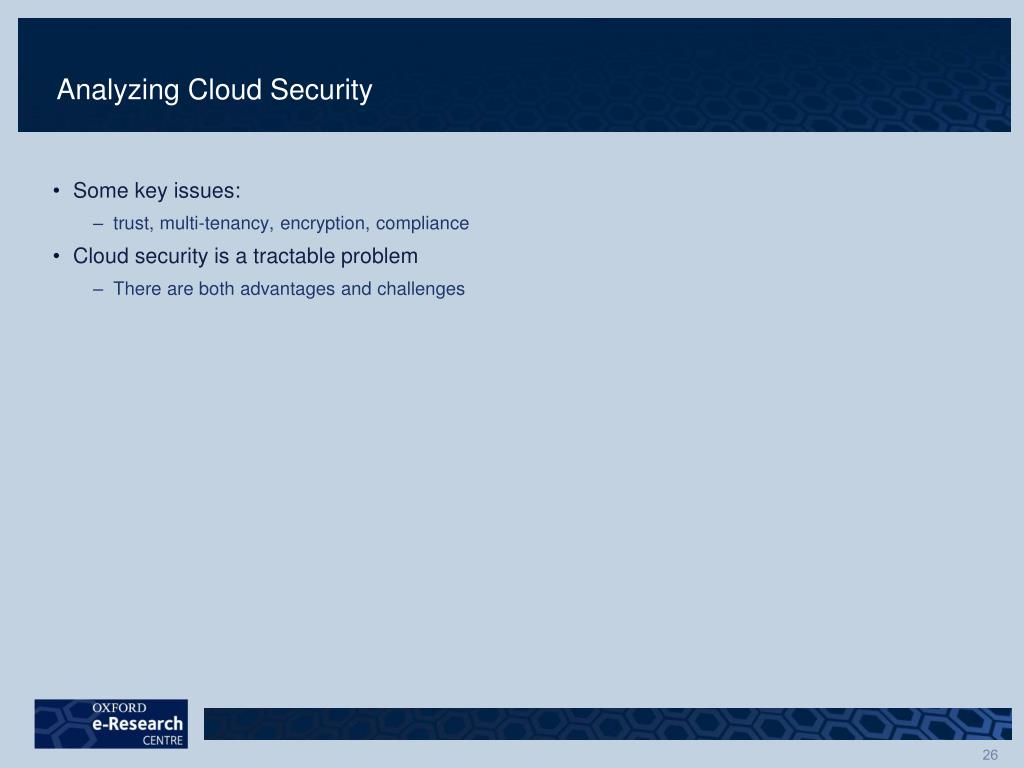

  26. Analyzing Cloud Security • Some key issues: • trust, multi-tenancy, encryption, compliance • Cloud security is a tractable problem • There are both advantages and challenges

  27. General Security Advantages • Shifting public data to a external cloud reduces the exposure of the internal sensitive data • Cloud homogeneity makes security auditing/testing simpler • Clouds enable automated security management • Redundancy / Disaster Recovery

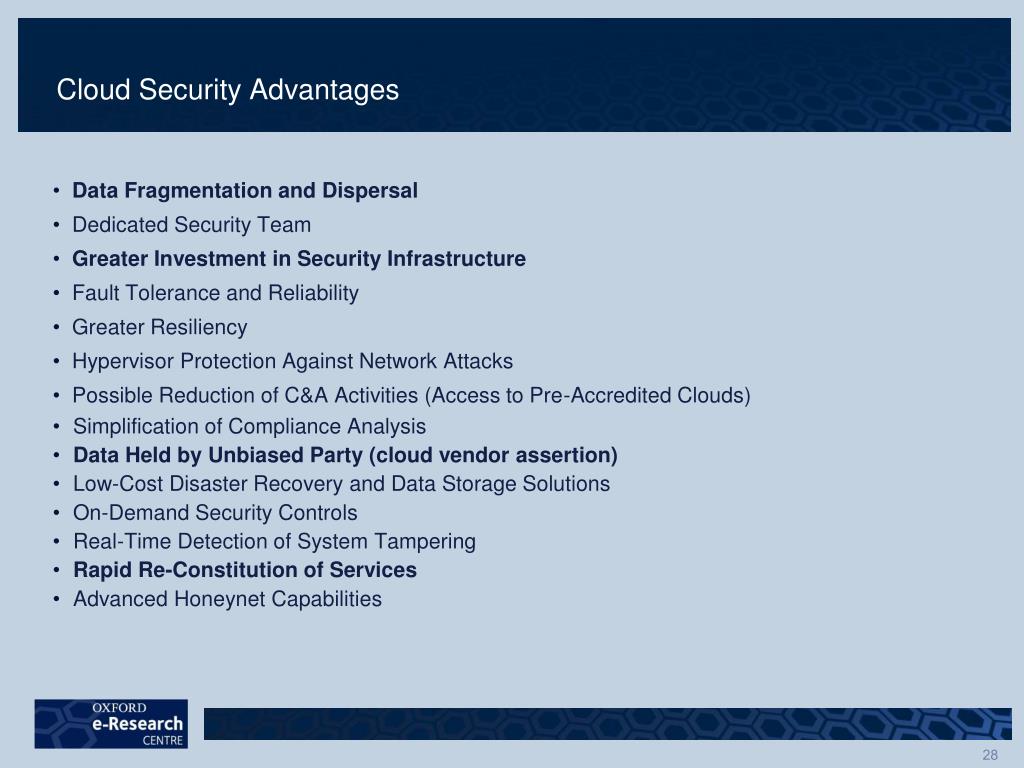

  28. Cloud Security Advantages • Data Fragmentation and Dispersal • Dedicated Security Team • Greater Investment in Security Infrastructure • Fault Tolerance and Reliability • Greater Resiliency • Hypervisor Protection Against Network Attacks • Possible Reduction of C&A Activities (Access to Pre-Accredited Clouds) • Simplification of Compliance Analysis • Data Held by Unbiased Party (cloud vendor assertion) • Low-Cost Disaster Recovery and Data Storage Solutions • On-Demand Security Controls • Real-Time Detection of System Tampering • Rapid Re-Constitution of Services • Advanced HoneynetCapabilities

  29. General Security Challenges • Trusting someone else'ssecurity model • Customer inability to respond to audit findings • Limitations in obtaining support for investigations • Indirect administrator accountability • Proprietary implementations can’t be examined • Loss of physical control

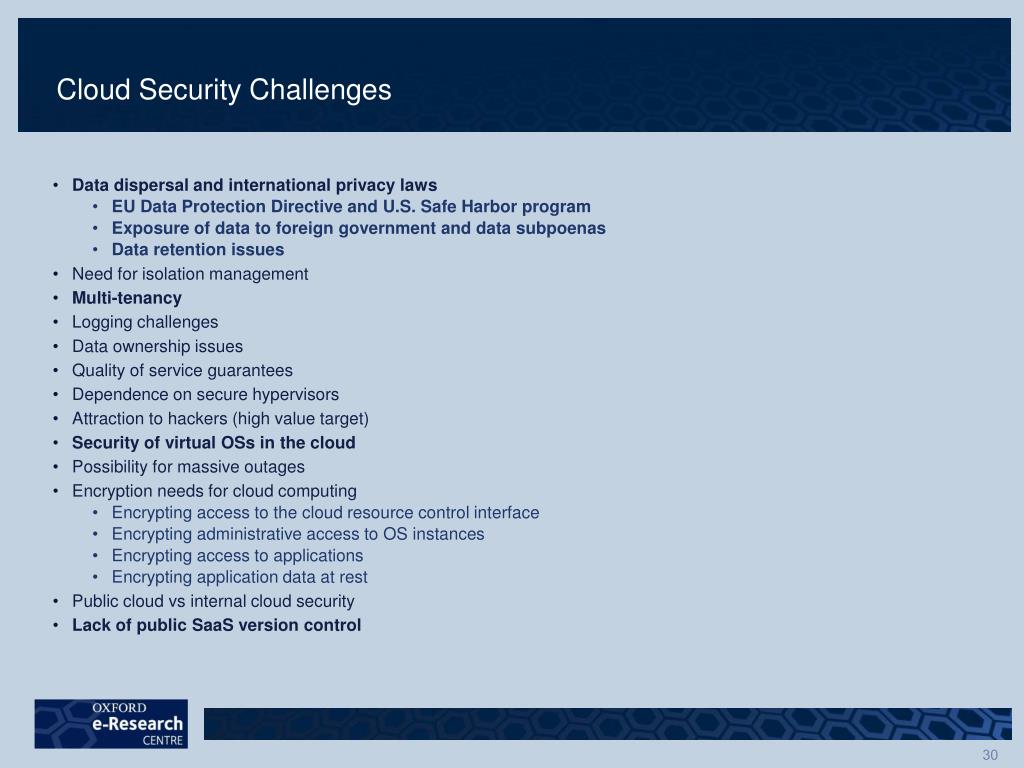

  30. Cloud Security Challenges • Data dispersal and international privacy laws • EU Data Protection Directive and U.S. Safe Harbor program • Exposure of data to foreign government and data subpoenas • Data retention issues • Need for isolation management • Multi-tenancy • Logging challenges • Data ownership issues • Quality of service guarantees • Dependence on secure hypervisors • Attraction to hackers (high value target) • Security of virtual OSs in the cloud • Possibility for massive outages • Encryption needs for cloud computing • Encrypting access to the cloud resource control interface • Encrypting administrative access to OS instances • Encrypting access to applications • Encrypting application data at rest • Public cloud vs internal cloud security • Lack of public SaaS version control

  31. An example of using cloud in research

  32. Strategic Plan for Helix Nebula • Set up a cloud computing infrastructure for European Research Area • Identify and adopt policies for trust, security and privacy on a European-level • Create a light-weight governance structure involving all stakeholders • Define a short and medium term funding scheme

  33. Pilot phase goals • Through the pilot phase we expect to explore/push a series of perceived barriers to Cloud adoption: • Security: Unknown or low compliance and security standards • Reliability: Availability of service for business critical tasks • Data privacy: Moving sensitive data to the Cloud • Scalability/Elasticity: Will the Cloud scale-up to our needs • Network performance: Data transfer bottleneck; QoS • Integration: Hybrid systems with in-house/legacy systems • Vendor lock-in: Dependency on vendors once data & applications have been transferred to the Cloud • Legal concerns: Such as who has legal liability • Transparency: Clarity of conditions, terms and pricing

  34. Cloud Resources Available • Private Cloud – MatteoTurilli, Steve Thorn & Richard Tarrant • Community Cloud – Matt Johnson • Public Cloud – John Donnelly, Ryan Shuttleworth
