CS 260 Build Sequence – Summary

This document outlines the detailed build sequence for the CS.260 project, providing a clear breakdown of tasks across four days. Each day is segmented into distinct positions, covering essential activities such as drilling and installing doors, fitting frames, deburring components, and installing stringer end fittings. The structured plan ensures a methodical approach to assembling the project components while maintaining quality control through proper fitting and installation procedures. Each step is vital for the project's overall success and structural integrity.

adin
Télécharger la présentation

CS 260 Build Sequence – Summary

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CS 260 Build Sequence – Summary 2 1 2 1 2 3 CRN CRN CRN LH LH LH RH RH RH

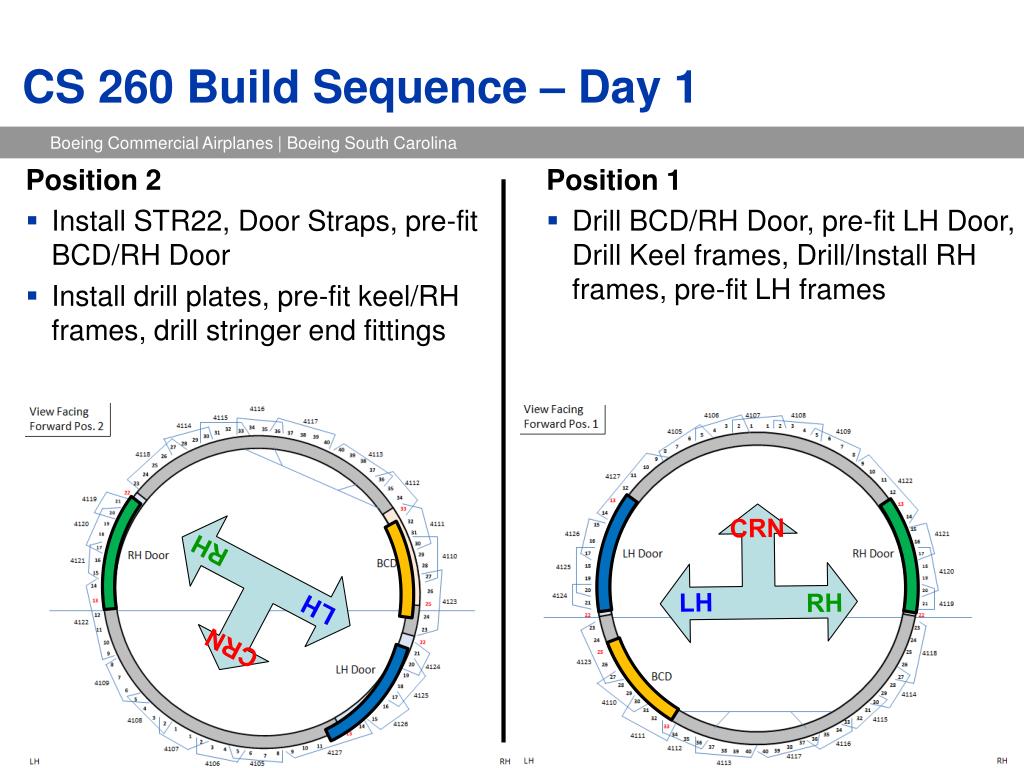

  2. CS 260 Build Sequence – Day 1 • Position 1 • Drill BCD/RH Door, pre-fit LH Door, Drill Keel frames, Drill/Install RH frames, pre-fit LH frames Position 2 • Install STR22, Door Straps, pre-fit BCD/RH Door • Install drill plates, pre-fit keel/RH frames, drill stringer end fittings CRN CRN LH LH RH RH

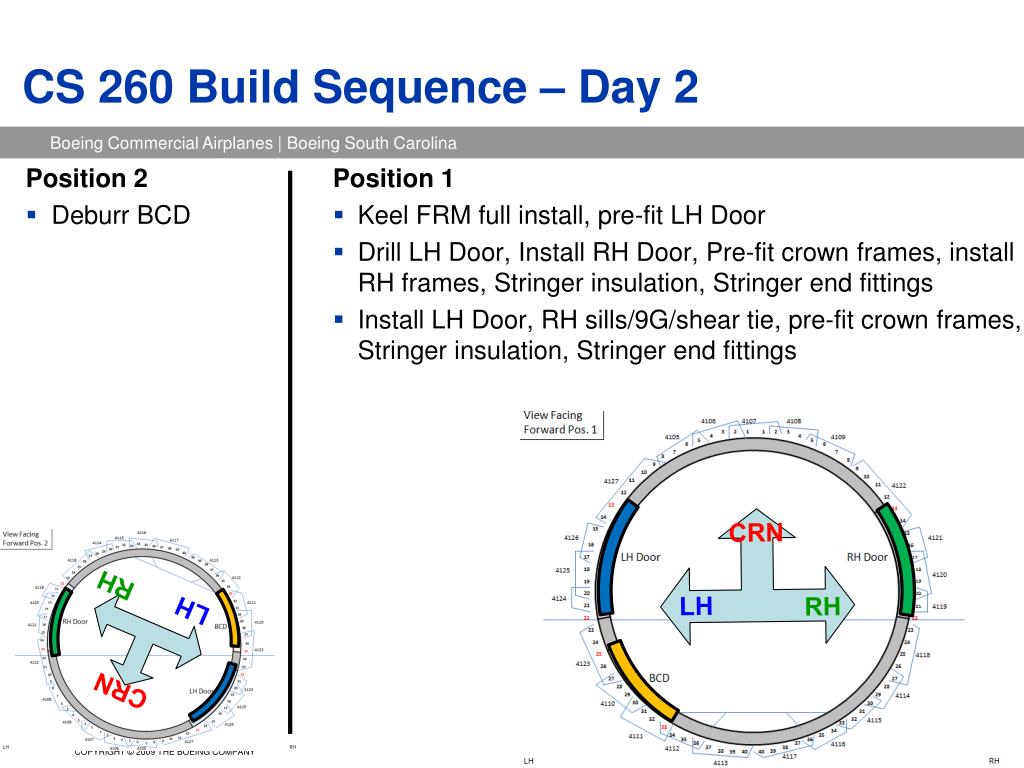

  3. CS 260 Build Sequence – Day 2 Position 2 • Deburr BCD Position 1 • Keel FRM full install, pre-fit LH Door • Drill LH Door, Install RH Door, Pre-fit crown frames, install RH frames, Stringer insulation, Stringer end fittings • Install LH Door, RH sills/9G/shear tie, pre-fit crown frames, Stringer insulation, Stringer end fittings CRN CRN LH RH RH LH

  4. CS 260 Build Sequence – Day 3 Position 2 • Install BCD, RH clips/splice, Install crown/keel/side frames Position 3 • LH splices, crown/keel frame install, • LH splice/sills, RH splice, crown/keel frame install, stringer end fitting CRN CRN LH LH RH RH

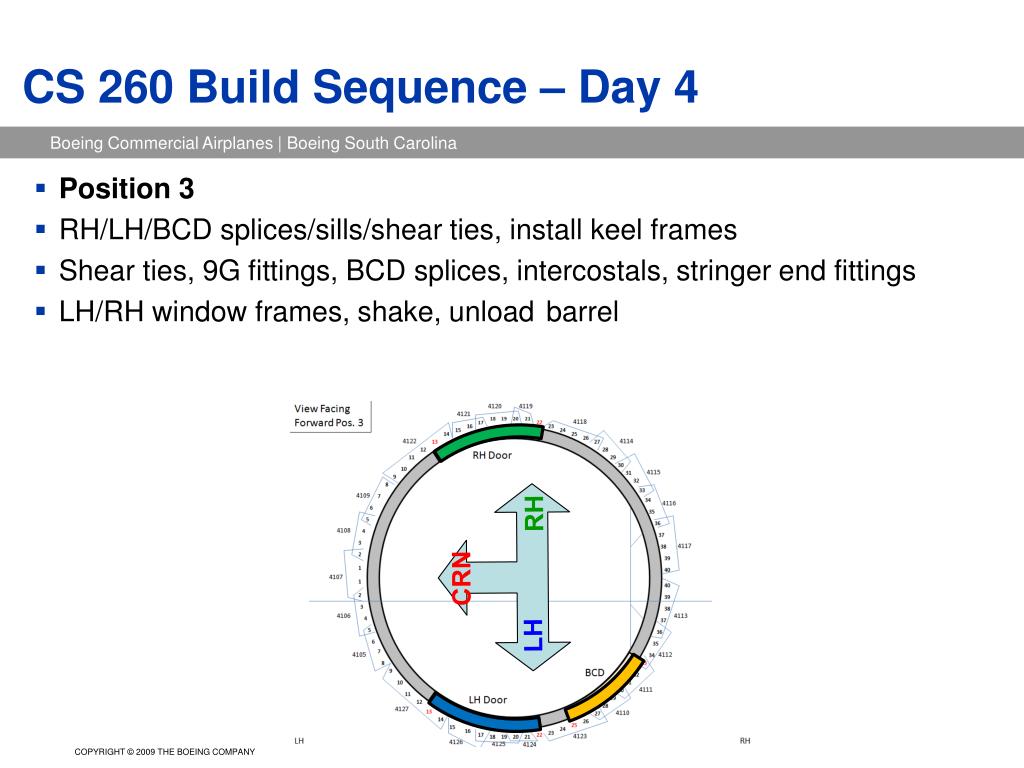

  5. CS 260 Build Sequence – Day 4 • Position 3 • RH/LH/BCD splices/sills/shear ties, install keel frames • Shear ties, 9G fittings, BCD splices, intercostals, stringer end fittings • LH/RH window frames, shake, unload barrel CRN LH RH
