Wall-E Prototype I: Intelligent Automated Trash Collecting Robot with Obstacle Detection

adina avatar
adina
7 diapositives · 219 Views · Aug 02, 2014

Wall-E Prototype I is an advanced intelligent robot designed for automated trash collection. It incorporates obstacle detection capabilities and responds to both user manual control and object tracking software. The robot locates and collects targeted trash objects efficiently. The project analyzes related patents, highlighting similarities and key differences to distinguish our unique design. This analysis includes patents such as US8272466, US7784570, and US4441020, focusing on their mechanisms and functionalities compared to our prototype.

#wall-e prototype i: intelligent automated trash collecting robot with obstacle detection #wall-e prototype i: intelligent automated trash collecting robot with obstacle detection ppt #powerpoint #presentation
Wall-E Prototype I: Intelligent Automated Trash Collecting Robot with Obstacle Detection - slide 1
01 / 7Wall-E Prototype I: Intelligent Automated Trash Collecting Robot with Obstacle Detection
1 / 17

Télécharger la présentation

Wall-E Prototype I: Intelligent Automated Trash Collecting Robot with Obstacle Detection
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Patent liability ANALYSIS ECE477 TEAM01 WallE Prototype I Ranmin Chen

  2. Project overview • The design project Wall-E Prototype I is an intelligent automated trash collecting robot with obstacle detection capability. The robot responses to either user’s direct manual control, or the object tracking software, to locate and collect the targeted trash object

  3. US8272466 ROBOT • Filing date: 2007-01-17 • Similarities: 1. A traveling unit including a pedestal and a running wheel at a lower portion of the traveling unit. 2. This device will detect the position of a person in the surrounding area and guide the person to the destination. • Key differences: 1. The traveling unit jointed to the main body by a joint shaft so that the pedestal of the traveling unit and the main body are rotatable relative to each other. 2. Our project will detect the position of a specific object in the surrounding area and trace that object.

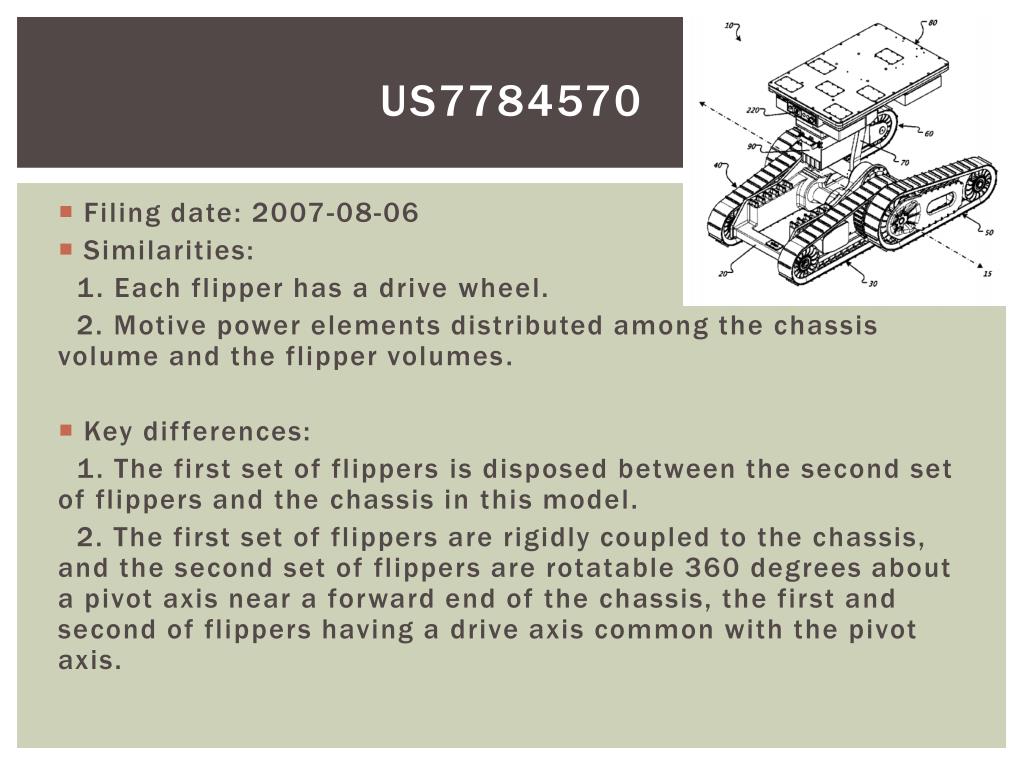

  4. US7784570 • Filing date: 2007-08-06 • Similarities: 1. Each flipper has a drive wheel. 2. Motive power elements distributed among the chassis volume and the flipper volumes. • Key differences: 1. The first set of flippers is disposed between the second set of flippers and the chassis in this model. 2. The first set of flippers are rigidly coupled to the chassis, and the second set of flippers are rotatable 360 degrees about a pivot axis near a forward end of the chassis, the first and second of flippers having a drive axis common with the pivot axis.

  5. US4441020 • Filing date: 1981-06-03 • Similarities: 1. To detect the position and direction of an object. 2. The object is sensed by a set of sensing elements. 3. The sensor is controlled to trace the object depending on the detected position and the direction of the object. • Key differences: 1. This patent was using optical head as sensor. Meanwhile our project is using a wireless camera and ultrasonic sensors. • Already expired

  6. US787318 WALL-E • Filing date: 1903-12-29

  7. QUESTIONS?
