Automatic nanodesign using evolutionary techniques

adolph avatar
adolph
16 diapositives · 315 Views · Jul 13, 2014

This paper discusses the application of genetic software techniques for designing molecules automatically, crucial for enhancing drug discovery processes. Current design methods require extensive manual effort, whereas genetic algorithms can evolve any molecule based on fitness functions applied to molecular graph representations. Key features include stochastic processes, parallel execution, and robustness against failures. The potential for future advancements includes improvements in chemical stability and applications in circuit design. Notable contributions from researchers at UC Santa Cruz and NASA Ames highlight the importance of this research.

Automatic nanodesign using evolutionary techniques - slide 1
01 / 16Automatic nanodesign using evolutionary techniques
1 / 17

Télécharger la présentation

Automatic nanodesign using evolutionary techniques
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

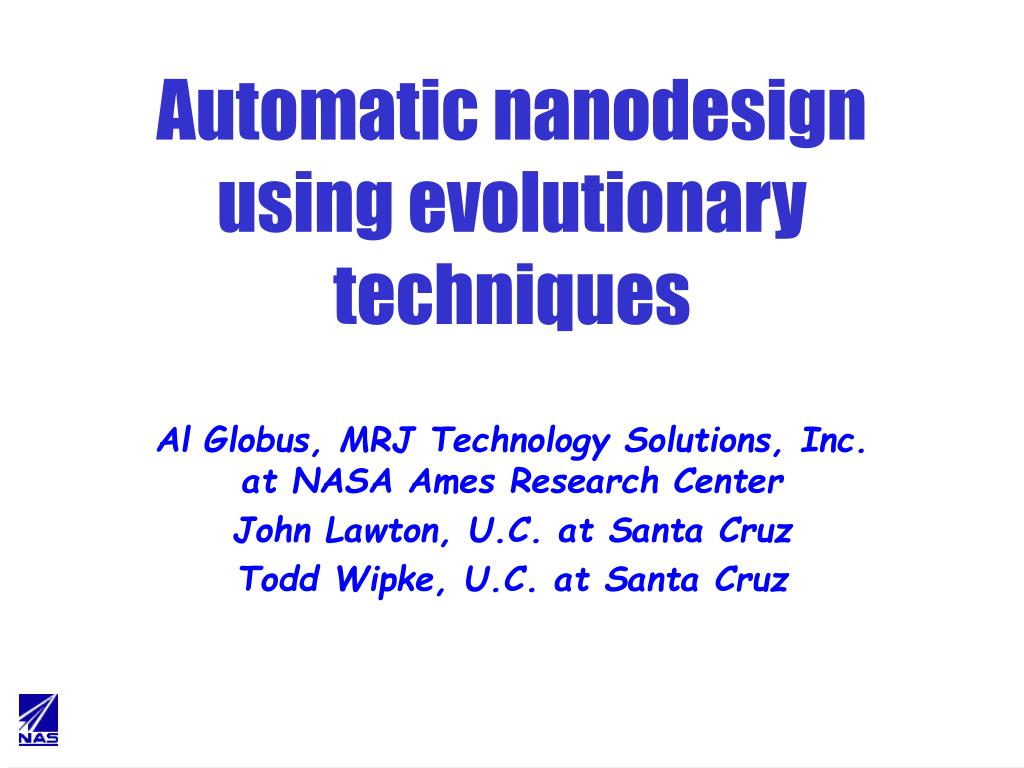

  1. Automatic nanodesign using evolutionary techniques Al Globus, MRJ Technology Solutions, Inc. at NASA Ames Research Center John Lawton, U.C. at Santa Cruz Todd Wipke, U.C. at Santa Cruz

  2. Problem • Many molecules must be designed • Often only requirements known • Existing design techniques generally manpower intensive • Genetic software can automatically design systems • Molecular graph representation rarely supported by genetic software

  3. Hypothesis Crossover alone, operating on graphs, can evolve any possible molecule given an appropriate fitness function and a population containing both rings and chains. This hypothesis is supported but not proven.

  4. Genetic software • Randomly generate a set of molecules • Many times: • Select parent molecules at random with bias towards better performance • Randomly rip copies of each parent in two • Mate opposite halves • Replace random molecules with bias towards worse performance • Repeat until satisfied

  5. Algorithm properties • Stochastic • Embarrassingly parallel • Robust to failure • No guaranteed outcome • Fitness function is crucial and non-trivial • Performs well as cycle-scavenger • 300-400 NAS user workstations • ~2.5 million idle workstation hours/year • Condor, University of Wisconsin, http://www.cs.wisc.edu/condor

  6. Previous work • Patent US5434796, David Weininger, Daylight Chemical Information Systems, Inc. 1995 • two parameter crossover; fragments • some commercial success • Robert B. Nachbar, Merck Research Laboratories, 1998 • tree representation • no crossover within rings • Astro Teller, CMU, 1998? • Neural Programming

  7. Crossover: rip in half • Choose random bond • Find the shortest path • Remove and remember random path bond • Repeat until cut set found

  8. Crossover: mate halves • Select a random cut bond • If cut bond in other half exist • choose one at random • merge cut bonds, respect valence • else • flip coin • heads -- attach cut bond to random atom in other half respecting valence • tails -- discard cut bond • repeat until all cut bonds processed

  9. Fitness function • Given two molecules, decides which is better • Must operate on any molecule, including very bad ones • Must provide routes for evolution to reach good molecules • Must make fine distinctions

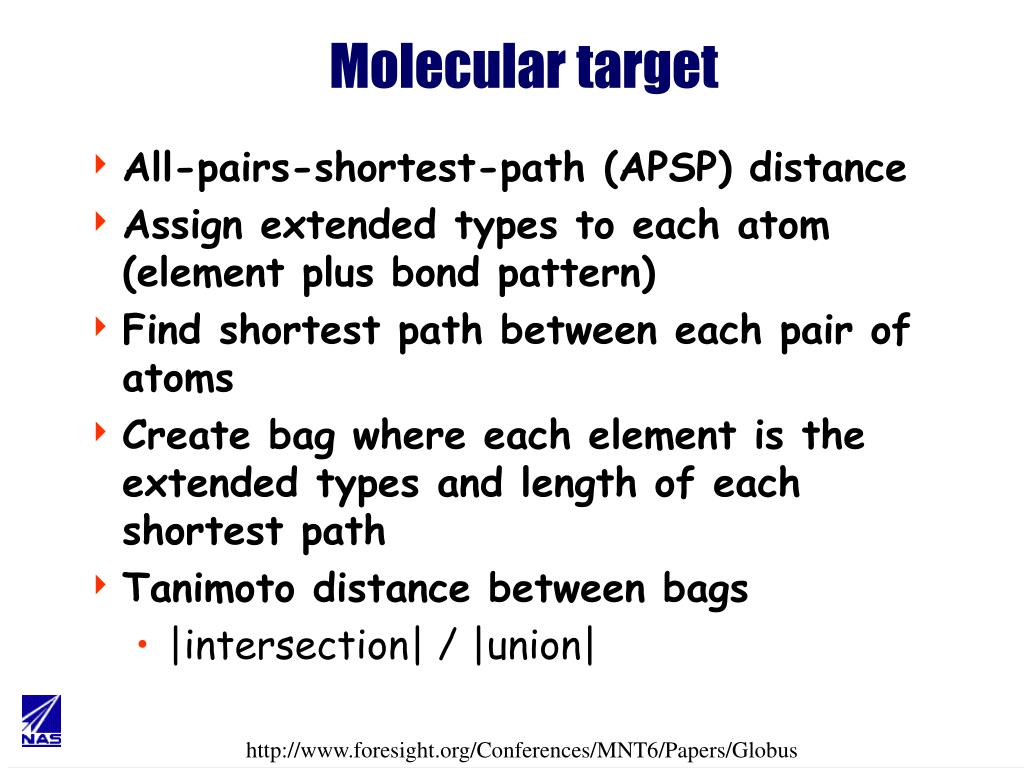

  10. Molecular target • All-pairs-shortest-path (APSP) distance • Assign extended types to each atom (element plus bond pattern) • Find shortest path between each pair of atoms • Create bag where each element is the extended types and length of each shortest path • Tanimoto distance between bags • |intersection| / |union|

  11. Future work • Drug discovery (preliminary results) • Chemical stability fitness function • Circuits • Improvements in cycle-scavenging • Data to Java server instead of file system • Generic Java checkpointing • problem: stack not consistent format

  12. Summary • Genetic software techniques applied to molecular graphs • Molecular design works but needs improvement • Robust cycle-stealing execution • Technique should generalize to other graph problems

  13. Acknowledgments • John Lawton, UCSC • Todd Wipke, UCSC • Creon Levit, NASA Ames • Jason Lohn, Caelum, Inc. at NASA Ames • Rich McClellan, UCSC • Subash Saini, NASA Ames • Meyya Meyyapan, NASA Ames
