  1. Foundations Section 5

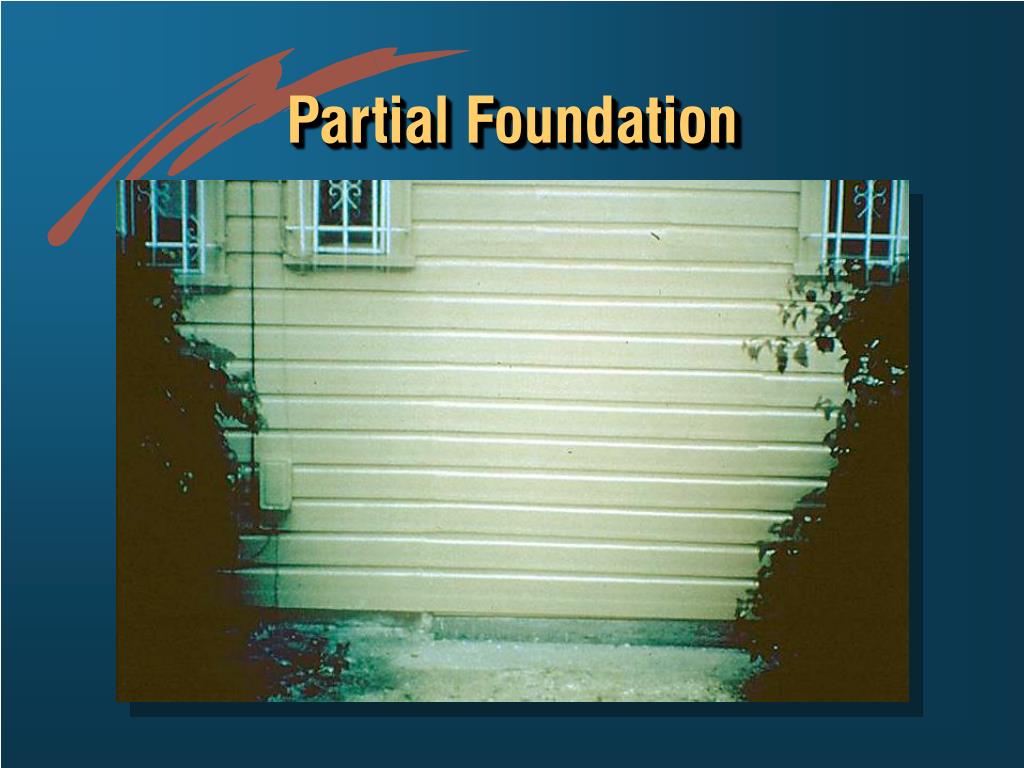

  2. Partial Foundation

  3. Post And Pier Foundation

  4. Interior Posts and Girders

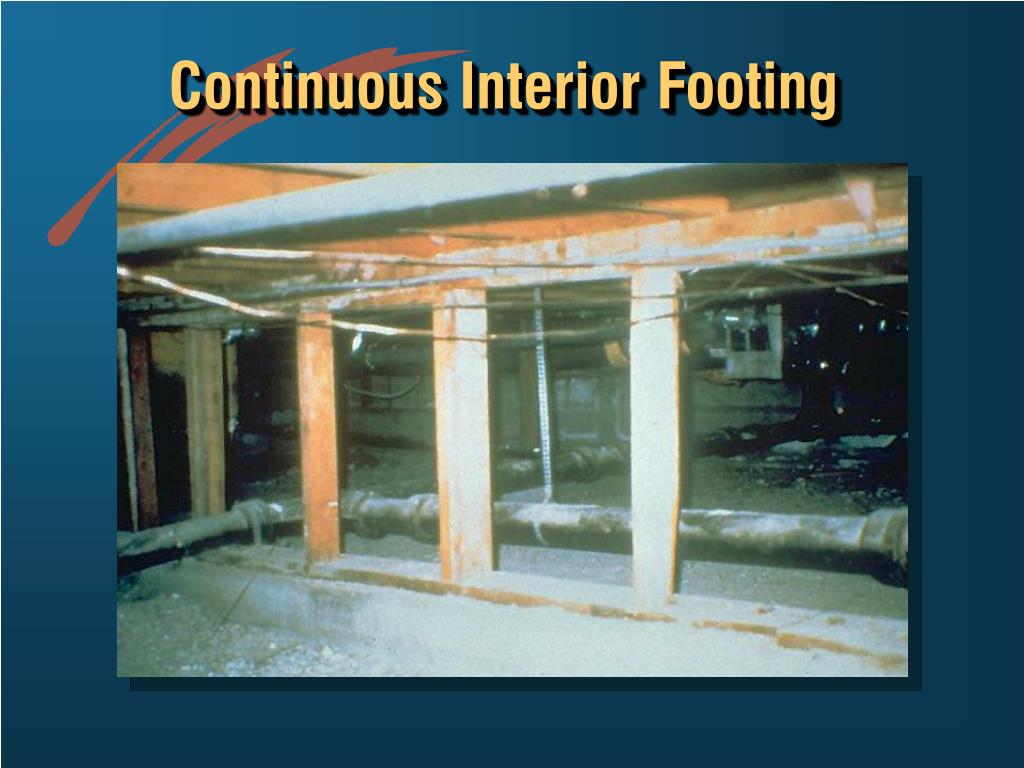

  5. Continuous Interior Footing

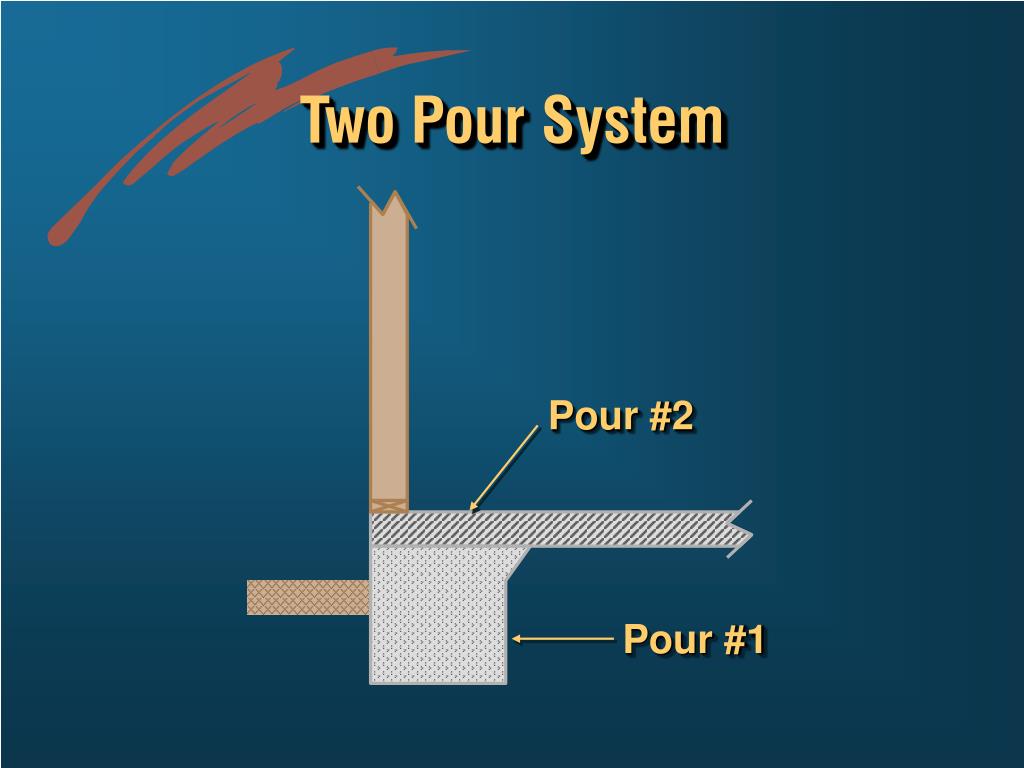

  6. Two Pour System Pour #2 Pour #1

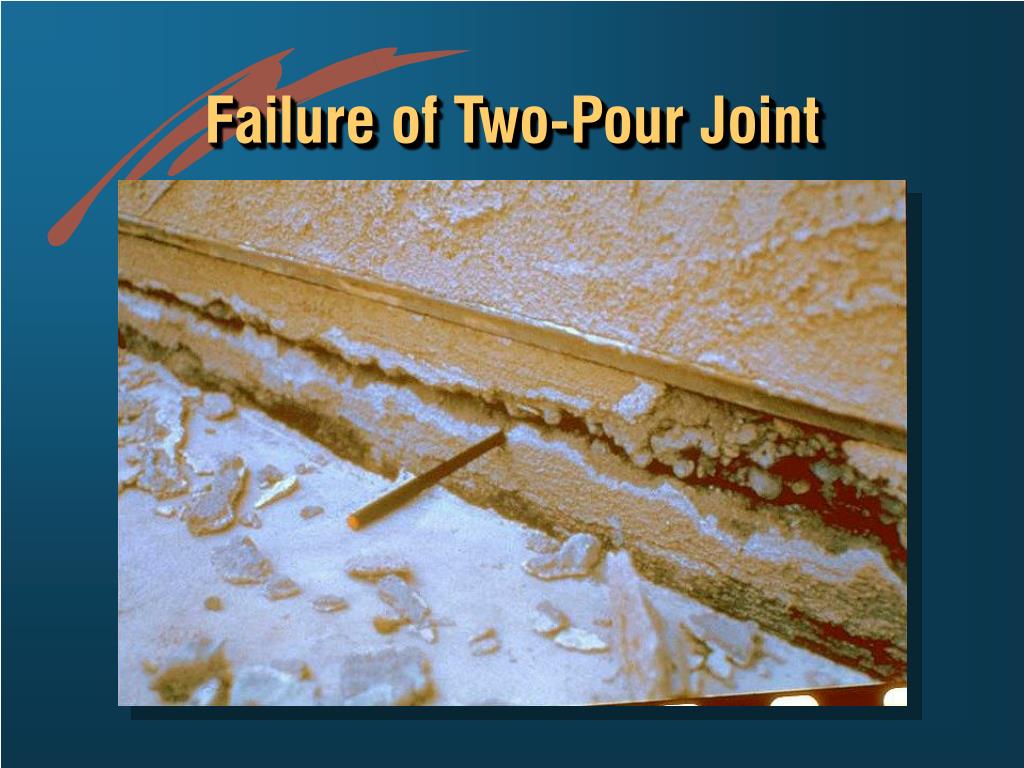

  7. Failure of Two-Pour Joint

  8. Foundation Materials • Concrete • Concrete Block • Brick • Stone

  9. Unreinforced Brick Foundation Wall

  10. Stone Foundation

  11. Check Foundation Condition • Deterioration • Cracking

  12. Deteriorated Mortar Joints

  13. Foundation Crack

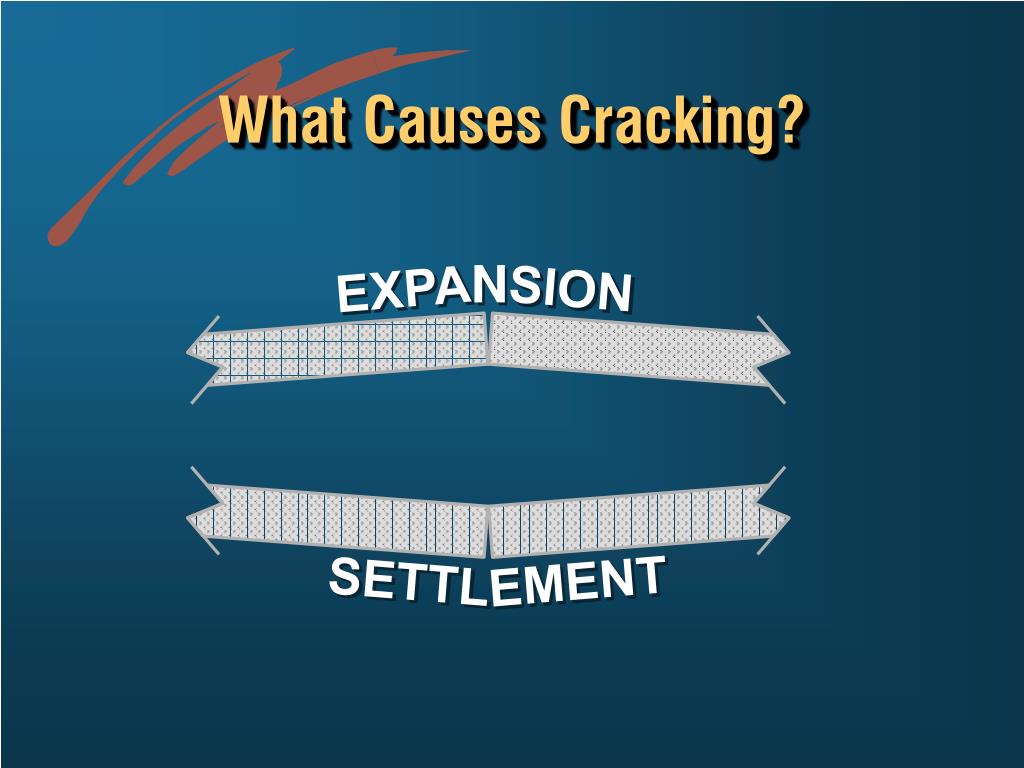

  14. N SION EXPA EMENT SETTL What Causes Cracking?

  15. Consult a Professional When... • Crack is > 1/8” • You can see through the crack • It appears to be the result of expansion or settlement

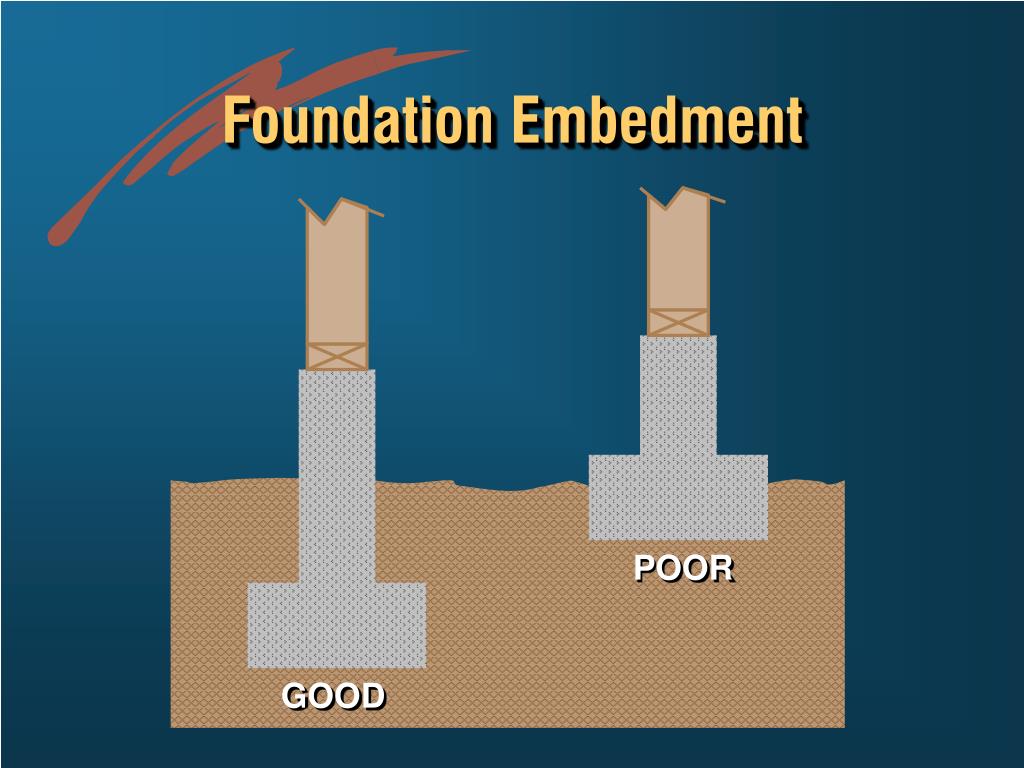

  16. Foundation Embedment POOR GOOD

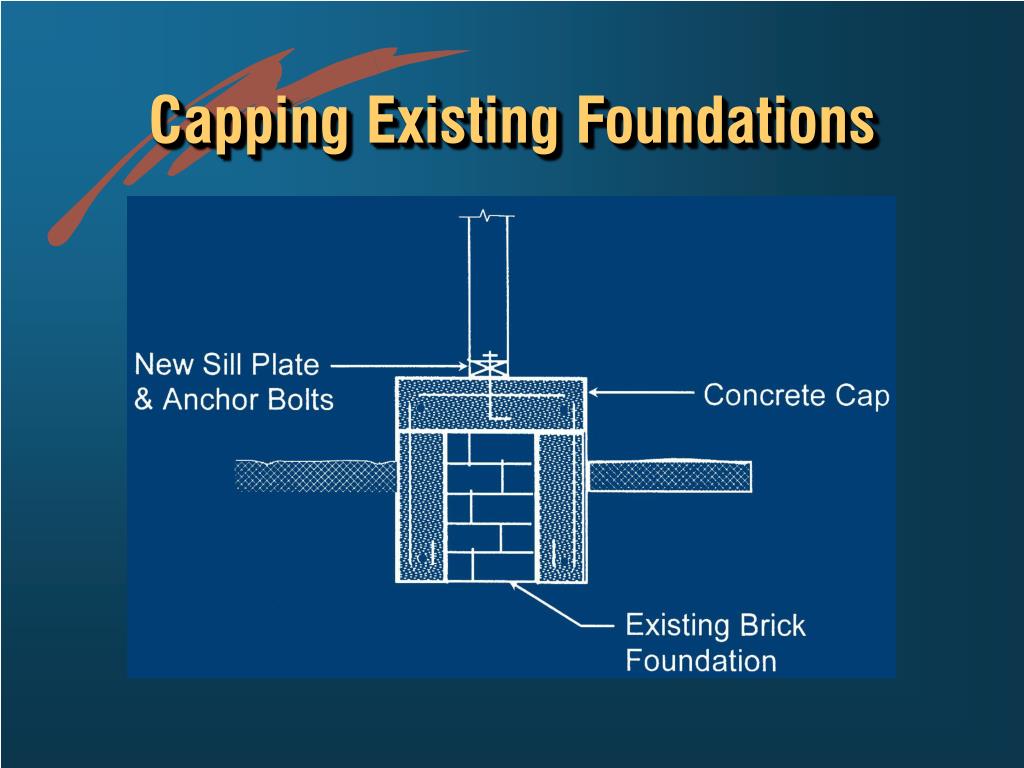

  17. Capping Existing Foundations

  18. Foundation Replacement

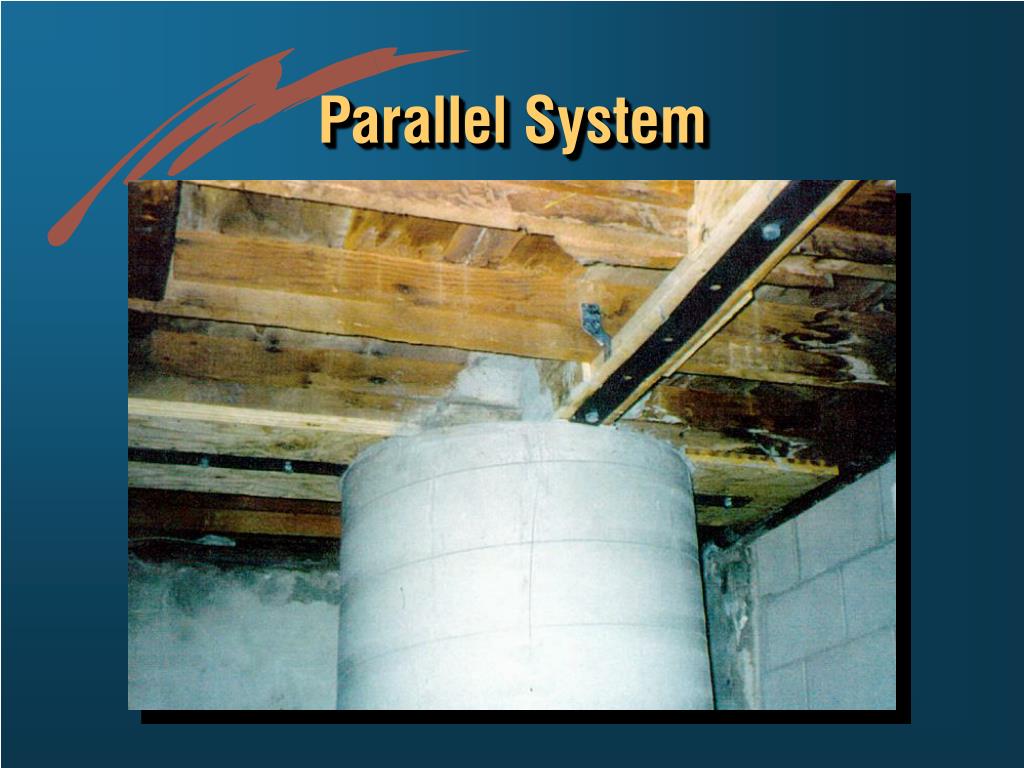

  19. Parallel System
