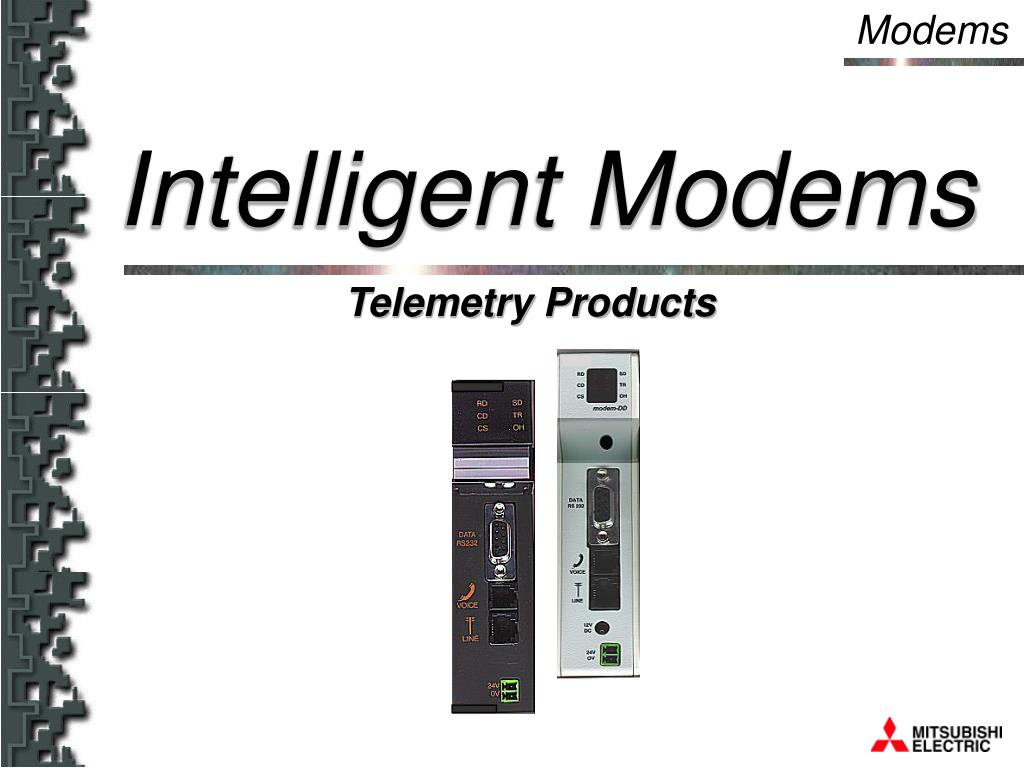

  1. Intelligent Modems Telemetry Products

  2. Intelligent Modems • 1. What is an intelligent Modem? • 2. Where can they be applied? • 3. Are they easy to install? • 4. What are the unique features? • 5. How are they configured? • 6. What versions are available now? • 7. What’s next?

  3. It has Modems and how they work! • MODEM is an acronym for MODulator/DEModulator. • Developed for transmitting and receiving data over the standard telephone lines. • Data rates up to 56.6K baud. • Automatic speed detection, Data compression, etc.

  4. It has What is an Intelligent Modem? It has… • an on-board powerful micro-computer. • a dedicated resident programme and operating system. • a special extended command set. • a number of PLC Drivers. • and...

  5. It has What is an Intelligent Modem? It… • does not require a PC or Laptop connected. • does not require complex and lengthy PLC programming. • automatically monitors and converts data before transferring to the PLC. • can be programmed to perform complex tasks.

  6. Intelligent Modems • 1. What is an intelligent Modem? • 2. Where can they be applied? • 3. Are they easy to install? • 4. What are the unique features? • 5. How are they configured? • 6. What versions are available now? • 7. What’s next?

  7. It has Where can they be applied? • Applications range from On-Line maintenance to automatic failure reporting. • Any Remote Telemetry application, requiring control and monitoring of data between out-stations.

  8. On-line maintenance Applications • On-line maintenance only requires a PC, DESK-MODEM and A2S/DIN modem connected to the remote PLC. • When on line the PLC or HMI can be monitored or reprogrammed using the normal software. • The ASVD allows full voice communication at the same time.

  9. Intelligent Modems • 1. What is an intelligent Modem? • 2. Where can they be applied? • 3. Are they easy to install? • 4. What are the unique features? • 5. How are they configured? • 6. What versions are available now? • 7. What’s next?

  10. It has Are they easy to install? Yes… • they can connect to a variety of Mitsubishi PLC’s and HMI’s. • Connecting and programming cables are available. • Low voltage 12 to 24VDC power requirement.

  11. Intelligent Modems • 1. What is an intelligent Modem? • 2. Where can they be applied? • 3. Are they easy to install? • 4. What are the unique features? • 5. How are they configured? • 6. What versions are available now? • 7. What’s next?

  12. It has What are the unique features? • a) Two levels of password protection. • b) On-Line Configuration (OLC). • c) Dial On Demand (DOD). • d) Stores Telephone Numbers and Messages. • e) Wide Area Telemetry (WAT). • f) Automatic Simultaneous Voice & Data (ASVD). • g) Plug and Play.

  13. It has A) Password Protection USER LEVEL • to protect unauthorised dial-in. ADMINISTRATOR LEVEL • for On-Line configuration.

  14. It has B) On-Line Configuration • Allows the Administrator to make changes to the Modem special command set over the telephone line.

  15. It has C) Dial On Demand (DOD) On request from the PLC... • one or more telephone numbers are auto dialled. • messages or data is sent after connection. • after data transfer the Modem can stay on-line or hang-up.

  16. Dial On DemandApplication • The PLC sets up Telephone numbers and fixed Message addresses or selected data, then requests an DOD. • Connection is made and the selected message(s) are transmitted to a PC before disconnecting or staying on-line.

  17. It has D) Wide Area Telemetry (WAT) • Full data communication between PLC’s. • Automatic reading and writing from or to user designated PLC memory. • Remote Input and Output forcing. • On-Line monitoring feature.

  18. Wide Area Telemetry Application • The local PLC sets a strategy to switch on an output, then continuously monitor data registers in the remote FX PLC. • The PLC requests DOD and when connection is established data transmission takes place until an Operator commands the PLC to hang-up.

  19. Intelligent Modems • 1. What is an intelligent Modem? • 2. Where can they be applied? • 3. Are they easy to install? • 4. What are the unique features? • 5. How are they configured? • 6. What versions are available now? • 7. What’s next?

  20. It has How are they configured? • Simple connection to a PC, Laptop, etc. • Special AT Commands. • Commands are typed in using a Terminal programme.

  21. Intelligent Modems • 1. What is an intelligent Modem? • 2. Where can they be applied? • 3. Are they easy to install? • 4. What are the unique features? • 5. How are they configured? • 6. What versions are available now? • 7. What’s next?

  22. A2S-MODEM It has What versions are available?

  23. What versions are available? A2S-MODEM DIN-MODEM-2

  24. What versions are available? A2S-MODEM DIN-MODEM-2 DESK-MODEM-2 DIN-MODEM-2 DIN-RTU

  25. Intelligent Modems • 1. What is an intelligent Modem? • 2. Where can they be applied? • 3. Are they easy to install? • 4. What are the unique features? • 5. How are they configured? • 6. What versions are available now? • 7. What’s next?

  26. It has What’s next? • RTU version. • GSM version. • Radio and Lease Line versions. • More Drivers.

  27. Intelligent Modems Questions?

  28. Modems Telemetry Products
