  1. Chapter 8 Testing the Programs

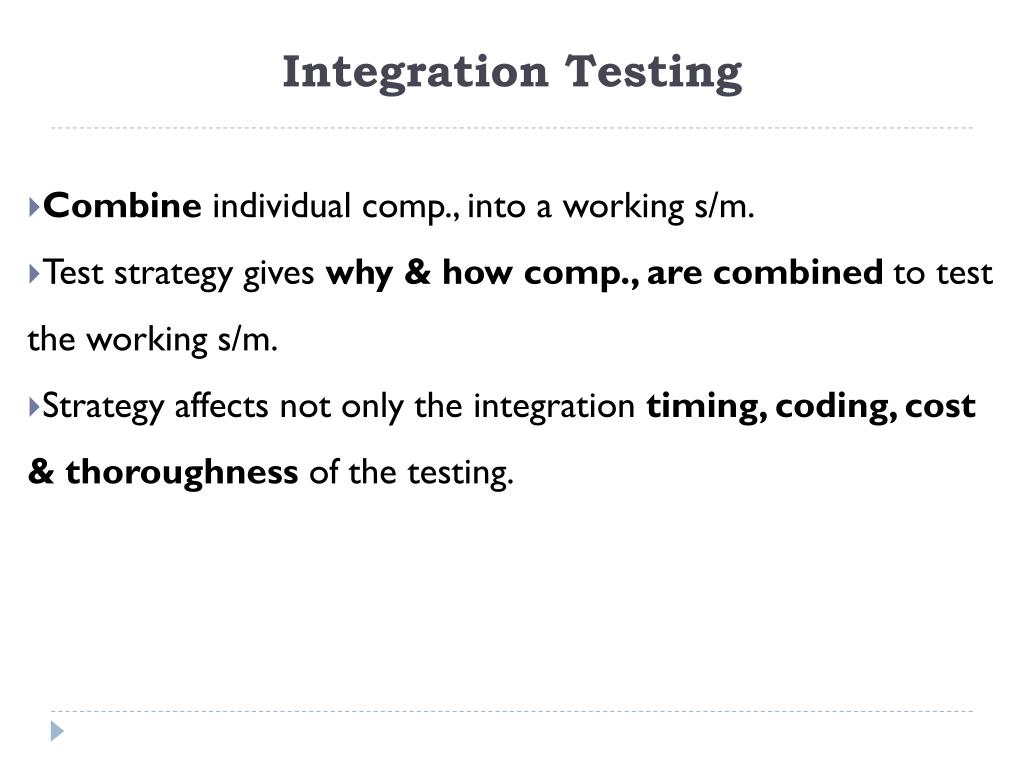

  2. Integration Testing • Combine individual comp., into a working s/m. • Test strategy gives why & how comp., are combined to test the working s/m. • Strategy affects not only the integration timing, coding, cost & thoroughness of the testing.

  3. S/m viewed as hierarchy of comps. • Approaches • Bottom-up • Top-down • Big-bang • Sandwich testing • Modified top-down • Modified sandwich

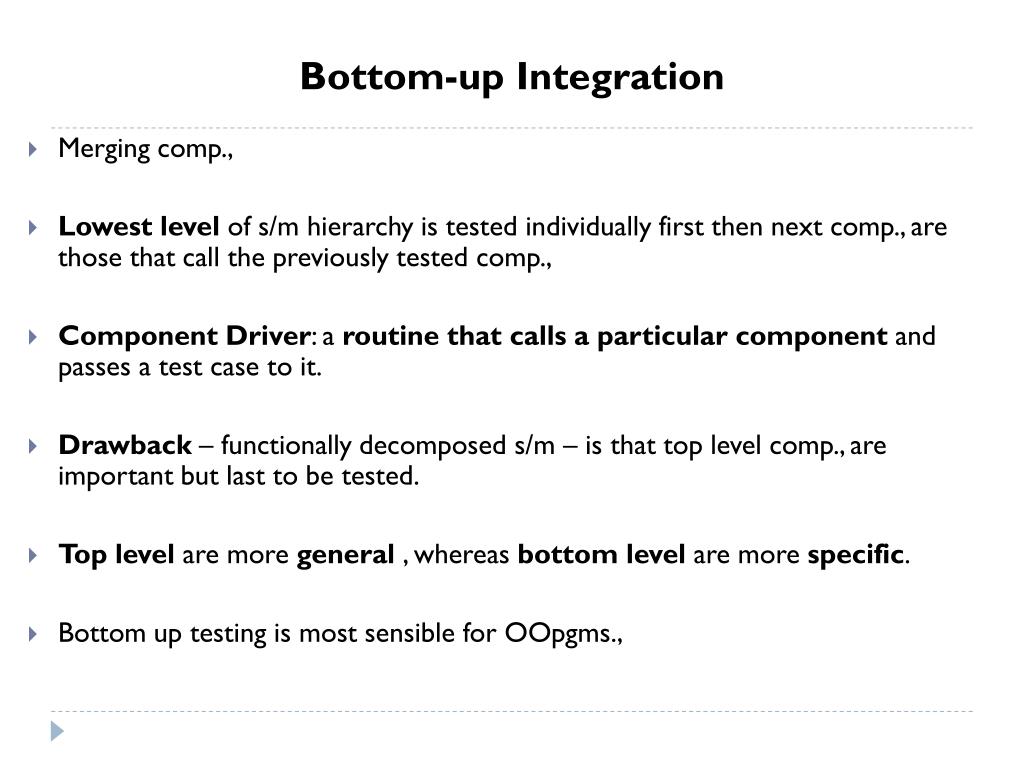

  4. Bottom-up Integration • Merging comp., • Lowest level of s/m hierarchy is tested individually first then next comp., are those that call the previously tested comp., • Component Driver: a routine that calls a particular component and passes a test case to it. • Drawback – functionally decomposed s/m – is that top level comp., are important but last to be tested. • Top level are more general , whereas bottom level are more specific. • Bottom up testing is most sensible for OOpgms.,

  5. System viewed as a hierarchy of components • The sequence of tests and their dependencies • We need comp., driver for E,F,G

  6. Top-Down Integration • Reverse of bottom-up • Top level – one controlling comp., is tested by itself. • Then all comps., called by the tested comp., are combined & tested • Stub: a special-purpose program to simulate the activity of the missing component • The stub answers the calling seq., & passes back o/p data that lets the testing process continue.

  7. Only A is tested by itself • Stubs needed for B,C & D. • Top down allows the test team to exercise one fn., at a time • Test cases defined in terms of fns., being examined. • Design faults abt fnality., addressed at the beginning of testing. • Drivers pgms., are not needed. • Writing stubs can be difficult, its correctness may affect the validity of the test.

  8. Drawback with top-down testing is possibility that a very large no., of stubs may be required. • One way to avoid is to alter the strategy slightly • Modified Top-Down Integration • Each level’s components individually tested before the merger takes place.

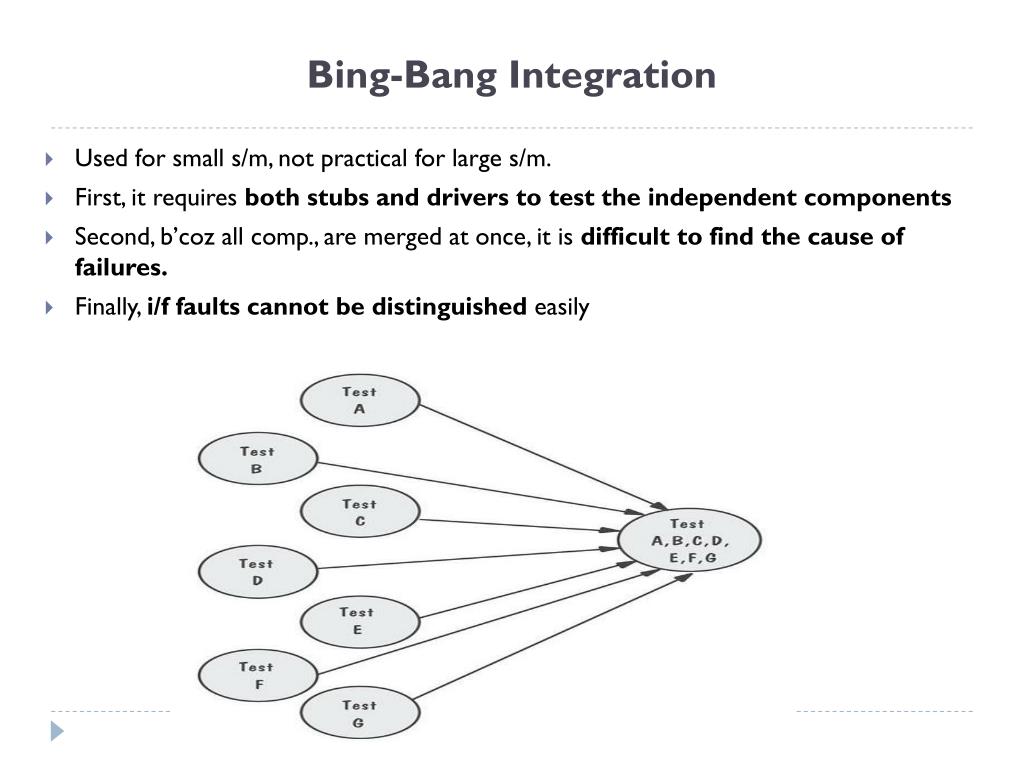

  9. Bing-Bang Integration • Used for small s/m, not practical for large s/m. • First, it requires both stubs and drivers to test the independent components • Second, b’coz all comp., are merged at once, it is difficult to find the cause of failures. • Finally, i/f faults cannot be distinguished easily

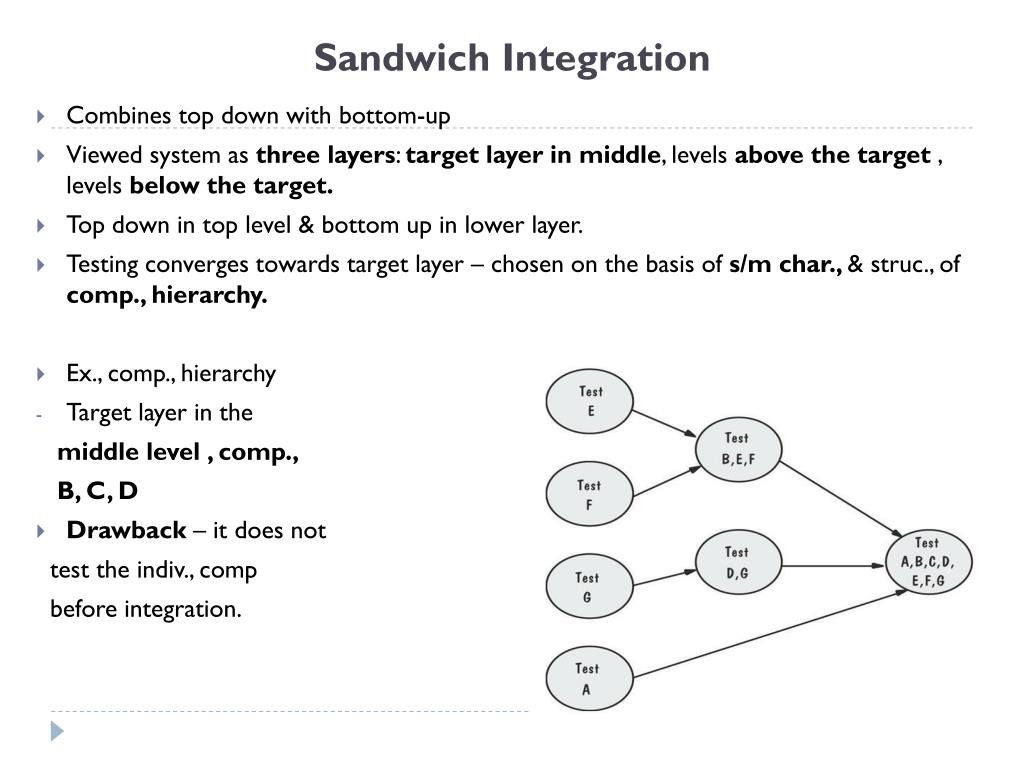

  10. Sandwich Integration • Combines top down with bottom-up • Viewed system as three layers: target layer in middle, levels above the target , levels below the target. • Top down in top level & bottom up in lower layer. • Testing converges towards target layer – chosen on the basis of s/m char., & struc., of comp., hierarchy. • Ex., comp., hierarchy • Target layer in the middle level , comp., B, C, D • Drawback – it does not test the indiv., comp before integration.

  11. Modified Sandwich Integration • Allows upper-level components to be tested before merging them with others

  12. Comparison of Integration Strategies

  13. Testing Object-Oriented Systems • Rumbaugh ask several ques.,: • Is there a path that generates a unique result? • Is there a way to select a unique result? • Are there useful cases that are not handled? • Next check obj., & classes themselves for excesses & deficiencies • Missing obj, useless classes, associations or attributes

  14. Differences Between OO and Traditional Testing • OO comp., - reused, helps minimize testing • First, test – base classes having no parents – test each fn., individually then the interactions among them. • Next – provide an alg., to update incrementally the test history for parent class. • OO unit testing is less difficult, but integration testing is more extensive

  15. The farther the gray line is out, the more the difference Requires special treatment

  16. Test Planning • Test planning helps us to design & organize the tests • Test steps: • Establish test objectives • Design test cases • Write test cases • Testing test cases • Execute tests • Evaluate test results • Test obj., - tells us what kind of test cases to generate.

  17. Purpose of the Plan • Test plan explains • who does the testing? • why the tests are performed? • how tests are conducted? • when the tests are scheduled? • Contents of the Plan • What the test objectives are? • How the test will be run? • What criteria will be used to determine when the testing is complete? • Statement, branch, & path coverage at the comp., level • Top-down , bottom-up at the integration level • Resulting test plan for merging the comps., into a whole sometimes called S/m Integration Testing

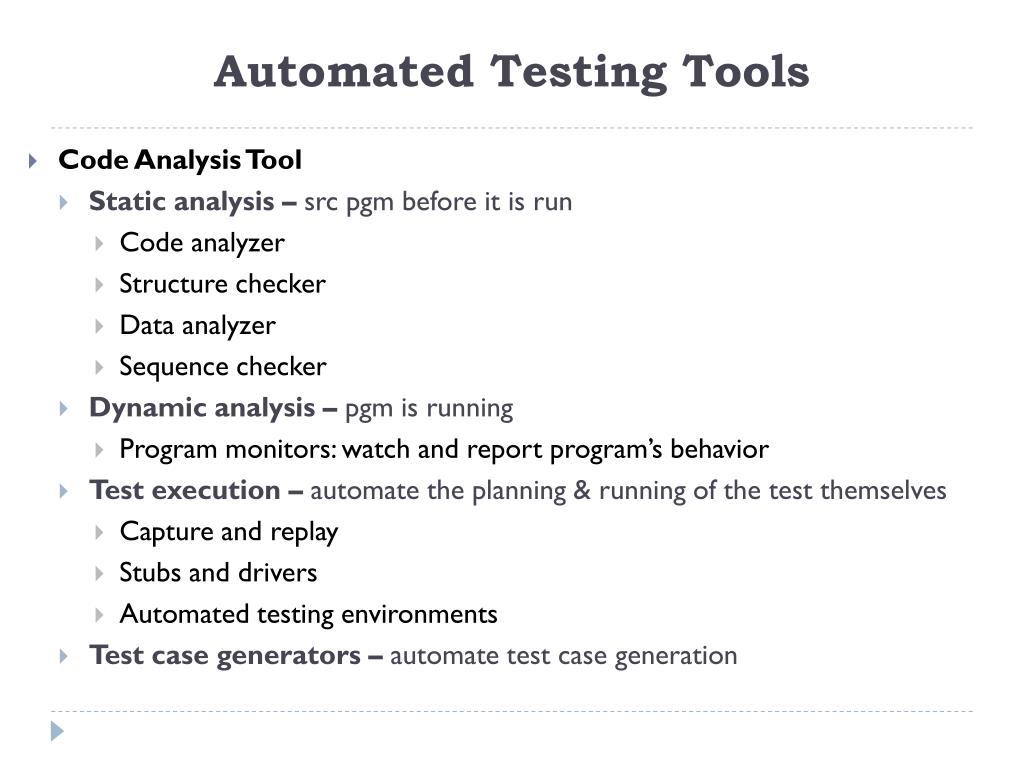

  18. Automated Testing Tools • Code Analysis Tool • Static analysis – src pgm before it is run • Code analyzer • Structure checker • Data analyzer • Sequence checker • Dynamic analysis – pgm is running • Program monitors: watch and report program’s behavior • Test execution – automate the planning & running of the test themselves • Capture and replay • Stubs and drivers • Automated testing environments • Test case generators – automate test case generation

  19. When to Stop Testing • More faulty? • Probability of finding faults during the development

  20. Stopping Approaches • Fault seeding or error seeding – to estimate no., of faults in a pgm • One team – seeds or inserts a known no., of faults • Other team – locate as many faults as possible • No. of undiscovered faults acts as indicator • The ratio: detected seeded Faults detected nonseeded faults total seeded faults total nonseeded faults • Expressing ratio formally : N = Sn /s • N – no., of nonseeded faults • S – no., seeded faults placed in a pgm. • n – actual no., of nonseeded faults detected during testing • s – no., of seeded faults detected during testing

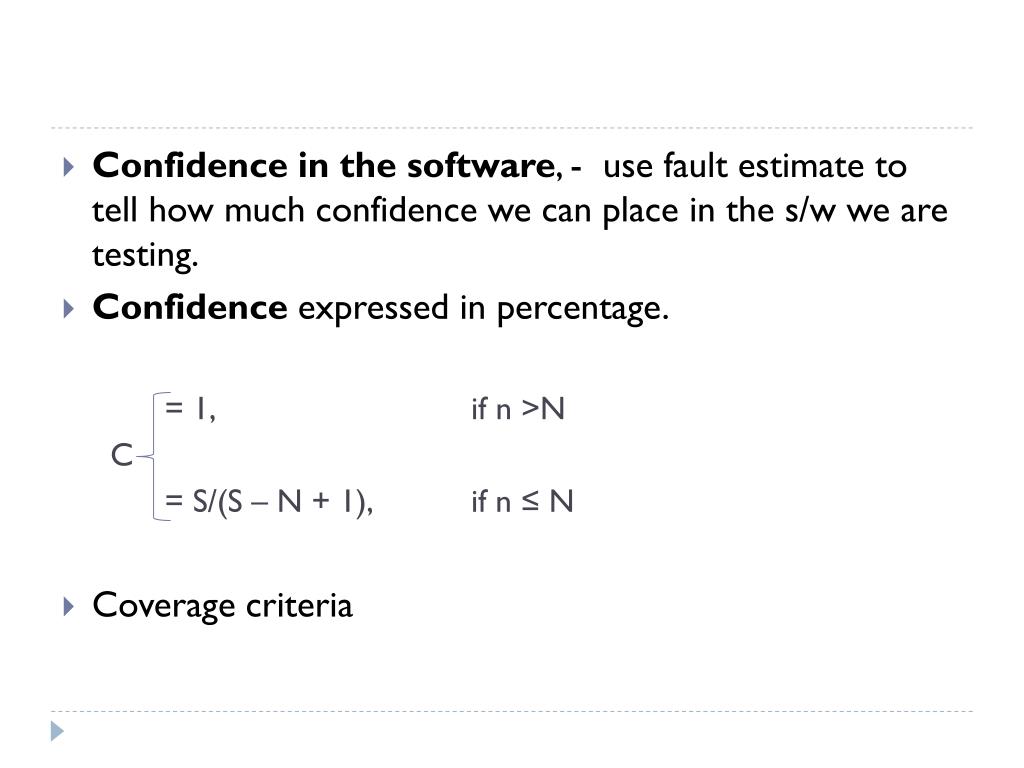

  21. Confidence in the software, - use fault estimate to tell how much confidence we can place in the s/w we are testing. • Confidence expressed in percentage. = 1, if n >N C = S/(S – N + 1), if n ≤ N • Coverage criteria

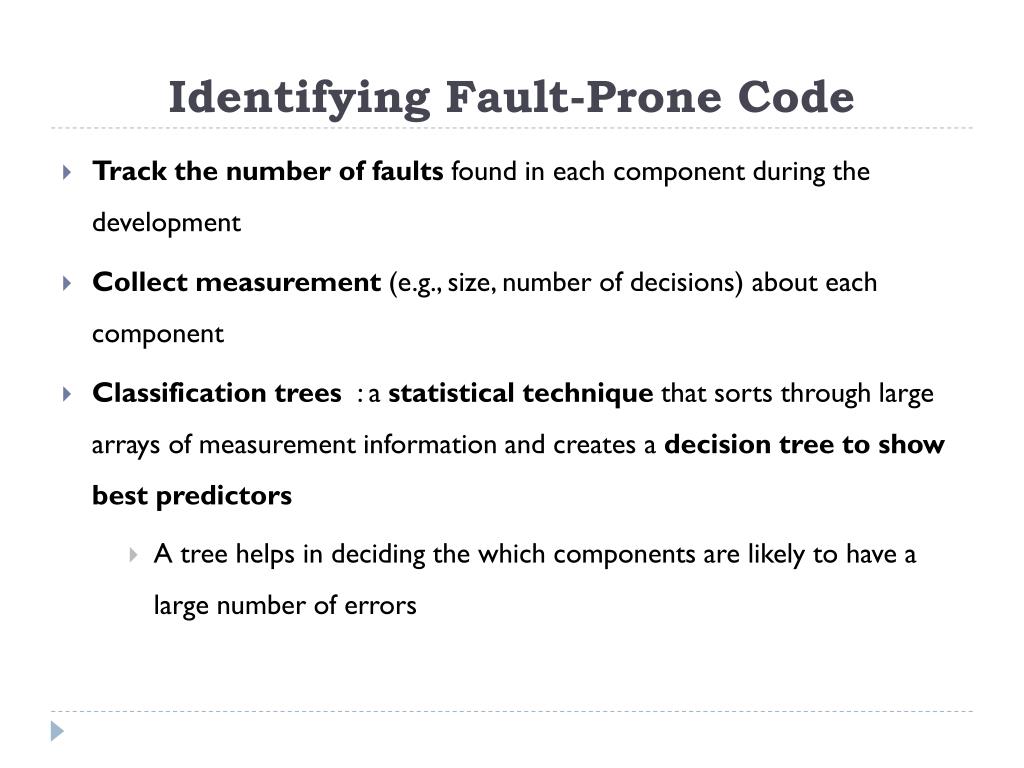

  22. Identifying Fault-Prone Code • Track the number of faults found in each component during the development • Collect measurement (e.g., size, number of decisions) about each component • Classification trees : a statistical technique that sorts through large arrays of measurement information and creates a decision tree to show best predictors • A tree helps in deciding the which components are likely to have a large number of errors

  23. An Example of a Classification Tree
