  1. Definition and Analysis of a Class of Spanning Bus Orthogonal Multiprocessing Systems Isaac D.Scherson Department of Elecetrical Engineering Princeton University Princeton New Jersey 08544 Presentation Prepared by Dindar Öz CmpE 511 Presentation

  2. Contents • Introduction • Orthogonal Graphs • The Class Of Omega Graphs • Orthogonal Shared Memory Multiprocessors • Conclusion CmpE 511 Presentation

  3. Introduction (I) • p Processors access p*p memory modules • First applied to some vector processing problems • Because the acces is orthogonal the system named Orthogonal Multi-Processor or OMP for short. CmpE 511 Presentation

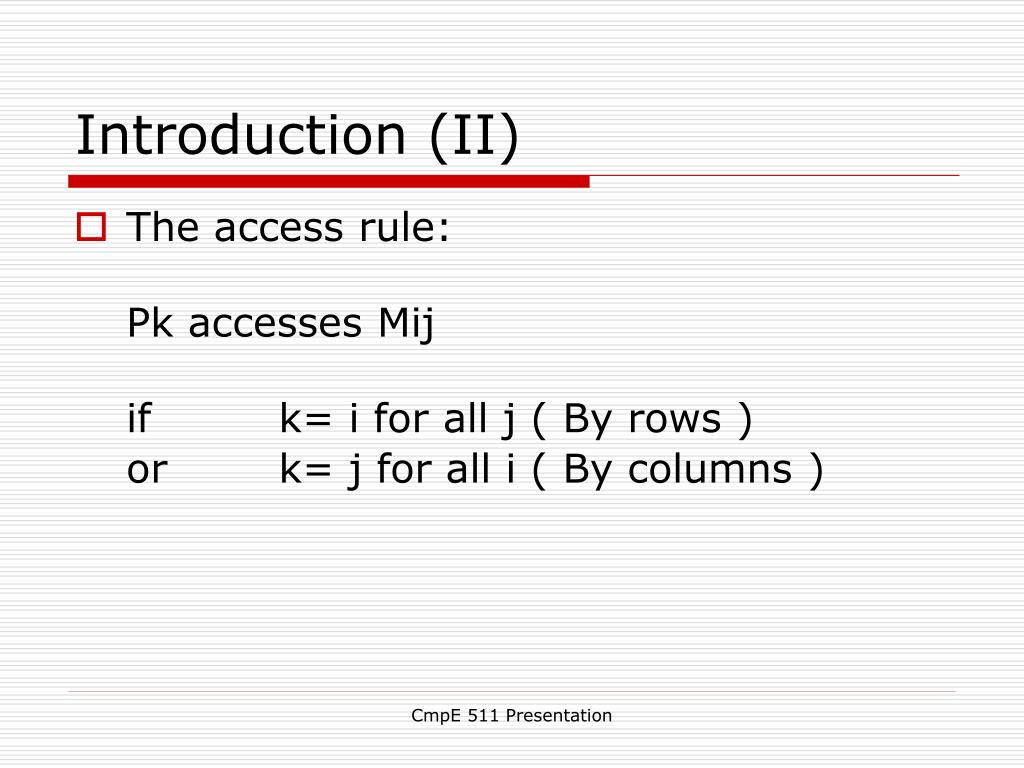

  4. Introduction (II) • The access rule:Pk accesses Mij if k= i for all j ( By rows ) or k= j for all i ( By columns ) CmpE 511 Presentation

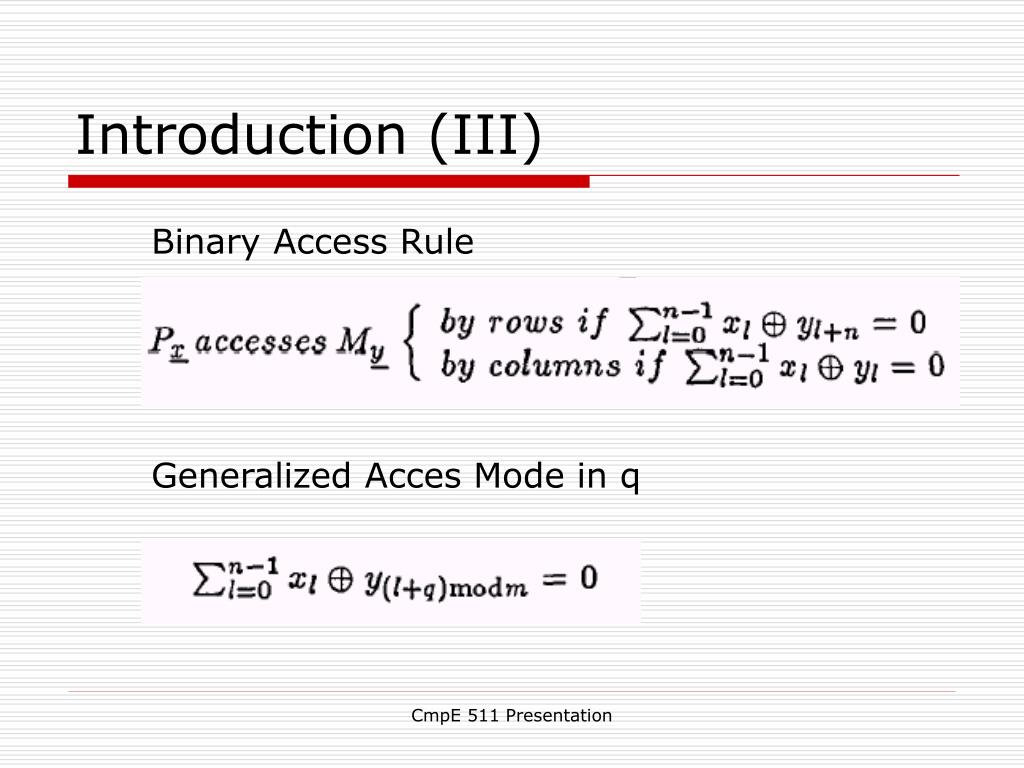

  5. Introduction (III) Binary Access Rule Generalized Acces Mode in q CmpE 511 Presentation

  6. Orthogonal Graphs • Definitions • Degree • Connectivity • Diameter CmpE 511 Presentation

  7. Definitions (I) • Ym : set of all binary vectors of length m • Q = {0,1,2,.....m-1} ordered set • + is bitvise ex-OR and * is defined CmpE 511 Presentation

  8. Definitions (II) Inner Product of q Orthogonal Mode of q ! Two vectors are orthogonal if and only if they match on n bits starting at bit position q CmpE 511 Presentation

  9. Definitions (III) N(q) is the number of nearest neighbours under mode q CmpE 511 Presentation

  10. Degree of OG • D= (2^(m-n)-1)*#Q*. If Q* is disjoint set of modes. CmpE 511 Presentation

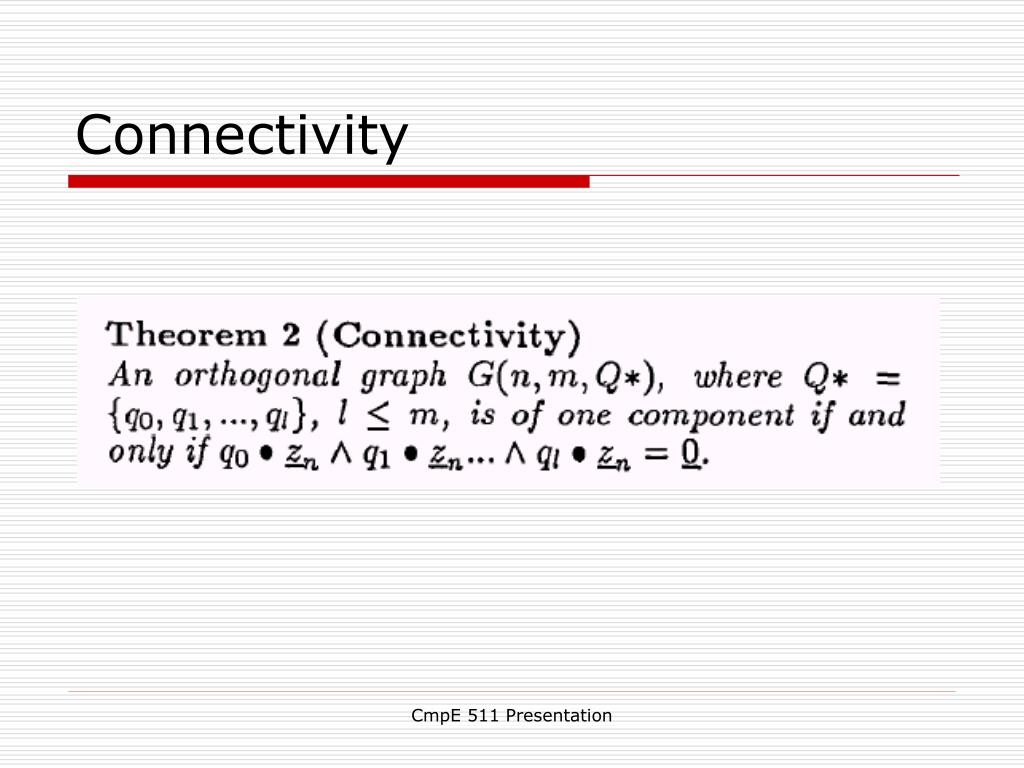

  11. Connectivity CmpE 511 Presentation

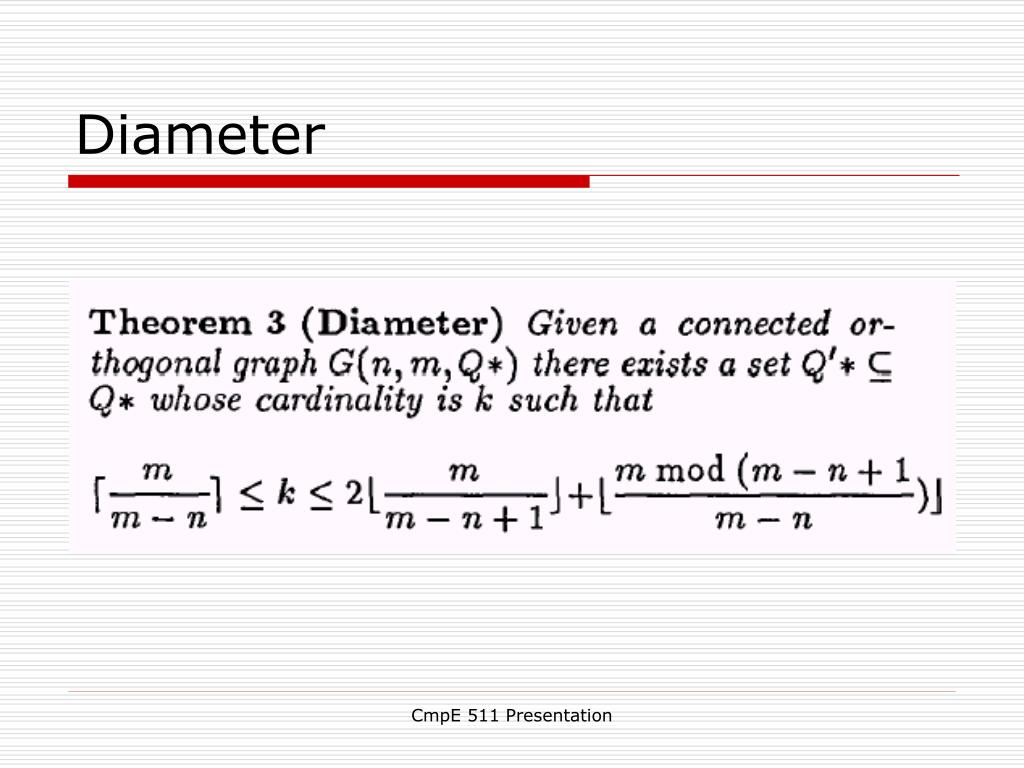

  12. Diameter CmpE 511 Presentation

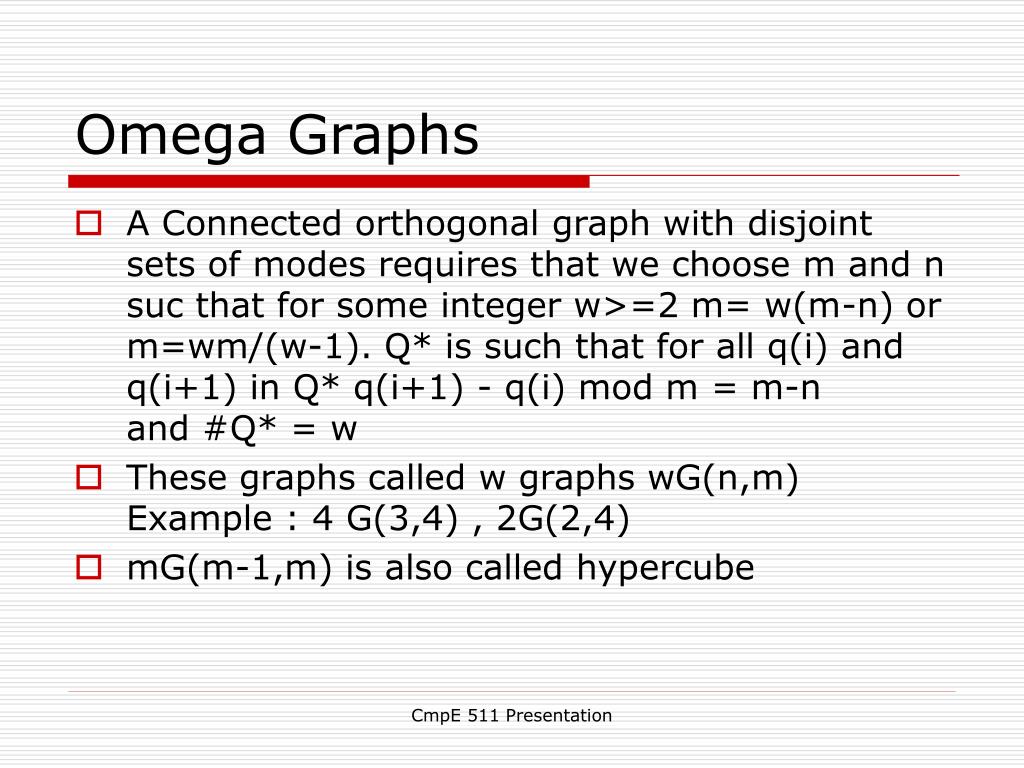

  13. Omega Graphs • A Connected orthogonal graph with disjoint sets of modes requires that we choose m and n suc that for some integer w>=2 m= w(m-n) or m=wm/(w-1). Q* is such that for all q(i) and q(i+1) in Q* q(i+1) - q(i) mod m = m-n and #Q* = w • These graphs called w graphs wG(n,m)Example : 4 G(3,4) , 2G(2,4) • mG(m-1,m) is also called hypercube CmpE 511 Presentation

  14. Omega Graph Examples The graph of 4G(3,4) . Hypercube CmpE 511 Presentation

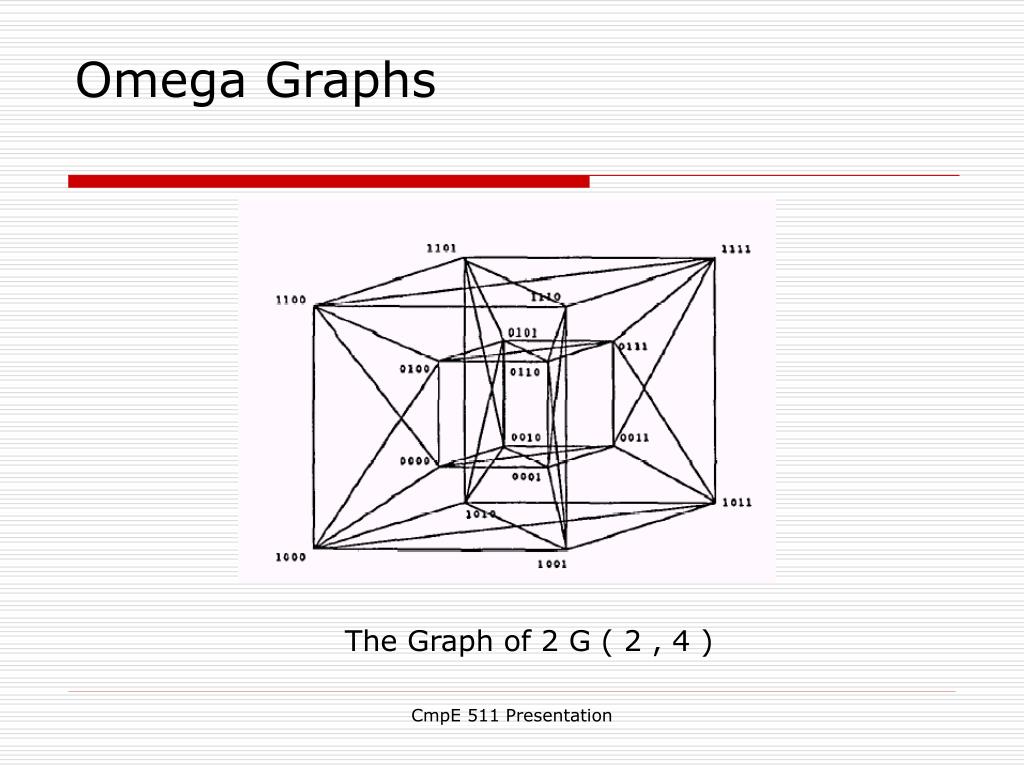

  15. Omega Graphs The Graph of 2 G ( 2 , 4 ) CmpE 511 Presentation

  16. Spanning Buses Transformation of a fully connected face into spanning bus Spanning bus graph for 2 G ( 2 ,4 , { 0 , 2 }) CmpE 511 Presentation

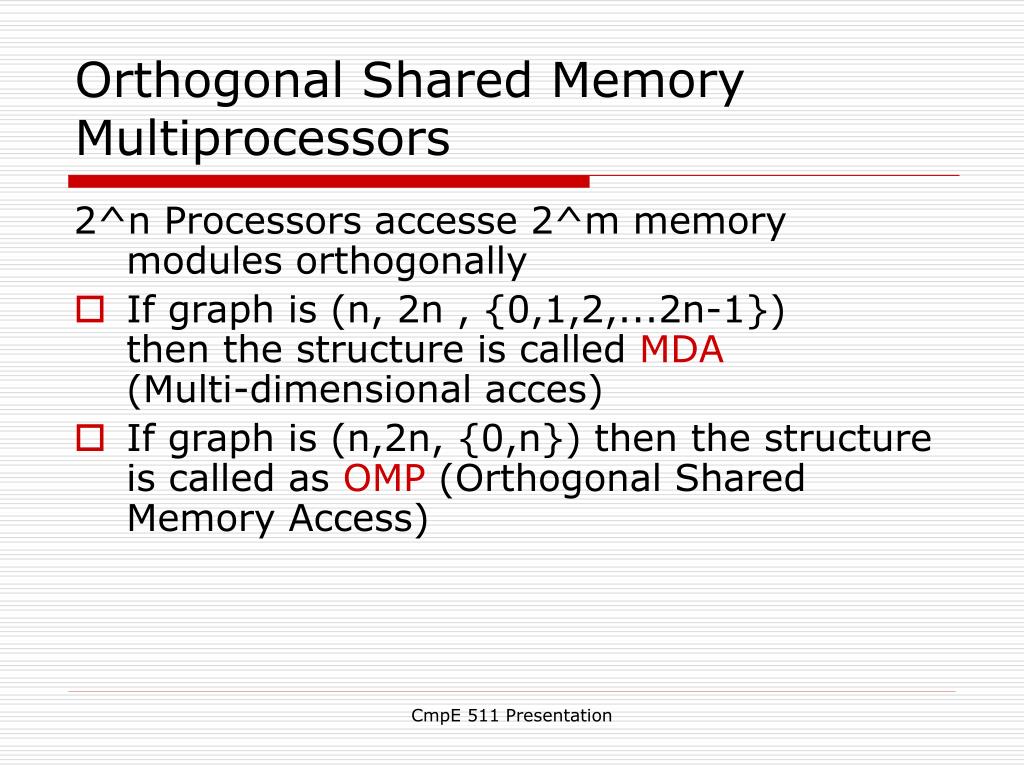

  17. Orthogonal Shared Memory Multiprocessors 2^n Processors accesse 2^m memory modules orthogonally • If graph is (n, 2n , {0,1,2,...2n-1})then the structure is called MDA(Multi-dimensional acces) • If graph is (n,2n, {0,n}) then the structure is called as OMP (Orthogonal Shared Memory Access) CmpE 511 Presentation

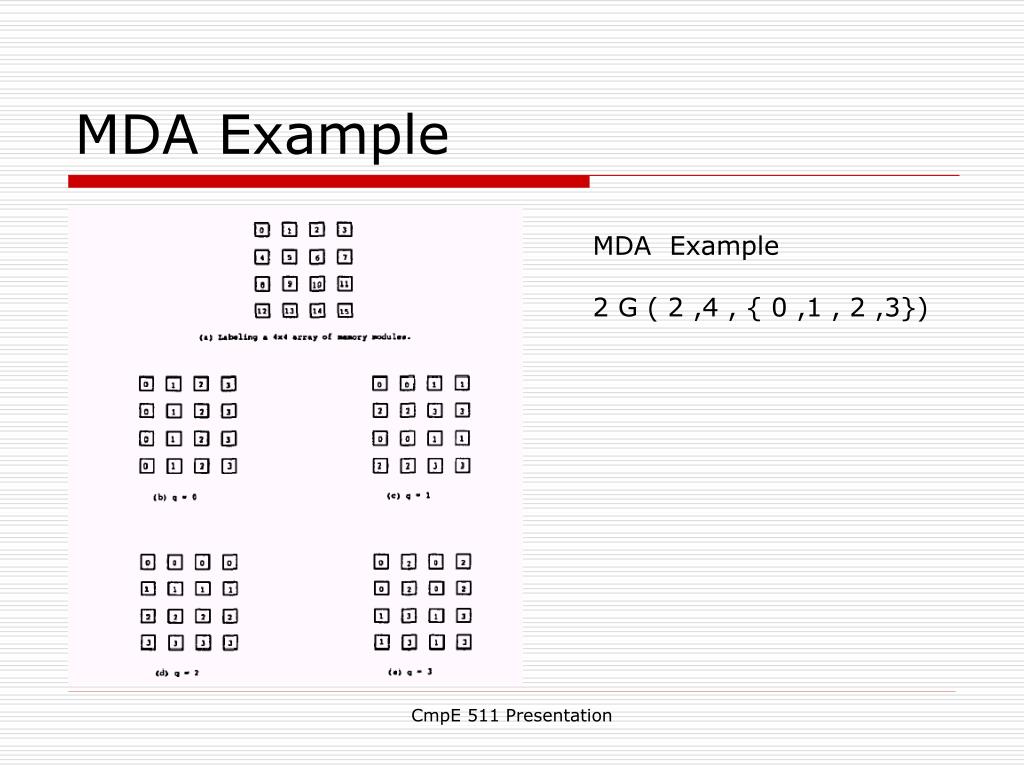

  18. MDA Example MDA Example 2 G ( 2 ,4 , { 0 ,1 , 2 ,3}) CmpE 511 Presentation

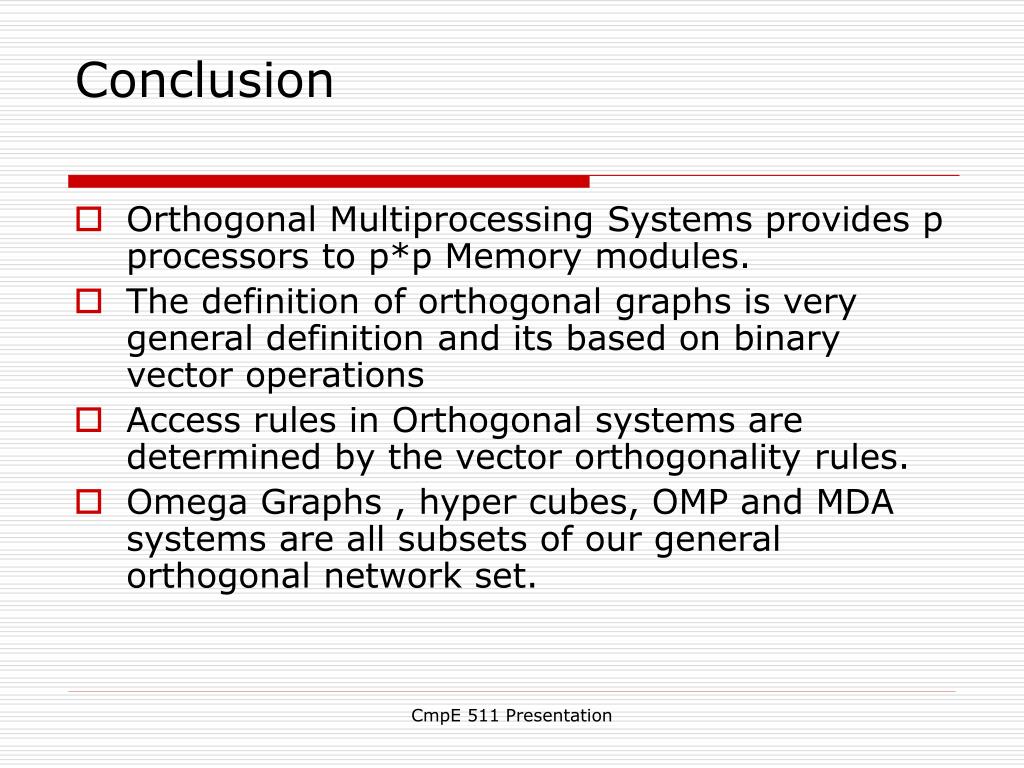

  19. Conclusion • Orthogonal Multiprocessing Systems provides p processors to p*p Memory modules. • The definition of orthogonal graphs is very general definition and its based on binary vector operations • Access rules in Orthogonal systems are determined by the vector orthogonality rules. • Omega Graphs , hyper cubes, OMP and MDA systems are all subsets of our general orthogonal network set. CmpE 511 Presentation

  20. Any questions ? Thanks!!! CmpE 511 Presentation
