  1. Working with Acrylic Quiz

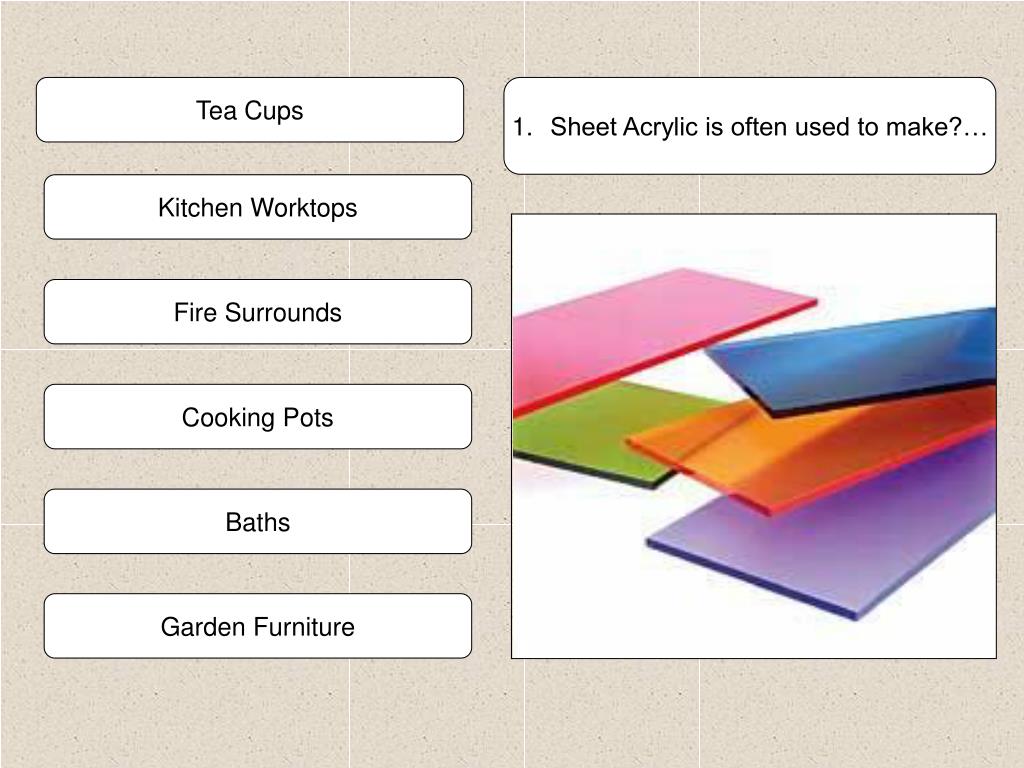

  2. Tea Cups • Sheet Acrylic is often used to make?… Kitchen Worktops Fire Surrounds Cooking Pots Baths Garden Furniture

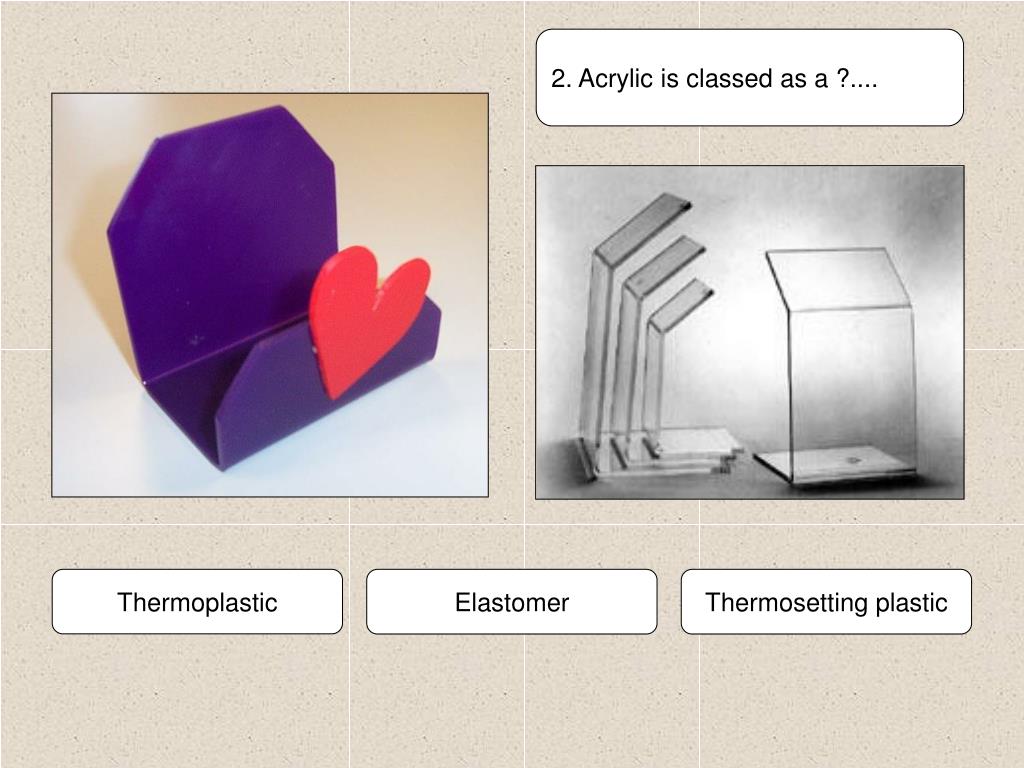

  3. 2. Acrylic is classed as a ?.... Thermoplastic Elastomer Thermosetting plastic

  4. 3. The purpose of the protective film is to….. To prevent the Acrylic getting scratched To stop the sheets sticking together To give you a surface to draw on To make the sheet easier to cut

  5. 4. Which of the following tools is not suitable for cutting Acrylic? A Coping Saw A Piercing saw A Jnr Hacksaw A Panel Saw

  6. 5. The method of filing shown below is called …. Draw Filing Cross Filing Smooth Filing

  7. 6. The abrasive used to produce a fine finish on acrylic sheet is called …. Emery Cloth Glass Paper Sand Paper Wet & Dry Aluminium Oxide Paper

  8. Injection Moulding Machine 7. What is the correct name for the machine shown below? Line Bender Strip Heater Vacuum Forming Machine Oven

  9. 8. When should you remove the protective film? As soon as possible Any time you want Leave it on as long as possible Never

  10. 9. What is the correct name for the machine shown below? Vacuum Forming Machine Injection Moulding Machine Strip Heater Oven

  11. 10. What is the most likely cause of the small bubbles that have formed along the bend line? The acrylic was not hot enough when it was bent The acrylic was bent too quickly The acrylic was over heated while it was being bent The acrylic was heated on both sides

  12. 11. What is the correct name for the adhesive used to glue acrylic to acrylic? Cyanoacrylate Impact Adhesive Cascamite Epoxy Resin Tensol Cement PVA

  13. Injection Moulding Machine 12. Which machine would have been used to shape the acrylic sheet into this sink? Vacuum Forming Machine Strip Heater Line Bender Oven

  14. Quiz Completed Well Done

  15. Wrong Click here to try again
