  1. Today • Pick up your test folder on the back counter • Think about questions you have on the multiple choice

  2. Grades This Unit • Ch. 12 reading guide • Ch. 13 reading guide • Mitosis/Meiosis diagrams • Mitosis and meiosis lab • Cancer Research page • Unit 6 Exam

  3. What we have left this semester • Unit 6 – Cell Division • Unit 7 – Genetics • Unit 8 – DNA/protein synthesis

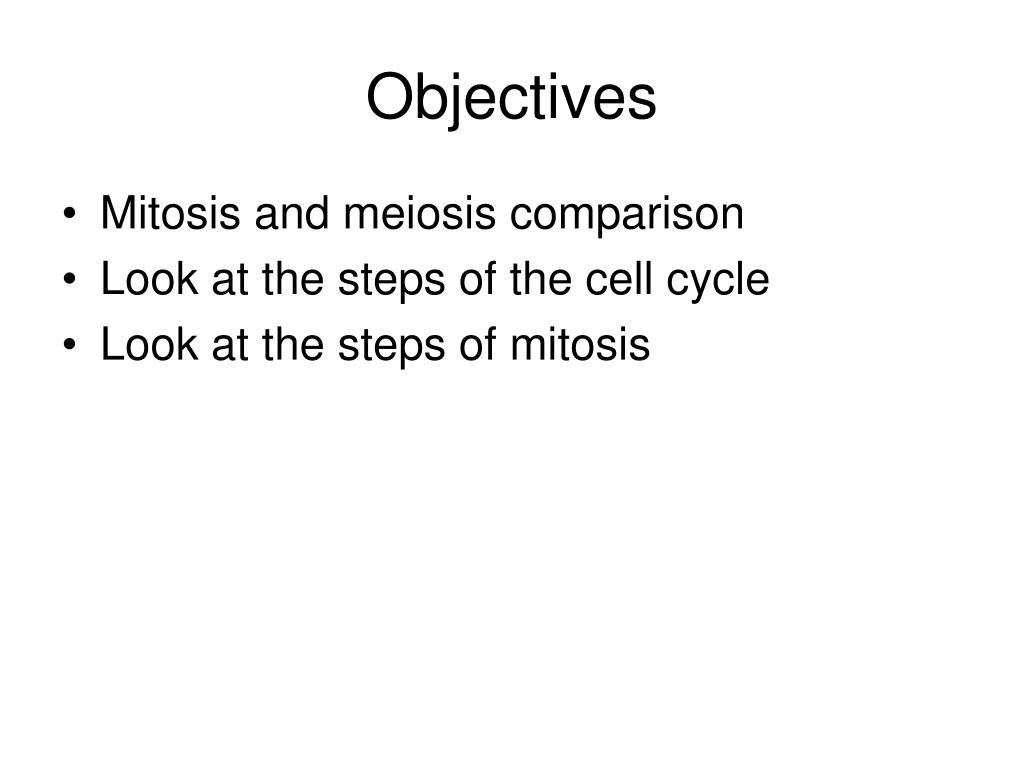

  4. Objectives • Mitosis and meiosis comparison • Look at the steps of the cell cycle • Look at the steps of mitosis

  5. Mitosis/Meiosis

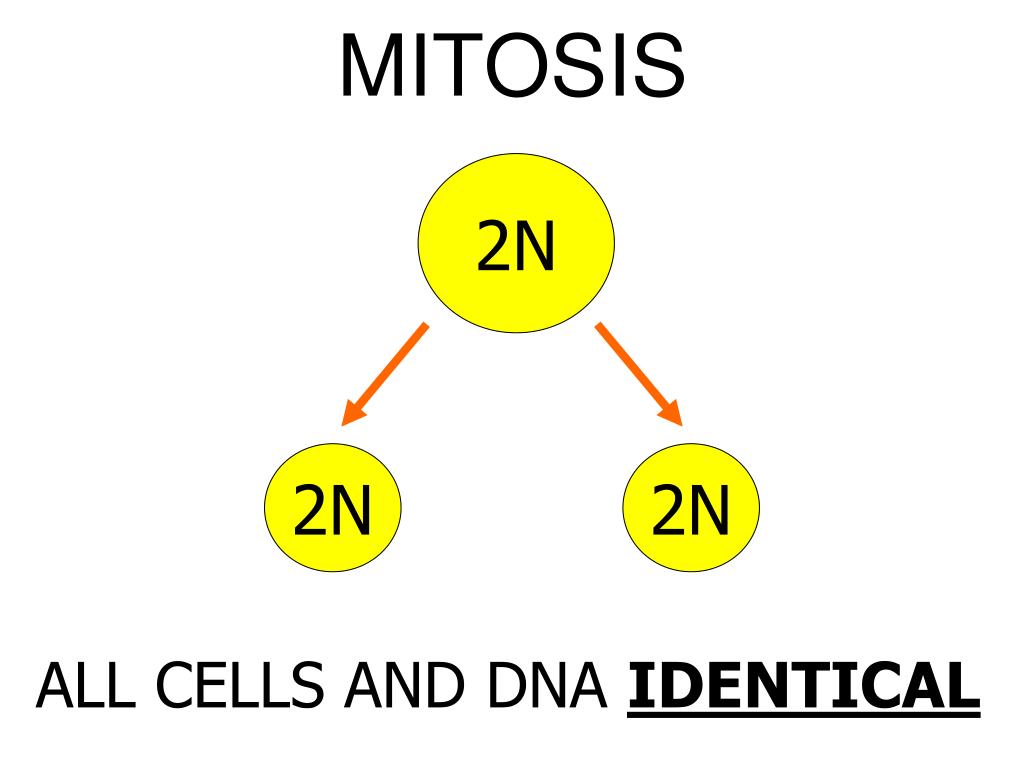

  6. MITOSIS 2N 2N 2N ALL CELLS AND DNA IDENTICAL

  7. Mitosis • Occurs in Somatic (body) cells • Used in growth & repair of body cells, Asexual reproduction

  8. Asexual Reproduction • Exact copies of parents • Mitosis • Clones • Ex. Budding, Fragmentation

  9. Starts with • Parent cell – (Diploid - 2N) – has both sets of chromosomes

  10. Ends with • 2 identical diploid daughter cells

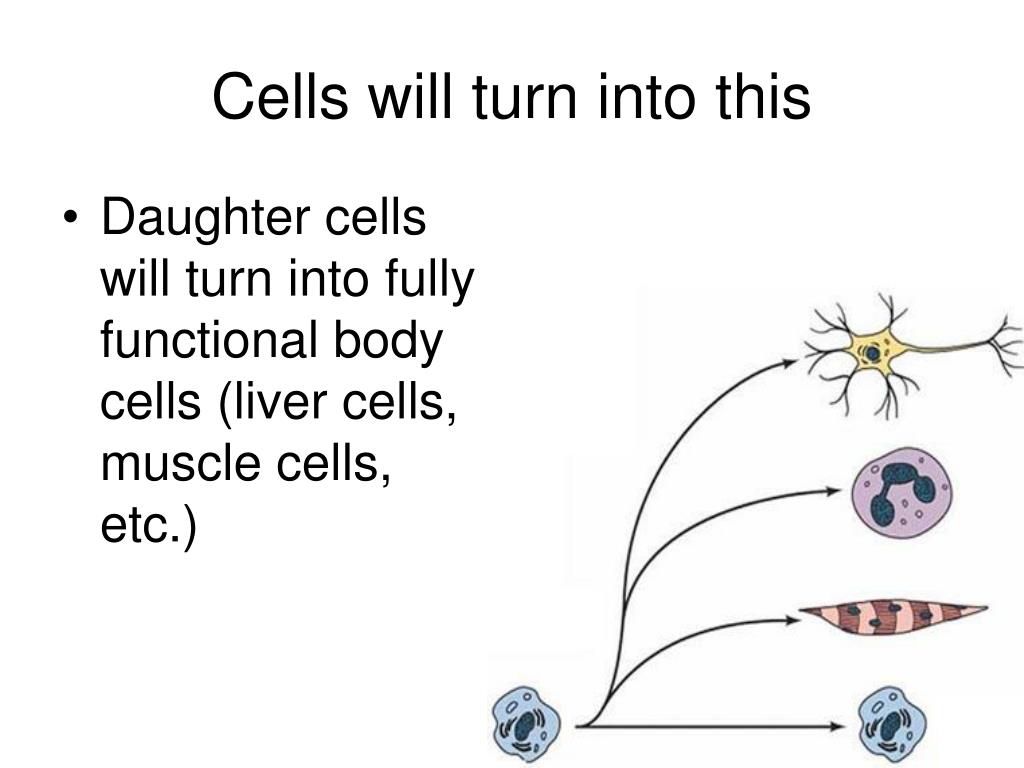

  11. Cells will turn into this • Daughter cells will turn into fully functional body cells (liver cells, muscle cells, etc.)

  12. Chromosome Number • Stay the same (46 chromosomes in humans)

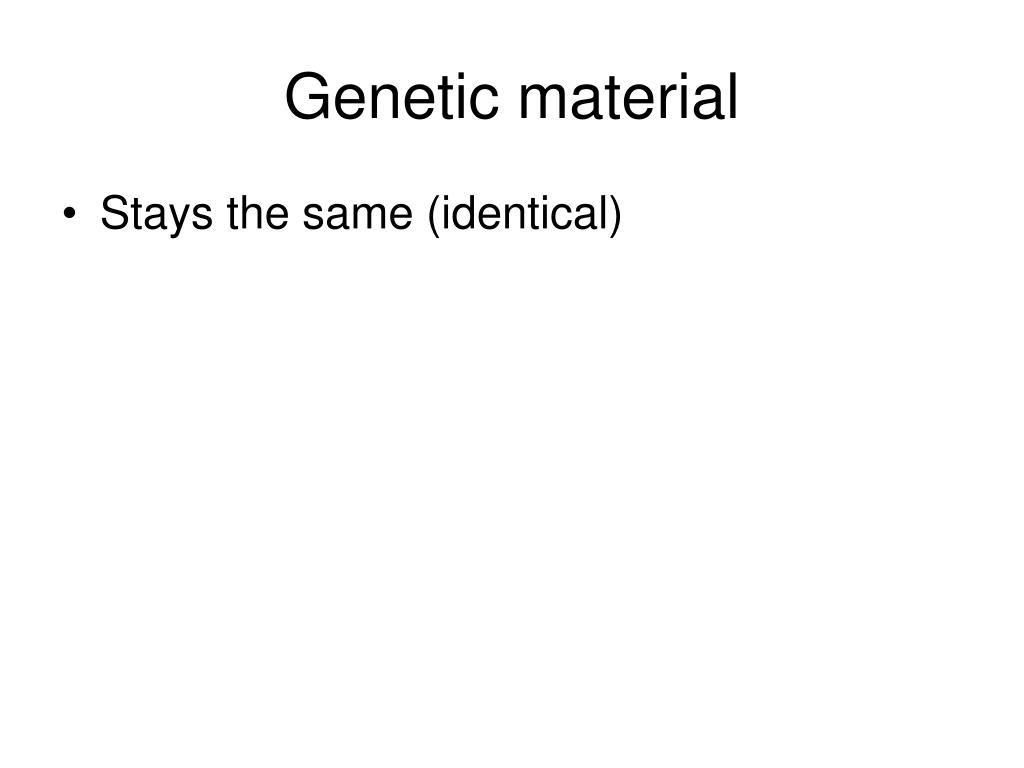

  13. Genetic material • Stays the same (identical)

  14. Problems • Uncontrolled growth or division causes cancer

  15. Meiosis 2N Division I Division II 1N 1N 1N 1N 4 NEW GENETICALLY DIFFERENT CELLS

  16. Meiosis • Occurs in Gametes (sex cells) • Used in Sexual reproduction

  17. Sexual Reproduction • Produces unique combination of genes • Genetic Variation • Can aid in survival of species

  18. Starts with • Diploid cell (2N)

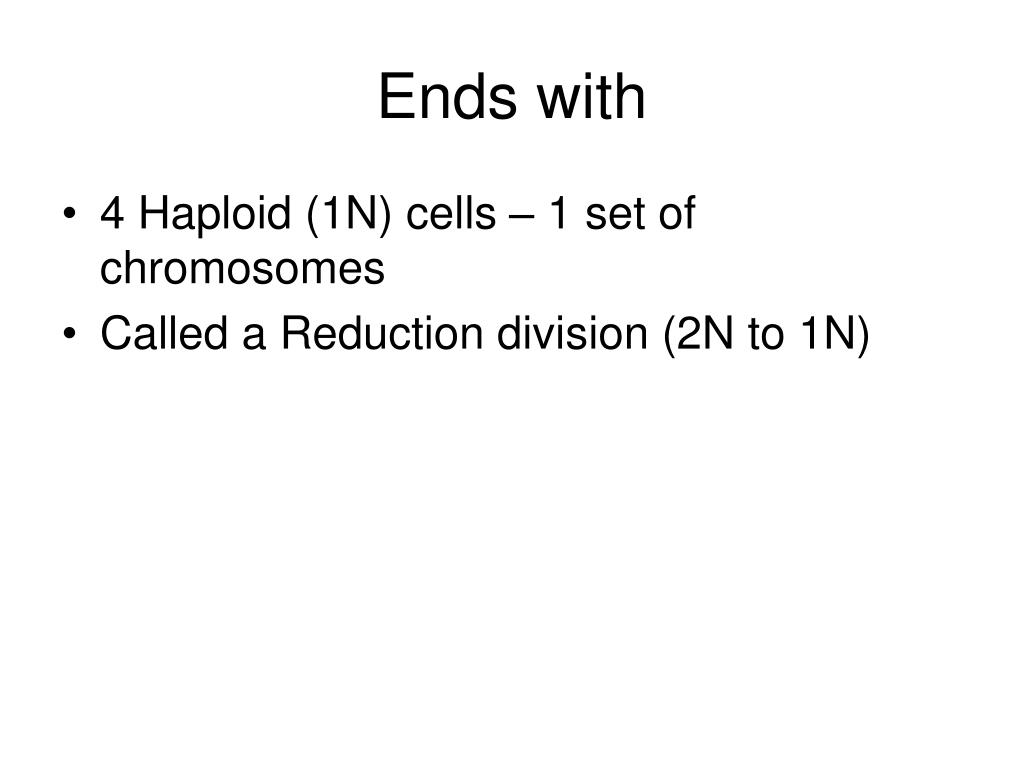

  19. Ends with • 4 Haploid (1N) cells – 1 set of chromosomes • Called a Reduction division (2N to 1N)

  20. Cells will turn into this • Males – 4 sperm • Females – 1 egg and 3 polar bodies

  21. Chromosome Number • Divides in half (46 to 23 chromosomes) • Sperm (23) and egg (23) combine to form a zygote (46) during fertilization • This ensures chromosome # is right

  22. Genetic material • Genetic Variation caused by crossing over – chromatids overlap, break apart, and reattach to form new combinations of DNA

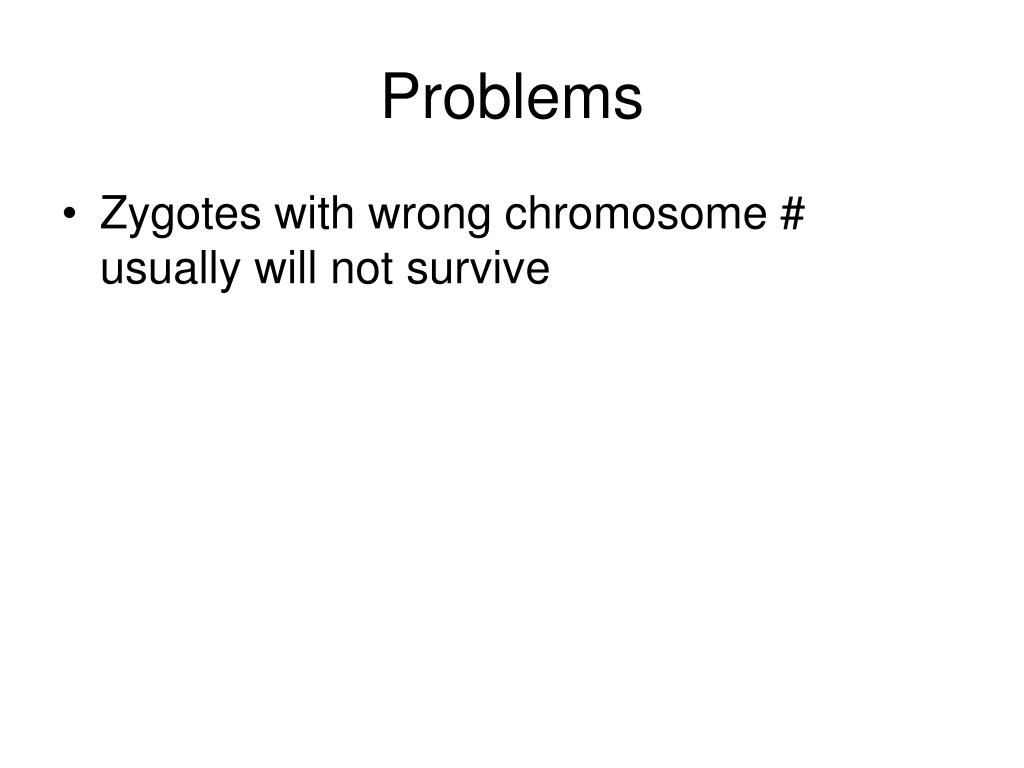

  23. Problems • Zygotes with wrong chromosome # usually will not survive

  24. Chapter 12~ The Cell Cycle

  25. Why do cells divide? • Growth and repair • Sexual reproduction • They get too big • Density of cells around them

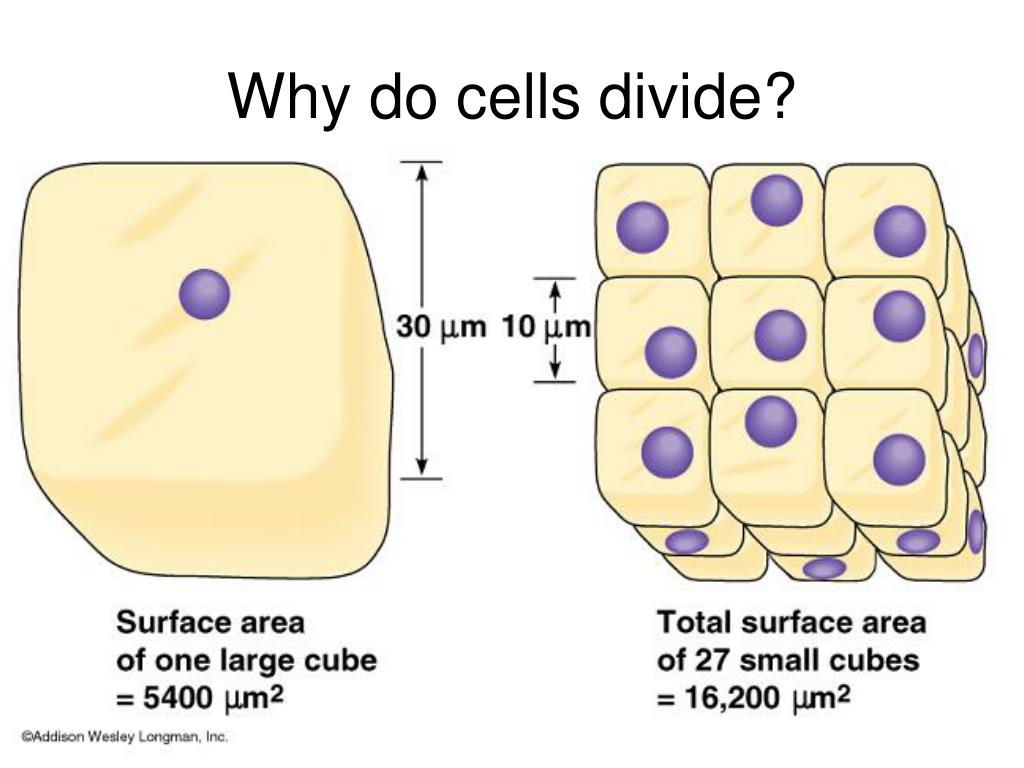

  26. Why do cells divide?

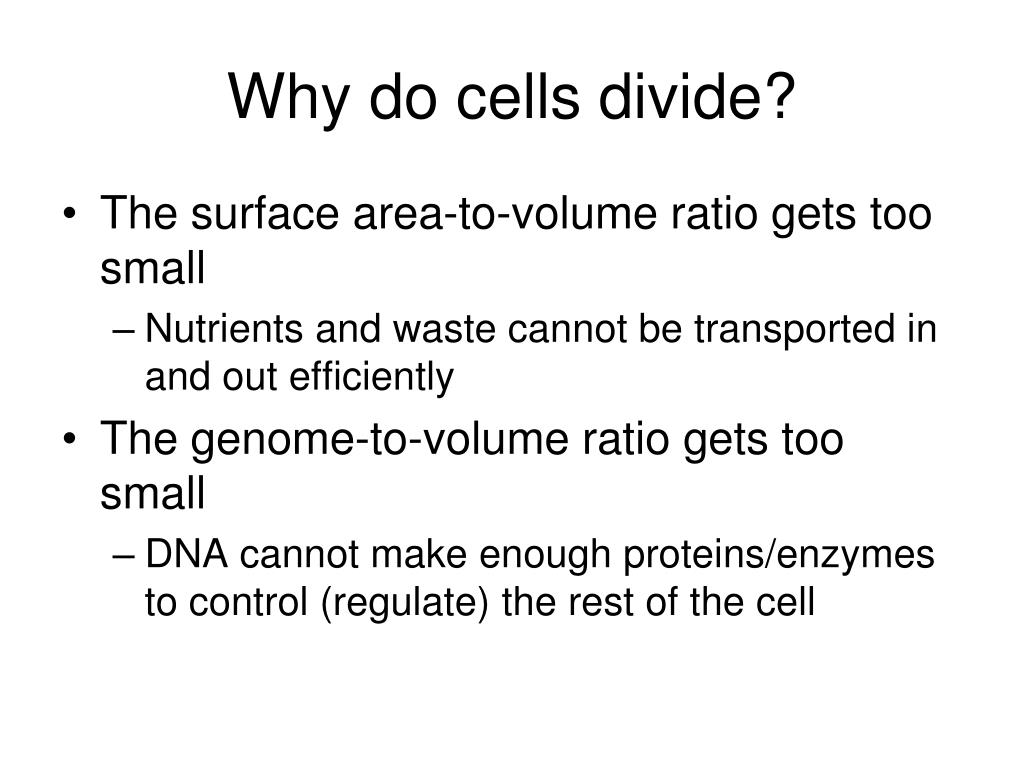

  27. Why do cells divide? • The surface area-to-volume ratio gets too small • Nutrients and waste cannot be transported in and out efficiently • The genome-to-volume ratio gets too small • DNA cannot make enough proteins/enzymes to control (regulate) the rest of the cell

  28. Cell Cycle • Order • Interphase • Checkpoints

  29. The Cell Cycle DNA Copied Cells prepare for Division Cells Mature Daughter Cells Cell Divides into Identical cells

  30. The Cell Cycle • Interphase (90% of cycle)• G1 phase~ growth • S phase~ synthesis of DNA • G2 phase~ preparation for cell division • Mitotic phase • Mitosis~ nuclear division • Cytokinesis~ cytoplasm division

  31. Cell Division: Key Roles • Genome: cell’s genetic information • Somatic (body cells) cells • Gametes (reproductive cells): sperm and egg cells • Chromosomes: DNA molecules • Diploid (2n): 2 sets of chromosomes • Haploid (1n): 1 set of chromosomes • Chromatin: DNA-protein complex • Chromatids: replicated strands of a chromosome • Centromere: narrowing “waist” of sister chromatids • Mitosis: nuclear division • Cytokinesis: cytoplasm division • Meiosis: gamete cell division

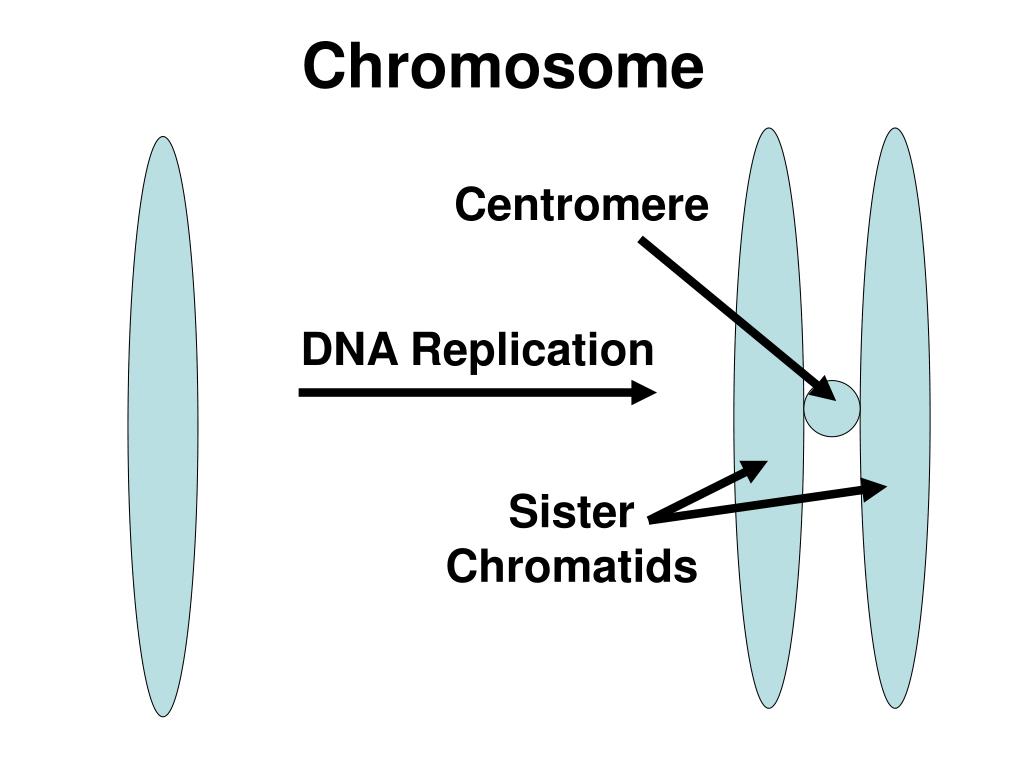

  32. Chromosome Centromere DNA Replication Sister Chromatids

  33. MITOSIS CYTOKINESIS

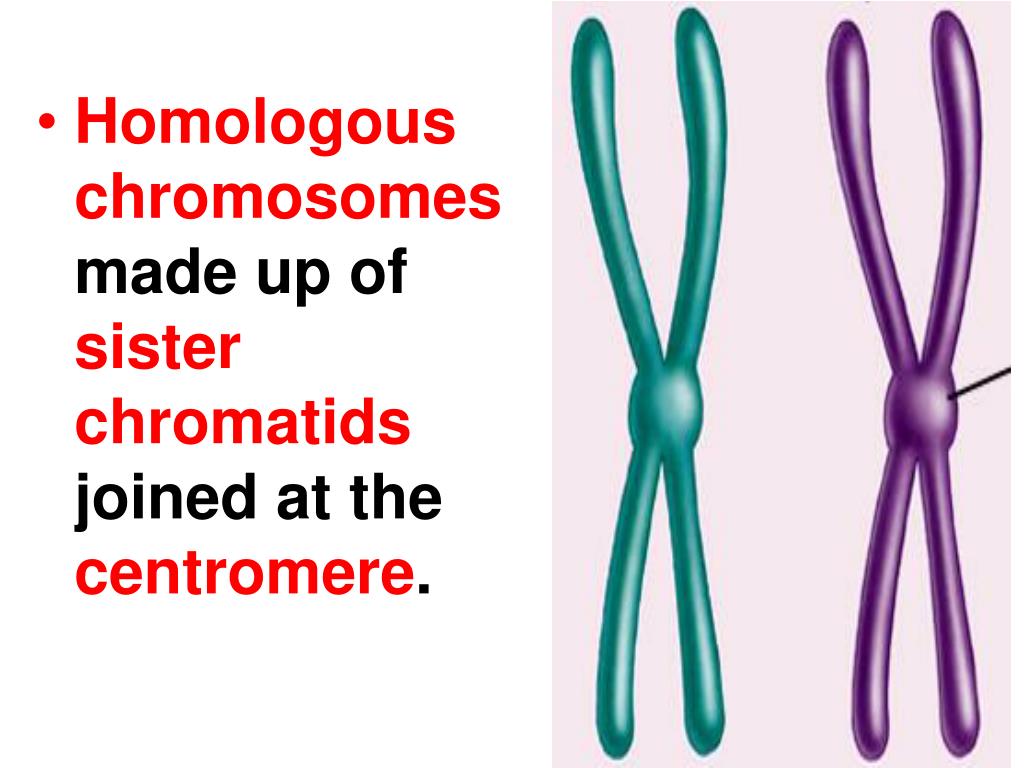

  34. Homologous chromosomes made up of sister chromatids joined at thecentromere.

  35. Haploid– 1 copy of each chromosomeDiploid– 2 copies of each chromosome (known as homologous chromosomes)

  36. Replicated homologous chromosomes Unreplicated homologous chromosomes Centromere

  37. Karyotype • A picture of the chromosomes from a human cell arranged in pairs by size • First 22 pairs are called autosomes • Last pair are the sex chromosomes • XX female or XY male

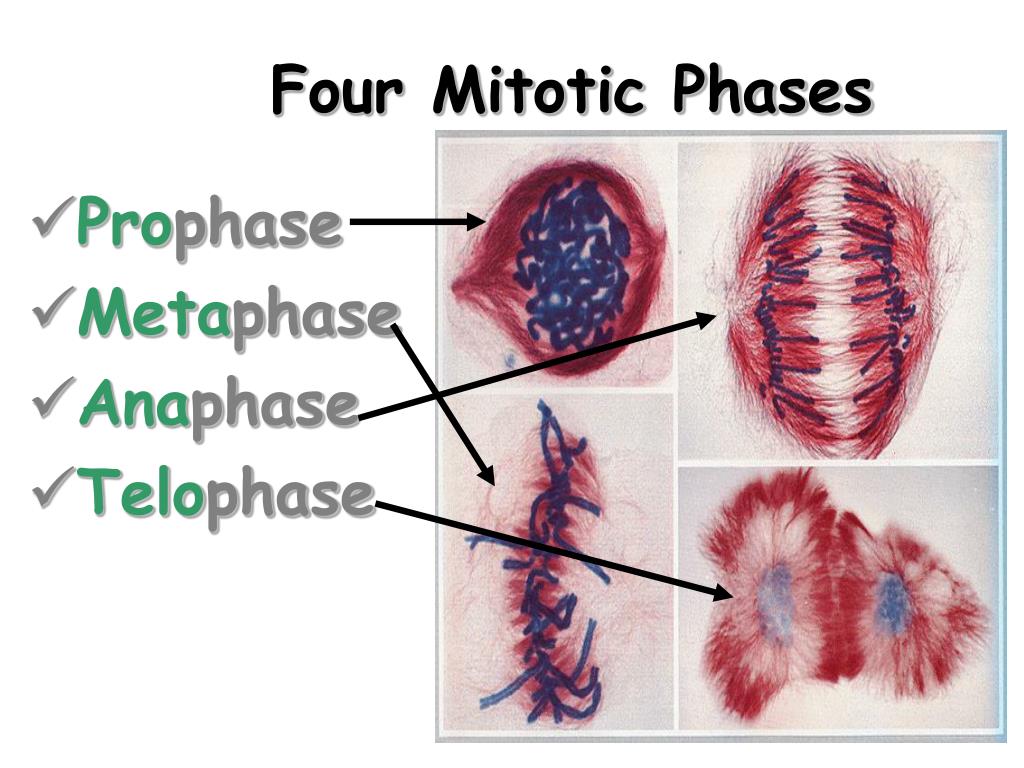

  38. Four Mitotic Phases • Prophase • Metaphase • Anaphase • Telophase

  39. Prophase • Chromosomes visible • Nucleoli disappear • Sister chromatids present • Mitotic spindle forms • Centrosomes move • Nuclear membrane fragments • Spindle interaction with chromosomes • Kinetochores develops

  40. Metaphase • Centrosomes at opposite poles • Centromeres are aligned • Kinetochores of sister chromatids attached to microtubules (spindle)

  41. Anaphase • Paired centromeres separate; sister chromatids liberated • Chromosomes move to opposite poles • Each pole now has a complete set of chromosomes

  42. Telophase • Daughter nuclei form • Nuclear envelopes arise • Chromatin becomes less coiled • Two new nuclei complete mitosis

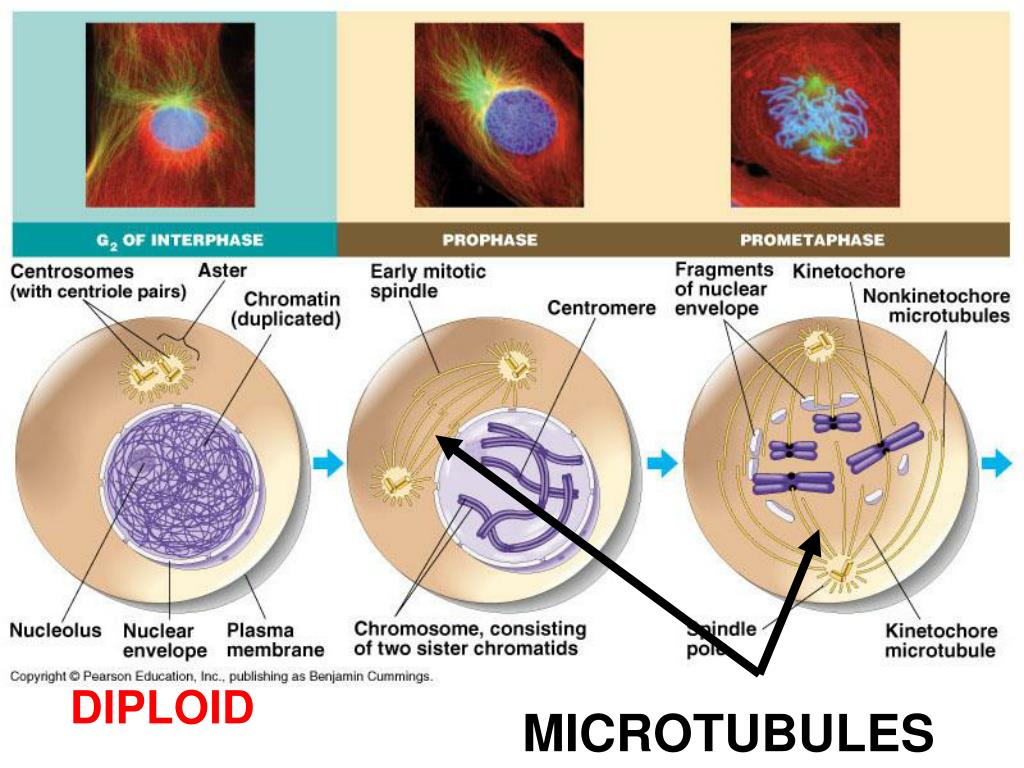

  43. DIPLOID MICROTUBULES

  44. DIPLOID Sister Chromatids separate

  45. Cytokinesis • Cytoplasmic division • Animals: cleavage furrow • Plants: cell plate

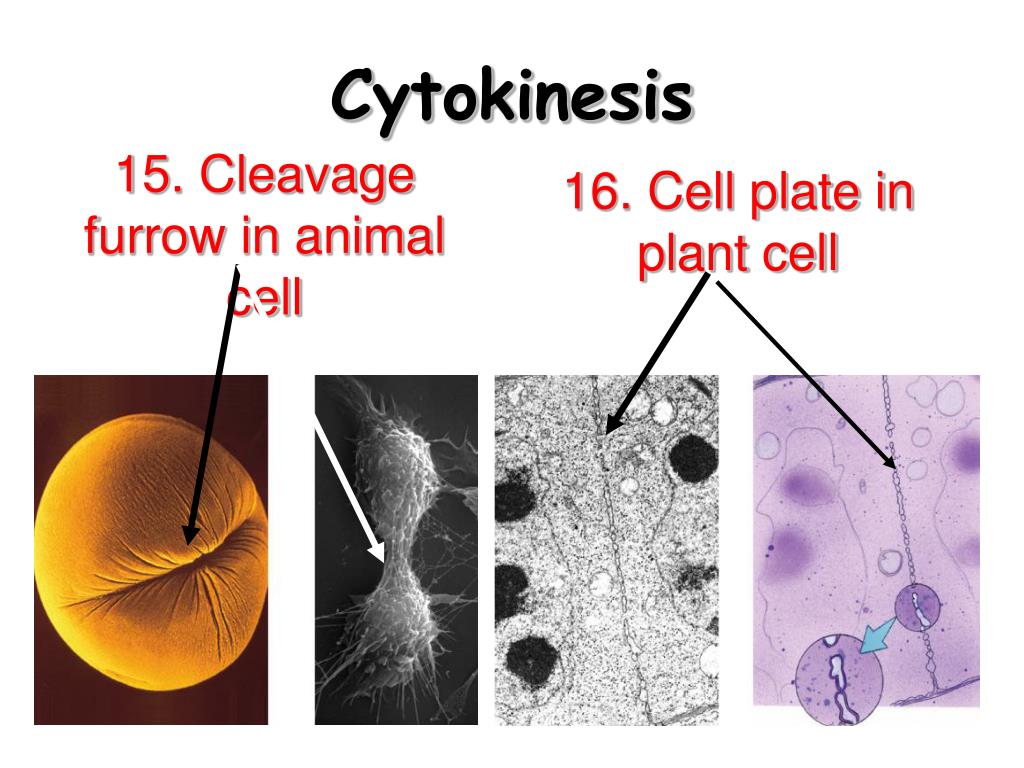

  46. Cytokinesis 15. Cleavage furrow in animal cell 16. Cell plate in plant cell
