  1. Zamanlayıcılar

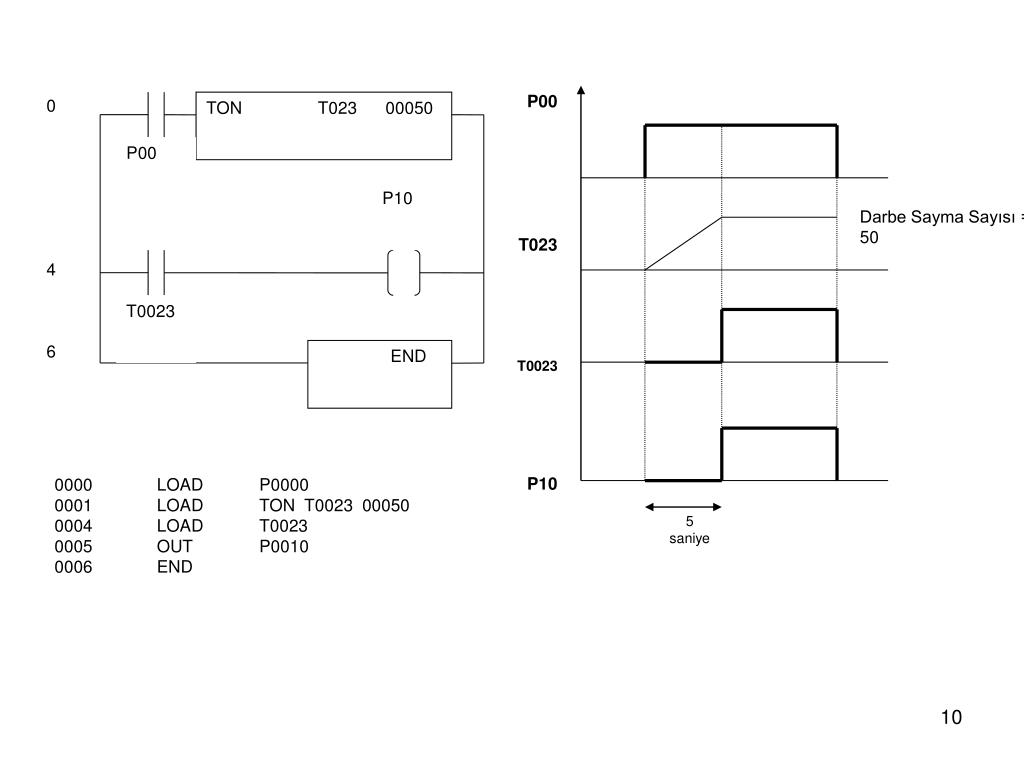

  2. P00 T023 T0023 P10 Darbe Sayma Sayısı = 50 0 4 6 TON T023 00050 P00 P10 5 saniye T0023 END 0000 LOAD P0000 0001 LOAD TON T0023 00050 0004 LOAD T0023 0005 OUT P0010 0006 END

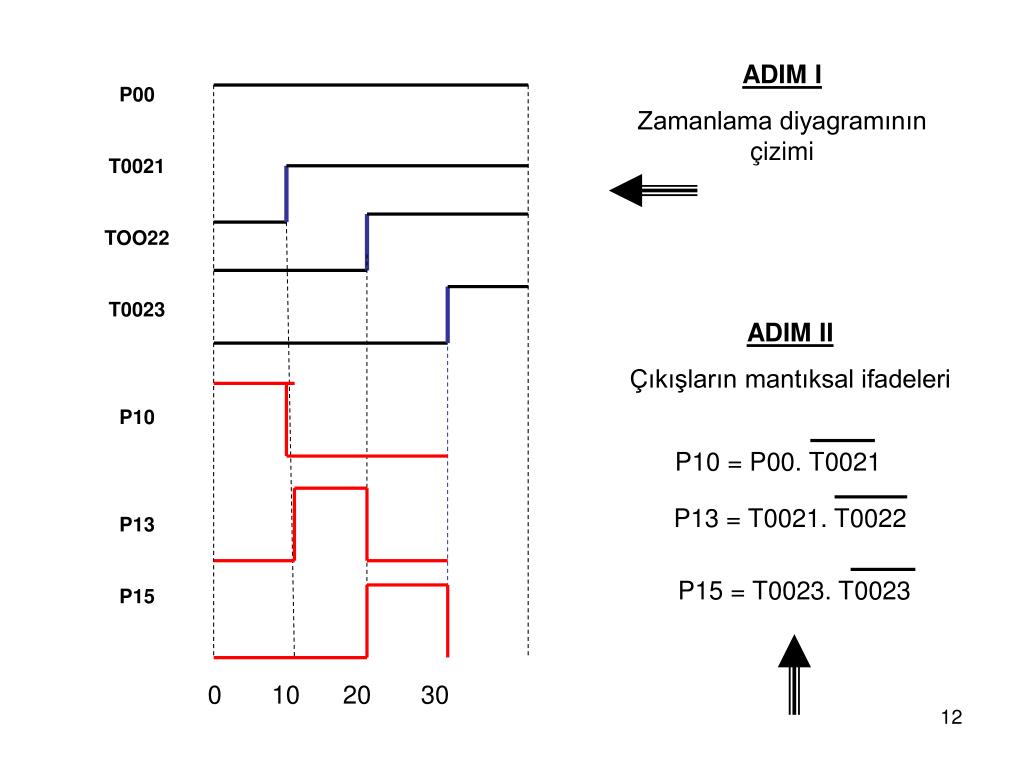

  3. P00 T0021 TOO22 T0023 P10 P13 P15 0 10 20 30 ADIM I Zamanlama diyagramının çizimi ADIM II Çıkışların mantıksal ifadeleri P10 = P00. T0021 P13 = T0021. T0022 P15 = T0023. T0023

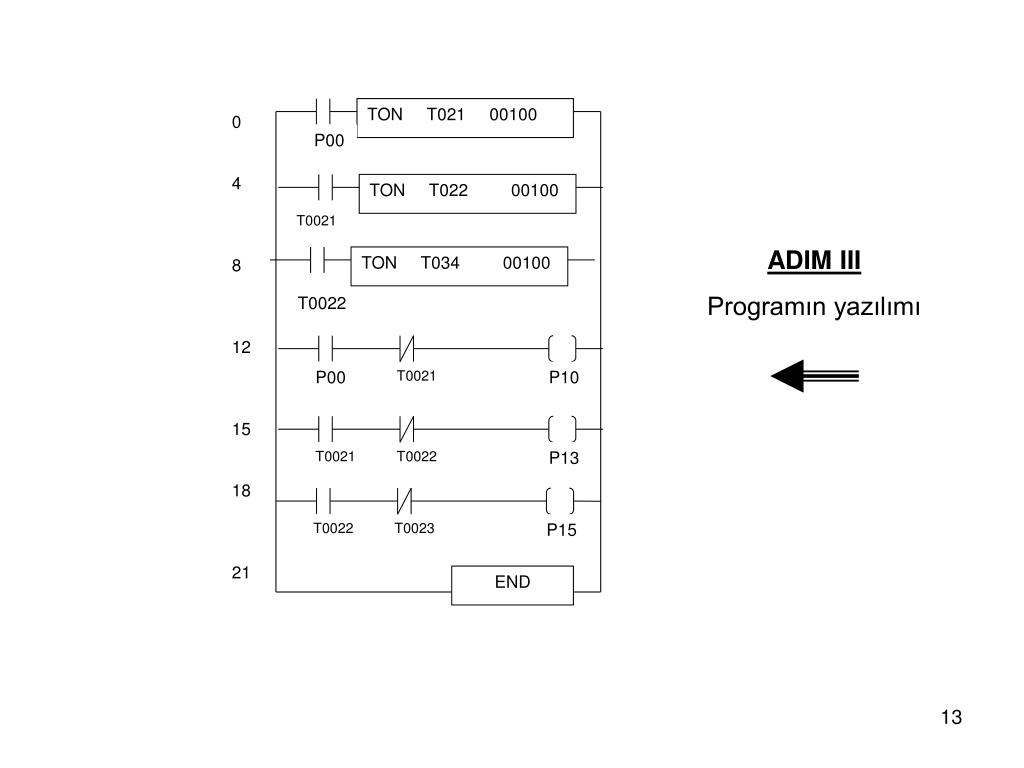

  4. 0 4 8 12 15 18 21 TON T021 00100 P00 T0021 TON T022 00100 T0022 TON T034 00100 END P00 T0021 T0022 T0022 T0021 T0023 P15 P13 P10 ADIM III Programın yazılımı

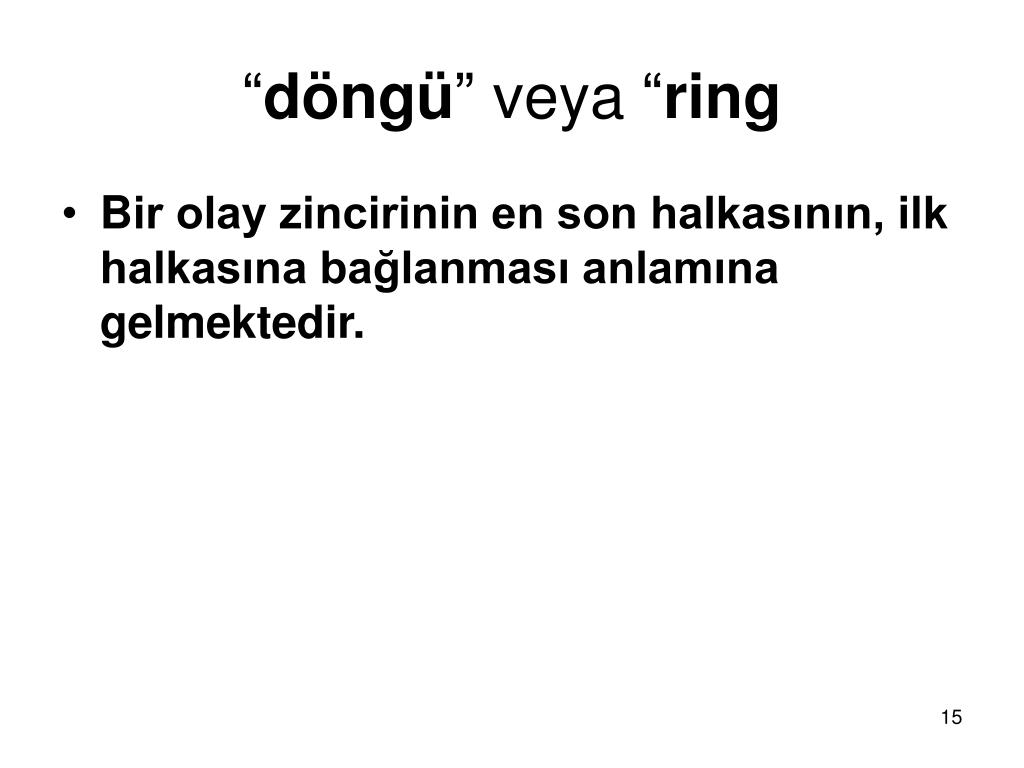

  5. “döngü” veya “ring • Bir olay zincirinin en son halkasının, ilk halkasına bağlanması anlamına gelmektedir.

  6. P00 T0023 T021 ON zamanlayıcıgirişi 0 30 (san) TON T021 00100 0 P00 T0023

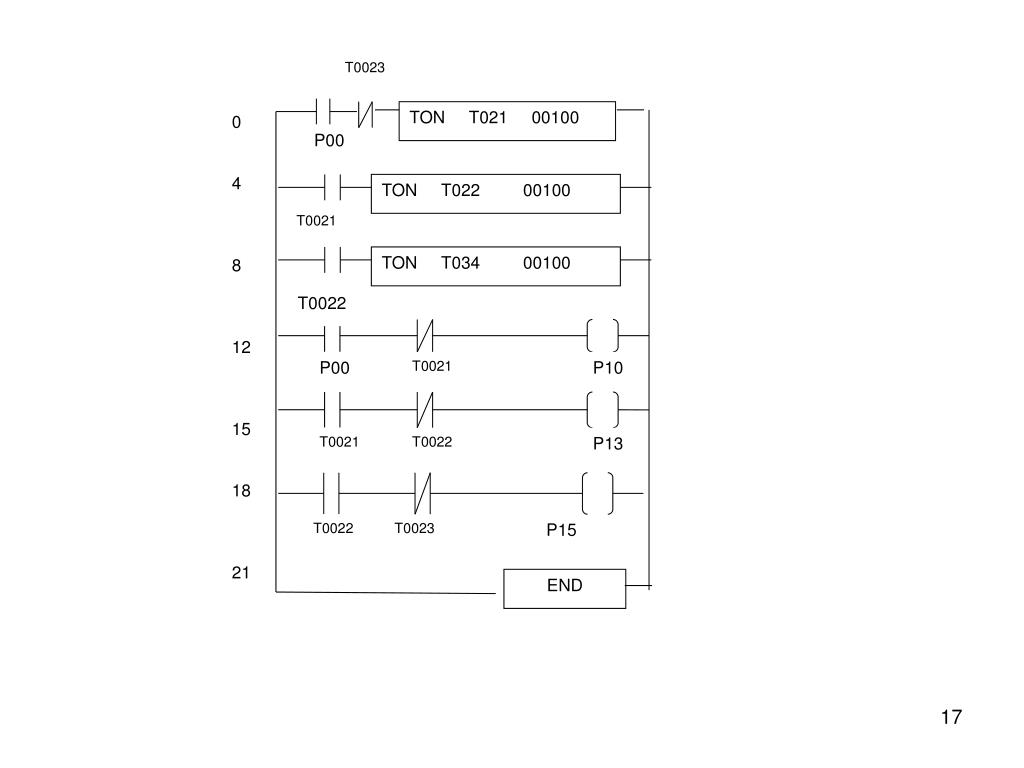

  7. T0023 0 4 8 12 15 18 21 TON T021 00100 P00 T0021 TON T022 00100 T0022 TON T034 00100 T0022 T0023 P15 END P00 T0021 T0021 T0022 P10 P13

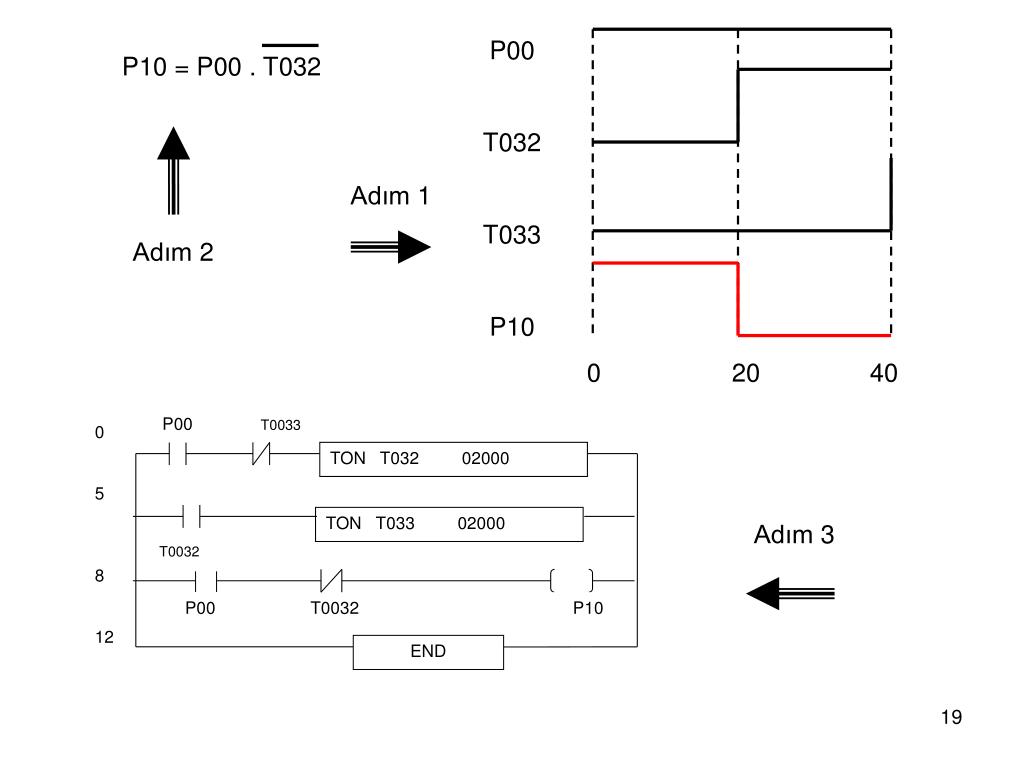

  8. 0 20 40 P00 T0033 0 5 8 12 TON T032 02000 T0032 P00 T0032 P10 END TON T033 02000 P00 T032 T033 P10 P10 = P00 . T032 Adım 1 Adım 2 Adım 3

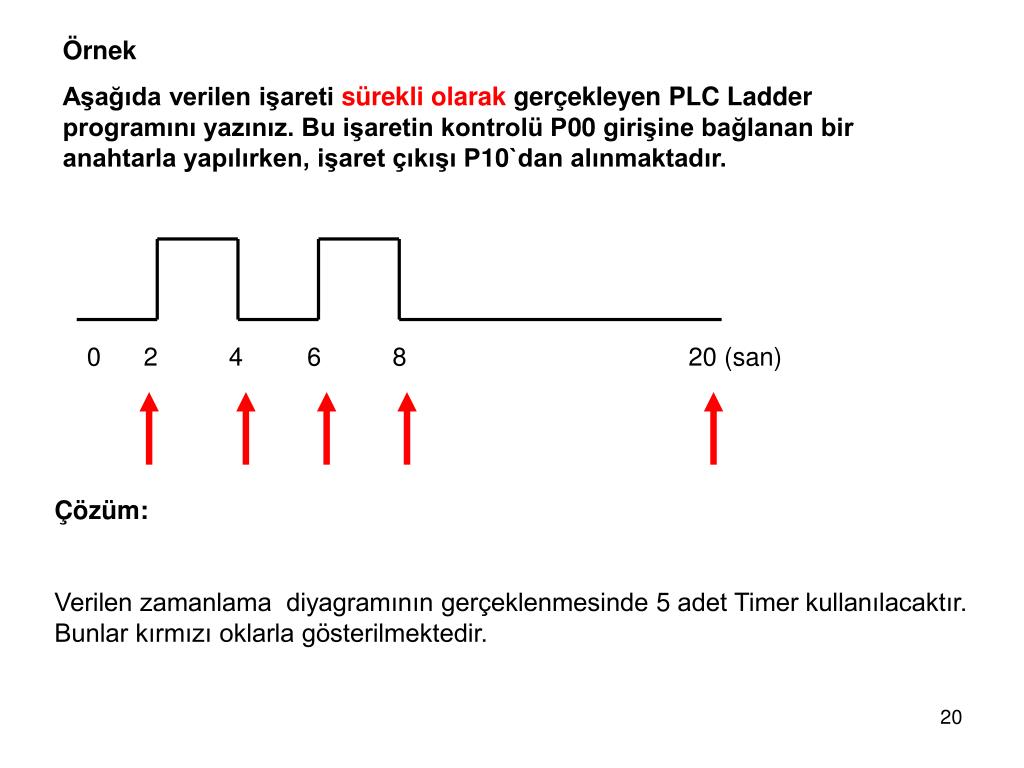

  9. Örnek Aşağıda verilen işareti sürekli olarak gerçekleyen PLC Ladder programını yazınız. Bu işaretin kontrolü P00 girişine bağlanan bir anahtarla yapılırken, işaret çıkışı P10`dan alınmaktadır. 0 2 4 6 8 20 (san) Çözüm: Verilen zamanlama diyagramının gerçeklenmesinde 5 adet Timer kullanılacaktır. Bunlar kırmızı oklarla gösterilmektedir.

  10. P00 T000 T001 T002 T003 T004 P10 Adım 1 Adım 2 P10 = T000.T001 + T002.T003 0 2 4 6 8 20 (san)

  11. TON T000 00020 P00 T000 T001 T002 T003 T004 P10 P00 T0004 TON T004 00120 TON T003 00020 TON T002 00020 TON T001 00020 T0000 T0001 T0002 T0003 T0000 T0001 P10 T0002 T0003 END 0 5 9 13 17 21 27 0 2 4 6 8 20 (san)

  12. P10 P11 P12 0 20 22 38 40 (san) Örnek Aşağıda verilen trafik sinyalizasyonlarını sürekli gerçekleyen PLC Ladder programını yazınız.

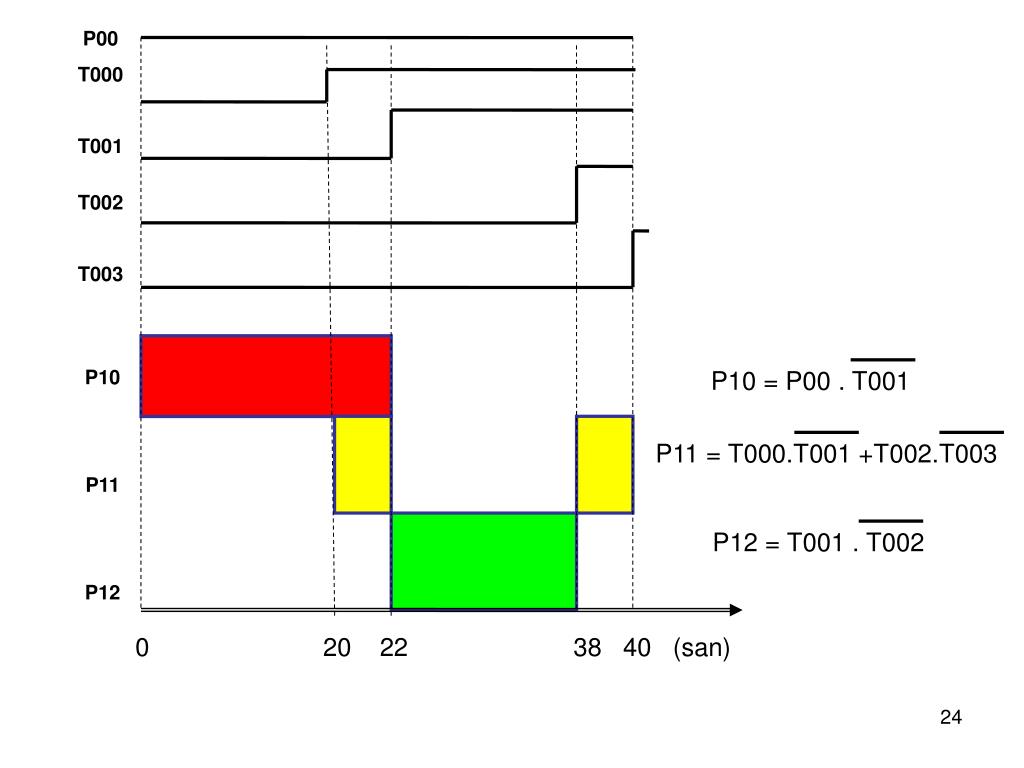

  13. P00 T000 T001 T002 T003 P10 P11 P12 P10 = P00 . T001 P11 = T000.T001 +T002.T003 P12 = T001 . T002 0 20 22 38 40 (san)

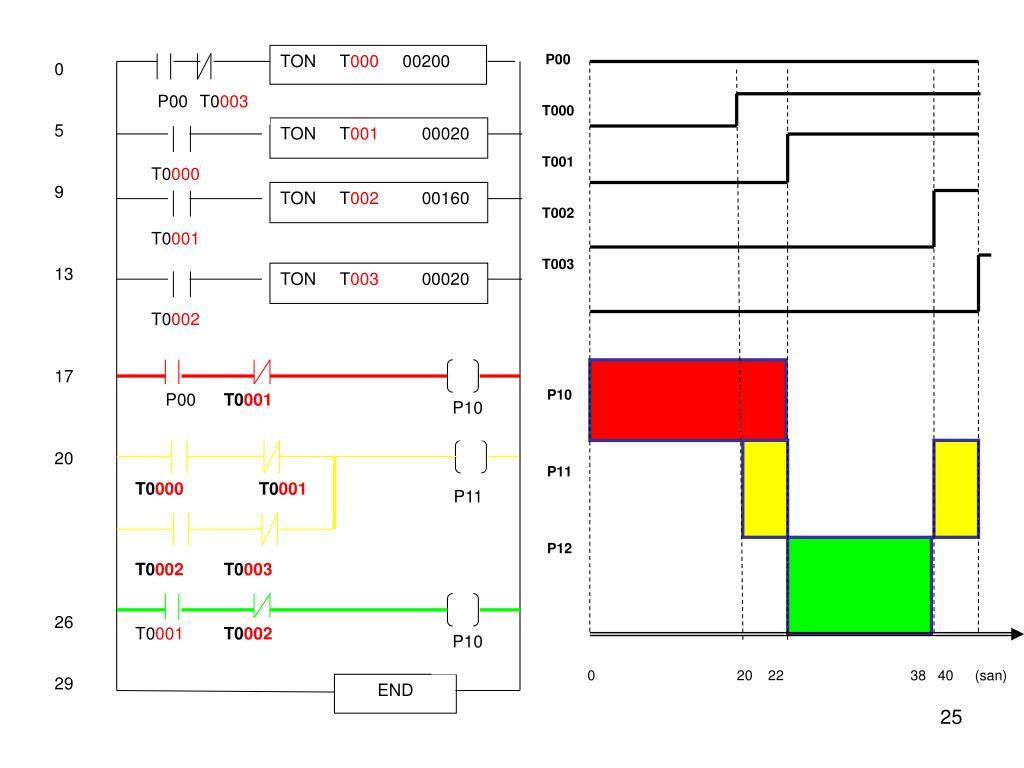

  14. TON T000 00200 P00 T000 T001 T002 T003 P00 T0003 TON T003 00020 TON T001 00020 TON T002 00160 T0000 T0001 T0002 P10 P11 P12 P00 T0001 P10 T0000 T0001 T0002 T0003 T0001 0 20 22 38 40(san) END 0 5 9 13 17 20 26 29 P11 T0002 P10
