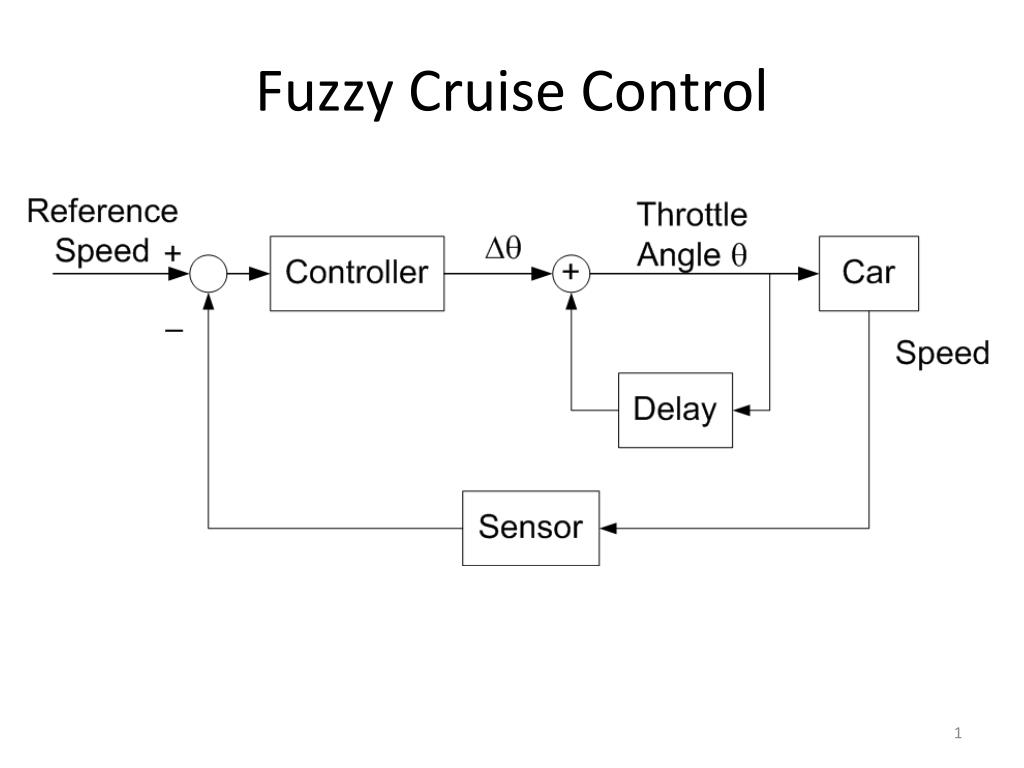

  1. Fuzzy Cruise Control

  2. Fuzzy Cruise Control J. Yen and R. Langari, Fuzzy Logic: Intelligence, Control, and Information (Prentice Hall, Upper Saddle River, New Jersey, 1999). D. Simon, "Sum normal optimization of fuzzy membership functions," International Journal of Uncertainty, Fuzziness and Knowledge-Based Systems, Aug. 2002.

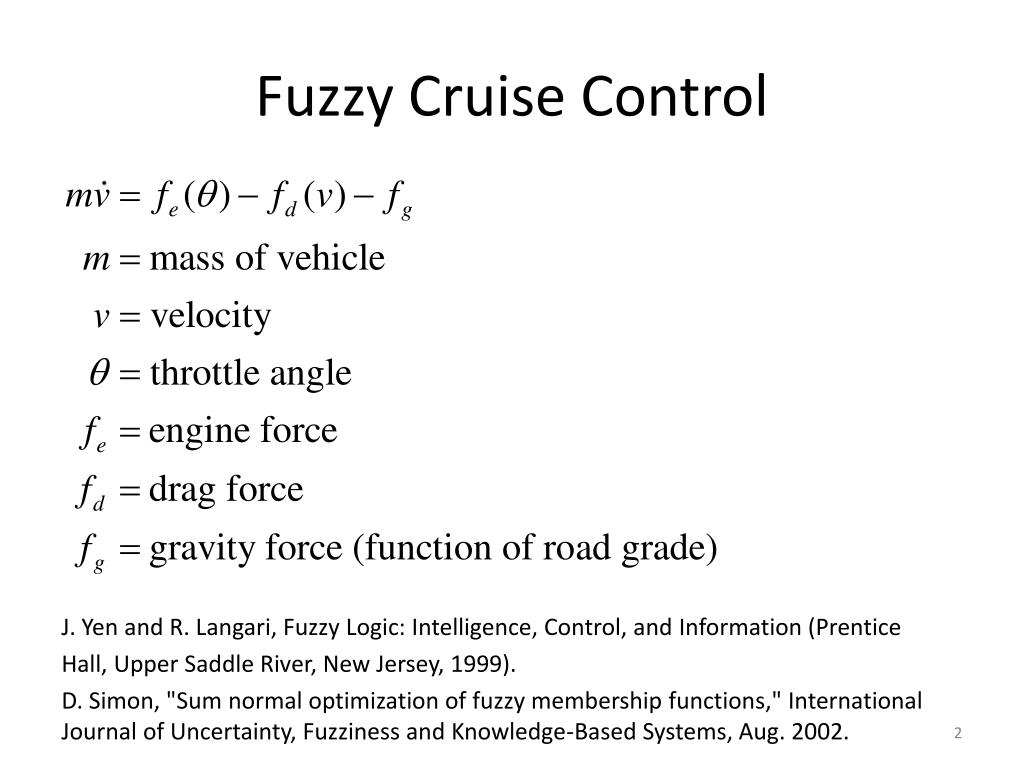

  3. Fuzzy Cruise Control •  = 12500 N •  = 4 N / (m/s)2 • m = 1000 kg • fi = 1000 N (engine idle force,) • g = 9.81 m/s2

  4. error = vref – v z=.2; w=1; t=0:.1:10; wd=w*sqrt(1-z*z); A=1; B=1; x=exp(-z*w*t).*(A*cos(wd*t)+B*sin(wd*t)); plot(t,x), hold on; plot(t, zeros(size(t)), 'r--')

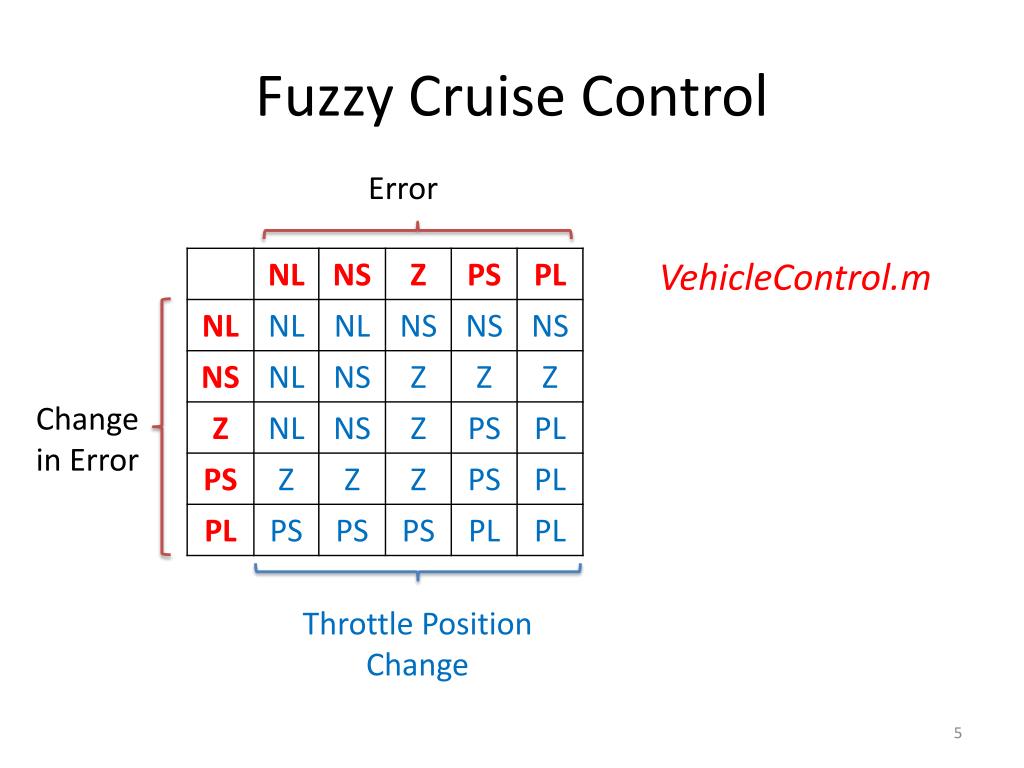

  5. Fuzzy Cruise Control Error VehicleControl.m Change in Error Throttle Position Change

  6. Default Membership Functions Error (meters/sec) PlotMem('DefaultMem.txt',2, [5 5], 1, 5)

  7. Default Membership Functions Change in Error (meters/sec)

  8. Default Membership Functions Throttle change (rad)

  9. Input Membership Functions c = modal point, or “center” b– and b+ = half-widths 1 f(x) x b– c b+

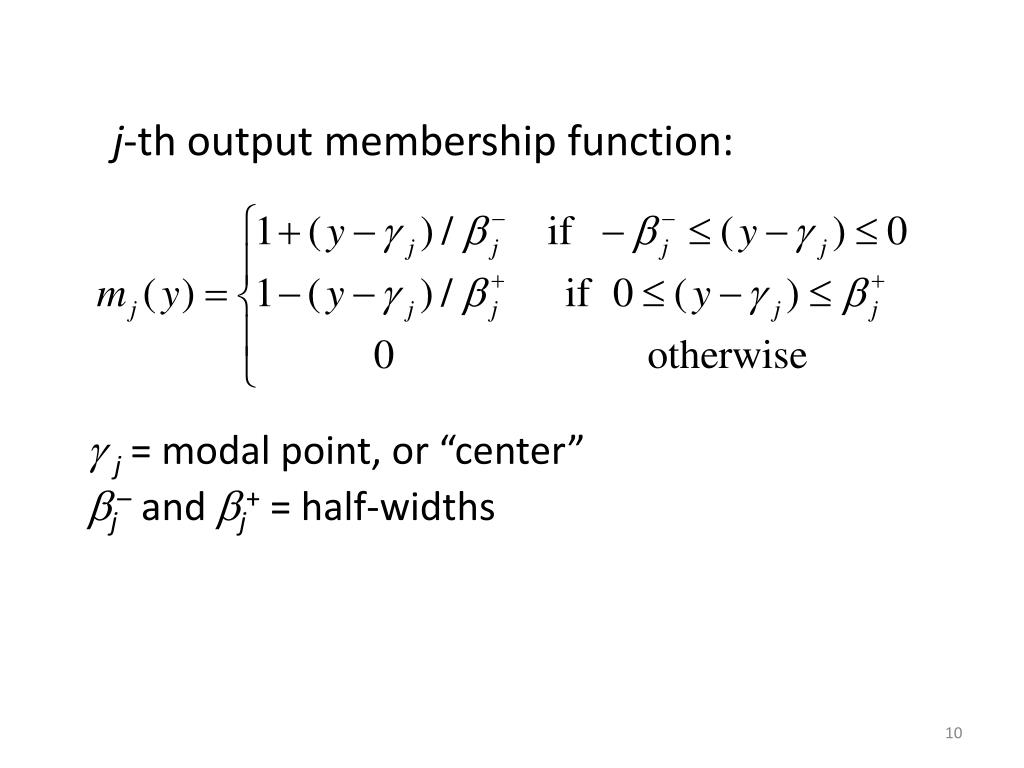

  10. j-th output membership function: j = modal point, or “center” j– and j+ = half-widths

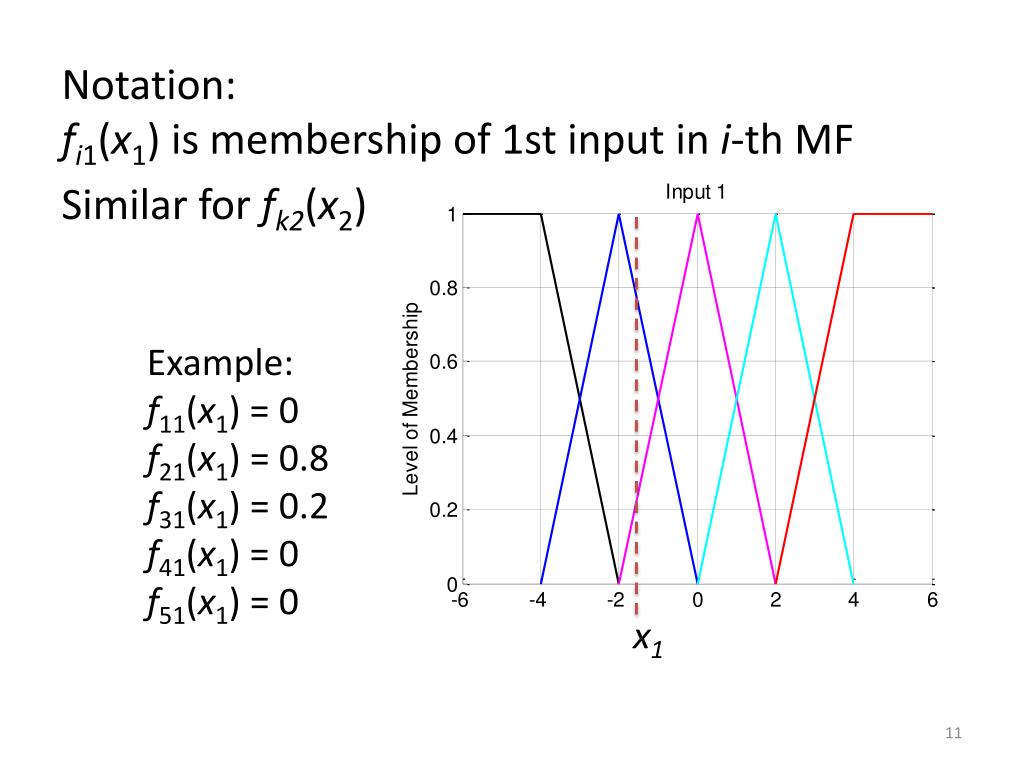

  11. Notation: fi1(x1) is membership of 1st input in i-th MF Similar for fk2(x2) Example: f11(x1) = 0 f21(x1) = 0.8 f31(x1) = 0.2 f41(x1) = 0 f51(x1) = 0 x1

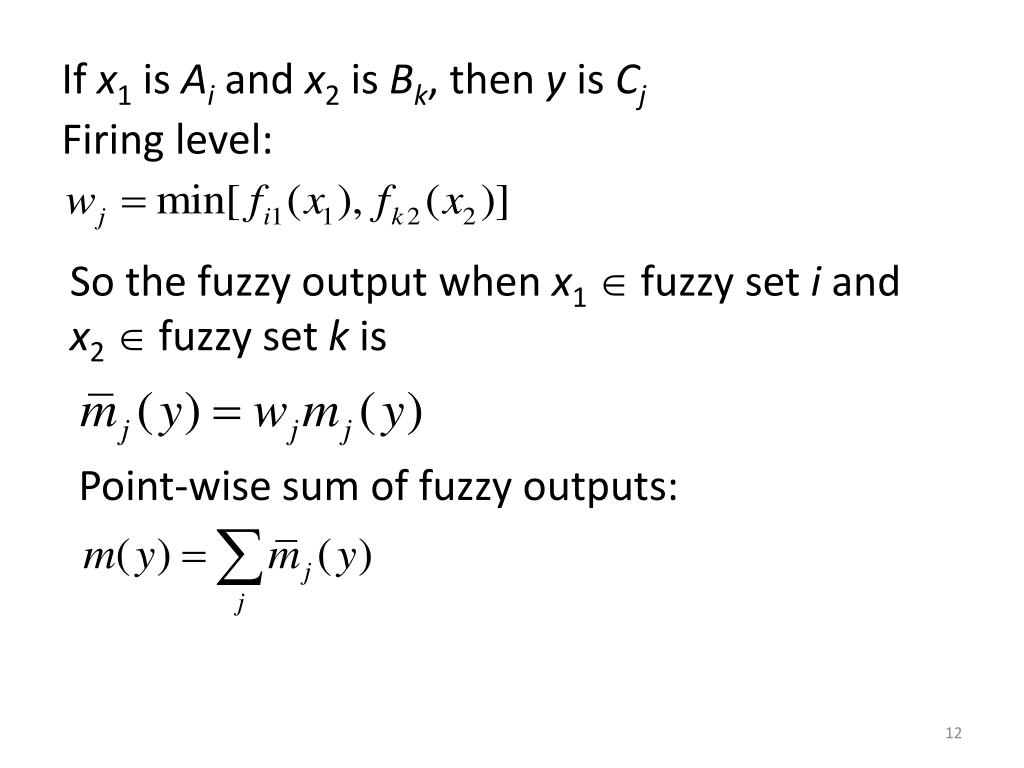

  12. If x1 is Ai and x2 is Bk, then y is Cj Firing level: So the fuzzy output when x1 fuzzy set i and x2 fuzzy set k is Point-wise sum of fuzzy outputs:

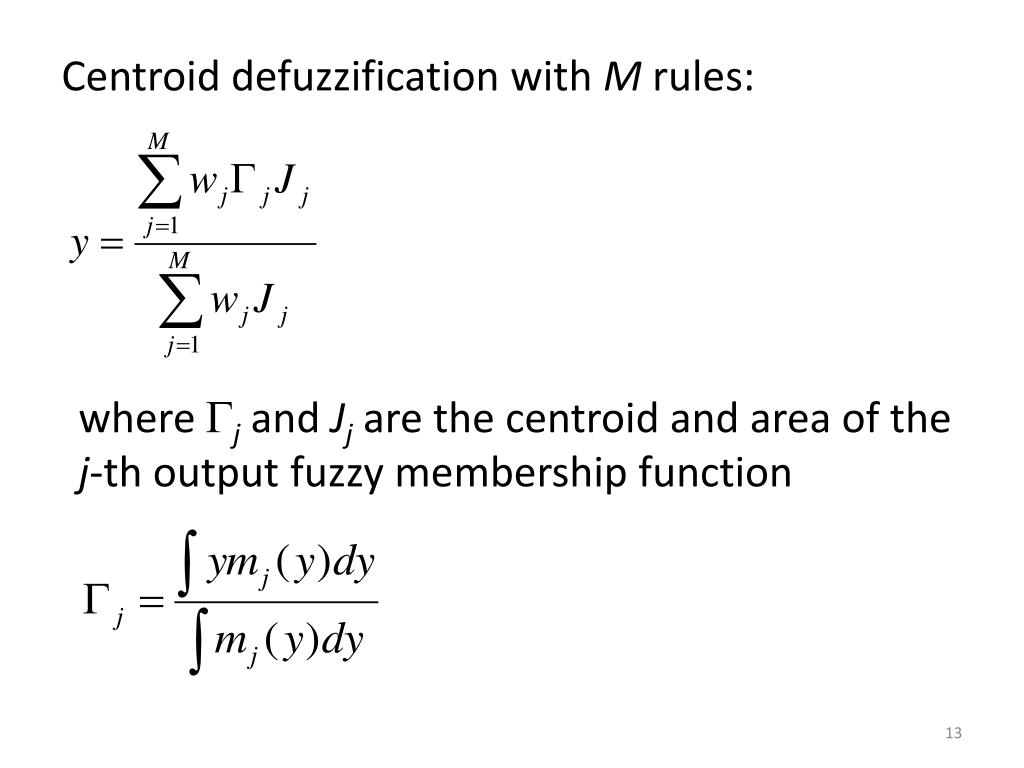

  13. Centroid defuzzification with M rules: where j and Jj are the centroid and area of the j-th output fuzzy membership function

  14. Substitute mj(y) from 4 pages earlier into the j equation on the previous page. Two pages of calculus and algebra later, Now use Theorem 4.1 in Jang to obtain the defuzzified output:

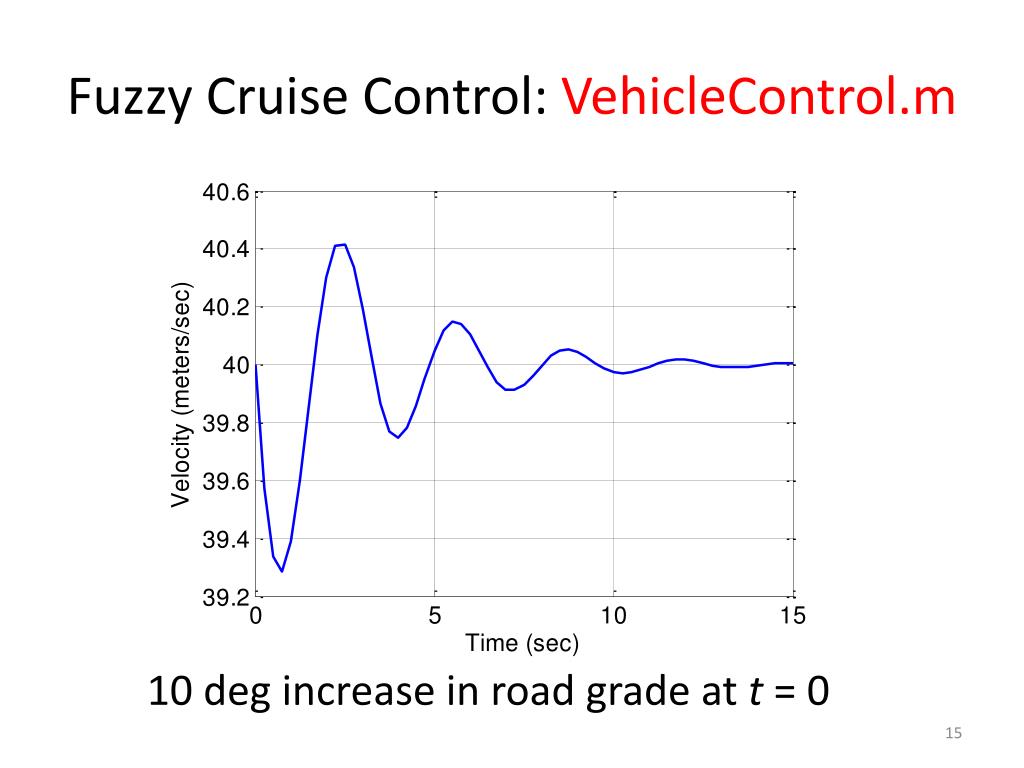

  15. Fuzzy Cruise Control: VehicleControl.m 10 deg increase in road grade at t = 0

  16. Fuzzy Controller Optimization • Gradient-based methods: Use the derivative of the tracking error with respect to the fuzzy MF parameters (Jang, Chapter 6) • “Home in” on a local optimum • Fast • Gradient-free methods (Jang, Chapter 7) • Genetic algorithms, etc. • Slow • No messy derivatives • “Global” optimization • General optimization (MF, number of rules, rule base, etc.)
