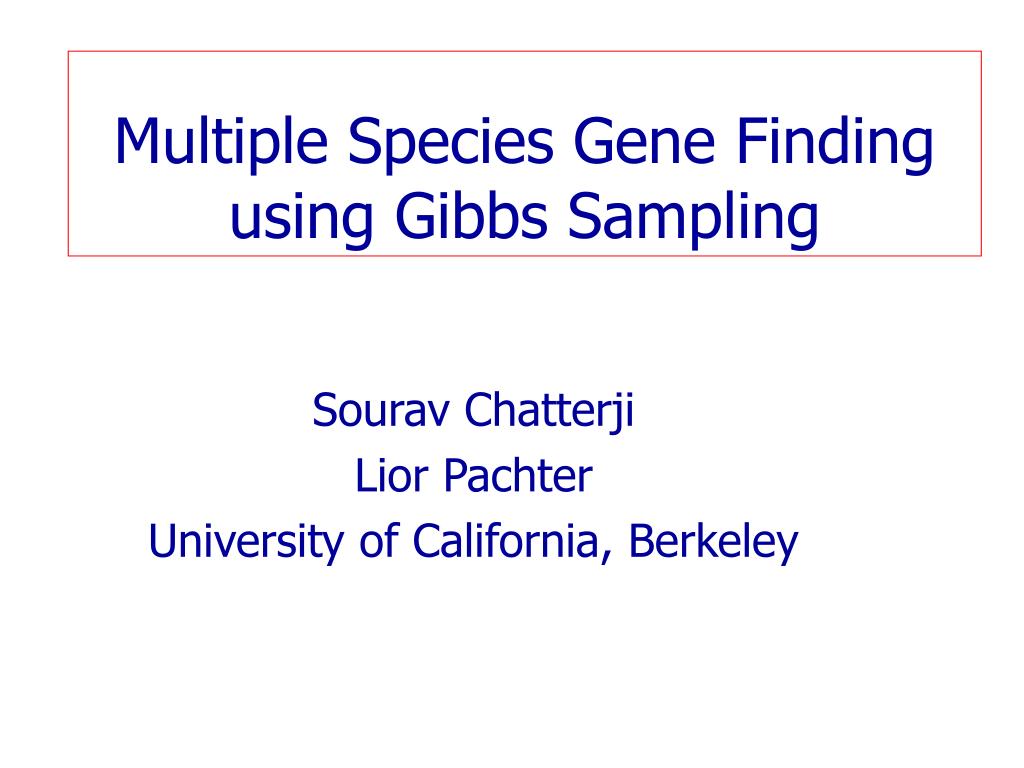

  1. Multiple Species Gene Findingusing Gibbs Sampling Sourav Chatterji Lior Pachter University of California, Berkeley

  2. Multiple Species Comparative Gene Finding(with Alignment) • McAuliffe et al. (2004), Siepel et al. (2004)

  3. Multiple Species Comparative Gene Finding(with Alignment) • McAuliffe et al. (2004), Siepel et al. (2004)

  4. Multiple Species Comparative Gene Finding(without Alignment)

  5. Gibbs Sampling for Biological Sequence Analysis • Introduced by Lawrence et al. 1993 • Motif Detection • Extensions • Multiple Motifs in a Sequence • Multiple Types of Motifs • Applications • Alignment • Linkage Analysis

  6. Gibbs Sampling • Aim : To sample from the joint distribution p(x1,x2,…,xn) when it is easy to sample from the conditional distributions p(xi | x1,…xi-1,xi+1,…,xn) but not from the joint distribution. • Method: Iteratively sample xit from the conditional distribution p(xi | x1t,…xi-1t,xi+1t-1,…,xnt-1) • Theorem : For discrete distributions, the distribution of (x1t,x2t …,xnt) converges to p(x1,x2,…,xn)

  7. Connection to HMMs qs qs qs Z2 Zm Z1 qt qt qt Ym Y1 Y2 • qt= output probabilities • qs= transition probabilities • Difficult to sample from P(q,Z | Y) • Easy to sample q from P(q | Z,Y) • Easy to sample Z from P(Z | q,Y)

  8. Gibbs Sampling for Gene Finding

  9. Gibbs Sampling for Gene Finding Initial Predictions

  10. Gibbs Sampling for Gene Finding Sample Z1 from P(Z1 | Z[-1] , Y)

  11. Gibbs Sampling for Gene Finding Sample Z2 from P(Z2 | Z[-2] , Y)

  12. Additional Details • Issues in the Gibbs Sampling Method • Gibbs sampling assumes sequences independently generated by a HMM: need to generalize method a tree topology. • Learn parameters from a subset of sequences roughly equidistant from each other: human, mouse, dog and cow • Things get messy when there are multiple genes; need to handle multiple set of parameters. • Make use of an approximate alignment • Boost scores using a phyloHMM model

  13. Results • 2060 exons predicted • Exon level Sensitivity : 23.2% • Exon level Specificity : 46.7% • 28.5% of predicted exons partially overlap with true exons. • Nucleotide Level Sensitivity : 42.8% • Nucleotide Level Specificity : 82.1%

  14. Results • Nucleotide level results much better than exon level results • Need of better splice site models, probably multiple species splice site models. • Low Sensitivity • Is it the alignment?

  15. Analysis of results (novel genes) • Statistics of transcripts overlapping with novel VEGA genes • 223 exons predicted • Exon level Sensitivity : 24.8% (78 of 315 true exons are predicted correctly) • Exon level Specificity : 35.0% (78 of the 223 predicted exons are correct) • Additionally, 24.7% of predicted exons partially overlap with the true exons. • Nucleotide level Sensitivity : 56.6% • Nucleotide level Specificity : 62.9%
