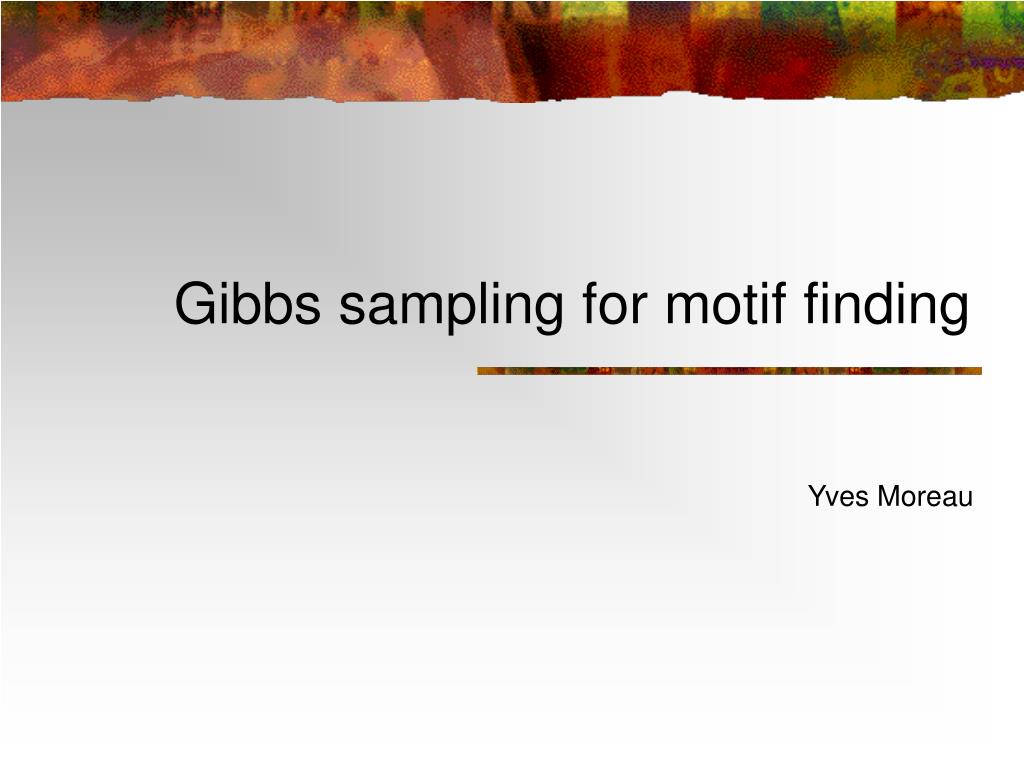

  1. Gibbs sampling for motif finding Yves Moreau

  2. Overview • Markov Chain Monte Carlo • Gibbs sampling • Motif finding in cis-regulatory DNA • Biclustering microarray data

  3. Markov Chain Monte-Carlo • Markov chain with transition matrix T A C G T A0.0643 0.8268 0.0659 0.0430 C 0.0598 0.0484 0.8515 0.0403 G 0.1602 0.3407 0.1736 0.3255 T 0.1507 0.1608 0.3654 0.3231 X=A X=T X=C X=G

  4. Markov Chain Monte-Carlo • Markov chains can sample from complex distributions ACGCGGTGTGCGTTTGACGA ACGGTTACGCGACGTTTGGT ACGTGCGGTGTACGTGTACG ACGGAGTTTGCGGGACGCGT ACGCGCGTGACGTACGCGTG AGACGCGTGCGCGCGGACGC ACGGGCGTGCGCGCGTCGCG AACGCGTTTGTGTTCGGTGC ACCGCGTTTGACGTCGGTTC ACGTGACGCGTAGTTCGACG ACGTGACACGGACGTACGCG ACCGTACTCGCGTTGACACG ATACGGCGCGGCGGGCGCGG ACGTACGCGTACACGCGGGA ACGCGCGTGTTTACGACGTG ACGTCGCACGCGTCGGTGTG ACGGCGGTCGGTACACGTCG ACGTTGCGACGTGCGTGCTG ACGGAACGACGACGCGACGC ACGGCGTGTTCGCGGTGCGG % A C G Position T

  5. Markov Chain Monte-Carlo • Let us look at the transition after two steps • Similarly, after n steps

  6. Markov Chain Monte-Carlo • Stationary distribution p • If the samples are generated to the distribution p, the samples at the next step will also be generated according to p • p is a left eigenvector of T • Equilibrium distribution • Rows of T are stationary distributions •  From an arbitrary initial condition and after a sufficient number of steps (burn-in), the successive states of the Markov chains are samples from a stationary distribution

  7. Detailed balance • A sufficient condition for the Markov chain to converge to the stationary distribution p is that they satisfy the condition of detailed balance • Proof: • Problem: disjoint regions in probability space

  8. Gibbs sampling • Markov chain for Gibbs sampling

  9. Gibbs sampling • Detailed balance • Detailed balance for the Gibbs sampler • Prove detailed balance • Bayes’ rule • Q.E.D.

  10. Data augmentation Gibbs sampling • Introducing unobserved variables often simplifies the expression of the likelihood • A Gibbs sampler can then be set up • Samples from the Gibbs sampler can be used to estimate parameters

  11. Pros and cons • Pros • Clear probabilistic interpretation • Bayesian framework • “Global optimization” • Cons • Mathematical details not easy to work out • Relatively slow

  12. Motif finding

  13. Gibbs sampler • Gibbs sampling for motif finding • Set up a Gibbs sampler for the joint probability of the motif matrix and the alignment given the sequences • Sequence by sequence • Lawrence et al. • One motif of fixed length • One occurrence per sequence • Background model based on single nucleotides • Too sensitive to noise • Lots of parameter tuning

  14. 500 bp Translation start

  15. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Convergence of the alignment and of the motif matrix

  16. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Convergence of the alignment and of the motif matrix

  17. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Convergence of the alignment and of the motif matrix

  18. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Convergence of the alignment and of the motif matrix

  19. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Convergence of the alignment and of the motif matrix

  20. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Convergence of the alignment and of the motif matrix

  21. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Convergence of the alignment and of the motif matrix

  22. Gibbs motif finding • Initialization • Sequences • Random motif matrix • Iteration • Sequence scoring • Alignment update • Motif instances • Motif matrix • Termination • Stabilization of the motif matrix(not of the alignment)

  23. Motif Sampler (extended Gibbs sampling) • Model • One motif of fixed length per round • Several occurrences per sequence • Sequence have a discrete probability distribution over the number of copies of the motif (under a maximum bound) • Multiple motifs found in successive rounds by masking occurrences of previous motifs • Improved background model based on oligonucleotides • Gapped motifs

  24. 500 bp Translation start
