Supplementary Figure 2. a. b. Ctl. p14 ARF. p14 ARF. Ctl p14 ARF. STAT3. pSTAT3Y705. Bcl2. Tubulin. pSTAT3-Y705. c. Ctl. sip14 ARF. p14 ARF. STAT3. pSTAT3Y705. Bcl2. Tubulin.

akio
Télécharger la présentation

p14 ARF

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

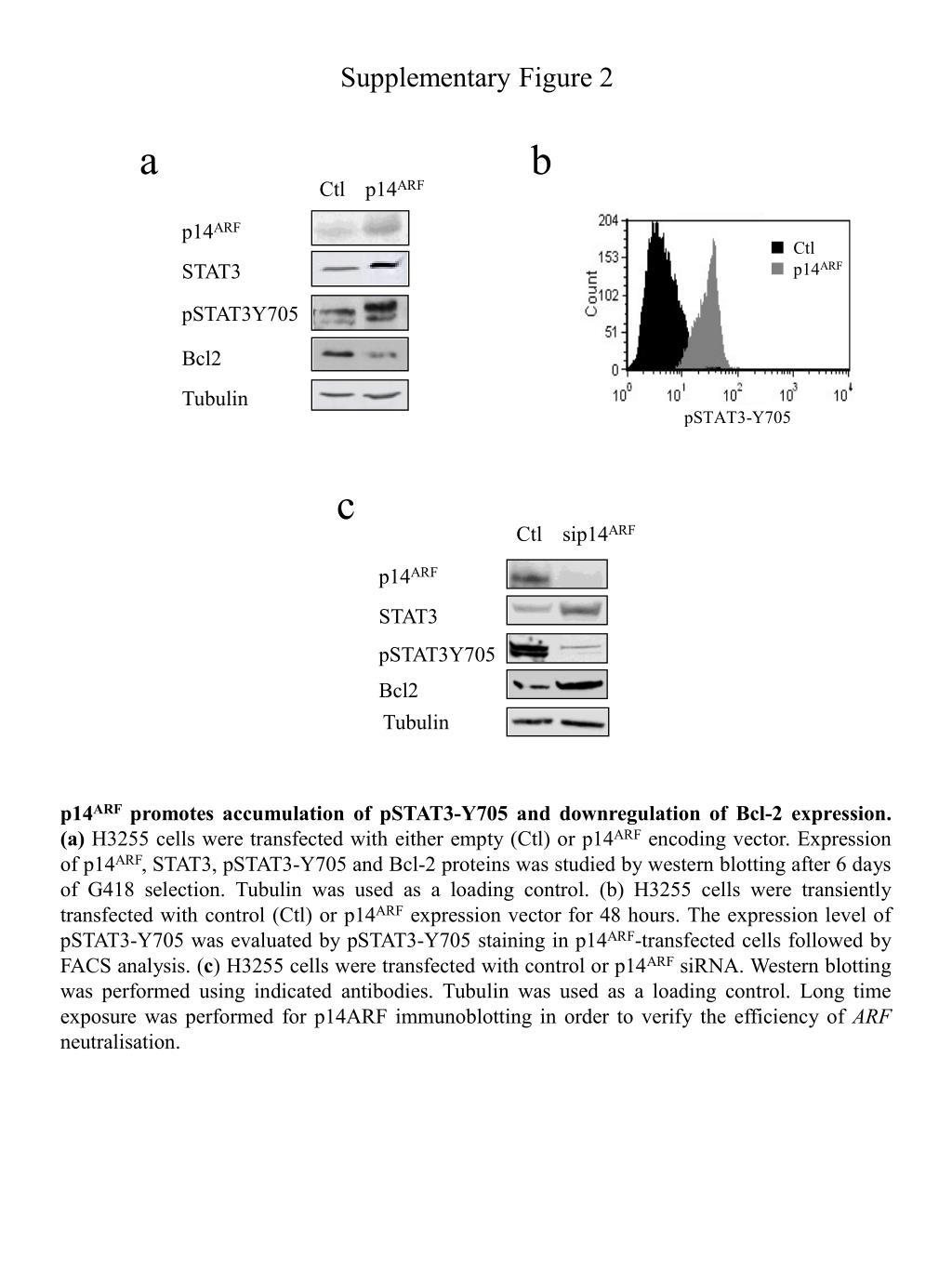

  1. Supplementary Figure 2 a b Ctl p14ARF p14ARF Ctl p14ARF STAT3 pSTAT3Y705 Bcl2 Tubulin pSTAT3-Y705 c Ctl sip14ARF p14ARF STAT3 pSTAT3Y705 Bcl2 Tubulin p14ARF promotes accumulation of pSTAT3-Y705 and downregulation of Bcl-2 expression. (a) H3255 cells were transfected with either empty (Ctl) or p14ARF encoding vector. Expression of p14ARF, STAT3, pSTAT3-Y705 and Bcl-2 proteins was studied by western blotting after 6 days of G418 selection. Tubulin was used as a loading control. (b) H3255 cells were transiently transfected with control (Ctl) or p14ARF expression vector for 48 hours. The expression level of pSTAT3-Y705 was evaluated by pSTAT3-Y705 staining in p14ARF-transfected cells followed by FACS analysis. (c) H3255 cells were transfected with control or p14ARF siRNA. Western blotting was performed using indicated antibodies. Tubulin was used as a loading control. Long time exposure was performed for p14ARF immunoblotting in order to verify the efficiency of ARF neutralisation.
