  1. M2M Platform SolutionsIf it can be measured, it can be monitored and controlled

  2. WebNMS Carrier Class and M2M Platform • Customizable framework that is designed to extended by Domain • Telecom experience, over 25,000 EMS / NMS deployments • Business model is to download, evaluate and implement • SNMP, CLI, SOAP, REST, XML, Modbus Southbound and Northbound • Customizable via GUI, XML files and open APIs • Multi OS and database support, High Availability, Load Balancing • Developer SDK built on Eclipse and Hibernate • Functional Modules: Asset, Fault, Performance, Config, Maps, AAA • Scale measured in millions of Managed Objects

  3. WebNMS Carrier Class and M2M Platform • Integration with hardware gateways and Remote Telemetry Units (RTU). • MQTT protocols support in roadmap, light weight • Management Support for machines like Diesel Generators, Power Supply, Air Conditioners, Camera, Security systems, Fire systems, Fuel/Water level indicators, Windmills, Solar panels and more. • Partner ecosystems with Carriers, System Integrators, App developers, Hardware vendors • Integrations to OSS / BSS systems, trouble ticketing, enterprise • On-premise application or Cloud

  4. WebNMS M2M SOLUTIONS

  5. Solution Overview

  6. Solution Architecture • Remote Terminal Units to collect data from Machines • RTUs Communicate to Central Management system using Ethernet/GPRS/SMS • WebNMS can handle tens of thousand of RTUs and serve dozens of NMS users • Remote sites managed from central NOC

  7. WebNMS M2M Use Case Cell Tower Site Manager Monitors and controls DGs, Cooling Solutions, UPS and Security Systems etc., of thousands of Cell Tower sites from a central location. Ensures seamless uptime of cell tower site.

  8. Cell Tower M2M Need • Off the grid, no measurable data • Fuel Theft was problematic • High periods of Downtime

  9. Monitoring Points • DG sets: Fuel level, efficiency, run hours, fuel theft etc,. • Temperature and Humidity • Battery Bank, UPS • Relay based control of AC, Lighting systems etc,. • AC and DC energy meters • Camera • Contact/Vibration sensors-Open/close of door, Asset movements etc,. • Fire and Smoke detector, Hooter, Panic switch etc,. • Digital signage boards and Telephone booths • AV system • Powerline Fault Indicators

  10. Cell Tower Span and Scope • Requirements and authorization phase was twice the length of implementation • Implementation was a development team (3) with project manager, tester & doc • 3 phase approach: Alpha, Beta and Final with several weekly releases using Agile Scrum methodology • Project duration 6 months. • Software Product, Deployment and Services Costs 1. Software Dev Kit: $18,000 one time + $7,500 annual maint and support 2. Deployment: $10,000 Primary System, $5,000 Failover 3. Professional Services: $140,000 4. Commodity hardware and RTU

  11. System Metrics • Still considered early stage • Northbound integration is a future plan • Uptime increases. Hours (sometimes a day or two) vs. minutes • Fuel Theft is lower by 85% • Automated actions being refined and implemented Weather repair, fuel scheduling, maintenance

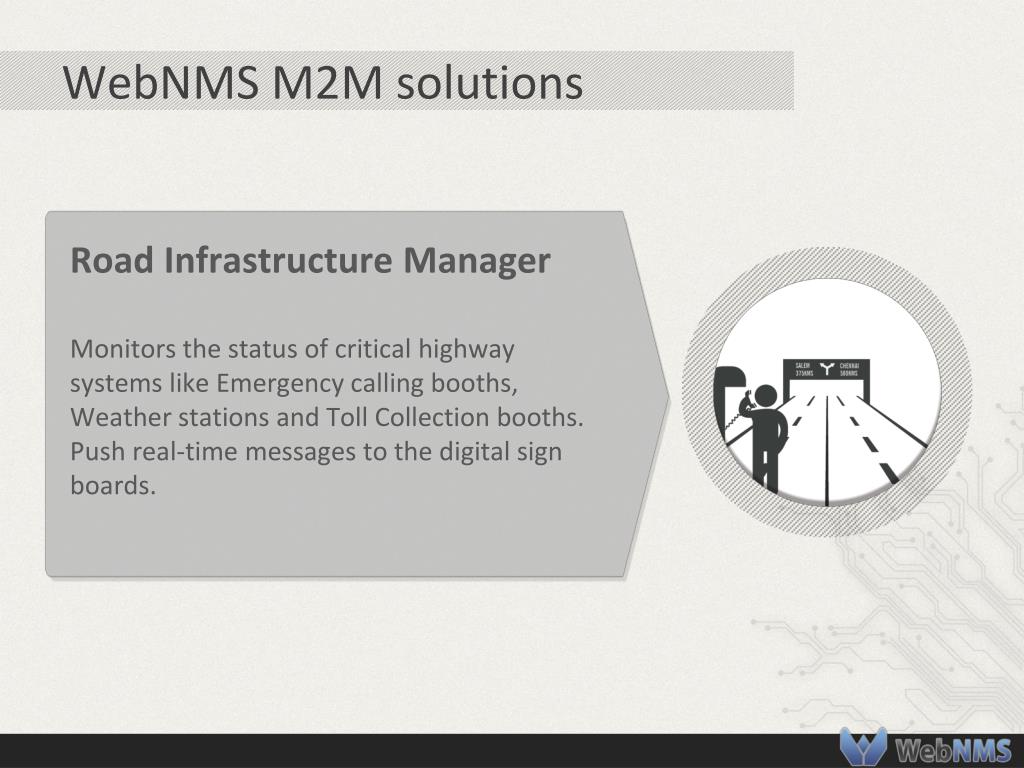

  12. WebNMS M2M solutions Road Infrastructure Manager Monitors the status of critical highway systems like Emergency calling booths, Weather stations and Toll Collection booths. Push real-time messages to the digital sign boards.

  13. WebNMS M2M solutions ATM Site Manager Improves customer service and revenue by ensuring ATM sites uptime. Optimal usage of passive assets and solves operational problems without human intervention and site visits.

  14. WebNMS M2M solutions Power Grid Monitoring / Smart Metering Alerts on Power Leakage, Breakage and Distribution Loss. Interaction with Map enables to locate the pain-point accurately.

  15. WebNMS Power Grid Monitoring Grid Security and Surveillance system captures interconnected line losses, theft and distribution and transmission system stress Energy Dashboard reports on overall Power-usage pattern and generate KPI reports across regions/sites. Alert System forewarns on maintenance of assets like Breakers, Switches, transformers Integration with Maps reduces the manual time and effort in figuring the pain point.

  16. WebNMS Customers

  17. WebNMS Customers
