# Static Electricity

Static Electricity . Chapter 7 . Static Charges . I n this chapter we will learn: Atoms with equal negative and positive charges are called neutral Atoms can become charged when electrons transfer in or out of a material Insulators do not allow electric charges to move easily

Télécharger la présentation

## Static Electricity

An Image/Link below is provided (as is) to download presentation Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

### Presentation Transcript

1. Static Electricity Chapter 7

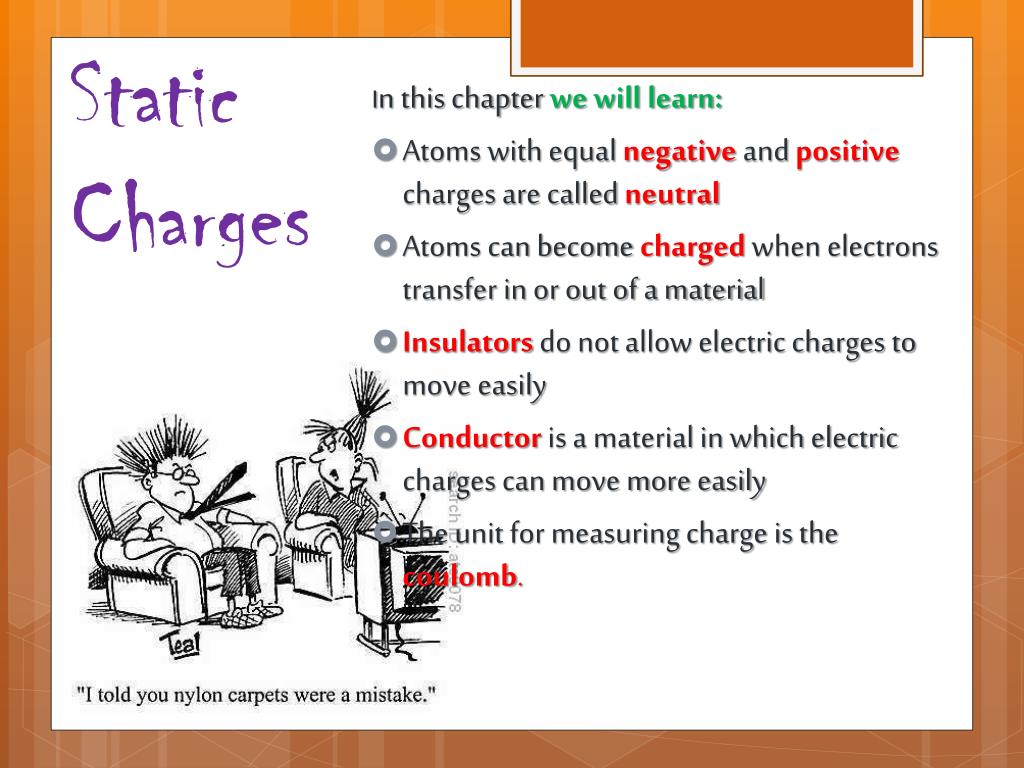

2. Static Charges In this chapter we will learn: • Atoms with equal negative and positive charges are called neutral • Atoms can become charged when electrons transfer in or out of a material • Insulators do not allow electric charges to move easily • Conductor is a material in which electric charges can move more easily • The unit for measuring charge is the coulomb.

3. Static Charges • When you think of the word “electricity” you think of computers, televisions and other modern devices. • The earliest studies of electricity had to do with static charges which refers to electric charges that can be collected and held in one place.

4. Static Charges • Can you think of some instances when you have been affected by static charges? • Clothes coming out of a dryer • Rubbing your feet on the carpet • Touching a lock with a key and seeing a spark • Lightening is when a static charge builds up in the ground during a thunderstorm.

5. Early Theories of Electricity • Benjamin Franklin discovered a type of “electrical fluid” in certain objects when they were rubbed. He called a build up of this fluid positive (+) and a shortage negative (-). Scientists still use these symbols to show the movement of electrical energy.

6. Positive and Negative Charge in Atoms • All matter is made of atoms - at their centre is a nucleus containing protons (positively charged) and neutrons (no charge). Surrounding the nucleus are electrons (negatively charged). • Solid materials are charged due to the movement of electrons - when electrons are gained, the object becomes negative. When electrons are lost, the object becomes positive.

7. Friction and Electron Transfer • Electrons are most often transferred through friction, when objects rub against each other. • Friction results in losing electrons or gaining electrons.

8. Insulators and Conductors • Materials that do not allow charges to move easily are called electrical insulators. • Some good INSULATORS are: • plastic • ceramics • wood • glass Only insulators are good at retaining static charge.

9. Insulators and Conductors • Materials that allow electrons to travel freely are called electrical conductors. • Some good conductors are: • metals (ex. copper, zinc, cadmium)

10. Measuring Charge • Unit of electric charge is called a Coulomb (C) , named after the French physicist Charles Augusin de Coulomb. • 1 C of charge is equal to the removal or addition of 6.25 x 1018 electrons. • A typical lightening bolt carries 5 – 25 C

11. Generating Static Charge A Van de Graaff generatoruses friction to produce a large static charge on a metal dome. The moving belt produces a static charge at the base and this is carried to the top of the dome where it is collected.

12. Applications of Static Electricity • Plasticsandwich wrap clings due to static charges. • Static devices are used in industry to remove pollutants from chimney stacks. • Air ionizers in homes. • Static charges are used in painting automobiles.

13. Dangers of Static Electricity • When static charge builds up it can discharge and cause serious shocks, explosions or fires. • Those pumping flammables must ensure objectsare grounded (connected to the Earth sothat static charge is discharged). • Lightning is especially dangerous - buildingscan be protected with lightning rods.

14. Section 7.1 Quiz

15. 7.2 Electric Force • Force is a push or pull - electric force can doboth, without touching the object - it is anaction-at-a-distance force. Laws of Static Charge • Like charges repel • Opposite charges attract • Neutral objects areattracted to chargedobjects

16. Charging Objects Charging By Conduction • Charging through direct contact • Extra electrons will move to a locationwhere there is less of them

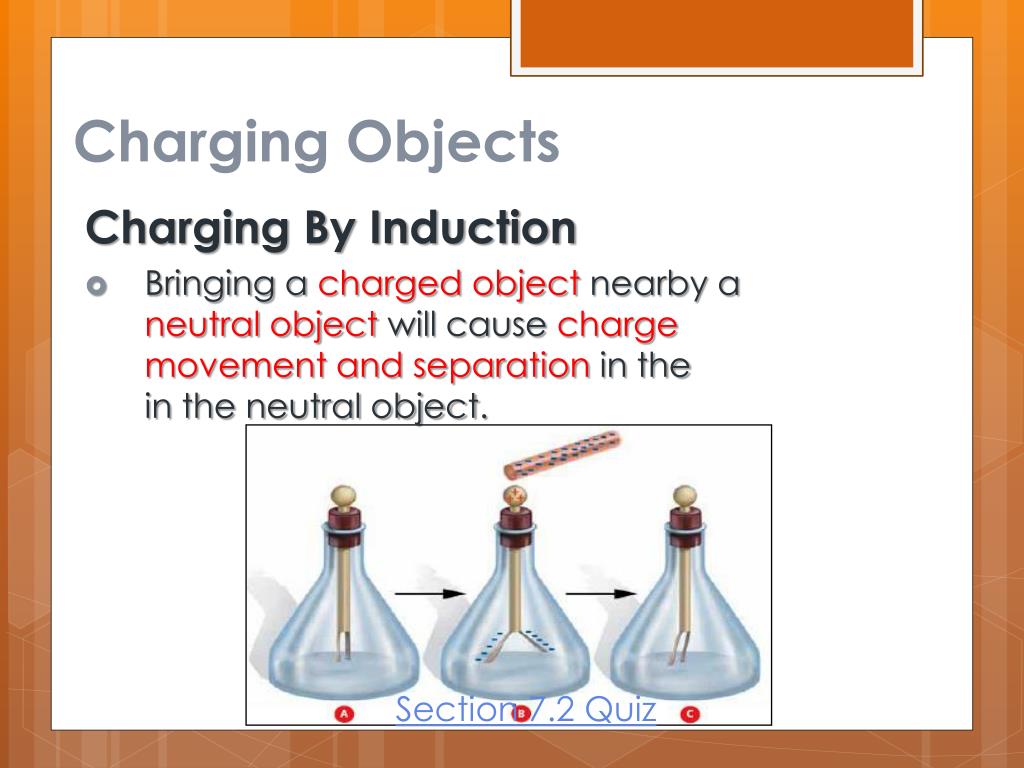

17. Charging Objects Charging By Induction • Bringing a charged object nearby aneutral object will cause chargemovement and separation in thein the neutral object. Section 7.2 Quiz
