555 Timer

555 Timer. Pin configuration. The 555 timer consists of; Two voltage comparators A bi-stable flip flop A discharge transistor and a resistor divider network. Internal Circuit Of 555 Timer. 8. 4. +. +. 5. +. +. C1. 6. R D. Q. 3. Q. S D. 2. C2. 7. T. 1. 5K. 5K. 5K.

alden-wynn
Télécharger la présentation

555 Timer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 555 Timer

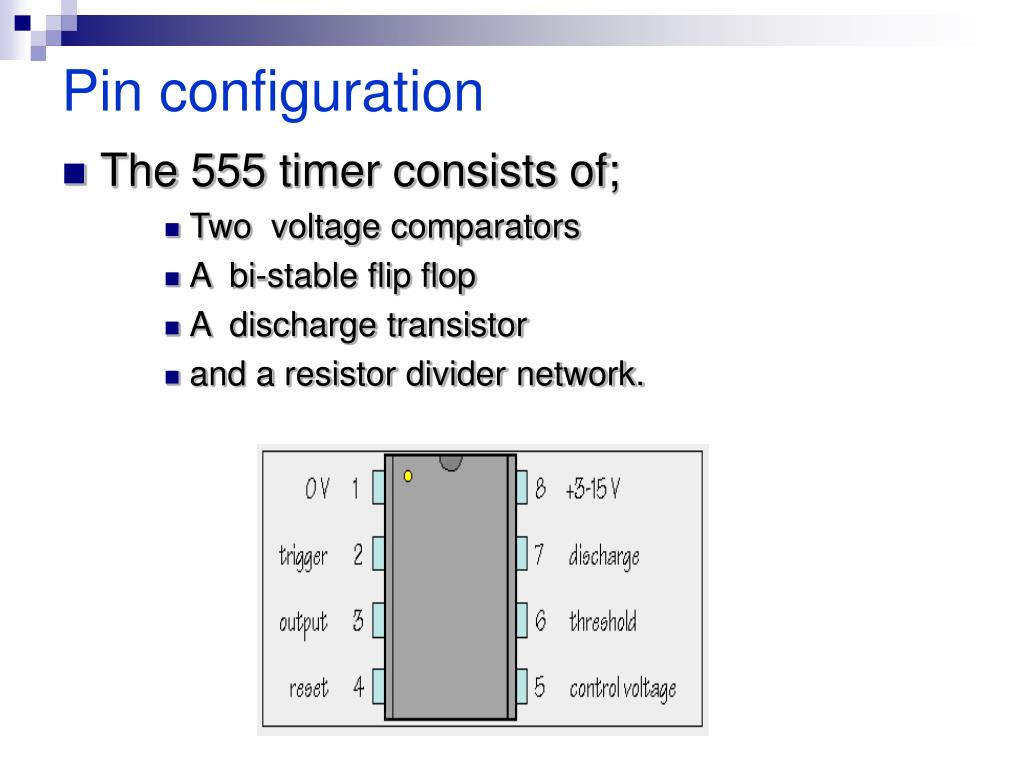

  2. Pin configuration • The 555 timer consists of; • Two voltage comparators • A bi-stable flip flop • A discharge transistor • and a resistor divider network.

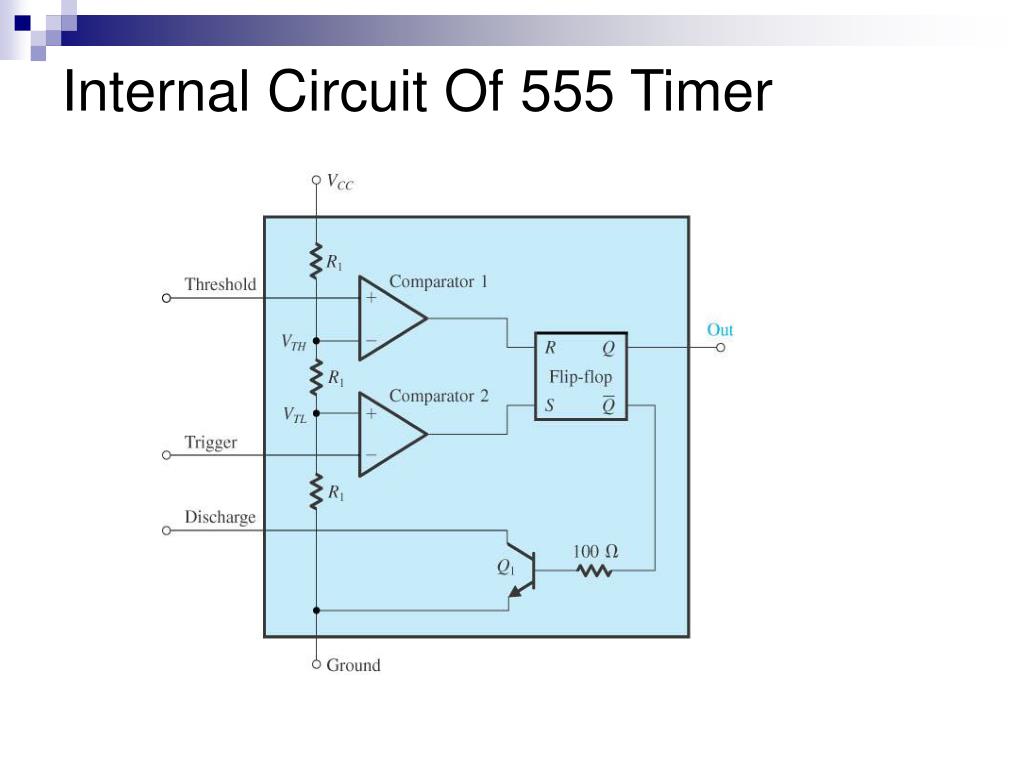

  3. Internal Circuit Of 555 Timer

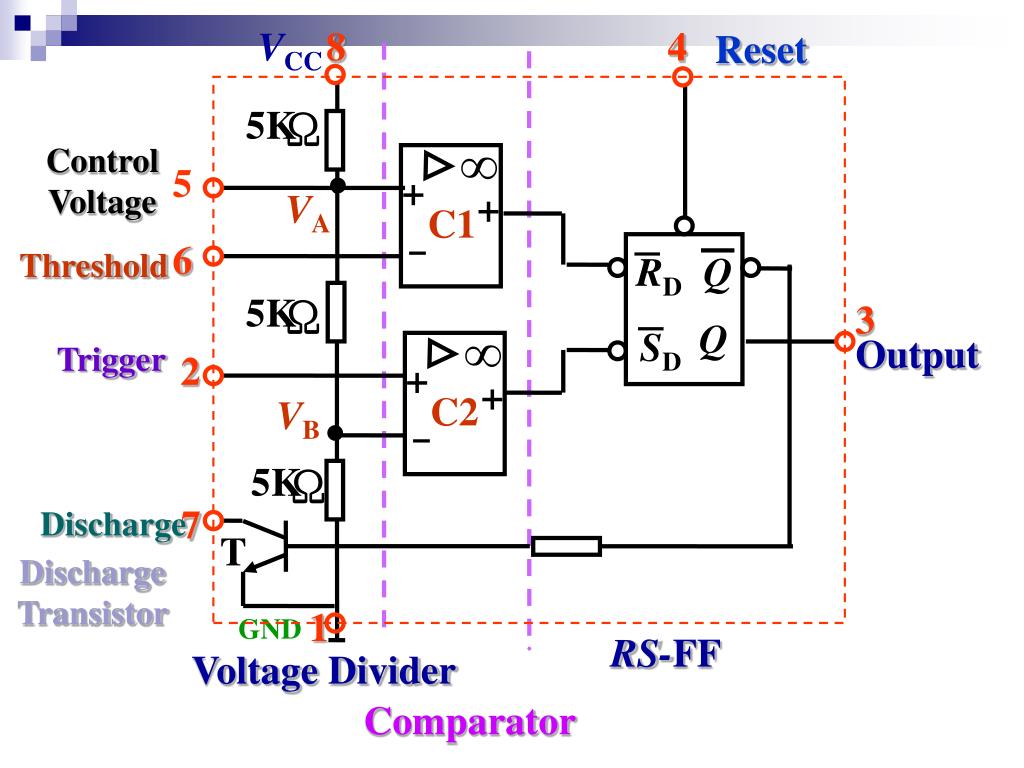

  4. 8 4 + + 5 + + C1 6 RD Q 3 Q SD 2 C2 7 T 1 5K 5K 5K VCC Reset Control Voltage VA Threshold Output Trigger VB Discharge DischargeTransistor GND RS-FF Voltage Divider Comparator

  5. VCC + + . + + RD V6 V2 RD SD 5 VA C1 6 <2/3 VCC <1/3 VCC 1 0 >2/3 VCC >1/3 VCC 0 1 C2 SD <2/3 VCC >1/3 VCC 1 1 2 . VB >2/3 VCC <1/3 VCC 0 0 5K 5K 5K The result for comparing 2/3 VCC Not permitted 1/3 VCC

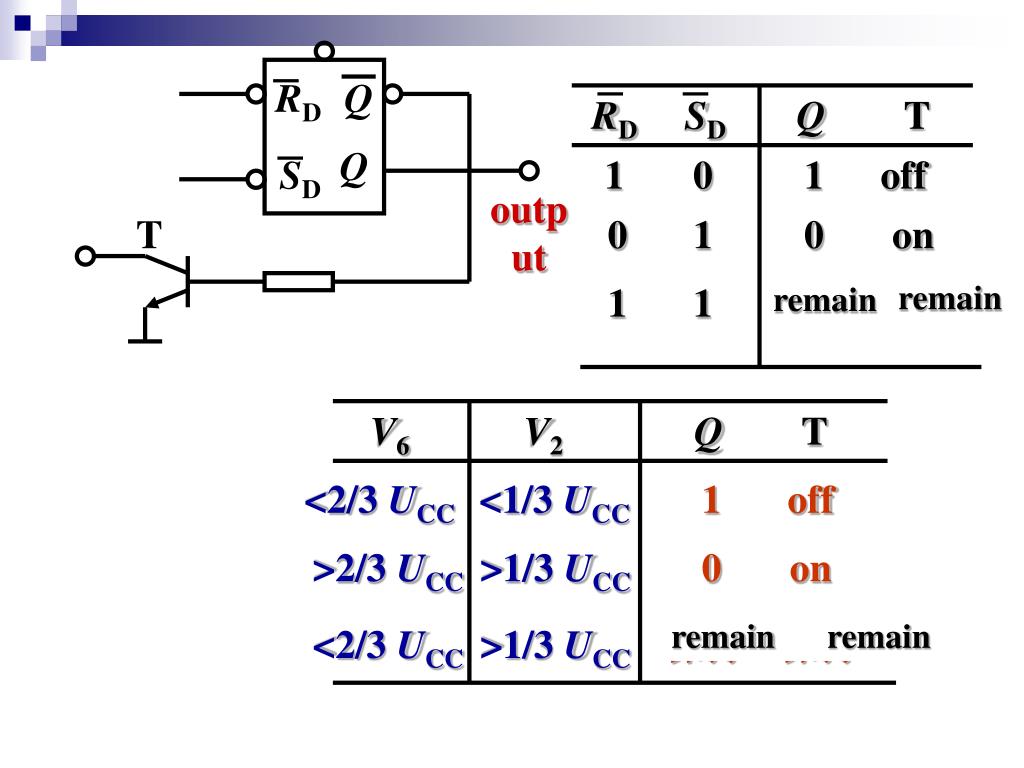

  6. output T RD Q Q SD V6 V2 Q T <2/3 UCC <1/3 UCC 1 off >2/3 UCC >1/3 UCC 0 on <2/3 UCC >1/3 UCC 保持 保持 RD SD Q T 1 0 1 off 0 1 0 on remain 1 1 remain remain remain

  7. Monostable Multivibrator & Waveforms

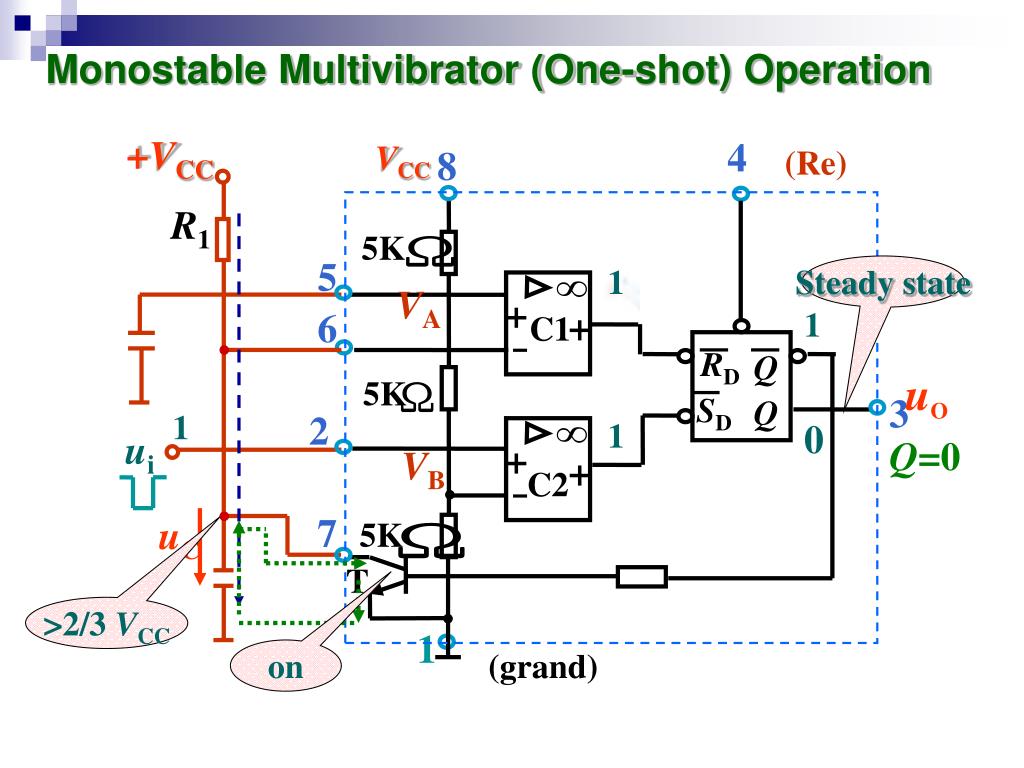

  8. Monostable Multivibrator (One-shot) Operation +VCC 4 VCC 8 (Re) + + + + 5K R1 5 1 VA 6 1 C1 RD Q uO 5K SD 3 Q 2 C2 0 ui VB 5K 7 uC T 1 Steady state 0 1 1 Q=0 >2/3 VCC on (grand)

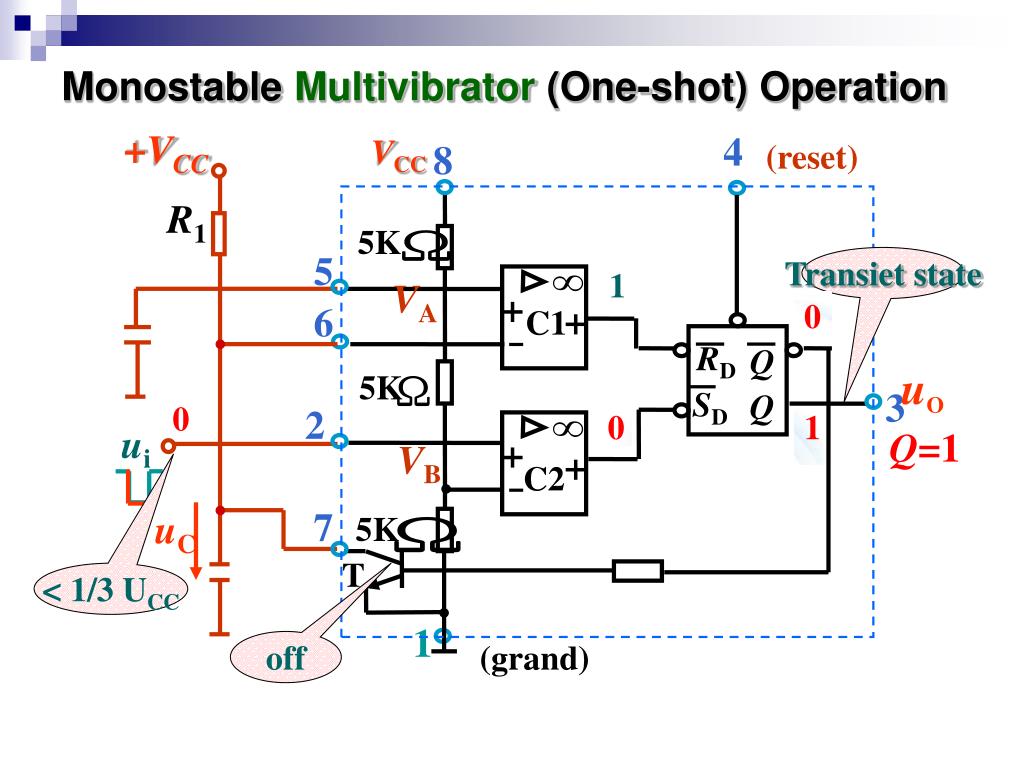

  9. +VCC 4 VCC 8 (reset) + + + + 5K R1 5 1 VA 6 0 1 C1 RD Q uO 5K SD 3 Q 2 C2 0 1 1 0 ui VB 5K 7 uC T 1 Monostable Multivibrator (One-shot) Operation Transiet state 0 Q=1 < 1/3 UCC off (grand)

  10. +VCC VCC 4 8 (reset) + + + + 5K R1 5 0 1 VA 6 0 1 C1 RD Q uO 5K SD 3 Q 1 0 2 C2 0 0 1 ui VB 5K 7 uc Q=0 T 1 Monostable Multivibrator(One-shot) Operation Steady state 1 Q=1 >2/3 VCC (grand)

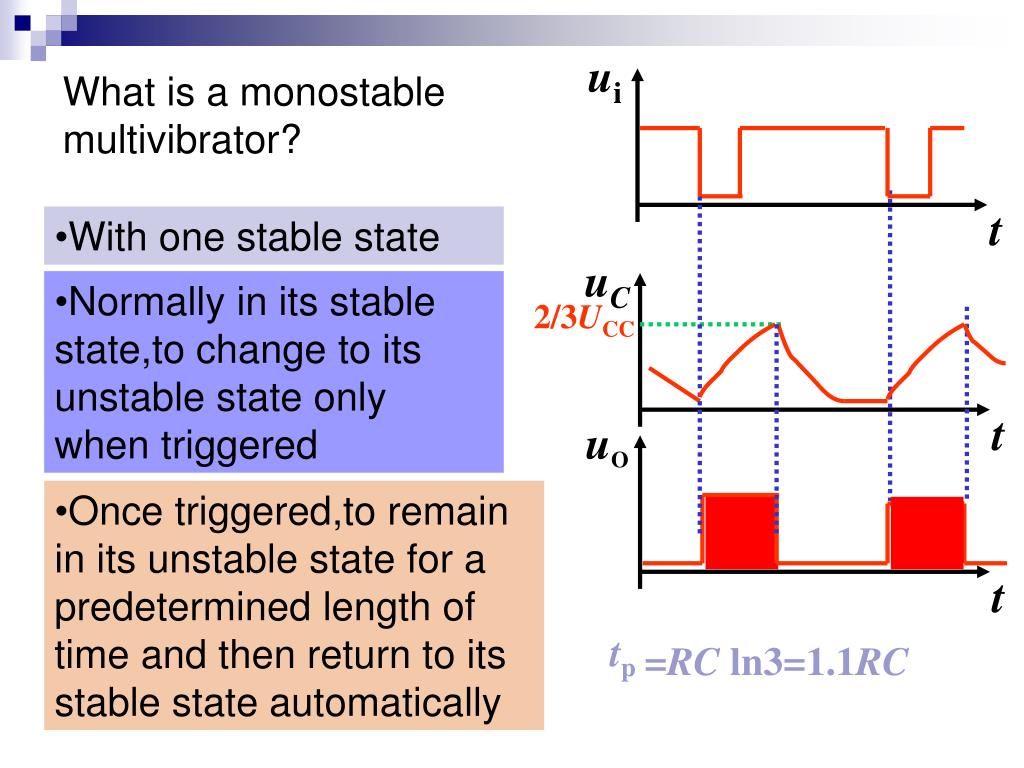

  11. uC uO ui t t t 2/3UCC tp =RC ln3=1.1RC What is a monostable multivibrator? • With one stable state • Normally in its stable state,to change to its unstable state only when triggered • Once triggered,to remain in its unstable state for a predetermined length of time and then return to its stable state automatically

  12. Astable Multivibrator & Waveforms

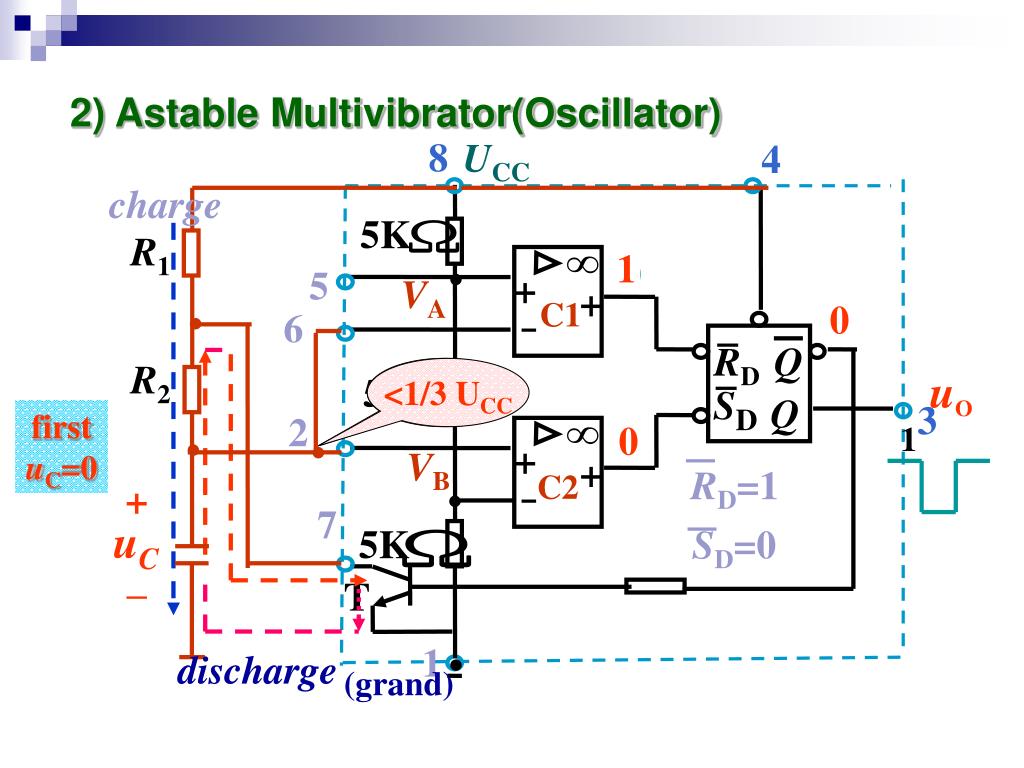

  13. + + 8 UCC 4 + + 5K . R1 Q 0 5 . VA Q 1 0 0 C1 3 6 RD R2 uO 5K C2 SD . . 2 1 . VB 5K RD=1 + 7 uC SD=0 – T . 1 (grand) 2) Astable Multivibrator(Oscillator) charge 1 >2/3 UCC <1/3 UCC first uC=0 1 discharge

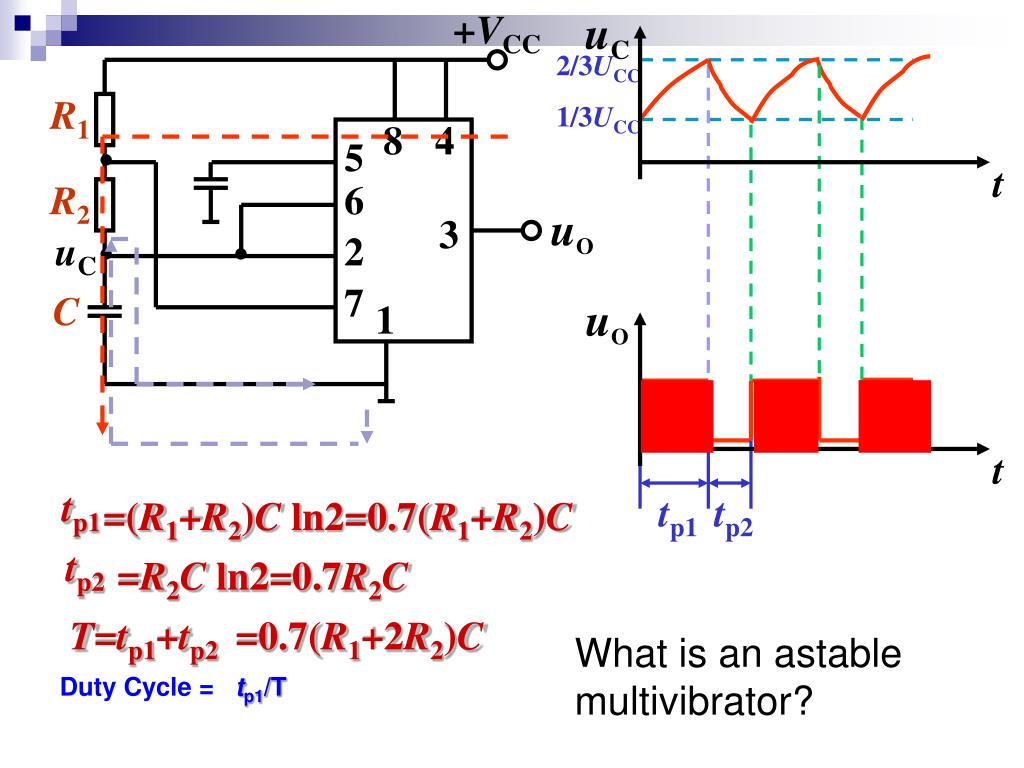

  14. uC uO +VCC 8 4 5 t t 6 2/3UCC R1 . uO 3 2 1/3UCC R2 7 . . 1 uC C tp1 =(R1+R2)C ln2=0.7(R1+R2)C tp2 =R2C ln2=0.7R2C T=tp1+tp2 =0.7(R1+2R2)C tp1 tp2 What is an astable multivibrator? Duty Cycle = tp1/T • With one stable state

  15. Applications using 555 timer • A light dimmer ; • A car tachometer • Traffic Lights ; • Infra Red (IR) remote control ;
