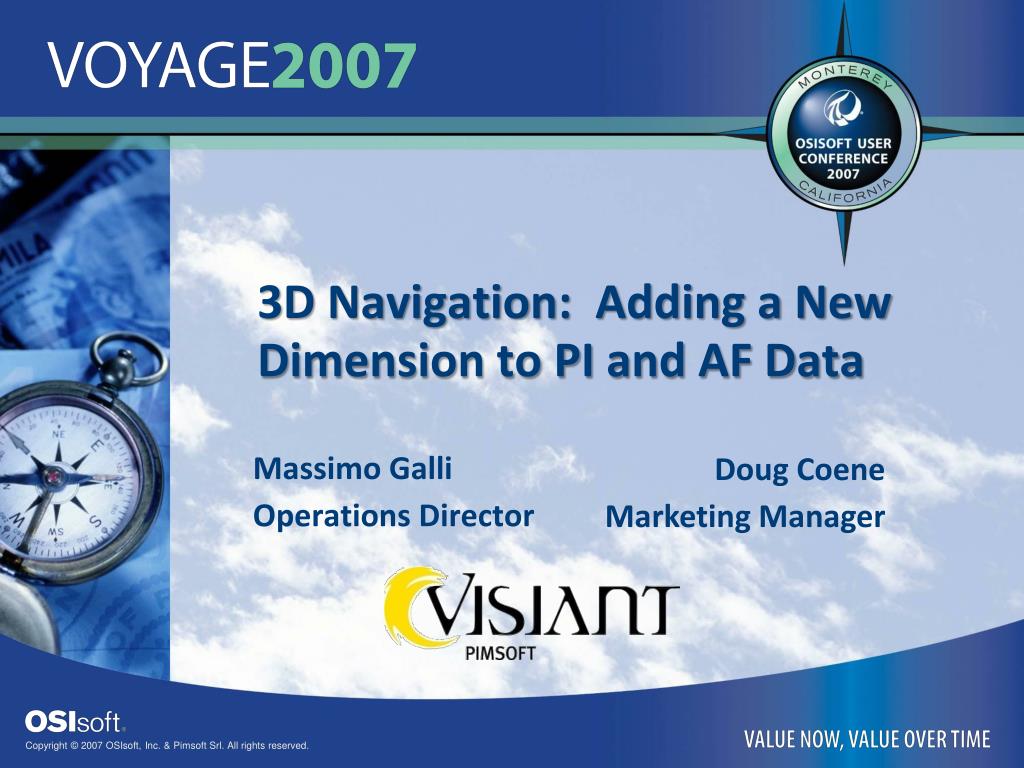

  1. 3D Navigation: Adding a New Dimension to PI and AF Data Doug Coene Marketing Manager Massimo Galli Operations Director

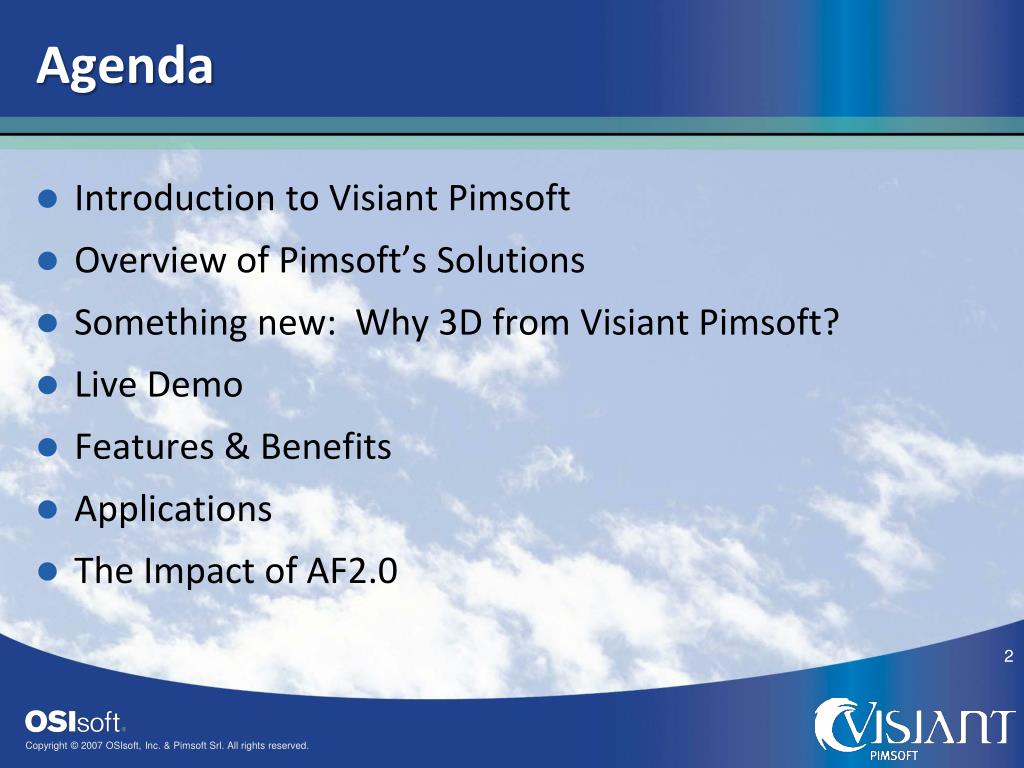

  2. Agenda • Introduction to Visiant Pimsoft • Overview of Pimsoft’s Solutions • Something new: Why 3D from Visiant Pimsoft? • Live Demo • Features & Benefits • Applications • The Impact of AF2.0

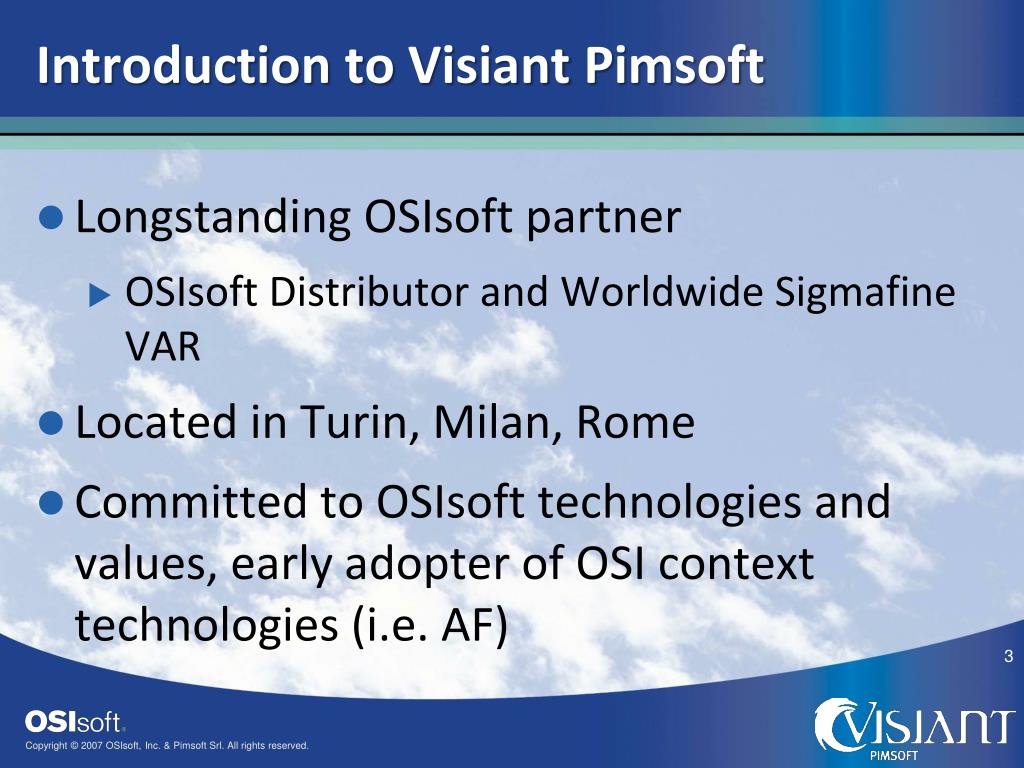

  3. Introduction to VisiantPimsoft • Longstanding OSIsoft partner • OSIsoft Distributor and Worldwide Sigmafine VAR • Located in Turin, Milan, Rome • Committed to OSIsoft technologies and values, early adopter of OSI context technologies (i.e. AF)

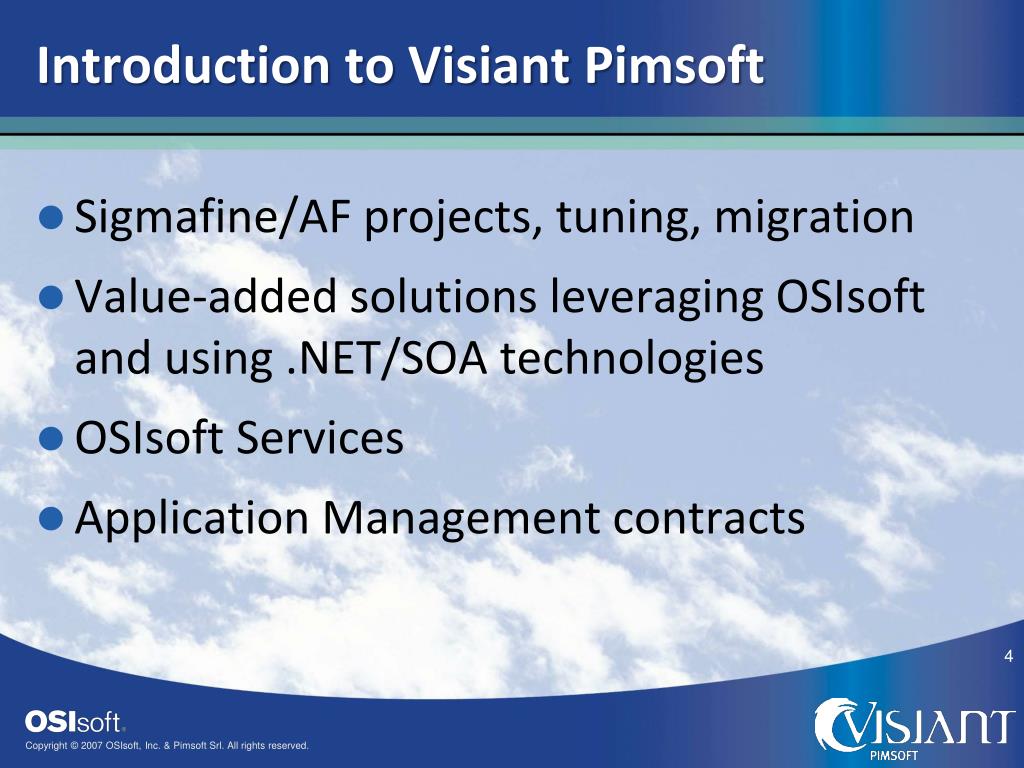

  4. Introduction to VisiantPimsoft Sigmafine/AF projects, tuning, migration Value-added solutions leveraging OSIsoft and using .NET/SOA technologies OSIsoft Services Application Management contracts

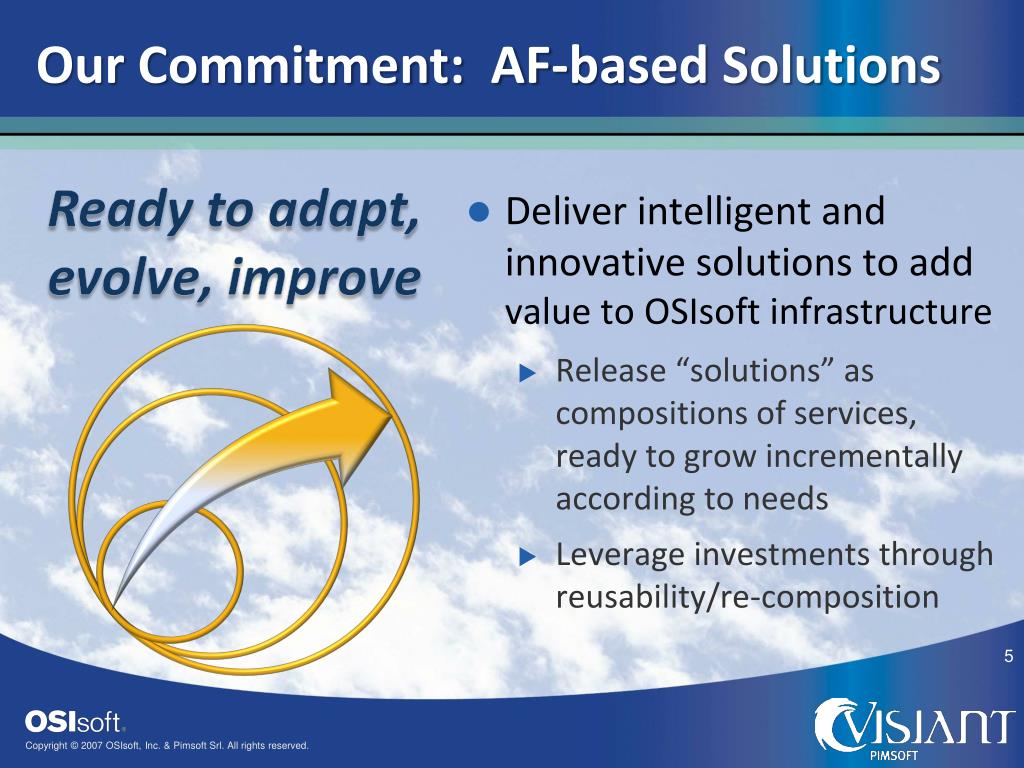

  5. Our Commitment: AF-based Solutions Ready to adapt, evolve, improve • Deliver intelligent and innovative solutions to add value to OSIsoft infrastructure • Release “solutions” as compositions of services, ready to grow incrementally according to needs • Leverage investments through reusability/re-composition

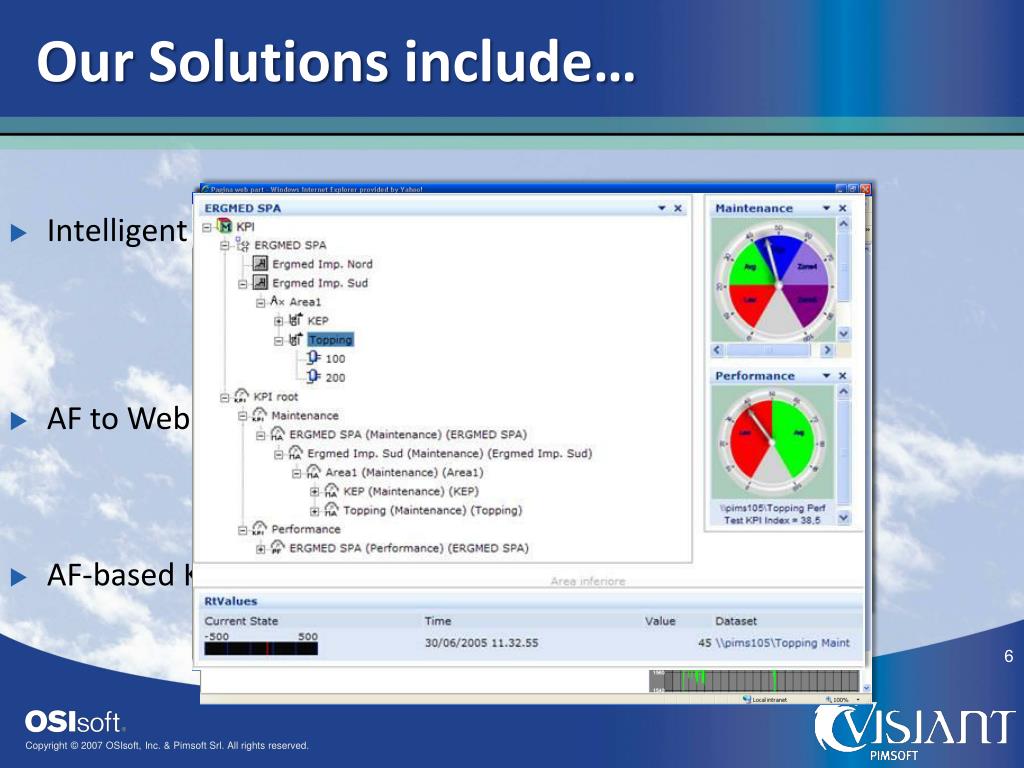

  6. Our Solutions include… • Intelligent Movement Management • AF to Web Components • AF-based KPI environment

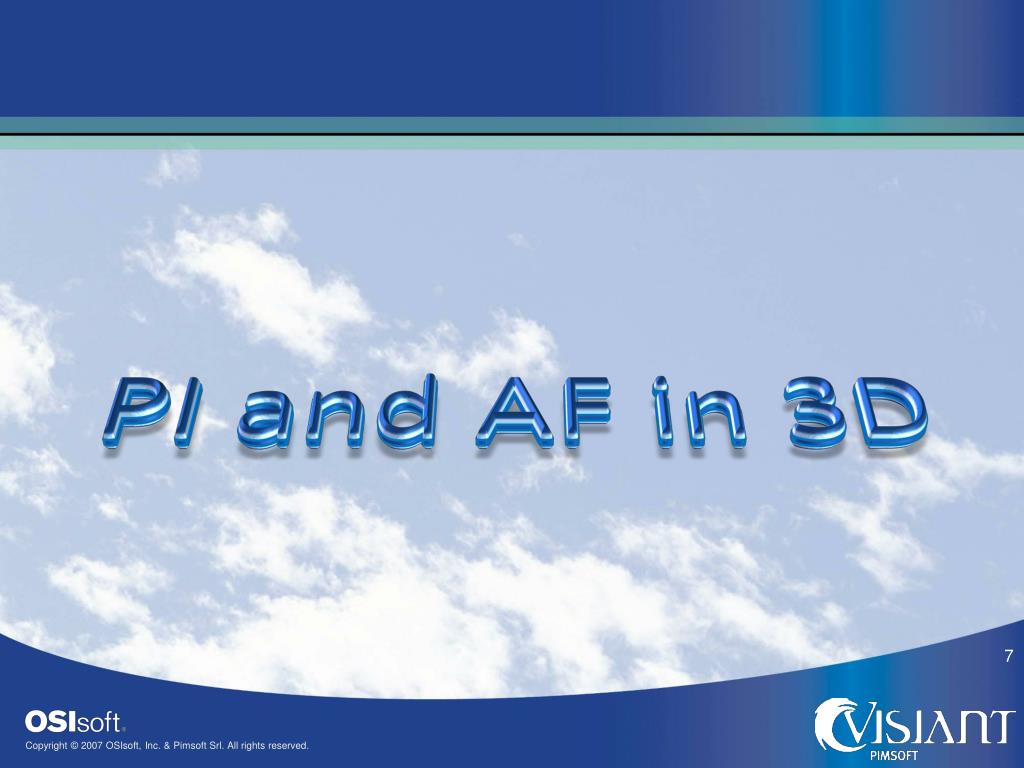

  7. PI and AF in 3D

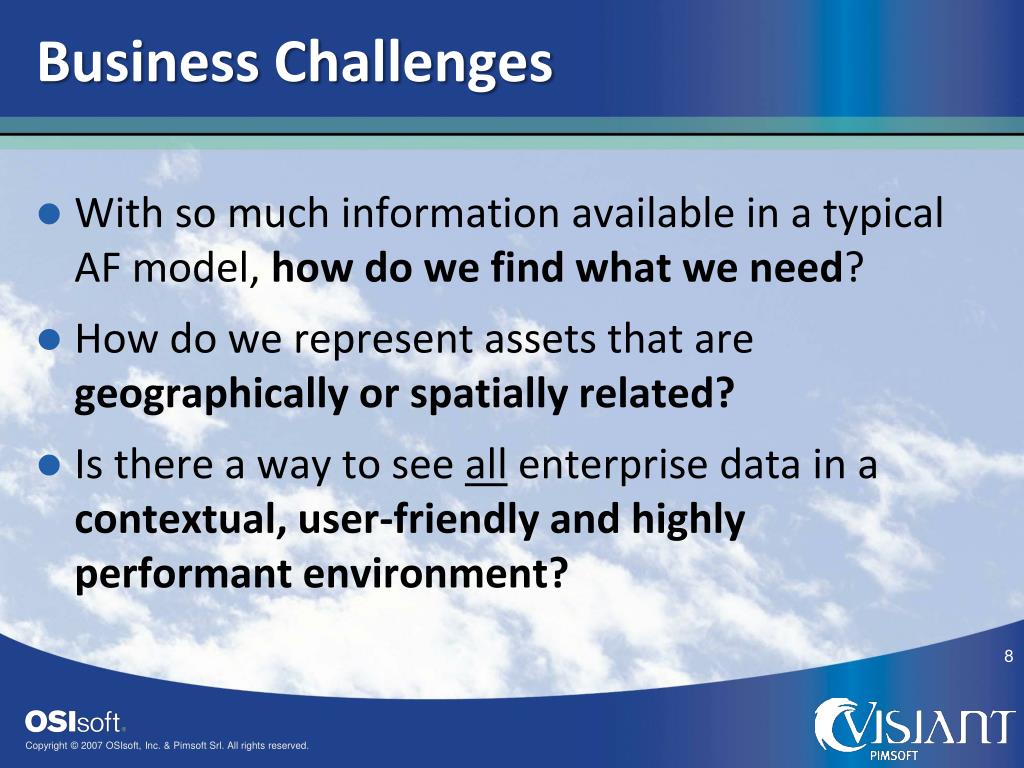

  8. Business Challenges • With so much information available in a typical AF model, how do we find what we need? • How do we represent assets that are geographically or spatially related? • Is there a way to see all enterprise data in a contextual, user-friendly and highly performant environment?

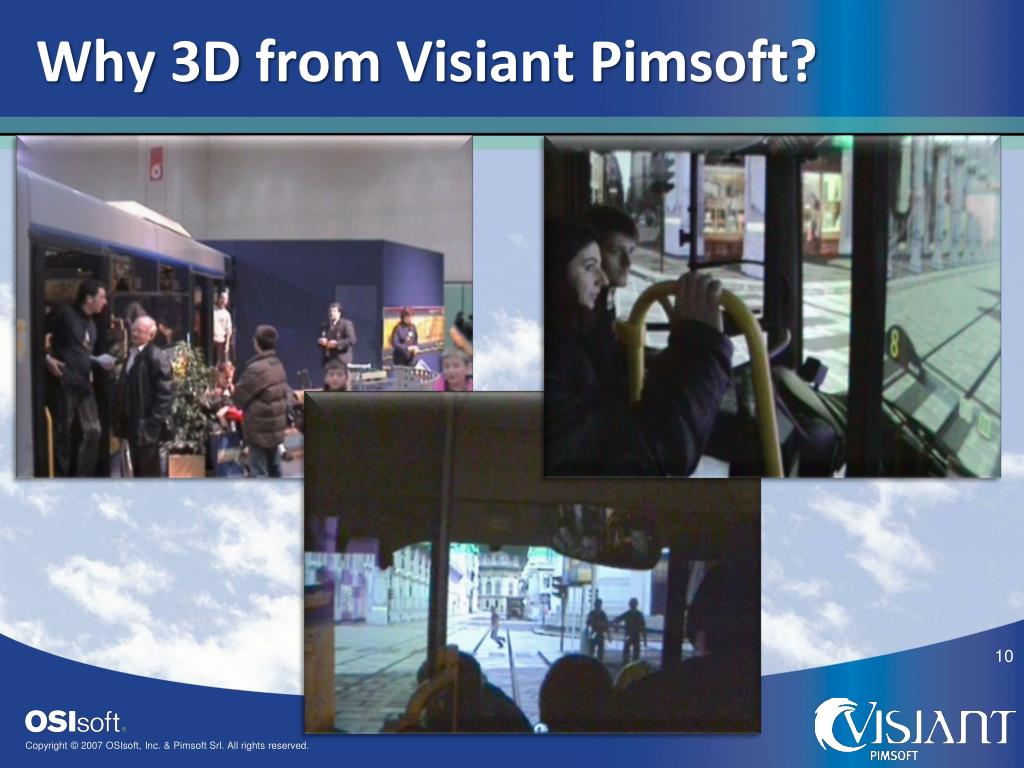

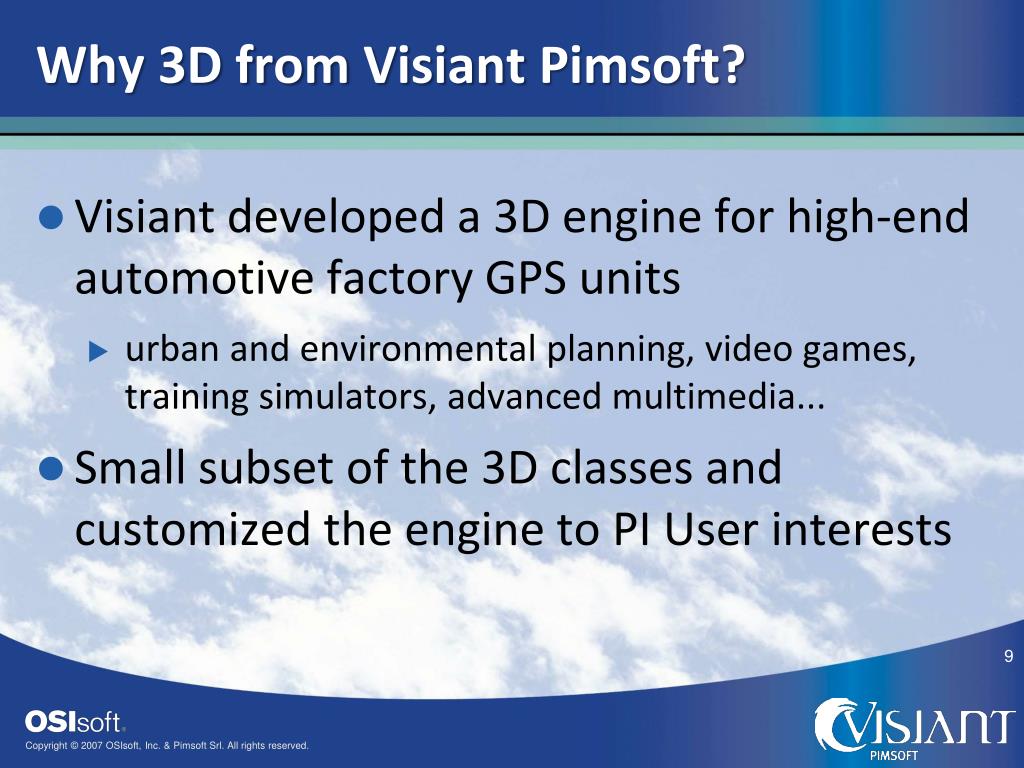

  9. Why 3D from VisiantPimsoft? • Visiant developed a 3D engine for high-end automotive factory GPS units • urban and environmental planning, video games, training simulators, advanced multimedia... • Small subset of the 3D classes and customized the engine to PI User interests

  10. Why 3D fromVisiantPimsoft?

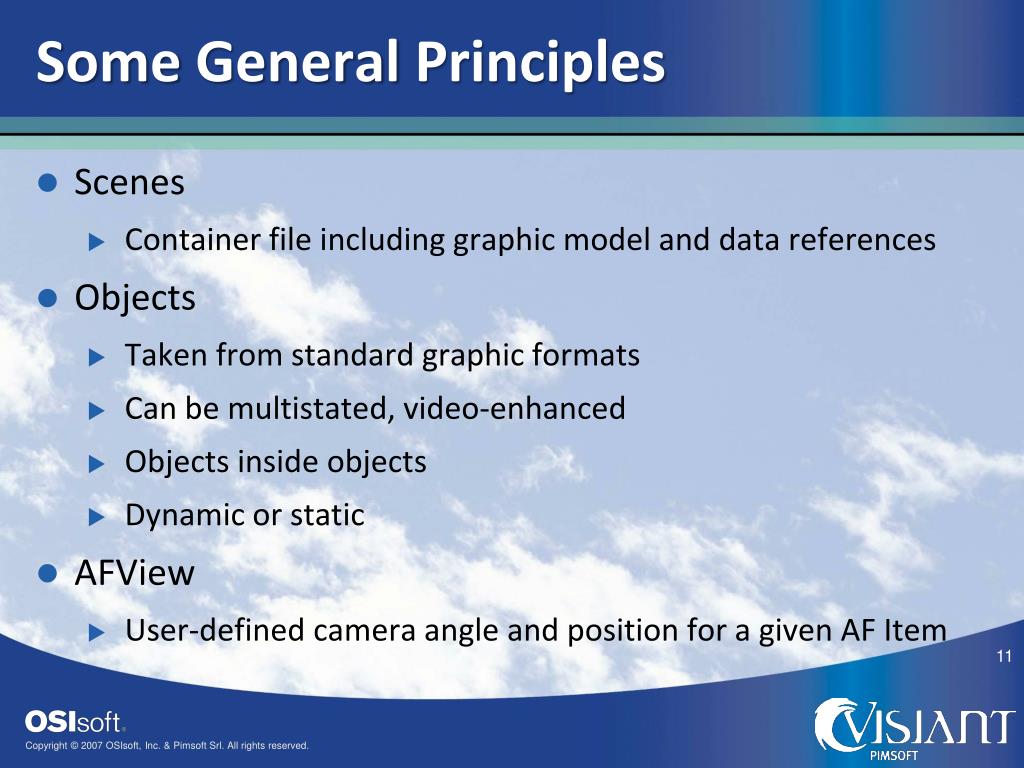

  11. Some General Principles • Scenes • Container file including graphic model and data references • Objects • Taken from standard graphic formats • Can be multistated, video-enhanced • Objects inside objects • Dynamic or static • AFView • User-defined camera angle and position for a given AF Item

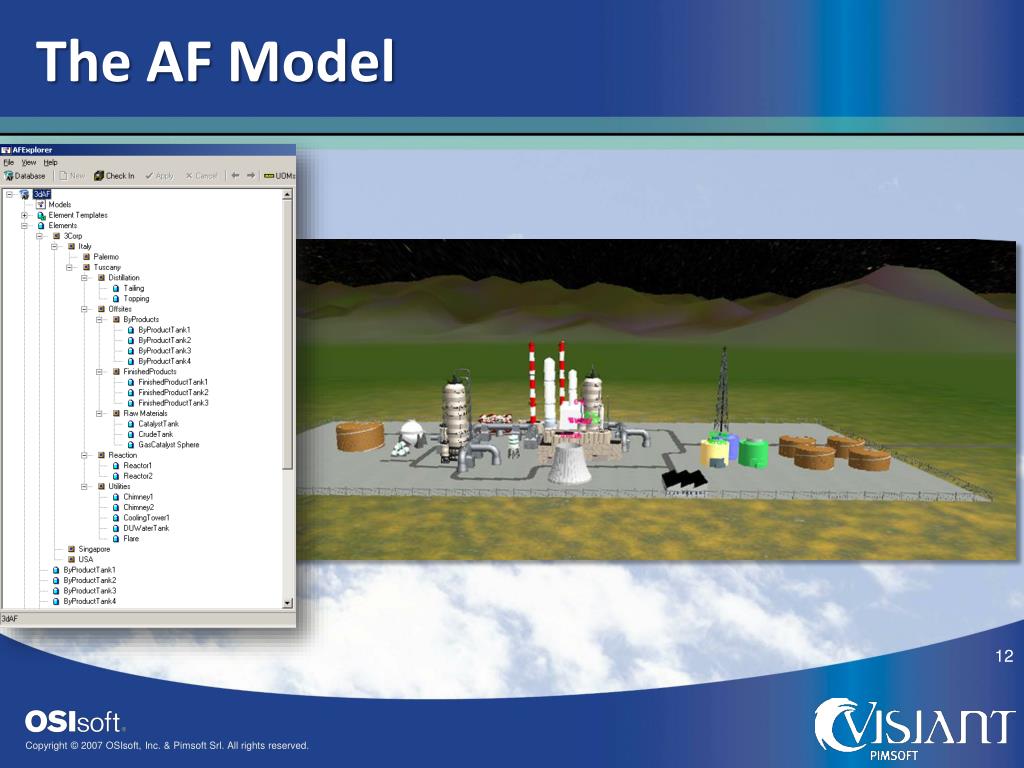

  12. The AF Model

  13. Demonstration

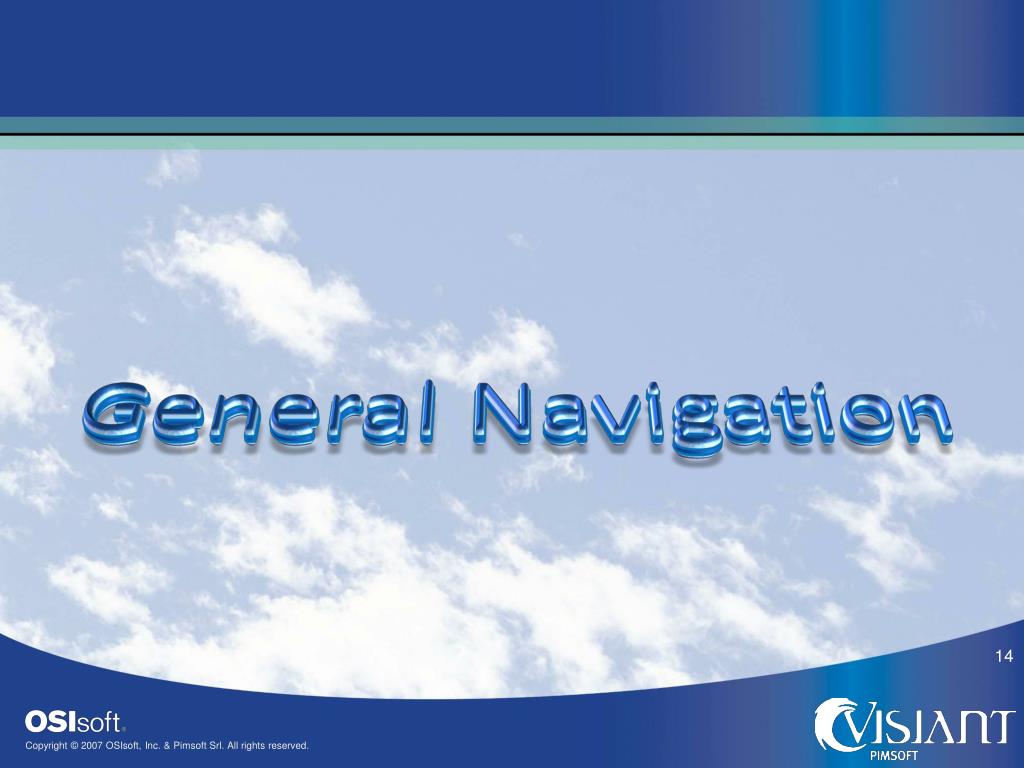

  14. General Navigation

  15. Roles

  16. Don’t Search, Find!

  17. Building Scenes • Existing CAD drawings • Downloadable 3D Renderings • 3rd party 3D Modeling • Pimsoft PDI Conversion Plugin

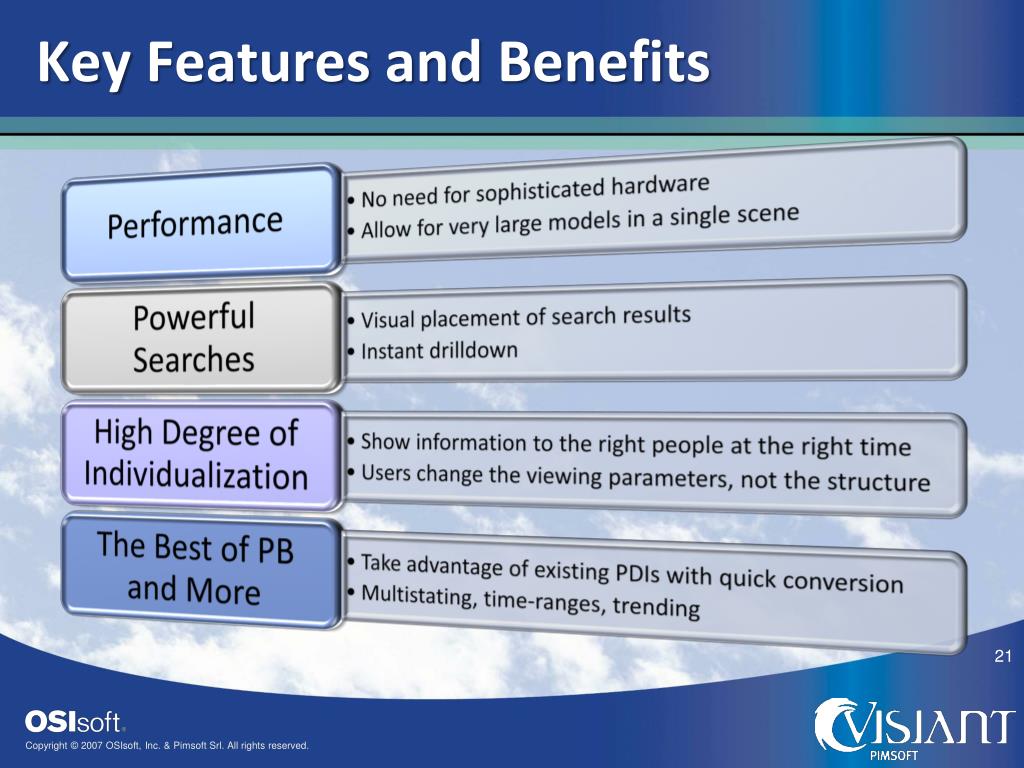

  18. Key Features and Benefits

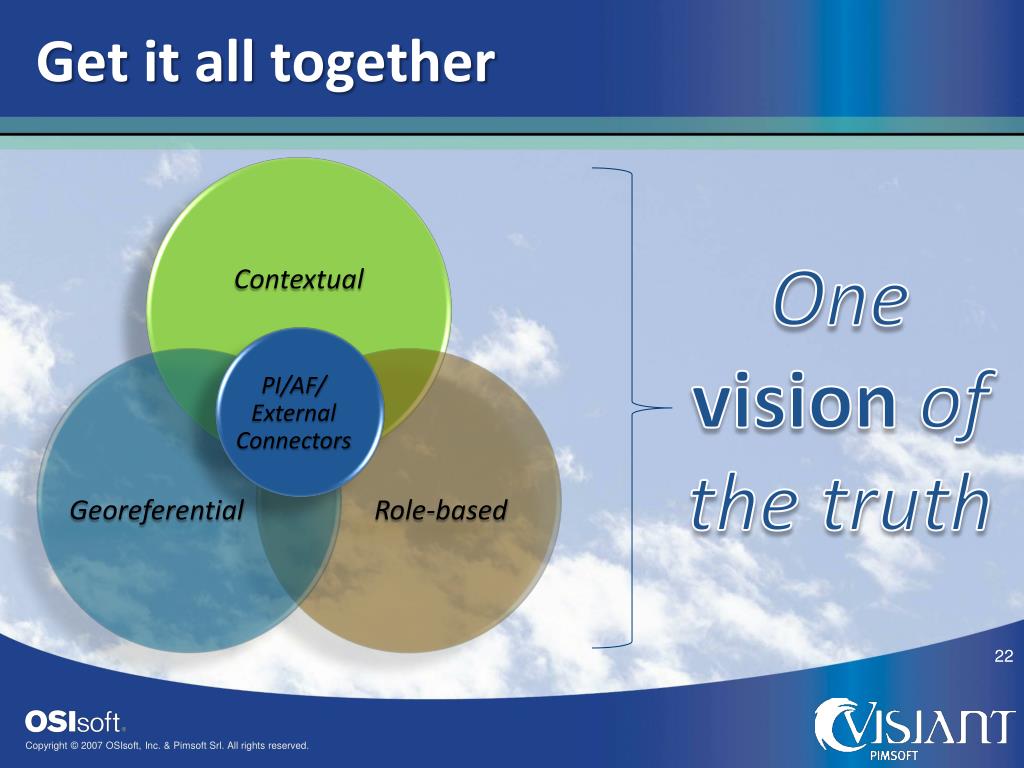

  19. Getit all together One visionof the truth PI/AF/ ExternalConnectors

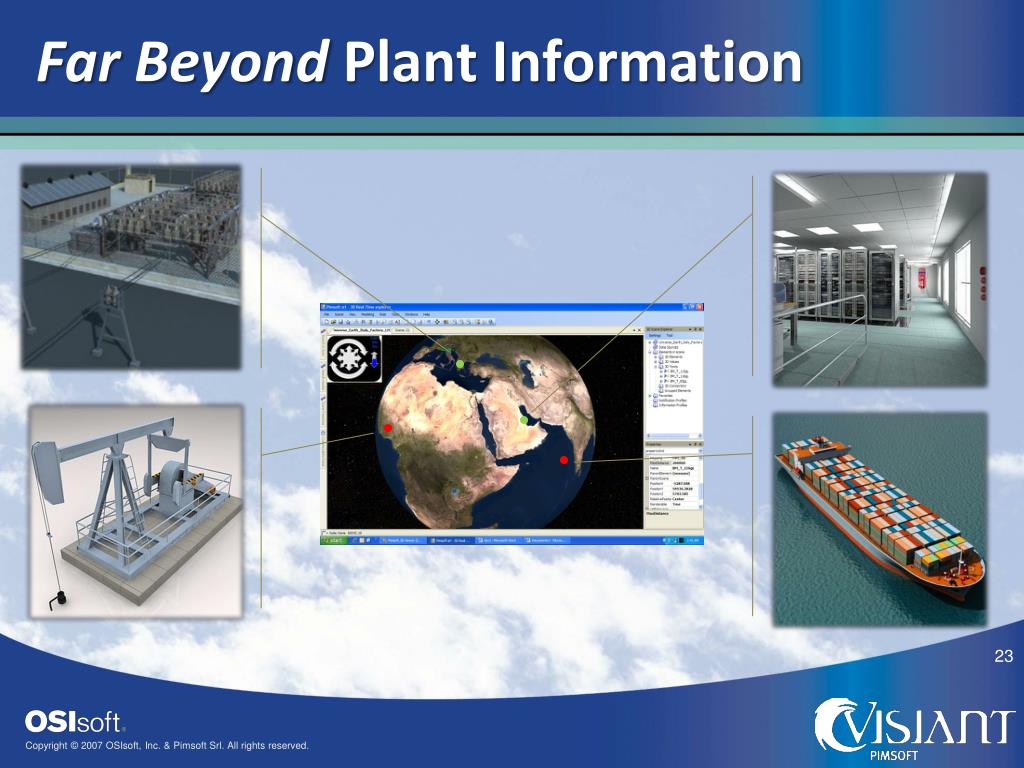

  20. Far BeyondPlant Information

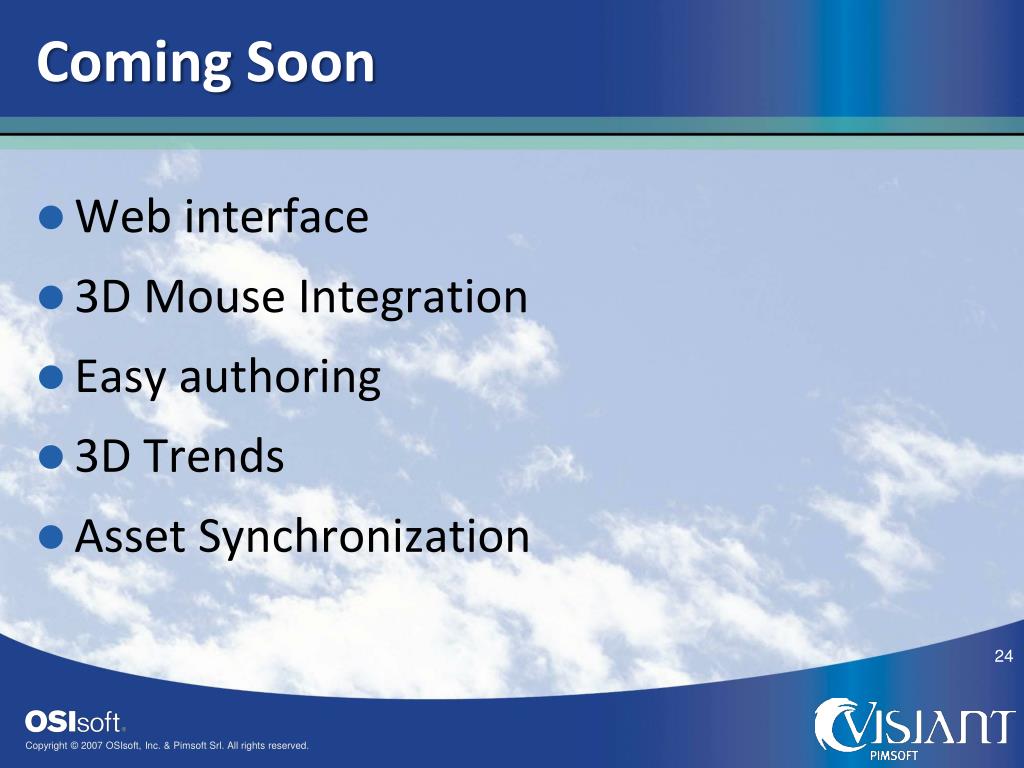

  21. ComingSoon • Web interface • 3D Mouse Integration • Easy authoring • 3D Trends • Asset Synchronization

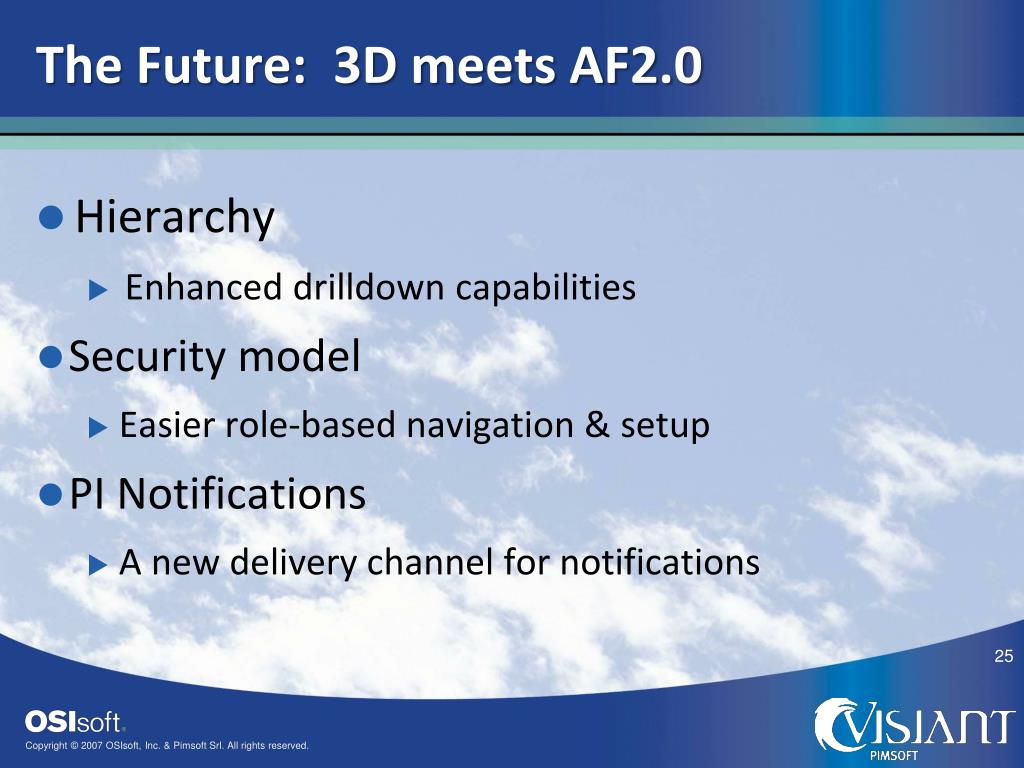

  22. The Future: 3D meets AF2.0 • Hierarchy • Enhanceddrilldowncapabilities • Security model • Easier role-based navigation & setup • PI Notifications • A new deliverychannel for notifications

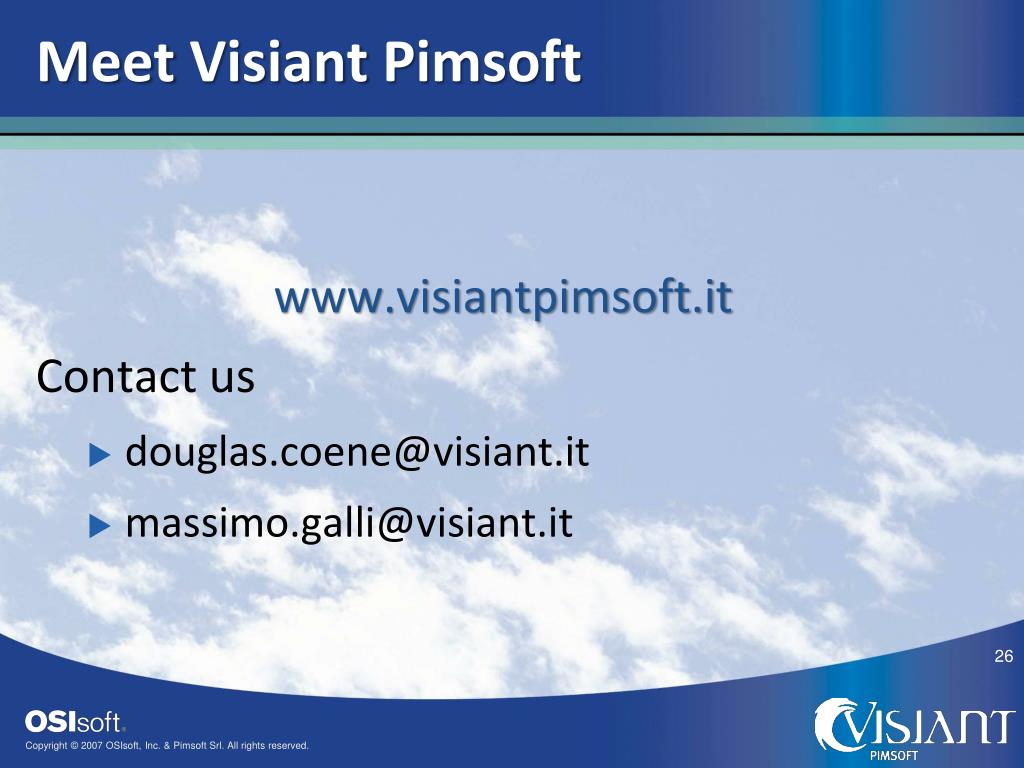

  23. MeetVisiantPimsoft www.visiantpimsoft.it Contact us • douglas.coene@visiant.it • massimo.galli@visiant.it

  24. Questions?
