  1. Hamilton Venus Software User Interface Options

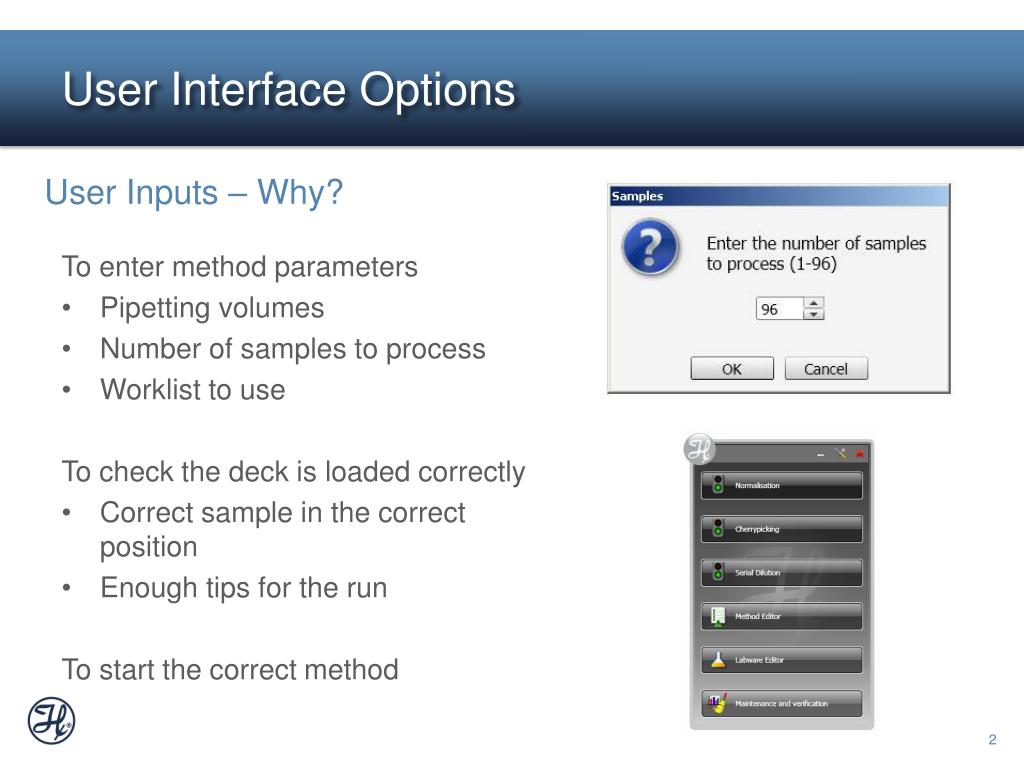

  2. User Interface Options User Inputs – Why? • To enter method parameters • Pipetting volumes • Number of samples to process • Worklist to use • To check the deck is loaded correctly • Correct sample in the correct position • Enough tips for the run • To start the correct method

  3. User Interface Options 1. Standard User Interfaces 2. Custom User Interfaces 3. ASW Standard GUIs 4. Excel Spreadsheets 5. Method Manager 6. Application Launcher

  4. User Interface Options Standard User Interfaces • User inputs • Inputs allow user to enter: • Integers and real numbers with default, max and min values • Text, e.g. user name • a file path e.g a worklist

  5. User Interface Options Standard User Interfaces • User outputs • Icon options: • information message • warning message • warning query • error message

  6. User Interface Options Standard User Interfaces • User outputs • Button options: • OK • Cancel • Abort • Retry • Ignore • Yes • No

  7. User Interface Options Custom User Interfaces • Highly customisable: • Images • Buttons • Check boxes • Radio buttons • Group boxes • Text inputs • Numeric inputs • File path inputs • Drop down lists

  8. User Interface Options Custom User Interfaces • Highly customisable: • Various limits can be set to the user inputs, e.g. use of standard expressions • The visibility of inputs can be conditionally set

  9. User Interface Options ASW (Application SoftWare) Standard GUIs • Highly customisable: • Images • Check boxes • Radio buttons • Text inputs • Numeric inputs • Filepathinputs • Customisable examples • available as part of install package

  10. User Interface Options Excel Spreadsheet • Custom interfaces can be created in Excel • Excel is opened by the Venus software • The user fills in the information then saves and closes the file • The Excel file is then read by the Venus software

  11. User Interface Options Method Manager • A graphical user interface for selecting which methods to run • Useful when there are many methods on the system, as they can be categorised into different folders, e.g. Genomics or Drug Discovery • Provides information on the details of the method, the layout and any extra relevant information

  12. User Interface Options Method Manager • Clear and easy to use • Select icon and colour for each group • Enter the details of the method and any extra information useful to the user

  13. User Interface Options Application Launcher • A graphical user interface for selecting which methods, or programs, to run • Clear and easy to use • Useful when there are only a few methods on the robot • Customisable

  14. User Interface Options Application Launcher • Select: • Icon configuration • Style • Visibility • Animation speed • Icons
