  1. Virtual Paths Routing: A Highly Dynamic Routing Protocol for Ad Hoc Wireless Networks Abdulrahman H. Altalhi and Golden G. Richard Computer Science Department University of New Orleans PERCOMW’04 Speaker: Ju-Mei Li

  2. Outline • Introduction • Virtual Paths Routing Protocol • Overview • Basic Protocol Operations • Virtual Path Creation • Path Maintenance • Mobility • Simulation • Conclusion Speaker: Ju-Mei Li

  3. Introduction • DSR protocol • Overhead • Mobility Speaker: Ju-Mei Li

  4. Introduction • ISR protocol • Is based on DSR • Creates logical flows to route traffic between nodes • The timeout values associated with these logical flows are constant • Regardless of the level of mobility a node is experiencing Speaker: Ju-Mei Li

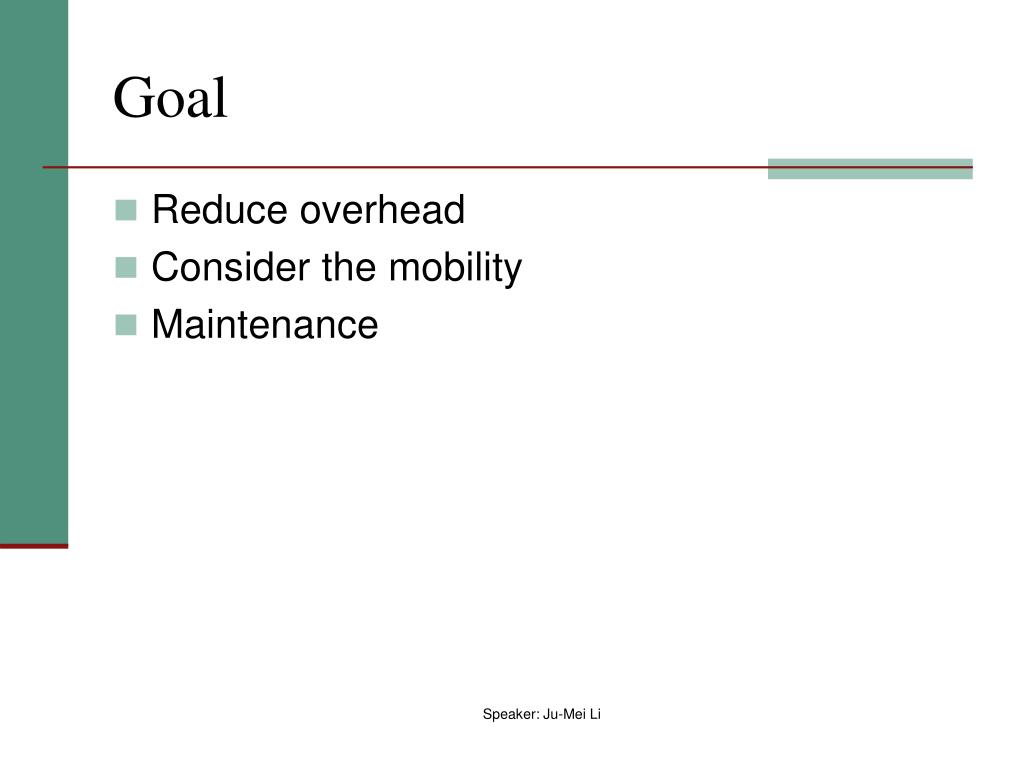

  5. Goal • Reduce overhead • Consider the mobility • Maintenance Speaker: Ju-Mei Li

  6. Virtual Paths Routing ProtocolOverview • All the packets are delivered through a particular virtual path • Each participating node maintains two virtual routing tables • Primary table • <Path Number> • <Full Path> • <Source Address> • <Destination Address> • <In-Bound Node Address> • <Out-Bound Node Address> • <Flag> • Secondary table • <Full Path> • <Timeout> Speaker: Ju-Mei Li

  7. Virtual Paths Routing ProtocolBasic Protocol Operations VPR routing header: <Source address> <Destination address> <Path number> End-of-dialog message D A S Primary table C Primary table Secondary table Secondary table No valid path is found in both two table S will create a new virtual path Speaker: Ju-Mei Li

  8. Virtual Paths Routing ProtocolVirtual Path Creation • Two phase • Path Discovery • The source should have a list of all the nodes through which it may reach the destination • Path Set Up • Each node on the path will has an entry in its virtual path routing table (primary table) for the newly created path Speaker: Ju-Mei Li

  9. Virtual Paths Routing ProtocolVirtual Path Creation: Path Discovery S-A-C S-A S-A-C D C A S S-A-C S-A-E-F S-A-E S S-A-E F E S S-B S-A-E S-A-E-G B G Speaker: Ju-Mei Li

  10. Virtual Paths Routing ProtocolVirtual Path Creation: Path Discovery • Drop the packet and proceed no further • Duplicate packet • The node IP add. is already on the node list • Send a path discovery reply • The node • is the target of this path discovery packet • has a valid path to the destination • Rebroadcast the packet • The packet is not duplicate packet • The node is not on the node list, nor it is the destination Speaker: Ju-Mei Li

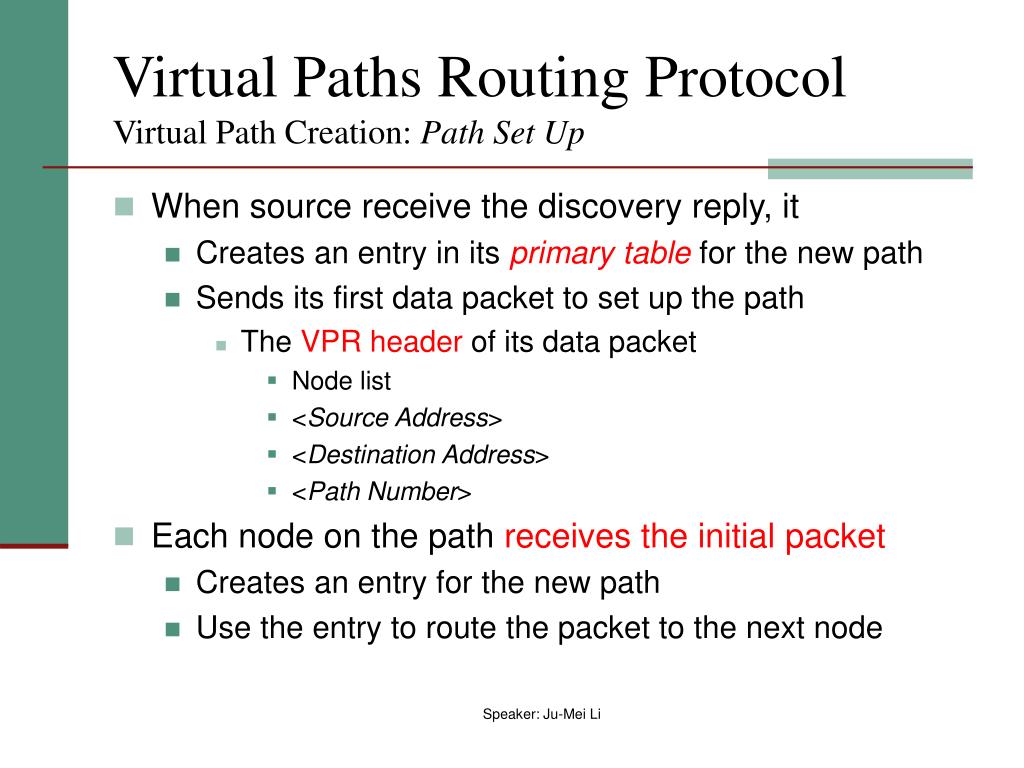

  11. Virtual Paths Routing ProtocolVirtual Path Creation: Path Set Up • When source receive the discovery reply, it • Creates an entry in its primary table for the new path • Sends its first data packet to set up the path • The VPR header of its data packet • Node list • <Source Address> • <Destination Address> • <Path Number> • Each node on the path receives the initial packet • Creates an entry for the new path • Use the entry to route the packet to the next node Speaker: Ju-Mei Li

  12. Virtual Paths Routing ProtocolPath Maintenance • How to detect the link failure • In order to reduce the overhead • Only those nodes on active paths send the HELLO message (IP address) • It considers the link failure • When a node fail to receive three consecutive Hello messages from one of its Out- or In-Bound nodes Speaker: Ju-Mei Li

  13. Virtual Paths Routing ProtocolPath Maintenance: step 1 “temporarily out of service” message “deactivation” message D A B S Speaker: Ju-Mei Li

  14. Virtual Paths Routing ProtocolPath Maintenance: step 2 By check its local cache 1.Find a new path D A B S 2.Send a path error Speaker: Ju-Mei Li

  15. Virtual Paths Routing ProtocolPath Maintenance: step 3 1.Find a new path D Initiate thepath set up A B S start thepath discovery 2.Send a path error Speaker: Ju-Mei Li

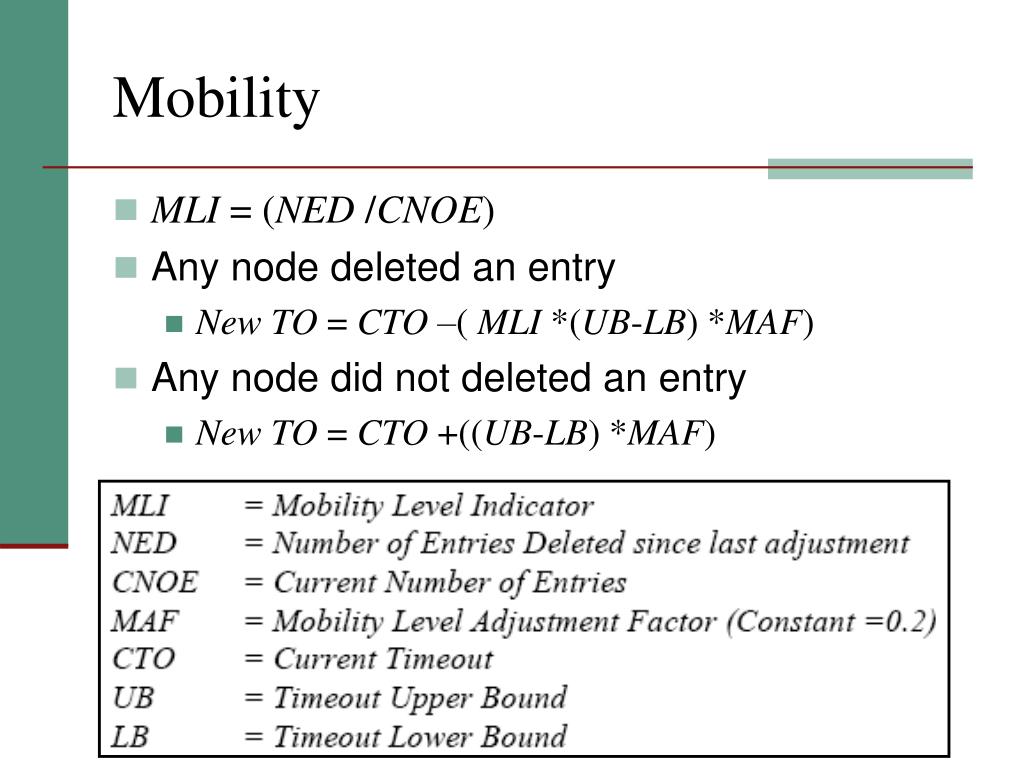

  16. Mobility • MLI = (NED /CNOE) • Any node deleted an entry • New TO = CTO –( MLI *(UB-LB) *MAF) • Any node did not deleted an entry • New TO = CTO +((UB-LB) *MAF) Speaker: Ju-Mei Li

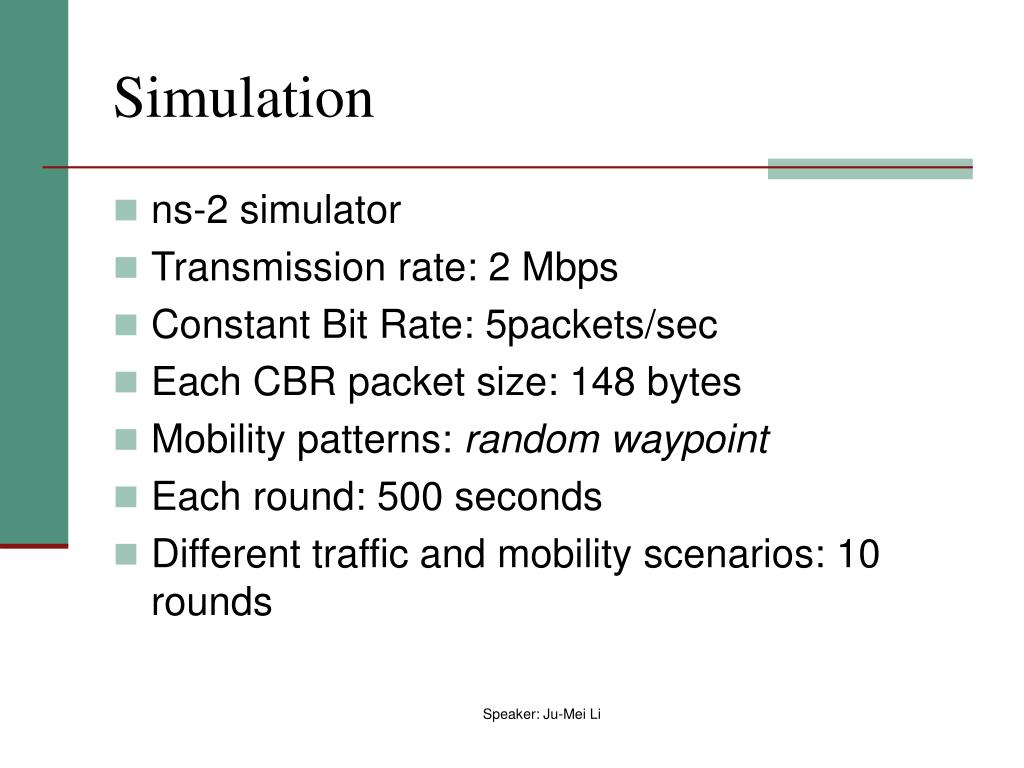

  17. Simulation • ns-2 simulator • Transmission rate: 2 Mbps • Constant Bit Rate: 5packets/sec • Each CBR packet size: 148 bytes • Mobility patterns: random waypoint • Each round: 500 seconds • Different traffic and mobility scenarios: 10 rounds Speaker: Ju-Mei Li

  18. Simulation Speaker: Ju-Mei Li

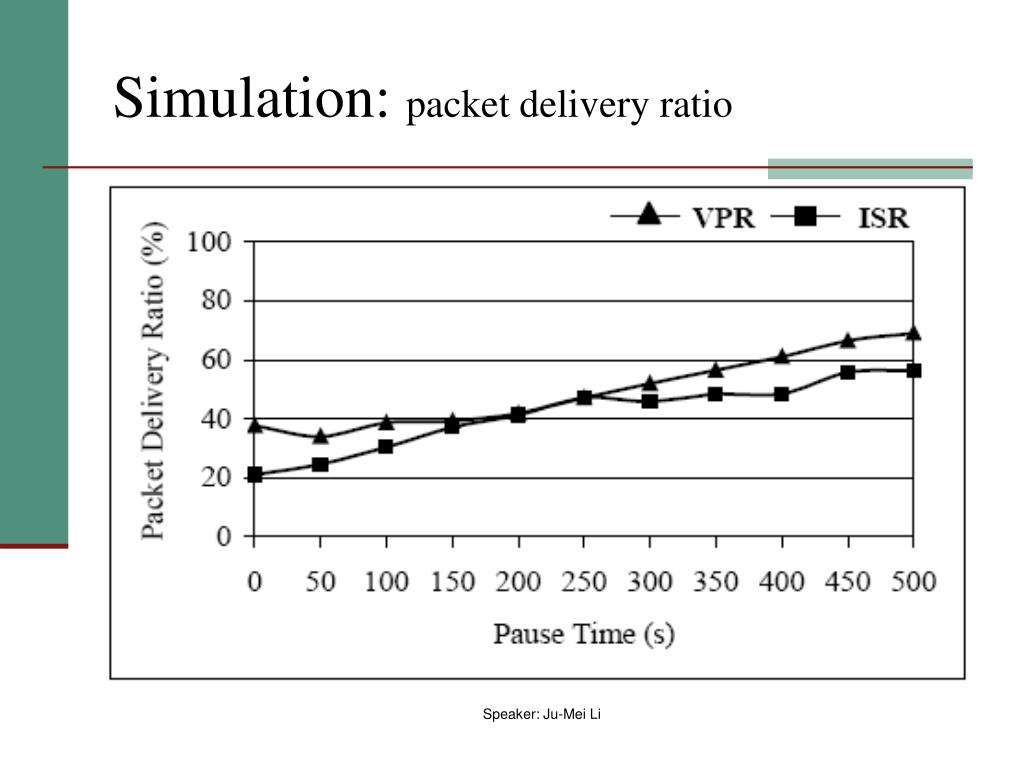

  19. Simulation: packet delivery ratio Speaker: Ju-Mei Li

  20. Simulation: overhead Speaker: Ju-Mei Li

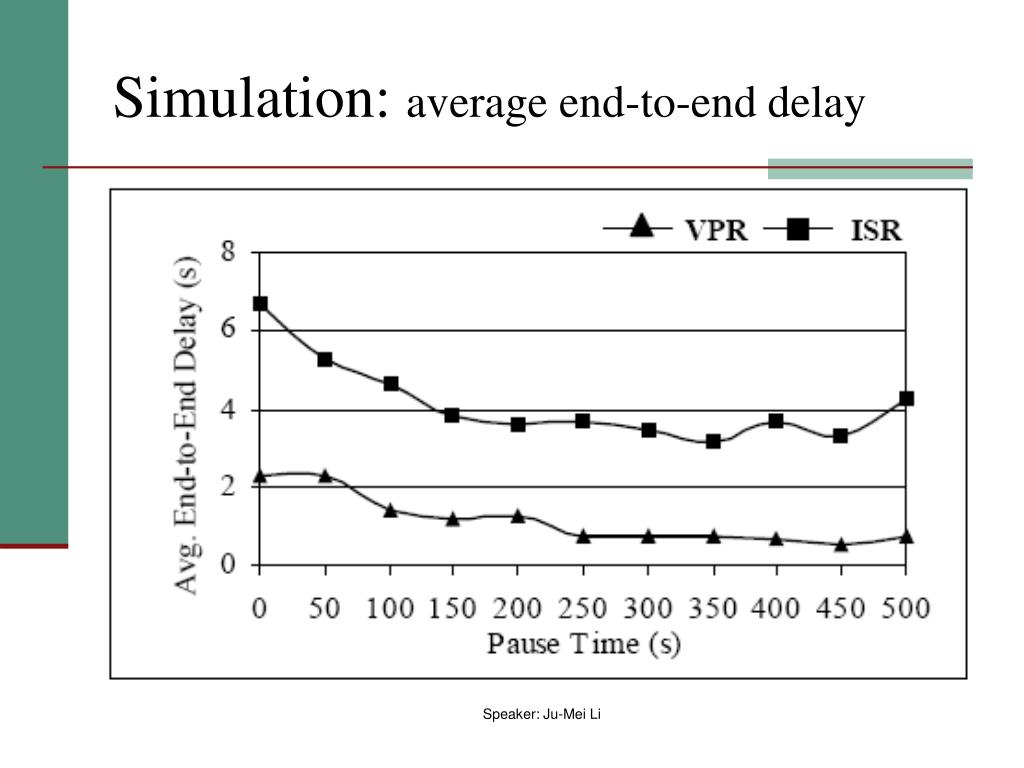

  21. Simulation: average end-to-end delay Speaker: Ju-Mei Li

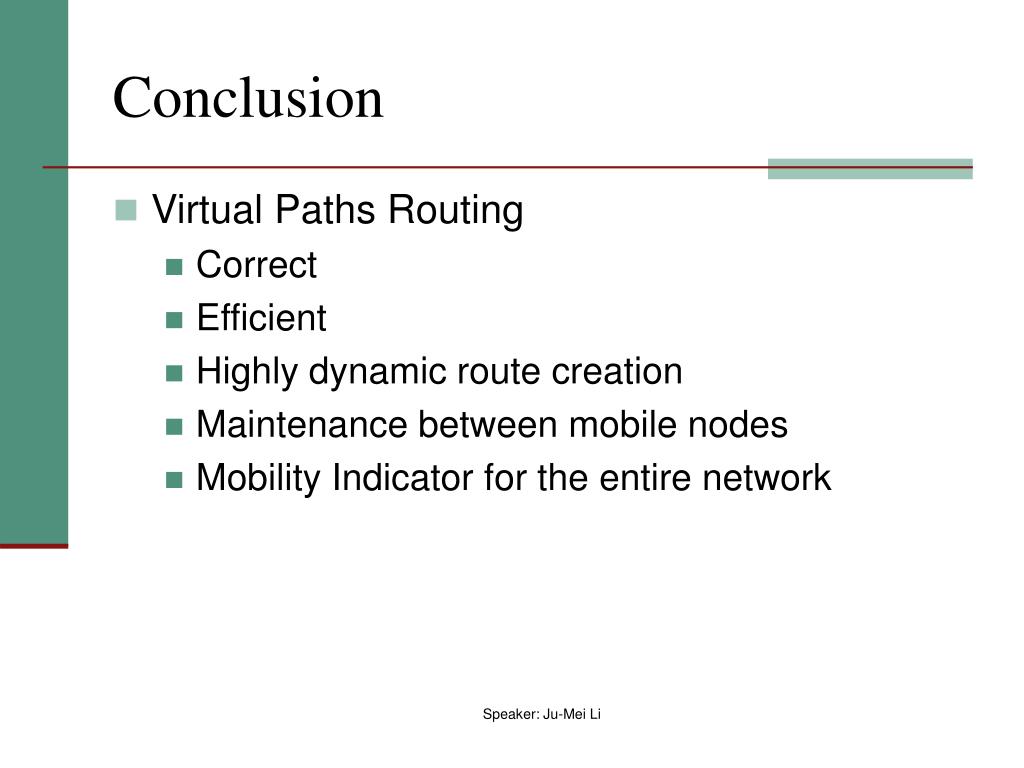

  22. Conclusion • Virtual Paths Routing • Correct • Efficient • Highly dynamic route creation • Maintenance between mobile nodes • Mobility Indicator for the entire network Speaker: Ju-Mei Li
