Information Theory and Pattern-based Data Compression

1. Information Theory and Pattern-based Data Compression José Galaviz Casas Facultad de Ciencias UNAM

2. Contents • Introduction, fundamental concepts. • Huffman codes and extensions of a source. • Pattern-based Data Compression (PbDC). • The problems for PbDC. • Trying to solve. Heuristics. • Conclusions and further research. Information Theory, J. Galaviz

3. Information source • Is a “thing” that produces infinite sequences of symbols in some finite alphabet . • The theoretical model proposed by Shannon is an ergodic Markov chain. • Markov chain: stochastic process where the state reached at the i-th time step depends on the n previous states, n denotes the order of the Markov chain. Information Theory, J. Galaviz

4. Ergodic source • A Markov chain is ergodic if the probability distribution over the set of states tends to be stable in the limit. If p(i,j) denotes the transition probability from state i to state j in an ergodic Markov chain, then p(i,j) tends to some limit that does not depend on the source state i. • Almost every sample is a representative sample. • There exists only one set of interconnected states. • No periodic states. Information Theory, J. Galaviz

5. Information • Let p(s) be the probability that symbol s will be produced by some information source S. • The information (in bits) of s is defined as: Information Theory, J. Galaviz

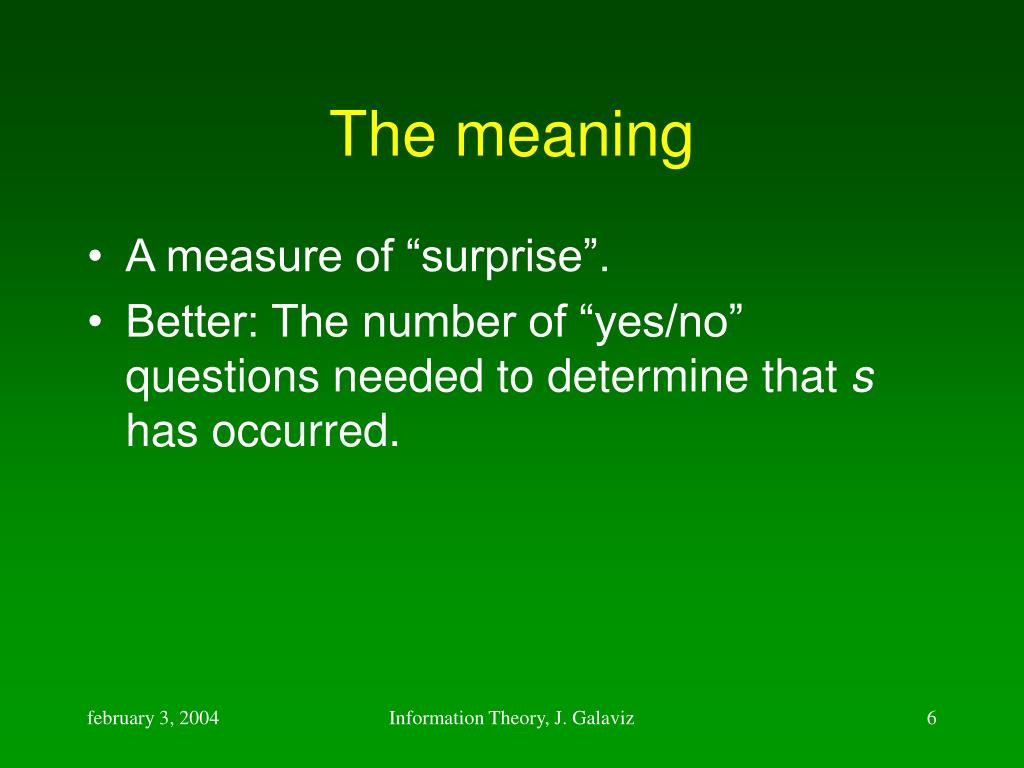

6. The meaning • A measure of “surprise”. • Better: The number of “yes/no” questions needed to determine that s has occurred. Information Theory, J. Galaviz

7. Entropy • Is the expected value of symbol information. • Important: Note that entropy is measured over the source. Probabilities are used, assuming infinite amount of data. Information Theory, J. Galaviz

8. Data Compression • Given a finite sample of data produced by an unkown information source (unknown in the sense that we doesn´t know the statistical model of such source) • To express the same information contained in the sample with less data. • Exactly the same: lossless. Almost the same: lossy. • We will focus in lossless data compression. Information Theory, J. Galaviz

9. Huffman encoding • Is based on a statistical model of the sample to be compressed. • The codeword length for some symbol is inversely related with its frequency. • Target: minimize the average codeword length (AveLen). Information Theory, J. Galaviz

10. Example • f(A) = 10 • f(B) = 15 • f(C) = 10 • f(D) = 15 • f(E) = 25 • f(F) = 40 Information Theory, J. Galaviz

11. Huffman codes • A = 000 • B = 100 • C = 001 • D = 101 • E = 01 • F = 11 • AveLen = 2.24 bits/word Vs. 3 bits Information Theory, J. Galaviz

12. Extensions of a source • Suppose a source S with alphabet ={A, B} • P(A) = 0.6875, P(B) = 0.3125 • Since there are only two symbols Huffman algorithm encodes every sample of such source using one bit per symbol in  (1 BPS). • Entropy: H(S) = 0.8960 Information Theory, J. Galaviz

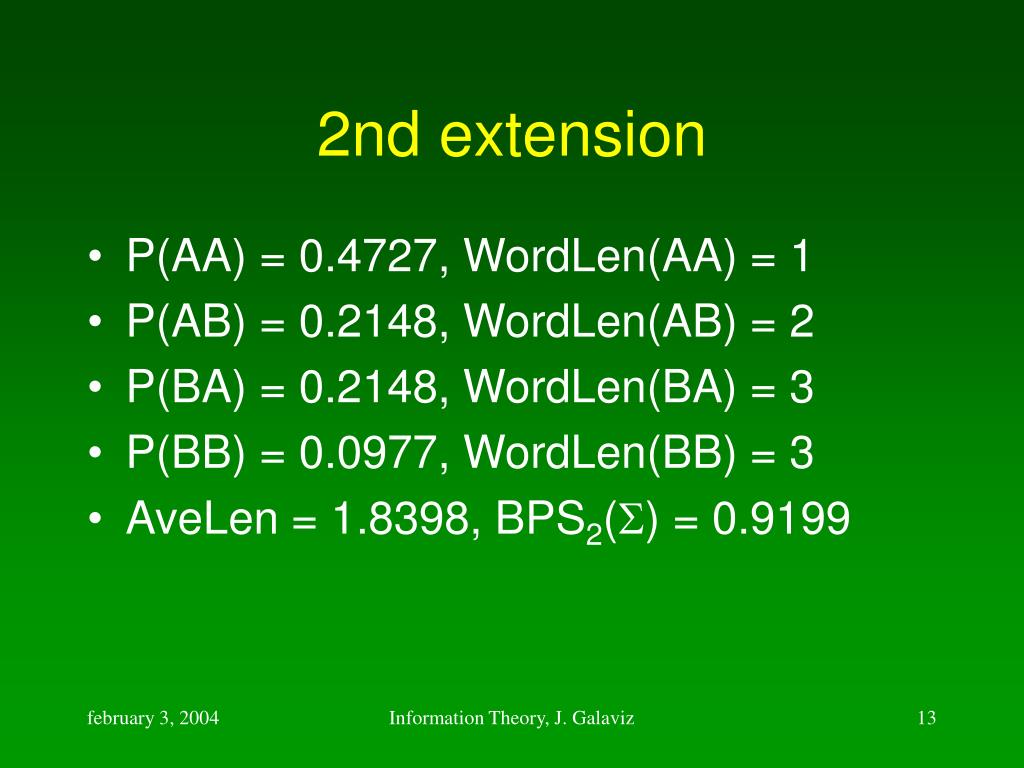

13. 2nd extension • P(AA) = 0.4727, WordLen(AA) = 1 • P(AB) = 0.2148, WordLen(AB) = 2 • P(BA) = 0.2148, WordLen(BA) = 3 • P(BB) = 0.0977, WordLen(BB) = 3 • AveLen = 1.8398, BPS2() = 0.9199 Information Theory, J. Galaviz

14. 3rd extension AveLen = 2.759, BPS3() = 0.9197 Information Theory, J. Galaviz

15. And so on... • 4th extension: • AveLen = 3.64138794 • BPS4() = 0.91034699 Information Theory, J. Galaviz

16. In practice • Suppose a sample of our previous source S: A A A B A A A A B A A B A A B B f(A) = 11 f(B) = 5 There are only two symbols, therefore Huffman assigns: A=0, B=1, 16 bits to express the sample. Information Theory, J. Galaviz

17. Thinking in extensions Information Theory, J. Galaviz

18. Longer strings are better • The 4-gram sample cannot be compressed since each of the 4 metasymbols (strings of 4 symbols) found, appear with the same frequency. • Let ´={ AAAA, AAAB, BAAB, AABB } be the alphabet of some information source S´ that produces the symbols in ´ equiprobably. • The sample could be produced by the maximum entropy source S´. Information Theory, J. Galaviz

19. Dictionary-based methods • Build a dictionary with frequent strings. • Each time a string in the dictionary appear in the sample, replace them with a dictionary reference, which are shorter. • Every frequent string is included only once (in the dictionary). Information Theory, J. Galaviz

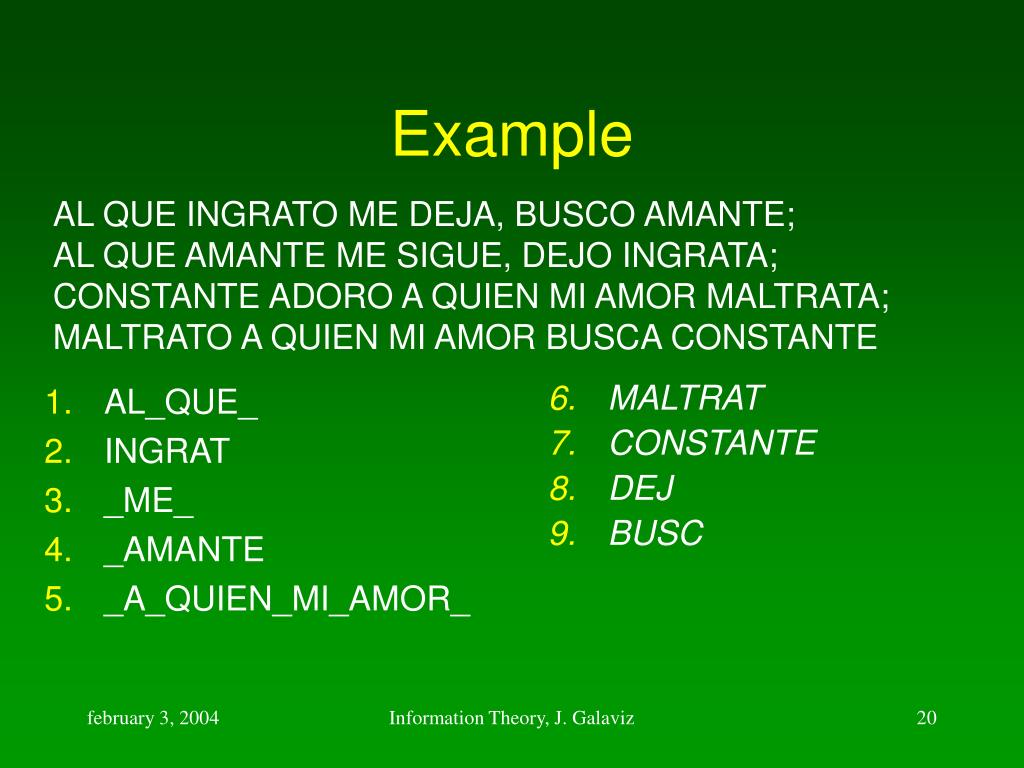

20. Example AL QUE INGRATO ME DEJA, BUSCO AMANTE; AL QUE AMANTE ME SIGUE, DEJO INGRATA; CONSTANTE ADORO A QUIEN MI AMOR MALTRATA; MALTRATO A QUIEN MI AMOR BUSCA CONSTANTE AL_QUE_ INGRAT _ME_ _AMANTE _A_QUIEN_MI_AMOR_ MALTRAT CONSTANTE DEJ BUSC Information Theory, J. Galaviz

21. Result 12O38A, 9O4; 143SIGUE, 8O 2A; 7 ADORO56A; 6O59A 7 Information Theory, J. Galaviz

22. Another posibility AL_QUE_INGRATO_ME_DEJA,_BUSCO_AMANTE;_ AL_QUE_AMANTE_ME_SIGUE,_DEJO_INGRATA;_ CONSTANTE_ADORO_A_QUIEN_MI_AMOR_MALTRATA;_ MALTRATO_A_QUIEN_MI_AMOR_BUSCA_CONSTANTE • Build a dictionary of frequent patterns, no necessarily of consecutive symbols (strings). Information Theory, J. Galaviz

23. The compression process • Given a finite sample of consecutive symbols produced by some source S whose statistical properties can only be estimated from its sample. • To find a set of frequent patterns such that the sample can be expressed briefly using references to these patterns. • Encode the sample using the set of patterns (dictionary), and encode the dictionary itself using some other method. Information Theory, J. Galaviz

24. Example Information Theory, J. Galaviz

25. Finding patterns, a naïve algorithm Information Theory, J. Galaviz

26. Algorithm complexity • Naïve algorithm is very expensive. • We need to find coincidence patterns, then coincidence patterns in the coincidence patterns previously found, then... • The number of intersections between coincidence patterns grows exponentially on the number of patterns found (which is O(sample size) ). Information Theory, J. Galaviz

27. There are better algorithms but... • Not very much better. • The best reported algorithms have complexity O ( n 2 n ). [Vilo 02] • The patterns we are looking for, are type P3: “Patterns with wildcards of unrestricted length” Information Theory, J. Galaviz

28. The algorithms for pattern discovery • Are based in well known string matching techniques supported by special data structure called “suffix tree”. • There are several algorithms for suffix tree construction (n stands for the string size): • The worst is O ( n 3 ) • The two best methods (Wiener and Ukkonen) are linear on n, and builds the tree “on the fly”. Information Theory, J. Galaviz

29. Suffix tree Suffix tree for the string ATCAGTGCAATGC Information Theory, J. Galaviz

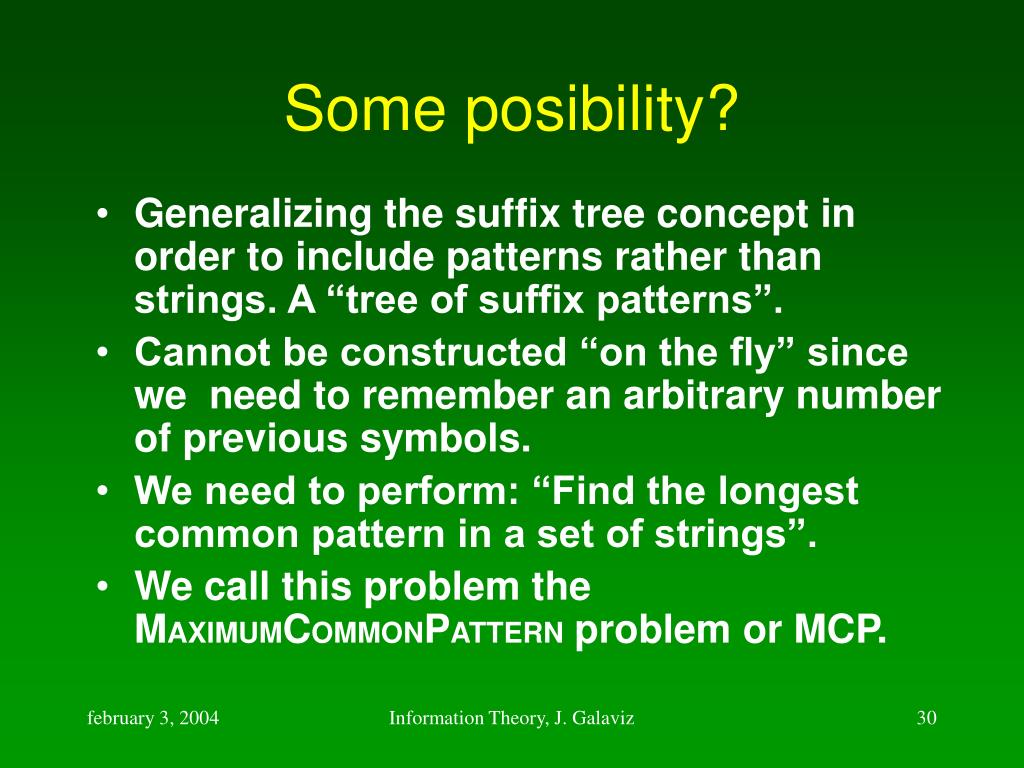

30. Some posibility? • Generalizing the suffix tree concept in order to include patterns rather than strings. A “tree of suffix patterns”. • Cannot be constructed “on the fly” since we need to remember an arbitrary number of previous symbols. • We need to perform: “Find the longest common pattern in a set of strings”. • We call this problem the MAXIMUMCOMMONPATTERN problem or MCP. Information Theory, J. Galaviz

31. MAXIMUMCOMMONPATTERN • We have recently proved that this problem is NP-Complete. That is: currently there is no deterministic polynomial time algorithm to solve it. If such algorithm would be found then all the other problems in this category (the upper bound of complexity) can also be solved in polynomial time and P=NP (the fundamental question in computability theory). Information Theory, J. Galaviz

32. Finding patterns(option 1) Information Theory, J. Galaviz

33. Finding patterns (option 2) Information Theory, J. Galaviz

34. Finding patterns (option 3) Information Theory, J. Galaviz

35. Several options • Option 1: 12 metasymbols • Option 2: 14 metasymbols • Option 3: 10 metasymbols • Option 3 gives shorter expression of sample, considering only the data in the sample, ignoring dictionary size. Information Theory, J. Galaviz

36. There is a right choice but... • The right choice is not easy to do. • There is a trade-off between pattern size and pattern frequency. • The inclusion of some pattern in dictionary must be amortized by its use. Information Theory, J. Galaviz

37. How much difficult is the right choice • Suppose we have a set of frequent patterns P. Each pattern have its frequency and its size. • We need to chose the subset P´ P that maximizes the compression ratio: Information Theory, J. Galaviz

38. Where |M| is the original sample size, and T(P´) is the sample size after compression is done and dictionary is included. • T(P´) = D(P´) + E(P´) Information Theory, J. Galaviz

39. OPTIMALPATTERNSUBSET • We call the selection of best subset of patterns the OPTIMALPATTERNSUBSET problem. • We have proved that this problem is also NP-Complete. Information Theory, J. Galaviz

40. But here we have some resources • We can approximate the best subset by an heuristic algorithm. • We select the patterns with greatest coverage (number of symbols in the sample that are in the pattern appearances). • Then we iteratively refine the solution with hillclimbers with local changes. Information Theory, J. Galaviz

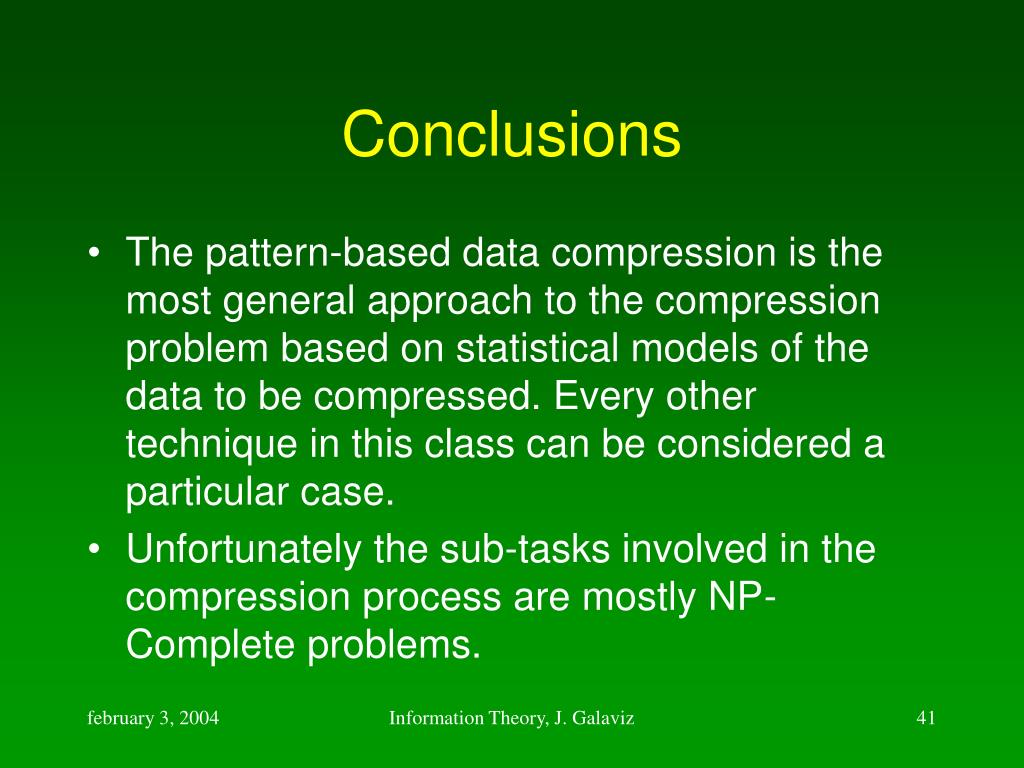

41. Conclusions • The pattern-based data compression is the most general approach to the compression problem based on statistical models of the data to be compressed. Every other technique in this class can be considered a particular case. • Unfortunately the sub-tasks involved in the compression process are mostly NP-Complete problems. Information Theory, J. Galaviz

42. Further research • We need to achieve approximation algorithms or heuristics in order to solve the pattern discovery problem efficiently. Information Theory, J. Galaviz
