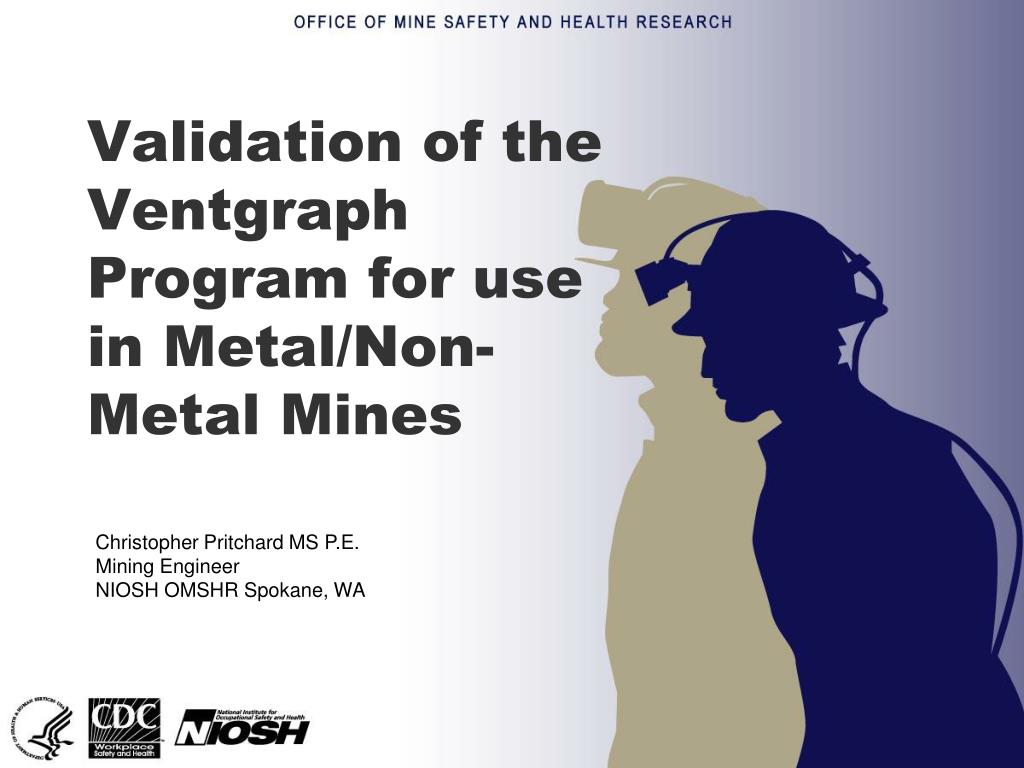

  1. Validation of the Ventgraph Program for use in Metal/Non-Metal Mines Christopher Pritchard MS P.E. Mining Engineer NIOSH OMSHR Spokane, WA

  2. Summary • Introduction • Description of 1972 Sunshine Mine and Fire Event • Recreating the ventilation network • Modeling network and mine fire • Model verification • “What If” Scenarios • Summary and Conclusions

  3. Introduction • NIOSH Research Plan - 2008 • Reduce incidents and severity of fires in M/NM Mines • Increase understanding of products of combustion • Improve ventilation and escape planning • Investigate and choose ventilation software • Verify by using actual M/NM mine fire incident

  4. Ventilation Software Requirements • Mine Fire simulation capabilities • Real time • Non-compressible flow • NVP • Graphics • Choice: Ventgraph for Windows

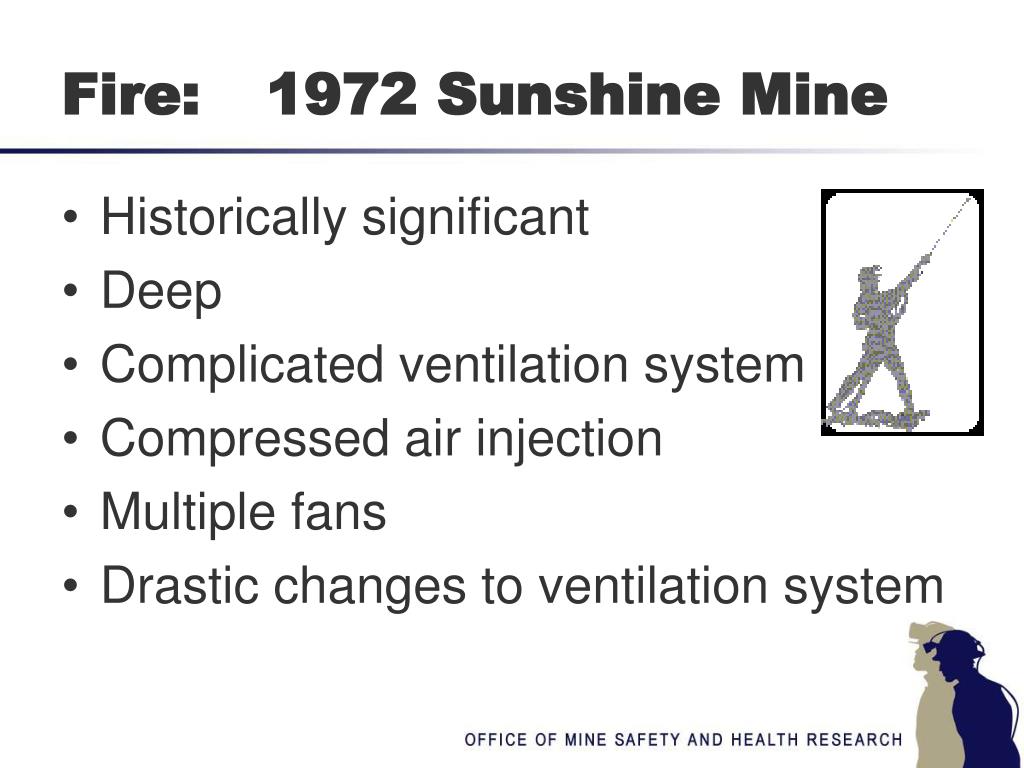

  5. Fire: 1972 Sunshine Mine • Historically significant • Deep • Complicated ventilation system • Compressed air injection • Multiple fans • Drastic changes to ventilation system

  6. Previous Sunshine Work: • 1977 USBM Report: Hall/Ramani/Greuer • Network model only • Semi NVP • No fire • No contaminants • No graphics

  7. Sunshine Ventilation System

  8. 1972 Fire Event • 11:40 am Smoke detected 3700L @ No. 10 Shaft • 12:00 Mine evacuation begun by 3100L route, surface notified, 3700L fire door closed at Jewell Shaft • 12:45 last survivors hoisted to 3100L @10 SH, 1:00 last hoist run. • 1:15 No. 12 SH cover removed

  9. Fire and Evacuation Sequence

  10. Sunshine Pictures Jewell Shaft entrance Workings

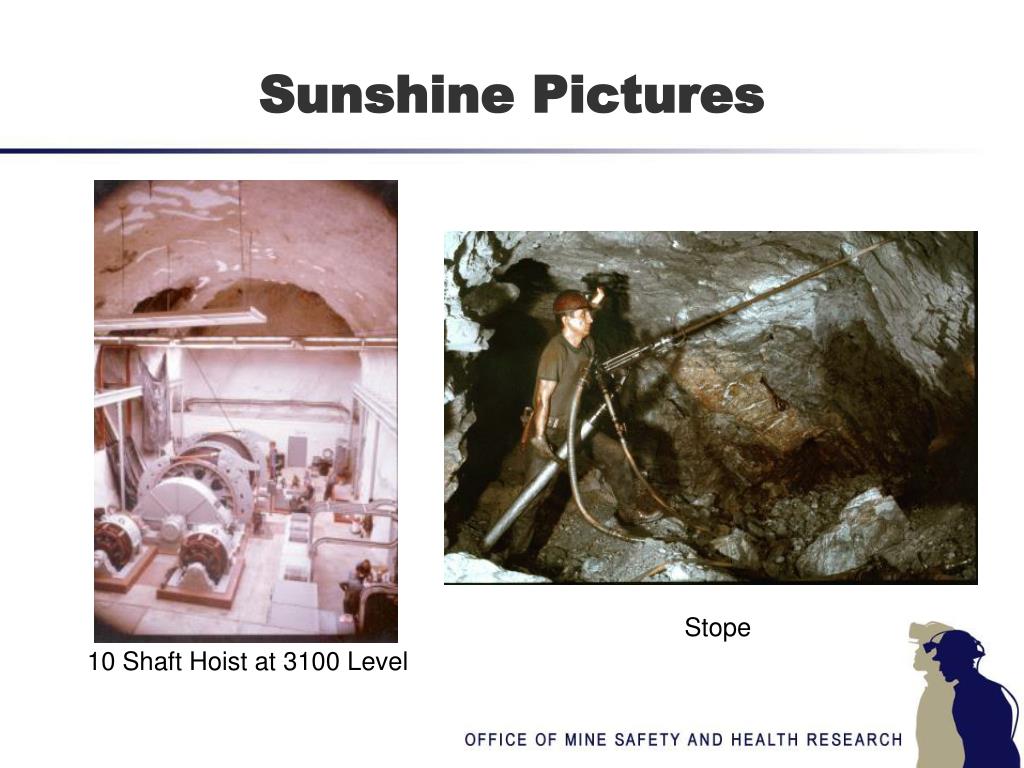

  11. Sunshine Pictures Stope 10 Shaft Hoist at 3100 Level

  12. Sunshine Pictures No. 8 Shop area – smoke detected “Blue Room” 3700 Level

  13. Sunshine Pictures 3700 Level 910R fire site Fire Site in raise

  14. Modeling Process • Airway data from 1977 USBM report • Scale airways from JW Andrews Sunshine maps • Temperature data from USBM vent survey – Fall, 1971 • Barometric data from mine elevations

  15. Modeling Development • Initial run – 1.6% accuracy with USBM • Fire location – 910 Raise between 3100 and 3700 level • Bulkhead failure sequence • Problem with 3400 booster fan, redo with fan curve, 3.3% accuracy

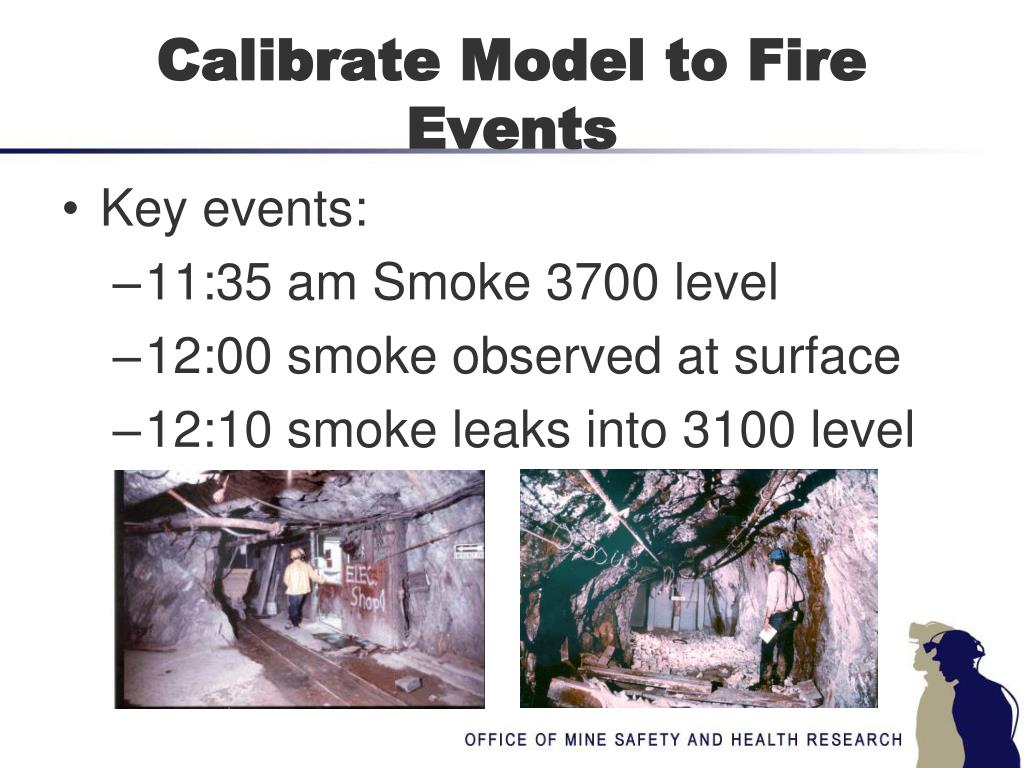

  16. Calibrate Model to Fire Events • Key events: • 11:35 am Smoke 3700 level • 12:00 smoke observed at surface • 12:10 smoke leaks into 3100 level

  17. Fire Model Events • Fire sequence model: • 11:05 am wood fire 910R, 65m long, ramp up time 5 minutes to Level 10 • 11:10 fire to 100m, 910R Bulkhead partially failed, 08 Shop door open • 11:15 fire to 200m, 910R BH further failure • 11:20 fire constant, 910R BH wide open

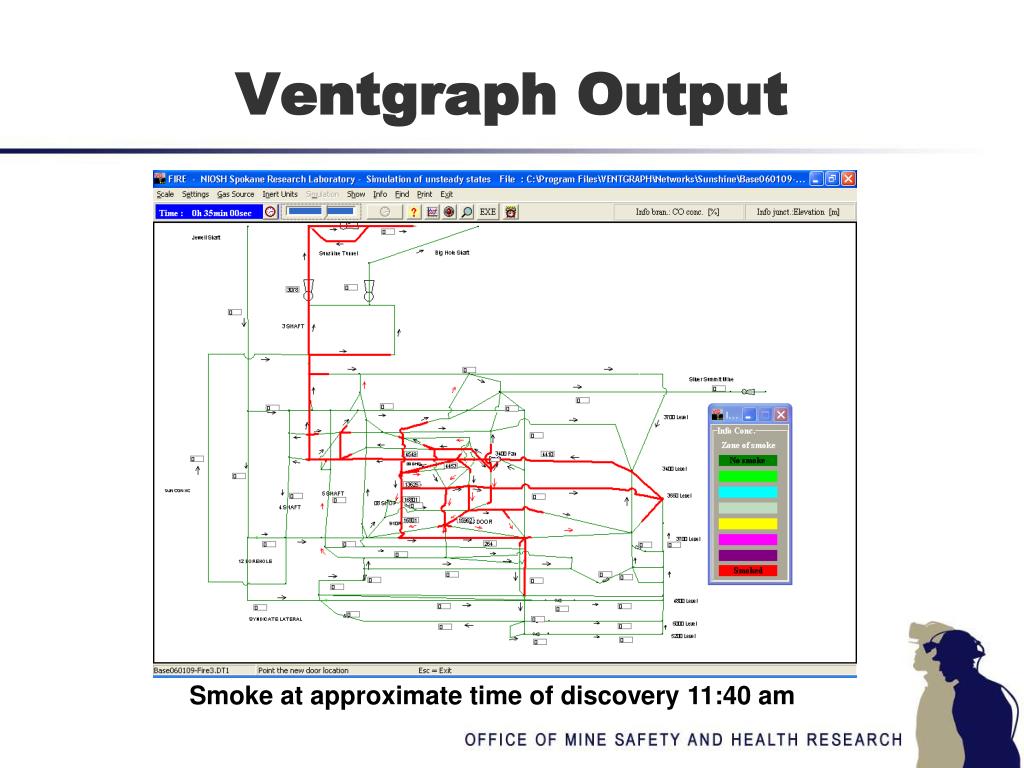

  18. Ventgraph Output Smoke at approximate time of discovery 11:40 am

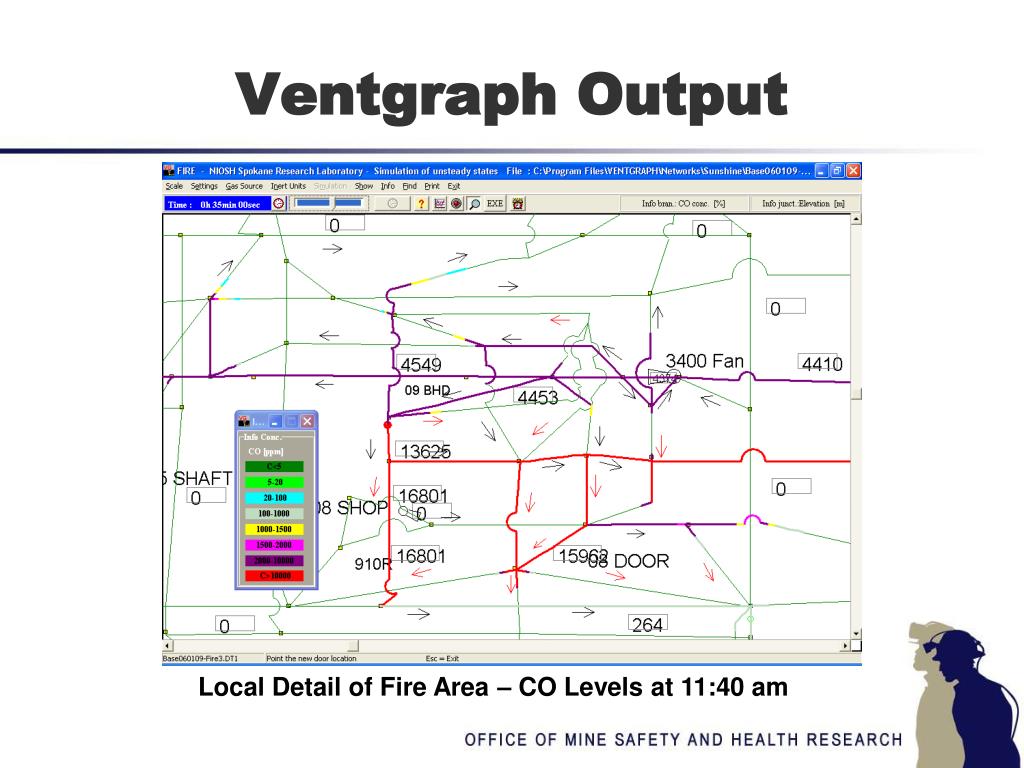

  19. Ventgraph Output Local Detail of Fire Area – CO Levels at 11:40 am

  20. Verification • Model - good correlation to observed smoke arrival times • CO levels correlate well to escaping miner behavior • Results of model give confidence to analyzing alternatives • Run “What-If” Scenarios

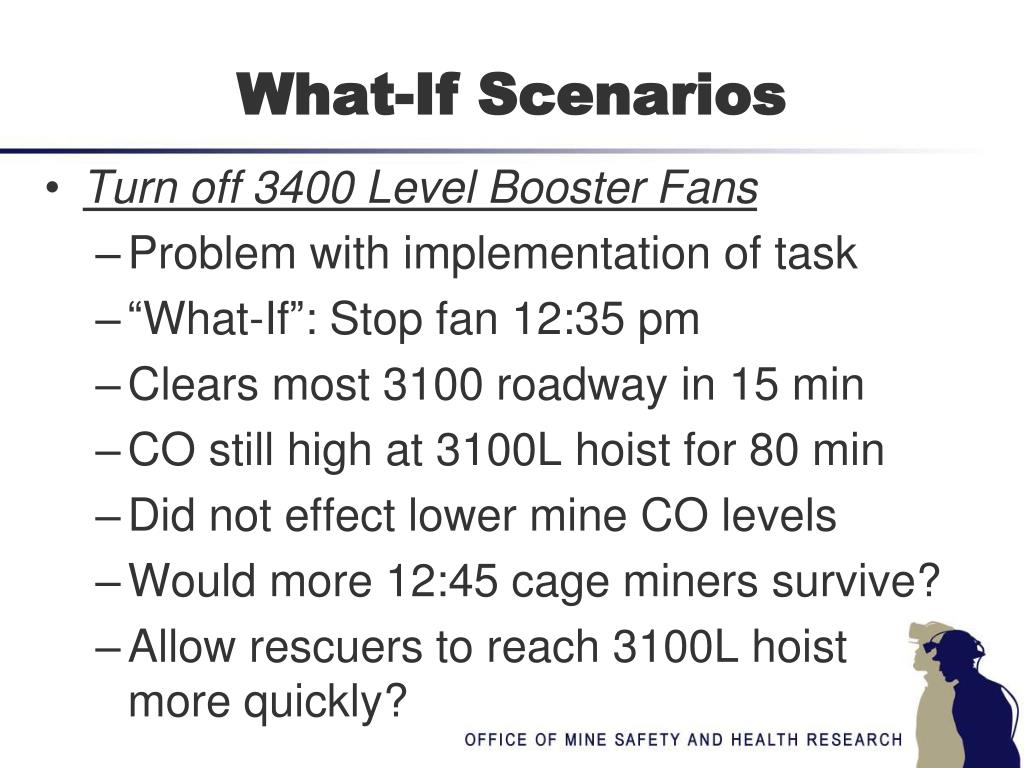

  21. What-If Scenarios • Turn off 3400 Level Booster Fans • Problem with implementation of task • “What-If”: Stop fan 12:35 pm • Clears most 3100 roadway in 15 min • CO still high at 3100L hoist for 80 min • Did not effect lower mine CO levels • Would more 12:45 cage miners survive? • Allow rescuers to reach 3100L hoist more quickly?

  22. What-If Scenarios • Jewell Fire Door Closure Sequence • Supervisors underground made best decision – close 3700L door. • Close 3100L door – evacuating miners perish, lower levels may survive longer • Best option - leave both doors open and shut down 3400L booster fans

  23. What-If Scenarios • Opening No. 12 Shaft cover earlier • Slight improvement in airflow to 4800L: 0.9 – 2.1 m3/s • Essentially no difference to any other area of the mine

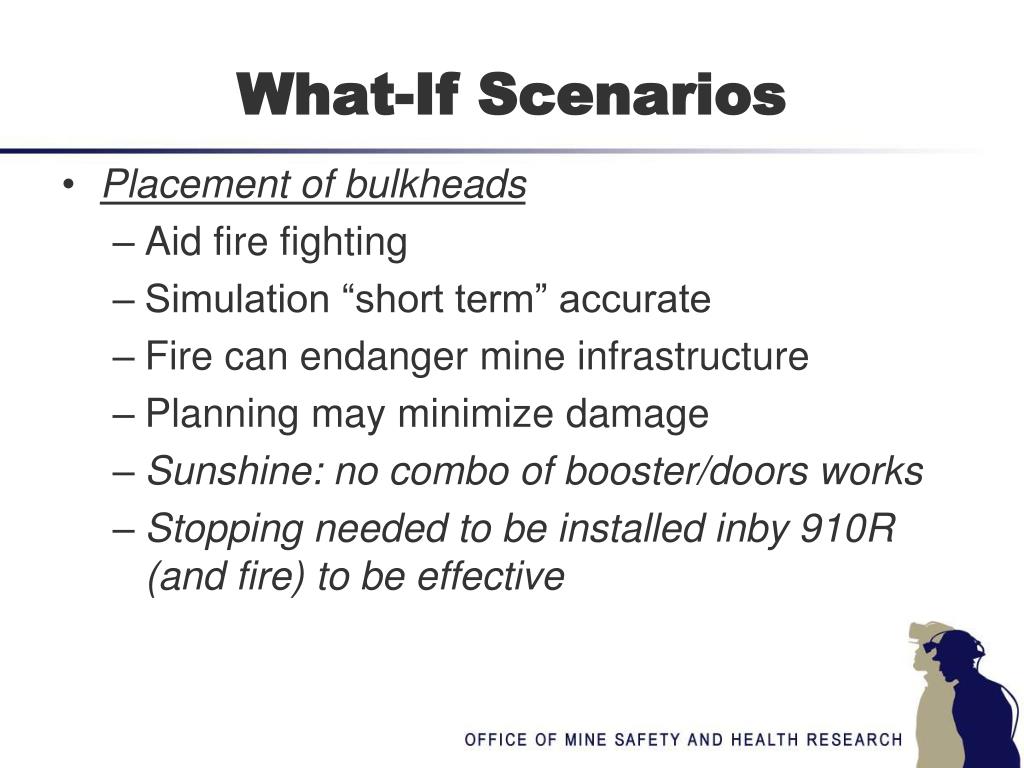

  24. What-If Scenarios • Placement of bulkheads • Aid fire fighting • Simulation “short term” accurate • Fire can endanger mine infrastructure • Planning may minimize damage • Sunshine: no combo of booster/doors works • Stopping needed to be installed inby 910R (and fire) to be effective

  25. Summary/Conclusions • Ventgraph validated in Sunshine Scenario • NVP • Multiple fans • Leakage • Recirculation • CO levels • Issues/Problems: • Ventgraph fire “Intensity Levels” • Booster fan flow deviation w/USBM model

  26. Summary/Conclusions • 3400 Level booster fan decision • Contributed to 1977 MSHA ACT • Valuable modeling/training tool • Use before and during event Survivors Tom Wilkinson and Ron Flory

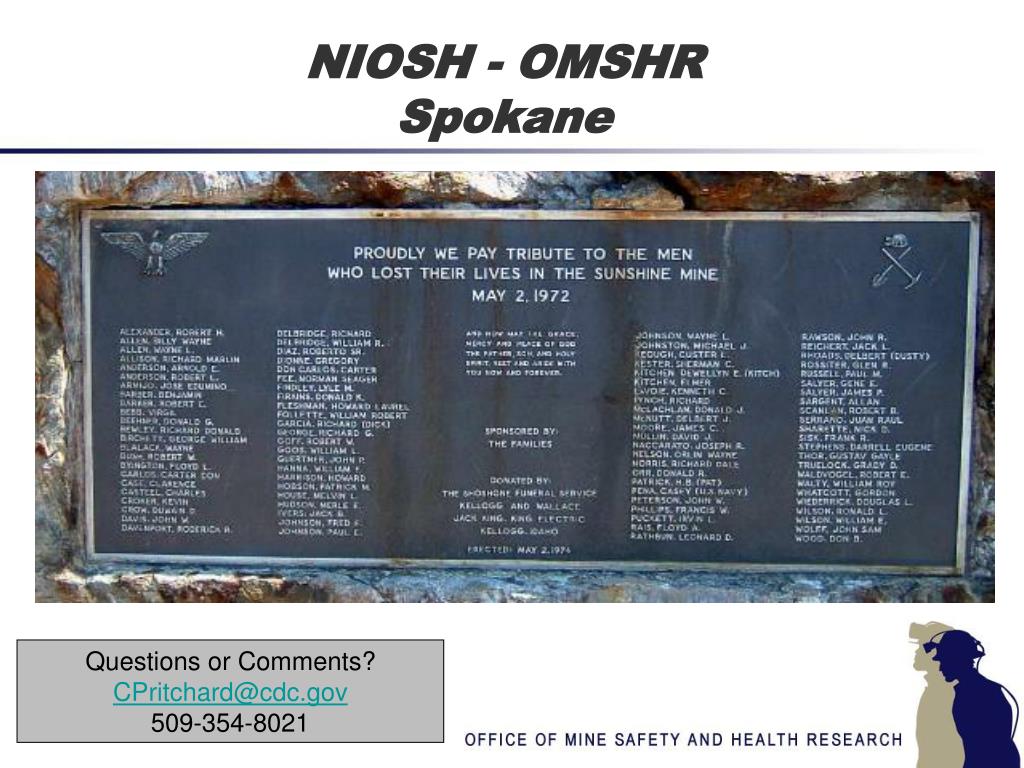

  27. NIOSH - OMSHRSpokane Questions or Comments? CPritchard@cdc.gov 509-354-8021
