CS5234 Combinatorial and Graph Algorithms

CS5234Combinatorial and Graph Algorithms Welcome!

Problem Sets • Programming Assignment • Exams Administrative

CS5234 Overview • Problem set 1 due PS1: Hand it in now! • Problem set 2 released tonight PS2: Submit next week • IVLE (optional, electronic submission) Soon: Once registration completes…

CS5234 Overview • Problem set grading Distributed grading scheme: Once registration completes, there will be an IVLE survey where you choose a week. Grading supervised (and verified) by the TA.

CS5234 Overview • How to draw pictures? By hand: Either submit hardcopy, or scan, or take a picture with your phone! Or use a tablet / iPad… Digitally: 1. xfig (ugh) 2. OmniGraffle (mac) 3. Powerpoint (hmmm) 4. ???

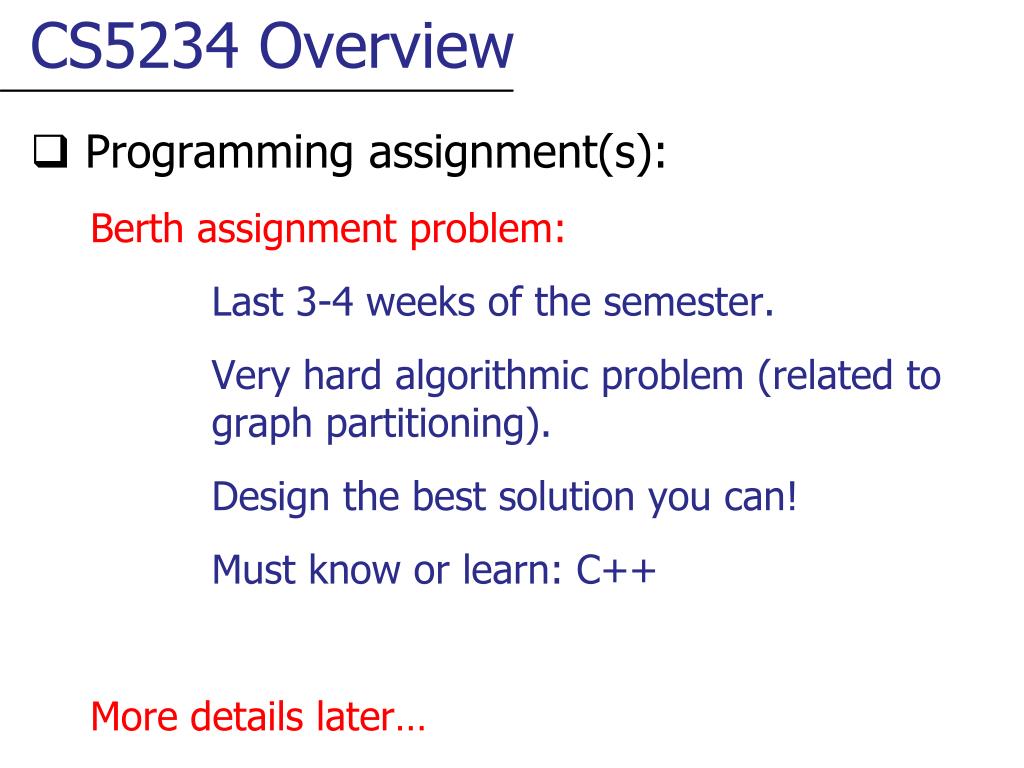

CS5234 Overview • Programming assignment(s): Berth assignment problem: Last 3-4 weeks of the semester. Very hard algorithmic problem (related to graph partitioning). Design the best solution you can! Must know or learn: C++ More details later…

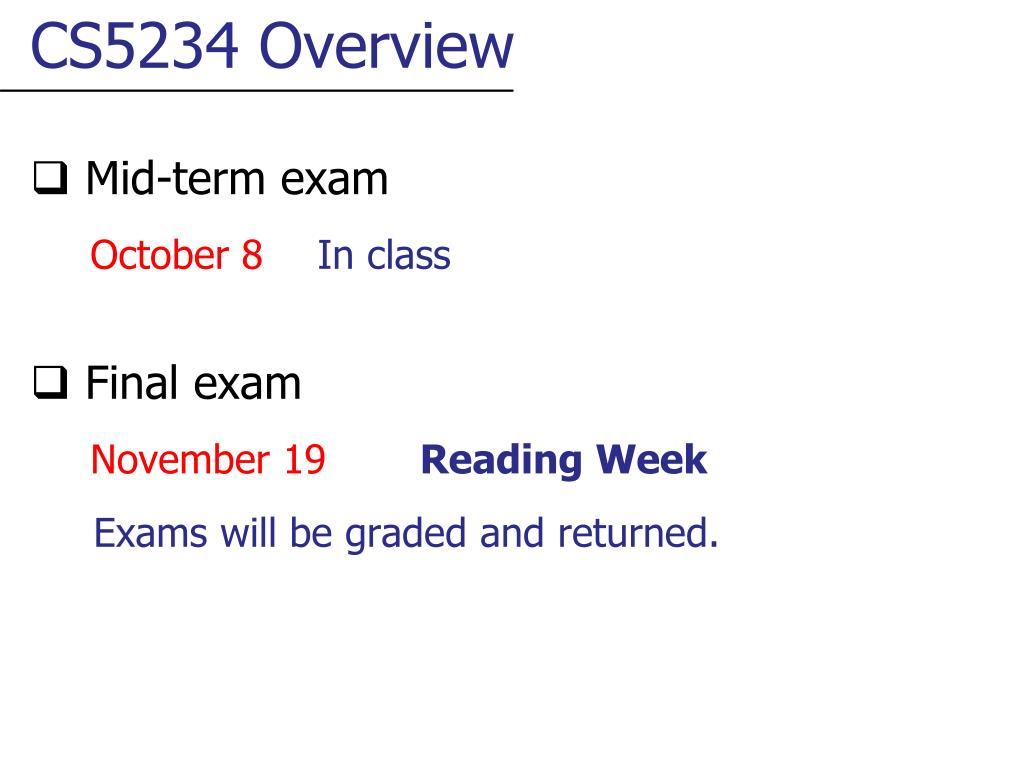

CS5234 Overview • Mid-term exam October 8 In class • Final exam November 19Reading Week Exams will be graded and returned.

Vertex Cover Quick Review

Vertex Cover • Definition: Given: graph G = (V,E) Find: smallest cover C ⊆ V such that every edge e ∈ E is covered by some node v ∈ V. • Challenge: NP-complete: No polynomial time algorithm unless P = NP.

Vertex Cover Example: (Suboptimal) cover (size 9)

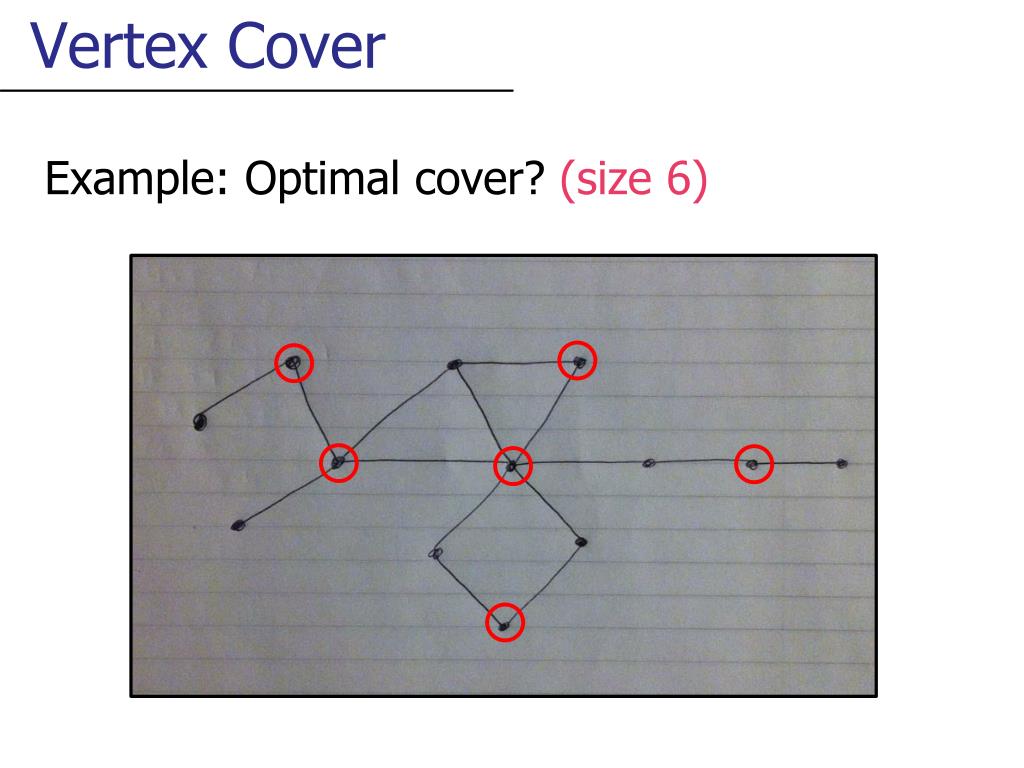

Vertex Cover Example: Optimal cover? (size 6)

Vertex Cover • Greedy approximation algorithm: repeat: until every edge is covered 1. Let e = (u,v) be an uncovered edge. 2. Add u and v to the cover. • Details: Graph representation: Sorted adjacency list…

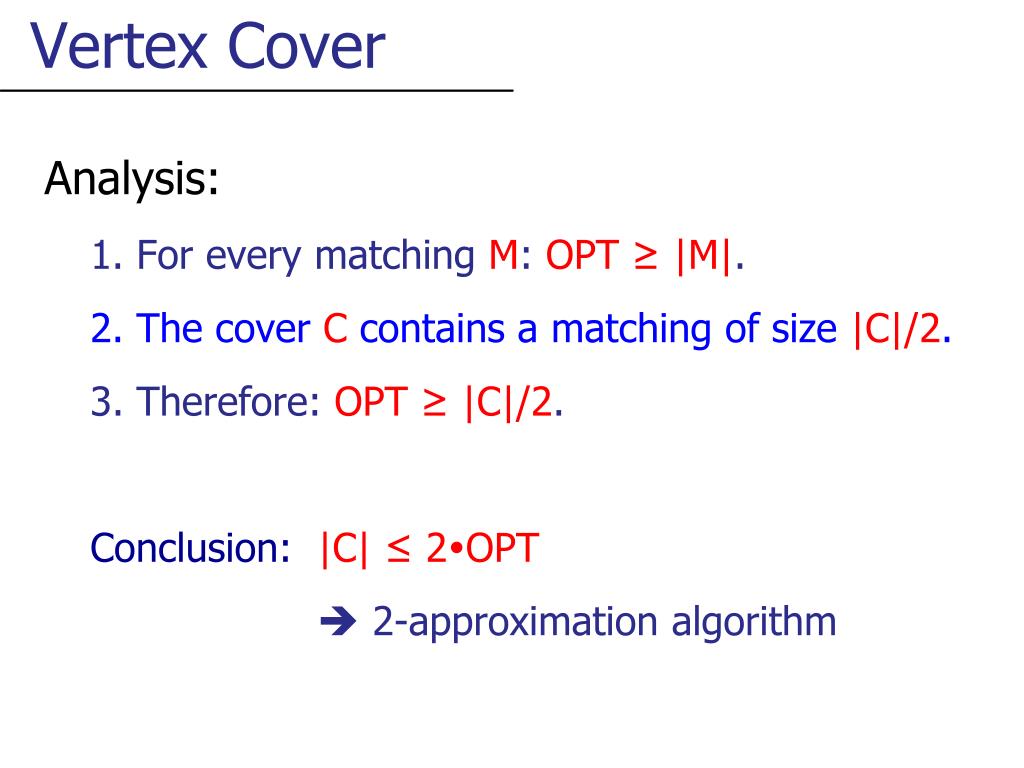

Vertex Cover Analysis: 1. For every matching M: OPT ≥ |M|. 2. The cover C contains a matching of size |C|/2. 3. Therefore: OPT ≥ |C|/2. Conclusion:|C| ≤ 2OPT  2-approximation algorithm

Vertex Cover (Review) • Set Cover (Review + Analysis) • Steiner Trees Today’s Plan

Set Cover • Definition: Given: set X subsets S1, S2, …, Smwhere Sj⊆ X Find: smallest collection I ⊆ {1, …, m} such that: • Challenge: NP-complete: No polynomial time algorithm unless P = NP.

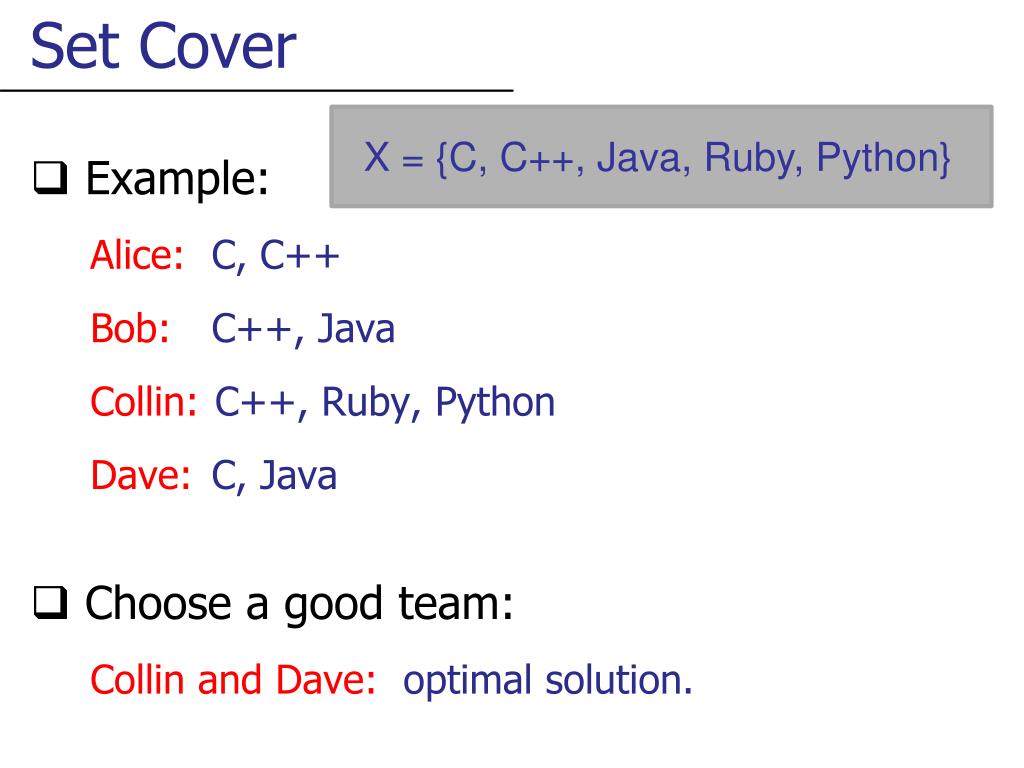

Set Cover X = {C, C++, Java, Ruby, Python} • Example: Alice: C, C++ Bob:C++, Java Collin:C++, Ruby, Python Dave:C, Java • Choose a good team: Collin and Dave: optimal solution.

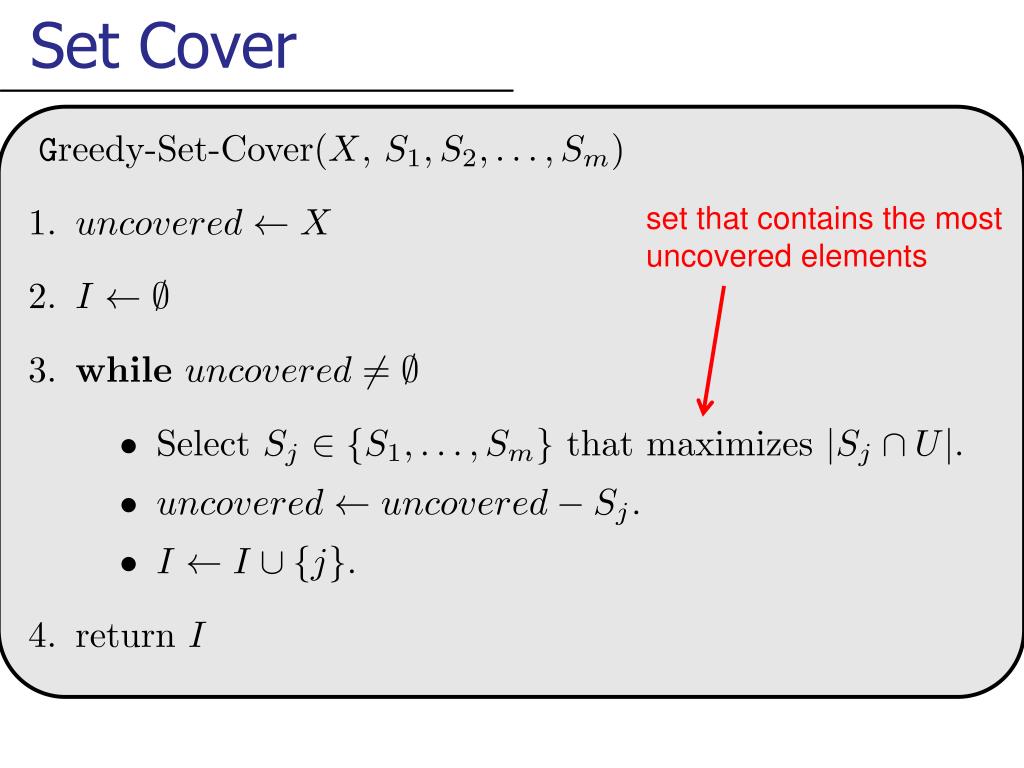

Set Cover set that contains the most uncovered elements

Set Cover Example: 1. Choose S2.

Set Cover Example: Choose S2. Choose S3.

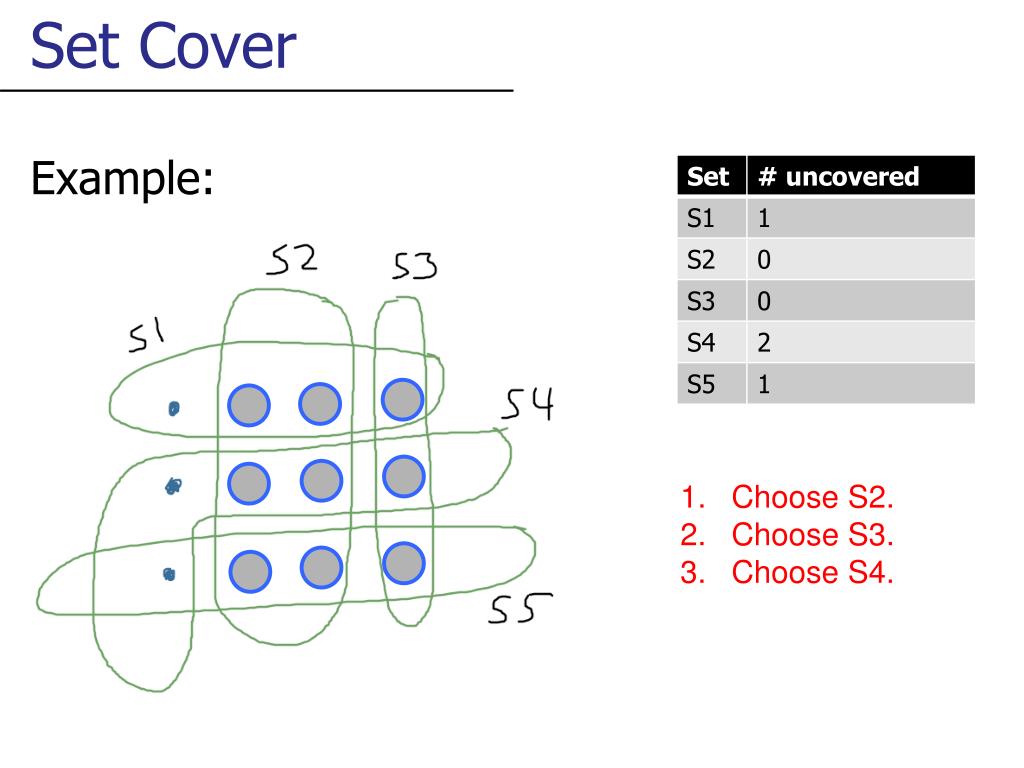

Set Cover Example: Choose S2. Choose S3. Choose S4.

Set Cover Example: Choose S2. Choose S3. Choose S4. Choose S1

Set Cover Example: Output: S1, S2, S3, S4 OPT: S1, S4, S5

Set Cover To get a good approximation, show a lower bound on OPT. • “OPT has to be AT LEAST this large.” • E.g., “OPT ≥ |M|”

Set Cover Example: Note: 12 elements ≤ 6 elements per set  OPT ≥ 2

Set Cover Example: Note: 6 uncovered elements ≤ 3 elements per set  OPT ≥ 2

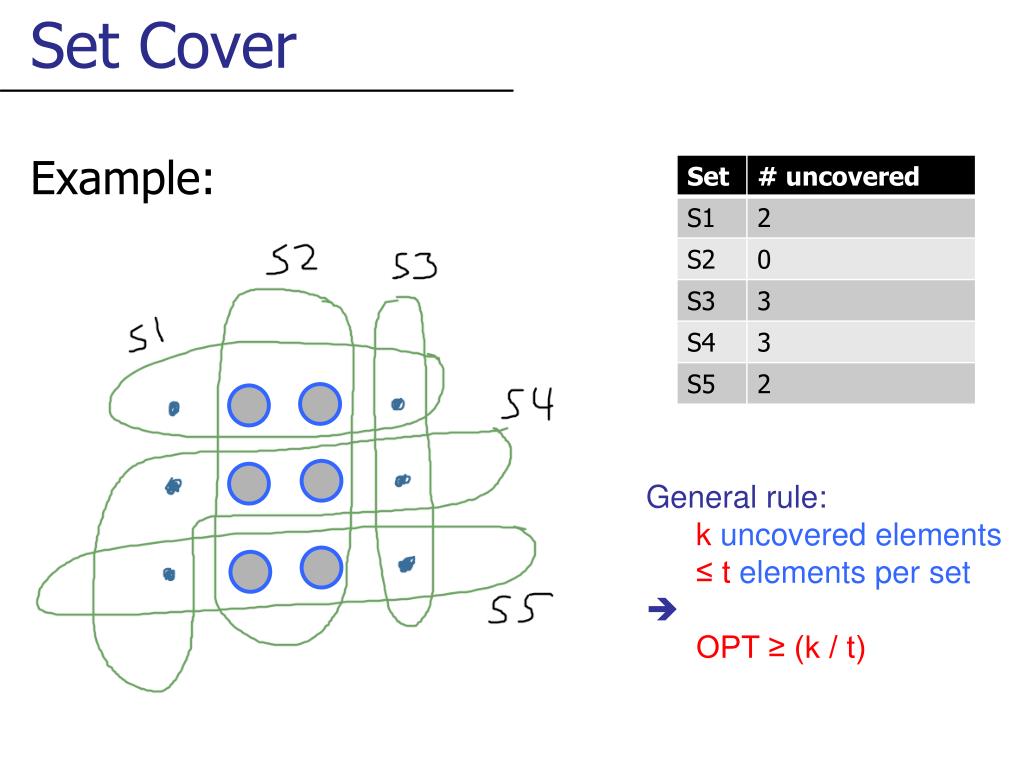

Set Cover Example: General rule: k uncovered elements ≤ t elements per set  OPT ≥ (k / t)

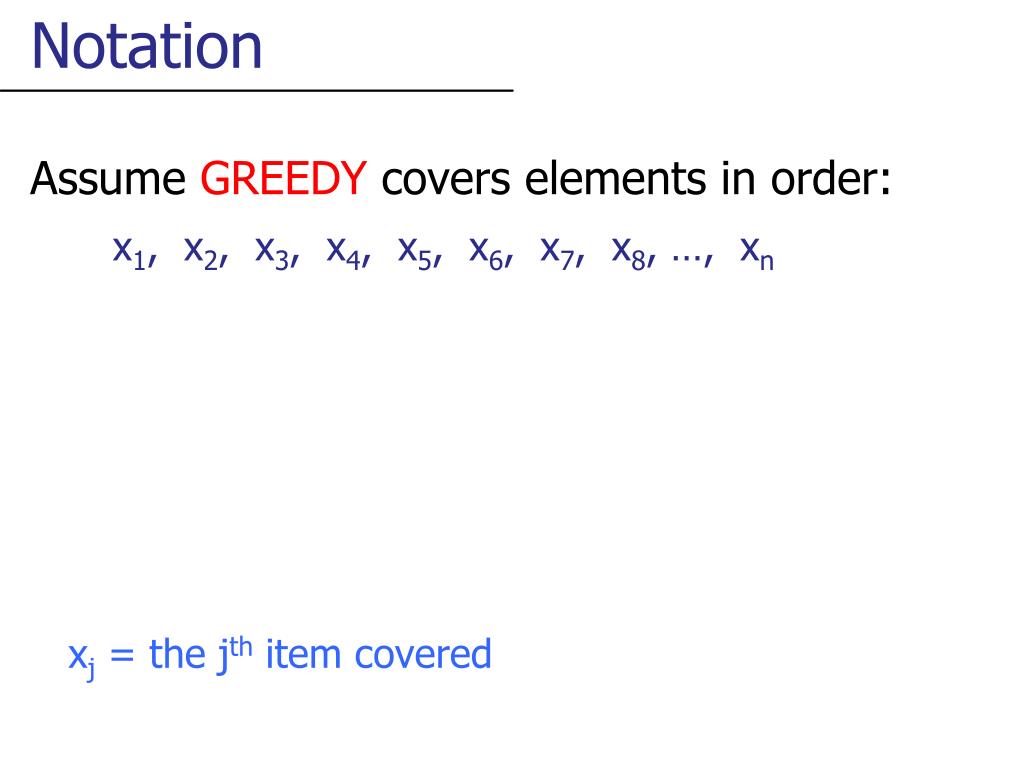

Notation Assume GREEDY covers elements in order: x1, x2, x3, x4, x5, x6, x7, x8, …, xn xj= the jth item covered

Notation Assume GREEDY covers elements in order: x1, x2, x3, x4, x5, x6, x7, x8, …, xn S4 covers 1 new item S3 covers 3 items S1 covers 2 new items S6 covers 2 new items

Notation Assume GREEDY covers elements in order: x1, x2, x3, x4, x5, x6, x7, x8, …, xn 2 2 1 3

Notation Assume GREEDY covers elements in order: x1, x2, x3, x4, x5, x6, x7, x8, …, xn c1, c2, c3, c4, c5, c6, c7, c8, …, cn 3, 3, 3, 2, 2, 2, 2, 1, …, cj = number of items covered in same step as xj 2 2 1 3

Notation Assume GREEDY covers elements in order: x1, x2, x3, x4, x5, x6, x7, x8, …, xn • cost(x1) = 1/3 • cost(x2) = 1/3 • cost(x3) = 1/3 • cost(x4) = 1/2 • cost(x5) = 1/2 • … cost(xj) = 1/cj= amount payed to cover xj 2 2 1 3

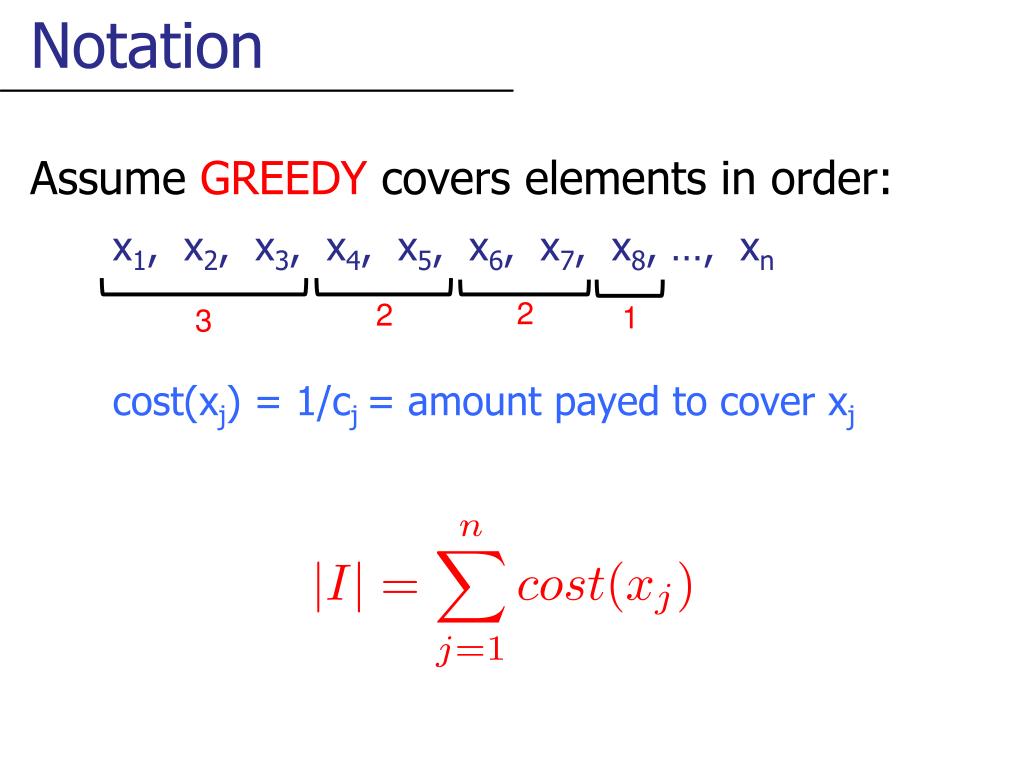

Notation Assume GREEDY covers elements in order: x1, x2, x3, x4, x5, x6, x7, x8, …, xn cost(xj) = 1/cj= amount payed to cover xj 2 2 1 3

Set Cover Example: Note: 6 uncovered elements ≤ 3 elements per set  OPT ≥ 2

Analysis Assume (x1, x2, …, xj-1) are covered: • How does OPT cover (xj, xj+1, …, xn)?

Analysis Assume (x1, x2, …, xj-1) are covered: • How does OPT cover (xj, xj+1, …, xn)? Fact: No set covers more than c(xj) elements in the set (xj, xj+1, …, xn). Why? If it did, GREEDY would have chosen it! (Tip: use the fact that algorithm is GREEDY.)

Analysis Assume (x1, x2, …, xj-1) are covered: • How does OPT cover (xj, xj+1, …, xn)? As before: n – j + 1 uncovered elements ≤ c(xj) elements per set  OPT ≥ (n – j + 1) / c(xj) = (n – j + 1)cost(xj)

Analysis Assume (x1, x2, …, xj-1) are covered: • How does OPT cover (xj, xj+1, …, xn)? As before: n – j + 1 uncovered elements ≤ c(xj) elements per set  OPT ≥ (n – j + 1) / c(xj) = (n – j + 1)cost(xj)  cost(xj) ≤ OPT / (n – j + 1)

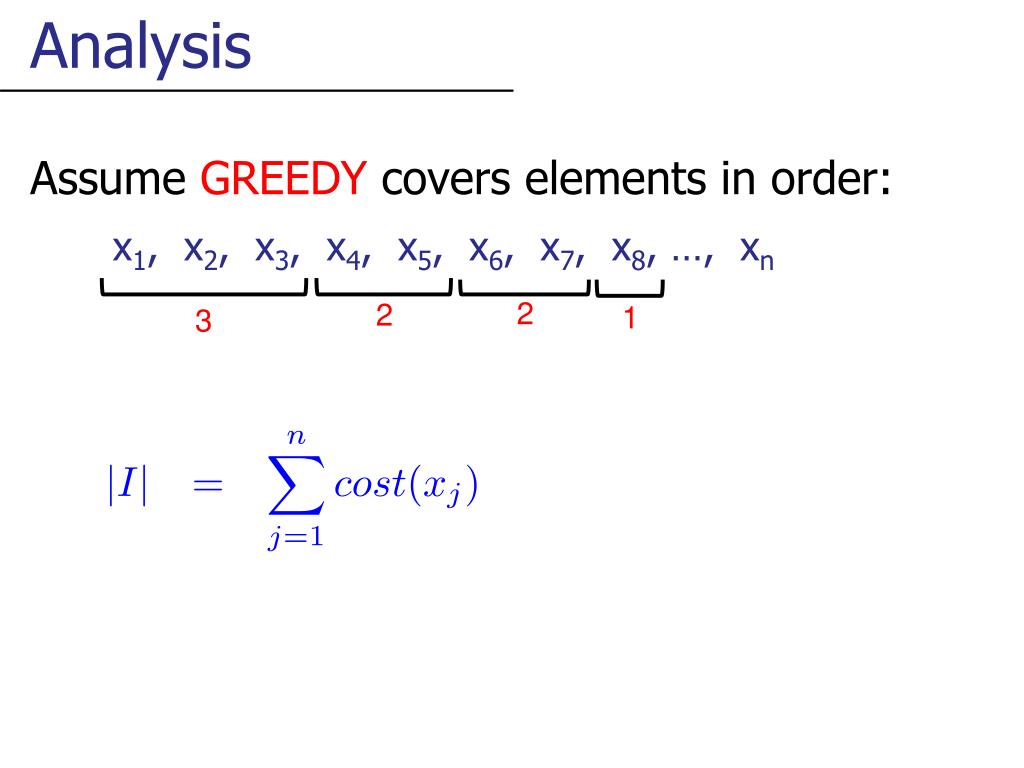

Analysis Assume GREEDY covers elements in order: x1, x2, x3, x4, x5, x6, x7, x8, …, xn 2 2 1 3

Algebra

Set Cover Conclusion: Theorem: Greedy-Set-Cover is an O(log n) approximation algorithm for set cover.

Vertex Cover (Review) • Set Cover (Review + Analysis) • Steiner Trees Today’s Plan

A Warm-Up Problem • Problem Statement: Given: 2d (Euclidean) map & set of points of interest Find: shortest set of roads connecting all points

A Warm-Up Problem • Algorithm: Compute: for every pair (u,v): distance(u,v) Build: complete graph G = (V, E) where w(u,v) = distance(u,v) Find: minimum spanning tree of G.

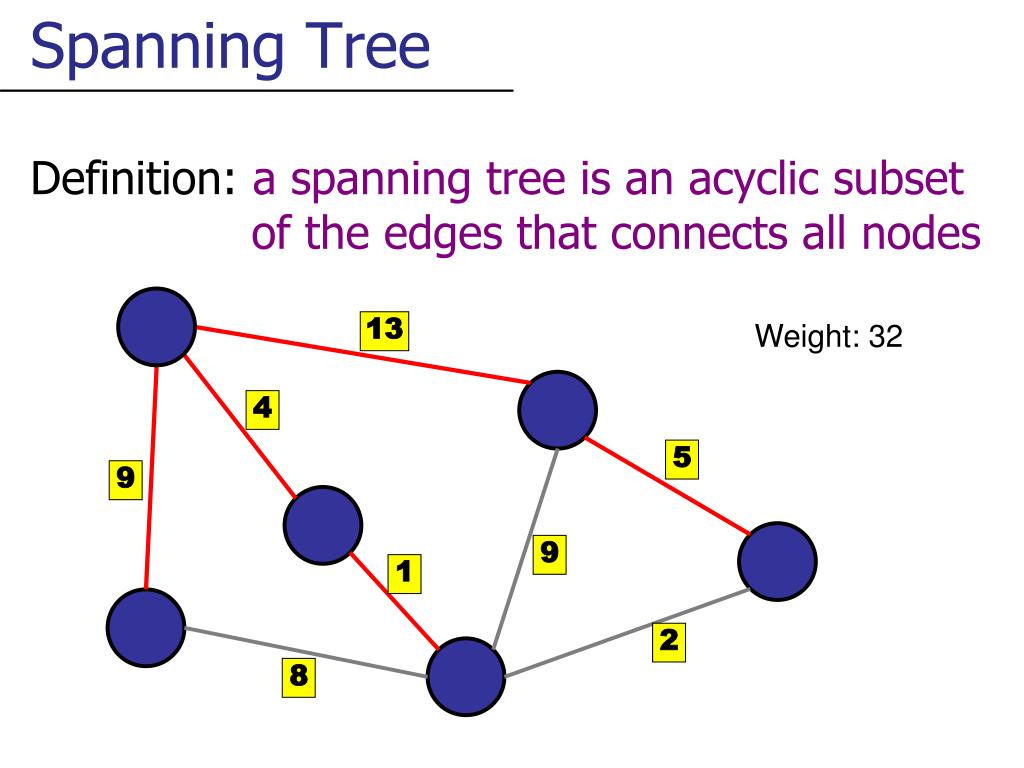

Spanning Tree Definition: a spanning tree is an acyclic subset of the edges that connects all nodes Weight: 32 13 4 5 9 9 1 2 8

Minimum Spanning Tree Definition: a spanning tree with minimum weight 13 4 5 9 9 1 2 8

Minimum Spanning Tree Definition: a spanning tree with minimum weight Weight: 20 13 4 5 9 9 1 2 8

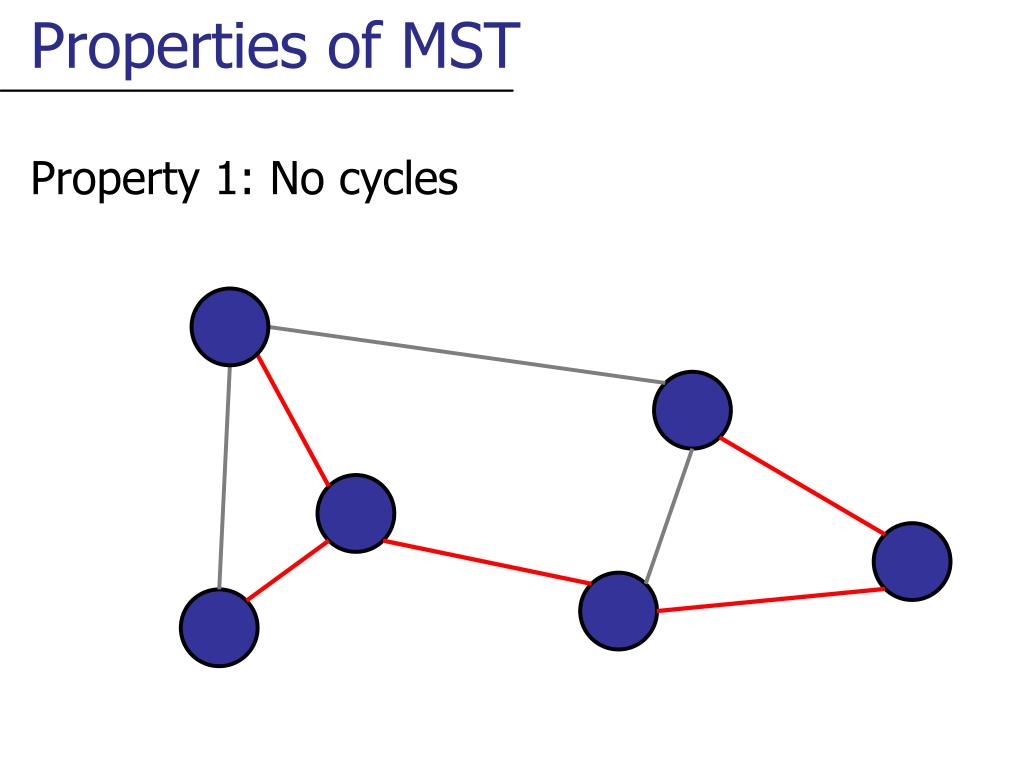

Properties of MST Property 1: No cycles

Properties of MST Property 2: If you cut an MST, the two pieces are both MSTs.

Properties of MST Property 3: Cycle property For every cycle, the maximum weight edge is not in the MST. max-weight edge on cycle
