  1. New RSA306 USB Spectrum AnalyzerRF signal analysis in your hands!

  2. Agenda • Product Intro • Description • Key Features • SignalVu-PC • Applications • Universities and Education • Budget-conscious R&D • Interference Hunting • Installation and Maintenance • Ordering information, Options RSA306 Short Technical Presentation November 2014 37W-31004-0

  3. RSA306 USB Spectrum Analyzer 5.0 in (127 mm) 7.5 in (190.5 mm) 1.2 in (30.5 mm ) USB 3.0 Powered and Controlled Type N RF connector 10 MHz Reference Input External Trigger Input Ruggedized and meets Mil-Std 28800 Class 2 specifications Kensington Security Lock RSA306 Short Technical Presentation November 2014 37W-31004-0

  4. RSA306 Real Time Spectrum AnalyzerKey specifications, hardware and software RSA306 Short Technical Presentation November 2014 37W-31004-0

  5. RSA306 Powered by SignalVu-PCSoftware • SignalVu-PC SVE contains 17 different measurements: • Now free of charge • Shared UI with other RSA’s, Scopes with SignalVu, MDO4000B with SignalVu-PC • 9 key analysis options dramatically reduced in price • VSA • AM/FM/PM/Audio Analysis • Settling time • Pulse Measurements • 3 Wi-Fi measurements through AC • P25 • Flexible OFDM Free Measurements with base SW (SVE) RSA306 Short Technical Presentation November 2014 37W-31004-0

  6. Benchtop RF Signal Analysis Software SignalVu-PC • Standard • Complete Spectrum Analyzer features • AM/FM/PM basic analysis and AM/FM listening • Real-Time Spectrum Analysis (DPX spectrum/spectrogram) • Optional • Vector Signal Analysis with 40 MHz analysis BW • Optional Commercial Wireless features (Wi-Fi, P25) • Optional Analog signal analysis – AM, FM, PM, Audio Analysis with SINAD, THD, more • Mapping of multiple measurements for geolocation of signals + signal strength measurements Real Time display showing WLAN signal Vector Signal Analysis of a QPSK signal FM signal analysis: DPX, Spectrogram, Freq. vs Time Wi-Fi Signal Analysis Mapping of signals to locate an interfering signal Signal Strength and Spectrogram RSA306 Short Technical Presentation November 2014 37W-31004-0

  7. Key Segments & Applications RSA306 Short Technical Presentation November 2014 37W-31004-0

  8. Customer Segments & Challenges Education • Graduate projects • Undergraduate Labs Challenges: • Cost: not feasible to include SA’s in labs • Form Factor: bring instruments to class • Performance Budget Conscious R&D • Add Wireless to designs • Cost constraints Challenges: • Cost • Performance: many low cost SA’s lack capabilities needed • Maintaining older equipment Interference Hunting • Regulatory Agencies • Military and Government Challenges: • Cost • Form Factor • Performance: specs, analysis features • Not feasible to equip technicians with real time Installation & Maintenance • Network operators • Police/Local gov’t radios Challenges • Cost: lacking tools for preventative maintenance • Performance: lacking tools to perform network health check RSA306 Short Technical Presentation November 2014 37W-31004-0

  9. Benefits for Education – Teaching Labs, Student Projects • Benchtop Performance • Frequency Range • Analysis Bandwidth • Analysis features • Form Factor • Portability – bring instruments into classroom, field • Free benchtop analysis software for course work • Spectrum Analysis • Analog signal analysis: FM, AM, PM • Vector signal analysis for general purpose digital signals • Show students RF signal behavior not possible with other solutions • Domain Correlation • Real Time capabilities Enable Your Students to Learn RF, in Your Lab or Anywhere RSA306 Short Technical Presentation November 2014 37W-31004-0

  10. RSA306 for Universities and Education • Can view analog or digital signals in multiple domains: here, Vector Signal Analysis displays are shown • Gain additional insight into viewing signals in multiple domains – for example, unique feature to correlate marker between Constellation and Symbol Table to view “offending” symbols with high EVM. Eye Diagram display for 64-QAM signal Constellation shows IQ representation of demodulated signal and EVM results DPX Spectrum display running at the same time Symbol table showing the demodulated 1’s and 0’s can be used to verify the data RSA306 Short Technical Presentation November 2014 37W-31004-0

  11. Benefits for Budget Conscious R&D • Benchtop Spectrum Analyzer Performance to replace aging spectrum analyzers • Frequency Range: 6.2 GHz covers more commercials wireless frequency bands • Analysis Bandwidth: 40 MHz covers more wide band systems • Analysis features: analog, commercial wireless support • Real-Time Spectrum Analyzer capabilities come standard for fast troubleshooting • With worldwide service and support from Tektronix Ability to Have Your Own Spectrum Analyzer RSA306 Short Technical Presentation November 2014 37W-31004-0

  12. Application Example: Budget Conscious R&D • Inexpensive wide band spectrum analyzer to verify WLAN device proper operation • Help verify FCC Compliance and Wi-Fi Compliance before shipping products WLAN Summary showing key measurement results Constellation diagram helps verify proper operation of WLAN device Spectrogram, showing signal burst of spectrum power over time Time Overview display shows Power (Amplitude) vs. Time display & controls the Acquisition Length graphically RSA306 Short Technical Presentation November 2014 37W-31004-0

  13. Benefits for Interference Hunting • Highly portable • Make RF measurements wherever needed – very small form factor • Ruggedized for field use • USB 3.0 powered and controlled – Tablet or Laptop PC’s • Find interference with Real-Time Capabilities • Best “stare bandwidth” available with 40 MHz and DPX • Find interfering signals better than other field spectrum analyzers with DPX Spectrum and Real-Time Spectrogram • DPX is the best tool for Co-channel interference • Plot measurements on real-world Maps • Mapping option available with SignalVu-PC • Stream recorded signals to PC solid-state-drive • For offline analysis • Price/Performance • Fully featured benchtop Spectrum/Signal Analysis for complete analysis of key signals of interest Fast Interference Hunting Made Easy & Inexpensive RSA306 Short Technical Presentation November 2014 37W-31004-0

  14. Application Example: Interference Hunting User Defined Mask helps when “staring” within a Bandwidth to identify an interfering signal • Discover interfering signals with DPX and Mask Search, then perform actions like Save IQ data on Trigger or Take a Screen Shot • High performance PC generating 10,000 spectrums/second Mask Violation shown when signal breaks into mask area. Further actions like save IQ data or screen shot are available DPX bitmapped trace helps quickly discover signals of interest RSA306 Short Technical Presentation November 2014 37W-31004-0

  15. Benefits for Installation & Maintenance • Highly portable • Ruggedized for field use • Make RF measurements wherever needed • USB 3.0 powered and controlled • Perform P25, TETRA, Analog, and other radio standards based measurements in the field and lab • SignalVu-PC enabled • General purpose VSA option • P25, WLAN, and other options available • Perform preventative maintenance on radio networks • Full-featured spectrum analysis • Find interference with real-time capabilities Get a Fast Handle on Network Health, with the Field-Friendly RSA306 RSA306 Short Technical Presentation November 2014 37W-31004-0

  16. Application Example: Installation & Maintenance • Showing displays for Over the Air analysis • Useful to verify proper operation of Private Mobile Radio network, Trunked radio systems • Used for preventative maintenance of Private Mobile Radio networks, Trunked radio systems Frequency vs. Time shows demodulated Frequency Shift Key signal’s 1’s and 0’s Time Overview shows Amplitude vs. Time and controls where in time the analysis is occuring DPX Spectrum trace helps ensure pulsed and frequency hopped signals are clearly visible RSA306 Short Technical Presentation November 2014 37W-31004-0

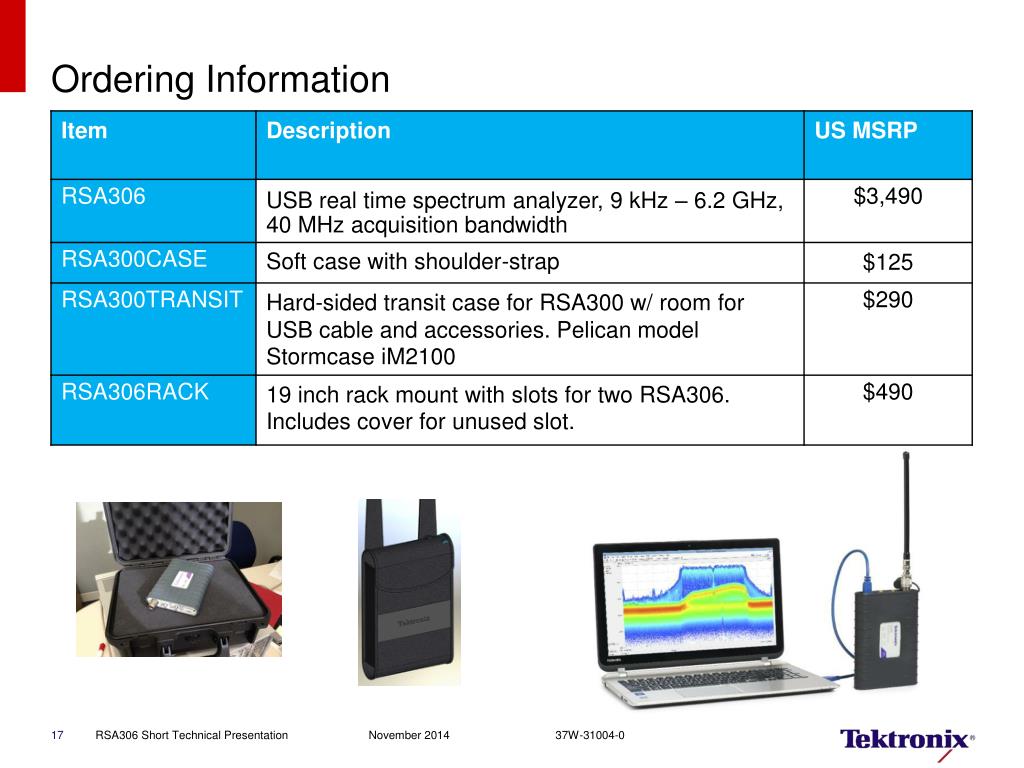

  17. Ordering Information RSA306 Short Technical Presentation November 2014 37W-31004-0

  18. Ordering Information: SignalVu-PCSoftware Included with instrument – Free SW (SVE) • PC Requirements • USB 3.0 • Windows 7 or 8 64-bit • Minimum 8 GB RAM • 20 GB available disk space • 4th Generation Intel i7 for full real time specification • Reduced processor results in degraded min. signal duration for 100% POI RSA306 Short Technical Presentation November 2014 37W-31004-0

  19. Summary • RF signal analysis in your hands • Benchtopperformance analysis with SignalVu-PC • Great fit in 4 key applications Education, Budget Conscious R&D, Interference Hunting, and Installation & Maintenance • Performance • Price • Form Factor • Ruggedized RSA306 Short Technical Presentation November 2014 37W-31004-0
