  1. LEIR INSTRUMENTATION M. Chanel AB/ABP

  2. GENERALITIES • I-LHC (main part LEIR) needed for the ions experiments in LHC. • Most of instrumentation reshuffled from LEAR or with the experience of LEAR • Instrumentation specified in collaboration with BD et BDI (regular meetings) • LEAR should have a high priority (AB priority number 3 despite the fact that the instrumentation needed is standard!

  3. LEIR • Seehttp://chanel.home.cern.ch/chanel/Welcome.htm • Lead ions(Z=54,A=208), 109 ions total in 2 bunches, eh,v<0.7mm • Linac3 beam: 15..50mA, 150..500ms, debunched • Multiturn injection(6-D) at 1.13Tm, 4.2 MeV/n, b=0.0945, Trev=2.7ms, dp/p=4 10-3, eh~50...70, ev~30(pmmmrad) • Electron cooling tcool= 200…400ms and stacking (~sp~10-4, eh,v(1s)<5pmmmrad, coasting beam. • Recombinations • With residual gases : asked tlife~30s • With electrons of ecooling: tlife~10…20s (competition with good cooling time in the core) • Acceleration 1 or 2 bunches 1ms to 200ns • Fast Ejection at 4.8Tm,72 MeV/n, b=0.374, trev=700ns, 1 or 2 bunches ~200ns • N=109 ions, eh,v=0.7mm (early scheme 1 bunch 2.5 108 ions) • Machine and EI/EE baked to 300oC

  4. LEAD IONS in LEIR Combined H/V/P multiturn injection Coasting beam Bunched beam

  5. GENERAL LAYOUT

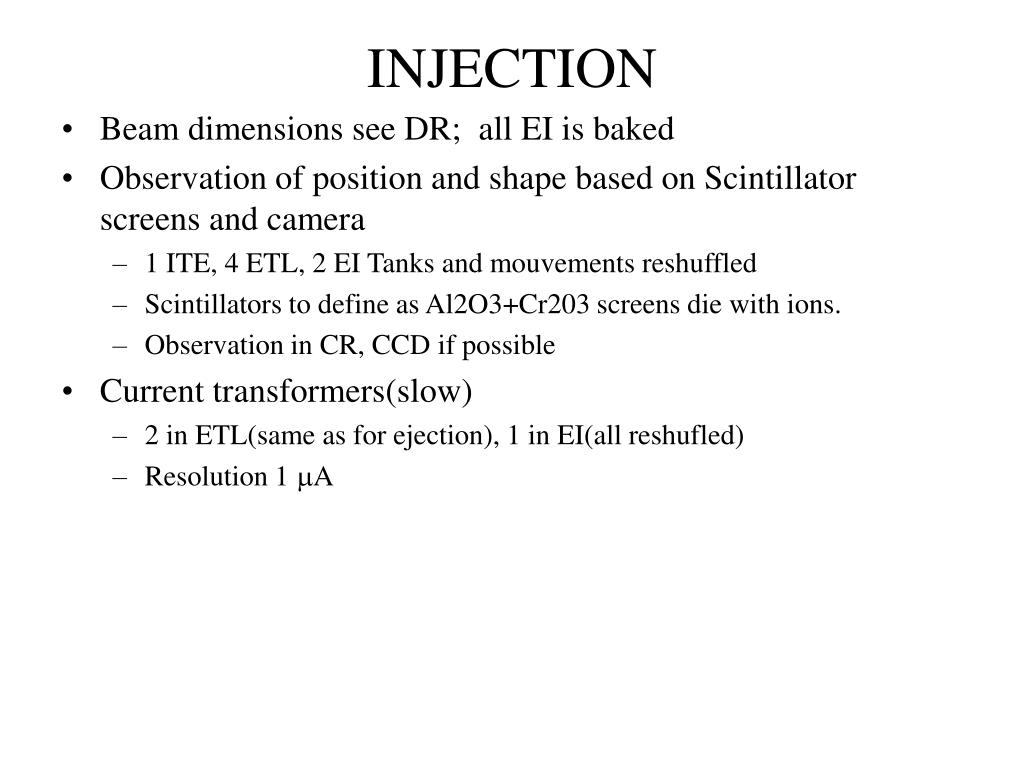

  6. INJECTION • Beam dimensions see DR; all EI is baked • Observation of position and shape based on Scintillator screens and camera • 1 ITE, 4 ETL, 2 EI Tanks and mouvements reshuffled • Scintillators to define as Al2O3+Cr203 screens die with ions. • Observation in CR, CCD if possible • Current transformers(slow) • 2 in ETL(same as for ejection), 1 in EI(all reshufled) • Resolution 1mA

  7. EXTRACTION • Beam dimensions see DR; all EE are baked • Observation of position by Electrostatic Pickups • 2 EE (baked), 4 ETL, 1 ETP,PU reshuffled (2 pairs are rebuilt-gone to AD) • Precision 1mm for 109 charges • Current transformers(fast) • 1 in EE(baked), 2 in ETL(same as for injection), 1 in ETP (all reshufled) • Précision 5% of 109 charges • Screens 1 EE(baked), 1 ETP reshuffled • Emittance measurements • 3 pairs of semwires in ETL

  8. MACHINE LEIR:Current meas. • Continuous current measurement • Imax 50 mA, Imin 10mA (2 108 charges at injection=1 turn injected) • Précision 1% , min 2mA • Nom. Pb : 3mA(inj), 10mA(ej.) • Analog + sampler 1ms, same DSC as scrapers • Old transfo reshuffled Semi-fast current meas. (multiturn injection) • See the accumulation in 50 to 100 turns (stairs) • 1% slope in 100 turns • At zero after 100 ms for the next injection(200ms) • Old transfo reshuffled • Analog and sampled

  9. MACHINE LEIR:orbit meas. • 16 pickups pairs (14 reshuffled, 2 new in ecool) • Meas during ramp every 10ms at max. • Meas. on flat bottom(concomitent with bunching) • Precision 1mm(2 108 charges),0.1mm(109 charges) • Polarisation (up to 50V) • Special measurement for electron beam of ecool (electron beam trajectory modulated at …kHz) • Analog by selection • High level soft. gives DB/B or Dp/p and orbit correction, dispersion….

  10. MACHINE LEIR:Tune meas. • Coasting beam • BTF: one resonant pickup +1 kicker +network analyser ( Very high sensitivity obtained in LEIR) • Schottky (see below) but for cooled beam no Transv. Schottky • Bunched beam (not completely defined) • Kick(fft) or BTF with pickup…every 10ms if possible • Otherwise kick+coupling+fft

  11. longitudinal Schottky Longitudinal Schottky spectrum at injection (blue) and 300 ms later (red).

  12. MACHINE LEIR: Schottky’s • Long. Distribution, transverse emittances, cooling times, coherent effects, pickups reshuffled • Low noise systems • b=0.95 (fixed by Linac3) BW~160MHz • H+M: 12 loop couplers in TWM by cable delays • V: 7 loop couplers in TWM by cable delays • other beta: summed, variable delays :H+M 12 loop couplers; V 8 Loop couplers; BW 400MHz at b=0.3 • Analysis by 3 spectra +FFT • Possibility to use these systems as broadband damper(later)

  13. Transverse Schottky (and BIPM) Horizontal cooling observed on the BIPM. Horizontal Schottky signal.

  14. MACHINE LEIR: WB Long. PU • A wideband pickup exist (300MHz)… • Analog signal on NAOS • Bunch analysis…tomoscope..

  15. MACHINE LEIR: Transverse profiles • BIPM (H,V) for emittance and T. cooling meas. • Measurement from (100,50)pmmmrad for a few109 charges every 20ms. • Note that the dynamic vacuum is in the 10-12 Torr(hope mainly H2) • Resolution as good as 0.5 mm(if possible) • Max dimension H~60mm, V~40mm • Save 100 profiles and online analysis. • H/V scrapers to mesure T amplitude dist. (reshuffled)

  16. MACHINE LEIR: others • Quadrupolar pickup (same as Q pickup?) used in conjonction with a Quad kicker to do BTFQ (used in MD’s to measure incoherent tune shift)-later- • Ions-electrons recombination in the next bending after ecool (scintillator +PM) • ( 4 collimators to capture recombined Pb53+ : same control as previous)

  17. CONCLUSION • The specifications are done in their generalities • The needed hardware in the machine is reshuffled or is being designed (soon for tune meas.). • Regular meetings take place to confront specifications and realities • Despite the « standard  » instrumentation needed, there are very intersesting specificities (injection, cooling, Schotky, BTF’s…)
