1. Iterative Aggregation Disaggregation Nicole Typaldos Missouri State University

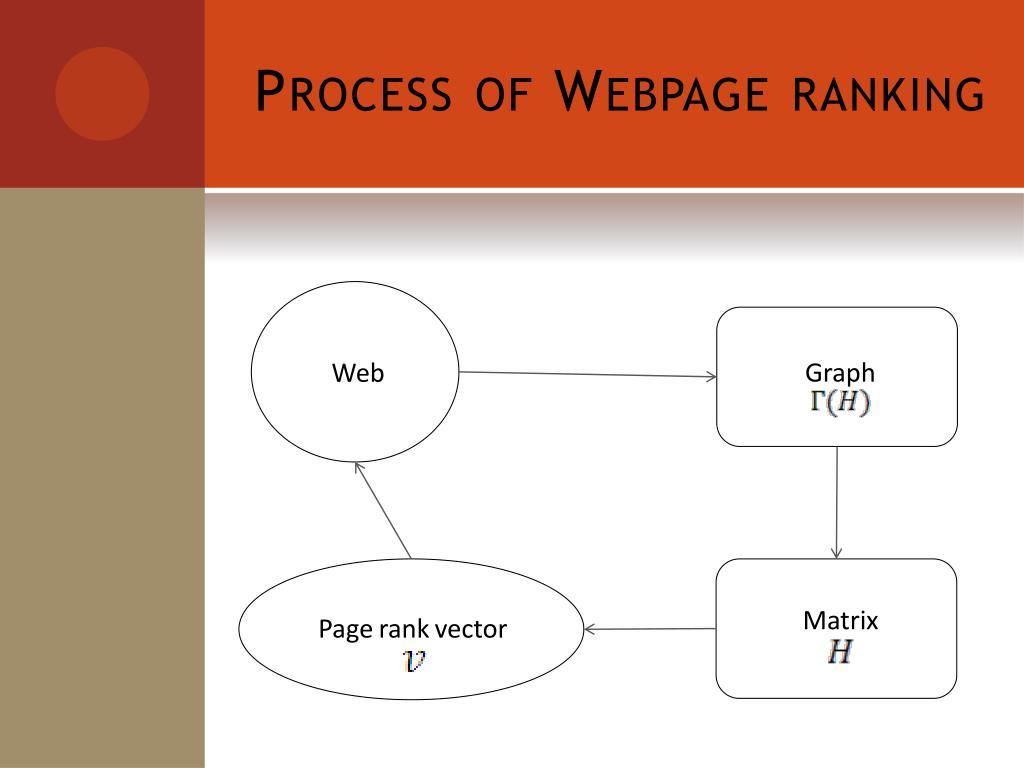

2. Graph Web Graph Matrix Pagerankvector Process of Webpage ranking

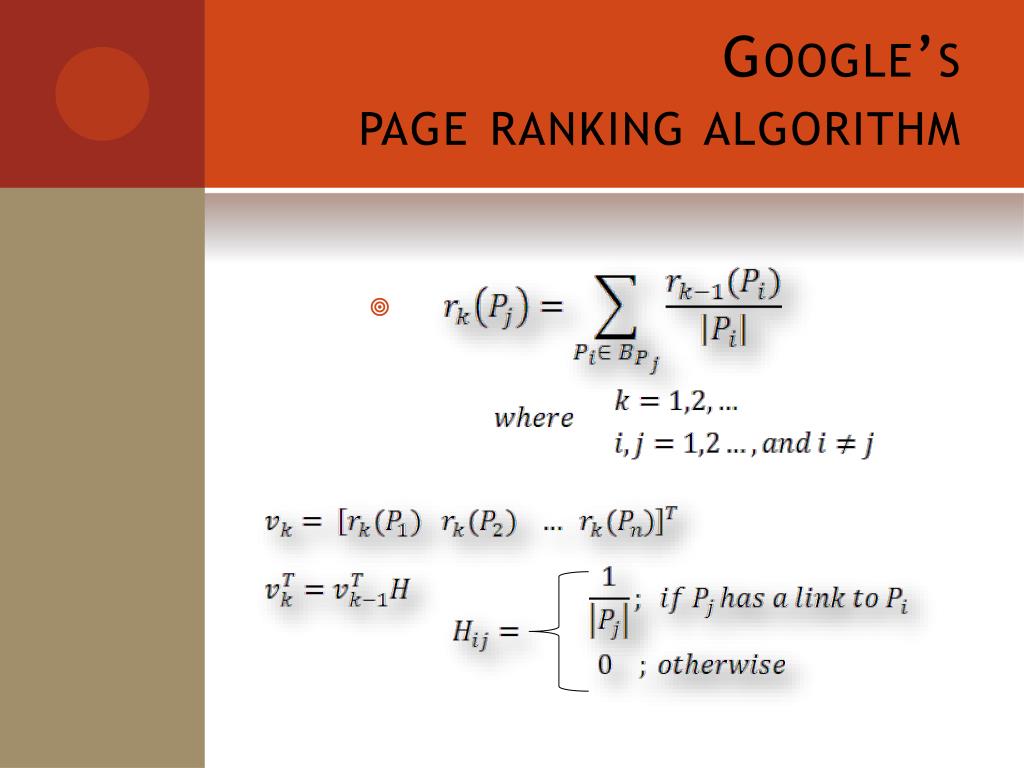

3. Google’s page ranking algorithm

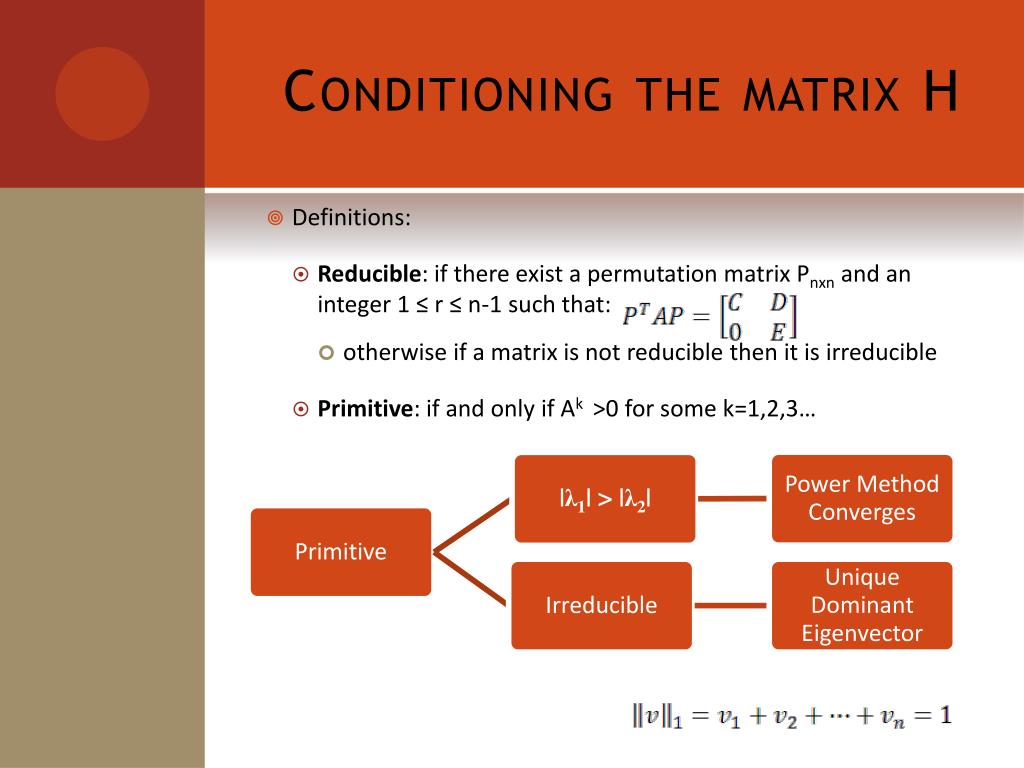

4. Conditioning the matrix H • Definitions: • Reducible: if there exist a permutation matrix Pnxn and an integer 1 ≤ r ≤ n-1 such that: • otherwise if a matrix is not reducible then it is irreducible • Primitive: if and only if Ak >0 for some k=1,2,3…

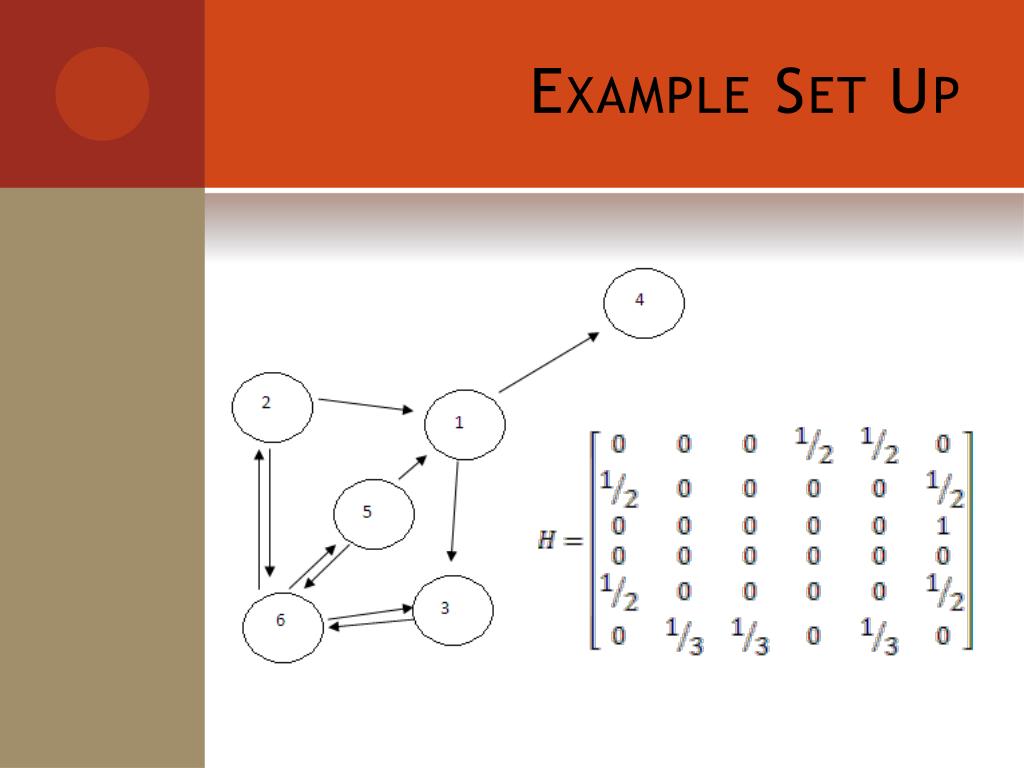

5. Example Set Up

6. Example Continued

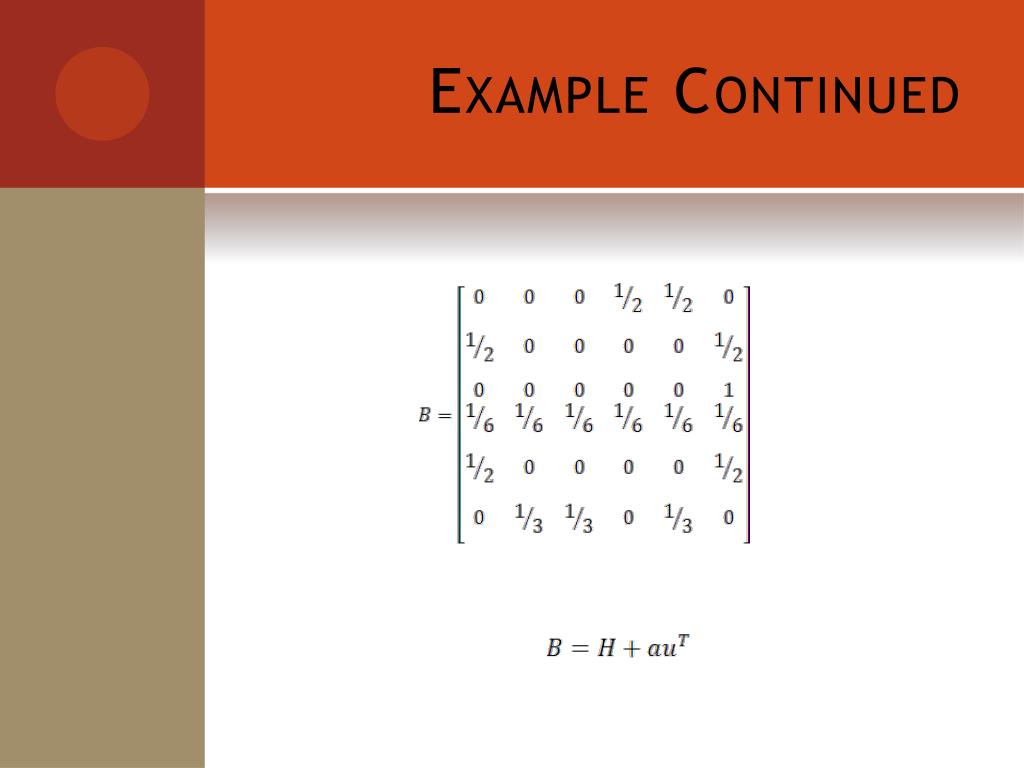

7. Example Continued

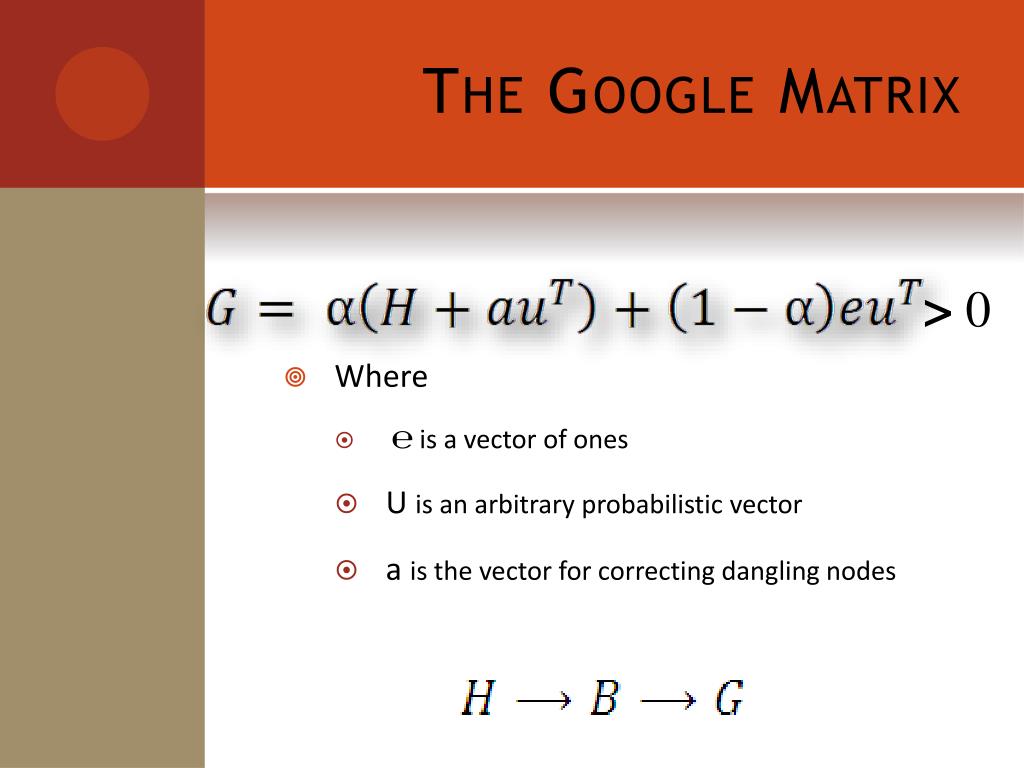

8. The Google Matrix • Where • ℮ is a vector of ones • U is an arbitrary probabilistic vector • a is the vector for correcting dangling nodes > 0

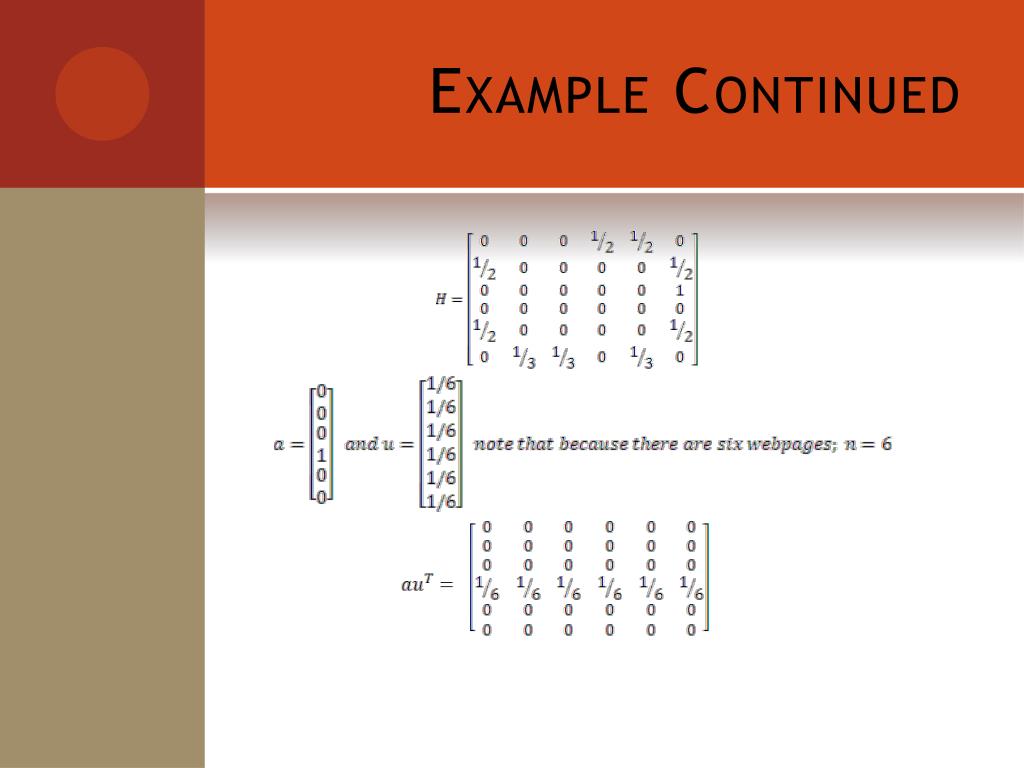

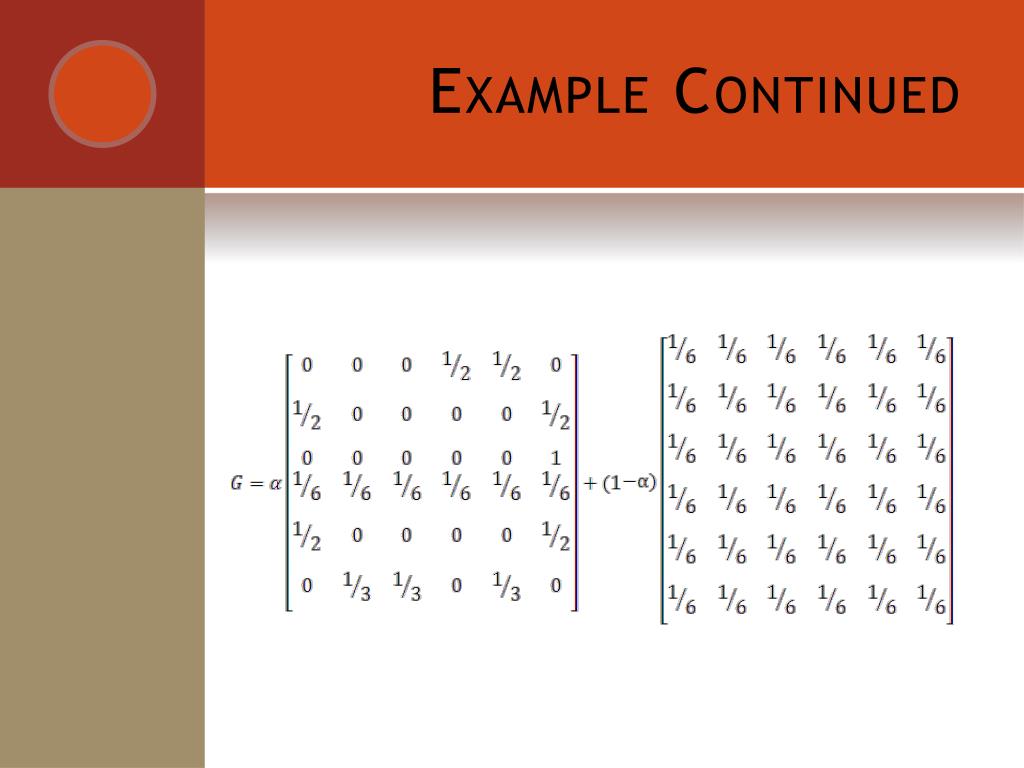

9. Example Continued

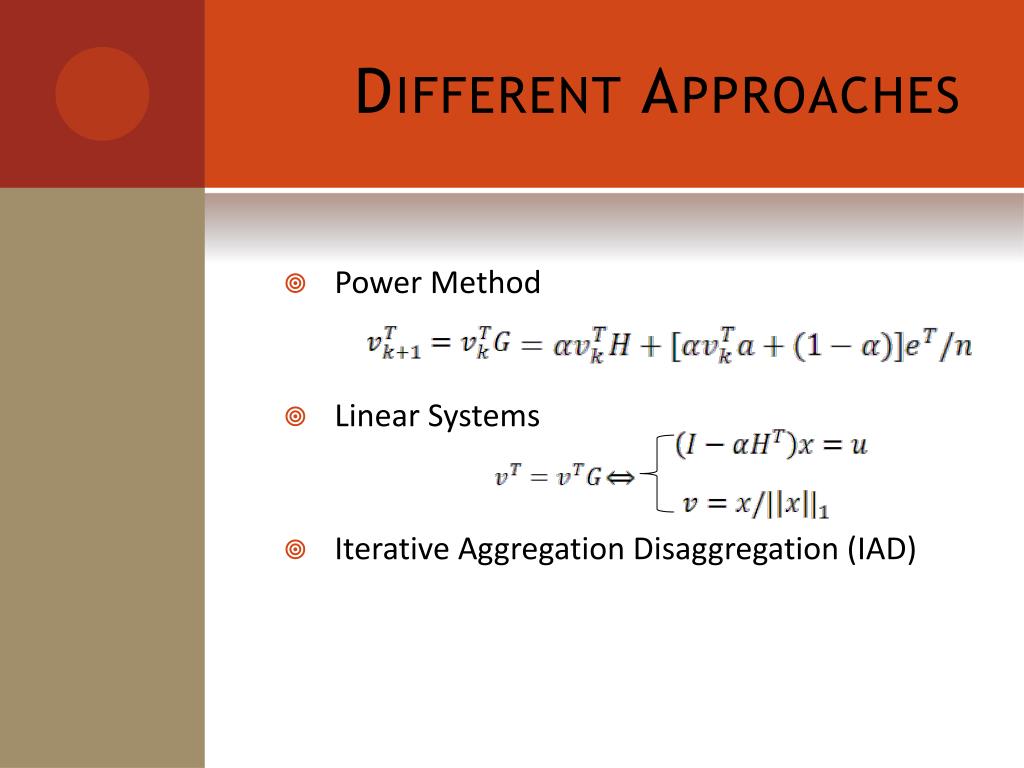

10. Different Approaches • Power Method • Linear Systems • Iterative Aggregation Disaggregation (IAD)

11. Linear Systems andDangling Nodes • Simplify computation by arranging dangling nodes of H in the lower rows • Rewrite by reordering dangling nodes • Where is a square matrix that represents links between nondangling nodes to nondangling nodes; is a square matrix representing links to dangling nodes

12. Rearranging H

13. Exact aggregation disaggregation • Theorem • If G transition matrix for an irreducible Markov chain with stochastic complement: is the stationary dist of S, and is the stationary distribution of A then the stationary of G is given by:

14. Approximate aggregation disaggregation • Problem: Computing S and is too difficult and too expensive. So, • Ã= • Where A and à differ only by one row • Rewrite as: • Ã=

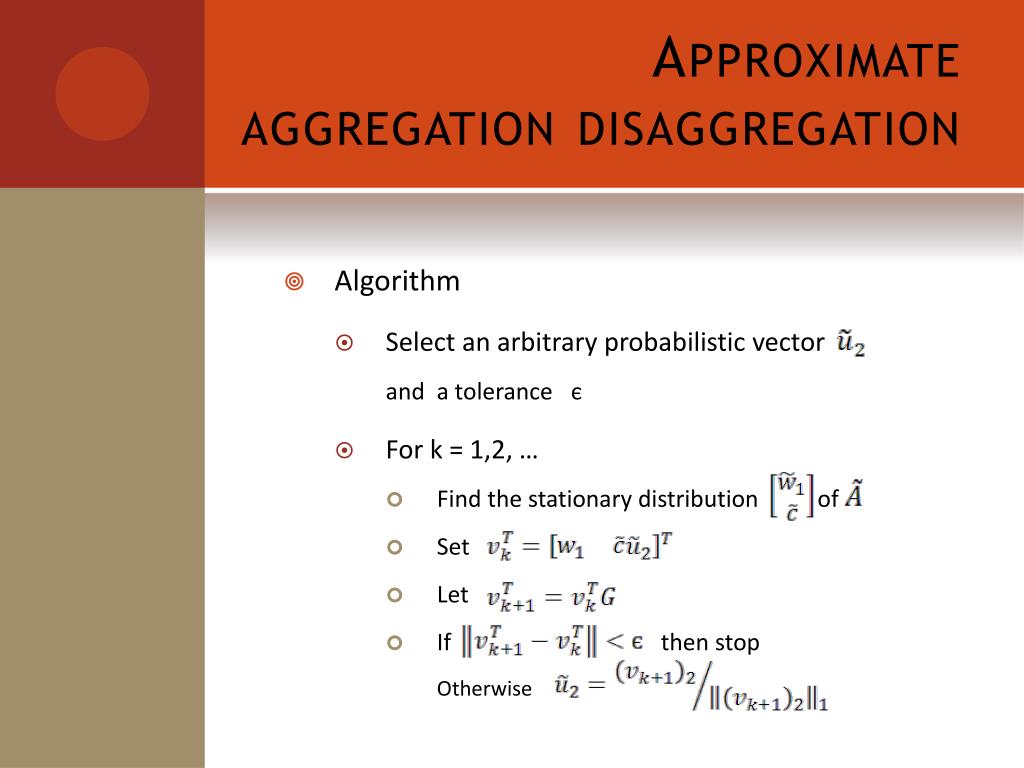

15. Approximate aggregation disaggregation • Algorithm • Select an arbitrary probabilistic vector and a tolerance є • For k = 1,2, … • Find the stationary distribution of • Set • Let • If then stop Otherwise

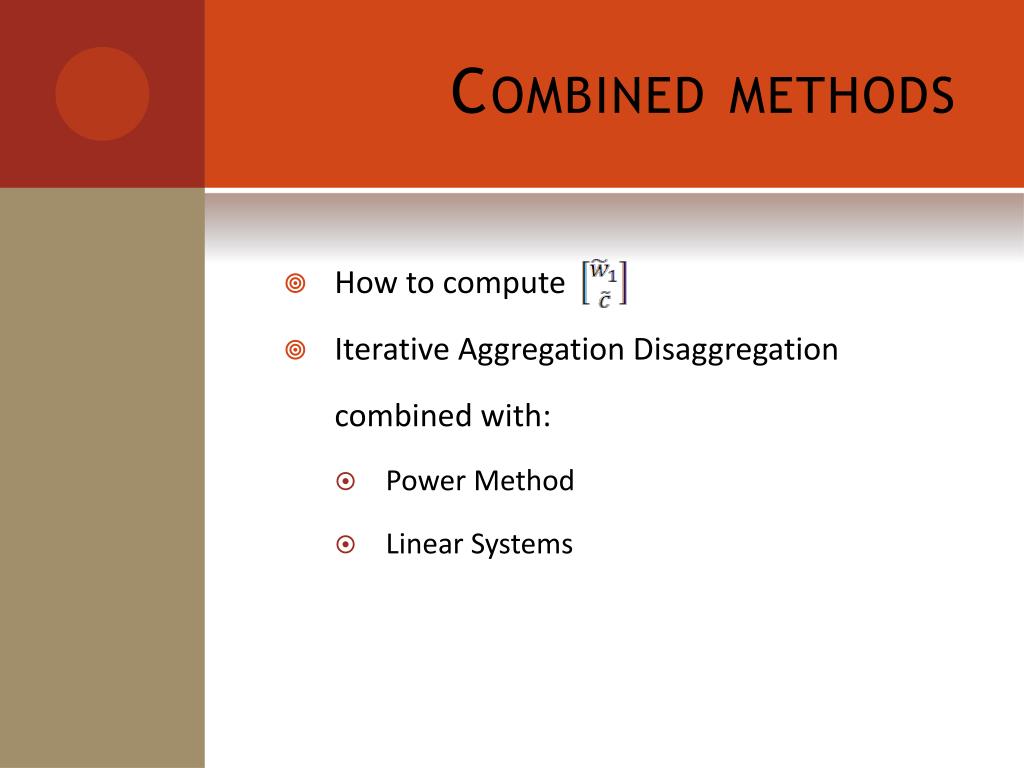

16. Combined methods • How to compute • Iterative Aggregation Disaggregation combined with: • Power Method • Linear Systems

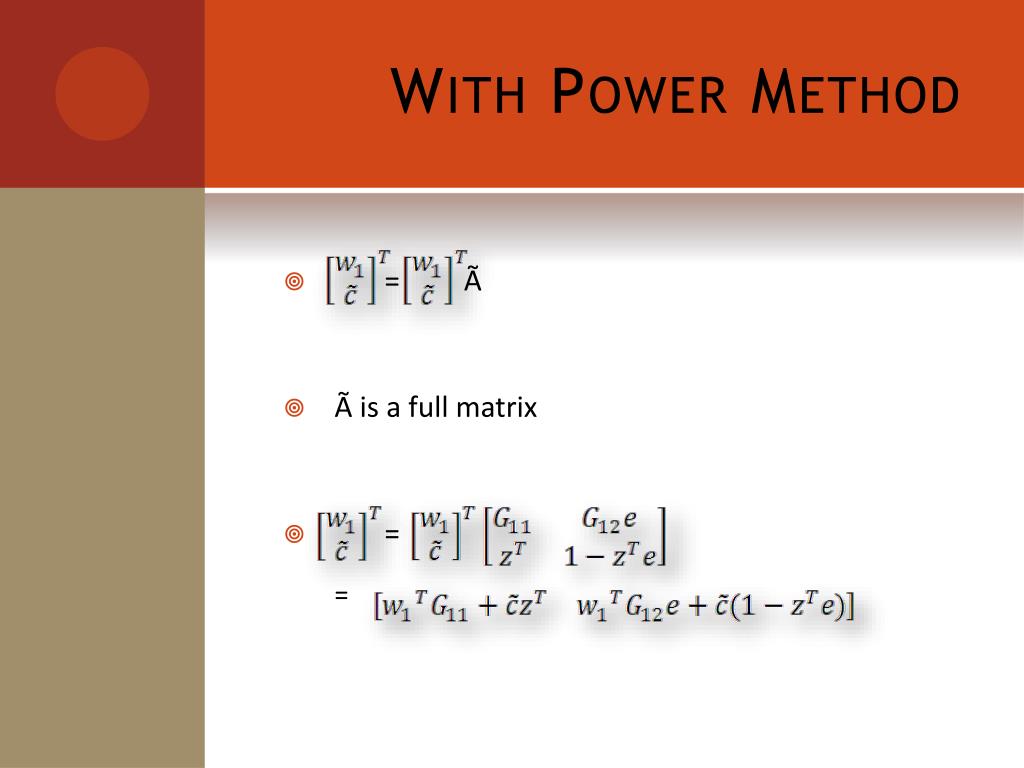

17. With Power Method • = Ã • Ã is a full matrix • = =

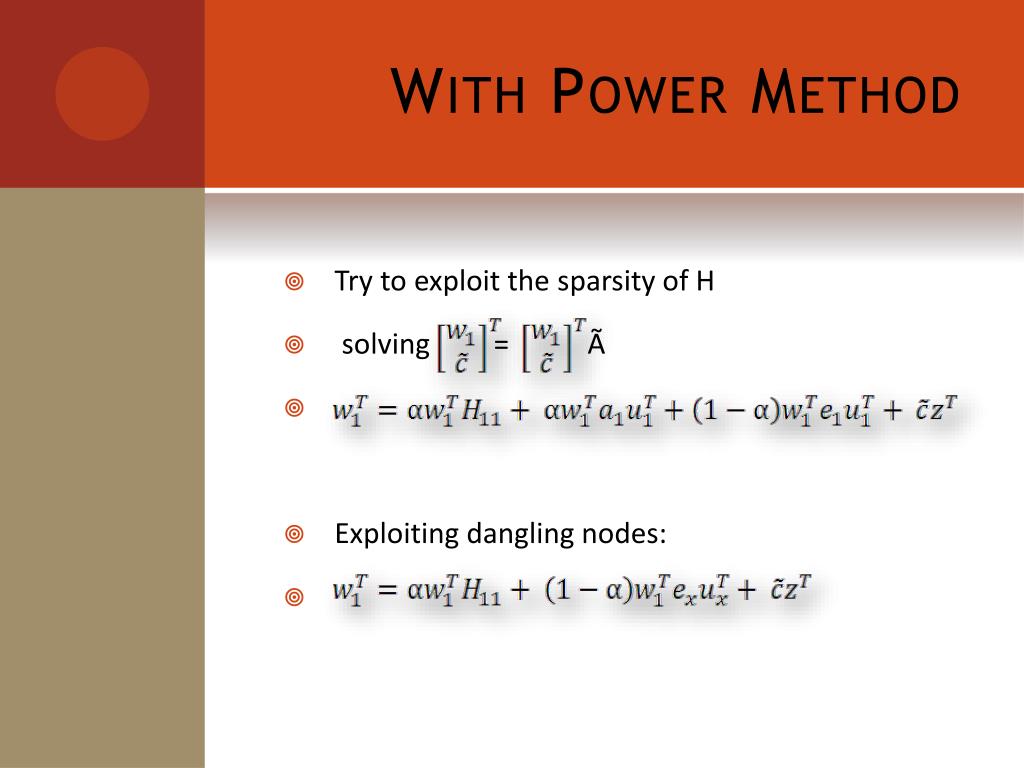

18. With Power Method • Try to exploit the sparsity of H • solving = Ã • Exploiting dangling nodes:

19. With Power Method • Try to exploit the sparsity of H • Solving = Ã • Exploiting dangling nodes:

20. With Linear Systems • = Ã • After multiplication write as: • Since is unknown, make it arbitrary then adjust

21. With Linear Systems • Algorithm (dangling nodes) • Give an initial guess and a tolerance є • Repeat until • Solve • Adjust
