Distributed PageRank Computation Based on Iterative Aggregation-Disaggregation Methods

1. Distributed PageRank ComputationBased on Iterative Aggregation-Disaggregation Methods Yangbo Zhu, Shaozhi Ye and Xing Li Tsinghua University, Beijing, China ACM CIKM 2005, Bremen

2. Outline • Quick Review of PageRank • Distributed PageRank Computation • Motivation • Basic Idea • Algorithm • Experiments • Conclusion and Future Work

3. PageRank - Background Ranking Web pages • Content-based methods • Link-based methods • PageRank [Page & Brin, 1998] • HITS [Kleinberg, 1998] • SALSA [Lempel & Moran, 2000]

4. PageRank - Intuition • Page A points to B means that the author of A recommends B. • A page is of high quality if it is • referred to by many other pages • referred to by pages of high quality

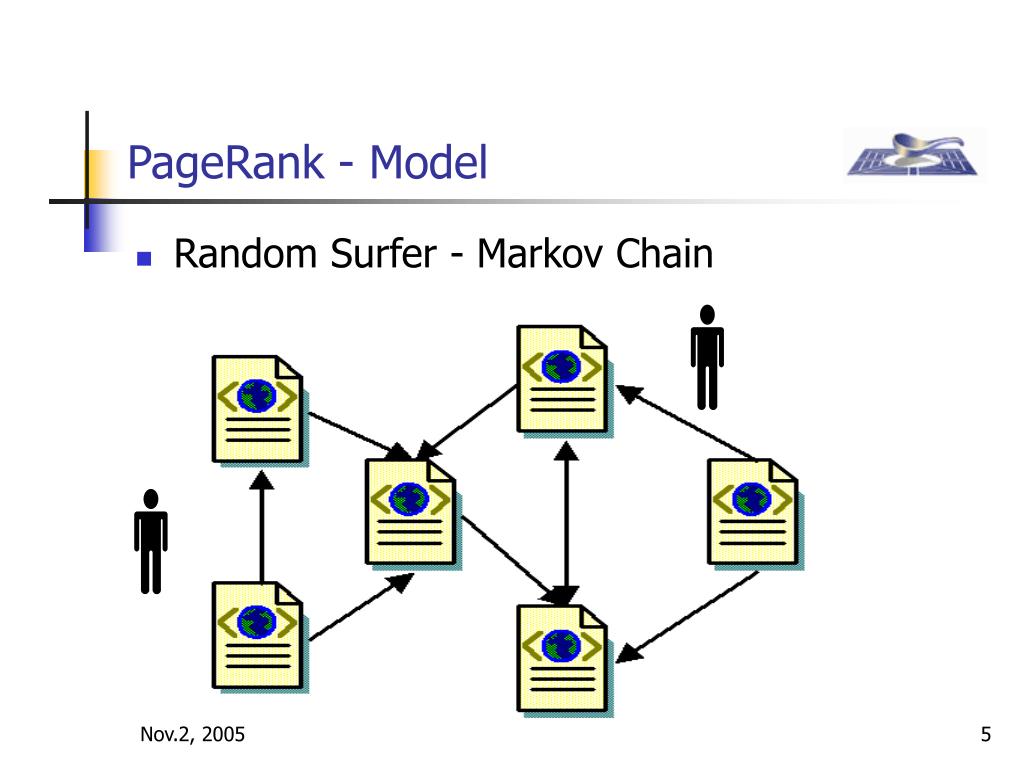

5. PageRank - Model • Random Surfer - Markov Chain

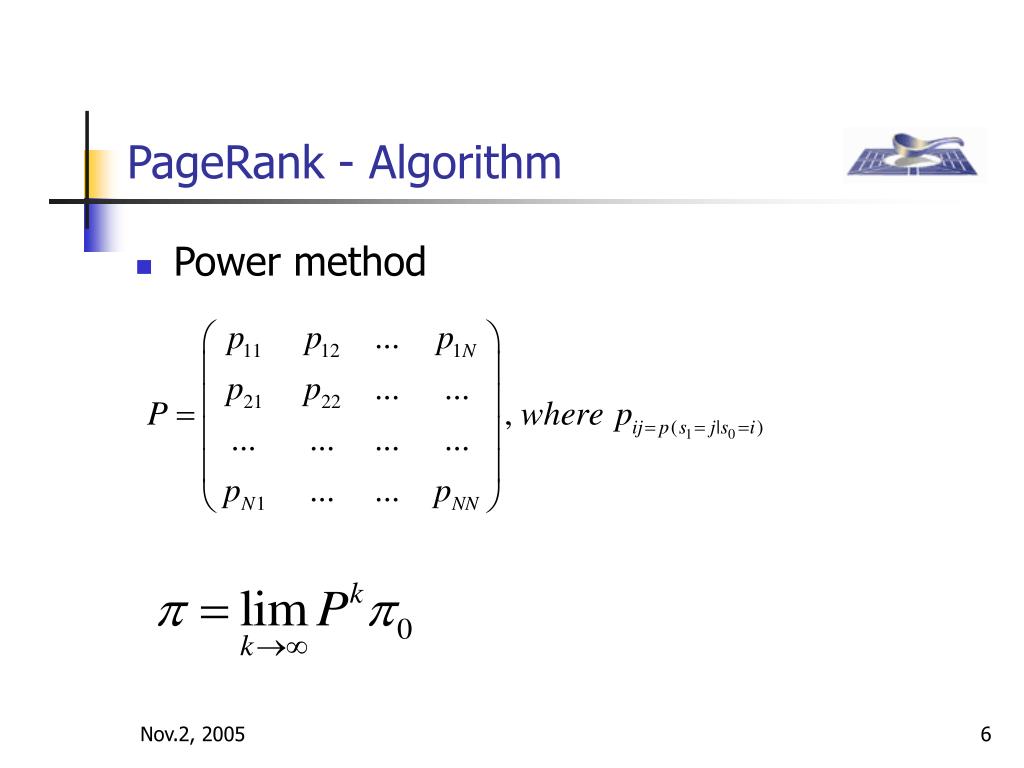

6. PageRank - Algorithm • Power method

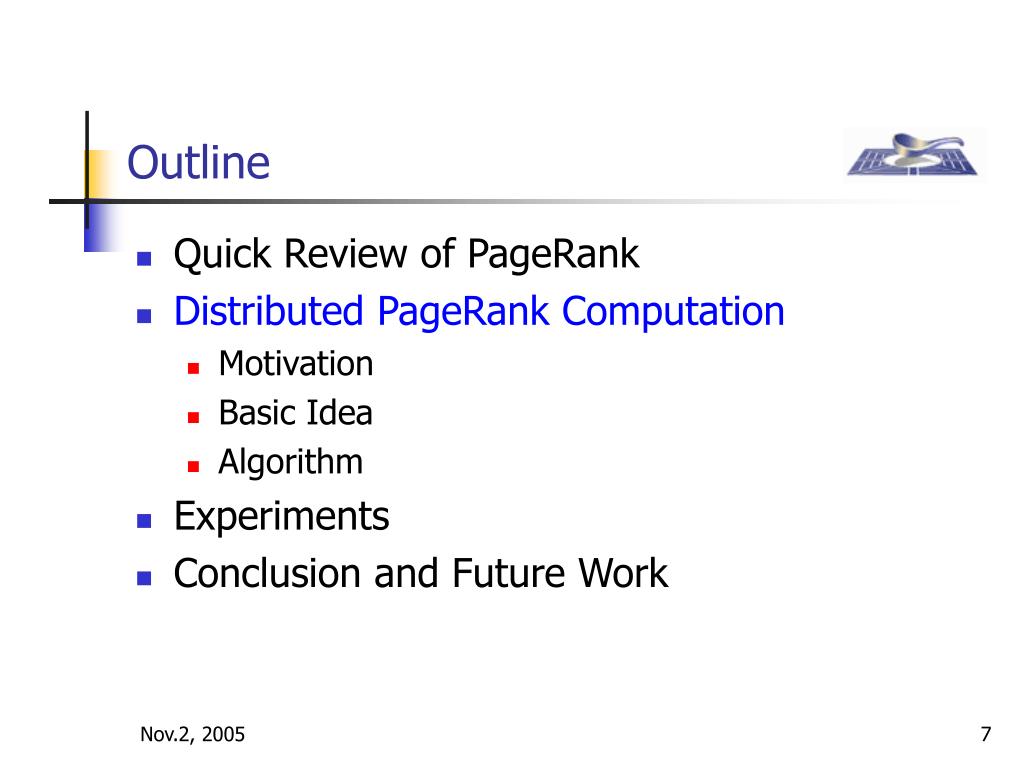

7. Outline • Quick Review of PageRank • Distributed PageRank Computation • Motivation • Basic Idea • Algorithm • Experiments • Conclusion and Future Work

8. Motivation • Compass search engine confederation

9. Motivation (cont.)

10. Basic Idea • Divide and conquer • Make use of the natural block structure of web graphs

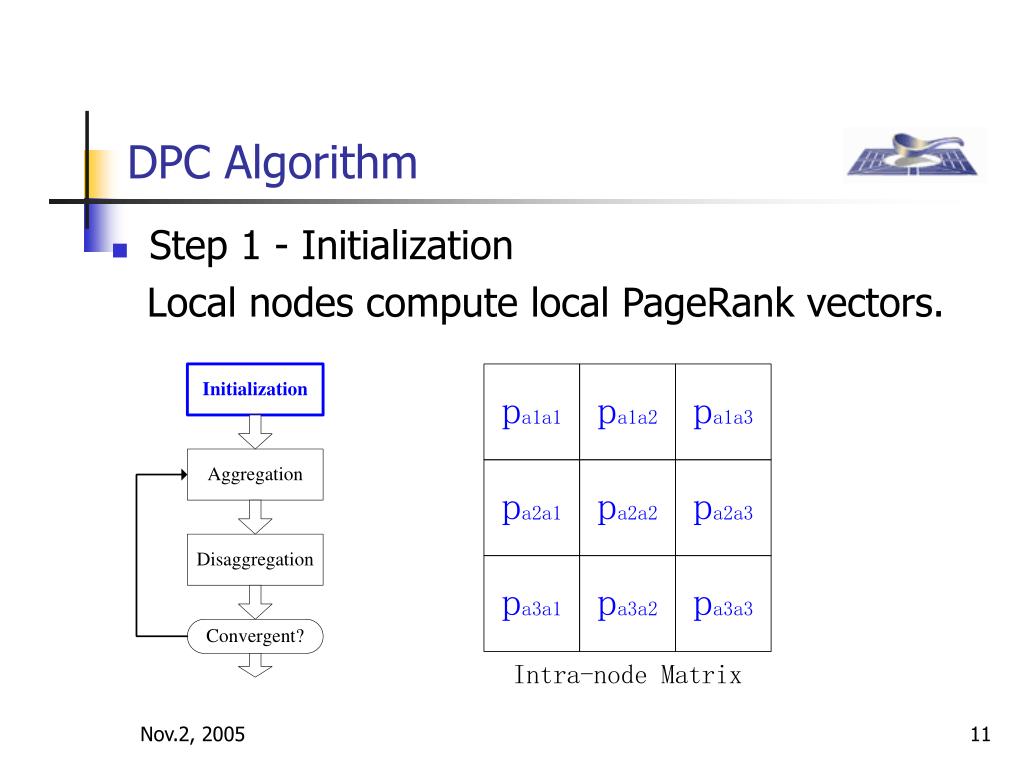

11. DPC Algorithm • Step 1 - Initialization Local nodes compute local PageRank vectors.

12. DPC Algorithm (cont.) • Step 2 - Aggregation Central node computes the NodeRank vector.

13. DPC Algorithm (cont.) • Step 3 - Disaggregation Local nodes compute extended local PageRank vectors. X: External nodes

14. DPC Algorithm (cont.) • Step 4 - Central node computes the L1 distance between current global PageRank vector and previous one.

15. Advantages • DPC mainly consists of standard PageRank computation. • Small matrices fit into main memory. • Low communication overhead.

16. Outline • Quick Review of PageRank • Distributed PageRank Computation • Motivation • Basic Idea • Algorithm • Experiments • Conclusion and Future Work

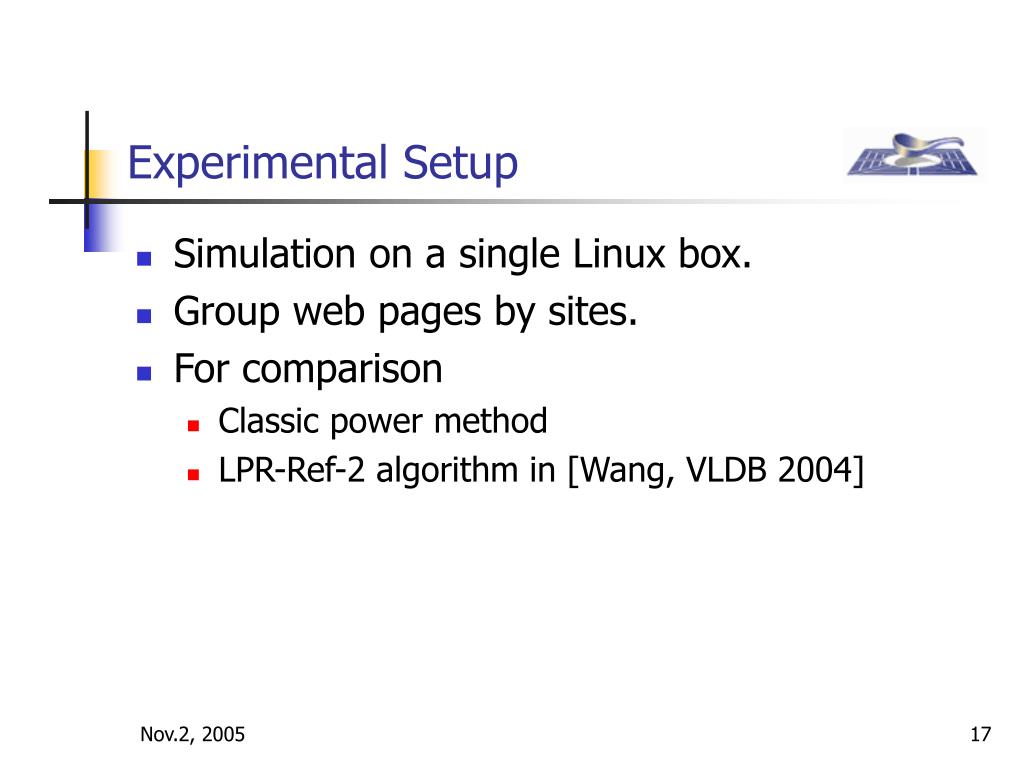

17. Experimental Setup • Simulation on a single Linux box. • Group web pages by sites. • For comparison • Classic power method • LPR-Ref-2 algorithm in [Wang, VLDB 2004]

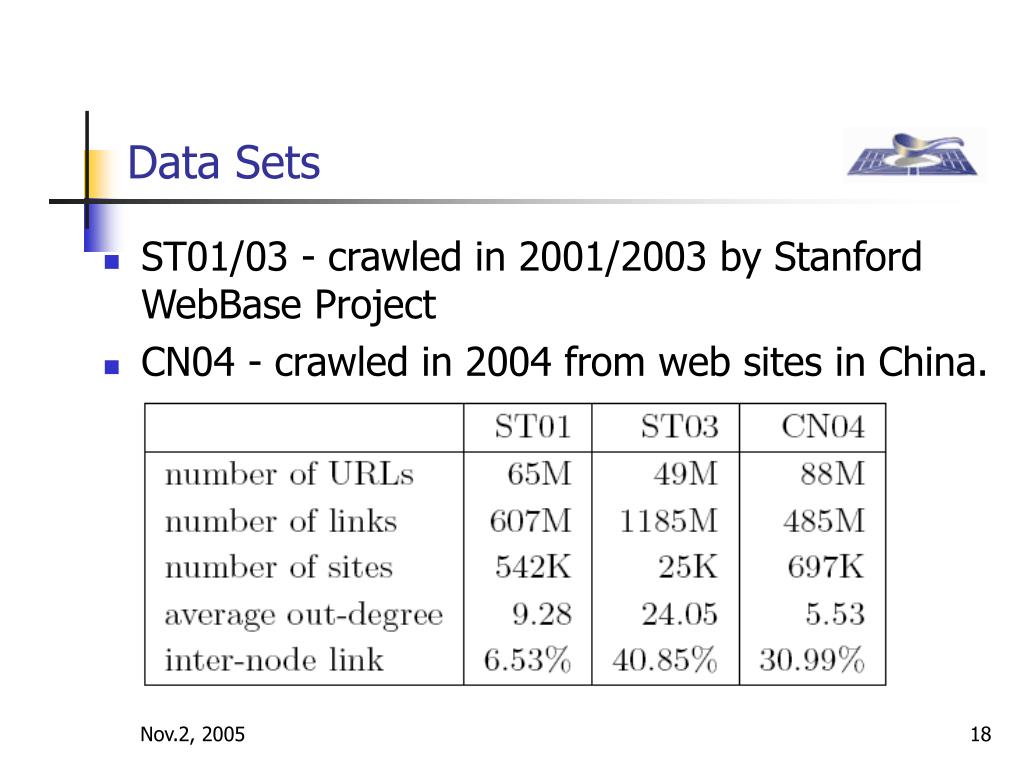

18. Data Sets • ST01/03 - crawled in 2001/2003 by Stanford WebBase Project • CN04 - crawled in 2004 from web sites in China.

19. Evaluation Metrics • L1 distance • Kendall's τ-distance if page i and j are in different order in the two ranking lists.

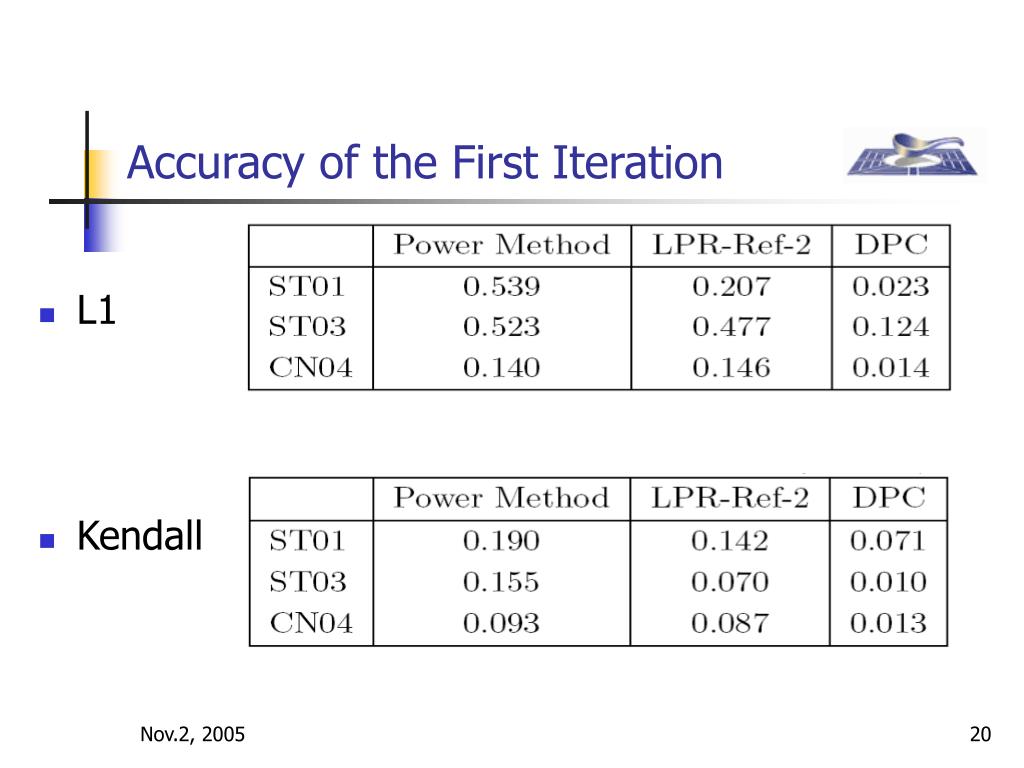

20. Accuracy of the First Iteration • L1 • Kendall

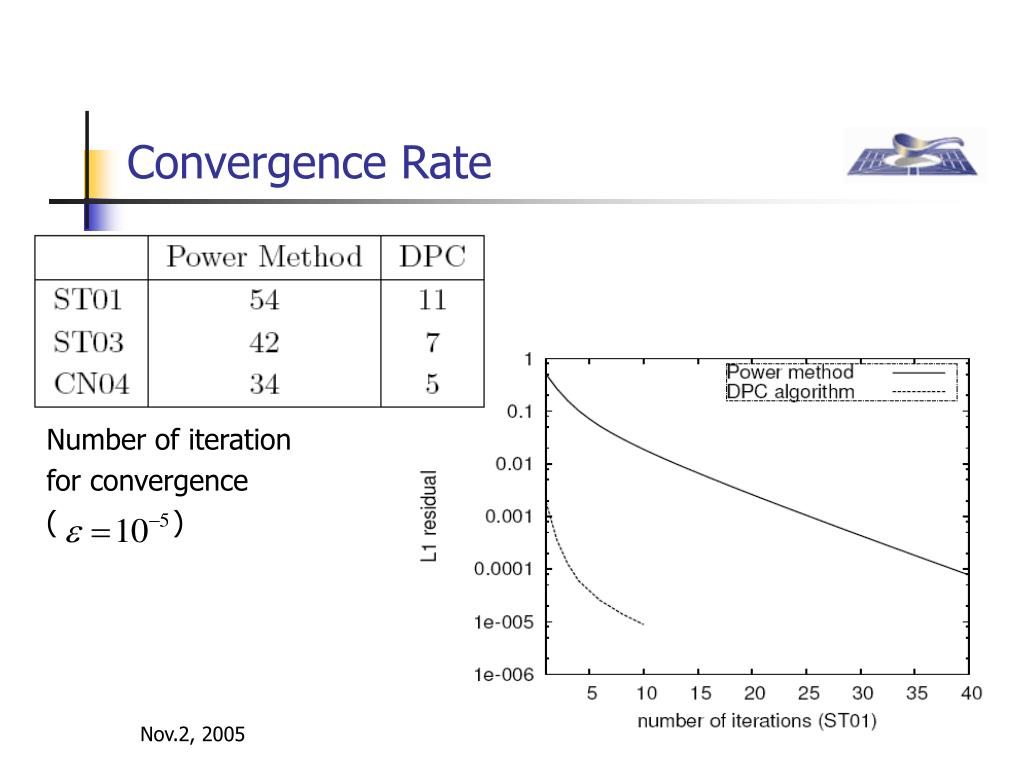

21. Convergence Rate Number of iteration for convergence ( )

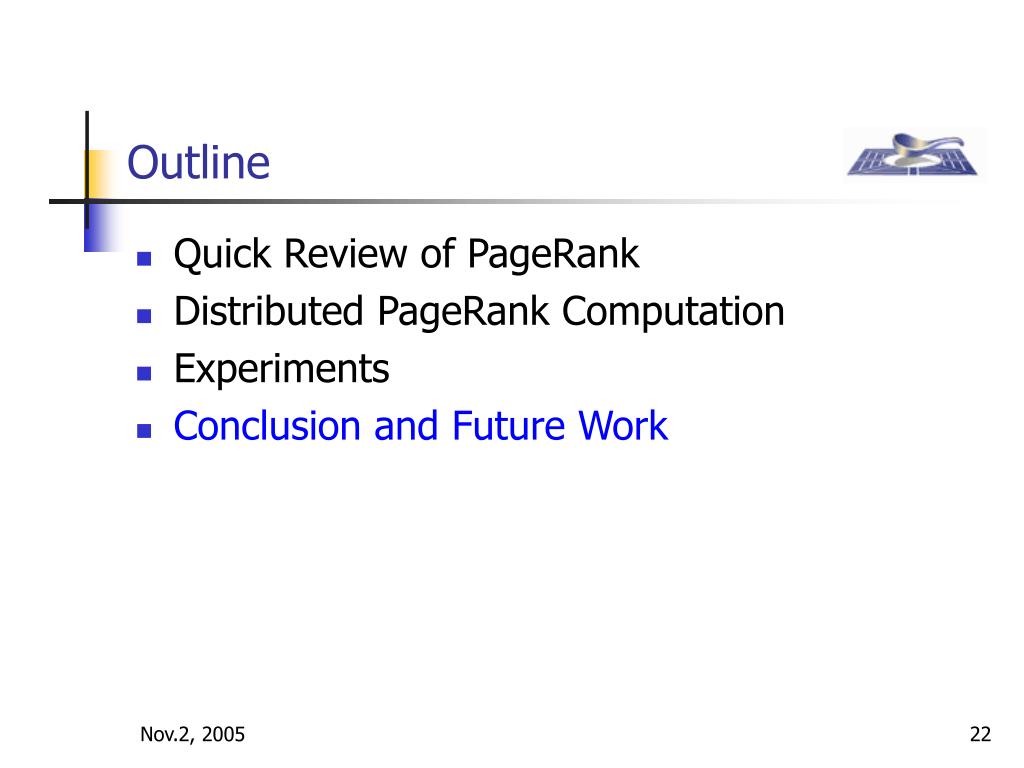

22. Outline • Quick Review of PageRank • Distributed PageRank Computation • Experiments • Conclusion and Future Work

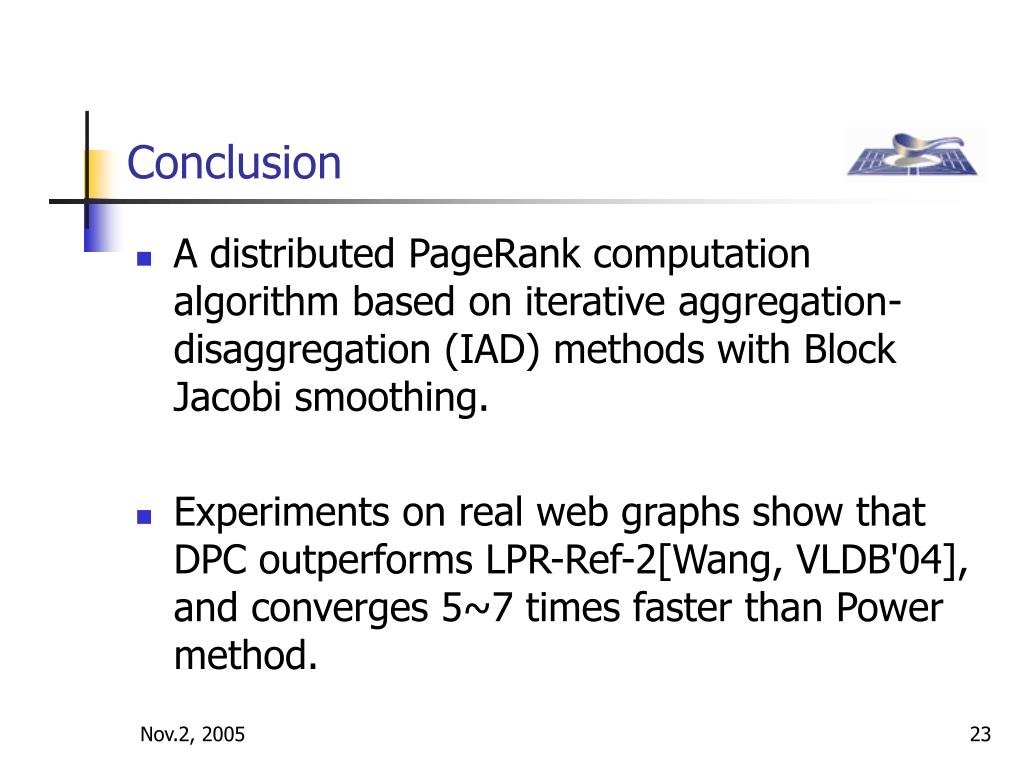

23. Conclusion • A distributed PageRank computation algorithm based on iterative aggregation-disaggregation (IAD) methods with Block Jacobi smoothing. • Experiments on real web graphs show that DPC outperforms LPR-Ref-2[Wang, VLDB'04], and converges 5~7 times faster than Power method.

24. Future Work • Implement DPC in distributed system. Integrate with Compass search engine confederation. • How to update PageRank vectors efficiently within DPC framework?

25. Thank you !

26. General PageRank Algorithm

27. IAD Method - Notations • Aggregation matrix(n×N) • Disaggregation matrix(N×n)

28. IAD Method

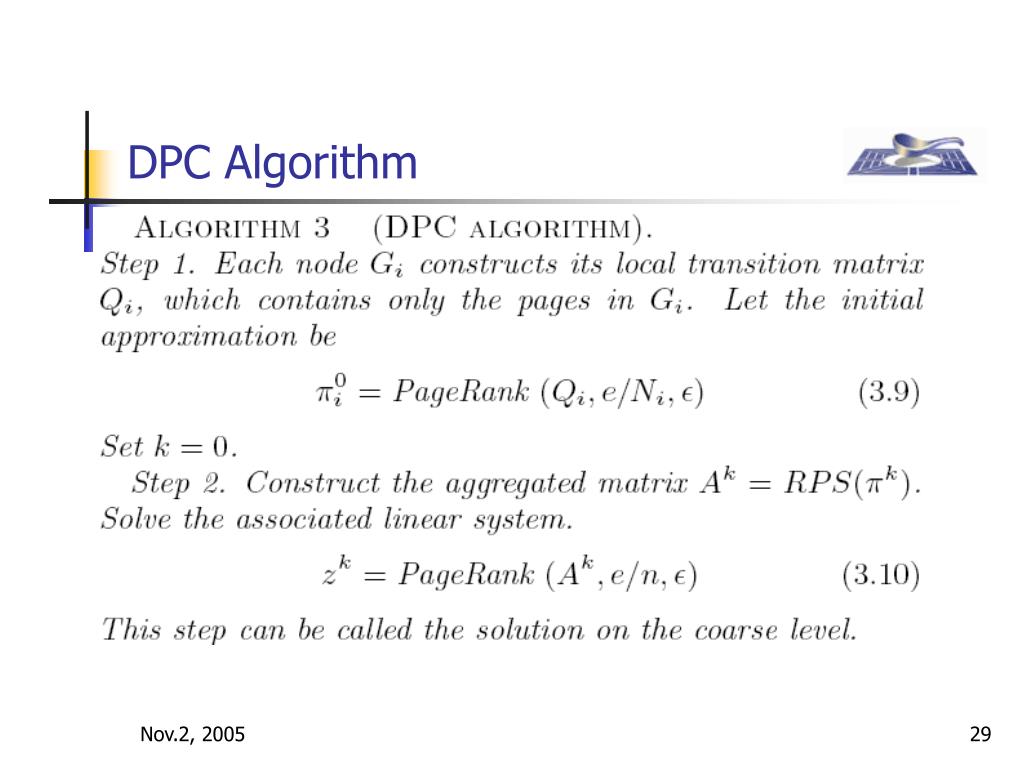

29. DPC Algorithm

30. DPC Algorithm (Cont.)

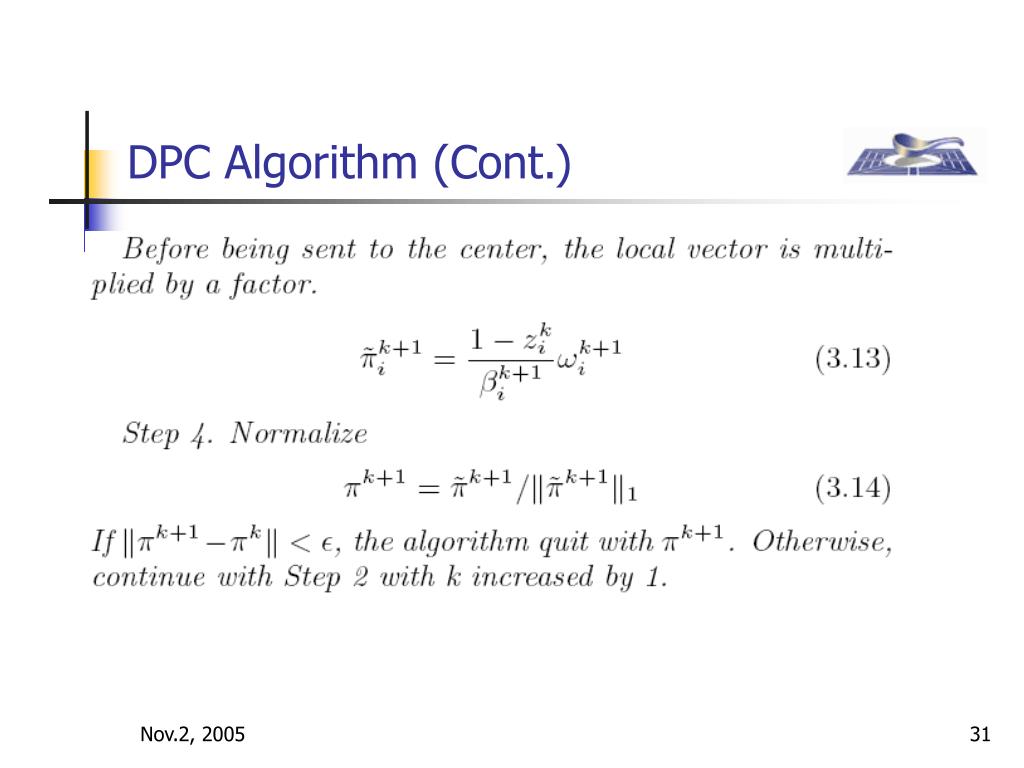

31. DPC Algorithm (Cont.)

32. DPC -Convergence Analysis • The global convergence of IAD method is still an open problem. • The difficulty partly comes from that the disaggregation step is non-linear. • The paper proves the global convergence of Block Jacobi method in PageRank scenario when n > 2.

33. Experiments - Basic Facts • Distribution over number of pages hosted by sites of different size • Distribution over size of sites

34. Experiments - Communication Overhead Pos(•) - Number of positive elements L/U - Block strictly lower/upper triangular part of P Power LPR-Ref-2 / DPC
