  1. Electronic Muster and Measurement System (eMMS) Towards transparency and accountability at work site

  2. Presentation Outline • Work inputs • Live e muster • Live e check muster • Live e measurements • Live e check measurements • Pay order generation

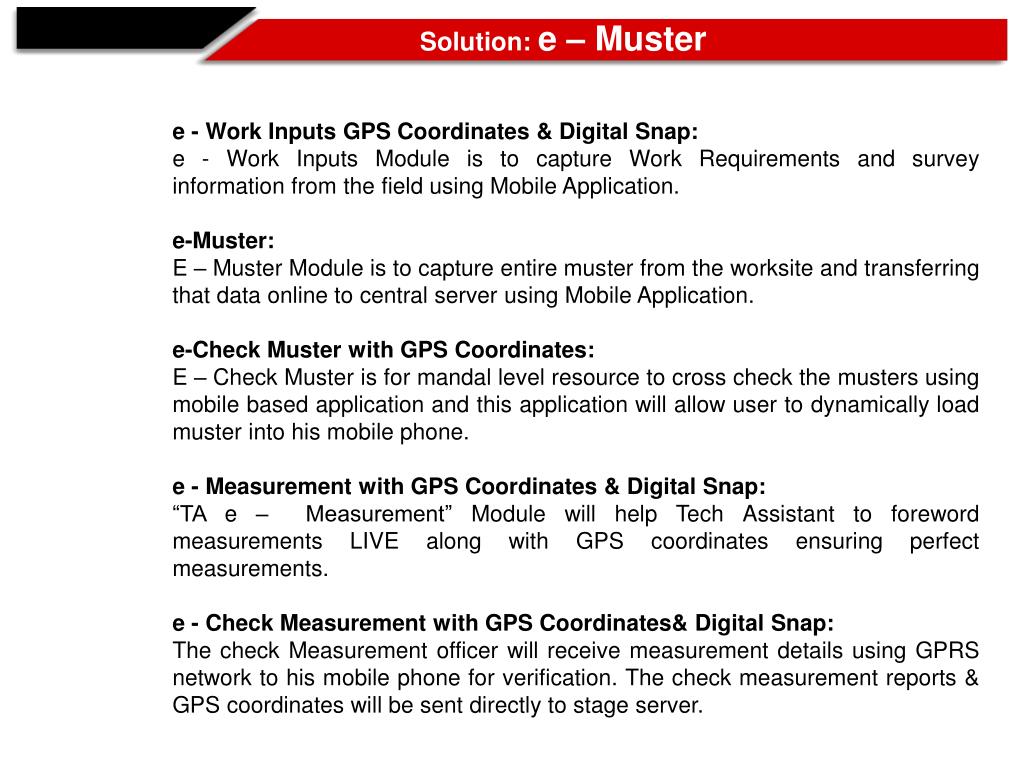

  3. Solution: e – Muster e - Work Inputs GPS Coordinates & Digital Snap: e - Work Inputs Module is to capture Work Requirements and survey information from the field using Mobile Application. e-Muster: E – Muster Module is to capture entire muster from the worksite and transferring that data online to central server using Mobile Application. e-Check Muster with GPS Coordinates: E – Check Muster is for mandal level resource to cross check the musters using mobile based application and this application will allow user to dynamically load muster into his mobile phone. e - Measurement with GPS Coordinates & Digital Snap: “TA e – Measurement” Module will help Tech Assistant to foreword measurements LIVE along with GPS coordinates ensuring perfect measurements. e - Check Measurement with GPS Coordinates& Digital Snap: The check Measurement officer will receive measurement details using GPRS network to his mobile phone for verification. The check measurement reports & GPS coordinates will be sent directly to stage server.

  4. Pay order integration Muster details and measurement details are integrated at the mandal computer centers to enable immediate pay order generation ensuring quick payment to the wage seeker. Image Processing: Image processing module will receive all the digital content from the mobile applications and it will store them in central server in compressed format. GIS (Geographical Information system): Design, Development and deployment with custom layers and spatial data objects to identify different layers on the maps and maps will be directly integrated with digital snapshots. Exception Alerts & Auto Escalations: Exception and escalation alerts are generated when ever there any differences in the verification reports, reports not sent in time, if action not taken then it will be auto escalated to the next level

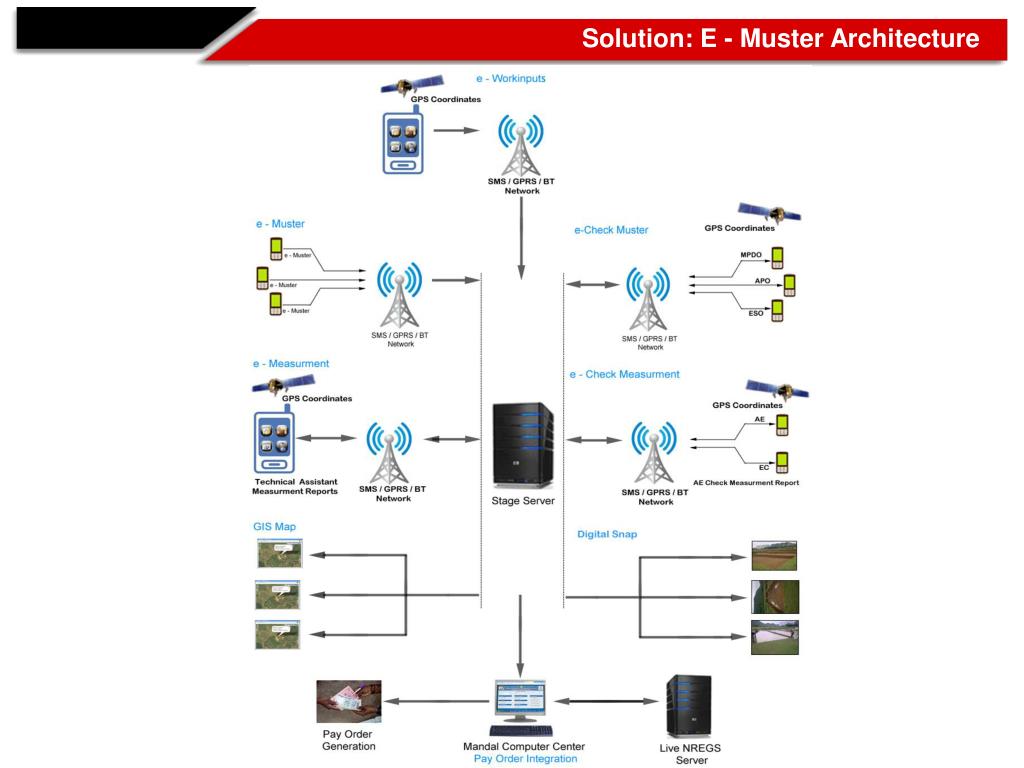

  5. Solution: E - Muster Architecture

  6. WORK FLOW OF E - MUSTER • Work flow of e - Muster involves the following steps • Application Distribution • GPRS PUSH • Bluetooth Wireless distribution at MCC • 2. Application having the following content • Job Card ID • Name • Age • Sex • 3. Updation of contents to Application happens through • GPRS • Advanced SMSML • Blue casting • 4. Data transfer from muster application to server via GPRS/SMS with the following information • Date & Time • Muster • GPS coordinates • 5. Generation of random Verification list

  7. 6. Mobile Based e- Measurement Generated with following information Work ID Muster Sheet Number Pit number Image GPS coordinates 7. e- Check Measurement will provide Check Measurement officer with live Information of M-Book for that Work location with details for him to check. Measurements Images GPS coordinates 8. E - Check Muster Mobile application with the following information Date GPS Coordinates Time Verified Muster Report

  8. E - MUSTER System Benefits 1. LIVE muster Reporting 2. Enforcing Work timings 3. Enforce Group Management (Mate & Fixed) 4. Closing Muster as per the scheduled time 5. Creating Room for Verification officer to cross check with muster report 6. Muster Verification with Biometric and GPS 7. Verification with GEO FENCING 8. Auto Escalations with SMS Alerts 9. Doesn't need to re-type muster at mandal computer office 10. Low cost solution to Indian Market 11. AE doesn't need to wait for TA physical report 12. Reducing delays in Payments 13. Reducing Data Entry Job to save time and money 14. Improving VRP communication

  9. NETWORK ARCHITECTURE OF E - MUSTER GPRS NETWORK ARCHITECTURE: If GPRS Signals are available then the data gets transferred in the following way. GSM Architecture: If GPRS signals are not available then GSM signals are used for data transfer in the following way Radio Signals Architecture: If GSM signals are also not available then the data is transferred using Radio signals at MCC centers.

  10. ELECTRONIC MUSTER & MEASURMENT SYSTEM

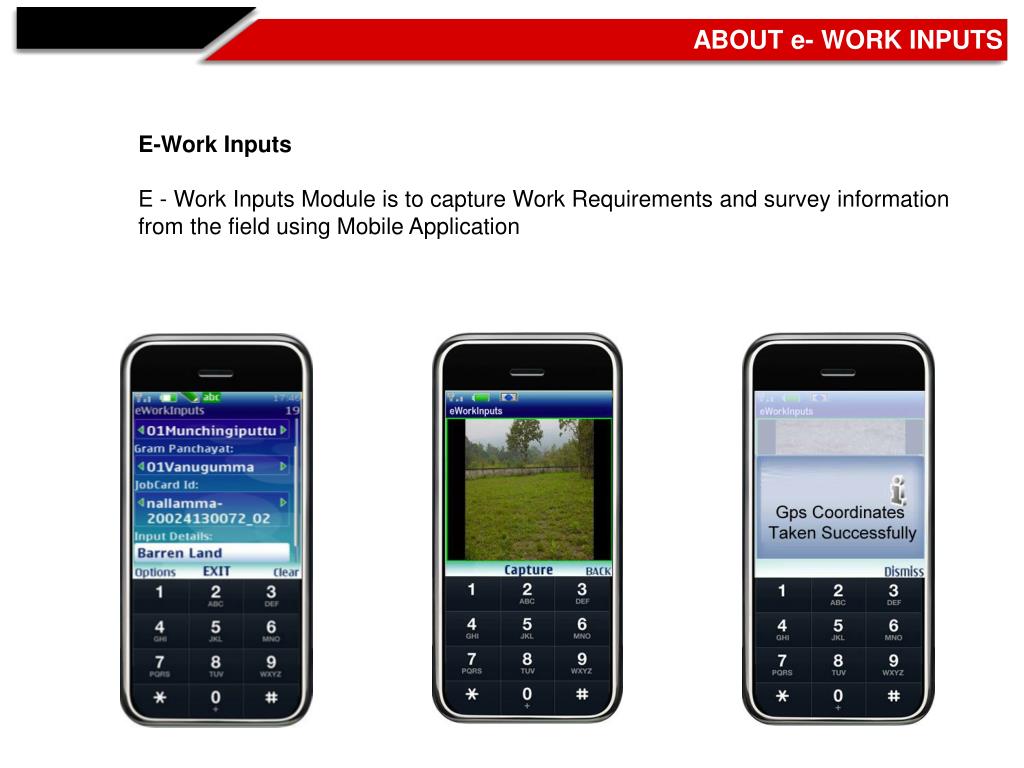

  11. ABOUT e- WORK INPUTS E-Work Inputs E - Work Inputs Module is to capture Work Requirements and survey information from the field using Mobile Application

  12. ABOUT E - MUSTER E – MUSTER: “e - Muster" is a Mobile phone based application to transfer muster information live from the work location to stage server every day when the work starts with Work ID, Job card ID and attendance details of wage seekers from work location.

  13. Mobile e-Muster will ensure that the attendance details from all work locations are logged live every day this will help in generating live muster reports and log live data regarding various works happening that day and the number of wage seekers working with details of the muster.

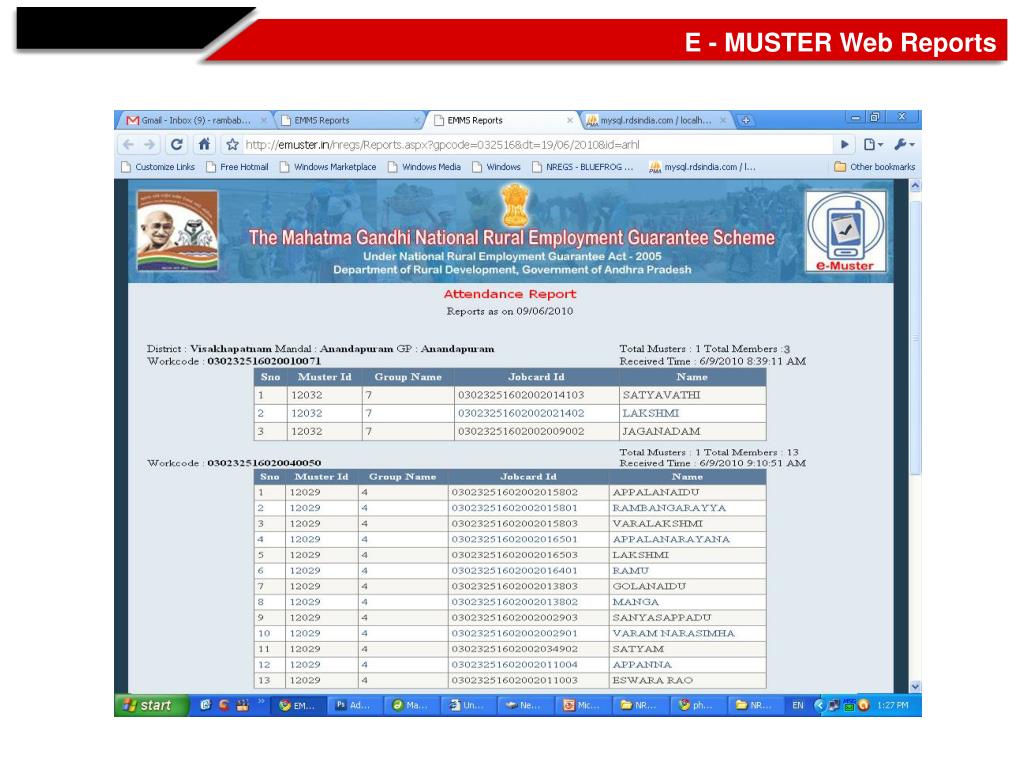

  14. E - MUSTER Web Reports

  15. ABOUT E – CHECK MUSTER E-Check Muster will help in proper monitoring of muster at the work location by the monitoring authorities and receive muster verification reports live from muster verification officers with GPS coordinates from the work location

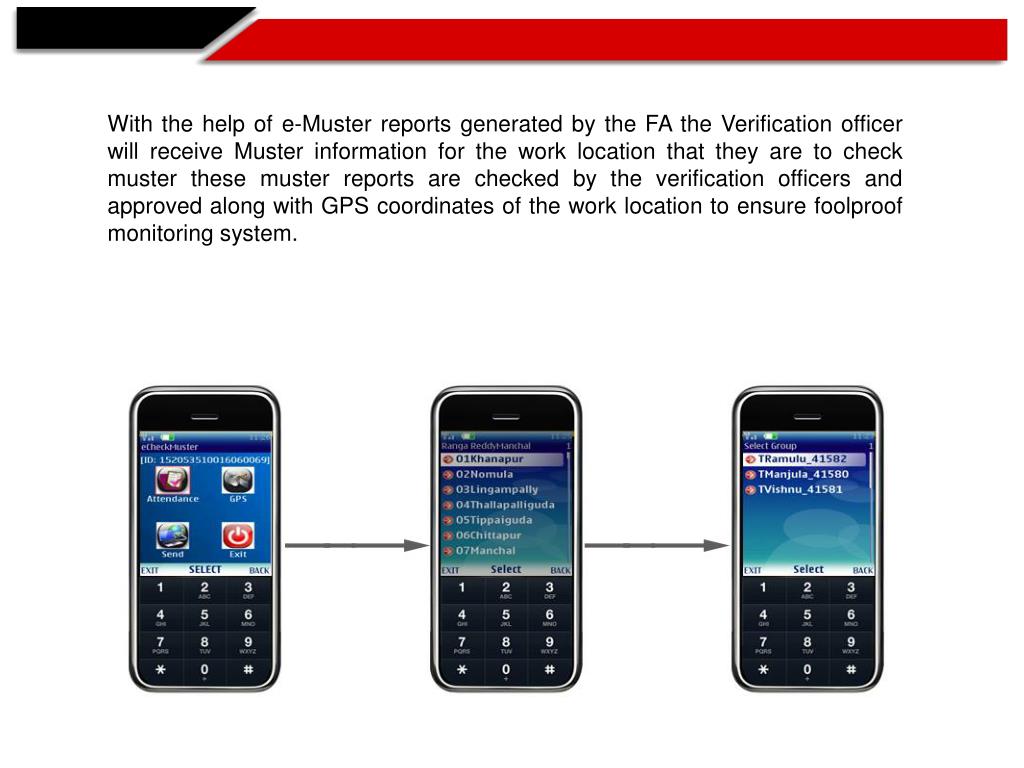

  16. With the help of e-Muster reports generated by the FA the Verification officer will receive Muster information for the work location that they are to check muster these muster reports are checked by the verification officers and approved along with GPS coordinates of the work location to ensure foolproof monitoring system.

  17. ABOUT e – MEASUREMENTS The Technical Assistants will receive Muster details in order to take the measurements for the muster ids and send the measurement details live to the stage server along with the GPS coordinates of the measurement pits.

  18. Technical Assistant will record the measurements pit wise and after completion of taking measurements he will take the GPS coordinates to submit the measurement details in the stage server this ensures that the measurements are work site coordinates helps in identifying pinpointing the measurement location.

  19. The TA records the measurements from the work location and sends the reports through the mobile e-muster these readings are sent to the AE for Check Measurement purpose

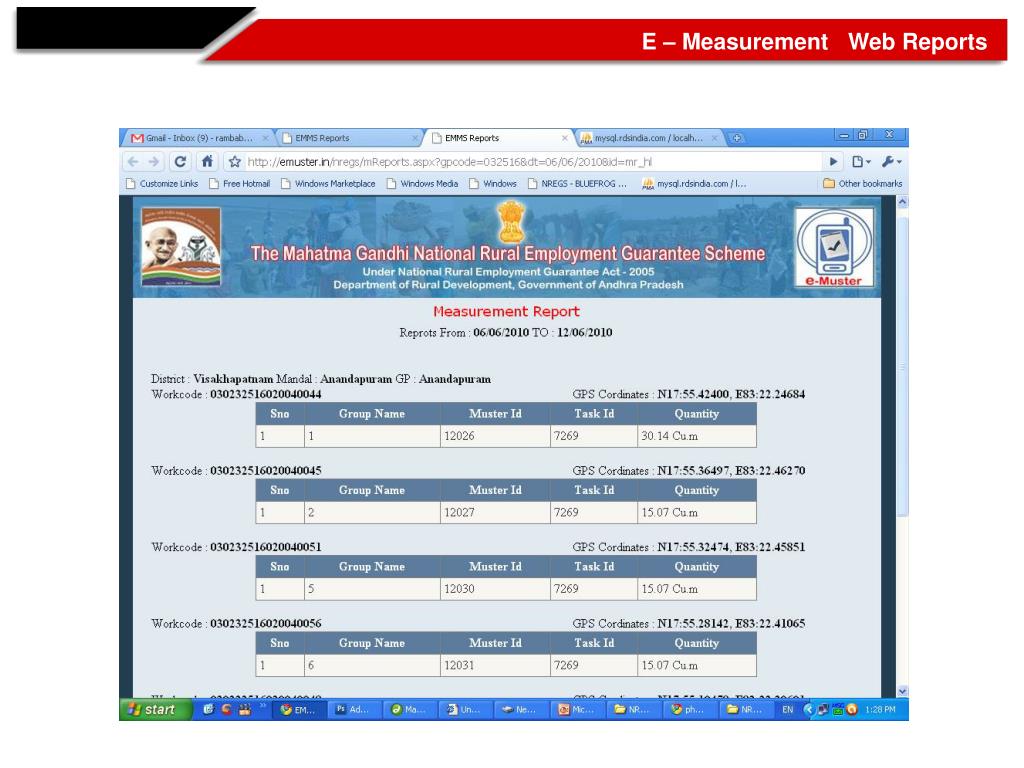

  20. E – Measurement Web Reports

  21. About E – CHECK MEASUREMENT The check measurement officer will receive the measurements taken by the Technical assistant for checking and his check reports are also recorded along with GPS coordinates

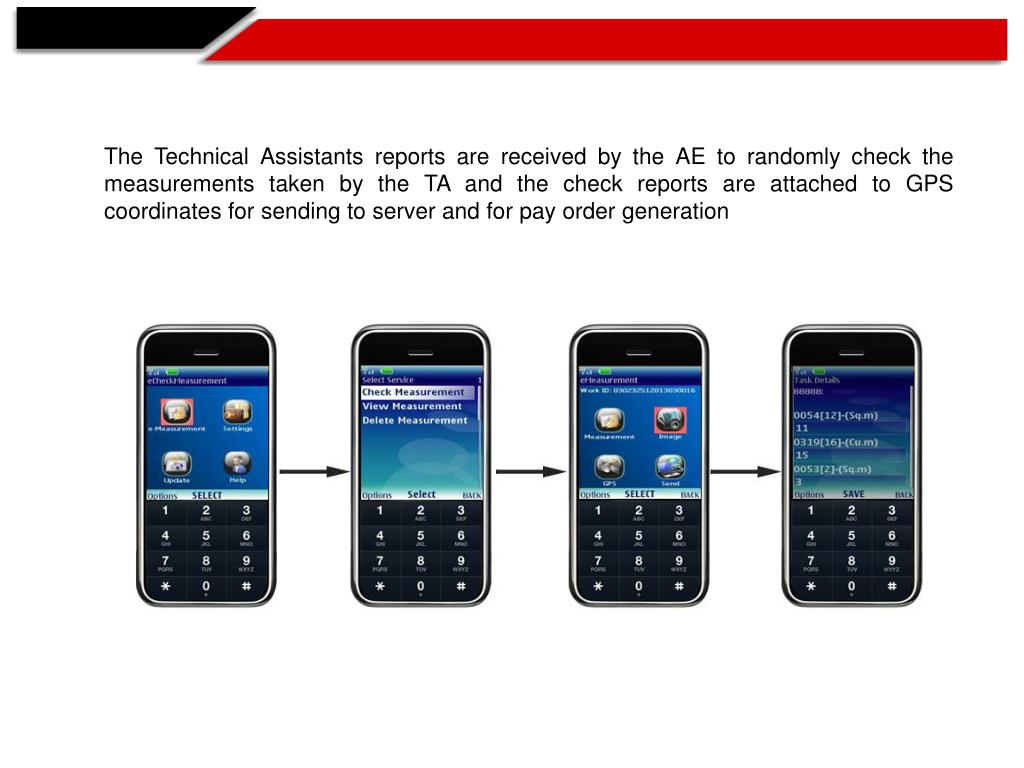

  22. The Technical Assistants reports are received by the AE to randomly check the measurements taken by the TA and the check reports are attached to GPS coordinates for sending to server and for pay order generation

  23. E – CHECK MEASUREMENT Web Reports

  24. ABOUT PAY ORDER INTIGRATION The E-Muster reports are logged in the stage server and all reports are updated at the Mandal computer center to the NREG server to generate pay orders and payments are made, e – muster completes the cycle from Muster generation to pay order generation.

  25. PAY ORDER GENERATION WEB REPORTS

  26. Geographical Information System Design, Development and deployment with custom layers and spatial data objects to identify different layers on the maps and maps will be directly integrated with digital snapshots. Location & Digital snap integrated Geographical Information System is to provide advance analysis and monitoring solutions.

  27. Image Gallery Image Gallery will provide end to end progress of the work with digital snap shots and integrated with GIS maps

  28. ABOUT WEB INTEGRATION All the information from mobile applications will be transferred to the stage server, After Mandal computer operator’s verification, data will be directly transferred to NREGA Server without re-typing.

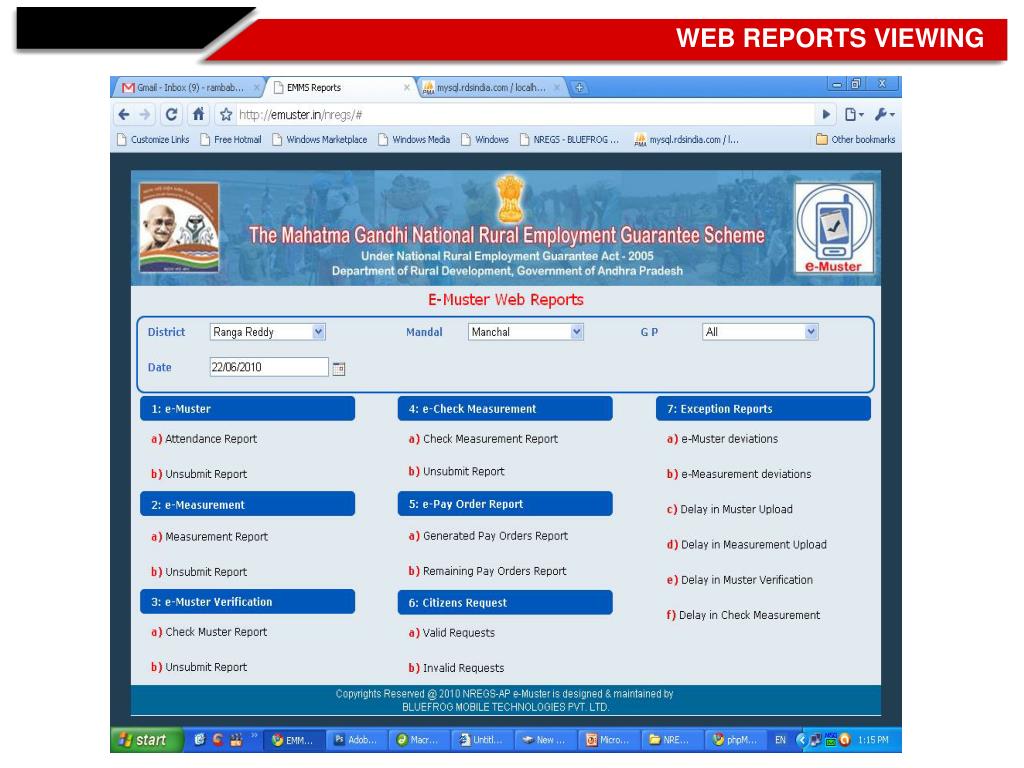

  29. WEB REPORTS VIEWING

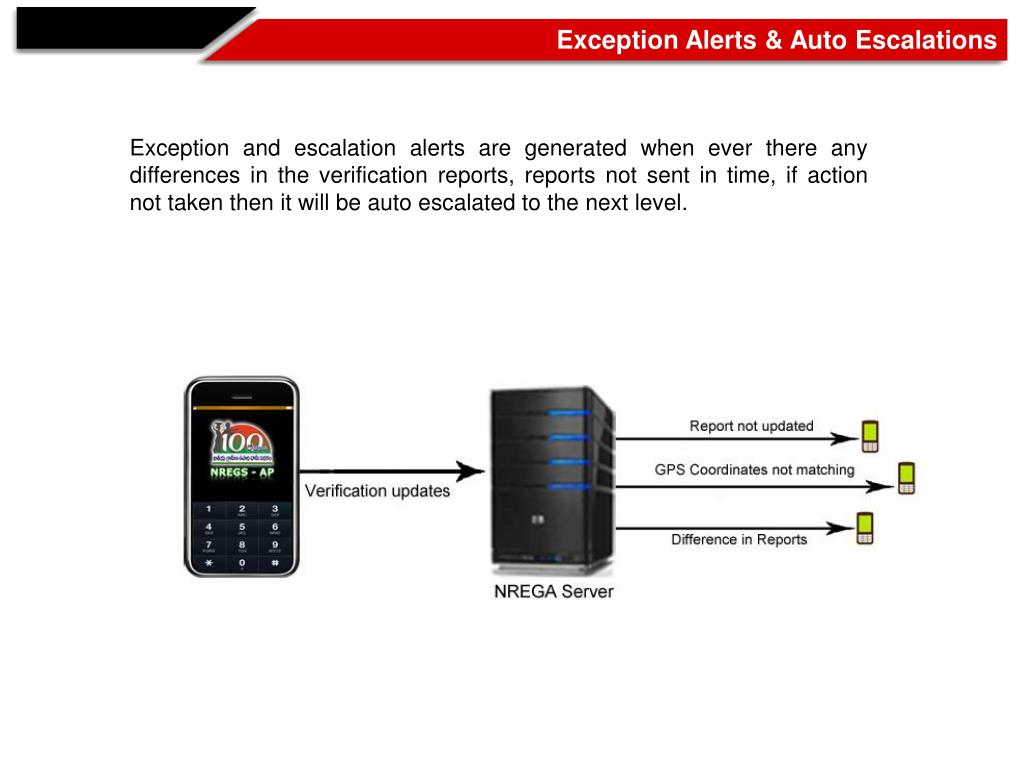

  30. Exception Alerts & Auto Escalations Exception and escalation alerts are generated when ever there any differences in the verification reports, reports not sent in time, if action not taken then it will be auto escalated to the next level.

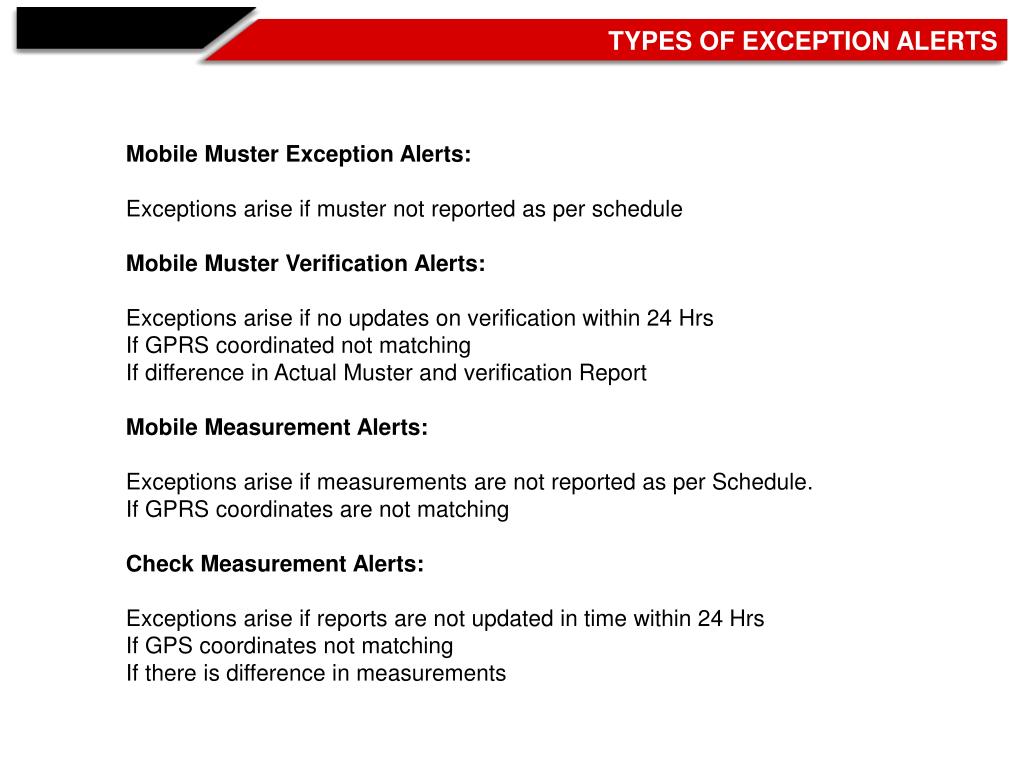

  31. TYPES OF EXCEPTION ALERTS Mobile Muster Exception Alerts: Exceptions arise if muster not reported as per schedule Mobile Muster Verification Alerts: Exceptions arise if no updates on verification within 24 Hrs If GPRS coordinated not matching If difference in Actual Muster and verification Report Mobile Measurement Alerts: Exceptions arise if measurements are not reported as per Schedule. If GPRS coordinates are not matching Check Measurement Alerts: Exceptions arise if reports are not updated in time within 24 Hrs If GPS coordinates not matching If there is difference in measurements
