  1. MEASURING INSTRUMENT MULTI - HANDY 2020

  2. Connect the sensor Switch on the device Start to measure Only as complete kit available

  3. TECHNICAL DATA • 2 Measuring inputs for analogue sensors; Signals: 0 - 20 mA, 4 - 20 mA • 1 Calculating channel for difference • Measuring rate: 1 ms (1 kHz) • Resolution: 12 Bit

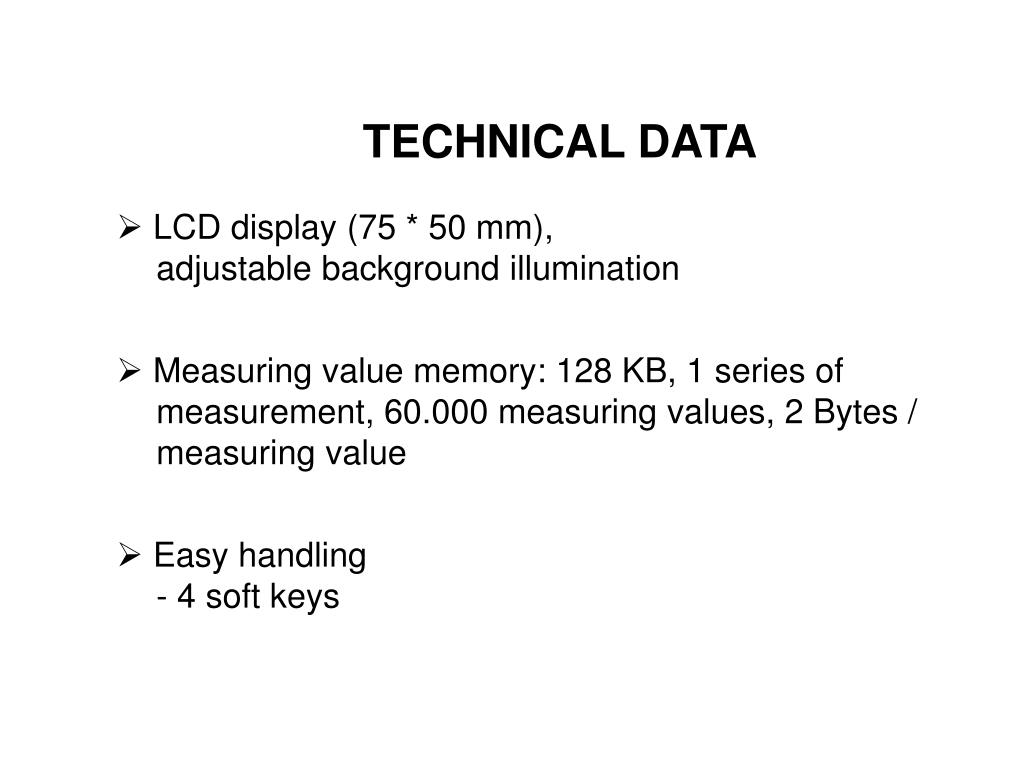

  4. TECHNICAL DATA • LCD display (75 * 50 mm), adjustable background illumination • Measuring value memory: 128 KB, 1 series of measurement, 60.000 measuring values, 2 Bytes / measuring value • Easy handling - 4 soft keys

  5. HANDLING 2020 Initialization menu appears for approx. 2 seconds

  6. MAIN MENU F1 (Peak) Min. / Max. mode F2 No function F3 (Start) Starting of storage F4 Illumination on / off Measuring value centered if only one ISDS sensor is connected Battery display divided into 10 steps

  7. MAIN MENU Measuring values of all connected sensors are shown If the measuring values have the same variable, a third value will be displayed This is used for the calculation of difference

  8. MIN / MAX MODE F1 (Meas) Min. / Max. and normal mode F2 (Del) Delete Min. / Max. memory F3 (Start) Starting of storage F4 Illumination on / off Display if only one sensor is connected

  9. MEMORY MENU F1 (Peak) Min. / Max. and normal mode F2 No function F3 (Stop) Stop storage F4 Illumination on / off Only real measuring channels can be stored. Representation of calculated channels of a storage only possible with HydrocomsysWin. Display of storage status in 50 steps Storage can be transferred via USB to a PC. New storage overwrites the old storage.

  10. SETUP MENU F1 (Down) One line down F2 (Up) One line up F3 (Slct) Select actual parameter F4 (OK) Storage of parameter and return to the main menu Activation via soft keys F1, F2 and F2 Languages: Italian, German, English, Spanish, French, Dutch, Swedish, Polish. Possibility to program your own language, e.g. Cyrillic ISDS: On / Off Unit: Selection between SI and US

  11. ISDS If no ISDS sensor is connected to the measuring instrument, only a pressure measurement (0 - 20 mA) can be carried out. The ISDS-function has to be switched off. Adjustable measuring ranges: 6 - 60 - 100 - 200 - 400 - 600 bar

  12. ISDS Without ISDS, 3 channels (2x measuring inputs, 1x calculated channel) are displayed and both measuring inputs are stored. All ISDS sensors with output signal 0/4-20 mA are recognized automatically:  Temperature sensor  Volume flow rate sensor with f/I-converter (NEW)

  13. RESET MENU F1 (No) Stop the reset, return to the main menu F2 No function F3 No function F4 Carry out a reset and return to the main menu Activation via soft keys F1, F2 and F3 After system breakdown, a software reset can be carried out All parameters are adjusted according to manufacturing adjustments and the memory will be completely deleted

  14. COMMUNICATION WITH PC HydrocomsysWin Basic:Blocks a certain part of the functions if MH 2020 is connected Communication with PC via USB 2.0 interface Extendable to full version by ordering release code which has to be entered in: Extras -> Configuration HydrocomsysWin: Extras – Configuration

  15. COMMUNICATION WITH PC HydrocomsysWin: Extras – Configuration Windows: System configuration - Hardware Interface: RS232 has to be selected Baudrate: 57600 has to be selected COM: In this case COM 3 has to be selected

  16. MEASURING KIT Details will follow… HydrocomsysWin Basic: Software as download on your homepage available Included pressure transducer HT-PD: Suitable only with instrument MH 2020

  17. MEASURING KIT Following kits are available:
