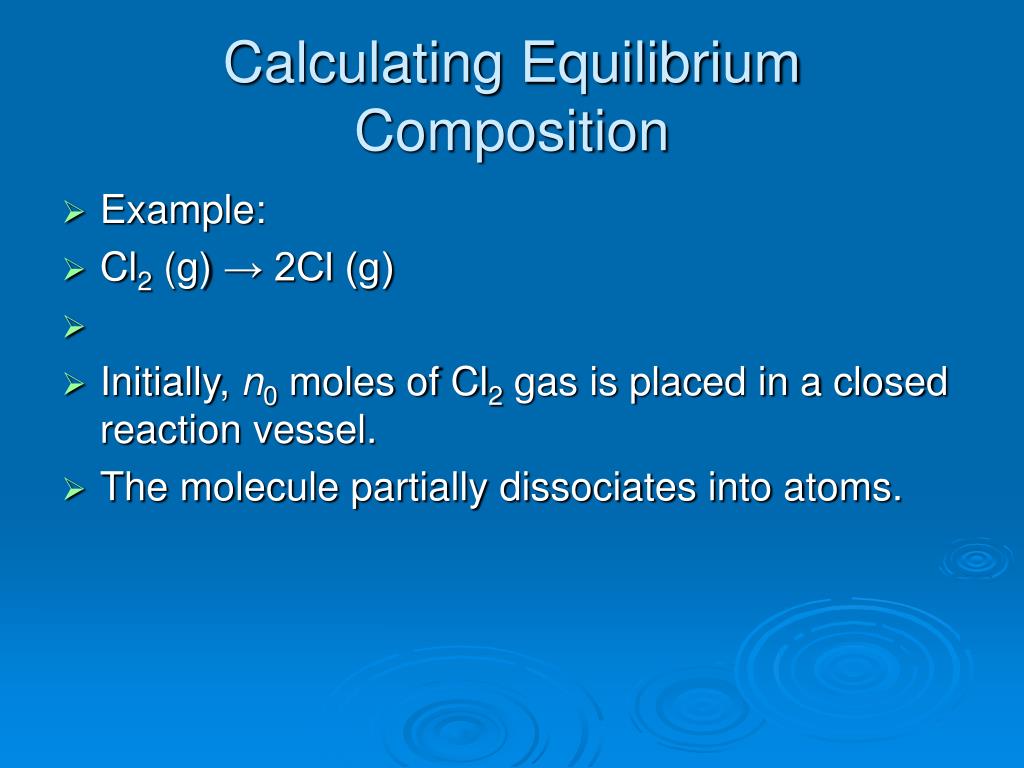

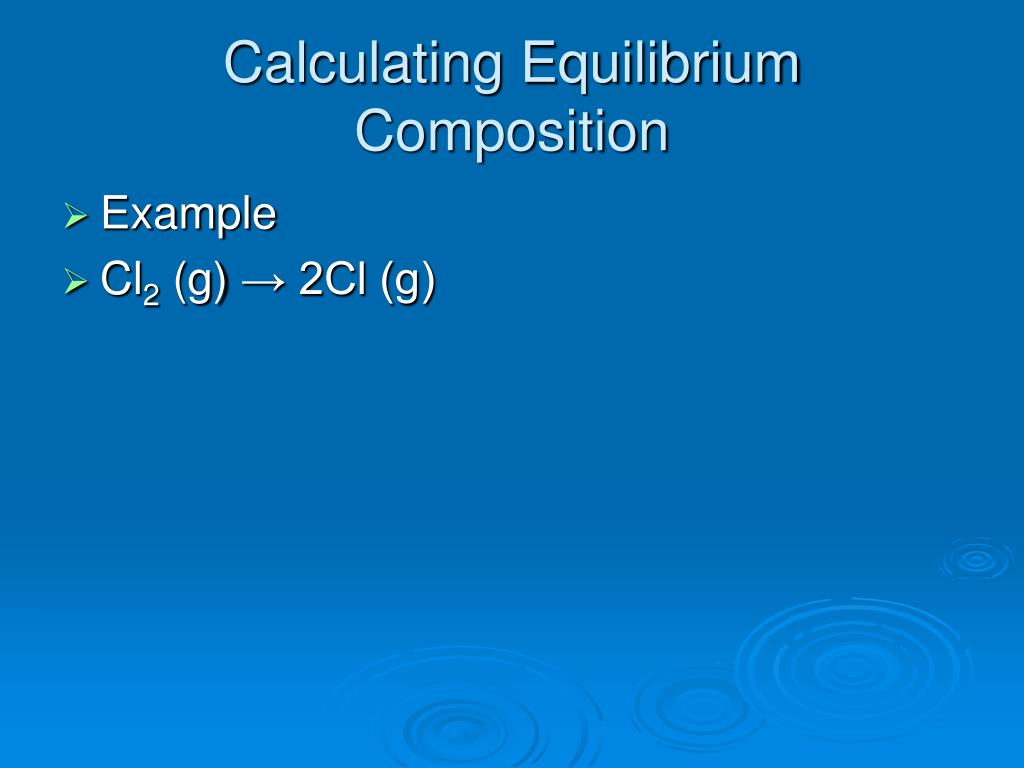

Calculating Equilibrium Composition • Example: • Cl2 (g) → 2Cl (g) • Initially, n0 moles of Cl2 gas is placed in a closed reaction vessel. • The molecule partially dissociates into atoms.
Calculating Equilibrium Composition • Example • Cl2 (g) → 2Cl (g) • Both are gasses, so use partial pressures rather than concentrations. • We know that at equilibrium we have a definite mixture (i.e., the composition of the mixture is not arbitrary), as the reactants and products are related.
Calculating Equilibrium Composition • What is the expression for the equilibrium quotient? • We need expressions for the partial pressures at equilibrium.

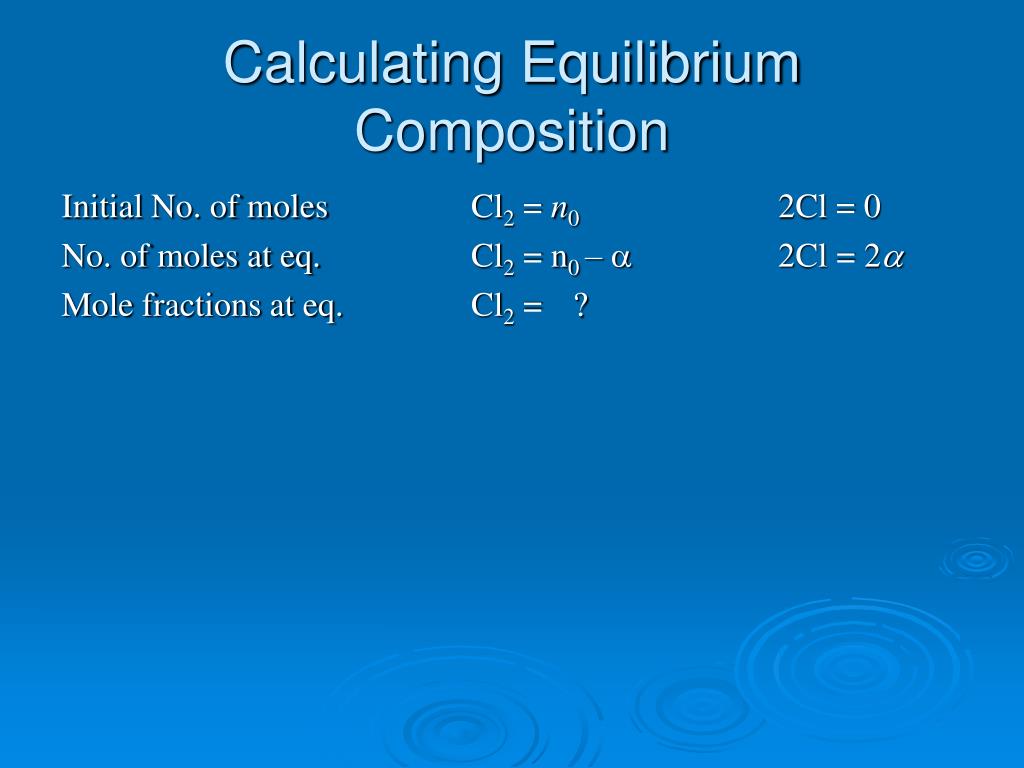

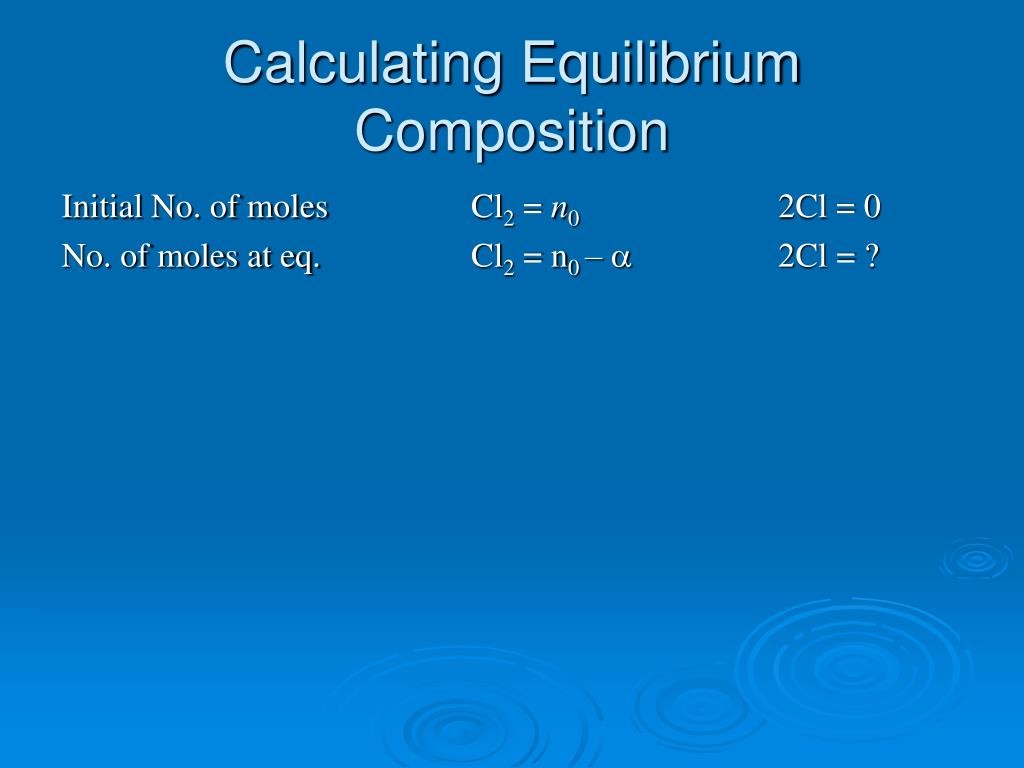

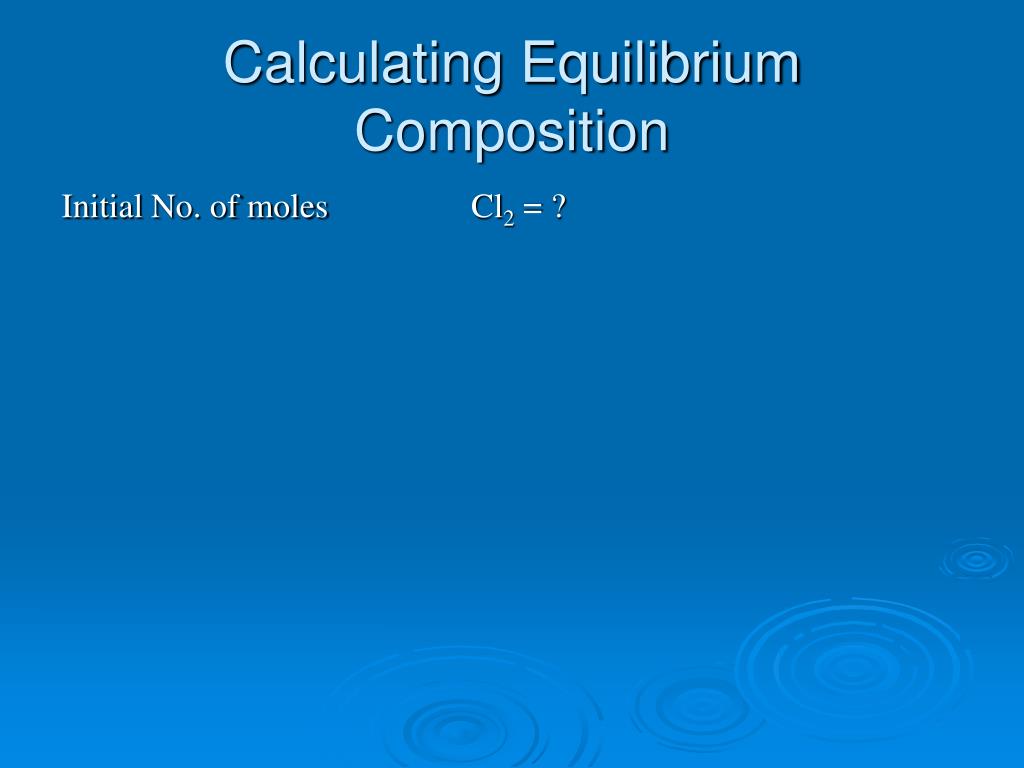

Calculating Equilibrium Composition Initial No. of moles Cl2 = n0 2Cl = 0 No. of moles at eq. Cl2 = n0 – a 2Cl = 2a Mole fractions at eq. Cl2 = ?
Calculating Equilibrium Composition Initial No. of moles Cl2 = n0 2Cl = 0 No. of moles at eq. Cl2 = n0 – a 2Cl = 2a Mole fractions at eq. Cl2 = n0 – a/ n0+a 2 Cl = 2a/n0+a
Calculating Equilibrium Composition Initial No. of moles Cl2 = n0 2Cl = 0 No. of moles at eq. Cl2 = n0 – a 2Cl = 2a Mole fractions at eq. Cl2 = n0 – a/ n0+a 2 Cl = 2a/n0+a Partial pressures at eq. Cl2 = ?

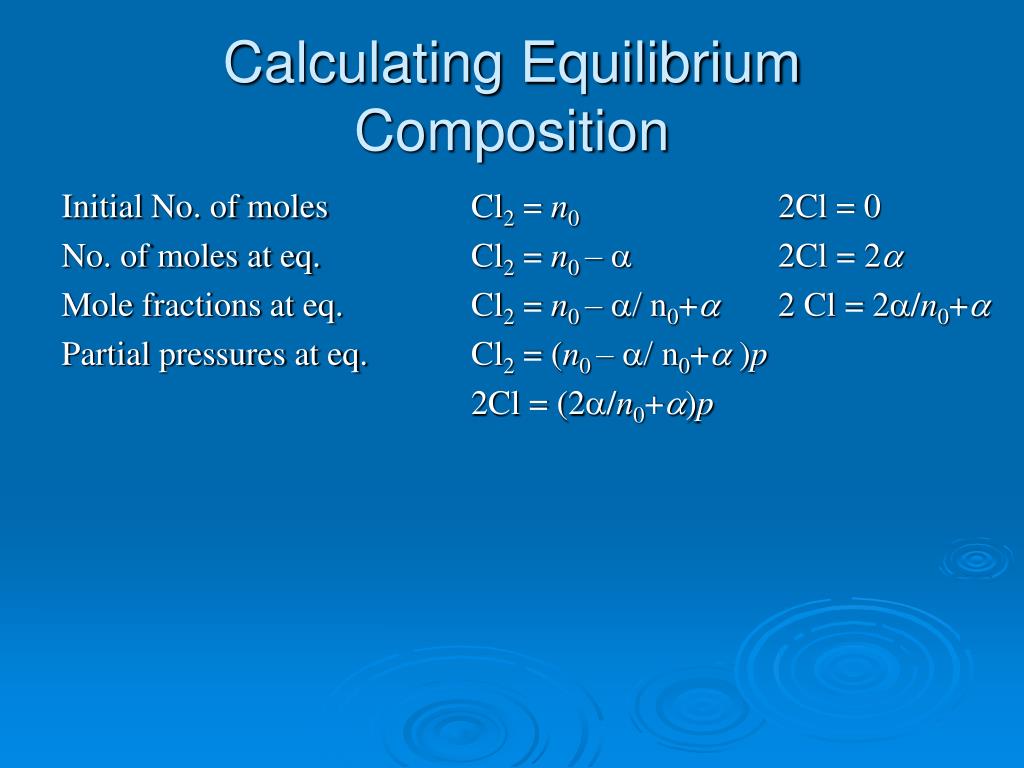

Calculating Equilibrium Composition Initial No. of moles Cl2 = n0 2Cl = 0 No. of moles at eq. Cl2 = n0 – a 2Cl = 2a Mole fractions at eq. Cl2 = n0 – a/ n0+a 2 Cl = 2a/n0+a Partial pressures at eq. Cl2 = (n0 – a/ n0+a)p 2Cl = (2a/n0+a)p

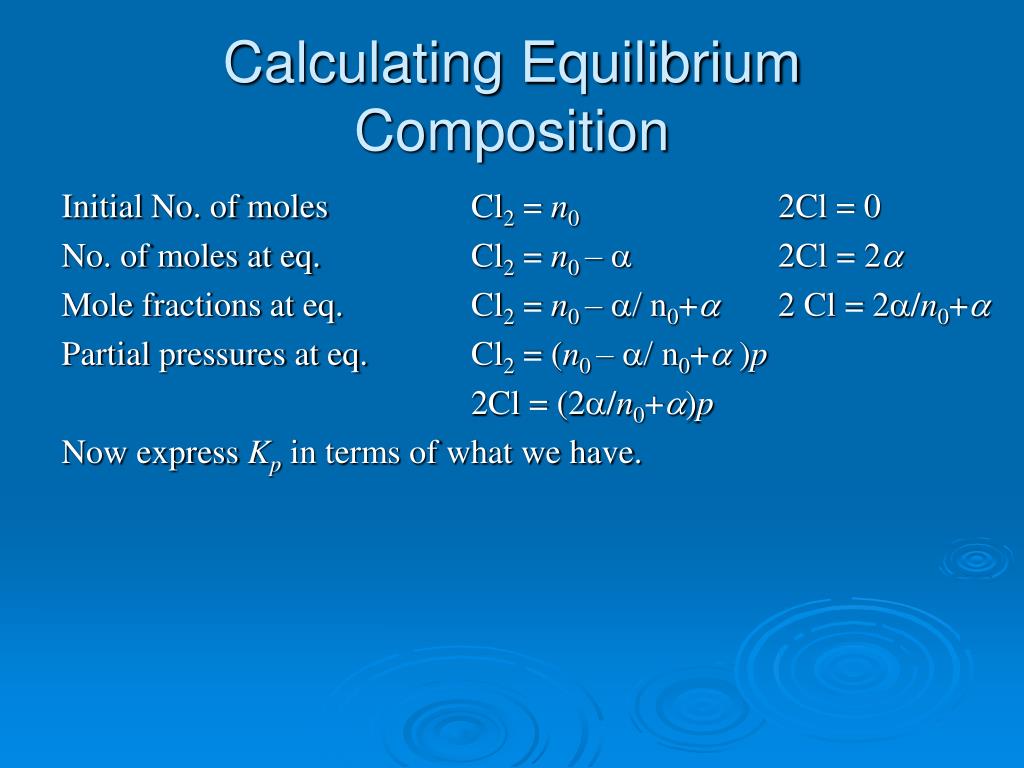

Calculating Equilibrium Composition Initial No. of moles Cl2 = n0 2Cl = 0 No. of moles at eq. Cl2 = n0 – a 2Cl = 2a Mole fractions at eq. Cl2 = n0 – a/ n0+a 2 Cl = 2a/n0+a Partial pressures at eq. Cl2 = (n0 – a/ n0+a)p 2Cl = (2a/n0+a)p Now express Kp in terms of what we have.
Calculating Equilibrium Composition Partial pressures at eq. Cl2 = (n0 – a/ n0+a)p 2Cl = (2a/n0+a)p Now express Kp in terms of what we have. • In terms of partial pressures. Which, in terms of a and n0 is

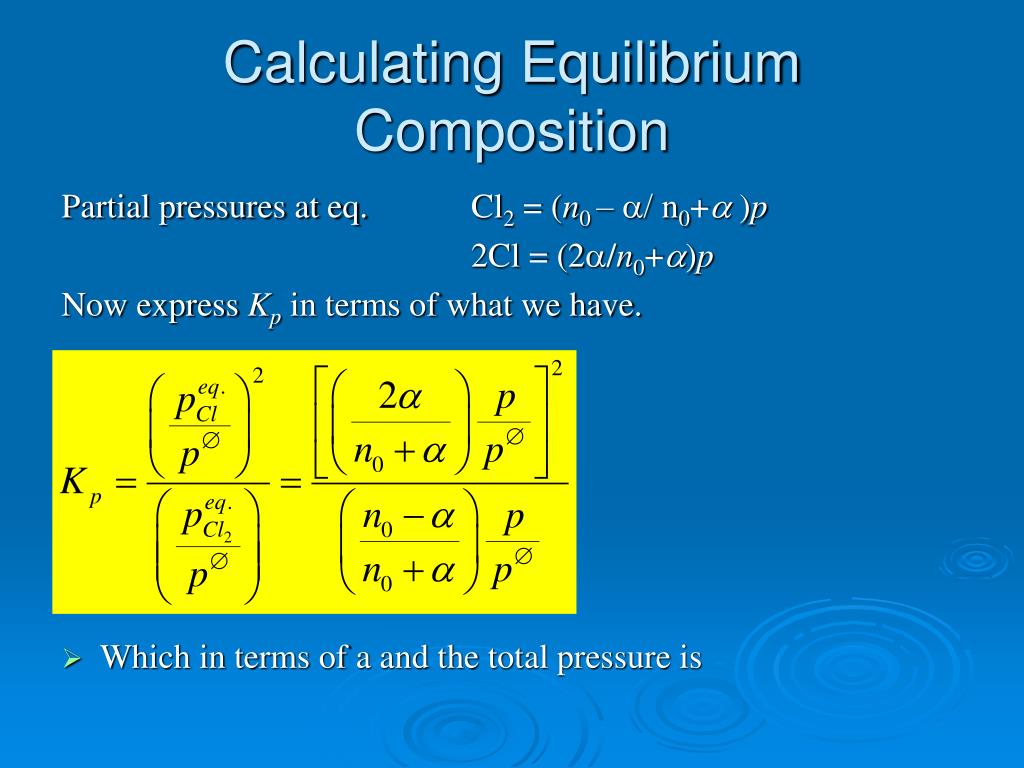

Calculating Equilibrium Composition Partial pressures at eq. Cl2 = (n0 – a/ n0+a)p 2Cl = (2a/n0+a)p Now express Kp in terms of what we have. • Which in terms of a and the total pressure is

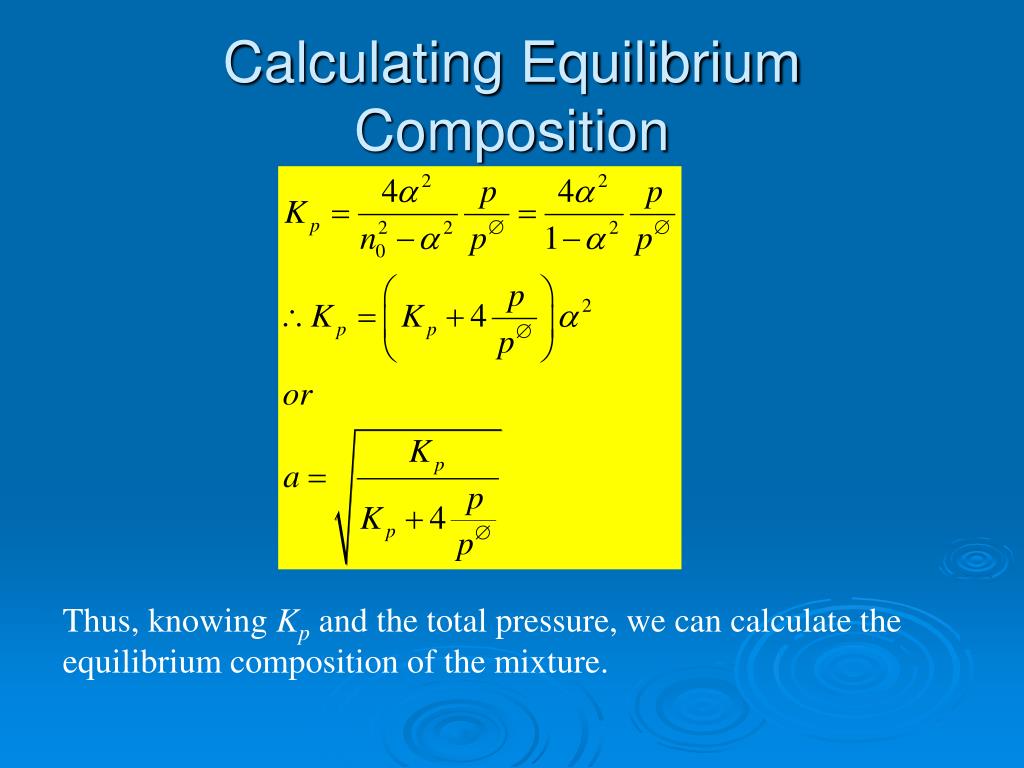

Calculating Equilibrium Composition Partial pressures at eq. Cl2 = (n0 – a/ n0+a)p 2Cl = (2a/n0+a)p Now express Kp in terms of what we have. This can now be expresses in terms of a and p only

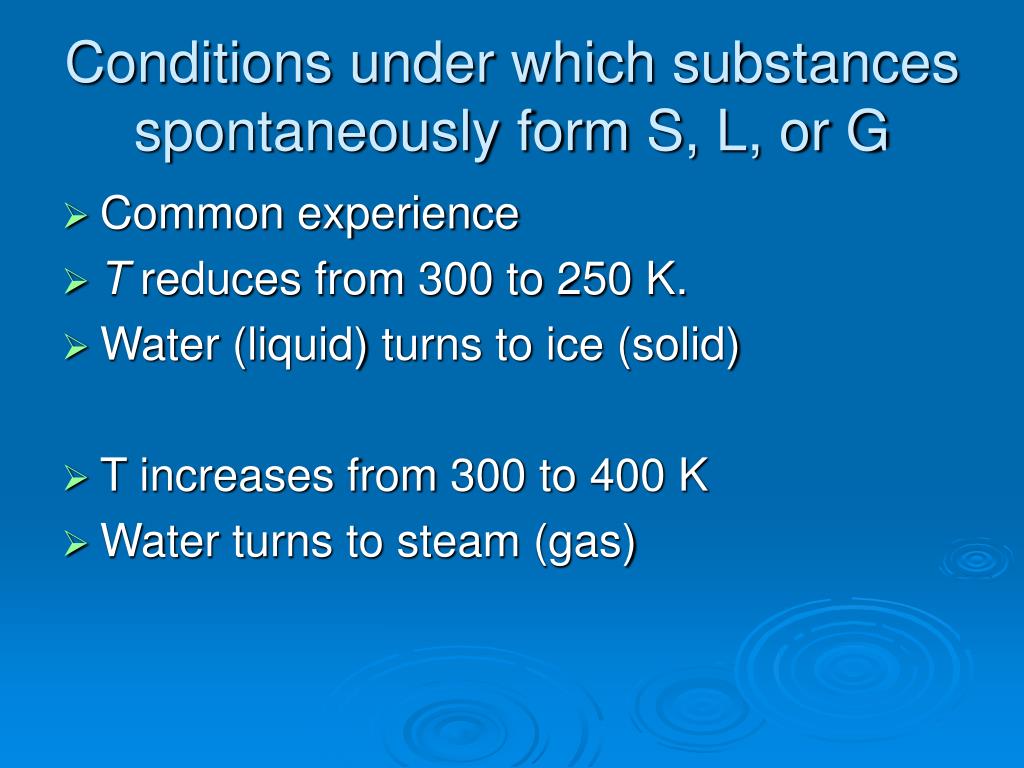

Common experience: • Low T favours solids • High T favours gases • Similarly for high and low pressure. • Hear we study the conditions under which two (or even three) phases co-exist in equilibrium, at a given p and T.

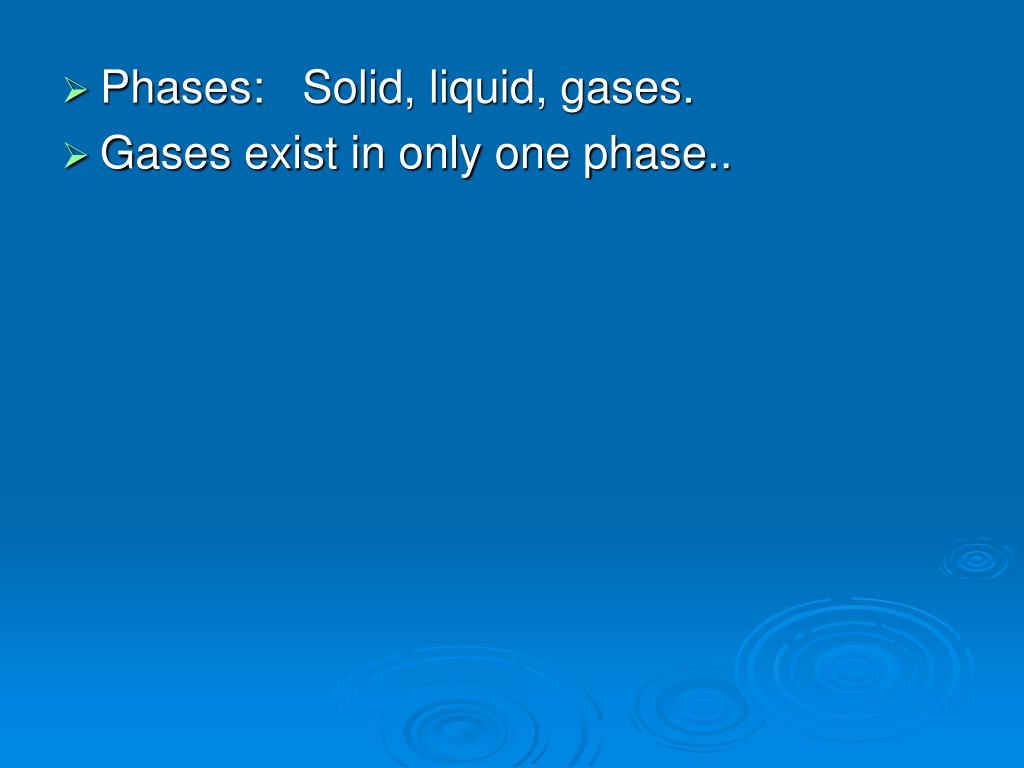

Phases: Solid, liquid, gases. • Gases exist in only one phase.. • Liquids primarily also exist in only one phase.. • Exception: supercritical liquids
Phases: Solid, liquid, gases. • Gases exist in only one phase.. • Liquids primarily also exist in only one phase.. • Exception: supercritical liquids. • Solids: can exist in several phases. • E.g., crystal structures..

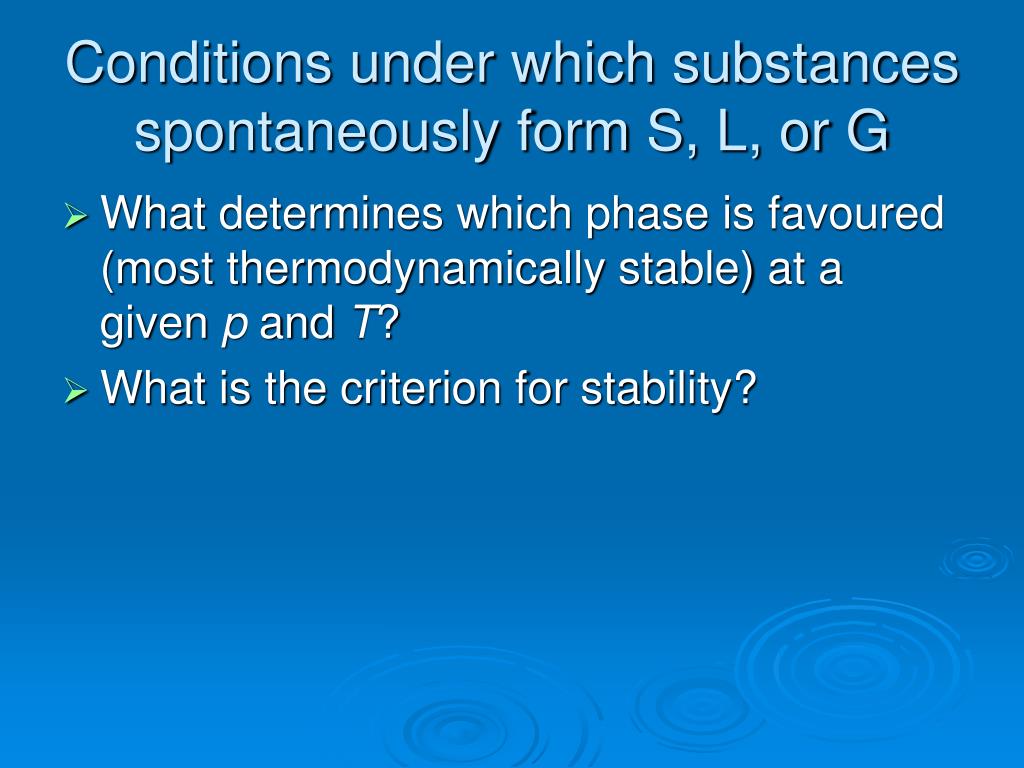

Conditions under which substances spontaneously form S, L, or G • We know from experience that melting and boiling are endothermic. • Thus, DS = DH/T is positive for both of these constant T processes. • We also know that Gasses, liquids and solids all have positive heat capacities.

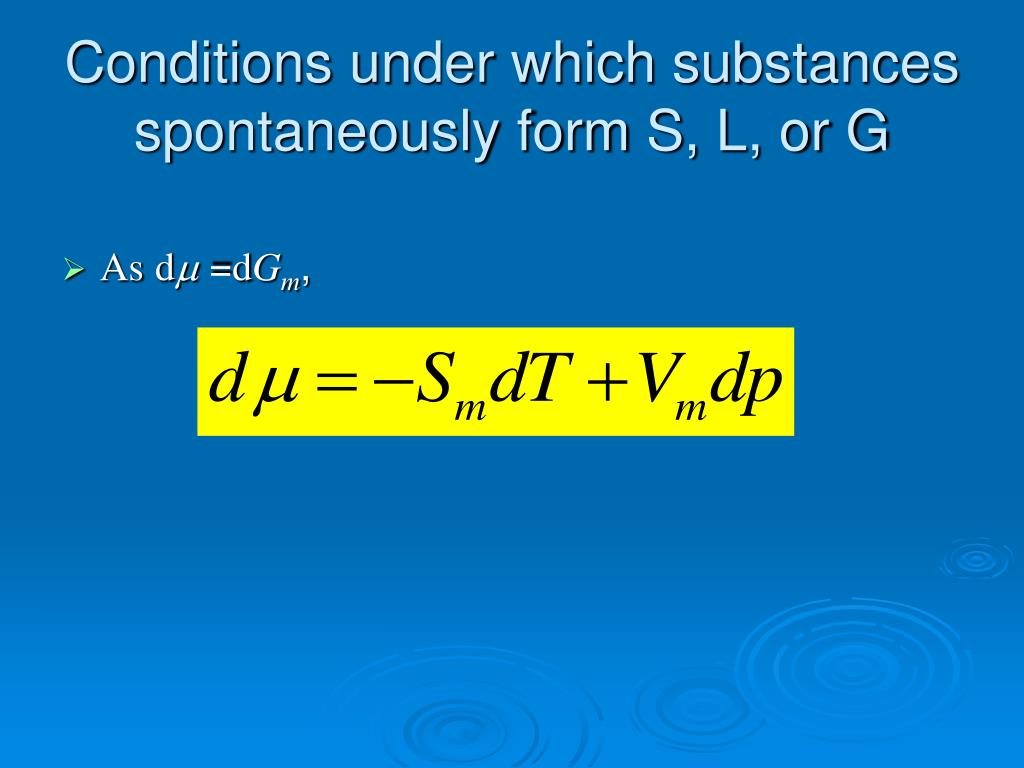

Conditions under which substances spontaneously form S, L, or G Thus, the functional relationship between m and T for solids, liquids, and gasses (at a given p) can be expressed graphically. The stable state at any given T is the phase with the lowest m.

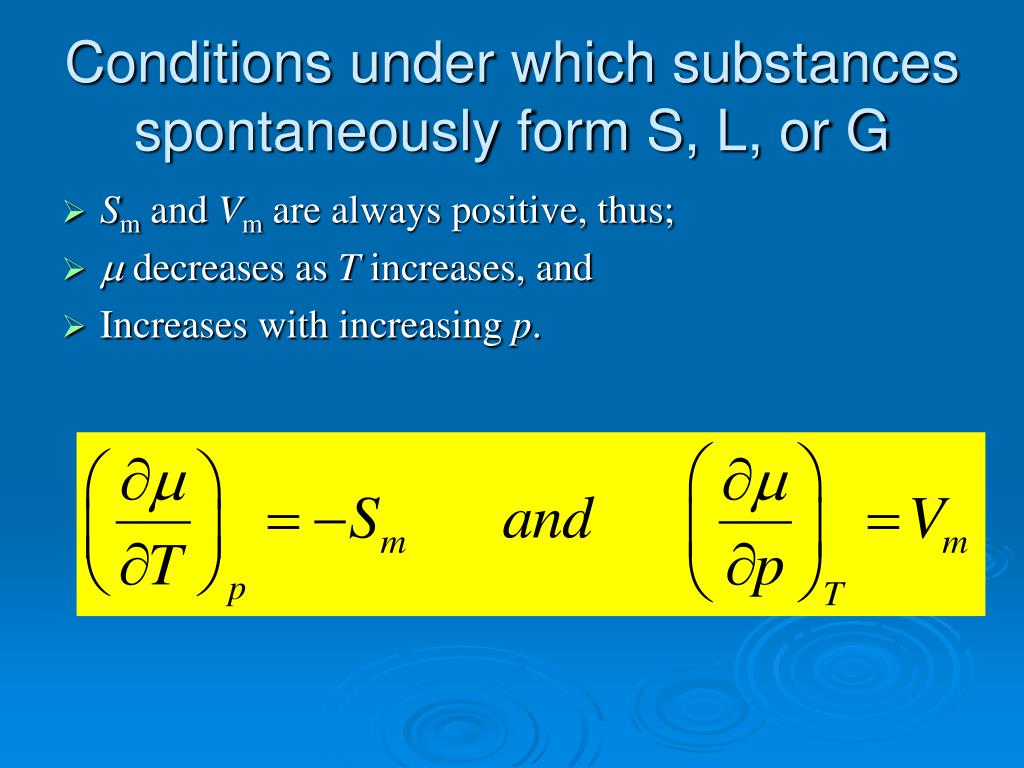

Conditions under which substances spontaneously form S, L, or G Start in the solid phase and increase temperature. As T increases, m decreases with a certain slope.. Note the slopes for liquid and gas are greater. Therefore, they intersect. The points of intersection of the solid/liquid and the liquid/gas are the melting and boiling temperatures, respectively.

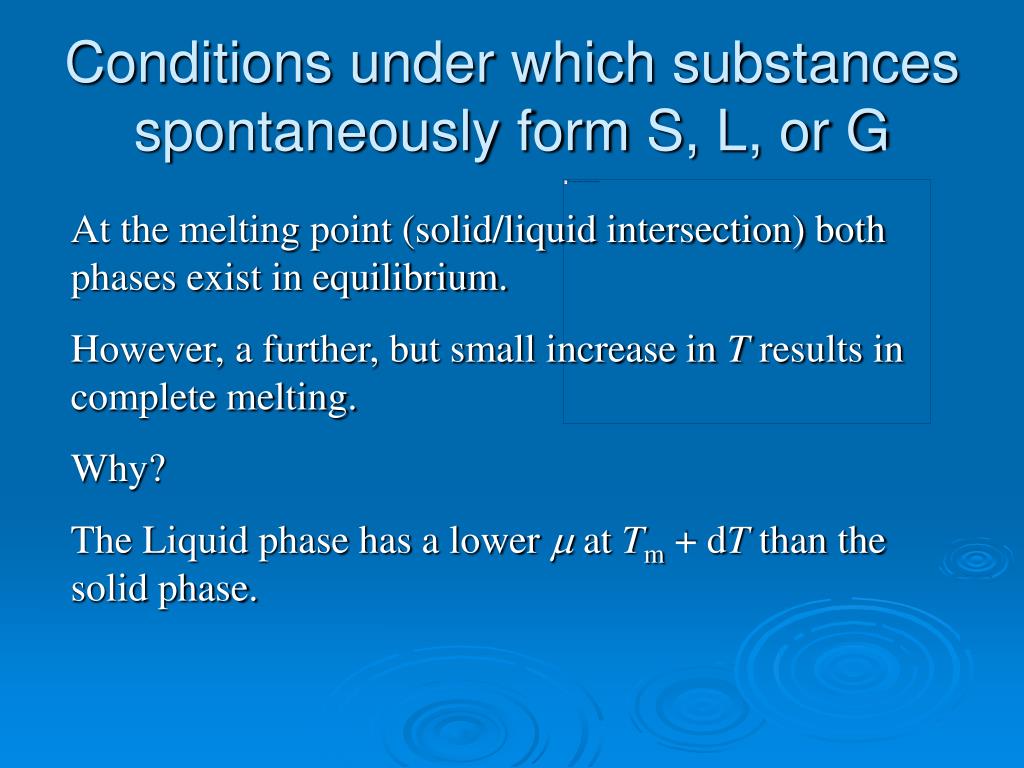

Conditions under which substances spontaneously form S, L, or G At the melting point (solid/liquid intersection) both phases exist in equilibrium. However, a further, but small increase in T results in complete melting. Why? The Liquid phase has a lower m at Tm + dT than the solid phase.
Conditions under which substances spontaneously form S, L, or G At the melting point (solid/liquid intersection) both phases exist in equilibrium. However, a further, but small increase in T results in complete melting. Why? The Liquid phase has a lower m at Tm + dT than the solid phase.
Conditions under which substances spontaneously form S, L, or G What is we increase the temperature fast (too fast)?. At a phase change, the system does not reach equilibrium, leading to super heating (bumping). Similarly, rapid cooling leads to supercooling (e.g., glass formation).
