Slab waveguide solution

Slab waveguide solution. FIBERS. Critical angle Numerical aperture Multimode Single mode Zero mode. Graded Index – parabolic profile. ``LP’’ modes (linearly polarized). THE V NUMBER. characteristic waveguide parameter. normalized wavenumber. V = 2.405. Propagation constant b.

amargolis
Télécharger la présentation

Slab waveguide solution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

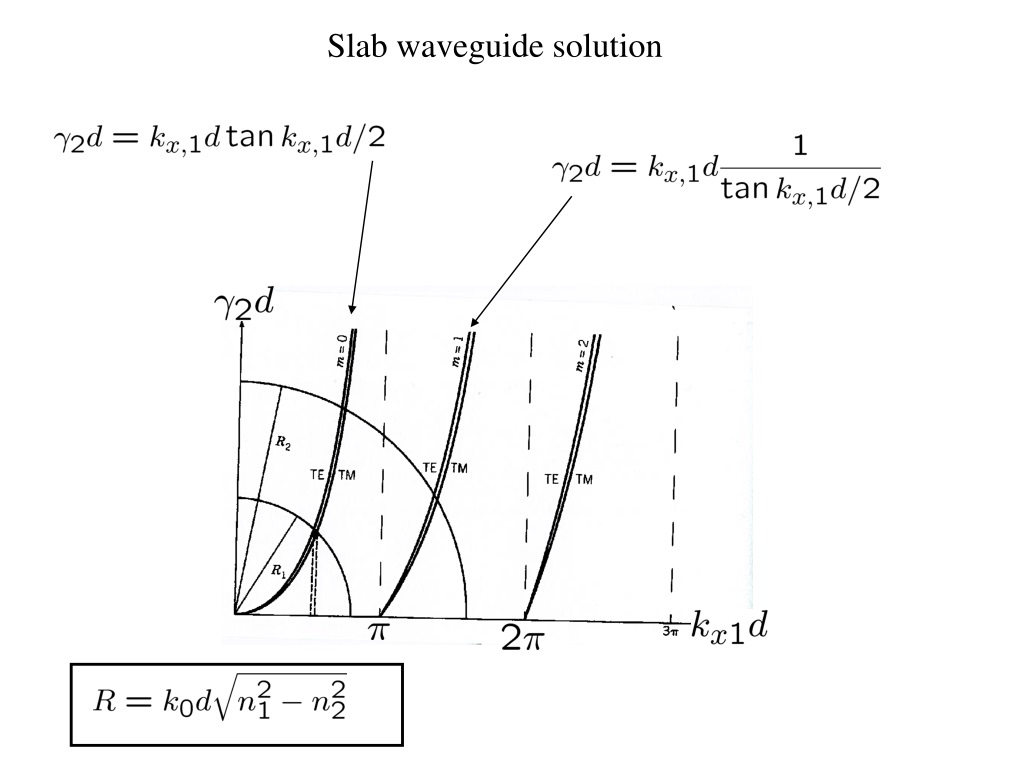

  1. Slab waveguide solution

  2. FIBERS Critical angle Numerical aperture Multimode Single mode Zero mode Graded Index – parabolic profile

  3. ``LP’’ modes (linearly polarized)

  4. THE V NUMBER characteristic waveguide parameter normalized wavenumber V = 2.405 Propagation constantb

  5. BEAT LENGTH

  6. Optical Couplers Definition: Device for distributing optical power among two or more ports. Coupling Ratio:

  7. Wavelength Division Multiplexings (WDMs) Definition:A system that allows the transmission of more than one signal over a common path, by assigning each signal a different frequency band. Also known as frequency division multiplexing.

  8. Polarizers Definition: An optical device capable of transforming unpolarized or natural light into polarized light, usually by selective transmission of polarized rays. Generally: fiber to air – polarizer – fiber

  9. Polarization Controllers

  10. Polarization Beam Splitters (PBS) Definition: Polarizing beam splitters take an input beam of light and divide it into two orthogonal polarizations.

  11. Isolators PM/fast axis blocked Definition: A device intended to prevent return reflections along a fiber.

  12. 980nm Laser Diode Pump

  13. Polarization Maintaining Fibers (PMFs) Definition: Single-mode fiber that preserves the plane of polarization of the light launched into it as the beam propagates through its length. The polarization is maintained by asymmetry in the fiber structure, either in its shape (geometrical birefringence) or in its internal stresses (stress-induced birefringence). Because of this asymmetry, the two perpendicularly polarized modes transmitted by the fiber have different propagation constants..

  14. Erbium Doped Fibers (EDFs) Definition:An optical fiber that can be used to amplify an optical input. Erbium rare earth ions are added to the fiber core material as a dopant in typical levels of a few hundred parts per million. When pumped by a laser diode, optical gain is created, and amplification occurs.
