Lab Activity 8 Proteins part II

Lab Activity 8 Proteins part II. IUG, Spring 2014 Dr. Tarek Zaida. Experiments. A.A can be characterized qualitatively by using several dyes that will react with certain groups of the A.A. Seven Tests: Ninhydrin 4. Xanthoproteic 7. Sakaguchi Biuret 5. Hopkin’s - Cole

amato
Télécharger la présentation

Lab Activity 8 Proteins part II

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Lab Activity 8Proteins part II IUG, Spring 2014 Dr. TarekZaida

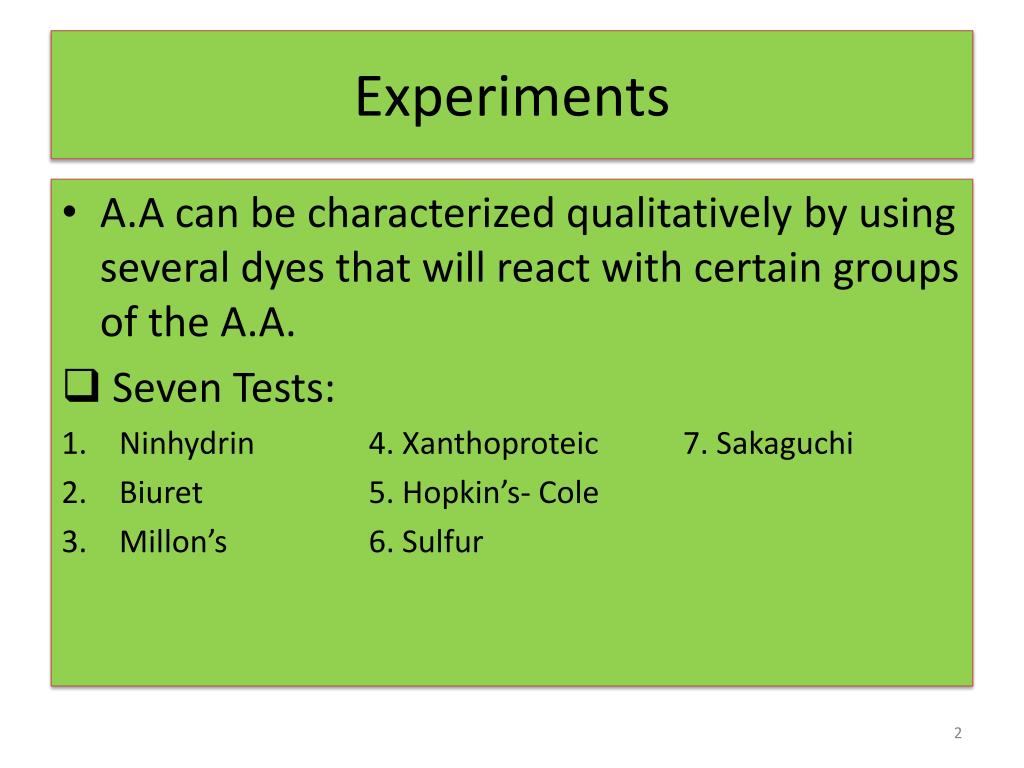

  2. Experiments • A.A can be characterized qualitatively by using several dyes that will react with certain groups of the A.A. • Seven Tests: • Ninhydrin 4. Xanthoproteic 7. Sakaguchi • Biuret 5. Hopkin’s- Cole • Millon’s 6. Sulfur

  3. 1. Ninhydrin Test • For amino acids containing a free NH2 & free COOH. • Reaction with ninhydrin to produce a colored product. • When NH2 is attached to α-C on the amino acid’s carbon chain, the amino group’s N is part of a blue-purple product. • Amino acids that have N-H (a secondary amino group (e.g. proline) also react with ninhydrin, but they yield a yellow product.

  4. Reaction of A.A with Ninhydrin

  5. Procedure.. 1. Label 6 cleaned, drained test tubes with the names of the following solutions: 2 % glycine, 1 % tyrosine, 2 % proline, 2 % casein, 2 % gelatin, 2 % albumin. 2. Add 15 drops of each solution in the corresponding test tube. • To each of the test tubes add 5 drops of 0.5 % ninhydrin reagent solution. • Place the test tubes into the boiling-water bath for 5 minutes. Remove the test tubes from the water bath and place then in a test tube rack. Record your observations!

  6. 2. Biuret • For detecting peptide bonds (hence peptides or proteins).. • How it works? • The copper atoms of Biuret solution (CuSO4 ) in a basic environment will react with peptide bonds (-CO ---NH) to form a chelate of a deep violet color, indicating the presence of proteins. • A light pink color indicates the presence of peptides..

  7. Biuret complex with proteins…

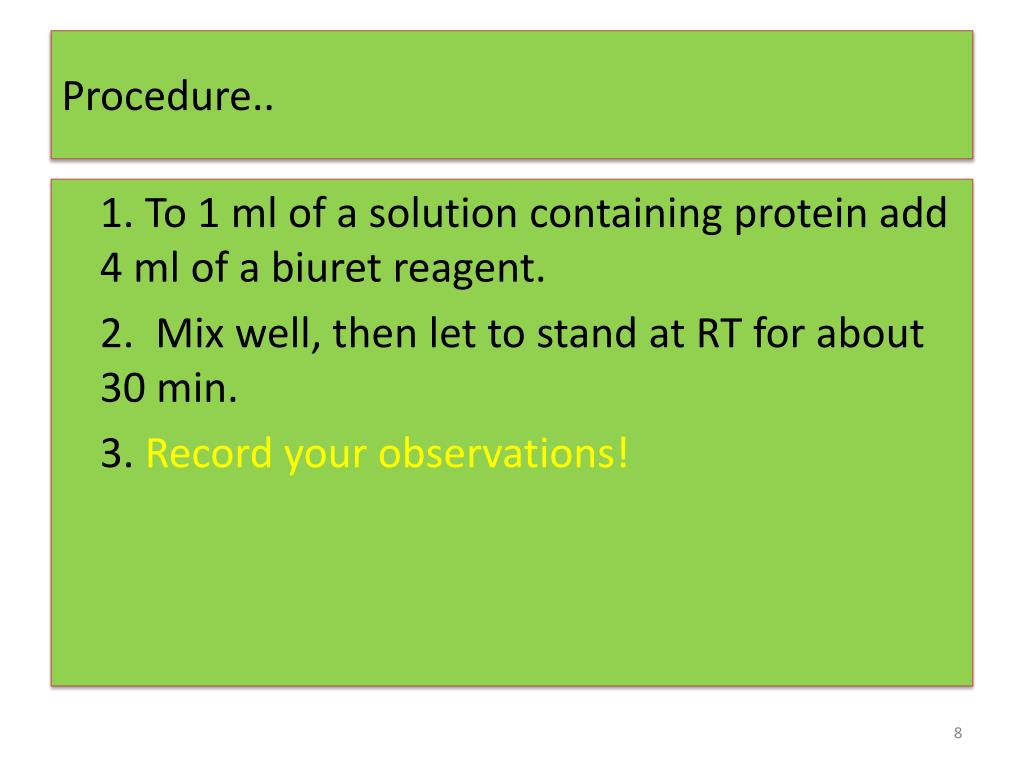

  8. Procedure.. 1. To 1 ml of a solution containing protein add 4 ml of a biuret reagent. 2. Mix well, then let to stand at RT for about 30 min. 3. Record your observations!

  9. 3. Sulfur Test • For the detection of sulfur-containing amino acids such as cysteine. • Is done by converting S to an inorganic sulfide ( S2-) through cleavage by a base. • When the resulting solution is combined with lead acetate (CH3COOPb), a black precipitate of lead sulfide is formed. Sulfur-containing protein  ----> NaOH---->  S2- ----Pb2+---->  PbS Cysteine

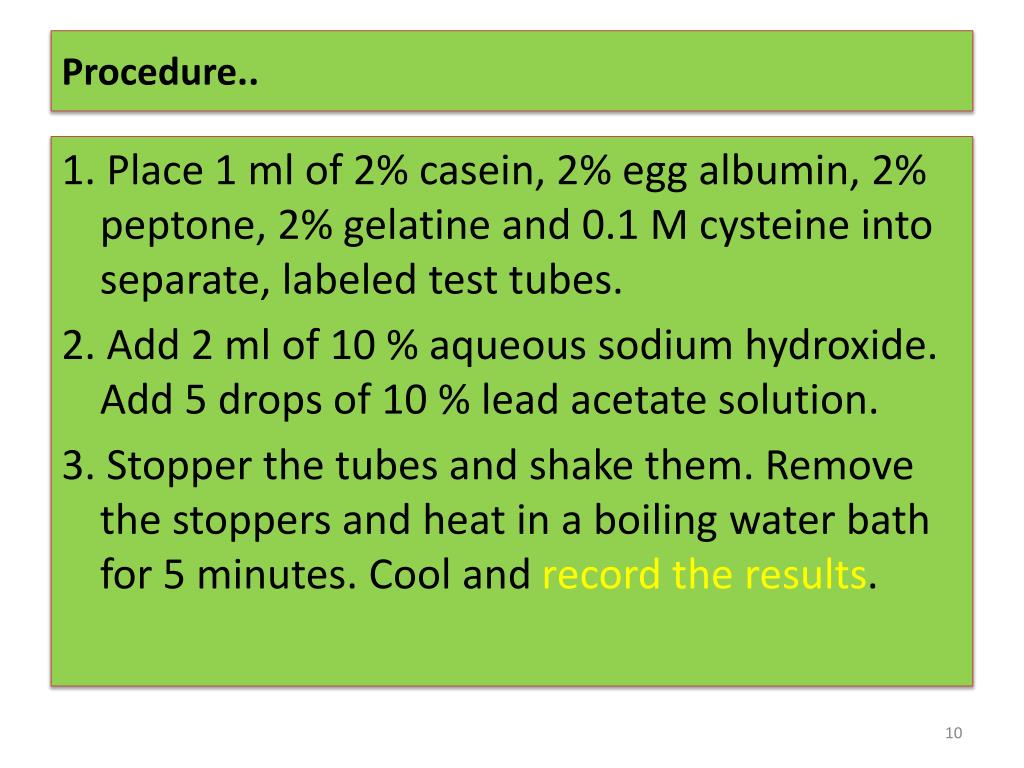

  10. Procedure.. 1. Place 1 ml of 2% casein, 2% egg albumin, 2% peptone, 2% gelatine and 0.1 M cysteine into separate, labeled test tubes. 2. Add 2 ml of 10 % aqueous sodium hydroxide. Add 5 drops of 10 % lead acetate solution. 3. Stopper the tubes and shake them. Remove the stoppers and heat in a boiling water bath for 5 minutes. Cool and record the results.

  11. 7. Sakaguchi • For detection of the amino acid containing the guanidinium group (e.g. arginine). • In basic conditions, α- naphthol and sodium hypobromite/chlorite react with the guanidinium group to form red orange complexes. Guanidinium group Arginine

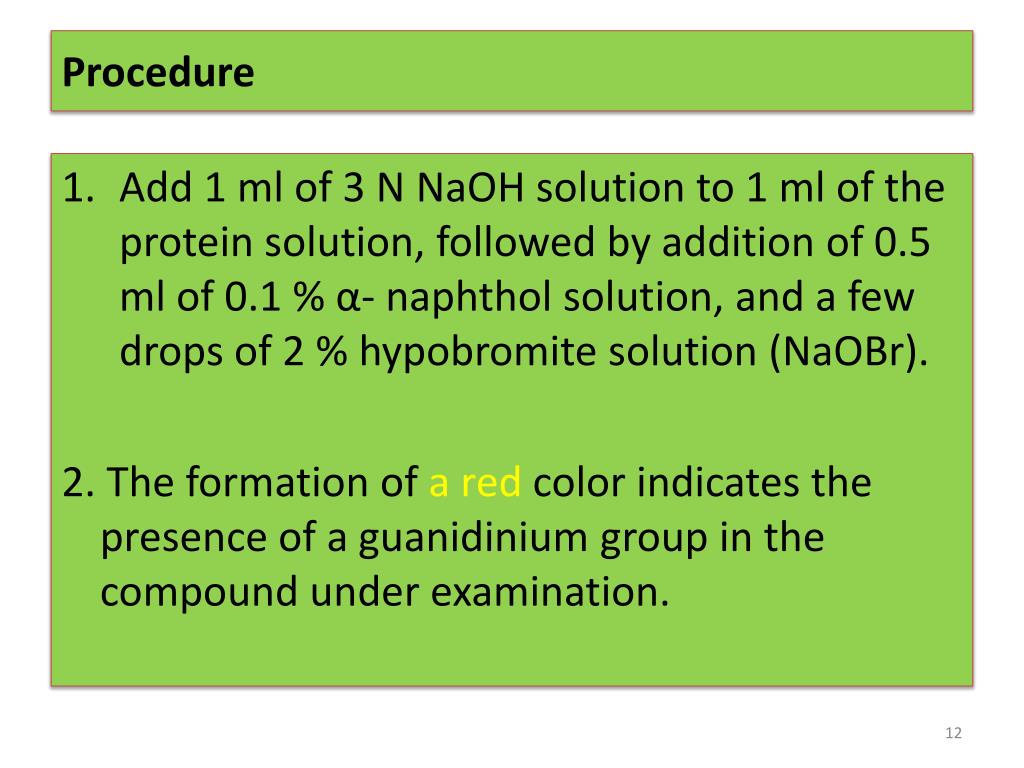

  12. Procedure • Add 1 ml of 3 N NaOH solution to 1 ml of the protein solution, followed by addition of 0.5 ml of 0.1 % α- naphthol solution, and a few drops of 2 % hypobromite solution (NaOBr). 2. The formation of a red color indicates the presence of a guanidinium group in the compound under examination.
