Material Requirement Planning

amelia avatar
amelia
14 diapositives · 465 Views · Jul 10, 2014

Material Requirement Planning. Contents for MRP. MRP in MPC. Record Processing. Technical Issues. Using the MRP System. System Dynamics. Business Plan. MRP in MPC. Sales & Operation Plan . Demand Management. Resource Planning. Front End. Master Production Scheduling .

Material Requirement Planning - slide 1
01 / 14Material Requirement Planning
1 / 17

Télécharger la présentation

Material Requirement Planning
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Material Requirement Planning

  2. Contents for MRP MRP in MPC Record Processing Technical Issues Using the MRP System System Dynamics

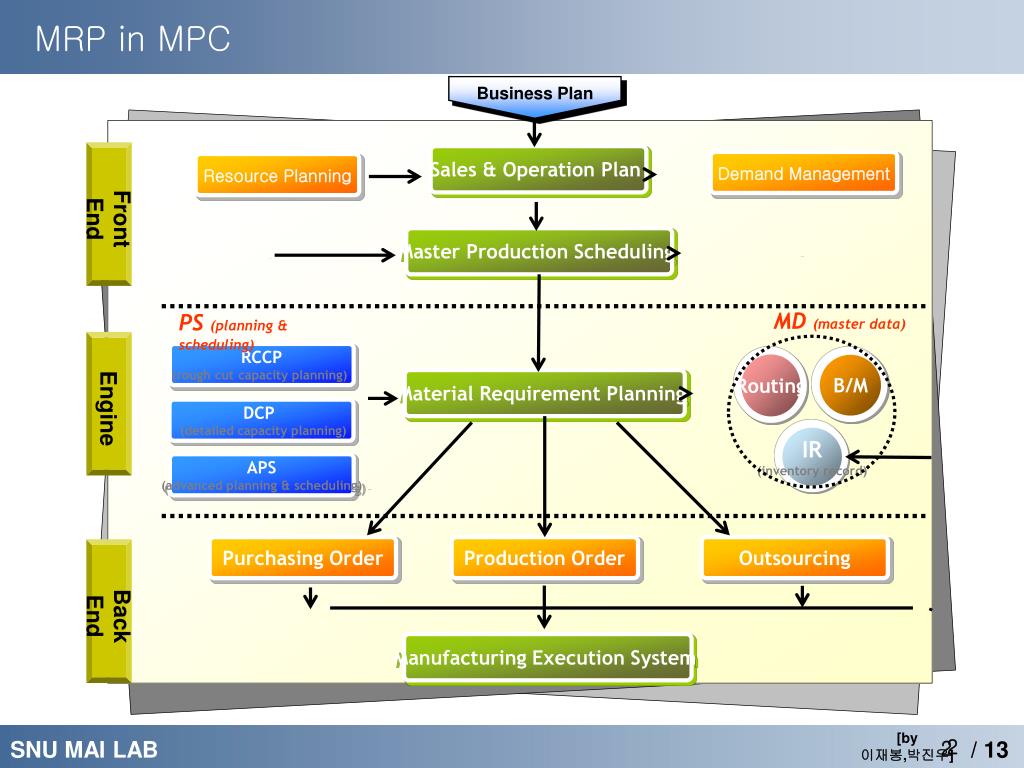

  3. Business Plan MRP in MPC Sales & Operation Plan Demand Management Resource Planning Front End Master Production Scheduling MD (master data) PS (planning & scheduling) RCCP (rough cut capacity planning) Routing B/M Material Requirement Planning Engine DCP (detailed capacity planning) IR (inventory record) APS (advanced planning & scheduling) Purchasing Order Production Order Outsourcing Back End Manufacturing Execution System [by 이재봉,박진우] 2

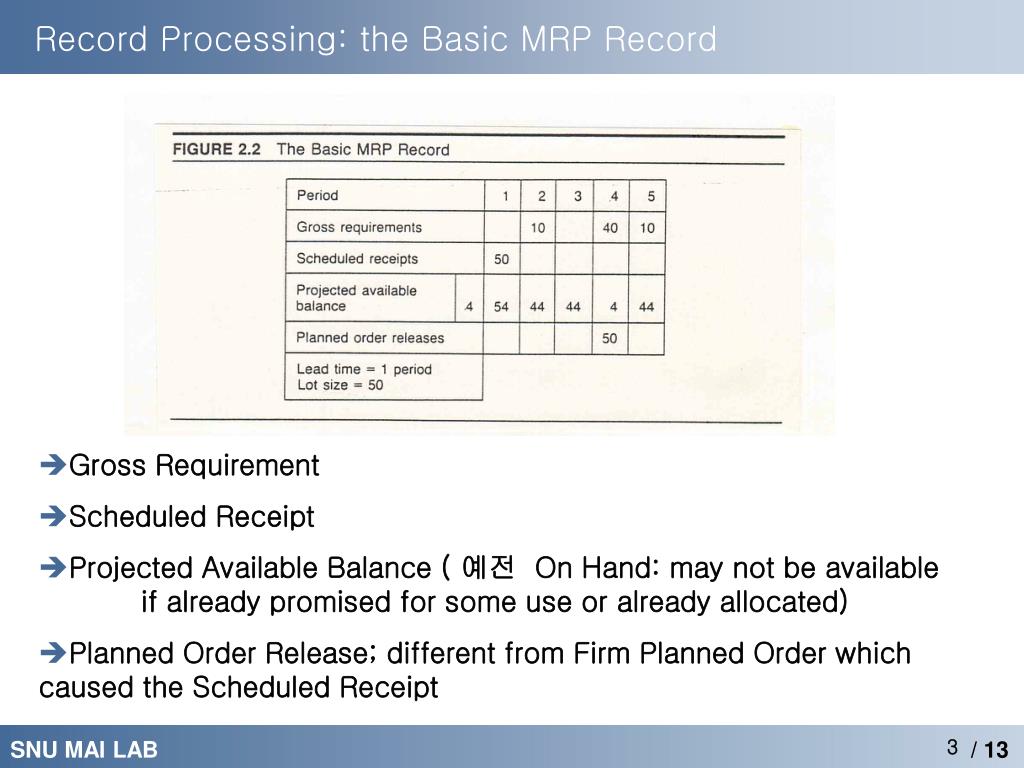

  4. Record Processing: the Basic MRP Record • Gross Requirement • Scheduled Receipt • Projected Available Balance ( 예전 On Hand: may not be available if already promised for some use or already allocated) • Planned Order Release; different from Firm Planned Order which caused the Scheduled Receipt

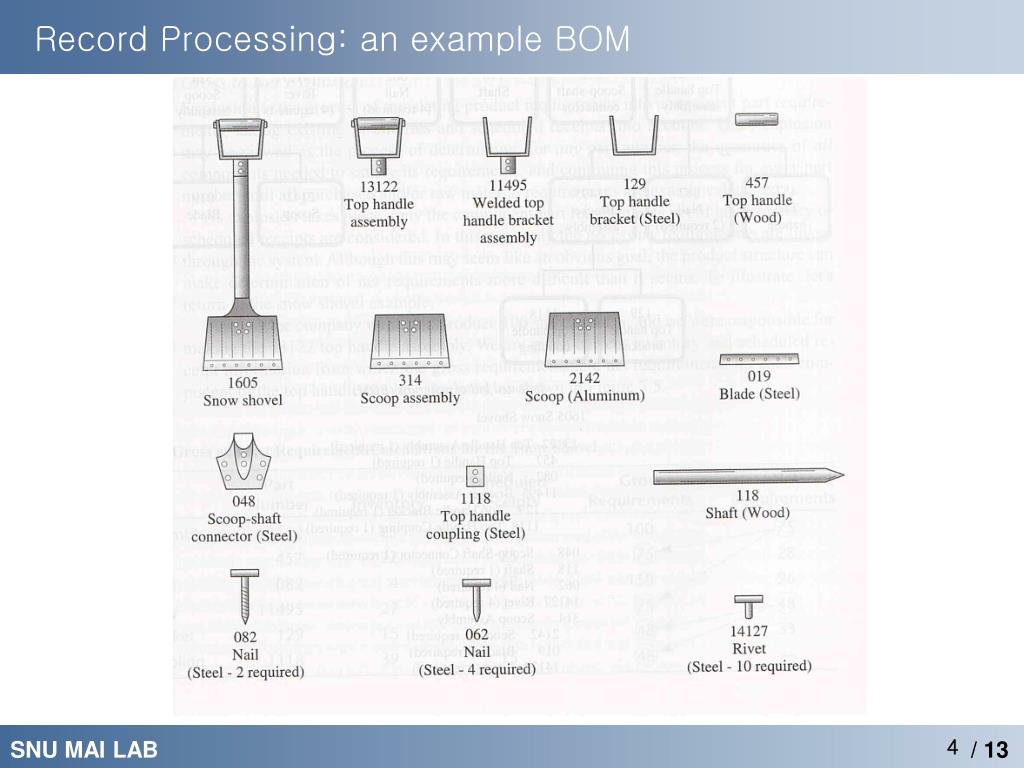

  5. Record Processing: an example BOM

  6. Record Processing: BOM for Snow Shovel

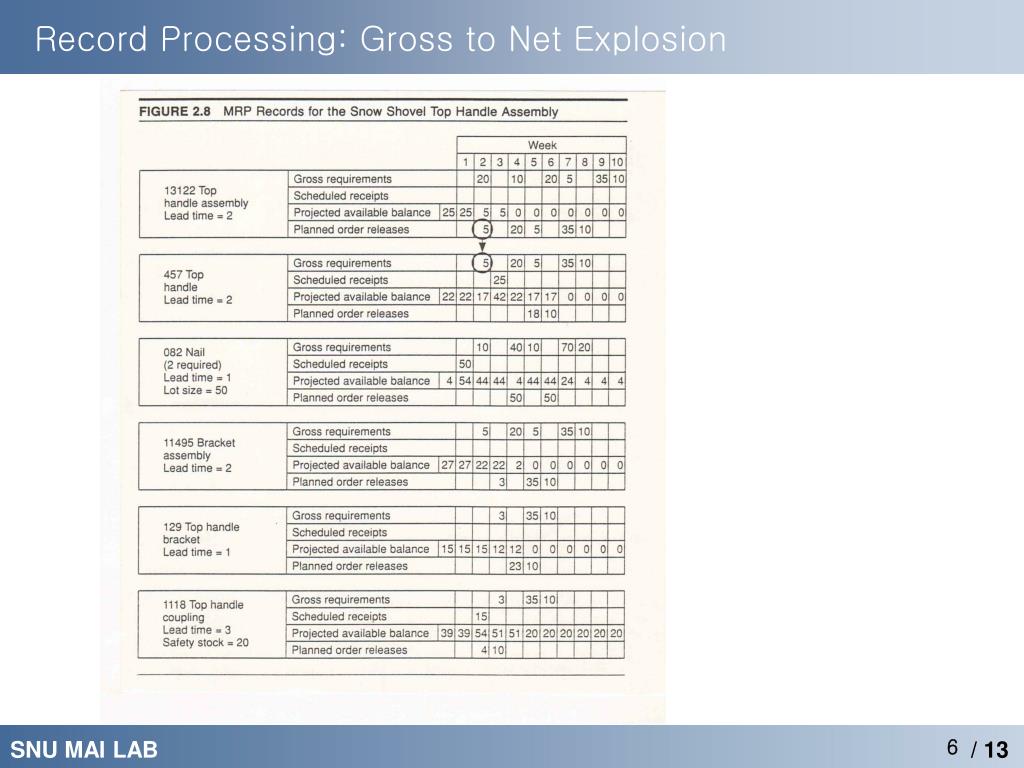

  7. Record Processing: Gross to Net Explosion

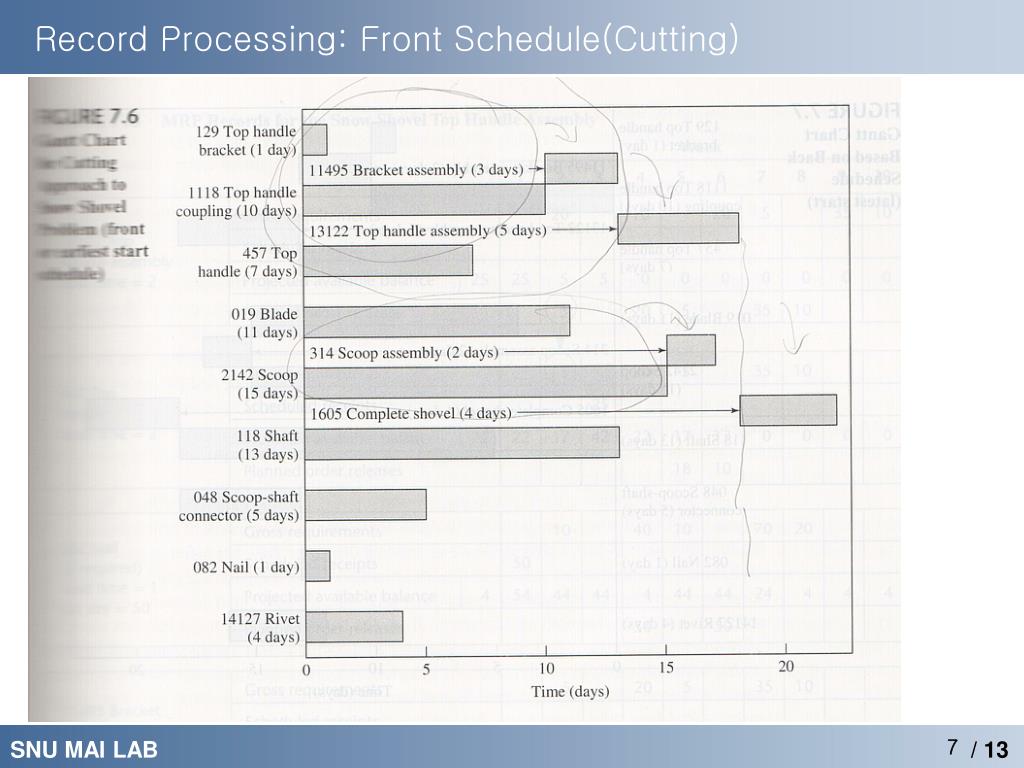

  8. Record Processing: Front Schedule(Cutting)

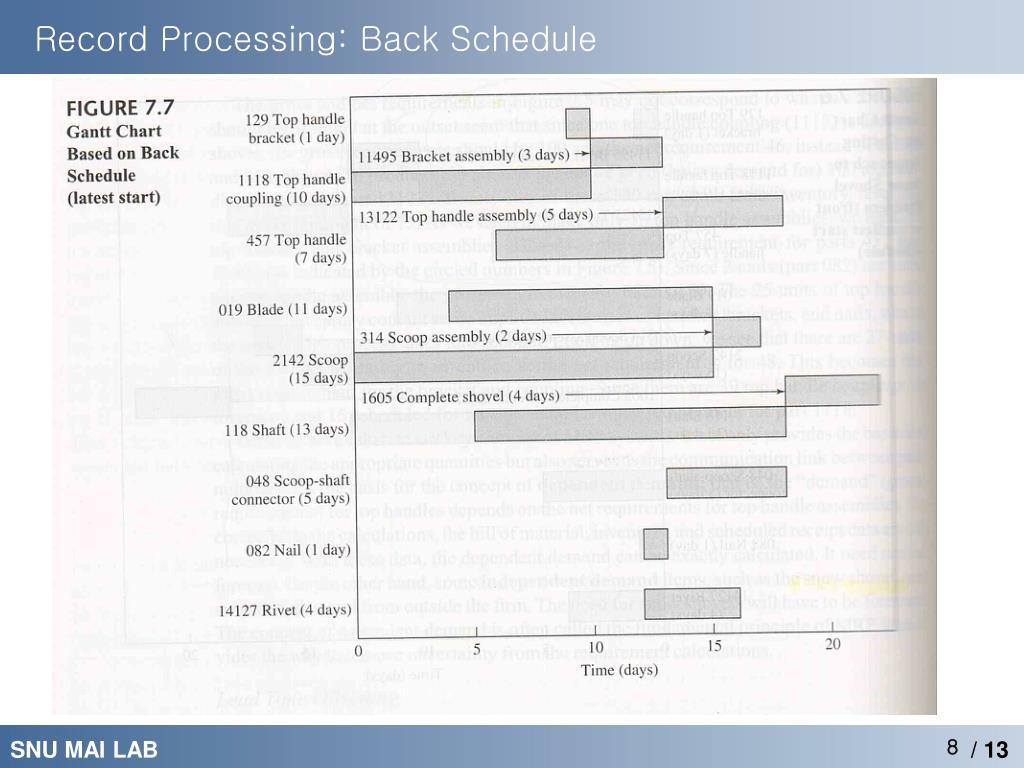

  9. Record Processing: Back Schedule

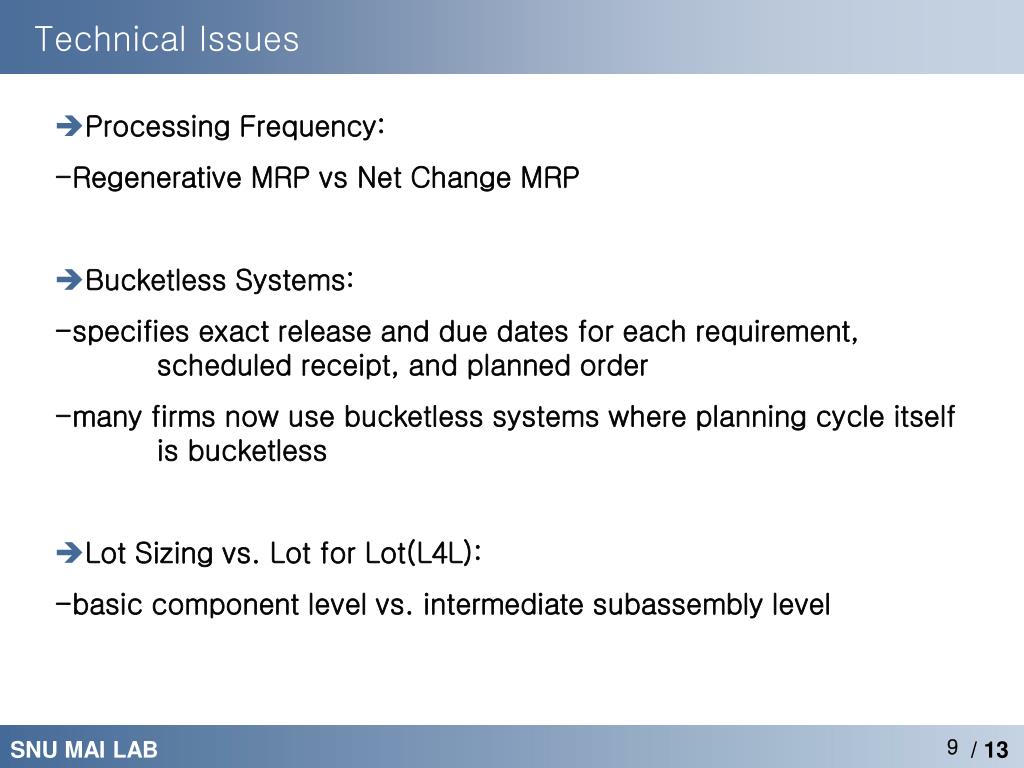

  10. Technical Issues • Processing Frequency: • -Regenerative MRP vs Net Change MRP • Bucketless Systems: • -specifies exact release and due dates for each requirement, scheduled receipt, and planned order • -many firms now use bucketless systems where planning cycle itself is bucketless • Lot Sizing vs. Lot for Lot(L4L): • -basic component level vs. intermediate subassembly level

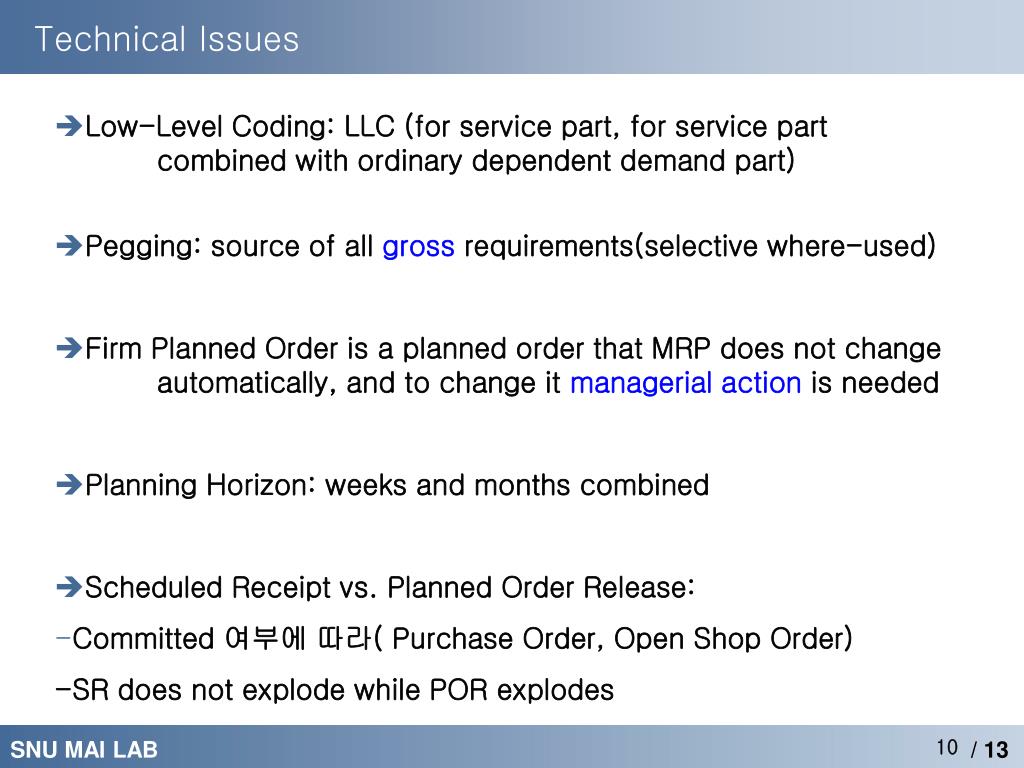

  11. Technical Issues • Low-Level Coding: LLC (for service part, for service part combined with ordinary dependent demand part) • Pegging: source of all gross requirements(selective where-used) • Firm Planned Order is a planned order that MRP does not change automatically, and to change it managerial action is needed • Planning Horizon: weeks and months combined • Scheduled Receipt vs. Planned Order Release: • Committed 여부에 따라( Purchase Order, Open Shop Order) • -SR does not explode while POR explodes

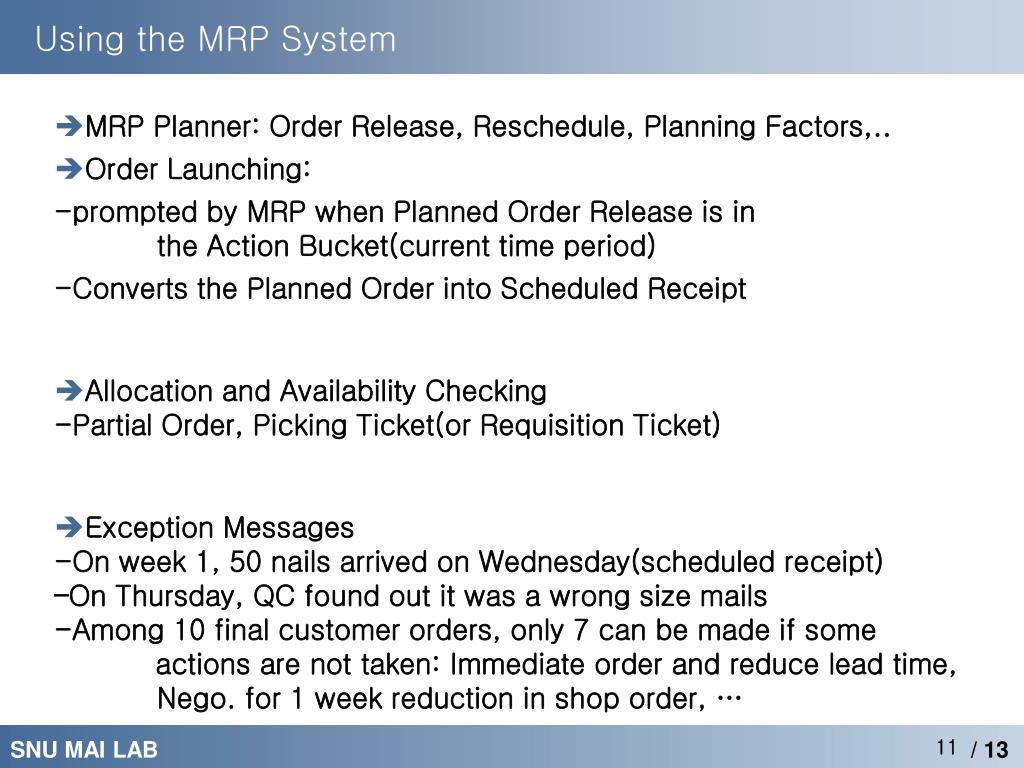

  12. Using the MRP System • MRP Planner: Order Release, Reschedule, Planning Factors,.. • Order Launching: • -prompted by MRP when Planned Order Release is in the Action Bucket(current time period) • -Converts the Planned Order into Scheduled Receipt • Allocation and Availability Checking -Partial Order, Picking Ticket(or Requisition Ticket) • Exception Messages-On week 1, 50 nails arrived on Wednesday(scheduled receipt)–On Thursday, QC found out it was a wrong size mails-Among 10 final customer orders, only 7 can be made if some actions are not taken: Immediate order and reduce lead time,Nego. for 1 week reduction in shop order, …

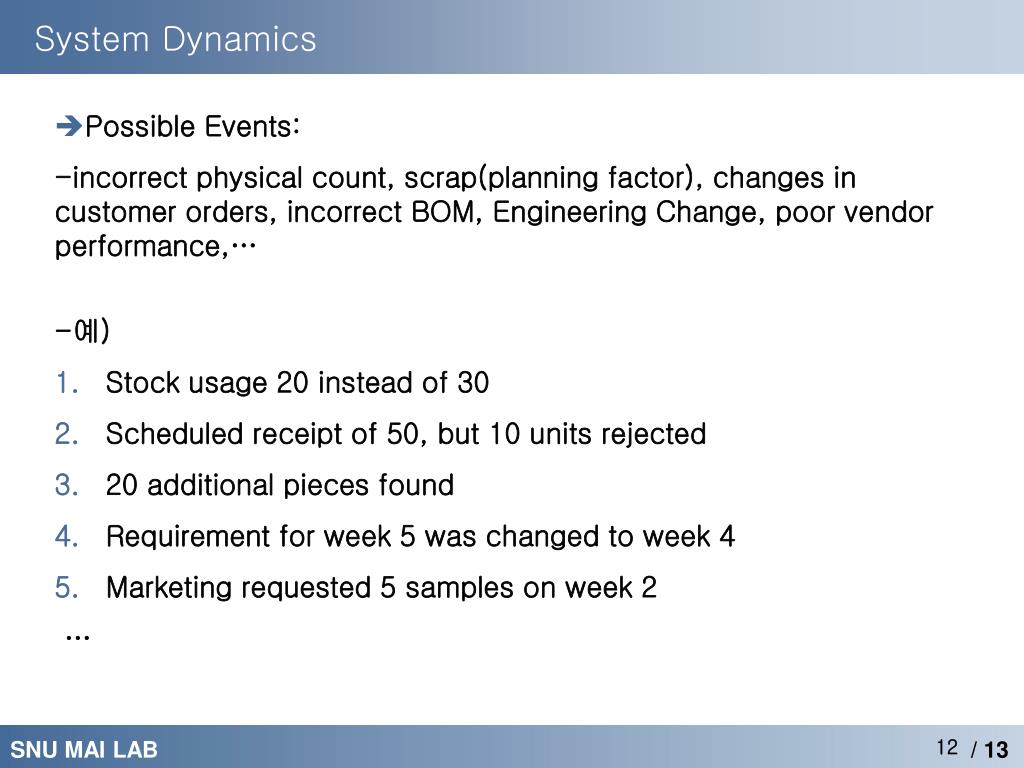

  13. System Dynamics • Possible Events: • -incorrect physical count, scrap(planning factor), changes in customer orders, incorrect BOM, Engineering Change, poor vendor performance,… • -예) • Stock usage 20 instead of 30 • Scheduled receipt of 50, but 10 units rejected • 20 additional pieces found • Requirement for week 5 was changed to week 4 • Marketing requested 5 samples on week 2 • …

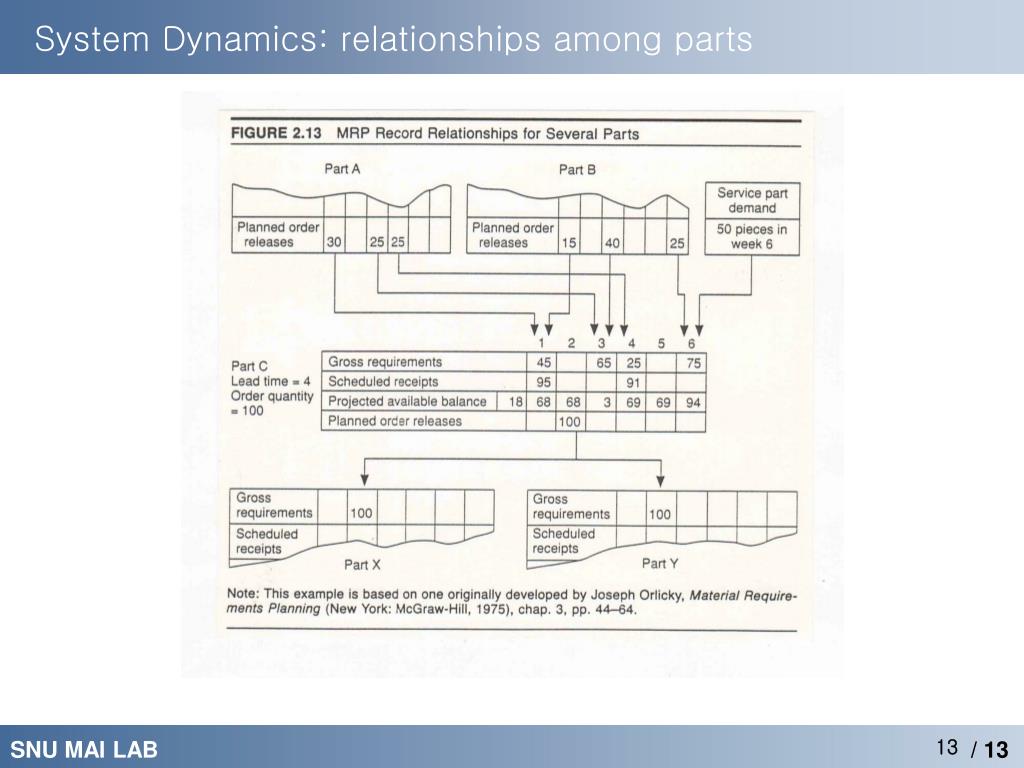

  14. System Dynamics: relationships among parts
