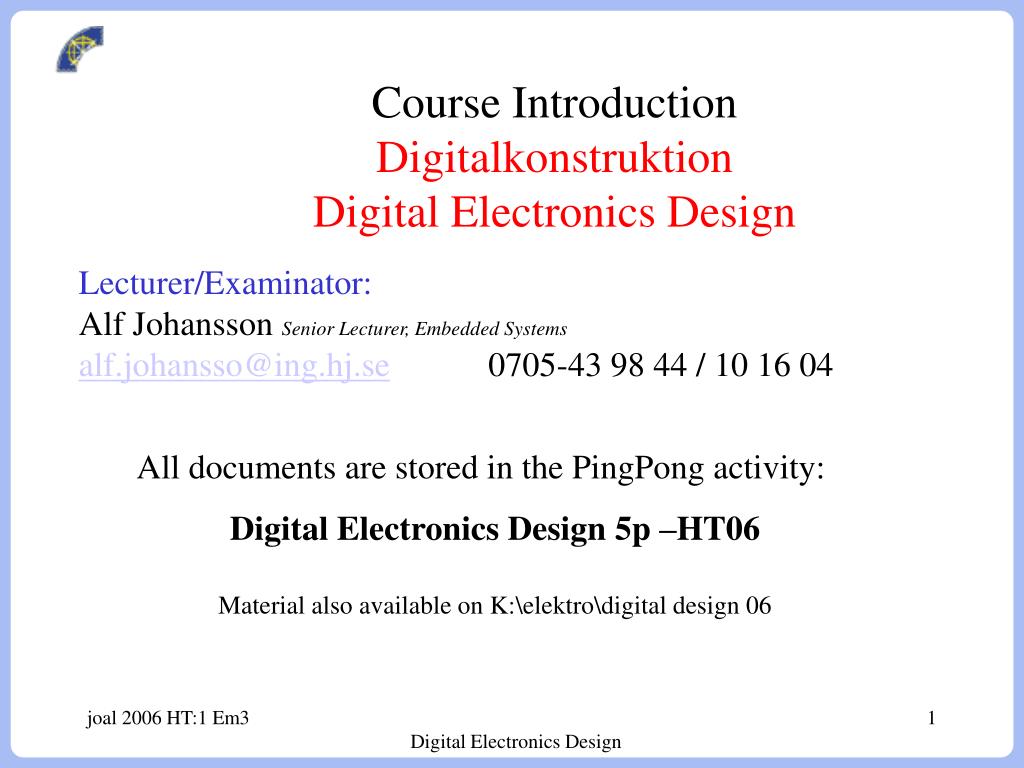

Course Introduction Digitalkonstruktion Digital Electronics Design. Lecturer/Examinator: Alf Johansson Senior Lecturer, Embedded Systems alf.johansso@ing.hj.se 0705-43 98 44 / 10 16 04 All documents are stored in the PingPong activity:

amie
Télécharger la présentation

Course Introduction Digitalkonstruktion Digital Electronics Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Course Introduction DigitalkonstruktionDigital Electronics Design Lecturer/Examinator:Alf Johansson Senior Lecturer, Embedded Systemsalf.johansso@ing.hj.se 0705-43 98 44 / 10 16 04 All documents are stored in the PingPong activity: Digital Electronics Design 5p –HT06Material also available on K:\elektro\digital design 06 Digital Electronics Design

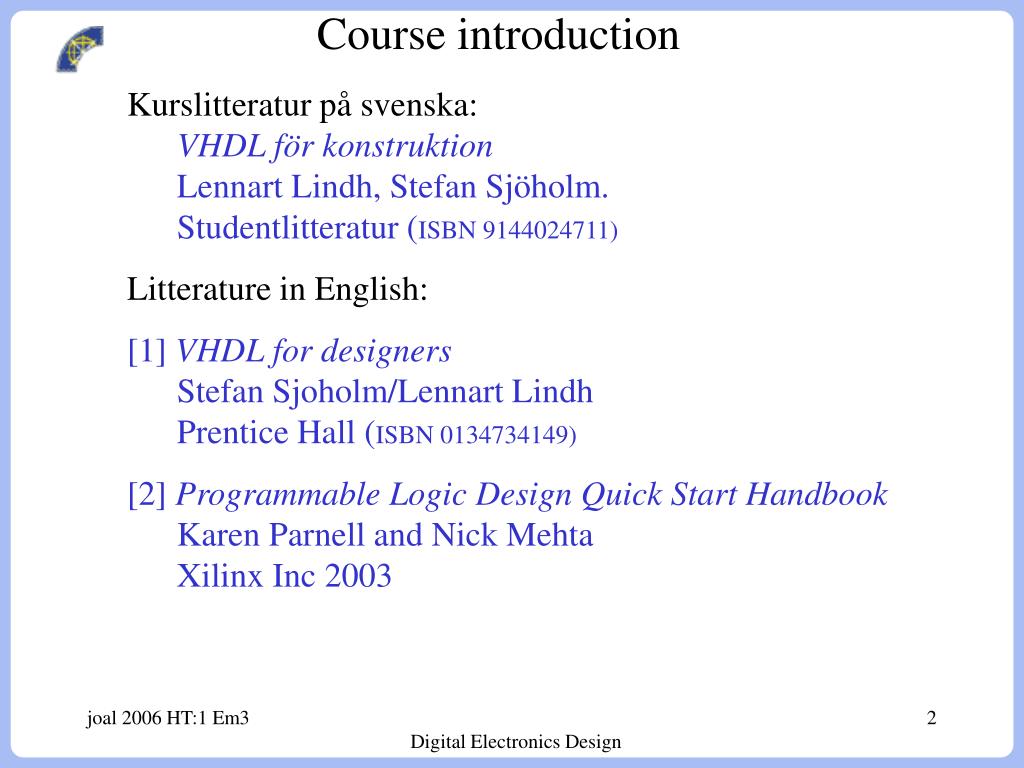

  2. Course introduction Kurslitteratur på svenska:VHDL för konstruktionLennart Lindh, Stefan Sjöholm. Studentlitteratur (ISBN 9144024711) Litterature in English: [1] VHDL for designersStefan Sjoholm/Lennart LindhPrentice Hall (ISBN 0134734149) [2] Programmable Logic Design Quick Start Handbook Karen Parnell and Nick MehtaXilinx Inc 2003 Digital Electronics Design

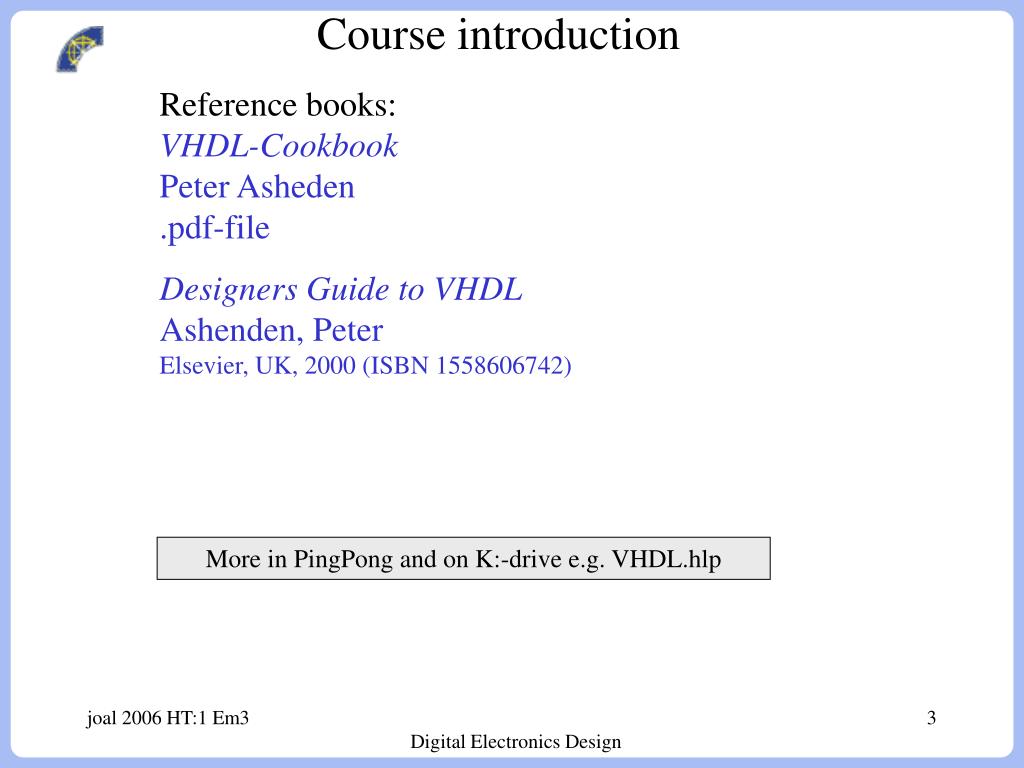

  3. Course introduction Reference books:VHDL-CookbookPeter Asheden.pdf-file Designers Guide to VHDLAshenden, PeterElsevier, UK, 2000 (ISBN 1558606742) More in PingPong and on K:-drive e.g. VHDL.hlp Digital Electronics Design

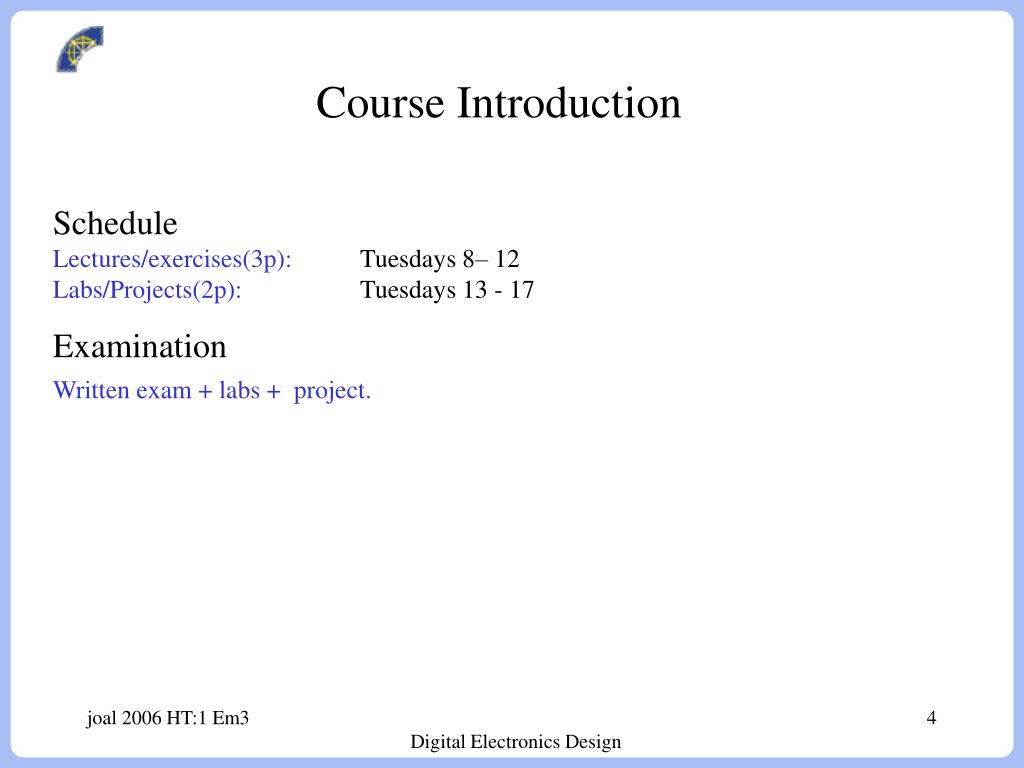

  4. Course Introduction ScheduleLectures/exercises(3p): Tuesdays 8– 12Labs/Projects(2p): Tuesdays 13 - 17 ExaminationWritten exam + labs + project. Digital Electronics Design

  5. 1. Course introduction. Digital Electronics Design Digital Electronics Design

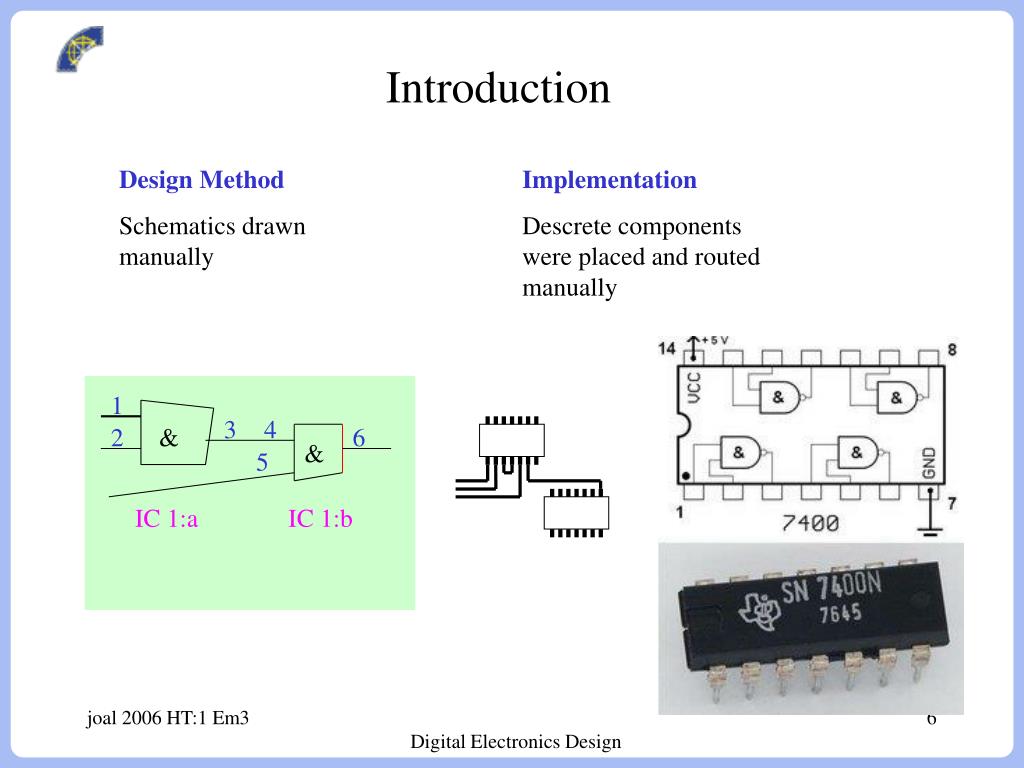

  6. Introduction Design Method Schematics drawn manually Implementation Descrete components were placed and routed manually 1 3 4 2 & 6 & 5 IC 1:a IC 1:b Digital Electronics Design

  7. Introduction Implementation Discrete components were placed and routed manually or automatically by CAD tool. Programmable logic like CPLDs Design Method Schematics drawn with a CAD system & CPLD & Digital Electronics Design

  8. Introduction Design Method HDL for design entry Implementation Synthesis of HDL to generate a netlist. Place&route tool to implement in CPLD or FPGA (or ASIC) entity gates isport(a,b,c: in std_logic; d: out std_logic);architecture rtl of gates isbegin d<=a and b and c;end rtl; Digital Electronics Design

  9. Introduction Custom Designed Integrated Circuits and Programmable Logic Digital Electronics Design

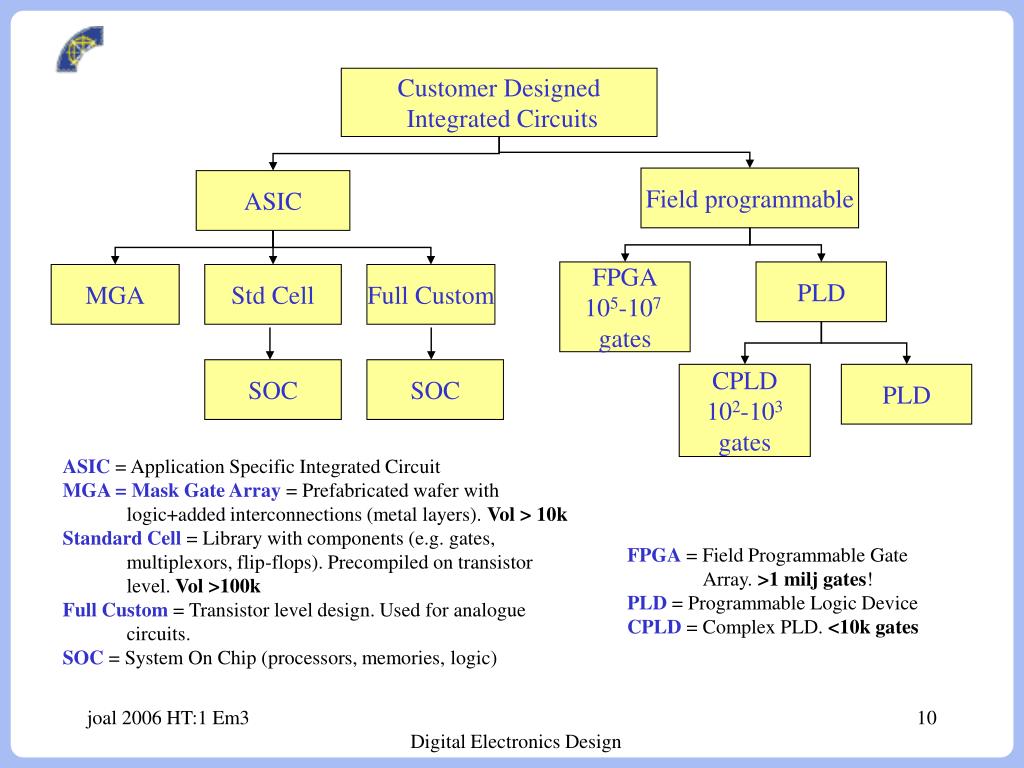

  10. Customer Designed Integrated Circuits Field programmable ASIC FPGA105-107 gates PLD MGA Std Cell Full Custom SOC SOC CPLD102-103gates PLD ASIC= Application Specific Integrated Circuit MGA = Mask Gate Array= Prefabricated wafer with logic+added interconnections (metal layers). Vol > 10k Standard Cell = Library with components (e.g. gates, multiplexors, flip-flops). Precompiled on transistor level. Vol >100k Full Custom = Transistor level design. Used for analogue circuits. SOC = System On Chip (processors, memories, logic) FPGA = Field Programmable Gate Array. >1 milj gates! PLD = Programmable Logic Device CPLD = Complex PLD. <10k gates Digital Electronics Design

  11. Moore’s law Moore’s law: The capacity ( e.g. # of gates) of integrated chips doubles every 18-20 months. circuits tools 108106 gap Digital Electronics Design

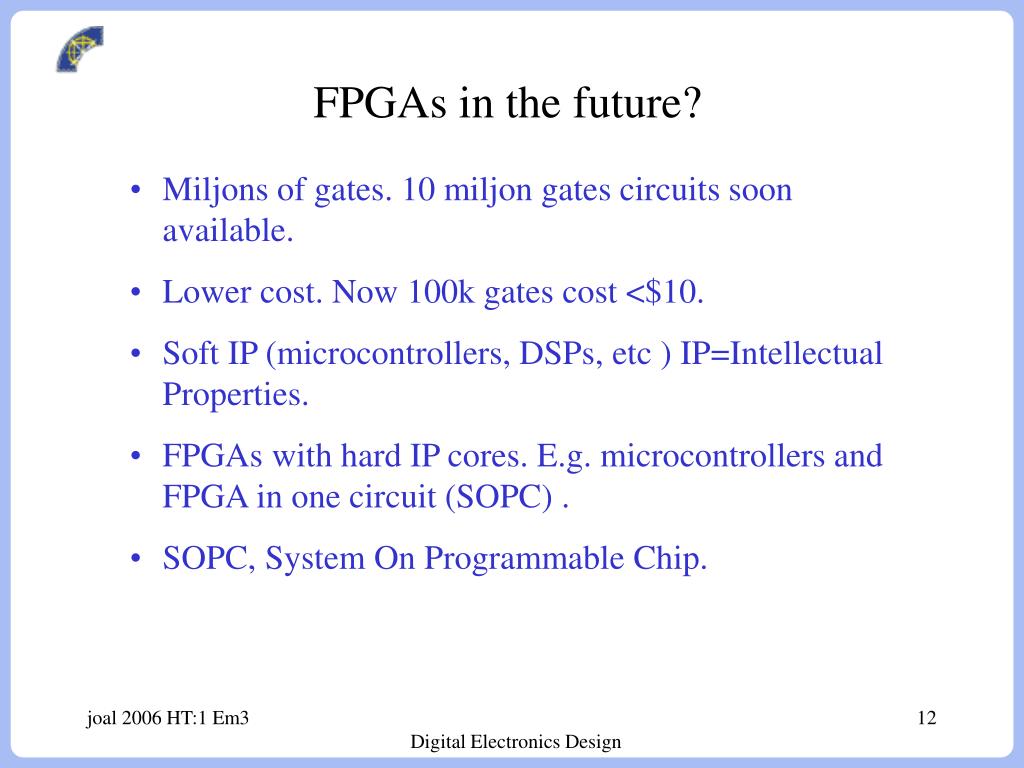

  12. FPGAs in the future? Miljons of gates. 10 miljon gates circuits soon available. Lower cost. Now 100k gates cost <$10. Soft IP (microcontrollers, DSPs, etc ) IP=Intellectual Properties. FPGAs with hard IP cores. E.g. microcontrollers and FPGA in one circuit (SOPC) . SOPC, System On Programmable Chip. Digital Electronics Design

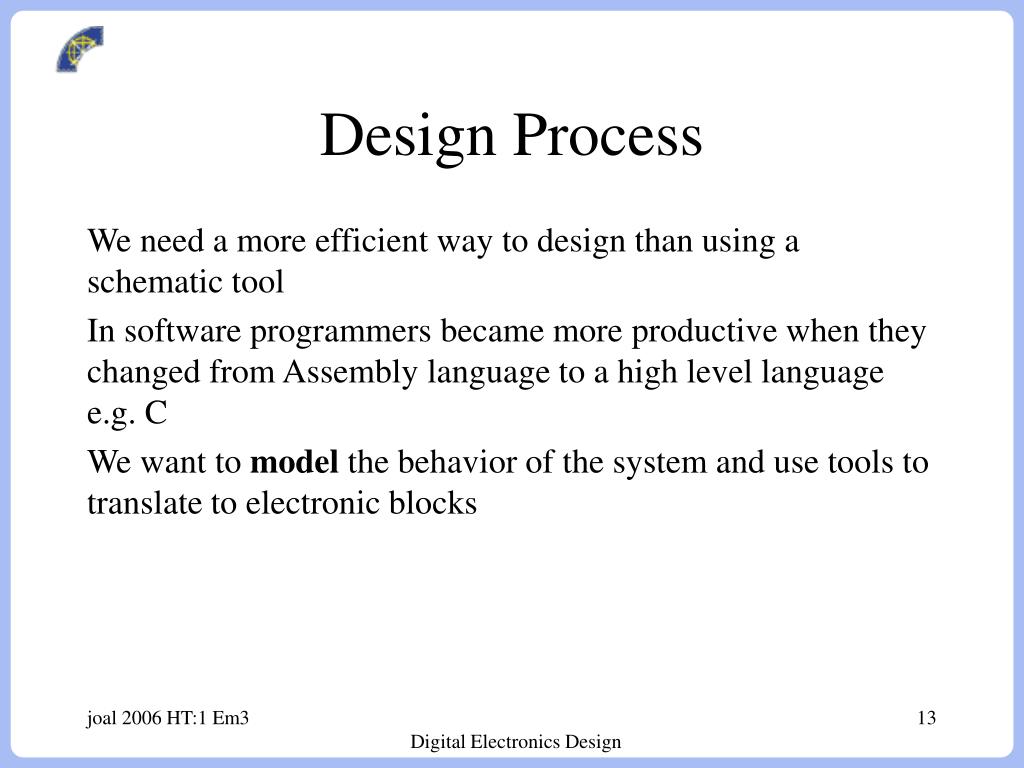

  13. Design Process We need a more efficient way to design than using a schematic tool In software programmers became more productive when they changed from Assembly language to a high level language e.g. C We want to model the behavior of the system and use tools to translate to electronic blocks Digital Electronics Design

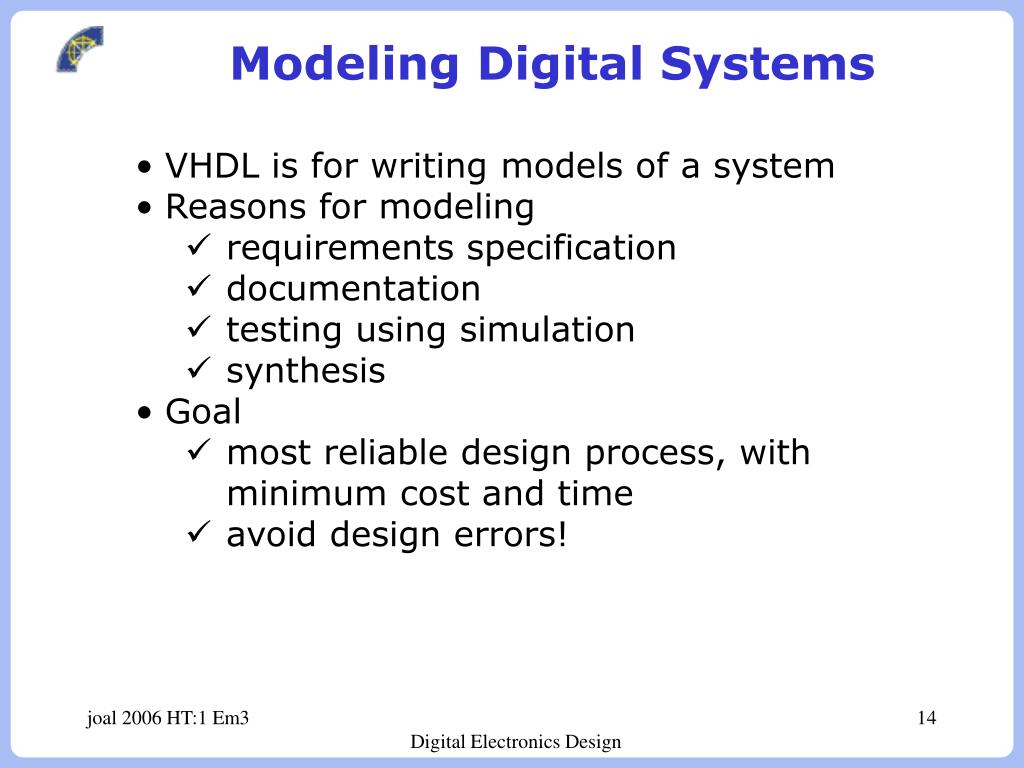

  14. Modeling Digital Systems • VHDL is for writing models of a system • Reasons for modeling • requirements specification • documentation • testing using simulation • synthesis • Goal • most reliable design process, with minimum cost and time • avoid design errors! Digital Electronics Design

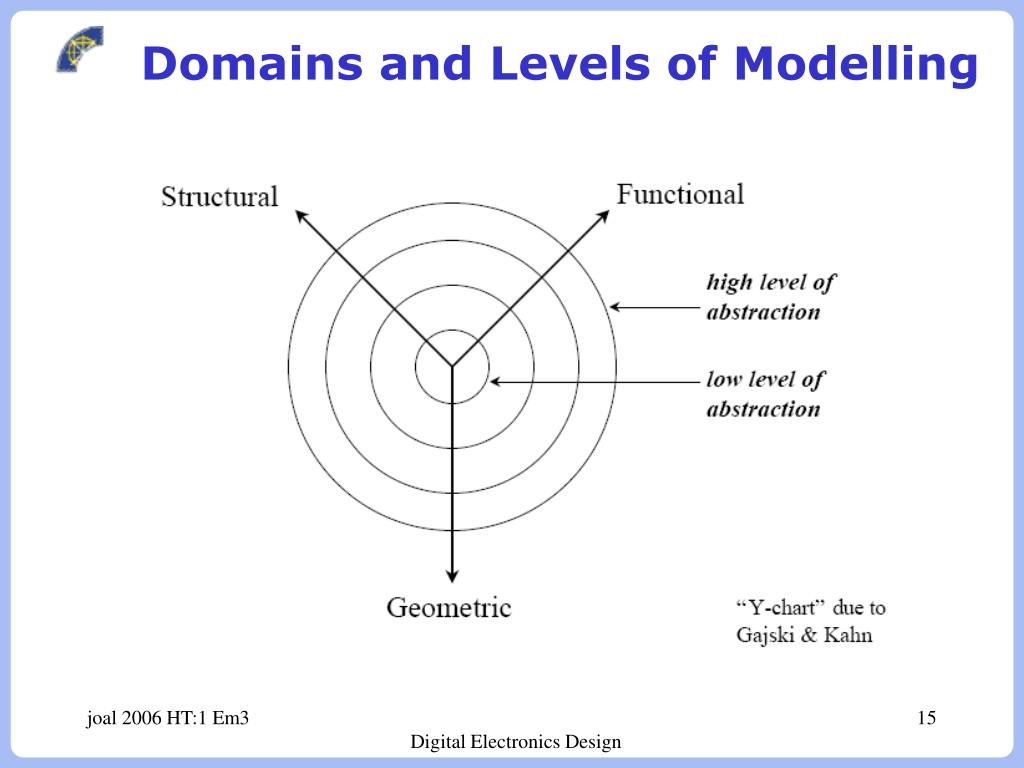

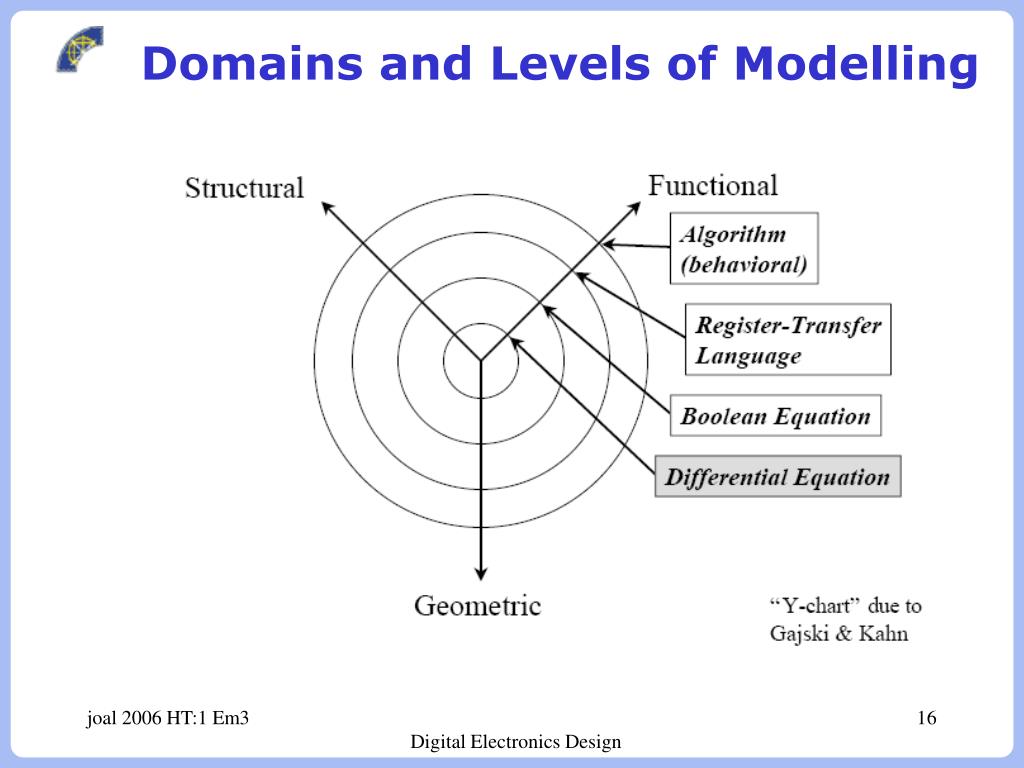

  15. Domains and Levels of Modelling Digital Electronics Design

  16. Domains and Levels of Modelling Digital Electronics Design

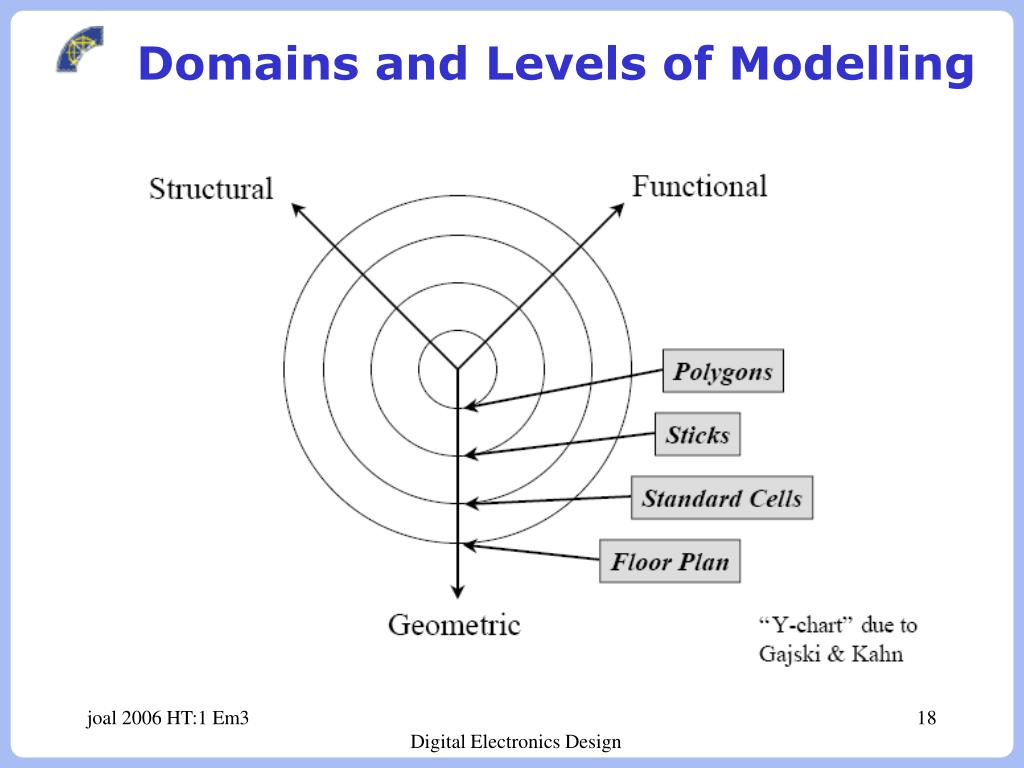

  17. Domains and Levels of Modelling Digital Electronics Design

  18. Domains and Levels of Modelling Digital Electronics Design

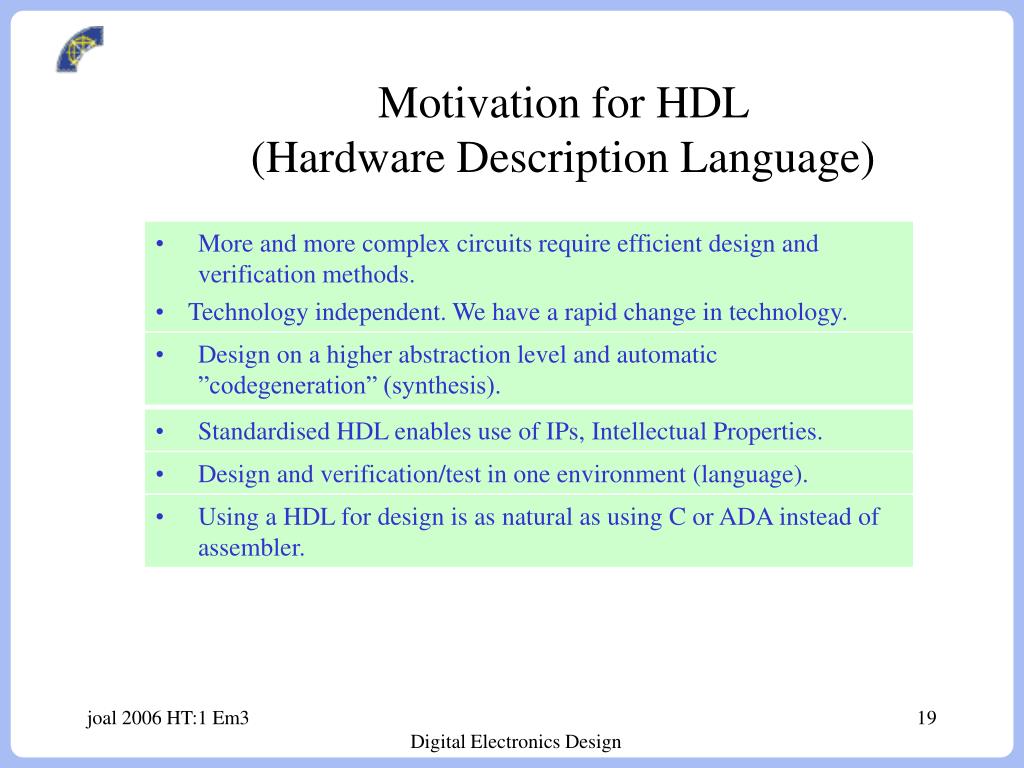

  19. Motivation for HDL (Hardware Description Language) More and more complex circuits require efficient design and verification methods. Technology independent. We have a rapid change in technology. Design on a higher abstraction level and automatic ”codegeneration” (synthesis). Standardised HDL enables use of IPs, Intellectual Properties. Design and verification/test in one environment (language). Using a HDL for design is as natural as using C or ADA instead of assembler. Digital Electronics Design

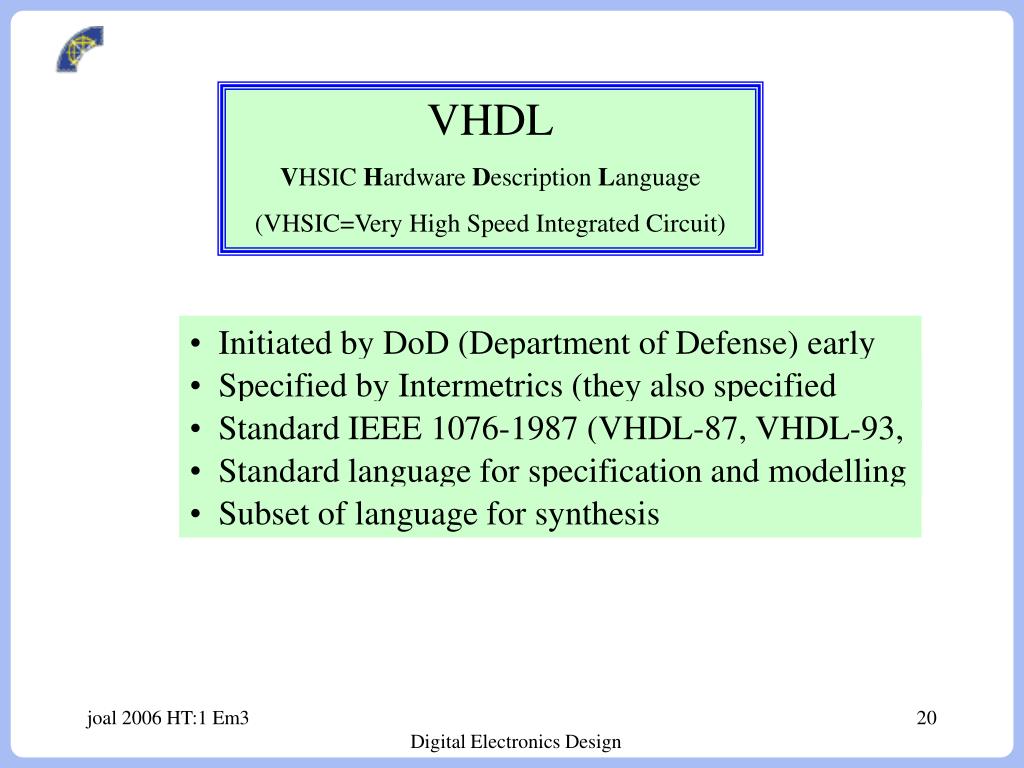

  20. VHDL VHSIC Hardware Description Language (VHSIC=Very High Speed Integrated Circuit) Initiated by DoD (Department of Defense) early 1980s Specified by Intermetrics (they also specified ADA) Standard IEEE 1076-1987 (VHDL-87, VHDL-93, VHDL-2000, VHDL-2002) Standard language for specification and modelling Subset of language for synthesis Digital Electronics Design

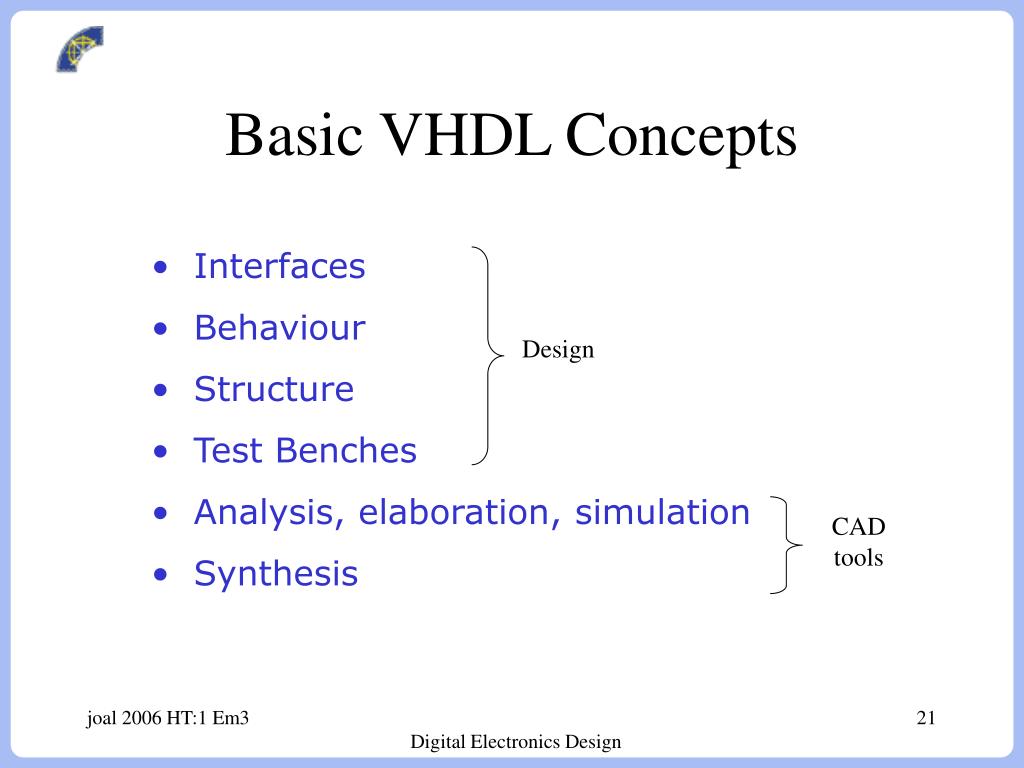

  21. Design CAD tools Basic VHDL Concepts Interfaces Behaviour Structure Test Benches Analysis, elaboration, simulation Synthesis Digital Electronics Design

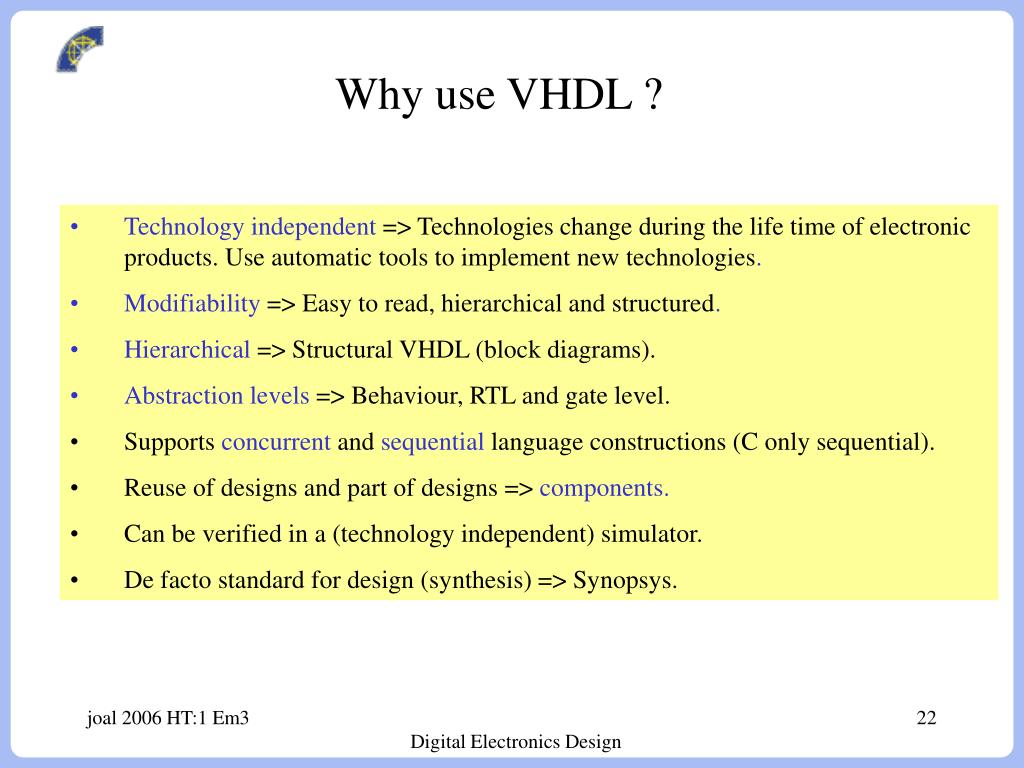

  22. Why use VHDL ? Technology independent => Technologies change during the life time of electronic products. Use automatic tools to implement new technologies. Modifiability => Easy to read, hierarchical and structured. Hierarchical => Structural VHDL (block diagrams). Abstraction levels => Behaviour, RTL and gate level. Supports concurrent and sequential language constructions (C only sequential). Reuse of designs and part of designs => components. Can be verified in a (technology independent) simulator. De facto standard for design (synthesis) => Synopsys. Digital Electronics Design

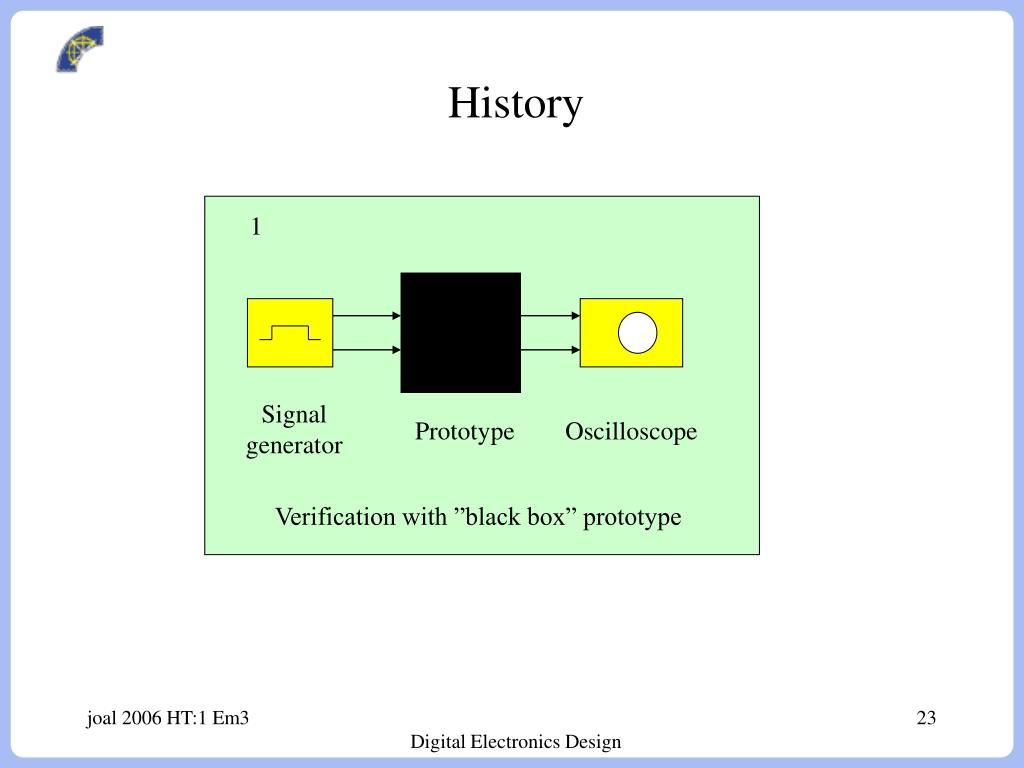

  23. History 1 Signal generator Prototype Oscilloscope Verification with ”black box” prototype Digital Electronics Design

  24. History 2 Input signal file ”signal gener.” Computer model. Netlist prototype. Output signal file ”logic analyser” Verification with a schematics in the computer Digital Electronics Design

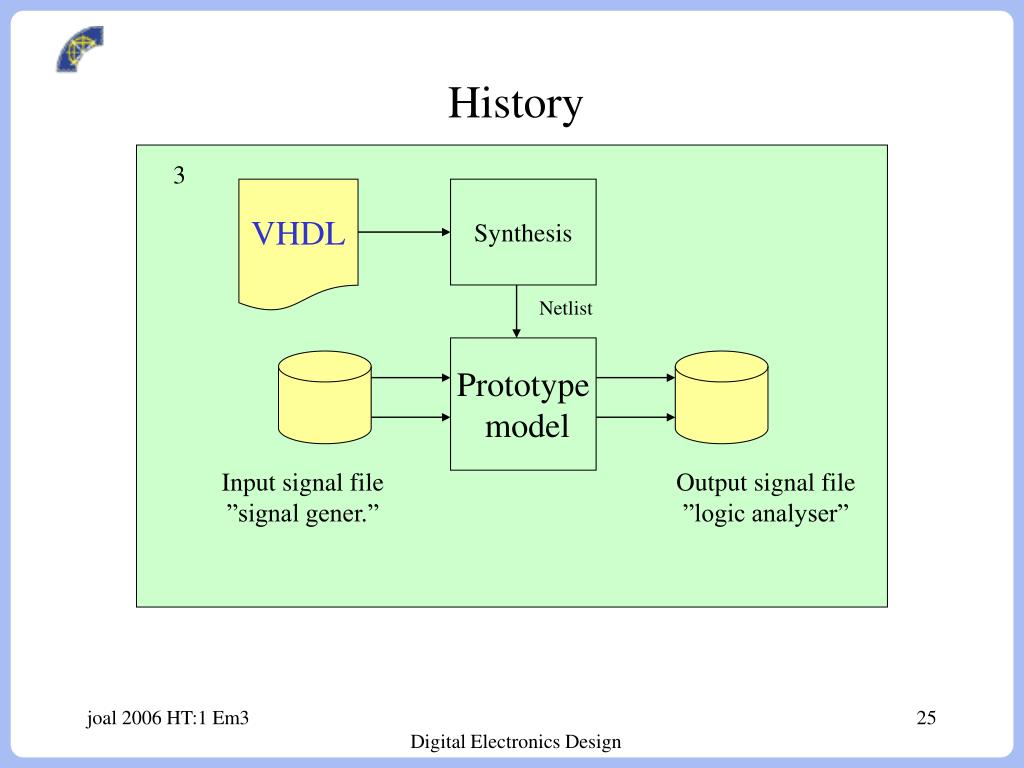

  25. History 3 VHDL Synthesis Netlist Prototype model Input signal file ”signal gener.” Output signal file ”logic analyser” Synthesis to gates and flip-flops Digital Electronics Design

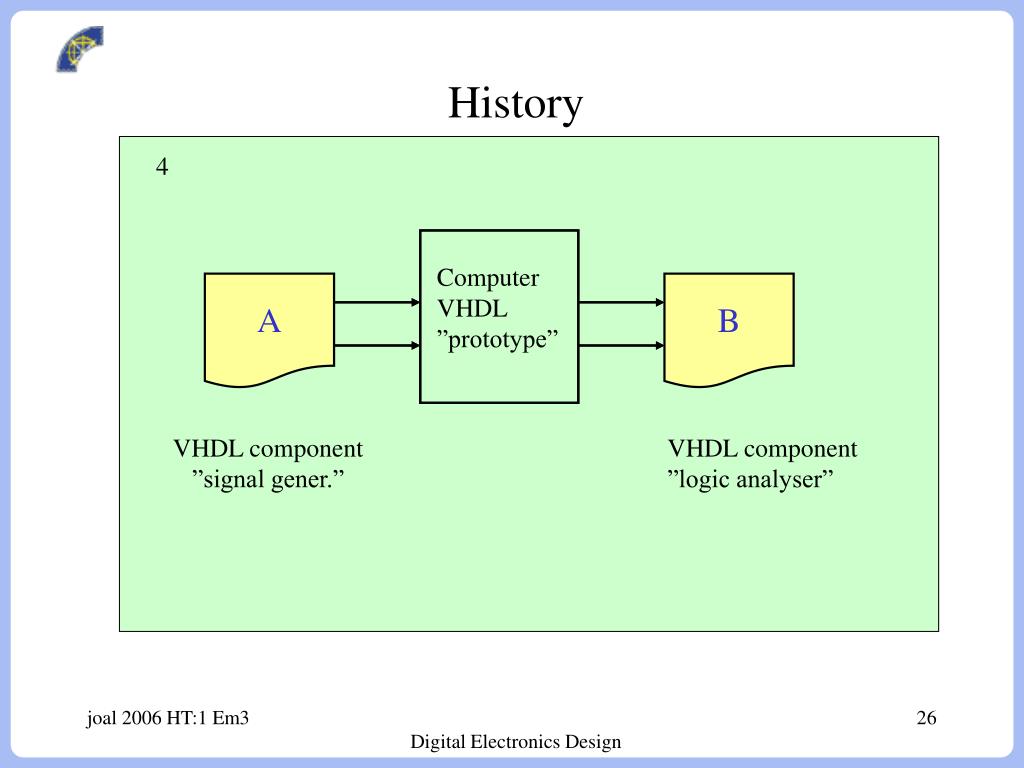

  26. A B History 4 Computer VHDL ”prototype” VHDL component ”signal gener.” VHDL component ”logic analyser” Verification with a testbench (A and B) in the computer Digital Electronics Design

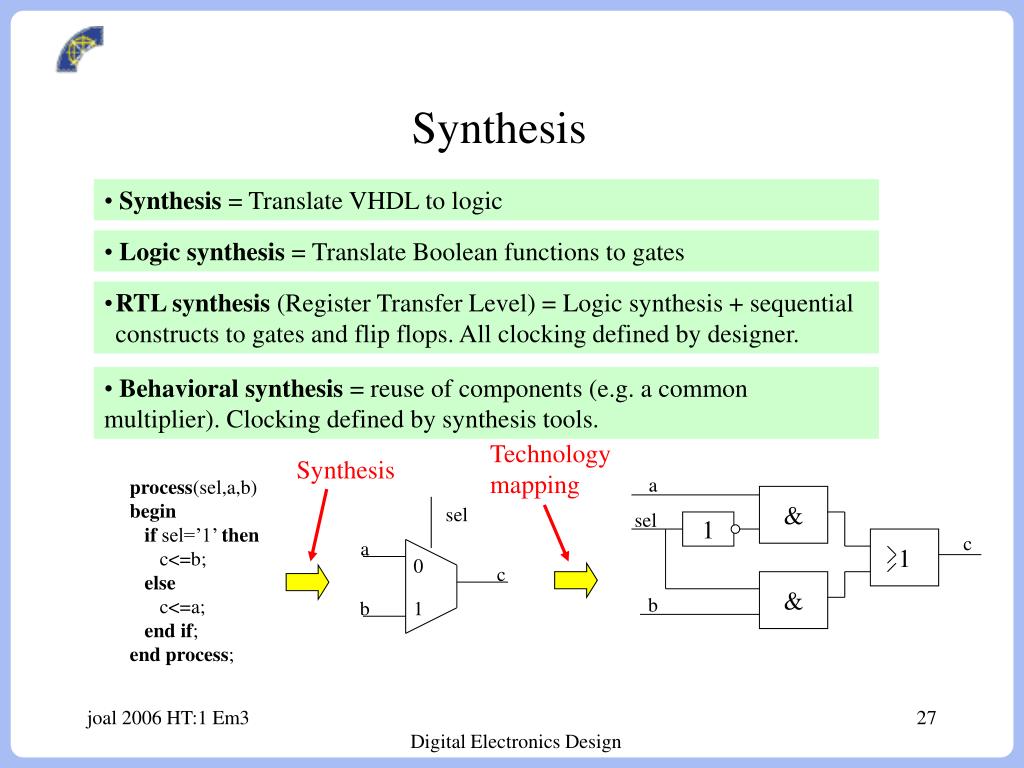

  27. a & sel sel 1 c a 1 0 c & b b 1 Synthesis Synthesis = Translate VHDL to logic Logic synthesis = Translate Boolean functions to gates RTL synthesis (Register Transfer Level) = Logic synthesis + sequential constructs to gates and flip flops. All clocking defined by designer. Behavioral synthesis = reuse of components (e.g. a common multiplier). Clocking defined by synthesis tools. Technology mapping Synthesis process(sel,a,b)beginif sel=’1’ then c<=b;else c<=a;end if;end process; Digital Electronics Design

  28. System Functional level Behavioural level RTL level clk res Logic level & & & VHDL abstraction levels Computer model information Higher abstraction levels conceal details. Digital Electronics Design

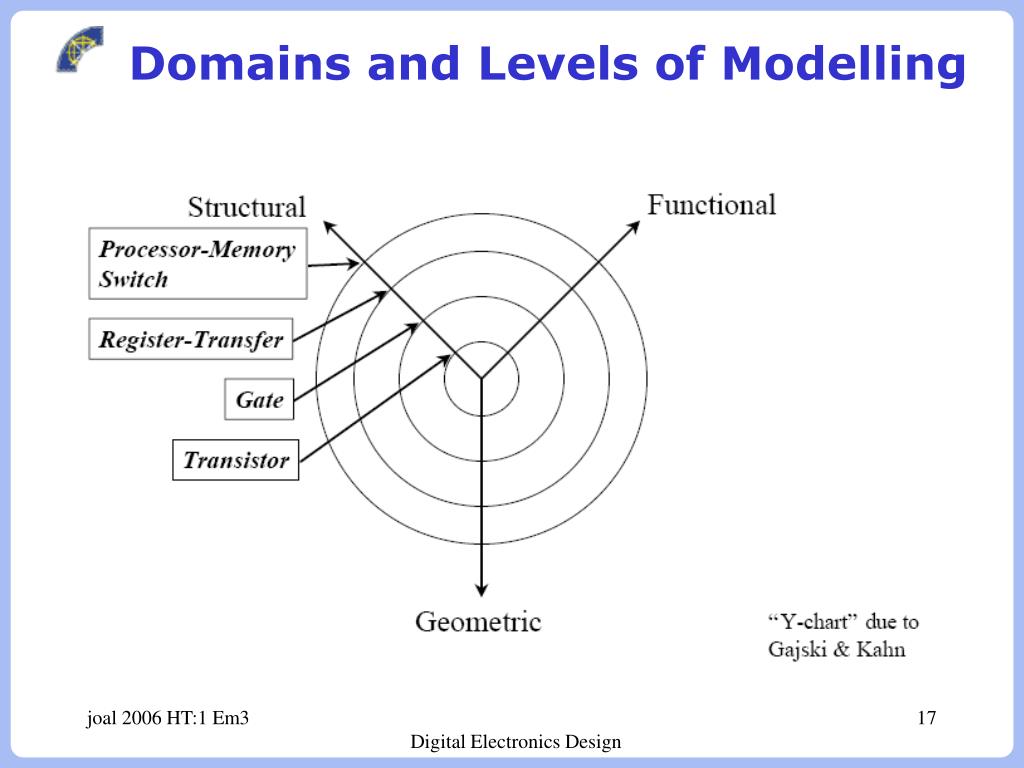

  29. Design domains and abstraction levels in Y Charts Behavioral domain Structural domain Algorithms Processors, mem Functional design Behavioral Registers, ALUs RTL Gates, Flip-Flops Boolean Transistors Transistor functions Transistor layout Cells, modules Chips, ASICs Physical design of chips Boards, MCM More details when we move towards center Physical domain Digital Electronics Design

  30. Design Process Representation in Y- Chart Structural domain Behavioral domain netlist Algorithms Processors, mem Synthesis Behavioral (VHDL) Registers, ALUs RTL (VHDL) Gates, Flip-Flops, muxes, adders Gates, FF Boolean Transistor functions Transistors Implementation(technology mapping) Transistor layout Cells, modules Chips, ASICs e.g. bit file Boards, MCM Physical domain Digital Electronics Design

  31. Peter Asheden Digital Electronics Design

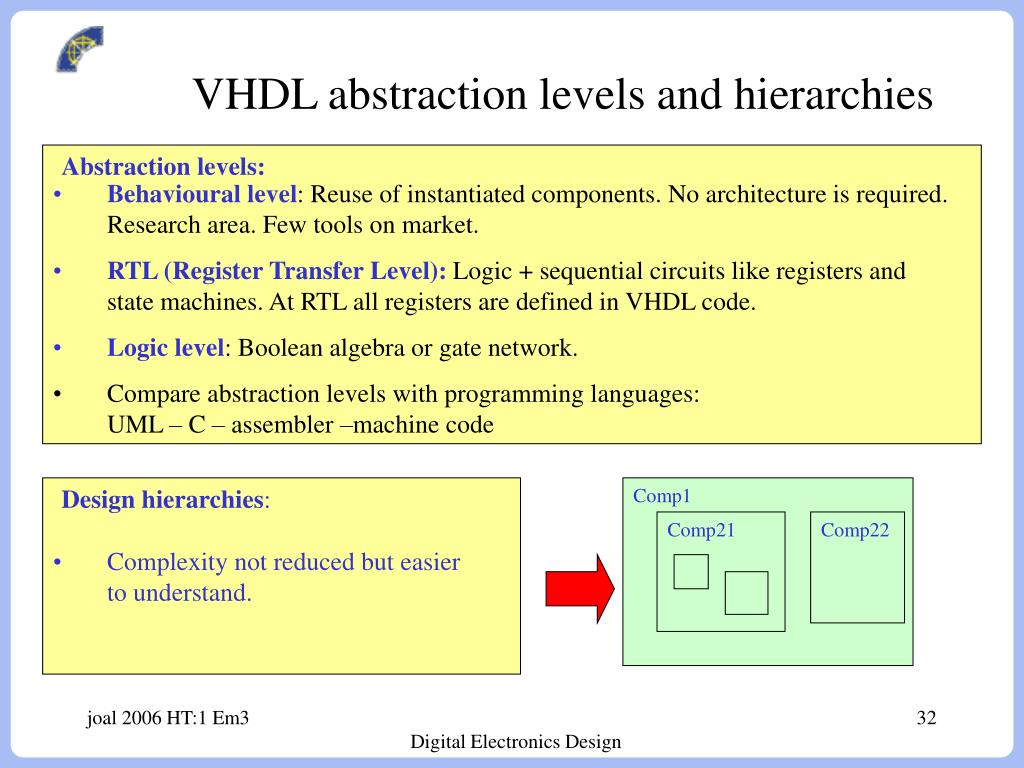

  32. VHDL abstraction levels and hierarchies Behavioural level: Reuse of instantiated components. No architecture is required. Research area. Few tools on market. RTL (Register Transfer Level): Logic + sequential circuits like registers andstate machines. At RTL all registers are defined in VHDL code. Logic level: Boolean algebra or gate network. Compare abstraction levels with programming languages: UML – C – assembler –machine code Abstraction levels: Complexity not reduced but easier to understand. Design hierarchies: Comp1 Comp21 Comp22 Digital Electronics Design

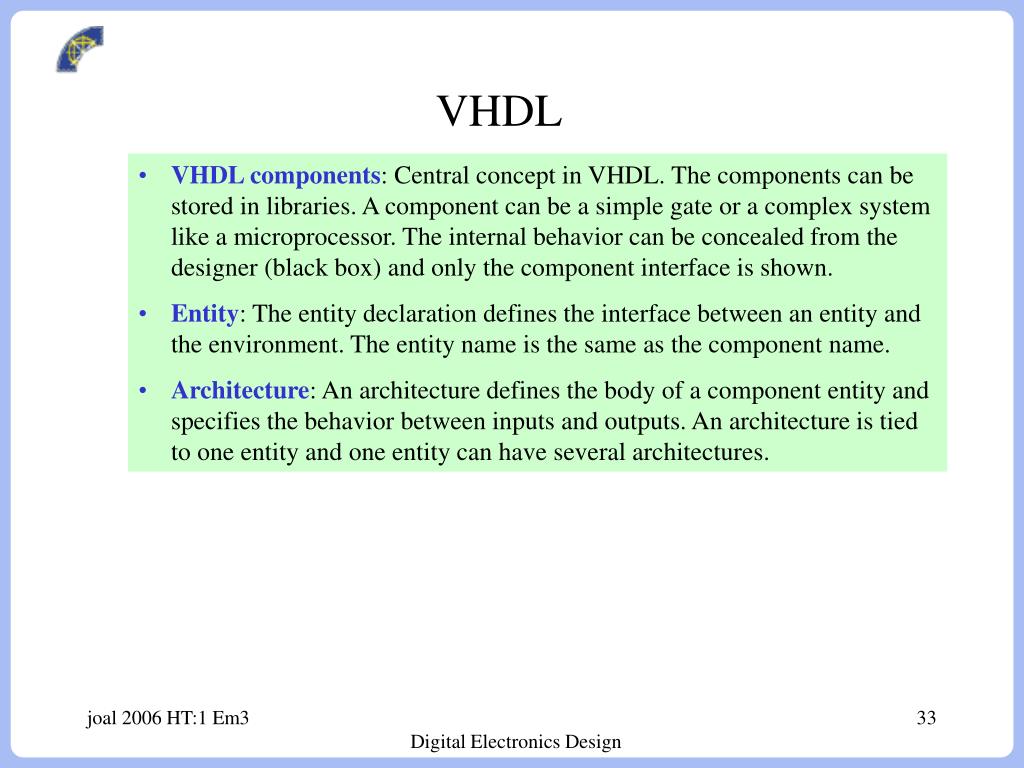

  33. VHDL VHDL components: Central concept in VHDL. The components can be stored in libraries. A component can be a simple gate or a complex system like a microprocessor. The internal behavior can be concealed from the designer (black box) and only the component interface is shown. Entity: The entity declaration defines the interface between an entity and the environment. The entity name is the same as the component name. Architecture: An architecture defines the body of a component entity and specifies the behavior between inputs and outputs. An architecture is tied to one entity and one entity can have several architectures. Digital Electronics Design

  34. -- ****************************************-- My first VHDL program-- Kundanpassade kretsar HT 2001-- **************************************** Two hyphens -- indicate start of a comment for the rest of a line library ieee;use std_logic_1164.all;use std_logic_unsigned.all; library for signal types The entitydescribes the boarder of a component Let’s make a very simple VHDL program entity and_gate isend; port describes the input and output signals of a component.a and b are input signalsc is an output signalstd_logic describes signal type port (a,b: in std_logic,c: out std_logic); Component name: and_gate architecturertl of and_gate isbeginendrtl; c <= a and b; rtl is an arbitrary name of an architecture architecture describes what shall be done Signal c is assigned the boolean and of a and b Digital Electronics Design

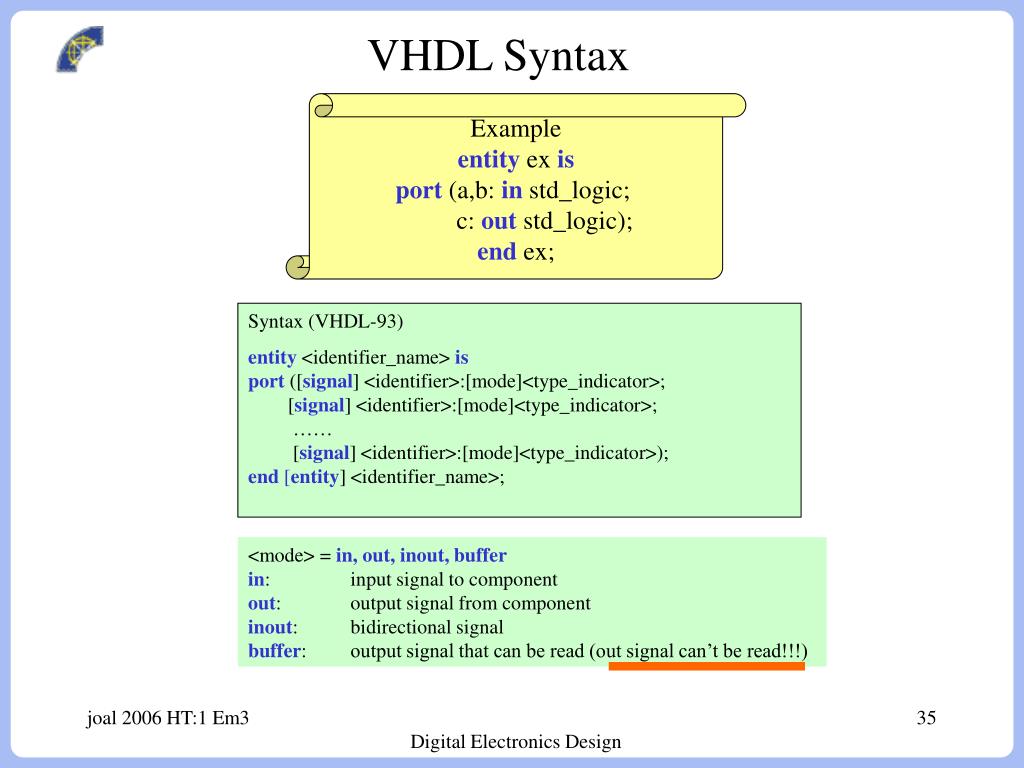

  35. VHDL Syntax Exampleentity ex isport(a,b: in std_logic; c: out std_logic);end ex; Syntax (VHDL-93) entity <identifier_name> isport([signal]<identifier>:[mode]<type_indicator>; [signal]<identifier>:[mode]<type_indicator>; …… [signal]<identifier>:[mode]<type_indicator>);end[entity] <identifier_name>; <mode> = in, out, inout, bufferin: input signal to componentout: output signal from componentinout: bidirectional signalbuffer: output signal that can be read (out signal can’t be read!!!) Digital Electronics Design

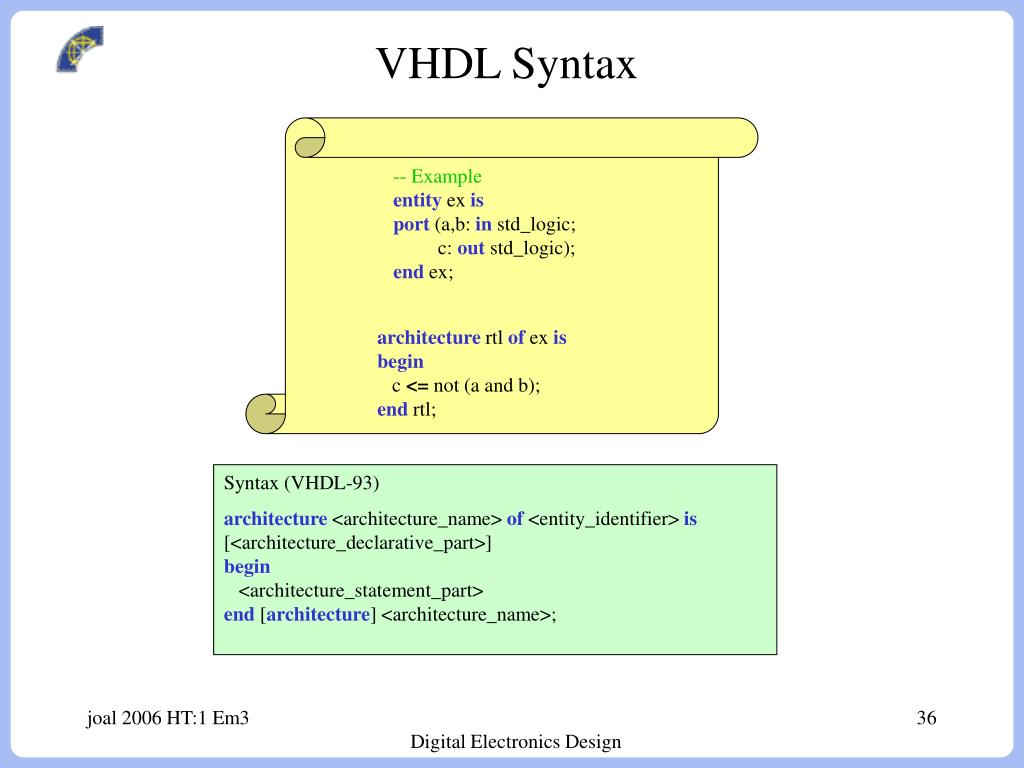

  36. VHDL Syntax -- Exampleentity ex isport(a,b: in std_logic; c: out std_logic);end ex; architecture rtl ofex isbeginc <= not (a and b);end rtl; Syntax (VHDL-93) architecture <architecture_name> of<entity_identifier> is[<architecture_declarative_part>]begin<architecture_statement_part>end [architecture] <architecture_name>; Digital Electronics Design

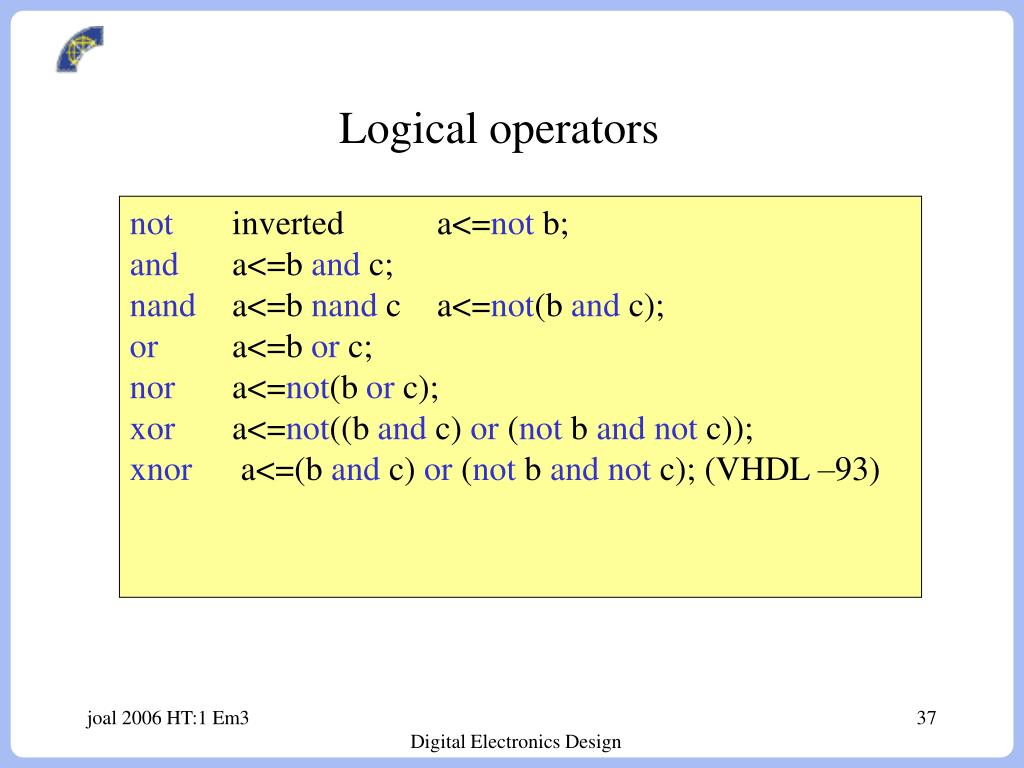

  37. Logical operators not inverteda<=not b; and a<=b and c; nand a<=b nand ca<=not(b and c); or a<=b or c; nor a<=not(b or c); xor a<=not((b and c) or (not b and not c)); xnor a<=(b and c) or (not b and not c); (VHDL –93) Digital Electronics Design

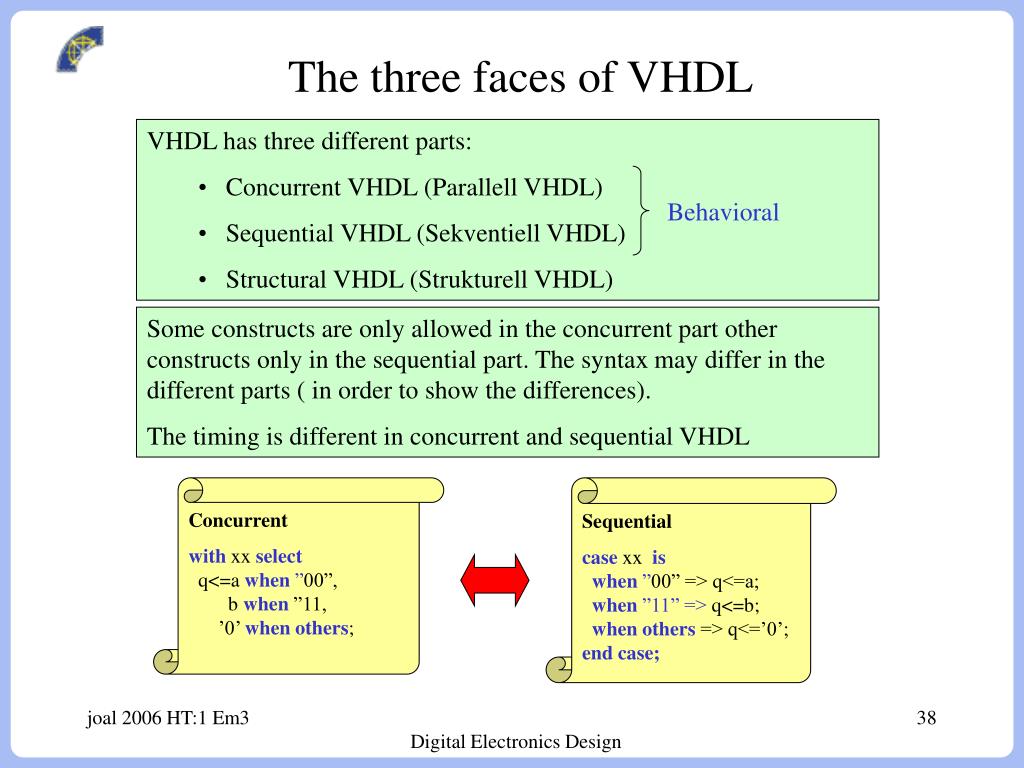

  38. The three faces of VHDL VHDL has three different parts: • Concurrent VHDL (Parallell VHDL) • Sequential VHDL (Sekventiell VHDL) • Structural VHDL (Strukturell VHDL) Behavioral Some constructs are only allowed in the concurrent part other constructs only in the sequential part. The syntax may differ in the different parts ( in order to show the differences). The timing is different in concurrent and sequential VHDL Concurrent withxxselect q<=awhen ”00”, bwhen”11, ’0’ when others; Sequential case xx is when ”00” => q<=a; when ”11” => q<=b; when others => q<=’0’; end case; Digital Electronics Design

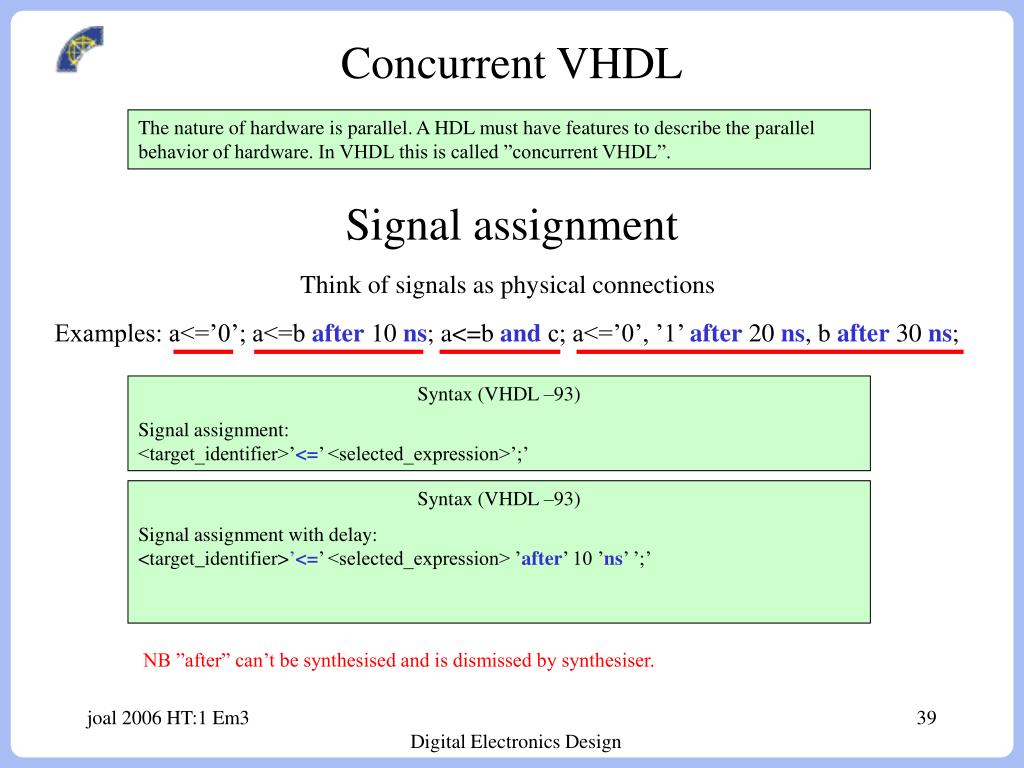

  39. Concurrent VHDL The nature of hardware is parallel. A HDL must have features to describe the parallel behavior of hardware. In VHDL this is called ”concurrent VHDL”. Signal assignment Think of signals as physical connections Examples: a<=’0’; a<=bafter 10 ns; a<=b and c; a<=’0’, ’1’ after 20 ns, b after 30 ns; Syntax (VHDL –93) Signal assignment:<target_identifier>’<=’ <selected_expression>’;’ Syntax (VHDL –93) Signal assignment with delay:<target_identifier>’<=’ <selected_expression> ’after’ 10 ’ns’ ’;’ NB ”after” can’t be synthesised and is dismissed by synthesiser. Digital Electronics Design

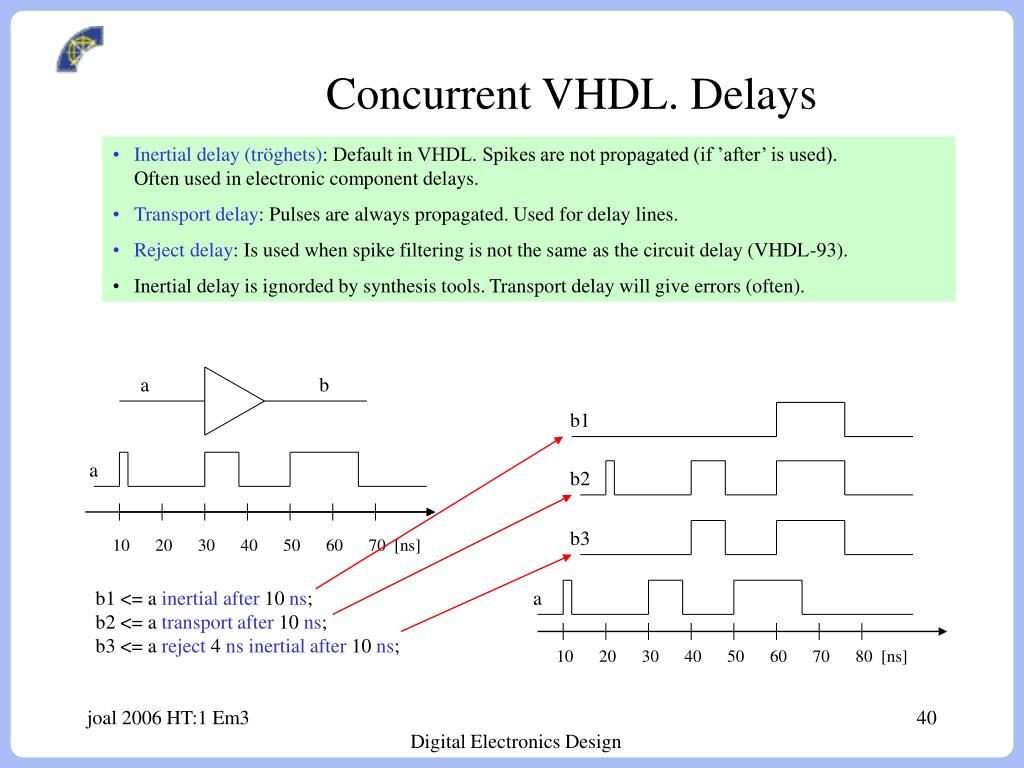

  40. a b b1 a b2 10 20 30 40 50 60 70 [ns] b3 a 10 20 30 40 50 60 70 80 [ns] Concurrent VHDL. Delays Inertial delay (tröghets): Default in VHDL. Spikes are not propagated (if ’after’ is used).Often used in electronic component delays. Transport delay: Pulses are always propagated. Used for delay lines. Reject delay: Is used when spike filtering is not the same as the circuit delay (VHDL-93). Inertial delay is ignorded by synthesis tools. Transport delay will give errors (often). b1 <= a inertialafter 10 ns;b2 <= a transport after 10 ns;b3 <= a reject 4 ns inertial after 10 ns; Digital Electronics Design

  41. a b c a b c Concurrent VHDL. Assignment order Concurrency: Hardware is parallel in nature. VHDL has constructions for concurrency (e.g C has not but SystemC has). Concurrent constructions in VHDL are executed concurrently and the order in which the code is written is irrelevant. Concurrent commands in VHDL are event-controlled. architecture rtl ofex1 isbeginc <= b; b <= a;end rtl; architecture rtl ofex2 isbeginb <= a; c <= b;end rtl; Digital Electronics Design

  42. 30 ns+2 delta 57 ns+2 delta A & C D B D 30 ns+1 delta 57 ns+1 delta A C B 10 20 30 40 50 60 70 [ns] 10 20 30 40 50 60 70 [ns] Concurrent VHDL. Delta time Delta time is used for queuing up sequential events. Delta times are executed while the simulation clock is stopped. When combinational logic has 0 ns delay the simulator counts up one delta time for each assignment. The delta time will count up until all signals are stable. What happens with the assignment: q <= not q; ?? D<= not C;C<=A and B; Digital Electronics Design

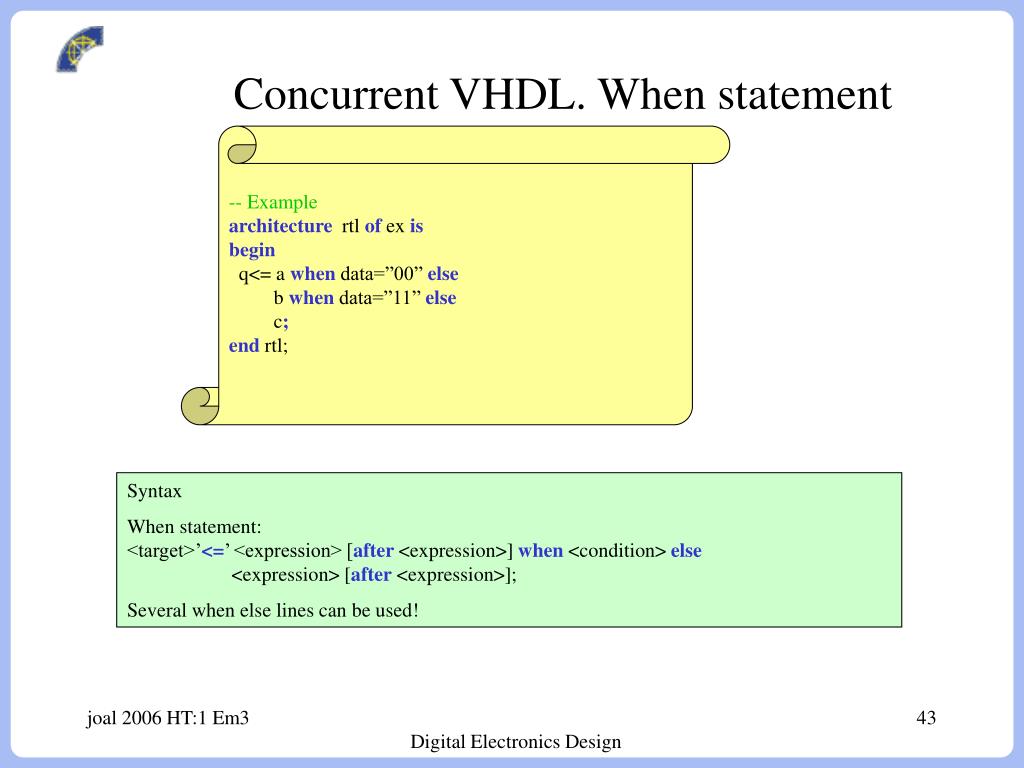

  43. Concurrent VHDL. When statement -- Examplearchitecture rtl ofex isbeginq<= a when data=”00” elseb when data=”11” elsec;end rtl; Syntax When statement:<target>’<=’ <expression> [after<expression>] when <condition> else <expression> [after <expression>]; Several when else lines can be used! Digital Electronics Design

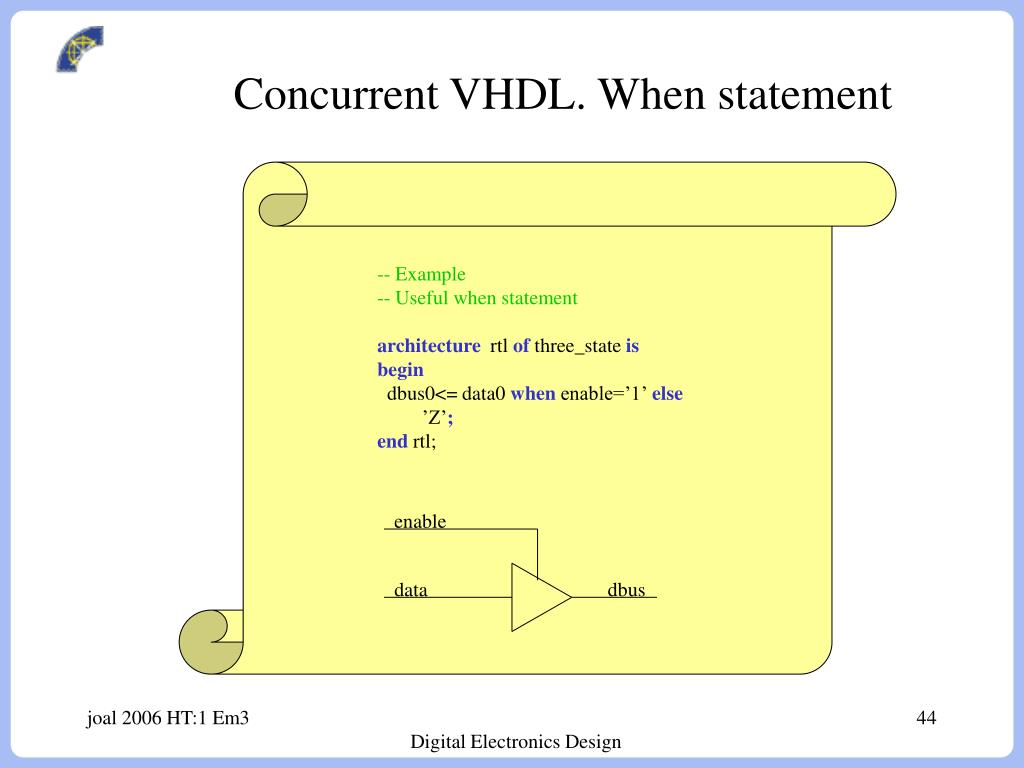

  44. -- Example-- Useful when statementarchitecture rtl ofthree_state isbegindbus0<= data0 when enable=’1’ else’Z’;end rtl; enable data dbus Concurrent VHDL. When statement Digital Electronics Design

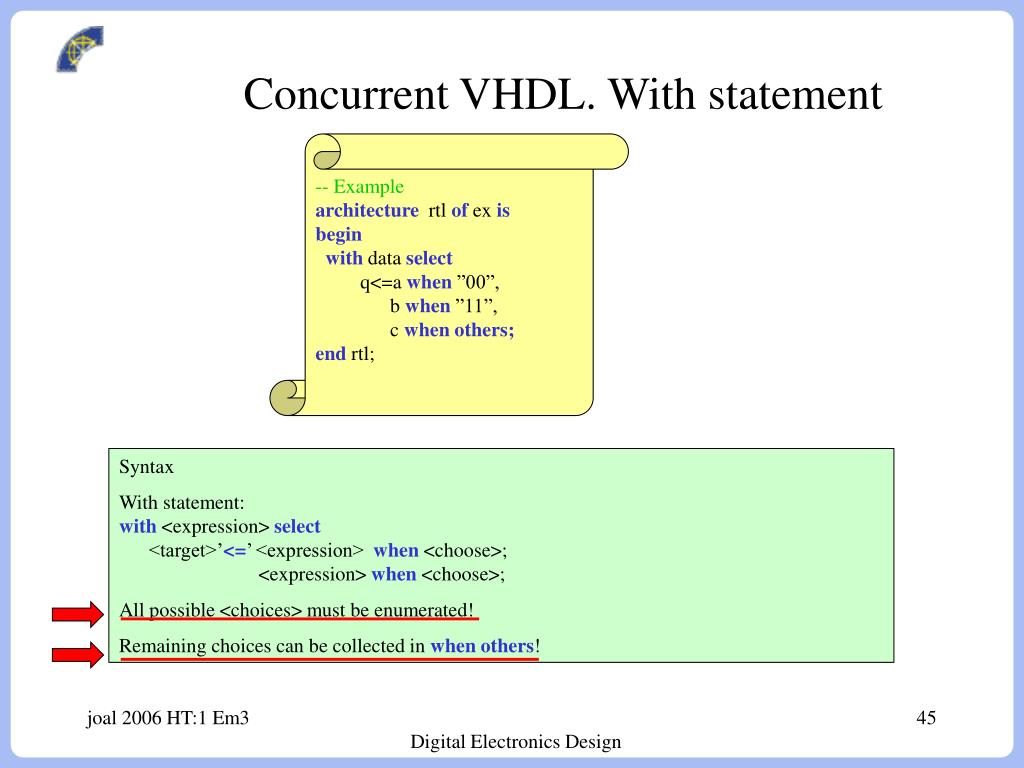

  45. Concurrent VHDL. With statement -- Examplearchitecture rtl ofex isbegin with data select q<=a when ”00”, b when ”11”, c when others;end rtl; Syntax With statement:with <expression> select <target>’<=’ <expression> when <choose>; <expression> when <choose>; All possible <choices> must be enumerated! Remaining choices can be collected in when others! Digital Electronics Design

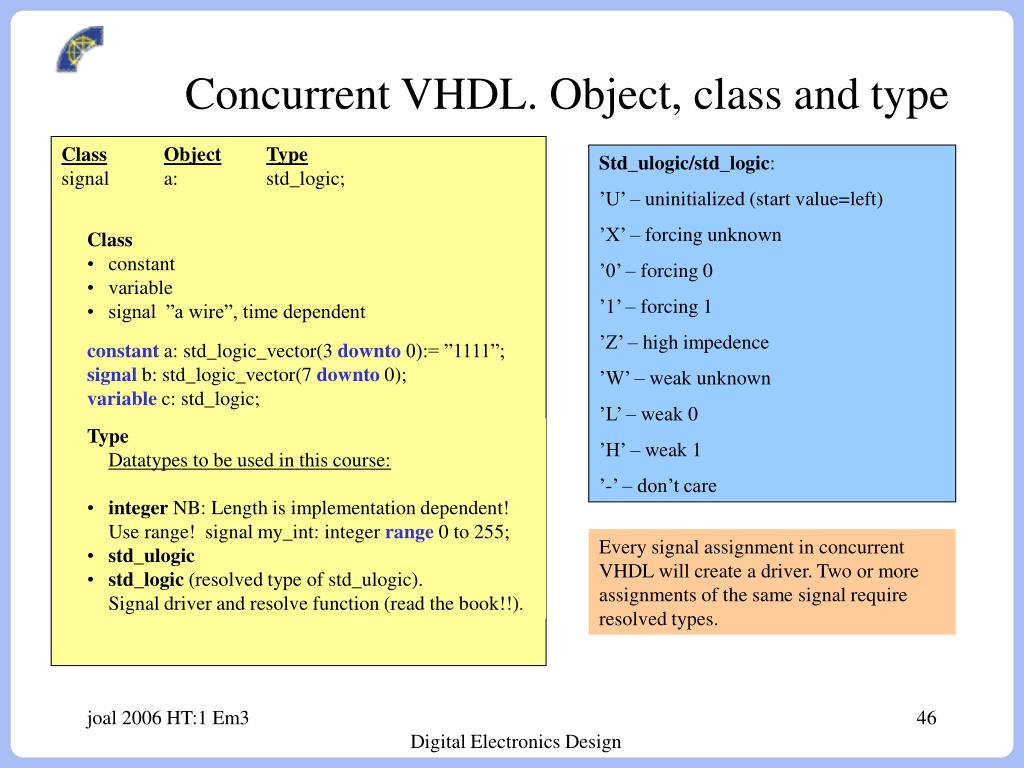

  46. Concurrent VHDL. Object, class and type ClassObjectType signal a: std_logic; Std_ulogic/std_logic: ’U’ – uninitialized (start value=left) ’X’ – forcing unknown ’0’ – forcing 0 ’1’ – forcing 1 ’Z’ – high impedence ’W’ – weak unknown ’L’ – weak 0 ’H’ – weak 1 ’-’ – don’t care Class • constant • variable • signal ”a wire”, time dependent constant a: std_logic_vector(3 downto 0):= ”1111”;signal b: std_logic_vector(7 downto 0);variable c: std_logic; TypeDatatypes to be used in this course: • integer NB: Length is implementation dependent!Use range! signal my_int: integer range 0 to 255; • std_ulogic • std_logic (resolved type of std_ulogic). Signal driver and resolve function (read the book!!). Every signal assignment in concurrent VHDL will create a driver. Two or more assignments of the same signal require resolved types. Digital Electronics Design

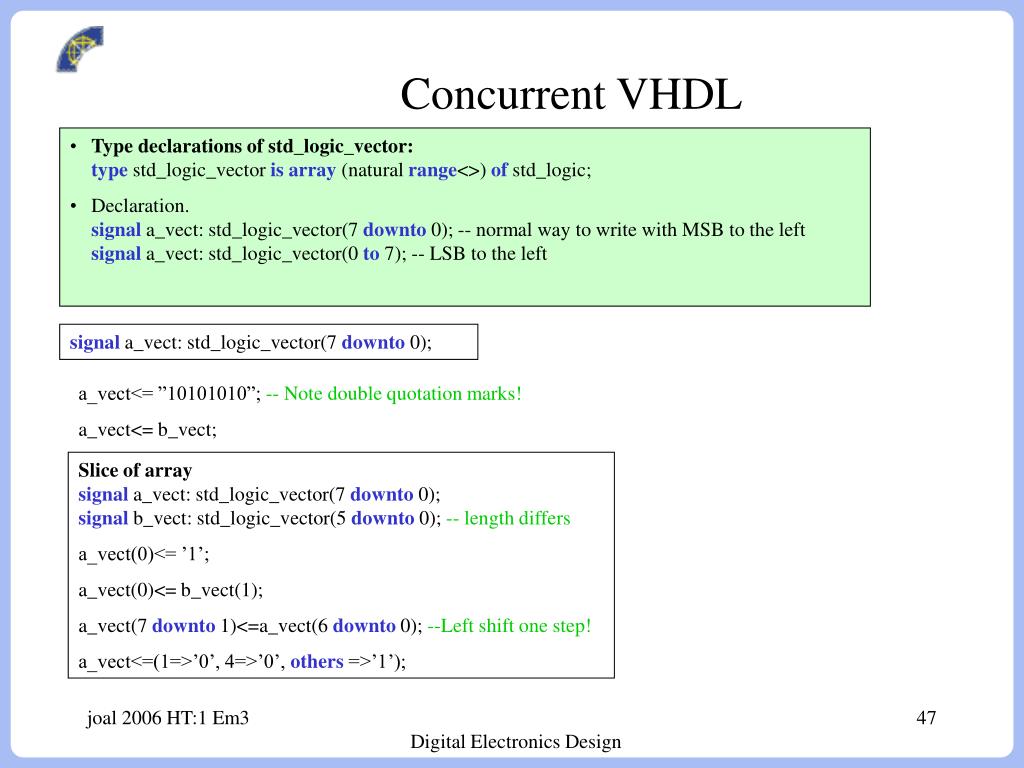

  47. Concurrent VHDL Type declarations of std_logic_vector:type std_logic_vector is array (natural range<>) of std_logic; Declaration.signal a_vect: std_logic_vector(7 downto 0); -- normal way to write with MSB to the leftsignal a_vect: std_logic_vector(0 to 7); -- LSB to the left signal a_vect: std_logic_vector(7 downto 0); a_vect<= ”10101010”; -- Note double quotation marks! a_vect<= b_vect; Slice of arraysignal a_vect: std_logic_vector(7 downto 0);signal b_vect: std_logic_vector(5 downto 0); -- length differs a_vect(0)<= ’1’; a_vect(0)<= b_vect(1); a_vect(7 downto 1)<=a_vect(6 downto 0); --Left shift one step! a_vect<=(1=>’0’, 4=>’0’, others =>’1’); Digital Electronics Design

  48. Concurrent VHDL. Vector assignment Concatinationsignal a_vect: std_logic_vector(7 downto 0);signal b_vect: std_logic_vector(5 downto 0); -- length differs a_vect<=”00” & b_vect; -- add two msb Aggregatesignal a_vect: std_logic_vector(7 downto 0);a_vect<=(others=>’0’); -- a_vect>=”00000000”a_vect<=(1=>’0’, 4=>’0’, others =>’1’); Bit string literalsa_vect<=B”11110000”; -- B”1111_0000” more readablea_vect<=X”FFA0”; Digital Electronics Design

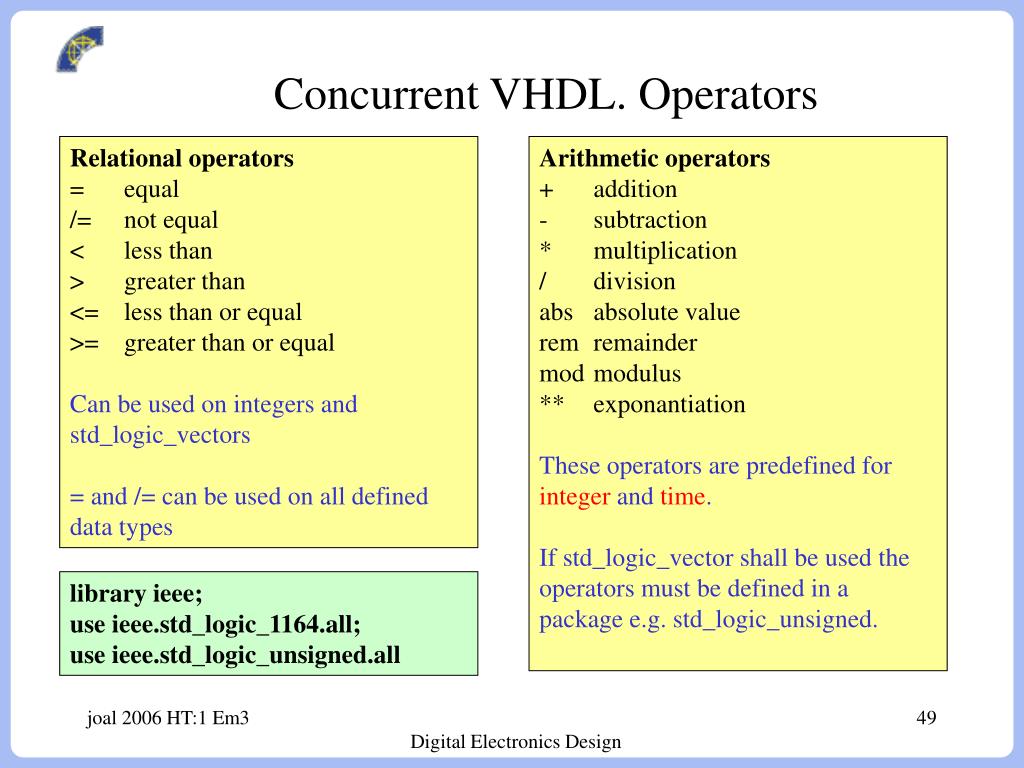

  49. Concurrent VHDL. Operators Relational operators = equal /= not equal < less than > greater than <= less than or equal >= greater than or equal Can be used on integers and std_logic_vectors = and /= can be used on all defined data types Arithmetic operators + addition - subtraction * multiplication / division abs absolute value rem remainder mod modulus ** exponantiation These operators are predefined for integer and time.If std_logic_vector shall be used the operators must be defined in a package e.g. std_logic_unsigned. library ieee;use ieee.std_logic_1164.all;use ieee.std_logic_unsigned.all Digital Electronics Design

  50. Internal signals No in, out etc! Concurrent VHDL. Internal signal. Init values Left-hand values The default init value is the left-hand value in the value list. e.g. for std_logic the init value is ’U’. Init in entity or architecture (Not for synthesis) entity ex isport(a: in std_logic:=’0’; b: out std_logic);end; architecture behv of ex issignal i1: std_logic:=’1’; signal i2,i3: std_logic:=’H’; signal i4: std_logic_vector(3 downto 0):=”0000”;begin ……..end; Digital Electronics Design
