1. Processes Week 2 – CS 502 CS502 Spring 2006

2. Last week • Abstractions — simplified idealization of a very complex, real phenomenon or action • Atomic reads from and writes to memory • Most machine opcodes behave as if they are atomic • Critical section — a discipline to keep different computations from tripping over each other on common data • Peterson’s solution – busy waiting, depends only on atomic loads and stores of data • Semaphores – a possible abstraction for controlling access to shared data, blocking and unblocking as needed. CS502 Spring 2006

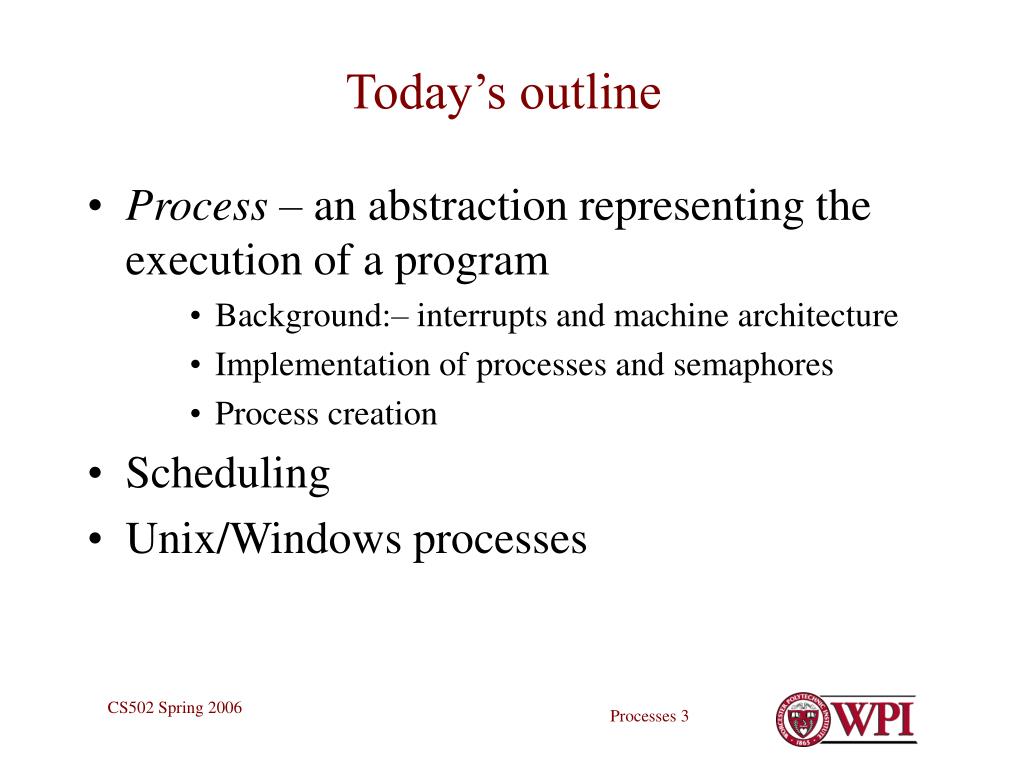

3. Today’s outline • Process – an abstraction representing the execution of a program • Background:– interrupts and machine architecture • Implementation of processes and semaphores • Process creation • Scheduling • Unix/Windows processes CS502 Spring 2006

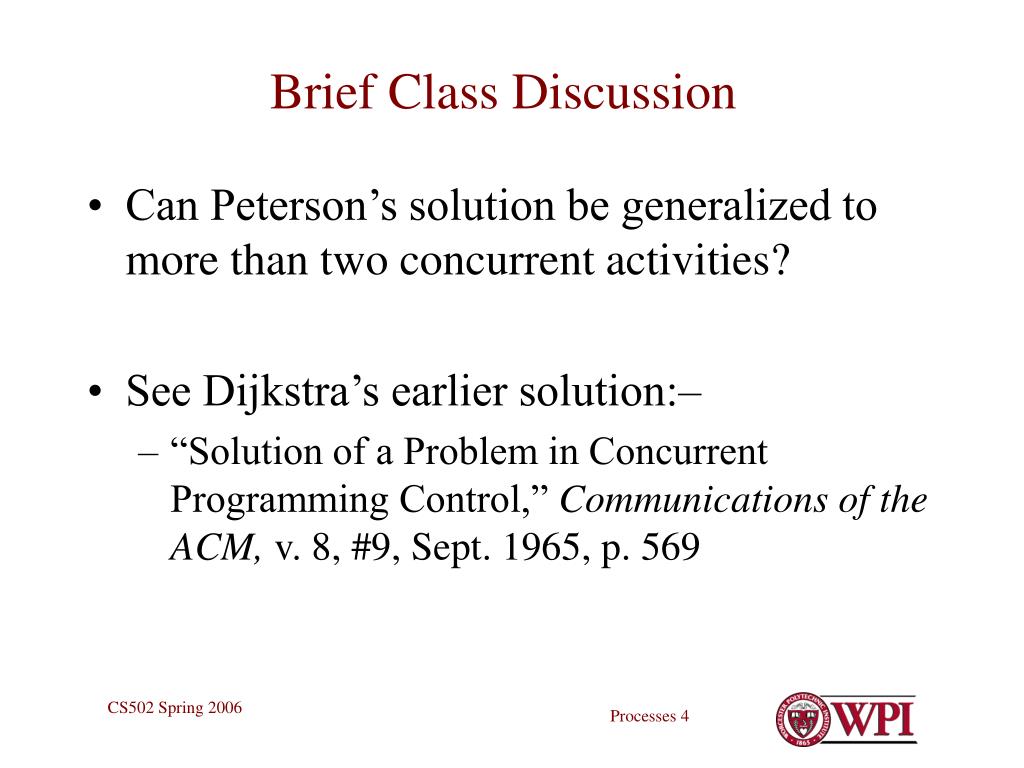

4. Brief Class Discussion • Can Peterson’s solution be generalized to more than two concurrent activities? • See Dijkstra’s earlier solution:– • “Solution of a Problem in Concurrent Programming Control,” Communications of the ACM, v. 8, #9, Sept. 1965, p. 569 CS502 Spring 2006

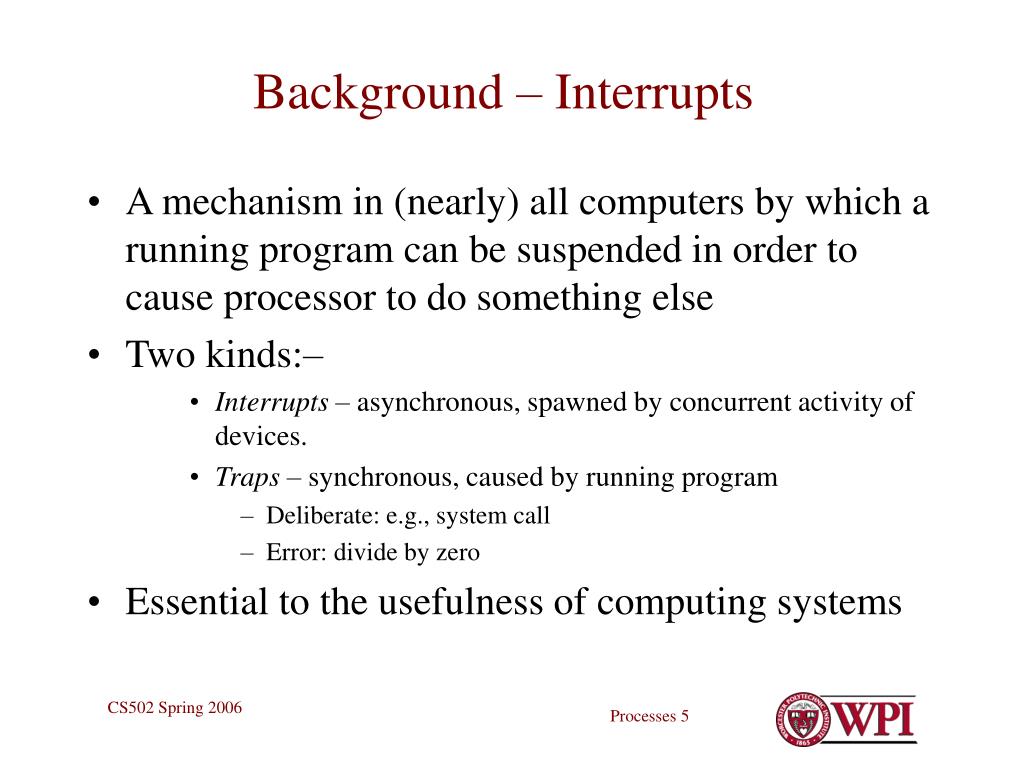

5. Background – Interrupts • A mechanism in (nearly) all computers by which a running program can be suspended in order to cause processor to do something else • Two kinds:– • Interrupts – asynchronous, spawned by concurrent activity of devices. • Traps – synchronous, caused by running program • Deliberate: e.g., system call • Error: divide by zero • Essential to the usefulness of computing systems CS502 Spring 2006

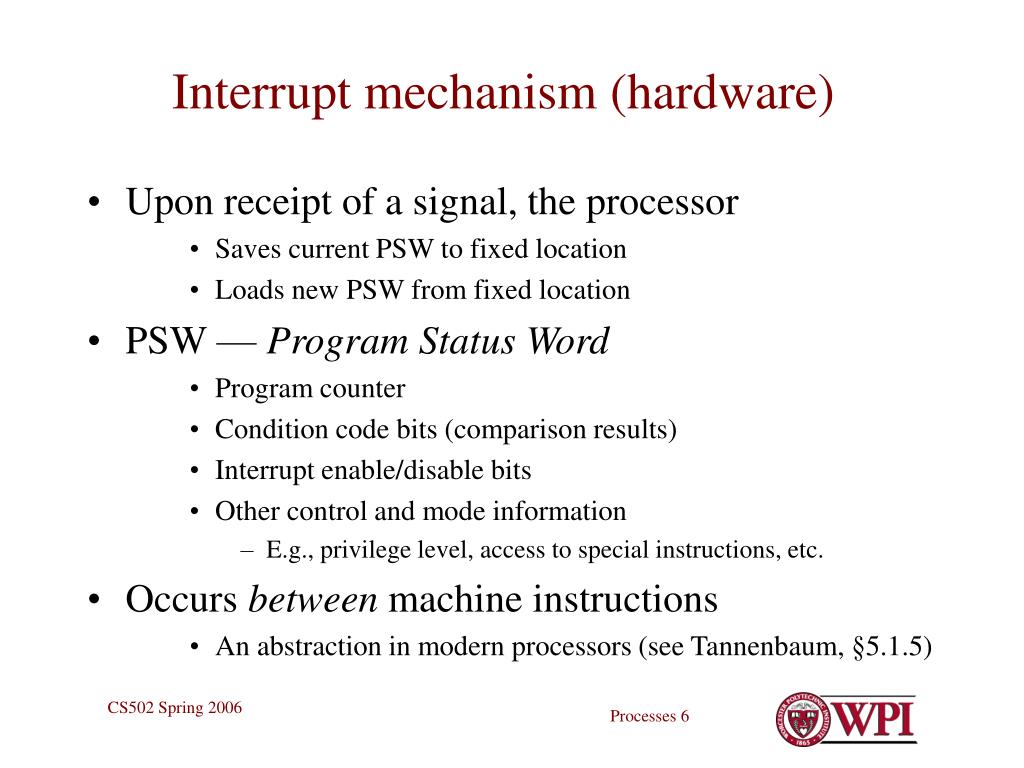

6. Interrupt mechanism (hardware) • Upon receipt of a signal, the processor • Saves current PSW to fixed location • Loads new PSW from fixed location • PSW — Program Status Word • Program counter • Condition code bits (comparison results) • Interrupt enable/disable bits • Other control and mode information • E.g., privilege level, access to special instructions, etc. • Occurs between machine instructions • An abstraction in modern processors (see Tannenbaum, §5.1.5) CS502 Spring 2006

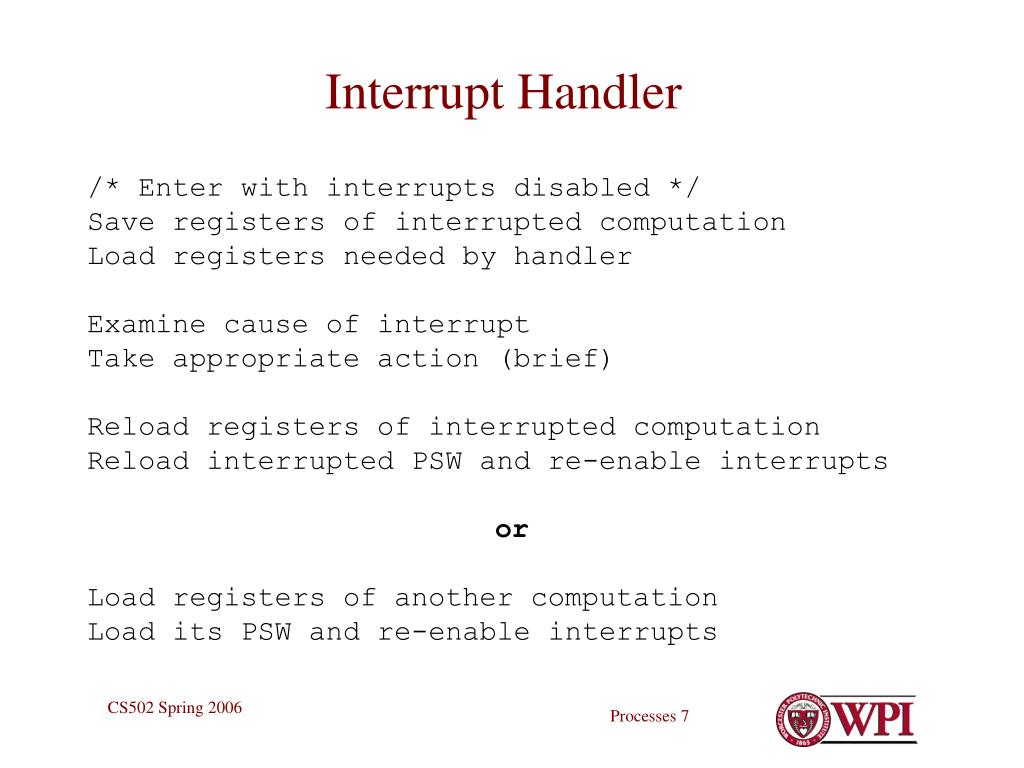

7. Interrupt Handler /* Enter with interrupts disabled */ Save registers of interrupted computation Load registers needed by handler Examine cause of interrupt Take appropriate action (brief) Reload registers of interrupted computation Reload interrupted PSW and re-enable interrupts or Load registers of another computation Load its PSW and re-enable interrupts CS502 Spring 2006

8. Requirements of interrupt handlers • Fast • Avoid possibilities of interminable waits • Must not count on correctness of interrupted computation • … • More challenging on multiprocessor systems CS502 Spring 2006

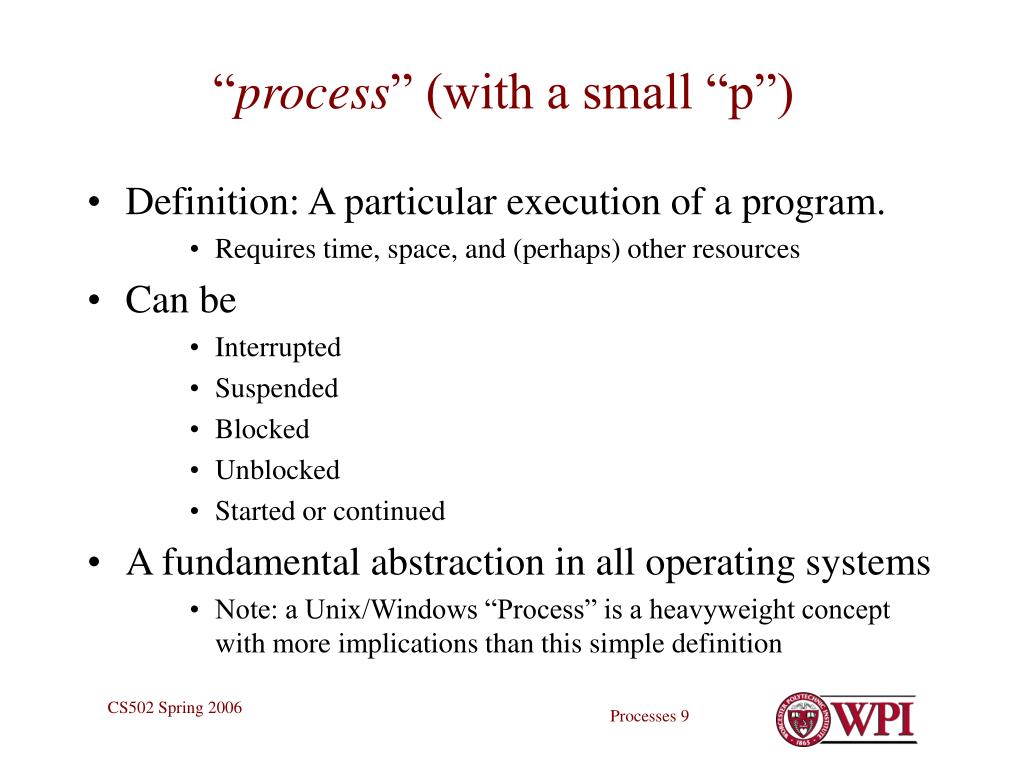

9. “process” (with a small “p”) • Definition: A particular execution of a program. • Requires time, space, and (perhaps) other resources • Can be • Interrupted • Suspended • Blocked • Unblocked • Started or continued • A fundamental abstraction in all operating systems • Note: a Unix/Windows “Process” is a heavyweight concept with more implications than this simple definition CS502 Spring 2006

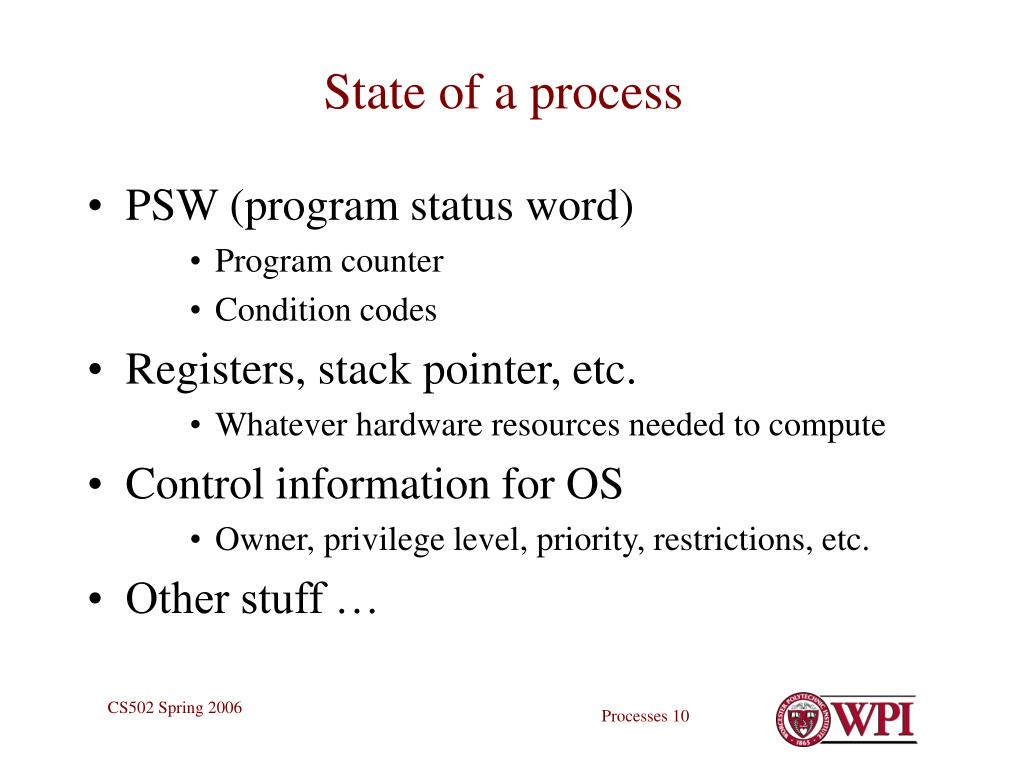

10. State of a process • PSW (program status word) • Program counter • Condition codes • Registers, stack pointer, etc. • Whatever hardware resources needed to compute • Control information for OS • Owner, privilege level, priority, restrictions, etc. • Other stuff … CS502 Spring 2006

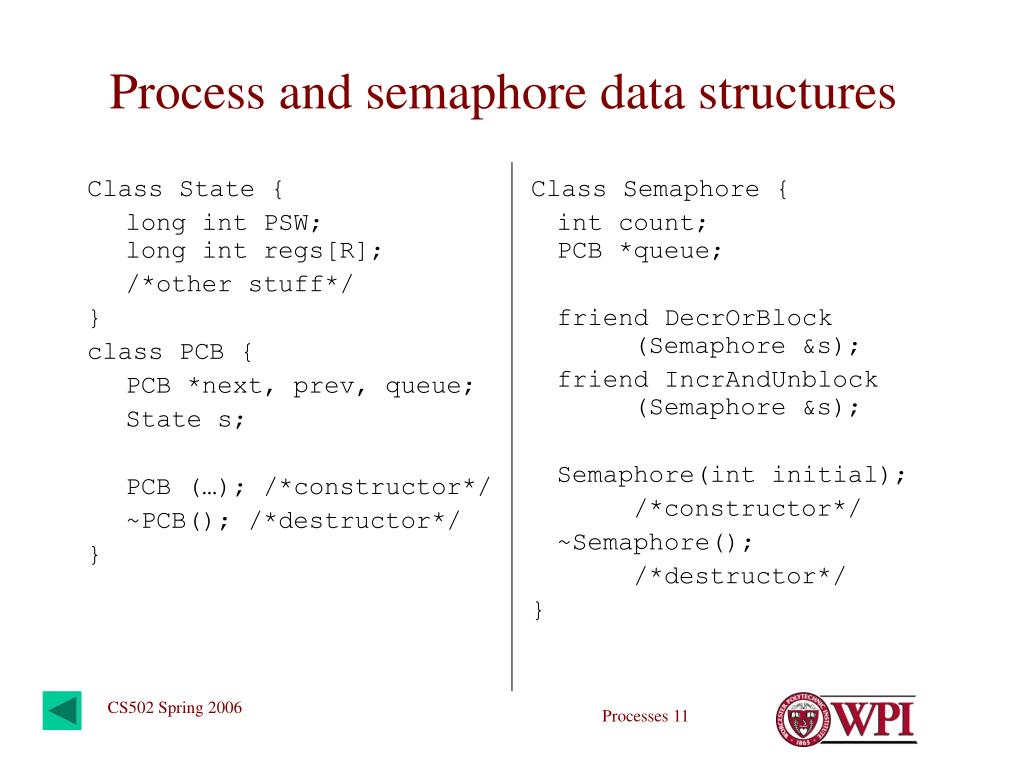

11. Class State { long int PSW;long int regs[R]; /*other stuff*/ } class PCB { PCB *next, prev, queue; State s; PCB (…); /*constructor*/ ~PCB(); /*destructor*/ } Class Semaphore { int count;PCB *queue; friend DecrOrBlock (Semaphore &s); friend IncrAndUnblock (Semaphore &s); Semaphore(int initial); /*constructor*/ ~Semaphore(); /*destructor*/ } Process and semaphore data structures CS502 Spring 2006

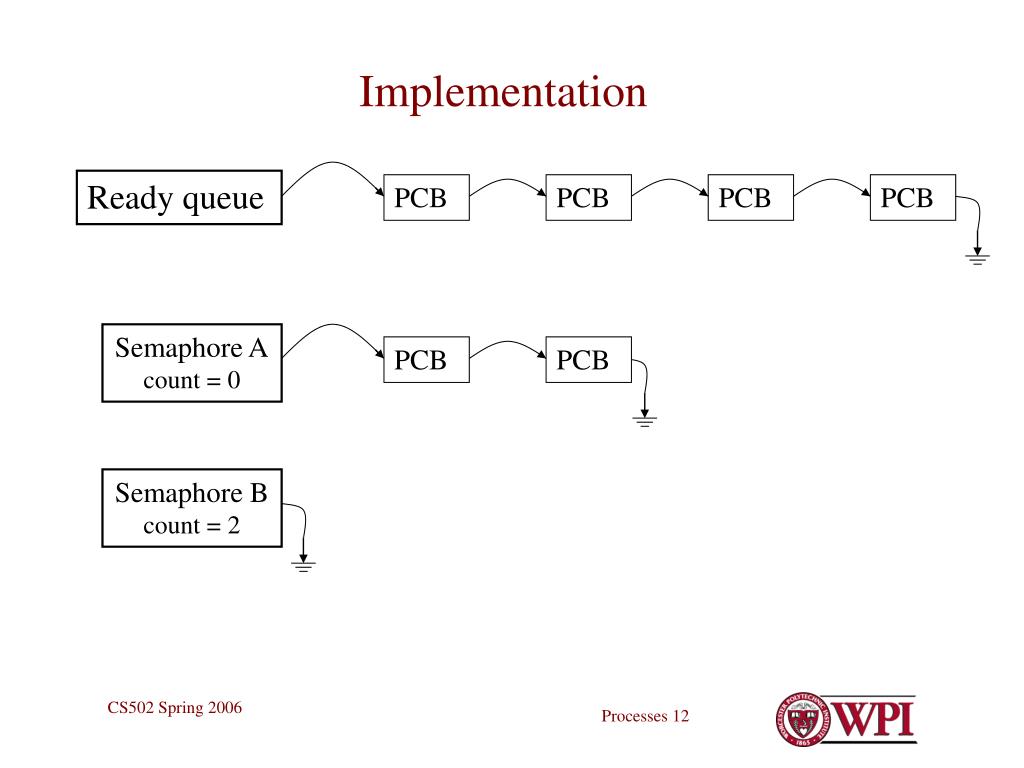

12. Implementation Ready queue PCB PCB PCB PCB Semaphore Acount = 0 PCB PCB Semaphore Bcount = 2 CS502 Spring 2006

13. Implementation • Action – dispatch a process to CPU • Remove first PCB from ready queue • Load registers and PSW • Return from interrupt or trap • Action – interrupt a process • Save PSW and registers in PCB • If not blocked, insert PCB into ReadyQueue (in some order) • Take appropriate action • Dispatch another process from ReadyQueue Ready queue PCB PCB PCB PCB CS502 Spring 2006

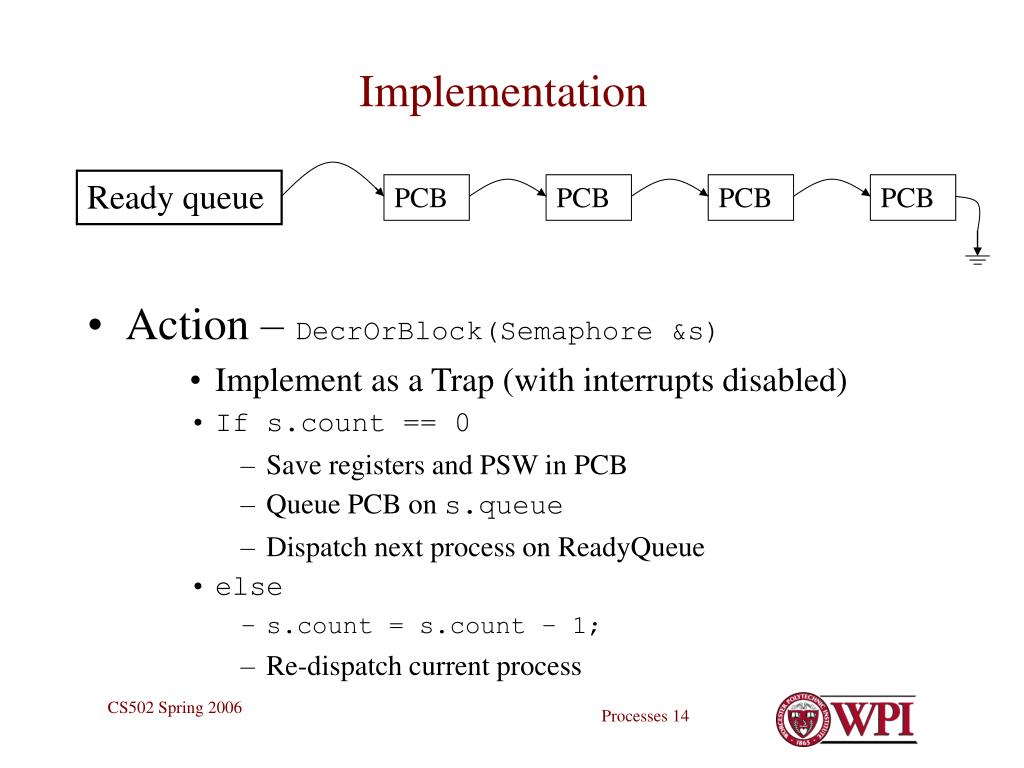

14. Implementation • Action – DecrOrBlock(Semaphore &s) • Implement as a Trap (with interrupts disabled) • If s.count == 0 • Save registers and PSW in PCB • Queue PCB on s.queue • Dispatch next process on ReadyQueue • else • s.count = s.count – 1; • Re-dispatch current process Ready queue PCB PCB PCB PCB CS502 Spring 2006

15. Implementation • Action – IncrAndUnblock(Semaphore &s) • Implement as a Trap (with interrupts disabled) • If s.count != null • Save current process in ReadyQueue • Move first process on s.queue to ReadyQueue • Dispatch another process on ReadyQueue • else • s.count = s.count + 1; • Re-dispatch current process Ready queue PCB PCB PCB PCB Semaphore Acount = 0 PCB PCB CS502 Spring 2006

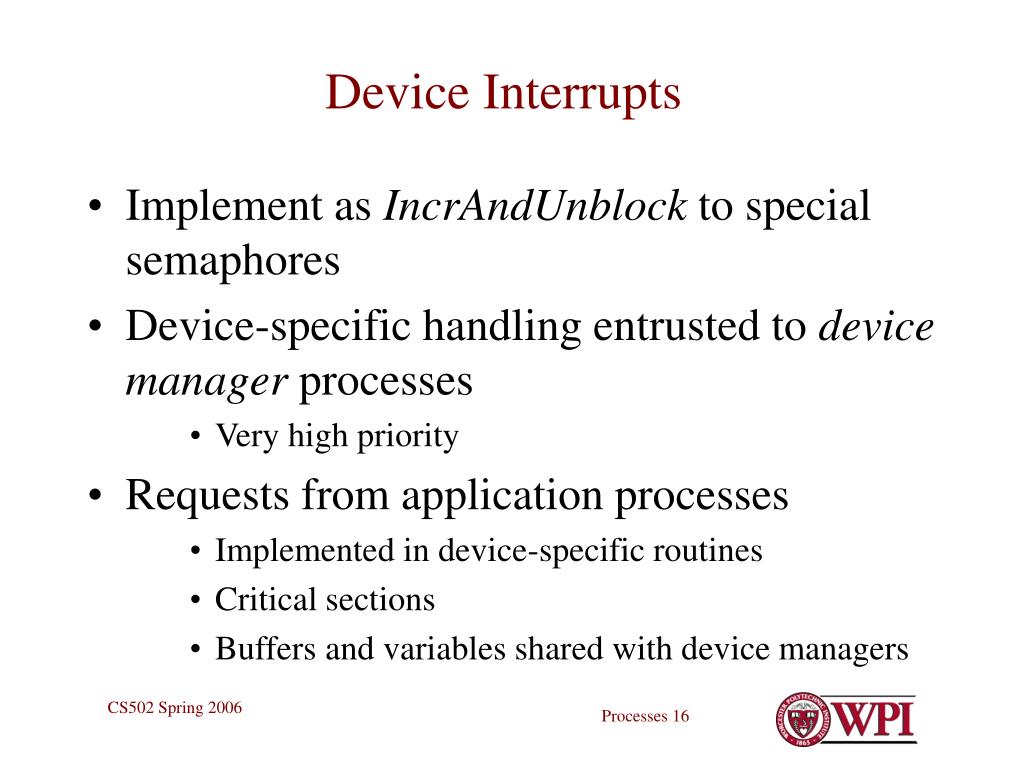

16. Device Interrupts • Implement as IncrAndUnblock to special semaphores • Device-specific handling entrusted to device manager processes • Very high priority • Requests from application processes • Implemented in device-specific routines • Critical sections • Buffers and variables shared with device managers CS502 Spring 2006

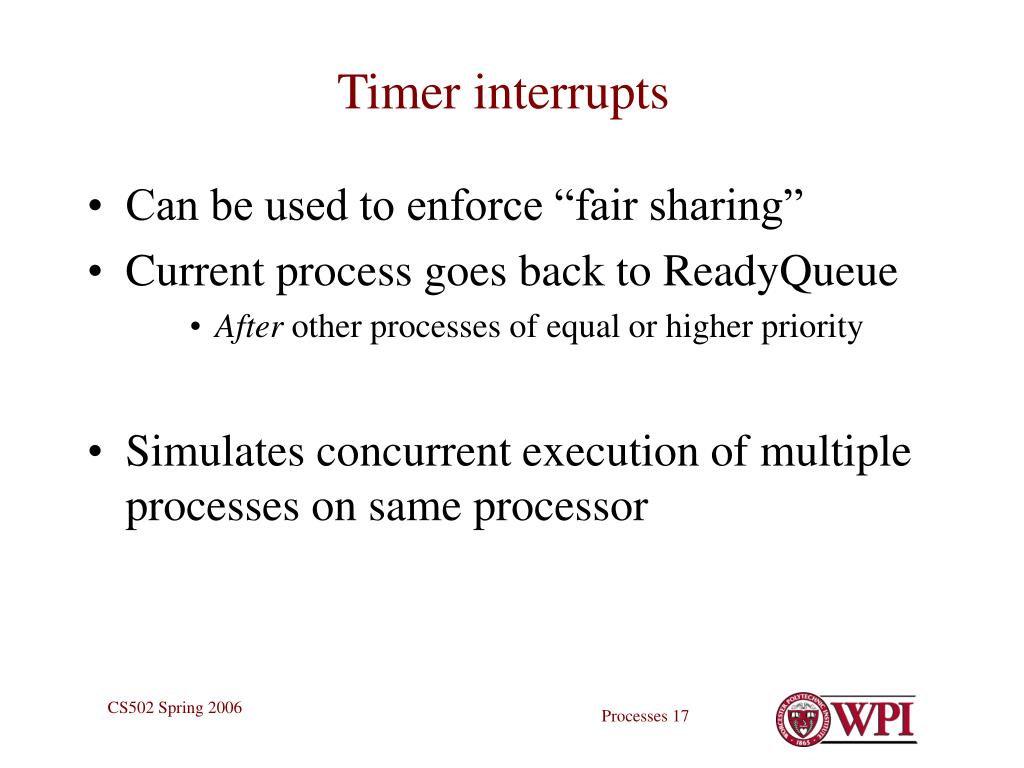

17. Timer interrupts • Can be used to enforce “fair sharing” • Current process goes back to ReadyQueue • After other processes of equal or higher priority • Simulates concurrent execution of multiple processes on same processor CS502 Spring 2006

18. Definition • Context Switch — the act of switching from one process to another • E.g., upon interrupt or block • Not a big deal in simple systems and processors • Very big deal in large systems such • Unix and Windows • Pentium 4 CS502 Spring 2006

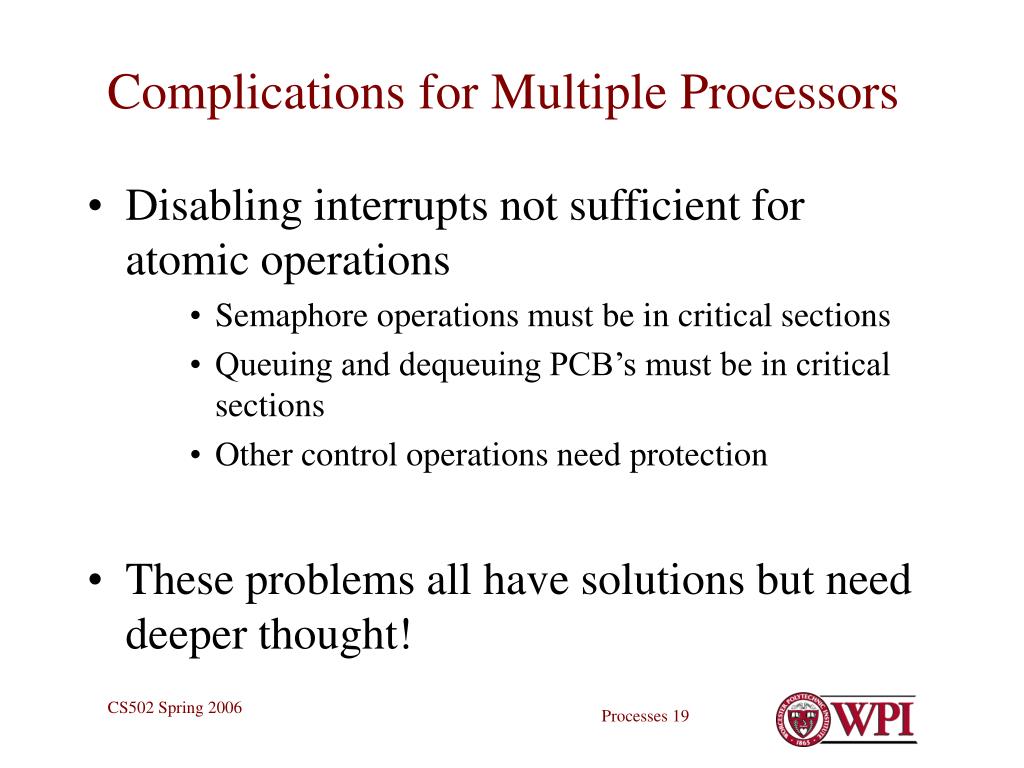

19. Complications for Multiple Processors • Disabling interrupts not sufficient for atomic operations • Semaphore operations must be in critical sections • Queuing and dequeuing PCB’s must be in critical sections • Other control operations need protection • These problems all have solutions but need deeper thought! CS502 Spring 2006

20. Summary • Interrupts transparent to processes • DecrOrBlock() and IncrAndUnblock() behave as if they are atomic • Device handlers and all other OS services can be embedded in processes • All processes behave as if concurrently executing • Fundamental underpinning of all modern operations systems CS502 Spring 2006
