Effective Strategies for Handling Troublesome Plant Material in Botanical Studies

This guide outlines practical steps to improve the handling of troublesome plant materials in botanical research. Key strategies include selecting alternative isolation and staining buffers, incorporating antioxidants and preservatives, choosing different plant tissues, and utilizing advanced techniques like image cytometry. Specific buffer recipes and chemical preservatives such as antioxidants and organic acids are provided to enhance tissue preservation, ensuring better results in histological analysis. The work focuses on common challenges faced in plant studies, highlighting effective solutions for researchers.

amir-clark
Télécharger la présentation

Effective Strategies for Handling Troublesome Plant Material in Botanical Studies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Troublesome material: how to deal with? Jan Suda Department of Botany, Faculty of Science, Charles University Institute of Botany, Academy of Sciences of the Czech Republic

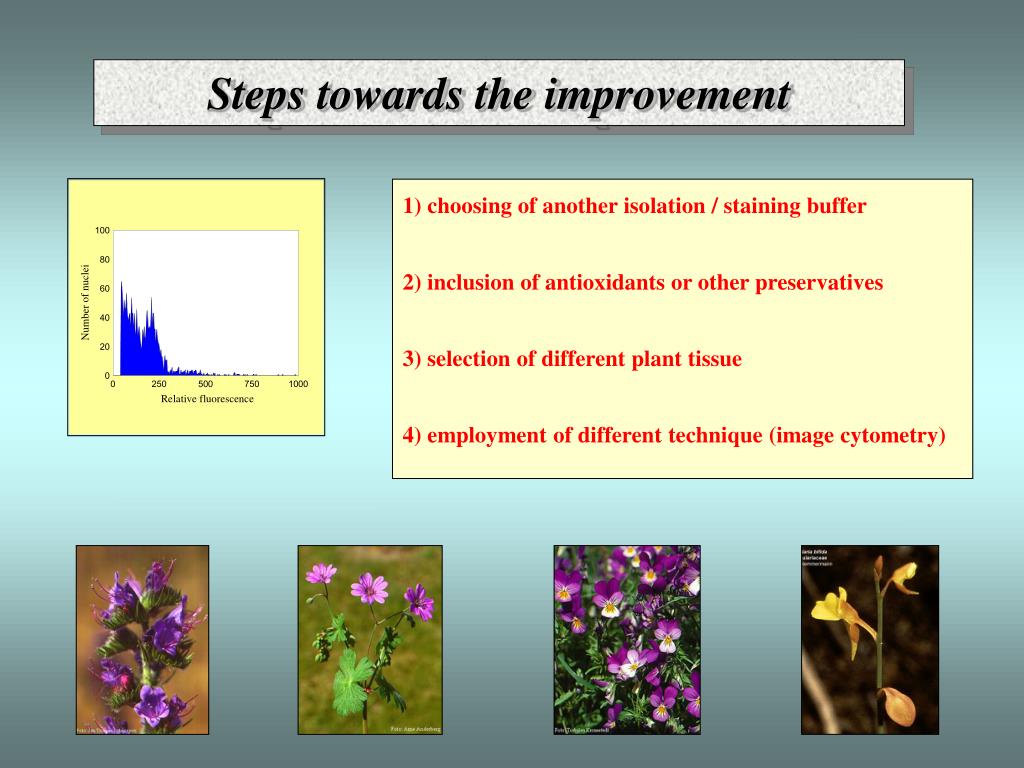

  2. Steps towards the improvement 1) choosing of another isolation / staining buffer 2) inclusion of antioxidants or other preservatives 3) selection of different plant tissue 4) employment of different technique (image cytometry)

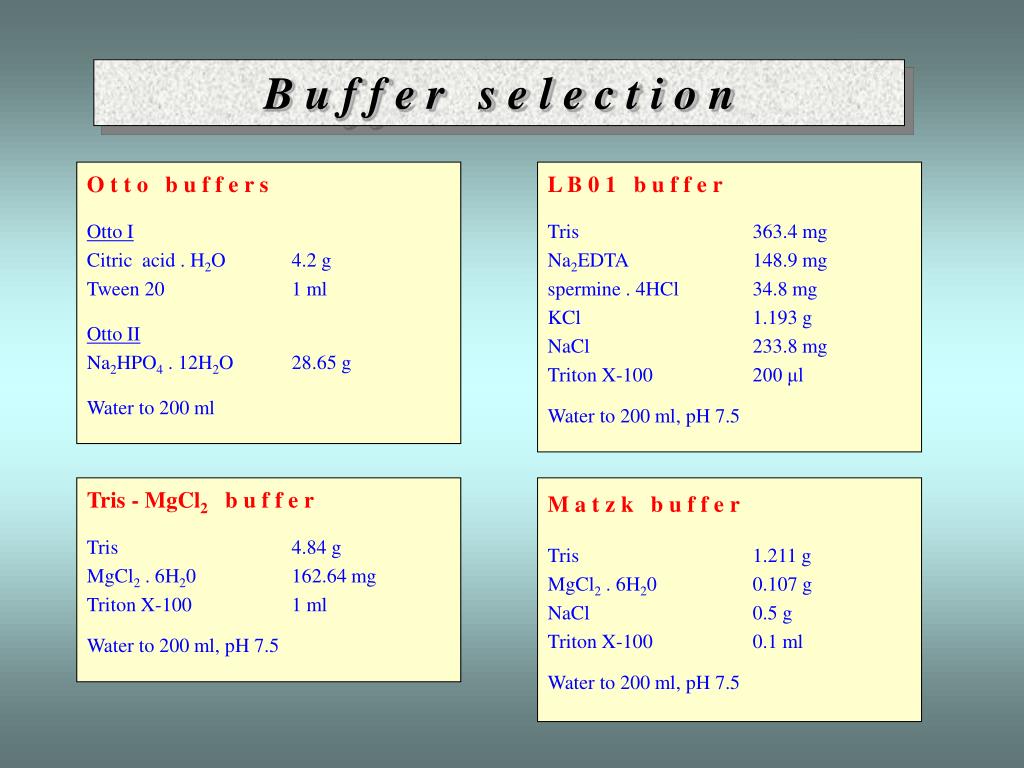

  3. B u f f e r s e l e c t i o n O t t o b u f f e r s Otto I Citric acid . H2O 4.2 g Tween 20 1 ml Otto II Na2HPO4 . 12H2O 28.65 g Water to 200 ml L B 0 1 b u f f e r Tris 363.4 mg Na2EDTA 148.9 mg spermine . 4HCl 34.8 mg KCl 1.193 g NaCl 233.8 mg Triton X-100 200 μl Water to 200 ml, pH 7.5 Tris - MgCl2 b u f f e r Tris 4.84 g MgCl2 . 6H20 162.64 mg Triton X-100 1 ml Water to 200 ml, pH 7.5 M a t z k b u f f e r Tris 1.211 g MgCl2 . 6H20 0.107 g NaCl 0.5 g Triton X-100 0.1 ml Water to 200 ml, pH 7.5

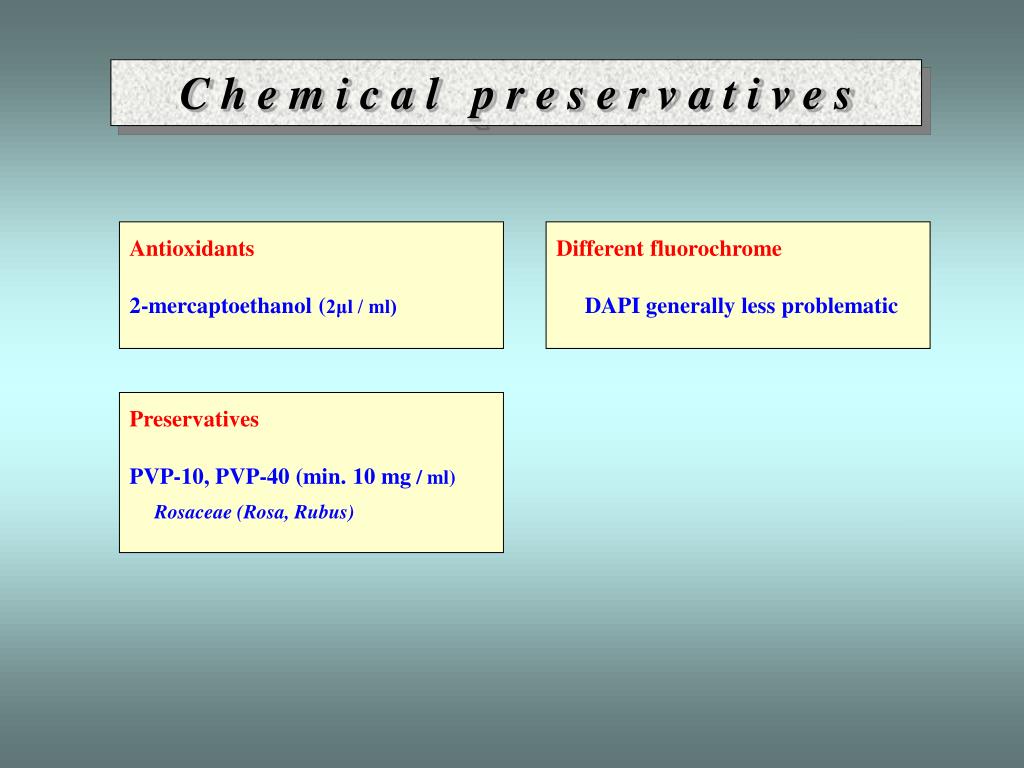

  4. C h e m i c a l p r e s e r v a t i v e s Antioxidants 2-mercaptoethanol (2μl / ml) Different fluorochrome DAPI generally less problematic Preservatives PVP-10, PVP-40 (min. 10 mg / ml) Rosaceae (Rosa, Rubus)

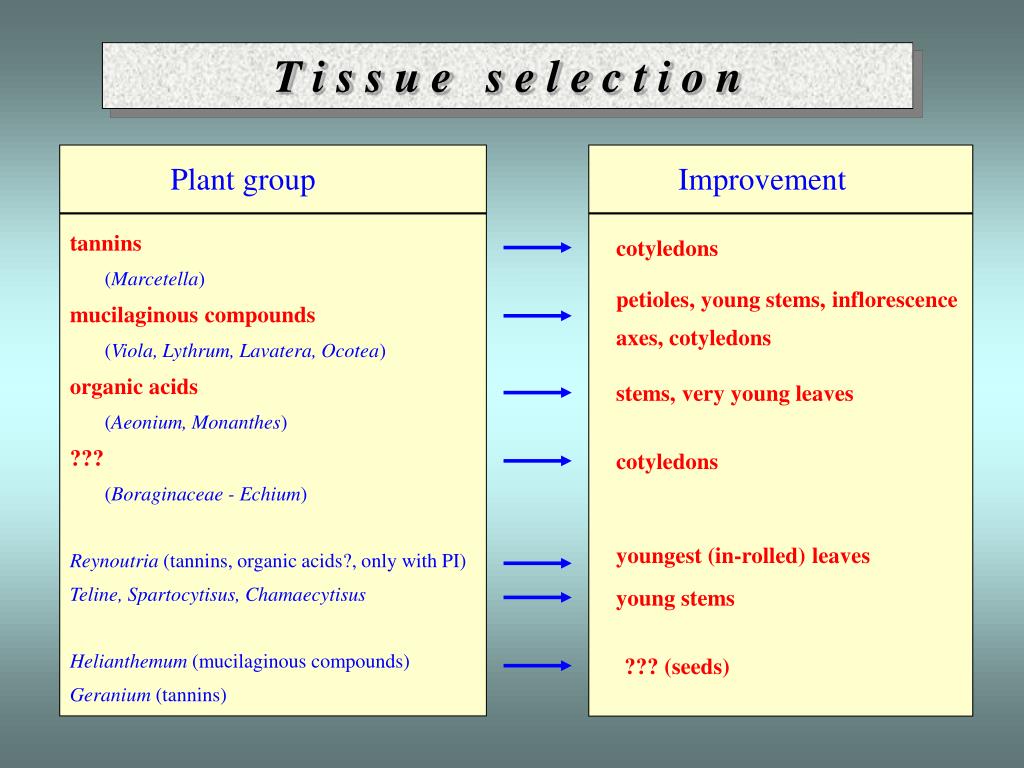

  5. Plant group tannins (Marcetella) mucilaginous compounds (Viola, Lythrum, Lavatera, Ocotea) organic acids (Aeonium, Monanthes) ??? (Boraginaceae - Echium) Reynoutria (tannins, organic acids?, only with PI) Teline, Spartocytisus, Chamaecytisus Helianthemum (mucilaginous compounds) Geranium (tannins) Improvement cotyledons petioles, young stems, inflorescence axes, cotyledons stems, very young leaves cotyledons youngest (in-rolled) leaves young stems ??? (seeds) T i s s u e s e l e c t i o n

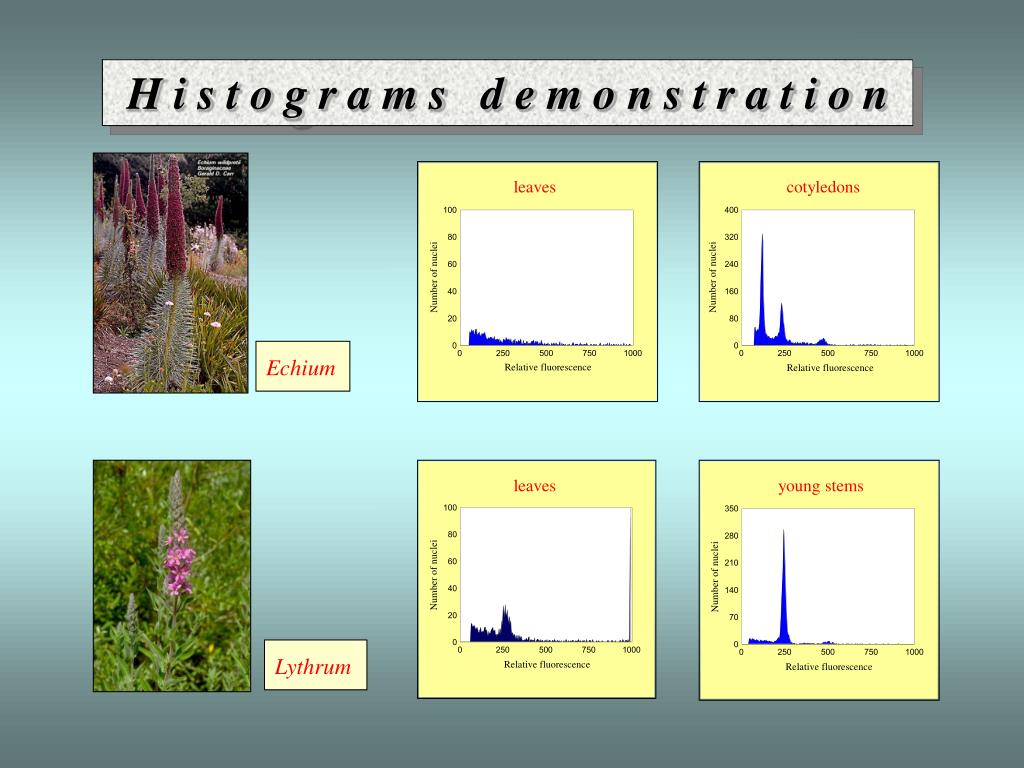

  6. leaves cotyledons Echium leaves young stems Lythrum H i s t o g r a m s d e m o n s t r a t i o n

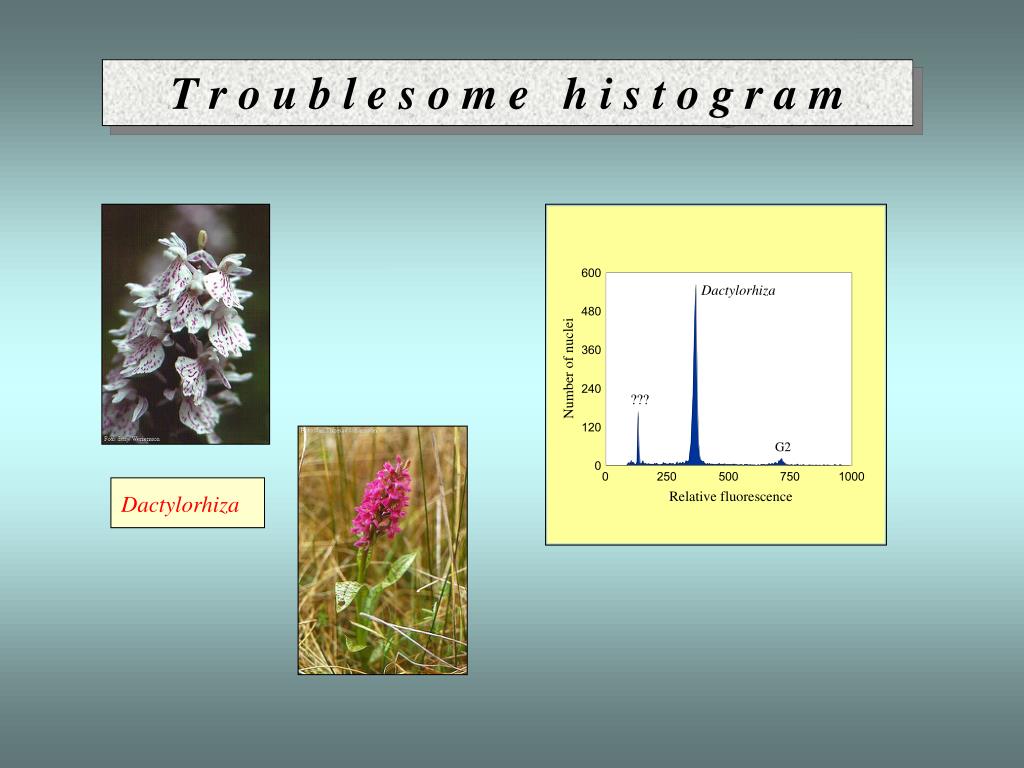

  7. T r o u b l e s o m e h i s t o g r a m Dactylorhiza
