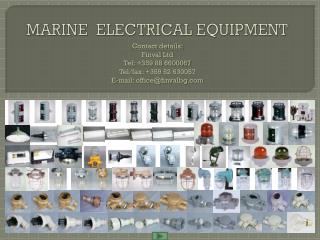

  1. MARINE ELECTRICAL EQUIPMENT Contact details: FinvalLtd Tel: +359 88 6600067 Tel/fax: +359 52 630057 E-mail: office@finvalbg.com

  2. Contents • Electrical equipment • Other marine equipment • Clamps for hydraulic pipes • Split distance piece for Pilot Ladder

  3. PRODUCTS ELECTRIC LIGHTS and LAMPS • Vibration service clear lamps B-22 ; E-27 • Frosted lamps vibration service B-22 ; E-27 • Navigation lamps E-27 • Tubular navigation lamps E-27 ; B-22 ; P-28S • Emergency battery lamps E-27 ; B-22 • Pilot tubular lamps – screw base E-9 ; E-12 ; E-14 ; E-27 • Pilot tubular lamps – bayonet base BA-9S ; BA-15S ; BA-15D • Miniature pilot lamps S 5.5-0 • Telephone indicator lamps – Taunus - Type 30 ; 45 • Flat reflector lamps RF – indoor use E-27 • Spot reflector lamps RS – indoor use E-27 • Flat reflector lamps RF-H – outdoor use E-27 • Spot reflector lamps RS-H – outdoor use E-27

  4. PRODUCTS ELECTRIC LAMPS AND STARTERS • Mercury reflector lamps HF - E-27 • Self ballasted mercury lamps BHF - E-27 • Self ballasted mercury reflector lamps BHRF - E-27 • High pressure sodium lamps T-bulbs E-40 • Tungsten halogen lamps “J” – type • Tubular shape halogen lamps “JT” type E-39 • Starters for fluorescent lamps FG-7P

  5. PRODUCTS NAVIGATION LIGHTS • Double deck navigation starboard light - / metal case • Double deck navigation port light - / metal case • Double deck masthead light - / metal case • Double deck stern light – / metal case • Double deck all-round light - / metal case • Single navigation starboard light - / metal case • Single navigation port light - / metal case • Single navigation all-round light - / metal case • Double deck navigation starboard light - / plastic • Double deck navigation port light - / plastic • Double deck masthead light - / plastic • Single navigation starboard light - / plastic • Single navigation all-round light - / plastic • Single navigation masthead light - / plastic

  6. PRODUCTS NAVIGATION SIGNAL LAMP • Signal starboard lamp • Signal port lamp • Signal masthead lamp • Signal stern light • Signal all-round lamp • Head signal light – transparent • Head signal light – green • Head signal light – red • Head signal light • Head light with wire

  7. PRODUCTS OTHER SIGNAL LAMP • Riding light • Signal light for boat • Morse signal light • Daylight signal light – ALDIS

  8. PRODUCTS FLUORESCENT LIGHTS • Fluorescent pendant light • Fluorescent ceiling light • Fluorescent aisle light • Fluorescent mirror light • Fluorescent bedside lamp

  9. PRODUCTS BEDSIDE LAMPS • Steel bedside lamp • Plastic bedside lamp

  10. PRODUCTS CANDESCENT PENDANT LIGHTS • Pendant light • CCD 1-1 • CCD 1-2 • CCD 1-2A • CCD 3-2 • CCD 3-3 • CCD 2-1-2 • CCD 6-2 • CCD 9-4 • CCD 9-5 • CCD 9-6 • CCD 15-2 • Portable light • Five-bulb cargo light • Single bulb cargo light • Resin work light • WB -1 • WB -2 • DSM - 1M • DSM - 2M • DSM - 3M • DSM – 2M - A

  11. PRODUCTS SPOT LIGHTS • Spot light • Searchlight

  12. PRODUCTS WATERTIGHT WELDING CABLE CONNECTORS • CONNECTORS - 300 A • CONNECTORS - 500 A

  13. PRODUCTS EXPLOSION – PROOF LIGHTS • Explosion–proof light • Explosion–proof portable light

  14. PRODUCTS ELECTRIC CONNECTORS SERIES COPPER • Marine copper switch • HH 101 • HH 201 • HH 202 • Marine copper plug • Marine copper socket • Marine copper socket with switch • CZKH 101 • CZKH 202 • Marine copper junction box

  15. PRODUCTS ELECTRIC CONNECTORS SERIES NYLON • Marine nylon switch • Marine nylon plug • Marine nylon socket • Marine nylon socket with switch • Marine nylon junction box • Marine nylon watertight plug • CTF 2 – 1 / 2 pin / • CTF 3 – 1 / 3 pin / • T - 1MB • T – 1MA • T – 2MA • T – 2MB • Marine nylon watertight socket with switch • Marine nylon watertight socket • CZF 2-1 / 2 pin / • CZF 3-1 / 3 pin / • Marine nylon watertight switch • HF 3-1 • HF 4-1 • Marine nylon watertight junction box • Watertight receptacle - 3 pin / 1M • Watertight receptacle – 4 pin / 2M • Watertight plug and receptacle with switch – 3 pin / HNA

  16. PRODUCTS MARINE SOUND SIGNALS • DC power-fail electric bell • DC alarm bell • AC alarm bell

  17. PRODUCTS FITTINGS OF LAMPSHADE • Navigation light lampshade • Lampshade of fluorescent pendant light • Portable light lampshade

  18. PRODUCTS OTHER MARINE EQUIPMENT • Lifejacket • Brass flag hook • Lifeboat brass hook • Fireproof line • Lifeboat rowlocks • Radar reflector • Release hook • Fire hatches • Lifeboat daylight signal mirror

  19. PRODUCTS CLAMPS FOR HYDRAULIC PIPES Available size : / 8 mm ; 10 mm ; 12 mm ; 14 mm ; 16 mm ; 18 mm ; 20 mm ; 22 mm ; 24 mm ; 26 mm /

  20. Frosted lamp vibration service • IMPA – 790104 • Model – E-27 / Screw base • Power – 40 W • Rating voltage – 110 V • IMPA – 790108 • Model – E-27 / Screw base • Power – 100 W • Rating voltage – 110 V • IMPA – 790128 • Model – E-27 / Screw base • Power – 100 W • Rating voltage – 220 V • IMPA – 790130 • Model – E-27 / Screw base • Power – 200 W • Rating voltage – 220 V

  21. Vibration service clear lamp /screw base / • IMPA – 790185 • Model – E-27 / Screw base • Power – 60 W • Rating voltage – 110 V • IMPA – 790195 • Model – E-27 / Screw base • Power – 60 W • Rating voltage – 220 V

  22. Vibration service clear lamp/ bayonet base / • IMPA – 790204 / 790206 • Model – B-22 • Power – 40 W / 75 W • Rating voltage – 110 V • IMPA – 790219 / 790221 • Model – B-22 • Power – 40W / 75 W • Rating voltage – 220 V

  23. Navigation lamp • IMPA – 790401 • Model – E-27 • Power – 40 W • Rating voltage – 24 V • IMPA – 790403 • Model – E-27 • Power – 40W • Rating voltage – 110 V • IMPA – 790405 • Model – E-27 • Power – 40W • Rating voltage – 220 V • IMPA – 790406 • Model – E-27 • Power – 60W • Rating voltage – 220 V

  24. Tubular navigation lamp • IMPA – 790421 • Model – E-27 • Power – 60 W • Rating voltage – 110 V • IMPA – 790422 • Model – E-27 • Power – 40W • Rating voltage – 220 V • IMPA – 790423 • Model – E-27 • Power – 40W • Rating voltage – 220 V • IMPA – 790424 • Model – E-27 • Power – 60W • Rating voltage – 220 V

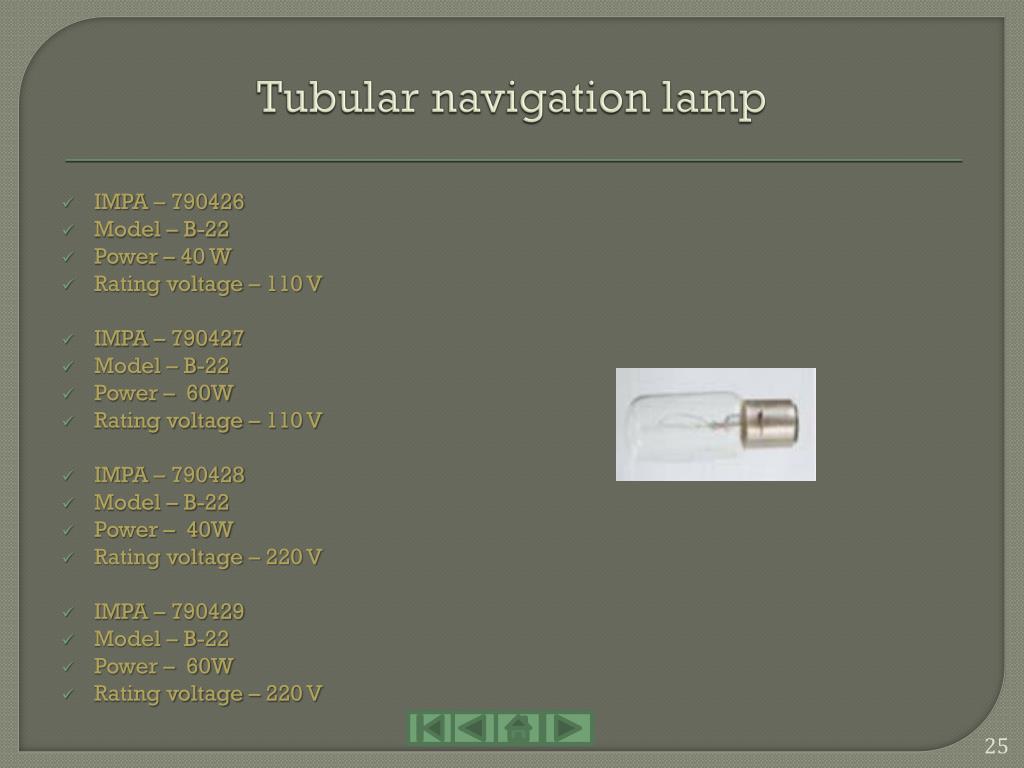

  25. Tubular navigation lamp • IMPA – 790426 • Model – B-22 • Power – 40 W • Rating voltage – 110 V • IMPA – 790427 • Model – B-22 • Power – 60W • Rating voltage – 110 V • IMPA – 790428 • Model – B-22 • Power – 40W • Rating voltage – 220 V • IMPA – 790429 • Model – B-22 • Power – 60W • Rating voltage – 220 V

  26. Tubular navigation lamp / P-28S Prefocus base / • IMPA – 790431 • Model – P-28S • Power – 40 W • Rating voltage – 110 V • IMPA – 790432 • Model – P-28S • Power – 60W • Rating voltage – 110 V • IMPA – 790433 • Model – P-28S • Power – 40W • Rating voltage – 220 V • IMPA – 790434 • Model – P-28S • Power – 60W • Rating voltage – 220 V

  27. Emergency battery lamp • IMPA – 790455 • Model – E-27 • Power – 60 W • Rating voltage – 12 V • IMPA – 790465 • Model – E-27 • Power – 60W • Rating voltage – 24 V • IMPA – 790466 • Model – E-27 • Power – 100W • Rating voltage – 24 V • IMPA – 790486 • Model – B-22 • Power – 100W • Rating voltage – 220 V

  28. Pilot tubular lamp – screw base • IMPA – 790501 • Model – E-9 / T 10x28 mm • Power – 0.15 A • Rating voltage – 6.3 V • IMPA – 790503 • Model – E-9 / T 10x28 mm • Power – 0.11 A • Rating voltage – 8 V • IMPA – 790505 • Model – E-9 / T 10x28 mm • Power – 0.11 A • Rating voltage – 24 V • IMPA – 790511 • Model – E-9 / T 10x28 mm • Power – 5 W • Rating voltage – 220 V

  29. Pilot tubular lamp – screw base • IMPA – 790516 • Model – E-12 / T 13x33 mm • Power – 0.15 A • Rating voltage – 6.3 V • IMPA – 790518 • Model – E-12 / T 13x33 mm • Power – 0.11 A • Rating voltage – 12 V • IMPA – 790520 • Model – E-12 / T 13x33 mm • Power – 0.11 A • Rating voltage – 24 V

  30. Pilot tubular lamp – screw base • IMPA – 790531 • Model – E-12 / T 15x45 mm • Power – 0.15 A • Rating voltage – 6.3 V • IMPA – 790533 • Model – E-12 / T 15x45 mm • Power – 0.11 A • Rating voltage – 12 V • IMPA – 790535 • Model – E-12 / T 15x45 mm • Power – 0.11 A • Rating voltage – 28 V

  31. Pilot tubular lamp – screw base • IMPA – 790541 • Model – E-12 / T 20x48 mm • Power – 5 W • Rating voltage – 12 V • IMPA – 790544 • Model – E-12 / T 20x48 mm • Power – 0.11 A • Rating voltage – 24 V • IMPA – 790551 • Model – E-12 / T 20x48 mm • Power – 5 W • Rating voltage – 110 V

  32. Pilot tubular lamp – screw base • IMPA – 790561 • Model – E-12 / T 20x70 mm • Power – 10 W • Rating voltage – 110 V • IMPA – 790563 • Model – E-12 / T 20x70 mm • Power – 10 W • Rating voltage – 220 V • IMPA – 790568 • Model – E-14 / T 15x48 mm • Power – 5 W • Rating voltage – 24 V • IMPA – 790571 • Model – E-12 / T 15x48 mm • Power – 15 W • Rating voltage – 220 V

  33. Pilot tubular lamp – screw base • IMPA – 790576 • Model – E-27 / T 26x60 mm • Power – 5 W • Rating voltage – 24 V • IMPA – 790578 • Model – E-27 / T 26x60 mm • Power – 15 W • Rating voltage – 110 V • IMPA – 790580 • Model – E-27 / T 26x60 mm • Power – 15 W • Rating voltage – 220 V

  34. Pilot tubular lamp – screw base • IMPA – 790584 • Model – E-27 / T 26x70 mm • Power – 5 W • Rating voltage – 24 V • IMPA – 790585 • Model – E-27 / T 26x70 mm • Power – 10 W • Rating voltage – 110 V • IMPA – 790587 • Model – E-27 / T 26x70 mm • Power – 10 W • Rating voltage – 220 V

  35. Pilot tubular lamp – bayonet base • IMPA – 790601 • Model – BA-9S / T 10 x 28 mm • Power – 0.15 A • Rating voltage – 6.3 V • IIMPA – 790604 • Model – BA-9S / T 10 x 28 mm • Power – 0.11 A • Rating voltage – 18 V • IMPA – 790606 • Model – BA-9S / T 10 x 28 mm • Power – 0.11 A • Rating voltage – 28 V • IMPA – 7906 • Model – BA-15S / T 18 x 35 mm • Power 1 W • Rating voltage – 12 V

  36. Pilot tubular lamp – bayonet base • IMPA – 790616 • Model – BA-15D / T 10 x 28 mm • Power – 0.11 A • Rating voltage – 18 V • IMPA – 790620 • Model – BA-15D / T 20 x 48 mm • Power – 5 W • Rating voltage – 24 V

  37. Miniature pilot lamp • IMPA – 790718 • Model – S 5.5-0 / T 5 x 16 mm • Power – 0.04 A • Rating voltage – 28 V

  38. Telephone indicator lamp / Taunus lamp / • IMPA – 790758 • Model – T 6.8 x 45 mm / Type 30 • Power – 50 mA • Rating voltage – 24 V

  39. Telephone indicator lamp / Taunus lamp / • IMPA – 790770 • Model – T 6.8 x 45 mm / Type 45 • Power – 90 mA • Rating voltage – 24 V

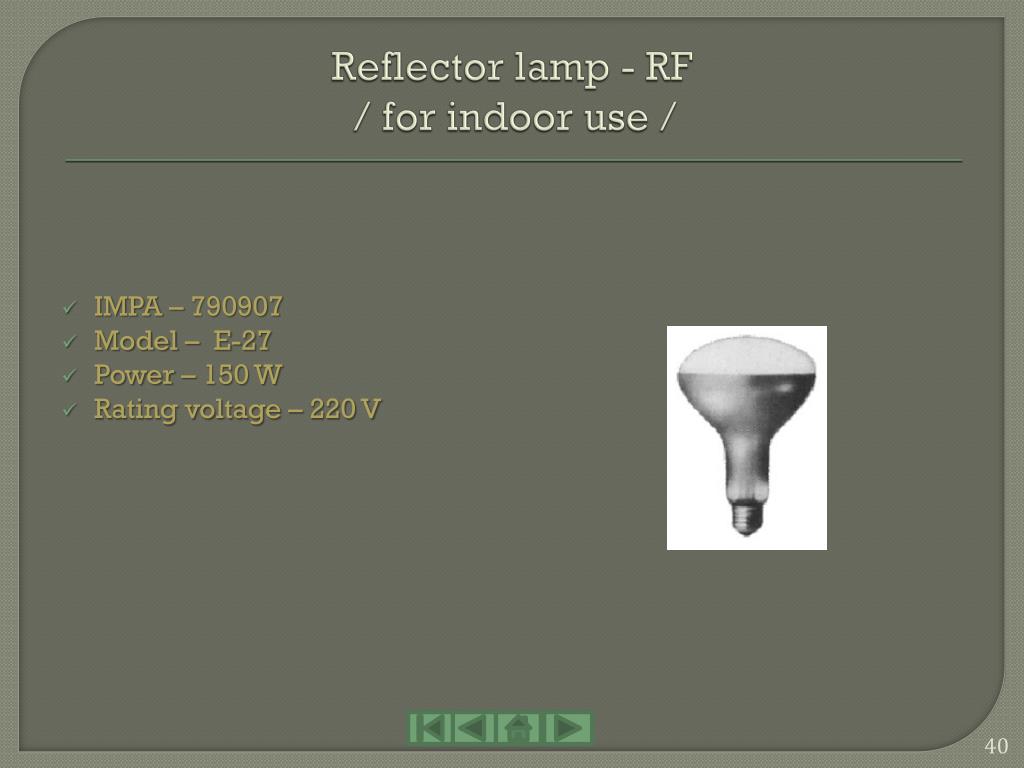

  40. Reflector lamp - RF / for indoor use / • IMPA – 790907 • Model – E-27 • Power – 150 W • Rating voltage – 220 V

  41. Spot reflector lamp - RS / for indoor use / • IMPA – 790917 • Model – E-27 • Power – 150 W • Rating voltage – 220 V

  42. Flat reflector lamp – RF - H / for outdoor use / • IMPA – 790922 • Model – E-27 • Power – 150 W • Rating voltage – 110 V • IMPA – 790925 • Model – E-40 • Power – 500 W • Rating voltage – 110 V • IMPA – 790932 • Model – E-27 • Power – 150 W • Rating voltage – 220 V

  43. Spot reflector lamp – RS-H / for outdoor use / • IMPA – 790952 • Model – E-27 • Power – 150 W • Rating voltage – 220 V

  44. Mercury reflector lamp – HF • IMPA – 791102 • Model – E-27 • Power – 80 W • Rating voltage – 220 V • IMPA – 791104 • Model – E-27 • Power – 200 W • Rating voltage – 220 V

  45. Mercury reflector lamp – BHF • IMPA – 791155 • Model – E-27 • Power – 160 W • Rating voltage – 220 V • IMPA – 791104 • Model – E-27 • Power – 300 W • Rating voltage – 220 V

  46. Self ballasted mercury lamp – BHRF • IMPA – 791165 • Model – E-27 • Power – 160 W • Rating voltage – 220 V

  47. High pressure sodium lamp – / T - bulbs / • IMPA – 791212 • Model – E-40 / T 48x257 mm • Power – 250 W • IMPA – 791213 • Model – E-40 / T 48x257 mm • Power – 400 W

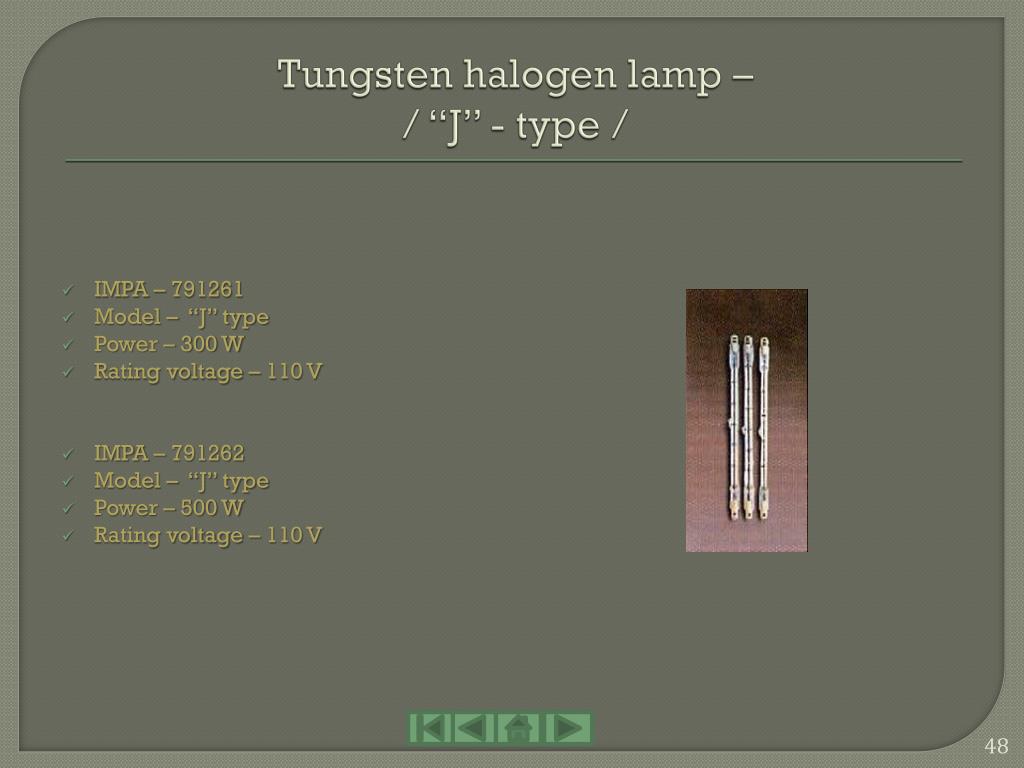

  48. Tungsten halogen lamp – / “J” - type / • IMPA – 791261 • Model – “J” type • Power – 300 W • Rating voltage – 110 V • IMPA – 791262 • Model – “J” type • Power – 500 W • Rating voltage – 110 V

  49. Tubular shape halogen lamp – / “JT” - type / • IMPA – 791271 • Model – “JT” type • Power – E-40 / 500 W • Rating voltage – 110 V • IMPA – 791272 • Model – “JT” type • Power – E-40 / 500 W • Rating voltage – 220 V • IMPA – 791273 • Model – “JT” type • Power – E-40 / 1000 W • Rating voltage – 220 V

  50. Starters for fluorescent lamps • IMPA – 791503 • Model – FG-7P / S2 • Rating voltage – 110 V
