  1. Learn & Master - HP Quality Center Certification Exam Code HPO-M15 >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  2. Chapters Being Covered Chapter - 1: Introduction to HP Quality Center. Chapter - 2: Release Management Module. Chapter - 3: Test Plan Module. Chapter - 4: Test Lab Module. Chapter - 5: Defect Management Module. Chapter - 6: Reports Module. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  3. HP Quality Center - Introduction HP Quality Center is a test management tool. It offers an organized framework for testing applications. It is a web based application which manages all aspects of testing process which otherwise is a time consuming activity. It helps maintain a project database of tests that cover all aspects of application functionality. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  4. It can be attached to our email system so that the information about the defect can be supplied to all people concerned. For example Developers, persons in customer support and quality assurance personnel. This can be integrated with automated tools like Winrunner, QTP, Load runner so that we can get a fully automated application testing. Graphs and reports can be generated to analyze the information. HP Quality Center - Introduction >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  5. Why Quality Center • One stop shop for all testing related tasks. • Coherence of different tasks. • Better analysis and management. • Easier to track >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  6. Test Management Process Specify Requirements Analysis Plan/Create Tests Execute Tests Report and Graph Generation Track defects >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  7. Quality Center Modules The quality center has following basic modules. Releases Requirements Test Plan Test Lab Defects Additional modules Business components Dash board >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  8. Quality Center Add- ins At times Quality center responds slow due to the client server nature of application. The response depends on many parameters like network configurations, geographical locations of testing team, load on system etc. To overcome the network problems test wares can be first created in Microsoft word or Excel and then uploaded in QC. To upload MS word document QC needs Microsoft word add-in To upload Excel document QC needs Microsoft Excel add-in To connect to QTP, needs QTP Add-in. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  9. Chapter - 2: HP Quality CenterRelease Management Module >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  10. HP Quality Center – Release Management The application testing process begins by defining a release tree in Releases module. Here is the release management work flow. Define Releases and Cycles Assign Requirements Assign and run Test sets Assign Defects Analyze Releases and Cycles >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  11. The foundation of the release module is the Release Tree. Release Tree enables the modeling of the upcoming releases within a hierarchical tree structure. A project manager starts by defining a release folder along with its releases. A release represents a group of changes in one or more applications that will be available for distribution at the same time. After defining the release, a QA manager defines cycles. A cycle is a set of development and quality assurance efforts performed to achieve a common goal based on the release timeline. Defining Releases and Cycles >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  12. Defining Releases and Cycles For example, suppose you are defining upcoming releases for the sample Mercury Tours application. The Mercury Tours Application folder contains Release 10.5. This release includes four cycles. You might define the releases and cycles in the releases tree as follows: >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  13. QA manager also can assign Start date and End date for each cycle. Defining Releases and Cycles >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  14. Assigning Requirements After defining the releases and cycles, the QA manager assigns the Requirements from requirement module to Releases and Cycles. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  15. Enter the details of Target Cycle and Target Release. Assigning Requirements >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  16. Assigning and Running Tests Once requirements are assigned, Each Test set folder from Test Lab module is assigned to each cycle. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

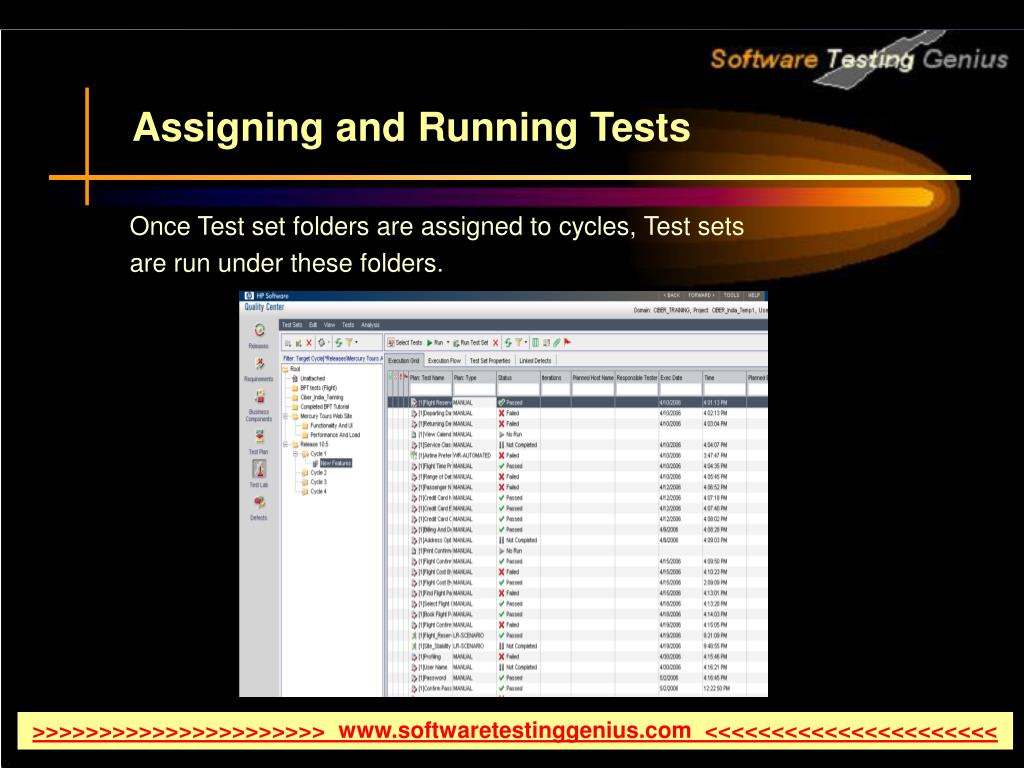

  17. Assigning and Running Tests Once Test set folders are assigned to cycles, Test sets are run under these folders. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  18. Assigning Defects If an application flaw is detected while running a test set, the QA engineer can submit a defect. Quality Center automatically creates a link between the test run, associated release and cycle, and the new defect. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  19. Analyzing Releases and Cycles • Following test runs, the QA manager reviews the test progress to determine how well it meets the release goals. • The QA manager can also determine how many defects were resolved, and how many still remain open. The results can be analyzed at a release or at a cycle level. • It also helps track the progress of the testing process in real time by analyzing the releases tree and ensuring that it matches the release goals. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  20. Chapter - 3: HP Quality CenterTest Plan Module >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  21. Topics Being covered • What is Test Plan module? • Test Plan Tree structure • Designing Tests • Parameters • Export / Import Test case >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  22. Quality Center - Test Plan Test Plan • It is a repository of test cases. • Can be accessed through the Test Plan section in the Quality Center • Uses Subject (Root)-Folders-Test Model • Folder or Test name can be # Module name # Scenario name # Functionality name • Test Plan starts after requirements are baselined >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  23. Quality Center - Test Plan Developing a Test Plan consists of the following Steps: >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  24. Test Plan Module Key elements in the Test Plan Module are Developing a Test Plan Tree Designing Tests Designing Test Steps Using parameters in tests Calling Tests Creating and Viewing Requirements Coverage Monitoring the status of test plans >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  25. Developing a Test Plan Tree To Create a Test plan Tree: Go to Tests>New Folder On New Folder dialog provide the required Folder name >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  26. Designing Tests Adding a test to the subject folder. Available test type: • Manual • Business Process • WR_Automated • LR_Scenario • VAPI_XP Test • System Test • Alt_Scenario • Quick Test_Test (Need QTP add-in) >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  27. Designing Tests • MANUAL:A Quality Center manual test. • WR-AUTOMATED: A test that is executed by WinRunner, HP's functional testing tool for Microsoft Windows applications. • LR-SCENARIO: A scenario that is executed by LoadRunner, HP's load testing tool. • QUICKTEST_TEST: A test that is executed by QuickTest Professional, HP's functional enterprise testing tool. Thistest type is only available if you have installed the appropriate add-in from the HP Quality Center Add-ins page. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  28. Designing Tests • VAPI-XP-TEST: A test that is created using Visual API-XP, the Quality Center open test architecture API testing tool. • SYSTEM-TEST: A test that instructs Quality Center to provide system information, capture a desktop image, or restart a machine. • BUSINESS-PROCESS: A business process test. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  29. The new test is added to the test plan tree under subject folder Add a test Description. In the Details tab, you can see the test name, test designer, creation date, test status, and other information. Designing Tests >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  30. Designing Test Steps Designing Test Steps: Goto Design Steps tab of created Test Click the Design Steps tab. Click the New Step button. The Design Step Editor opens >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  31. Define a step for displaying Yahoo login page Step Name: Display yahoo Login Page. Description: Launch a browser and enter URL as Yahoomail.com. Expected Result: Yahoo Login Page should be shown. Click OK Designing Test Steps >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  32. To create an another step click on New Step icon Define a step for displaying Yahoo login(Example) page Step Name: User Name & Password. Description: Enter User Name and Password. Click Login. Expected Result: User must Log on. Click OK Repeat the same to add more number of steps. Designing Test Steps >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  33. Exporting Excel Data to Quality Center Select all the rows in the Excel sheet that are to be exported Open the Excel sheet and click on “Tools->Export to Quality Center” >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  34. Select the domain and the Project Code Login with User ID Select the tab Exporting Excel Data to Quality Center >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  35. Select a Map An existing map can be selected or a new map can be created This maps each field on the excel sheet with a corresponding field in the Quality Center Exporting Excel Data to Quality Center >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  36. List Box on the left contains on the fields that are required for logging defects. Fields in ‘Red’ color are the mandatory fields. These fields are set up by the admin. A field is selected from the left list box and added to the right list box. Against this field then the field name from the excel sheet is entered. Exporting Excel Data to Quality Center Mapped fields Creating Mapping >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  37. The fields are mapped. Exporting Excel Data to Quality Center >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  38. Defect is successfully uploaded Exporting Excel Data to Quality Center Defect loaded in QC >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  39. Copying Test Steps Display the Design Steps tab for yahoo_Login(Example) Click the Design Steps tab. Select the steps that you want to copy. Copy the selected steps. Paste the steps into the Yahoo_Search test(Example) >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  40. Adding Parameters to test Display the Design Steps tab for Yahoo_Login Step 1:Launch a browser and enter URL. In that highlight the word URL and click on Insert Parameter icon. It opens Parameter properties dialog. Enter URL in the Parameter Name. Click OK. Displays the parameter as below: Repeat the same for Username and Password. Parameters in the test looks as below: >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  41. Calling Tests Calling a Test We can call an existing test to a current test It is useful if you have common steps that you often want to perform as parts of other tests. Click on Call to Test button. Select a required existing test >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  42. Requirements Coverage In the Test Plan module, you create requirements coverageby selecting requirements to link to a test. Alternatively, in the Requirements module, you create tests coverageby selecting tests to link to a requirement. A test can cover more than one requirement, and a requirement can be covered by more than one test. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  43. Linking Requirements to a Test Display the Yahoo_Search test. Display the Req Coverage tab. Display the requirements tree. Click the Select Req button and expand the requirements tree displayed on the right. Add the Child1 requirement to the coverage grid. Hide the requirements tree. Click the Close button. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  44. Chapter - 4: HP Quality CenterTest Lab Module >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  45. Topics Being covered • Introduction • Creating Test Sets • Executing Test Sets • Analyzing Results • Linking Activities >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  46. Test Lab Test Lab module is used to run the test cases. The Test run process begins with creating the Test Set Tree and running the tests. Initially a Test Set Folder is created. Depending on the testing goals you can add Tests to the Test Folder. Test sets can contain both manual and automated Test. We can include the same Test in different Test Sets or add a few Test instances to the same Test Set. We can schedule date and time for the execution of Test Sets. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  47. Process Flow >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  48. Create a Test Set • Select the Test Lab module • Click on Create Folder icon at the left corner of the module and give the name for the folder. • Select the created folder and click on create test set to create a set and give name and description for the test set. • A New Test Set is created. • Select the Test set created. • In the ‘Test set properties’ >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  49. Create a Test Set • Test Set Properties Window: • The ‘Details’ tab enables to give the estimated open date of test and estimated close date of test set. • In the ‘attachments’ tab we can add an attachment to the test set. Attachment can be a file, URL, snapshot of application, and item from the clip board or system information. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<

  50. Create a Test Set • ‘On failure’ tab enables to set the conditions if any of the automation test fails. Conditions are like stop the test set, repeat the failed test or rerun the test set or do nothing. • ‘Notifications’ tab enables send notifications to an user if any of the test is finished with failed status, or failed due to some network issues, or execution of test set is finished. >>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<
