  1. Continental Drift Chapter 10 Section 1

  2. Continental Puzzle • Do the continents fit together perfectly? • What continents fit the best? • What other information would you look for to provide evidence that continents may have once been part of one large continent?

  3. Alfred Wegener & Continental Drift • 1912 proposed supercontinent • Pangaea • Continents separated and drifted apart

  4. Evidence • Coastline similarities • Fossils • Rock formations • Climates

  5. Coastline Similarities • Continents on either side of Atlantic ocean seem to fit together • Contours of eastern coast of South America fit along the contours of the western coast of Africa

  6. Coastline Similarities

  7. Fossils • Mesosaurus – reptile fossils found only in southern South America and western Africa • Glossopteris – plant fossils found in South America, southern Africa, India, Australia, and Antarctica (Southern Hemisphere)

  8. Mesosaurus Fossils

  9. Fossil Evidence

  10. Rock Formations • Mountain ranges of eastern South America (Brazilian Highlands) and western Africa (Cape Mountains) are the same • Mountain ranges in north eastern North America (Appalachian Mts.), Greenland, Scotland and northern Europe (Caledonian Mts.) are the same

  11. Rock/Geologic Formation Evidence

  12. Climates • Glacial evidence in South America, Antarctica, India, Australia and Africa • When viewed separately, glacial evidence on these continents suggests that the entire earth was covered with glaciers at one time, but this is contradicted by other evidence from sedimentary rocks • When continents are placed together, like a puzzle, glacial evidence is not world-wide, which coincides with other evidence • Tropical plant fossils in Antarctica • No plants currently grow in Antarctica, so plant fossils found there indicate warmer temperatures at one time

  13. Climate Evidence

  14. Antarctica Fossils

  15. Alfred Wegener and Continental Drift • Despite the evidence that seemed to suggest Pangaea, Wegener’s continental drift hypothesis was rejected by the scientific community • If the continents were moving apart, why wasn’t the Earth expanding? • Continents don’t plow through oceanic rock, so how can they move? • There was no evidence for the mechanism of tectonic plates or their movement

  16. Evidence for the Theory of Plate Tectonics • In the mid part of the 20th Century, discoveries were made as a result of Naval technologies that enables the mapping of the sea floor • Hitler had gotten very close to the U.S. in WWII, via submarines (in the coastal waters of the eastern seaboard) • U.S. raced to learn more about the ocean floor in order to develop better submarine capabilities

  17. Mid-Ocean Ridges and Rift Valleys • 1947 mapping project • sonic technology enabled the mapping of the sea floor • Rift valleys and mid-ocean ridges were discovered • Rift valley – a rip, or rift, in a tectonic plate at which volcanic activity is found • Mid-ocean ridge – the mountain ranges found on either side of a rift valley, formed from magma building up on either side of a rift

  18. Mid-Ocean Ridge/Sea-Floor Spreading

  19. Mid-Atlantic Ridge

  20. Features of Mid-Ocean Ridges

  21. Paleomagnetism • Magnetometers developed during WWII to detect submarine hulls also discovered that Earth’s rock record contains magnetic reversals • Normal magnetism and reverse magnetism alternates in rocks during specific periods • Magnetic symmetry – magnetic bands (reverse and normal) are mirror images on either side of mid-ocean ridges • Suggests that magnetism of Earth changes • Metals in molten magma align with the magnetism at the time of crystallization • Igneous rocks (basalt) retain the magnetic orientation at time of formation

  22. Paleomagnetism

  23. Additional observations of Ocean Floors • Ages of ocean floor features increase in age as distance from the ridge increases • Sediments are thinner and younger nearer ridge • Fossils are younger nearer ridge • Rocks are younger nearer ridge • All this suggests that new oceanic crust is forming at the rift valleys

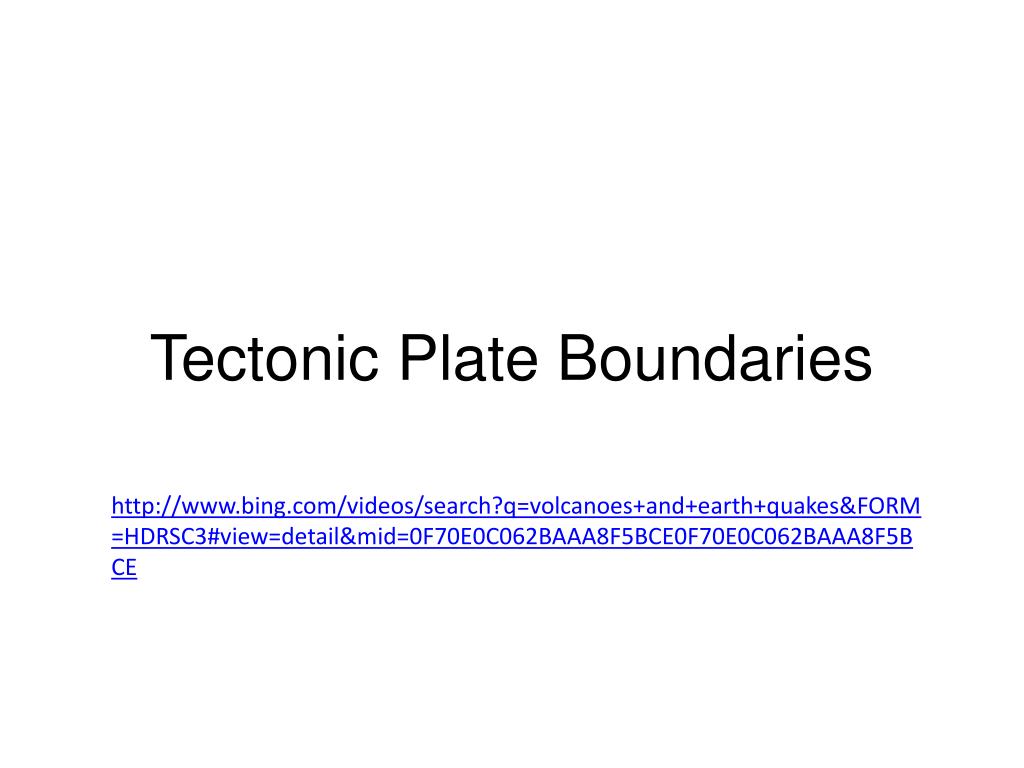

  24. Tectonic Plate Boundaries http://www.bing.com/videos/search?q=volcanoes+and+earth+quakes&FORM=HDRSC3#view=detail&mid=0F70E0C062BAAA8F5BCE0F70E0C062BAAA8F5BCE

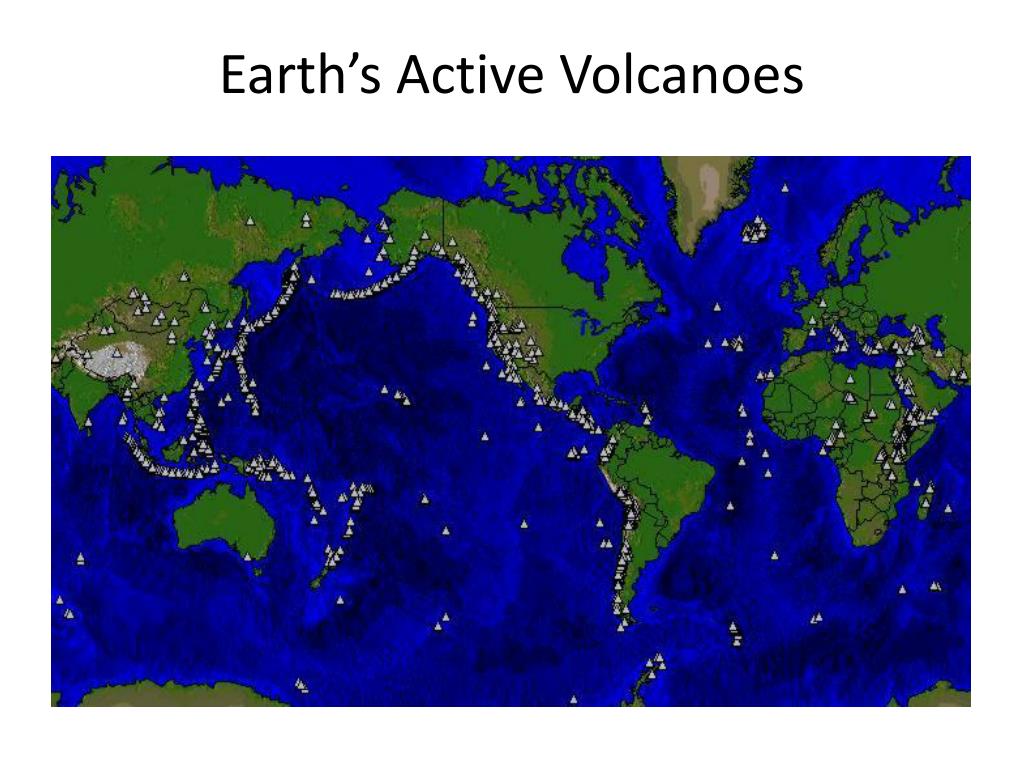

  25. Earth’s Active Volcanoes

  26. “Ring of Fire” • Area of high seismic and volcanic activity outlining the Pacific Ocean

  27. “Ring of Fire”

  28. Conservation of Energy • According to the law of conservation of energy, energy can’t be created nor destroyed. • What is the source of energy that drives volcanoes? • What energy source produces earthquakes?

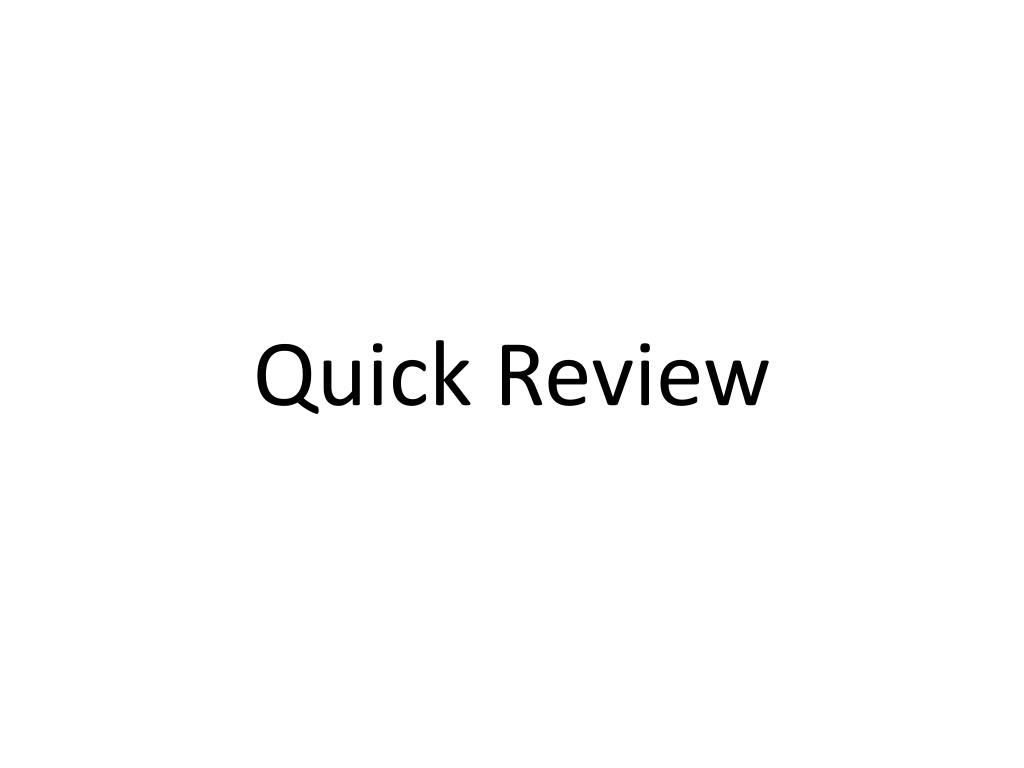

  29. Quick Review

  30. Lithosphere • Crust and upper portion of mantle

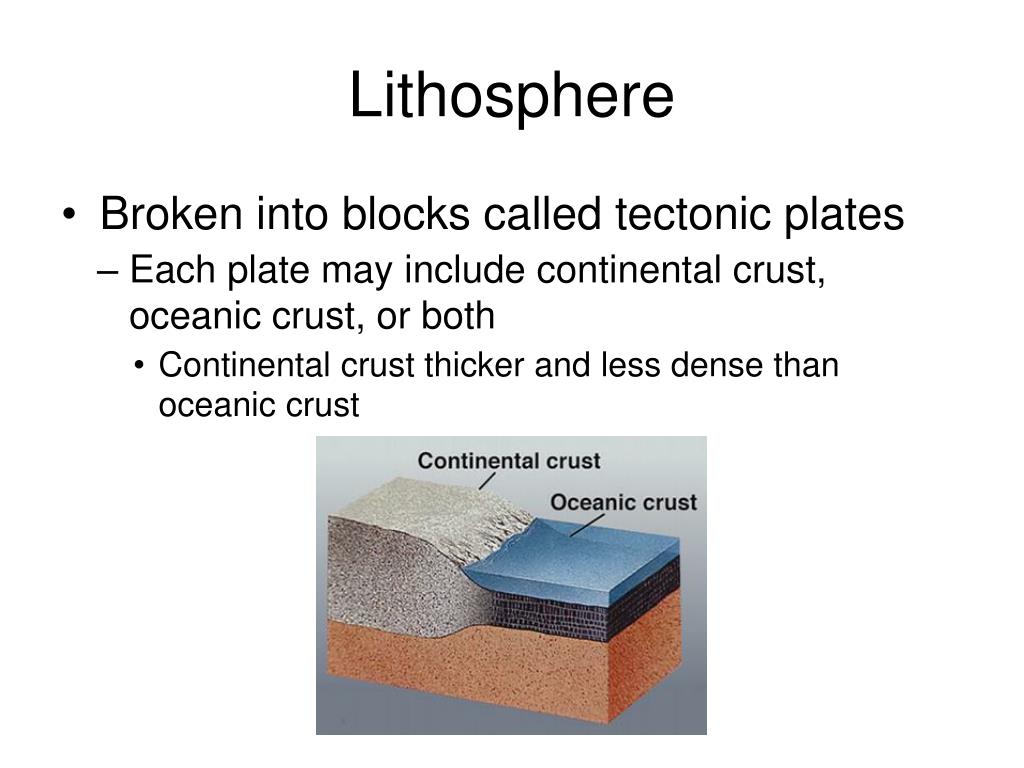

  31. Lithosphere • Broken into blocks called tectonic plates • Each plate may include continental crust, oceanic crust, or both • Continental crust thicker and less dense than oceanic crust

  32. Lithosphere • About 15 major tectonic plates

  33. Lithosphere • Tectonic plates “float” on Asthenosphere – solid, putty-like (“plastic”) rock below lithosphere • Asthenosphere flows very slowly

  34. Asthenosphere

  35. Tectonic Plates Interact • The tectonic plates of Earth’s lithosphere form the pieces of a very tightly-fitting puzzle. • Since plates move over the asthenosphere, they are bound to interact with each other • Plates interact at their boundaries in 3 major ways

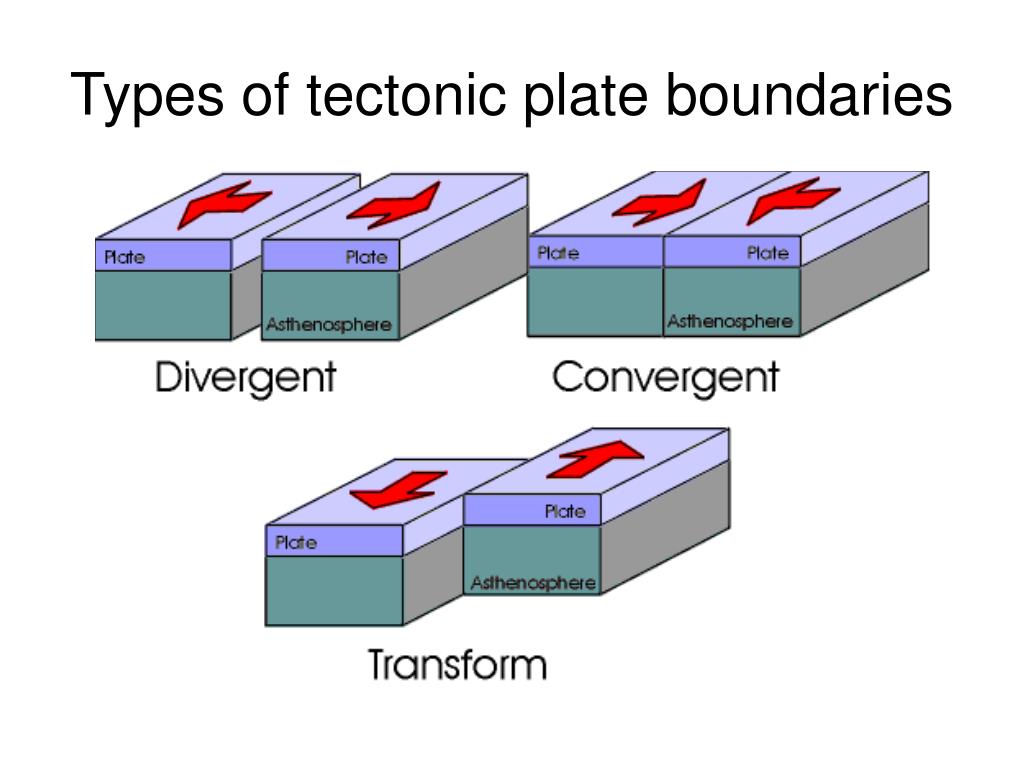

  36. Types of tectonic plate boundaries • Divergent Plate Boundaries • Convergent Plate Boundaries • Transform Plate Boundaries

  37. Types of tectonic plate boundaries

  38. Divergent Plate Boundaries • http://www.youtube.com/watch?v=2q4Yqctq6nE

  39. Divergent Plate Boundaries Boundary between tectonic plates that are diverging (moving apart) • Common features • Mid-ocean ridges • Rift valleys • Seafloor spreading • Volcanic activity • Seismic activity

  40. Divergent Boundary

  41. Examples • Mid-Atlantic Ridge • Red Sea – separation of African and Arabian plates

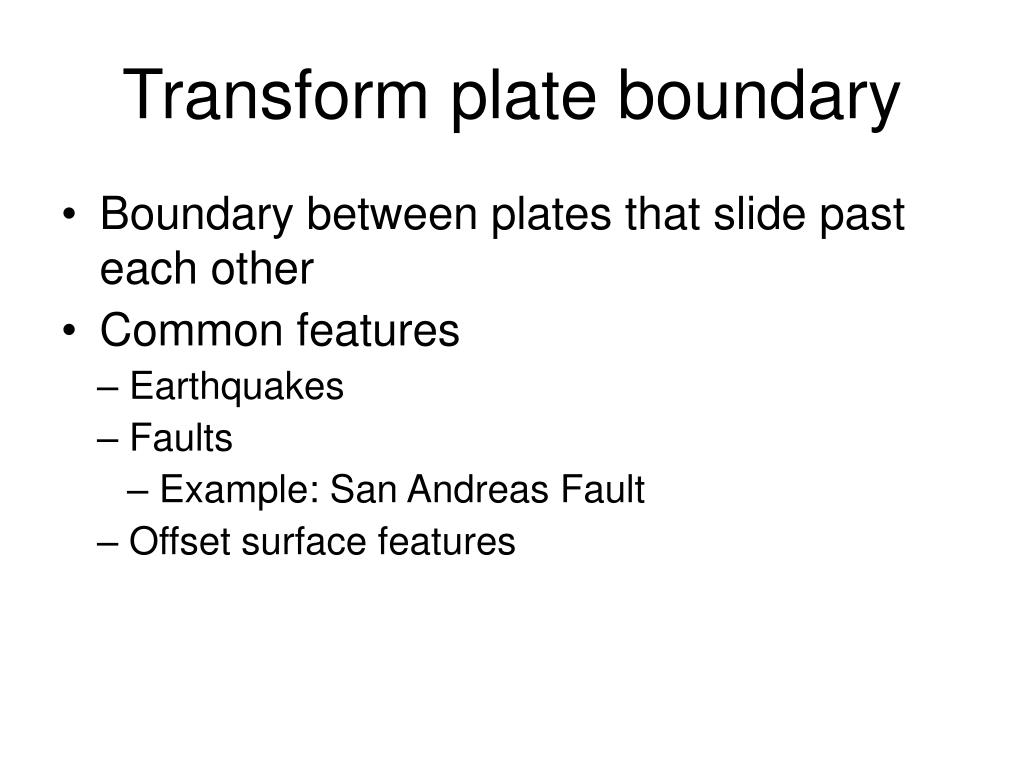

  42. Transform plate boundary • Boundary between plates that slide past each other • Common features • Earthquakes • Faults • Example: San Andreas Fault • Offset surface features

  43. Types of Plate Boundaries

  44. Transform Fault Boundary

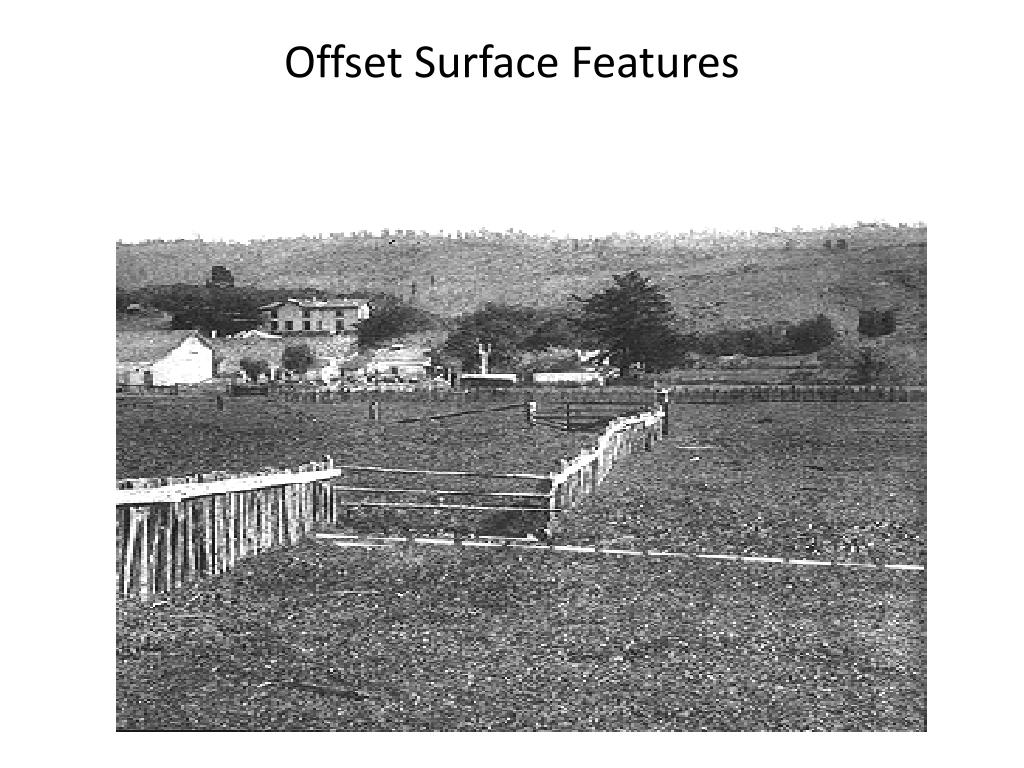

  45. Offset Surface Features

  46. Offset Surface Features

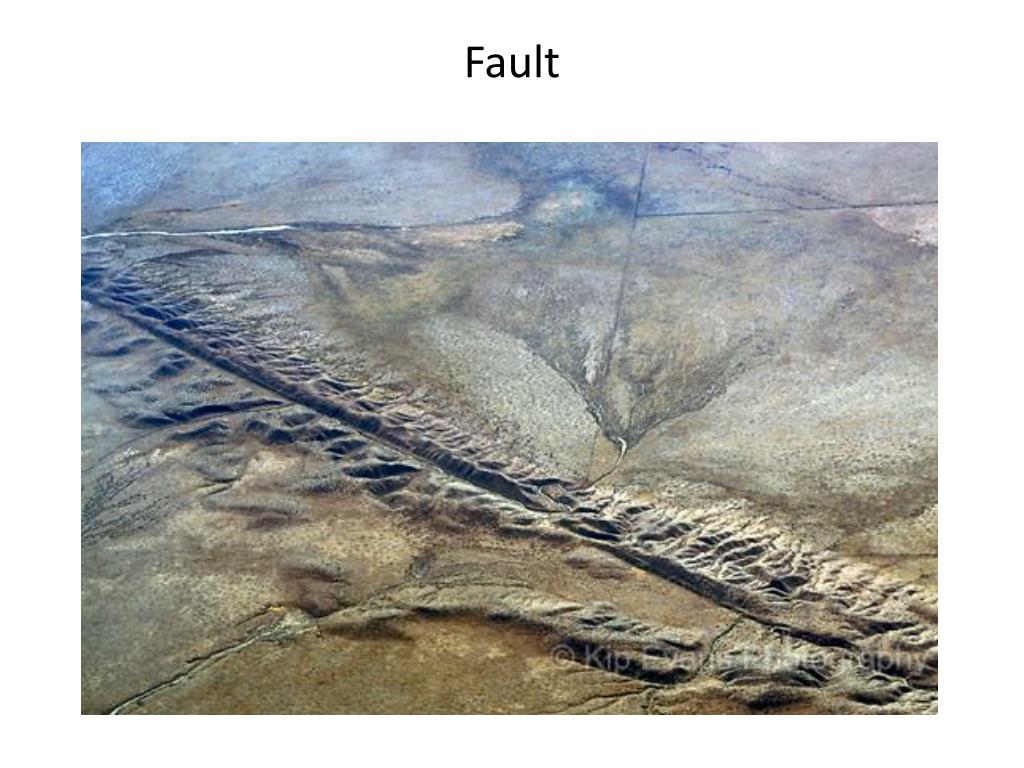

  47. Fault

  48. Fault and Offset Features

  49. Convergent plate boundary • Boundary between tectonic plates that are converging • Three types of collisions • Oceanic-continental collision • Oceanic-oceanic collisions • Continental–continental collisions
